Model Whirlpool DUFM454WDB01 VERTICAL FREEZER – Common Parts & Diagrams
03 - UNIT PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

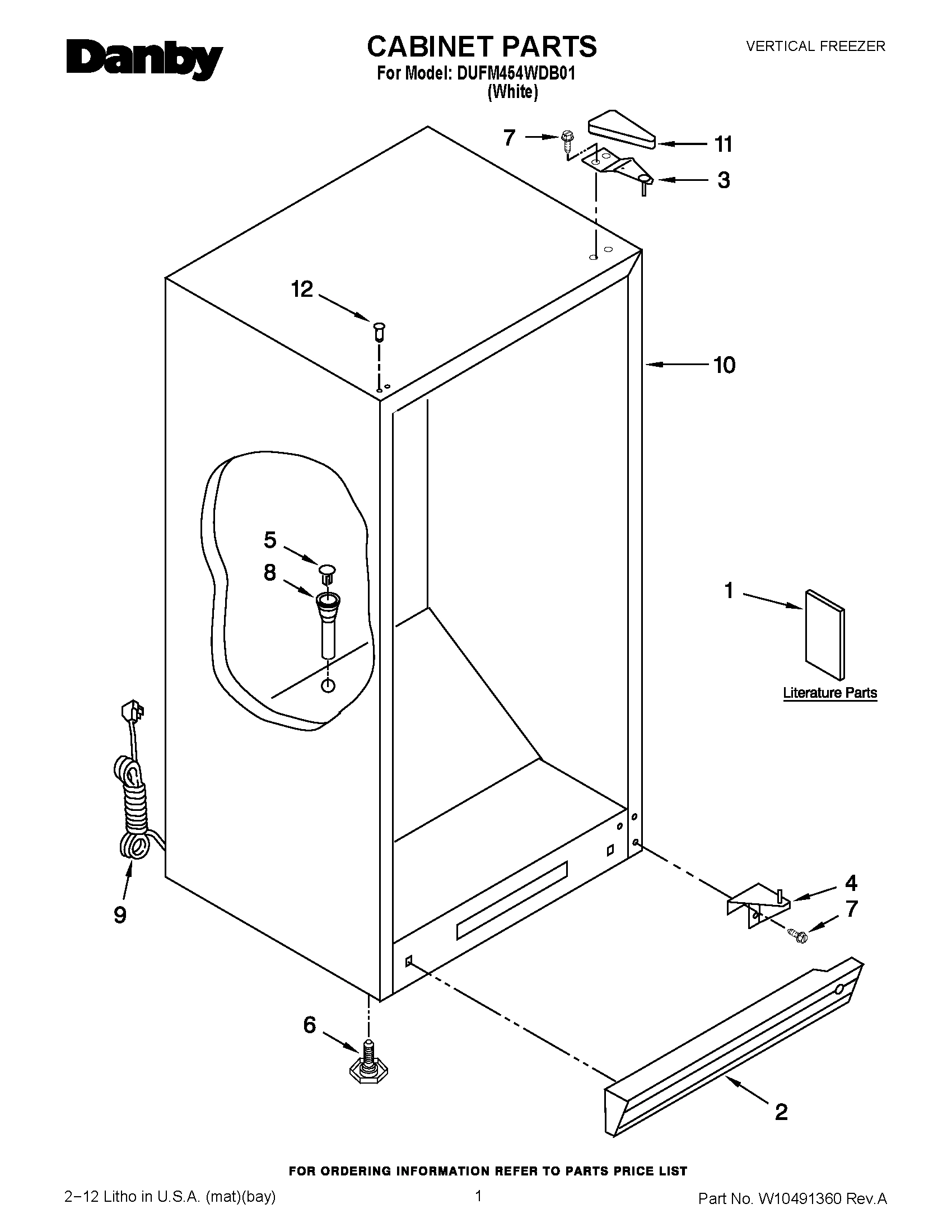

01 - CABINET PARTS
04 - DOOR PARTS

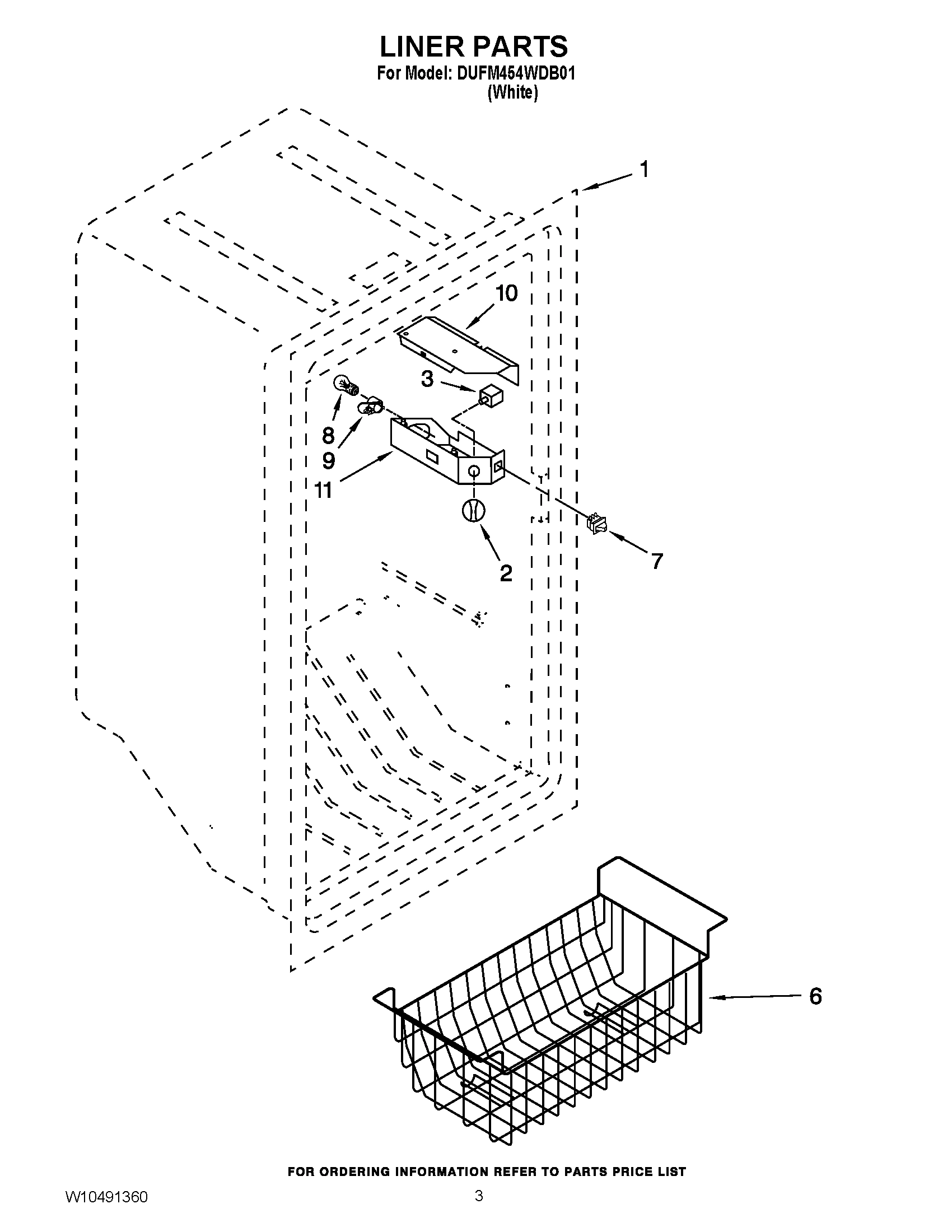

02 - LINER PARTS
Common parts from model Whirlpool DUFM454WDB01 VERTICAL FREEZER
1
LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
1
OWNERS MANUAL WPL W10326829 Contact Us For Availability
1
ENERGY LABEL/TAG WPL W10326833 Contact Us For Availability
2
GRILLE WPL 460461005 Contact Us For Availability
2
PLUG-HANDLE WPL 160121001 Contact Us For Availability
2
KNOB, CONTROL WPL 382390001 Contact Us For Availability
3
HINGE, TOP WPL 281016105 Contact Us For Availability
3
RAIL, DOOR (5) WPL 465427001 Contact Us For Availability
3
THERMOSTAT WPL 483053001 Contact Us For Availability
4
HINGE, BOTTOM WPL 482693002 Contact Us For Availability
4
VENT PLUG WPL 324898007 Contact Us For Availability
5
DRAIN PLUG WPL 180860 Contact Us For Availability
5
GASKET, DOOR WPL 465151601 Contact Us For Availability
6
LEG, LEVELER WPL 382710001 Contact Us For Availability
6
DOOR ASSEMBLY (INCLUDES INTERIOR LINER) WPL W10340674 Contact Us For Availability
6
BASKET WPL 460064002 Contact Us For Availability
7
SCREW WPL 180271103 Contact Us For Availability
7
NAMEPLATE WPL 335752001 Contact Us For Availability
7
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
8
GROMMET, DRAIN WPL 281437002 Contact Us For Availability
8
STOP, DOOR (BOTTOM ) (NATURAL) WPL 281124001 Contact Us For Availability
8
LIGHT BULB WPL 134291002 Contact Us For Availability
9
CORD, POWER WPL 482399001 Contact Us For Availability
9
BUSHING, HANDLE WPL 365447001 Contact Us For Availability
10
EVAPORATOR TOP WPL 482413007 Contact Us For Availability
10
SCREW WPL 324004091 Contact Us For Availability
10
SHIELD WPL 382392001 Contact Us For Availability
11
EVAPORATOR SHELF WPL 482194007 Contact Us For Availability
11
COVER, HINGE WPL 380838003 Contact Us For Availability
11
HANDLE ASSEMBLY WPL 382597002 Contact Us For Availability
11
BOX, CONTROL WPL 482389002 Contact Us For Availability
12
EVAPORATOR SHELF WPL 482195007 Contact Us For Availability
13
EVAPORATOR BOTT WPL 482197006 Contact Us For Availability
14
WASHER WPL 380681133 Contact Us For Availability
15
SCREW, EVAPORATOR MOUNTING WPL 324004109 Contact Us For Availability
16
HEAT EXCHANGER WPL 282030005 Contact Us For Availability
17
COVER WPL 335171003 Contact Us For Availability
18
CLAMP WPL 180308101 Contact Us For Availability
19
SCREW WPL 324838048 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
