Model Whirlpool DUF570WDD01 VERTICAL FREEZER – Common Parts & Diagrams

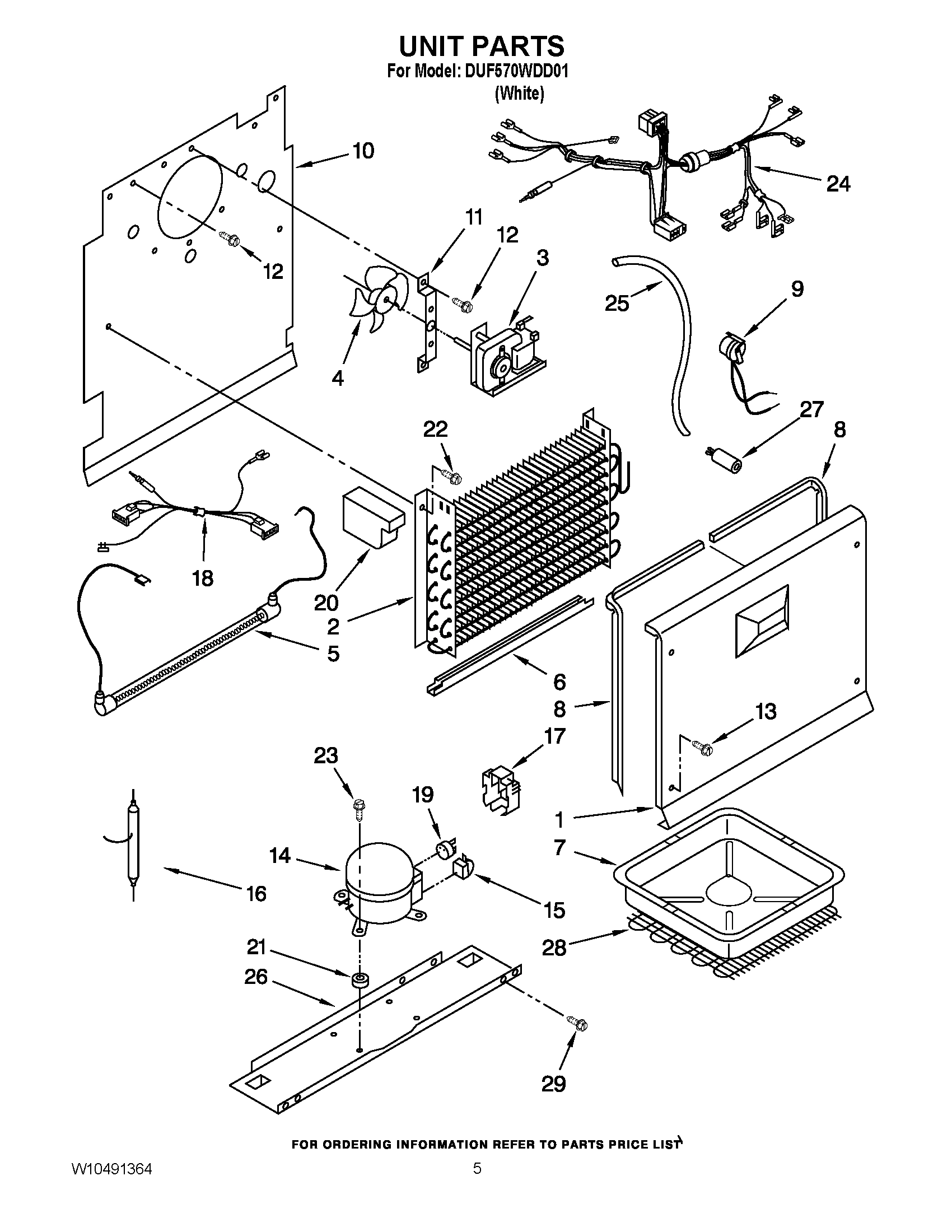

03 - UNIT PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

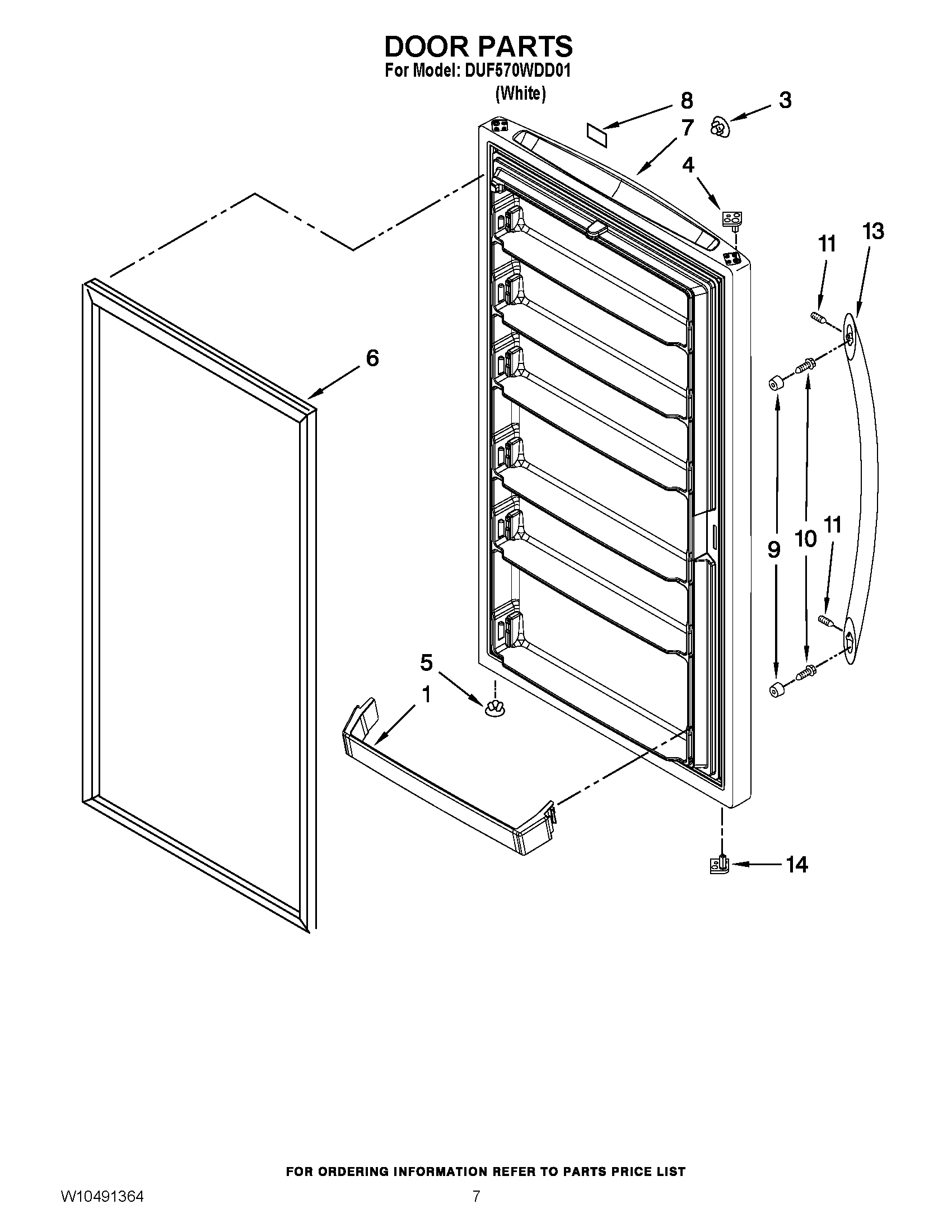

04 - DOOR PARTS

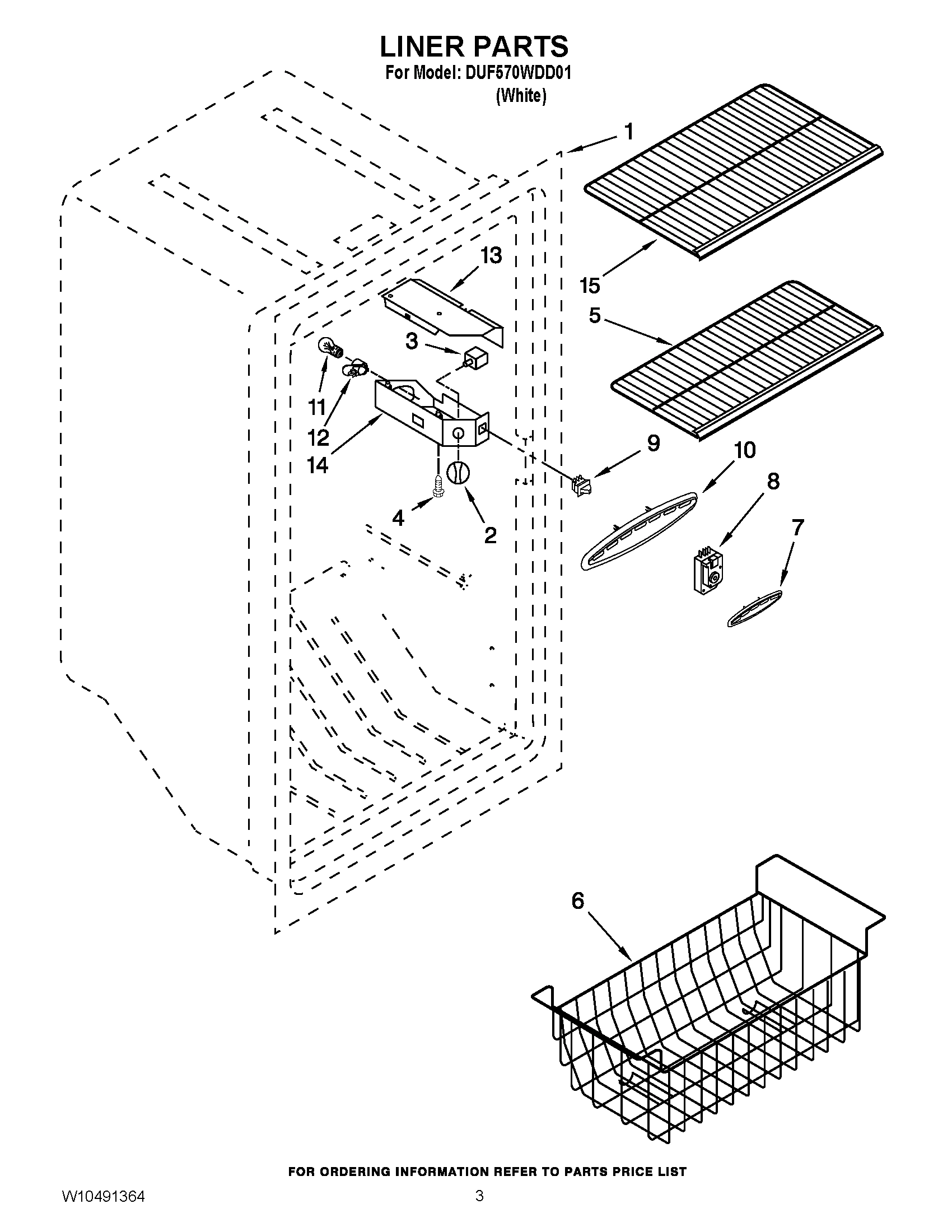

02 - LINER PARTS

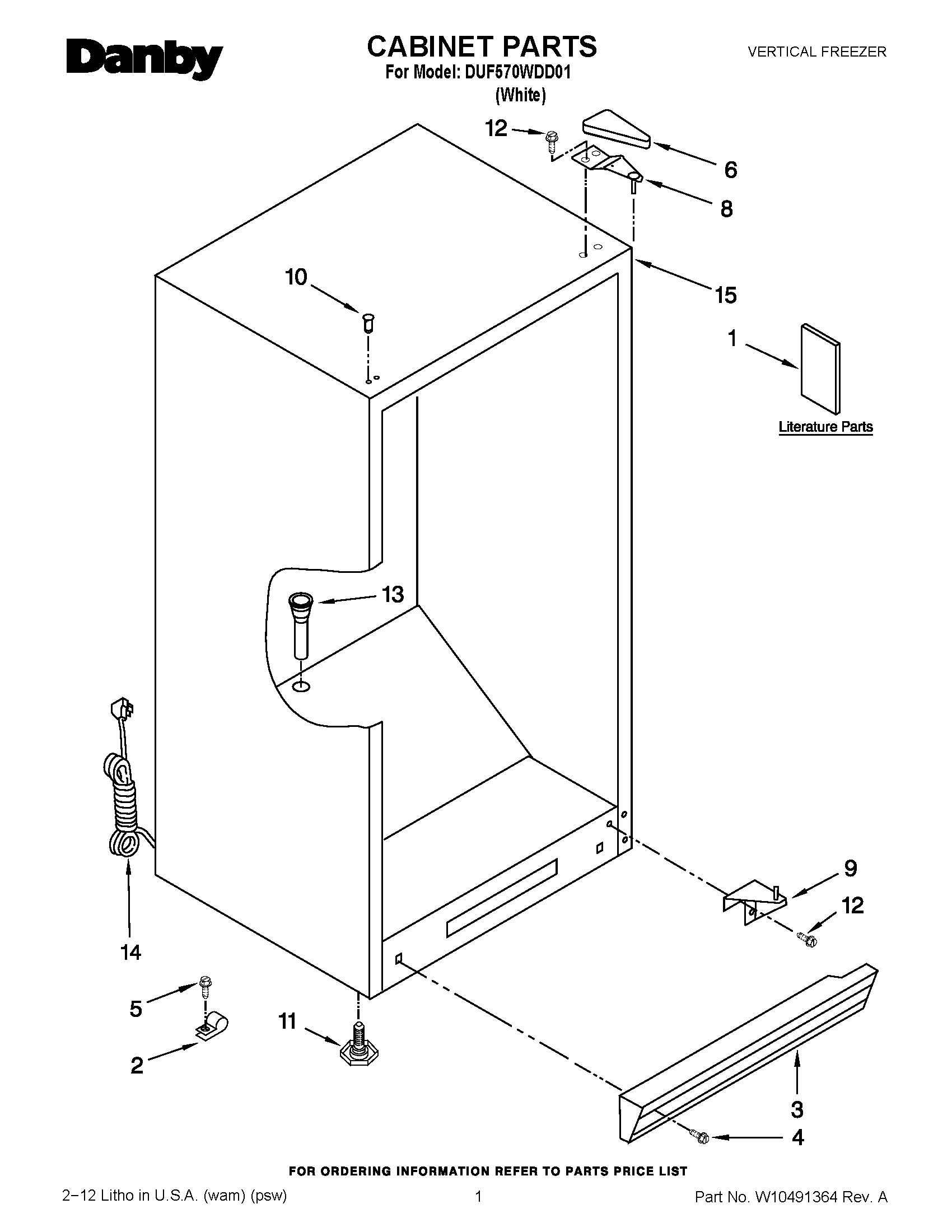

01 - CABINET PARTS
Common parts from model Whirlpool DUF570WDD01 VERTICAL FREEZER
1
RAIL, DOOR (1) WPL 482272001 Contact Us For Availability
1
OWNERS MANUAL WPL W10326828 Contact Us For Availability
1
ENERGY LABEL/TAG WPL W10326832 Contact Us For Availability
2
KNOB, CONTROL WPL 382390001 Contact Us For Availability
2
CLAMP, TUBE WPL 325095011 Contact Us For Availability
3
THERMOSTAT WPL 483053002 Contact Us For Availability
3
GRILLE WPL 460461006 Contact Us For Availability
4
SCREW WPL 324004092 Contact Us For Availability
4
SCREW WPL 324004107 Contact Us For Availability
5
VENT PLUG WPL 324898007 Contact Us For Availability
5
SHELF, LOWER WIRE WPL 482977002 Contact Us For Availability
5
SCREW WPL 380675105 Contact Us For Availability
6
GASKET, DOOR WPL 465151004 Contact Us For Availability
6
BASKET, WIRE WPL 460064001 Contact Us For Availability
6
COVER, HINGE WPL 380838003 Contact Us For Availability
7
DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER) WPL W10340638 Contact Us For Availability
7
DIFFUSER, AIR SHT WPL 482573002 Contact Us For Availability
8
NAMEPLATE WPL 335752002 Contact Us For Availability
8
DEFROST TIMER WPL 381329 Contact Us For Availability
8
HINGE, TOP WPL 281016105 Contact Us For Availability
9
BI-METAL DEFROST WPL 181801001 Contact Us For Availability
9
BUSHING, HANDLE WPL 365447001 Contact Us For Availability
9
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
9
HINGE, BOTTOM WPL 482693002 Contact Us For Availability
10
PLATE, EVAPORATOR MOUNT WPL 480504101 Contact Us For Availability
10
PLUG (WHITE) WPL 160121001 Contact Us For Availability
10
SCREW WPL 324004091 Contact Us For Availability
10
DIFFUSER, AIR UPR WPL 482556002 Contact Us For Availability
11
BRACKET, MOTOR WPL 280028101 Contact Us For Availability
11
Set Screw WPL 8533976 Contact Us For Availability
11
BULB, LIGHT WPL 134291002 Contact Us For Availability
11
LEVELER LEG KIT WPL 382710001 Contact Us For Availability
12
SCREW, MOTOR WPL 380732004 Contact Us For Availability
12
SCREW WPL 180271103 Contact Us For Availability
13
SCREW (4) WPL W10451793 Contact Us For Availability
13
HANDLE ASSEMBLY (INCLUDES ITEM 11) WPL 382597002 Contact Us For Availability
13
SHIELD, LIGHT WPL 382392001 Contact Us For Availability
13
GROMMET, DRAIN WPL 360696001 Contact Us For Availability
14
COMPRESSOR (INCLUDES ITEMS 15,16,17,19 & 21) WPL 432972143 Contact Us For Availability
14
STOP, DOOR (LOWER) WPL 281124001 Contact Us For Availability
14
BOX, CONTROL WPL 482389002 Contact Us For Availability
14
CORD, POWER (W/WIRING HARNESS) WPL 482399001 Contact Us For Availability
15
RELAY WPL 235154010 Contact Us For Availability
15
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
15
SHELF, UPPER WIRE WPL 482634002 Contact Us For Availability
16
DRIER WPL 334960001 Contact Us For Availability
17
COVER WPL 335171003 Contact Us For Availability
18
HARNESS, FAN WPL 481785001 Contact Us For Availability
19
OVERLOAD WPL 234286037 Contact Us For Availability
20
BLOCK, FOAM WPL 180252101 Contact Us For Availability
22
SCREW WPL 324004079 Contact Us For Availability
23
BOLT, COMPRESSOR WPL 282082001 Contact Us For Availability
24
HARNESS, WIRE WPL 482408001 Contact Us For Availability
25
EXCHANGER, HEAT WPL 282072003 Contact Us For Availability
27
GROMMET WPL 180275101 Contact Us For Availability
28
CONDENSER WPL 482234002 Contact Us For Availability
29
SCREW WPL 324838048 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability
× ![]()
