Model Whirlpool DU8300XX4 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

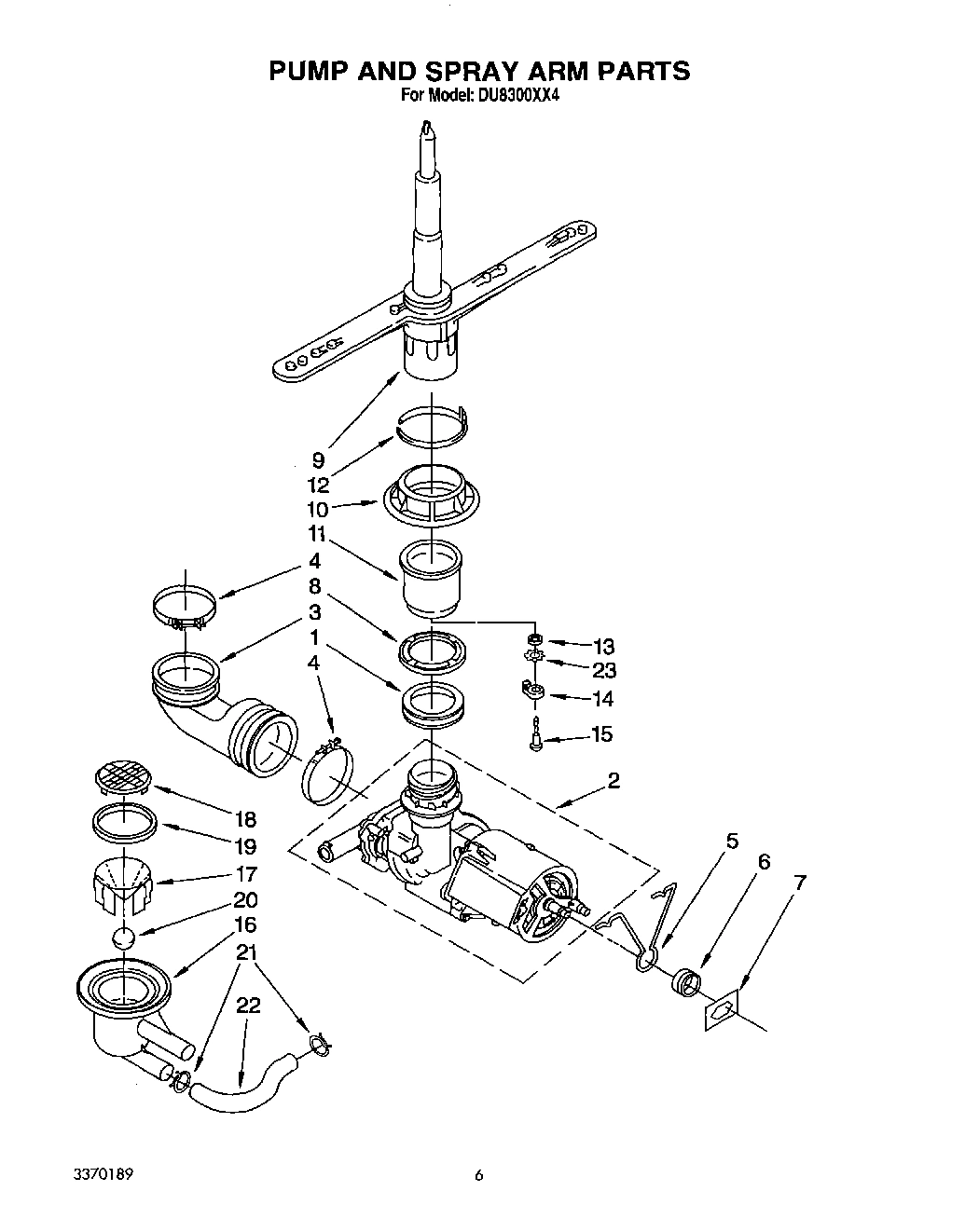

05 - PUMP AND SPRAY ARM

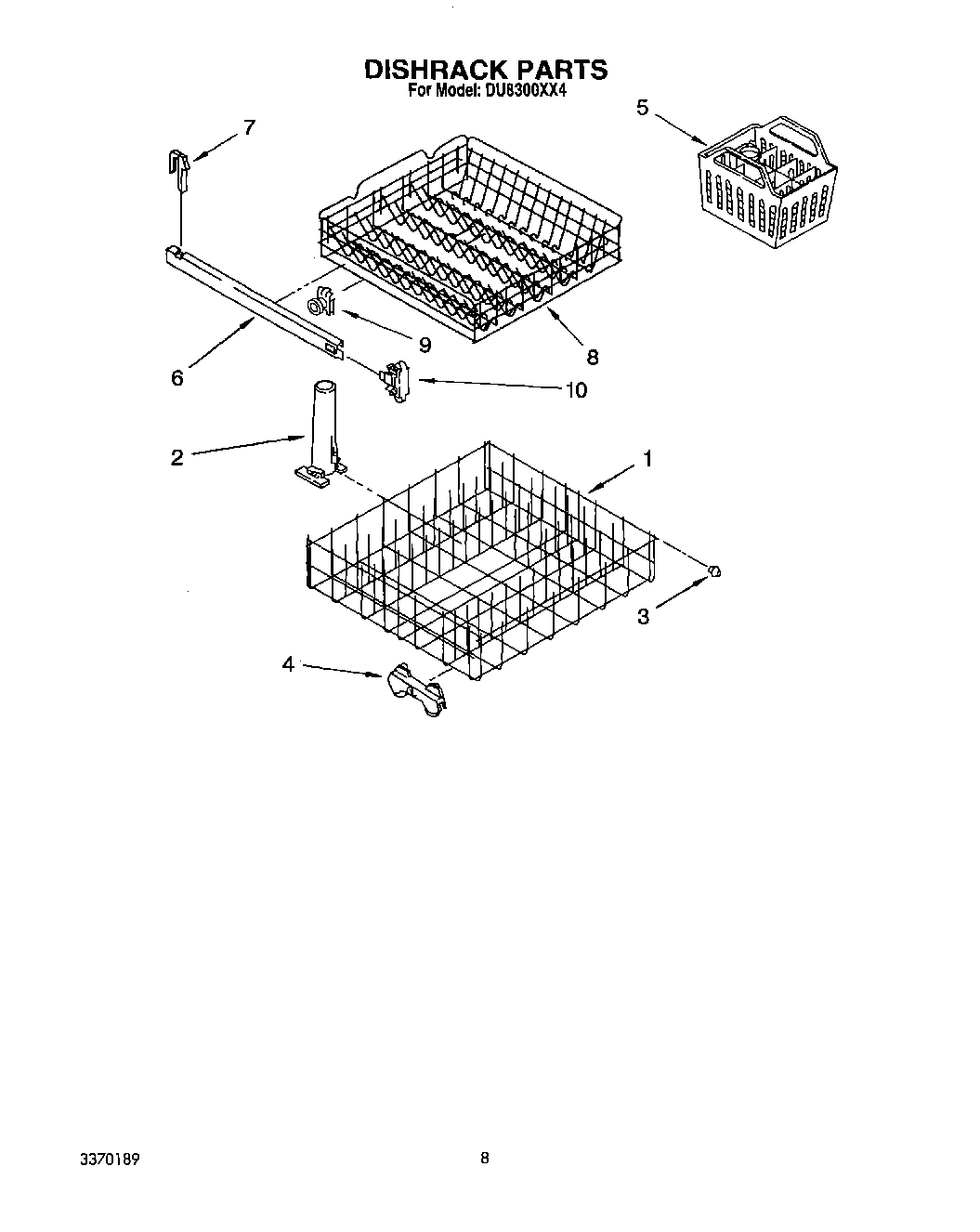

07 - DISHRACK
03 - INNER DOOR
06 - PUMP AND MOTOR, MISCELLANEOUS
02 - FRAME AND CONSOLE
04 - TUB ASSEMBLY, LIT/OPTIONAL
Common parts from model Whirlpool DU8300XX4 UNDERCOUNTER DISHWASHER
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3369093 WPL LIT3369093 Contact Us For Availability
WPL LIT3369274 WPL LIT3369274 Contact Us For Availability
WPL LIT3370042 WPL LIT3370042 Contact Us For Availability
WPL LIT3370189 WPL LIT3370189 Contact Us For Availability
WPL LIT3370465 WPL LIT3370465 Contact Us For Availability
1
Grommet, Pump Seal WPL 3369037 Contact Us For Availability
1
Tub and Support Assembly WPL 3370860 Contact Us For Availability
2
Seal, Drain Cover WPL 3369031 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
4
Ring, Diaphragm WPL 3369029 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
5
Cover, Drain Valve WPL 3369030 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
7
Seal Seat WPL 3369020 Contact Us For Availability
8
Washer, Grommet WPL 3369038 Contact Us For Availability
8
Plate, Latch WPL 3372030 Contact Us For Availability
9
Screw WPL 3372029 Contact Us For Availability
10
End Cap, Track (2) WPL 300845 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Washer WPL 3369044 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Water Valve WPL 3371817 Contact Us For Availability
17
Knob, Timer WPL 3368998 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
18
Check, Valve Assembly WPL 3369421 Contact Us For Availability
19
Hose, Coupler WPL 3369180 Contact Us For Availability
20
Retainer, Panel WPL 3370441 Contact Us For Availability
21
Clamp, Hose WPL 371499 Contact Us For Availability
21
Trim (2) WPL 3369586 Contact Us For Availability
21
Box, Terminal WPL 3370292 Contact Us For Availability
23
Washer, Curved WPL 3371634 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
28
Spring & Bearing Assembly (2) WPL 3369337 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
41
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
46
Sound Shield WPL 3369617 Contact Us For Availability
47
Spacer, Corrugated WPL 3369526 Contact Us For Availability
48
Extension WPL 3369531 Contact Us For Availability
49
Access Panel (White/Black) WPL 3370868 Contact Us For Availability
49
Access Panel (Almond) WPL 3369604 Contact Us For Availability
50
Trim, Side (2) WPL 3369587 Contact Us For Availability
51
Support, Heater WPL 3368987 Contact Us For Availability
54
Relief, Strain WPL 3370307 Contact Us For Availability
55
Screw, 8-18 WPL 3369138 Contact Us For Availability
55
Leveler (Thinner) WPL 350941 Contact Us For Availability
55
Side Panel Kits: 1 (White) WPL 4317925 Contact Us For Availability
55
Side Panel Kits: 1 (Avocado) WPL 4317926 Contact Us For Availability
55
Side Panel Kits: 1 (Gold) WPL 4317927 Contact Us For Availability
55
Side Panel Kits: 1 (Almond) WPL 4317929 Contact Us For Availability
55
Side Panel WPL 4317930 Contact Us For Availability
55
WPL 4317931 WPL 4317931 Contact Us For Availability
55
WPL 675677 WPL 675677 Contact Us For Availability
55
WPL 72112 WPL 72112 Contact Us For Availability
55
WPL 799340 WPL 799340 Contact Us For Availability
55
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
