Model Whirlpool DU8016XX0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
07 - DISHRACK
05 - PUMP AND SPRAY ARM

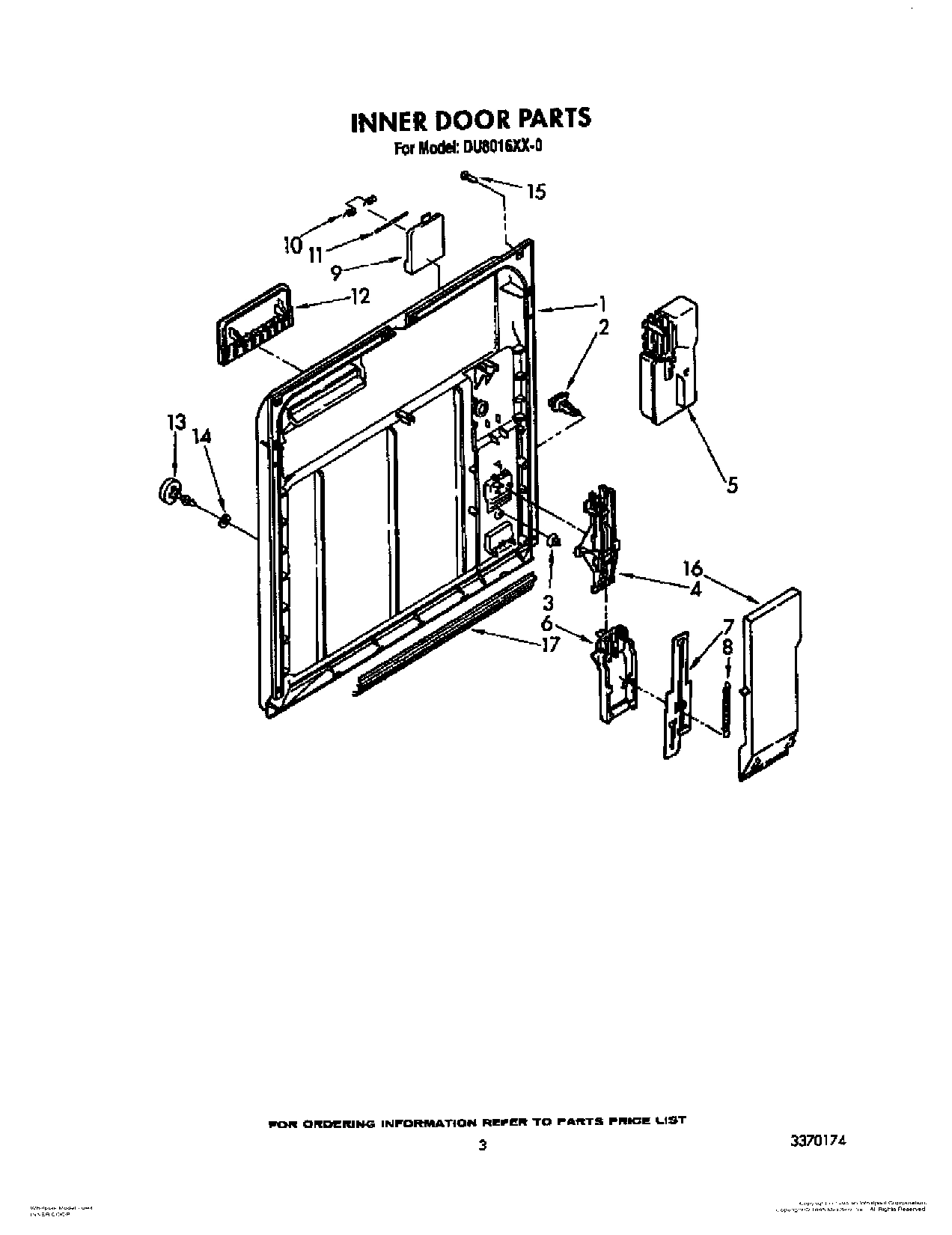

03 - INNER DOOR

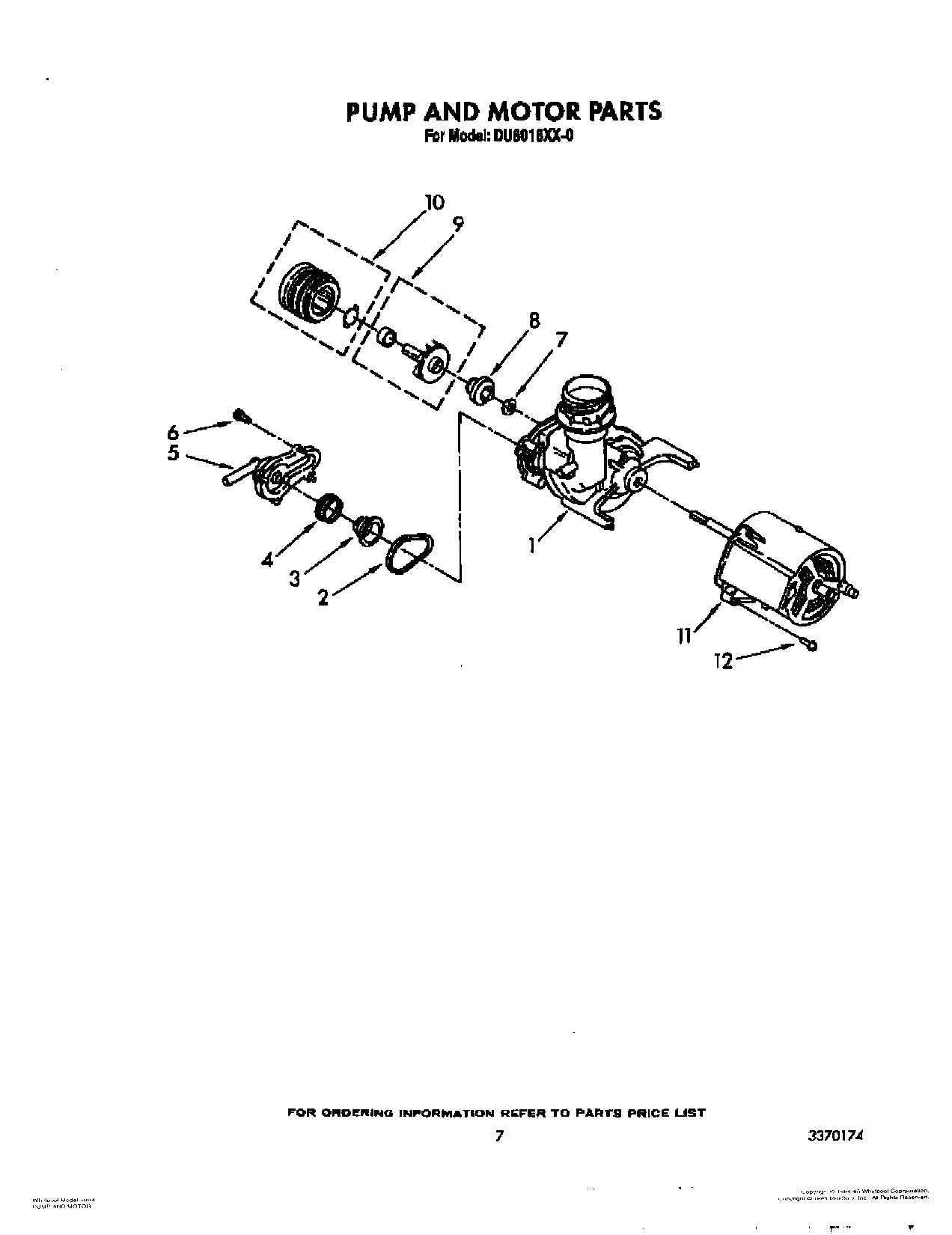

06 - PUMP AND MOTOR

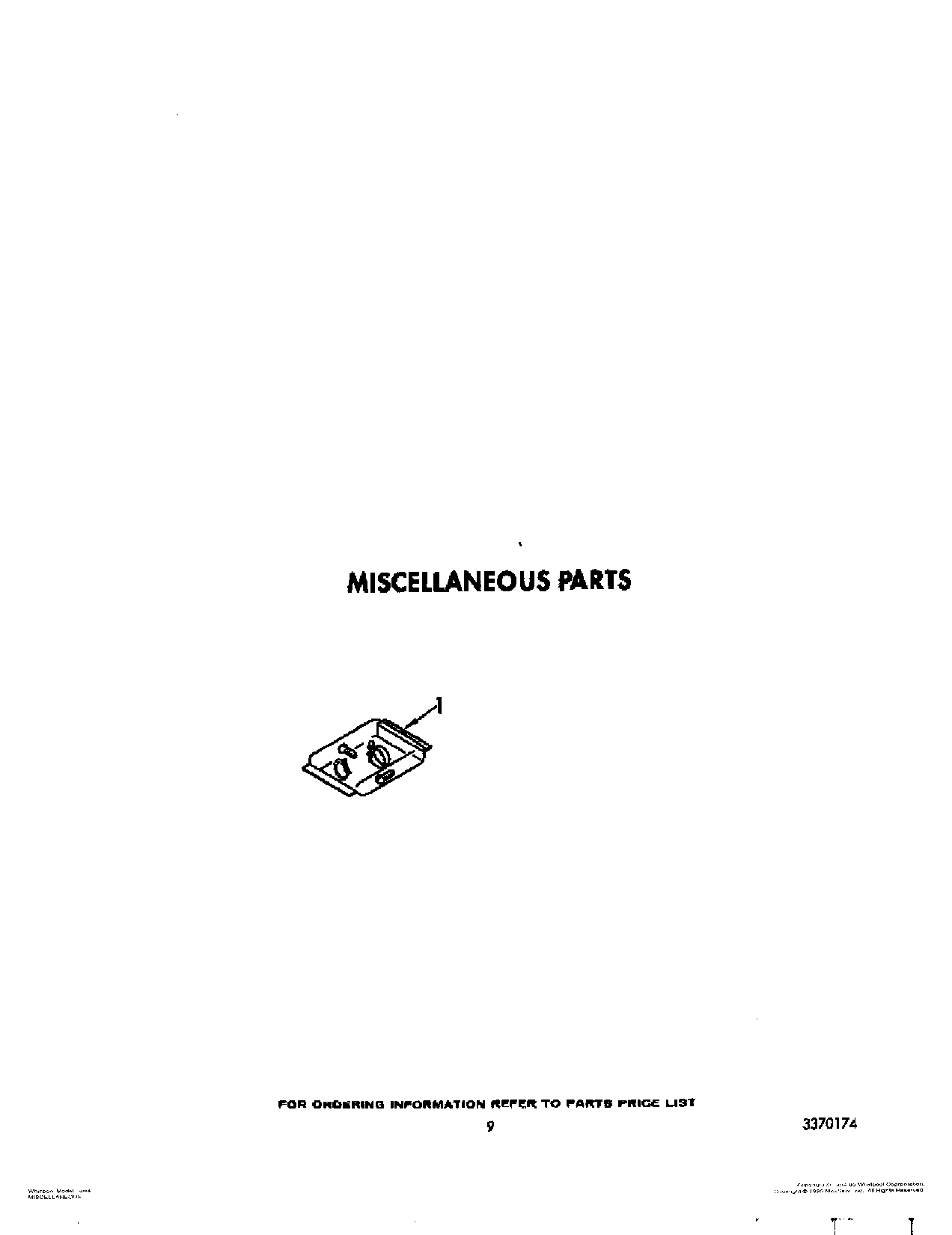

08 - MISCELLANEOUS , LITERATURE AND OPTIONAL

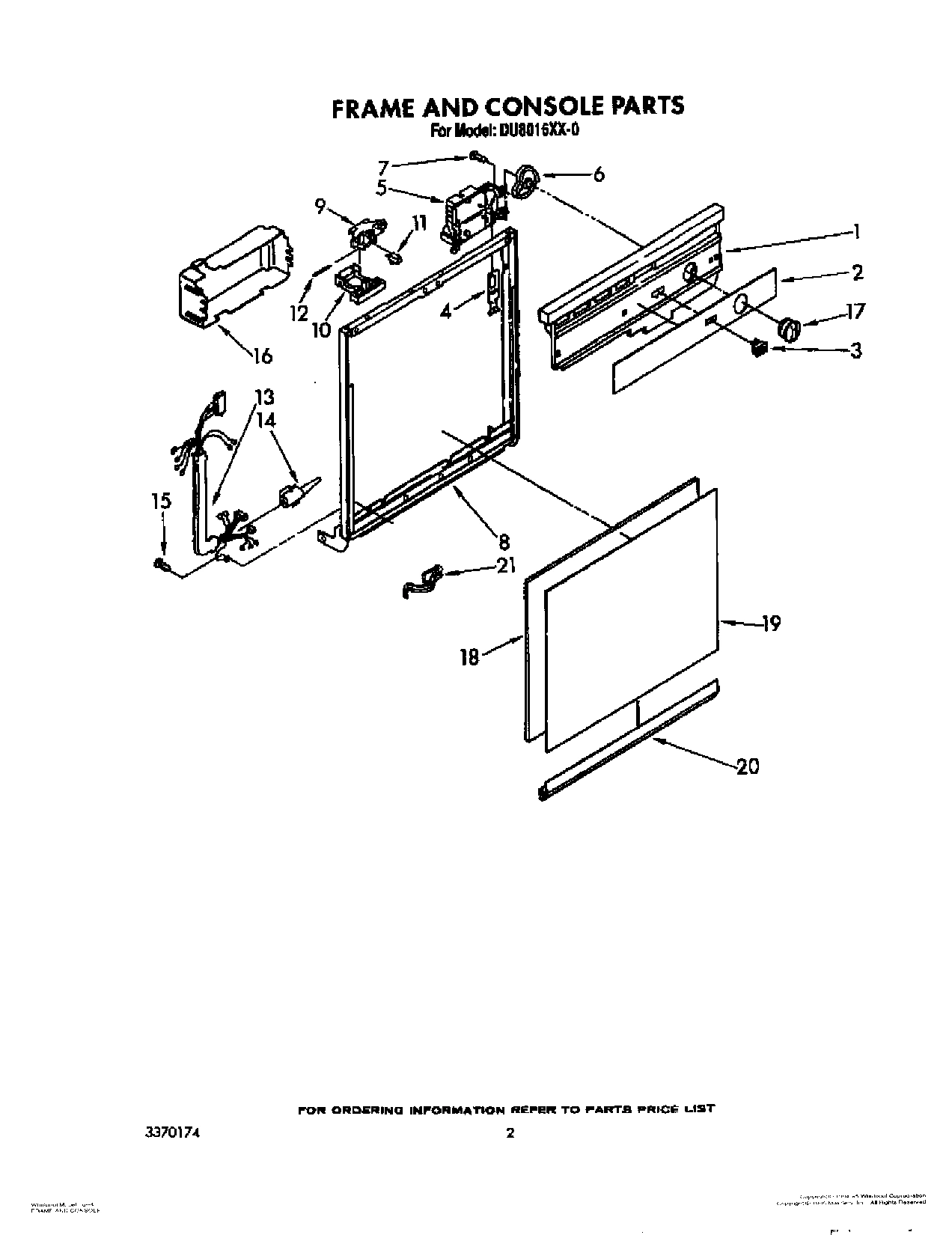

02 - FRAME AND CONSOLE

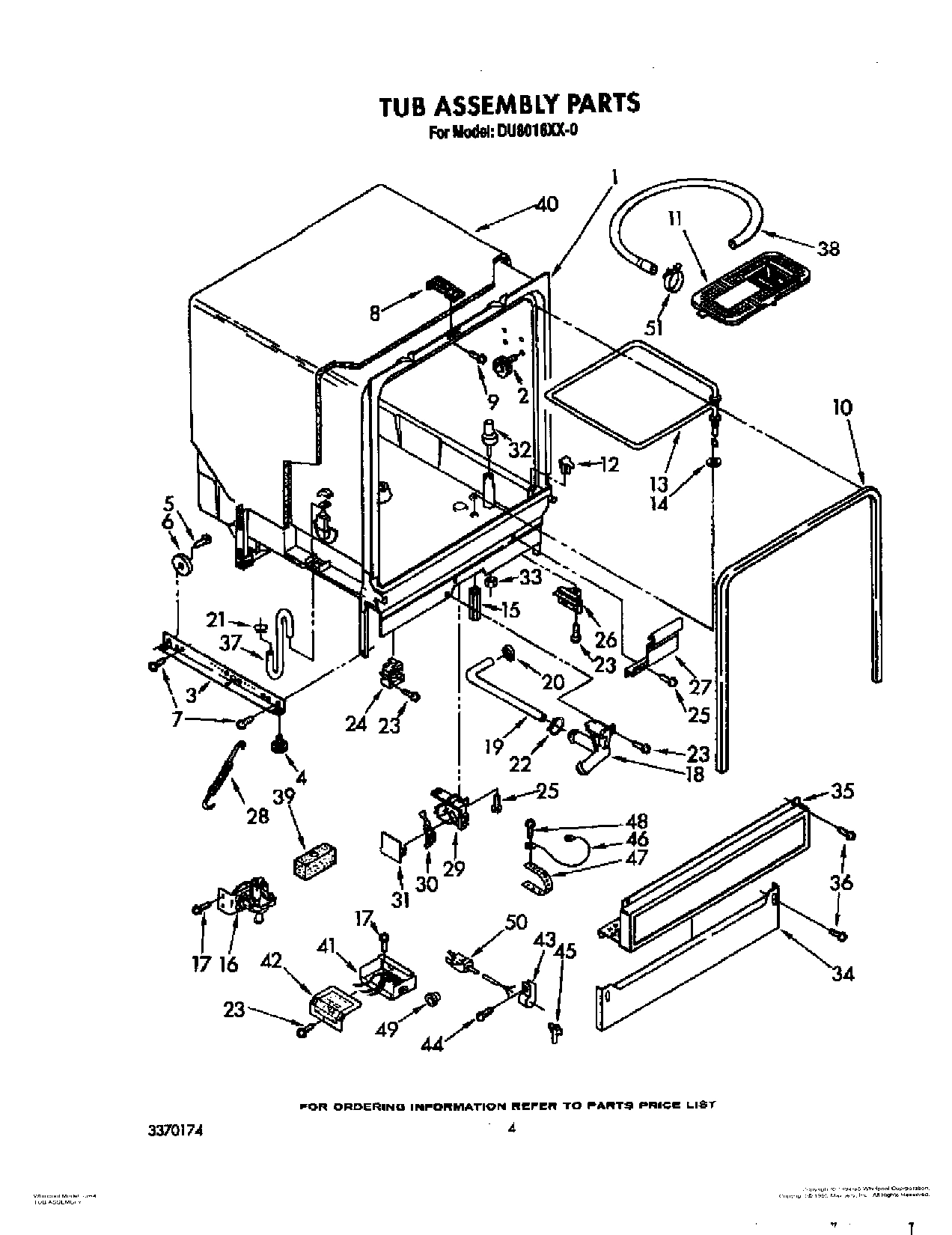

04 - TUB ASSEMBLY
Common parts from model Whirlpool DU8016XX0 UNDERCOUNTER DISHWASHER
Primer (White) WPL 20692 Contact Us For Availability
Superior Black WPL 28500 Contact Us For Availability
Leveler (Thinner) WPL 35094 Contact Us For Availability
Almond WPL 35095 Contact Us For Availability
Vinyl Touch-Up (Blue) WPL 67547 Contact Us For Availability
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 67550 Contact Us For Availability
White WPL 7201 Contact Us For Availability
Almond WPL 7210 Contact Us For Availability
Black WPL 7211 Contact Us For Availability
Black (Uncut) WPL 79934 Contact Us For Availability
Kit, Epoxy Patch (White) WPL 79964 Contact Us For Availability
Almond (Uncut) WPL 97888 Contact Us For Availability
Instructions, Installation (Supplement Locati WPL LIT336700 Contact Us For Availability
Guide, Use And Care WPL LIT336926 Contact Us For Availability
Instructions, Installation WPL LIT336967 Contact Us For Availability
Parts List WPL LIT337017 Contact Us For Availability
Wiring Diagram WPL LIT337046 Contact Us For Availability
Energy Guide WPL LIT337090 Contact Us For Availability
1
Grommet, Pump Seal WPL 3369037 Contact Us For Availability
1
Console WPL 3368991 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
Tub Assembly WPL 3370850 Contact Us For Availability
2
Insert, Console WPL 3369321 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
4
Ring, Diaphragm WPL 3369029 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
5
Cover, Drain Valve WPL 3369030 Contact Us For Availability
5
Timer WPL 3369204 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Cam WPL 3368996 Contact Us For Availability
7
Seal Seat WPL 3369020 Contact Us For Availability
8
Washer, Grommet WPL 3369038 Contact Us For Availability
8
Door Frame WPL 3368900 Contact Us For Availability
8
Plate, Latch WPL 3368965 Contact Us For Availability
9
Screw, 8-32 WPL 3368919 Contact Us For Availability
10
End Cap, Track (2) WPL 300845 Contact Us For Availability
11
Switch, (2) WPL 3368946 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Washer WPL 3369044 Contact Us For Availability
13
Harness and Protector (Includes Item 14) WPL 3369869 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
16
Cover, Timer WPL 3368964 Contact Us For Availability
16
Water Valve WPL 3369868 Contact Us For Availability
17
Knob, Timer WPL 3368998 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
18
Check, Valve Assembly WPL 3369421 Contact Us For Availability
19
Front Panel (Almond) WPL 3369851 Contact Us For Availability
19
Hose, Coupler WPL 3369050 Contact Us For Availability
20
Retainer, Panel WPL 3370441 Contact Us For Availability
20
Clamp WPL 3369082 Contact Us For Availability
22
Clamp WPL 3369327 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
28
Spring & Bearing Assembly (2) WPL 3369337 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Panel, Access WPL 3368936 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
39
Diverter WPL 3369317 Contact Us For Availability
41
Terminal Block & Plug Assembly WPL 3369332 Contact Us For Availability
42
Cover Assembly, Terminal Box WPL 3369357 Contact Us For Availability
43
Clamp WPL 596553 Contact Us For Availability
45
Nut, Wire WPL 770754 Contact Us For Availability
46
Wire, Ground WPL 303485 Contact Us For Availability
47
Ground Strap WPL 22965 Contact Us For Availability
48
Screw WPL 132848 Contact Us For Availability
49
Bushing WPL 302770 Contact Us For Availability
50
Power Cord WPL 3370221 Contact Us For Availability
× ![]()
