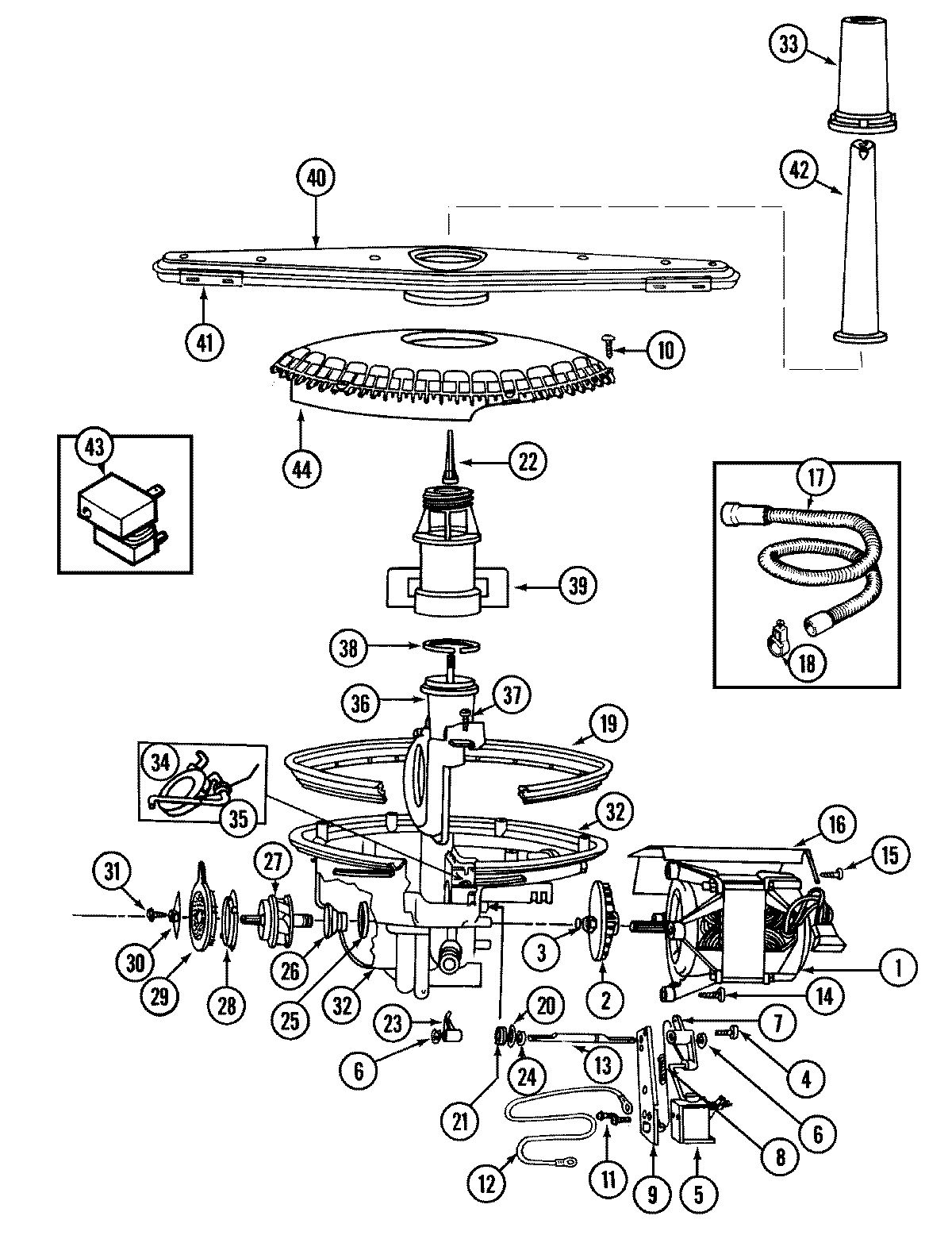

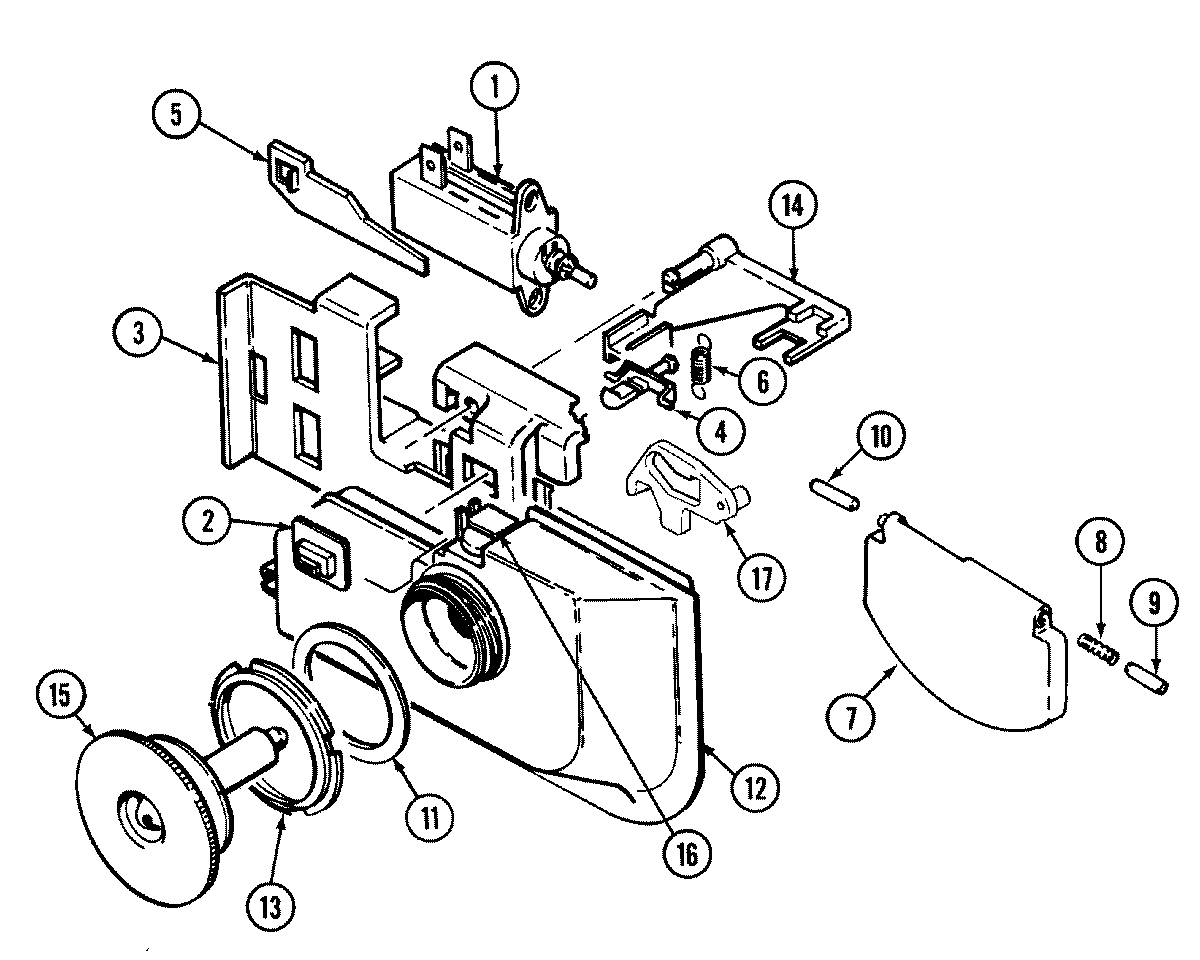

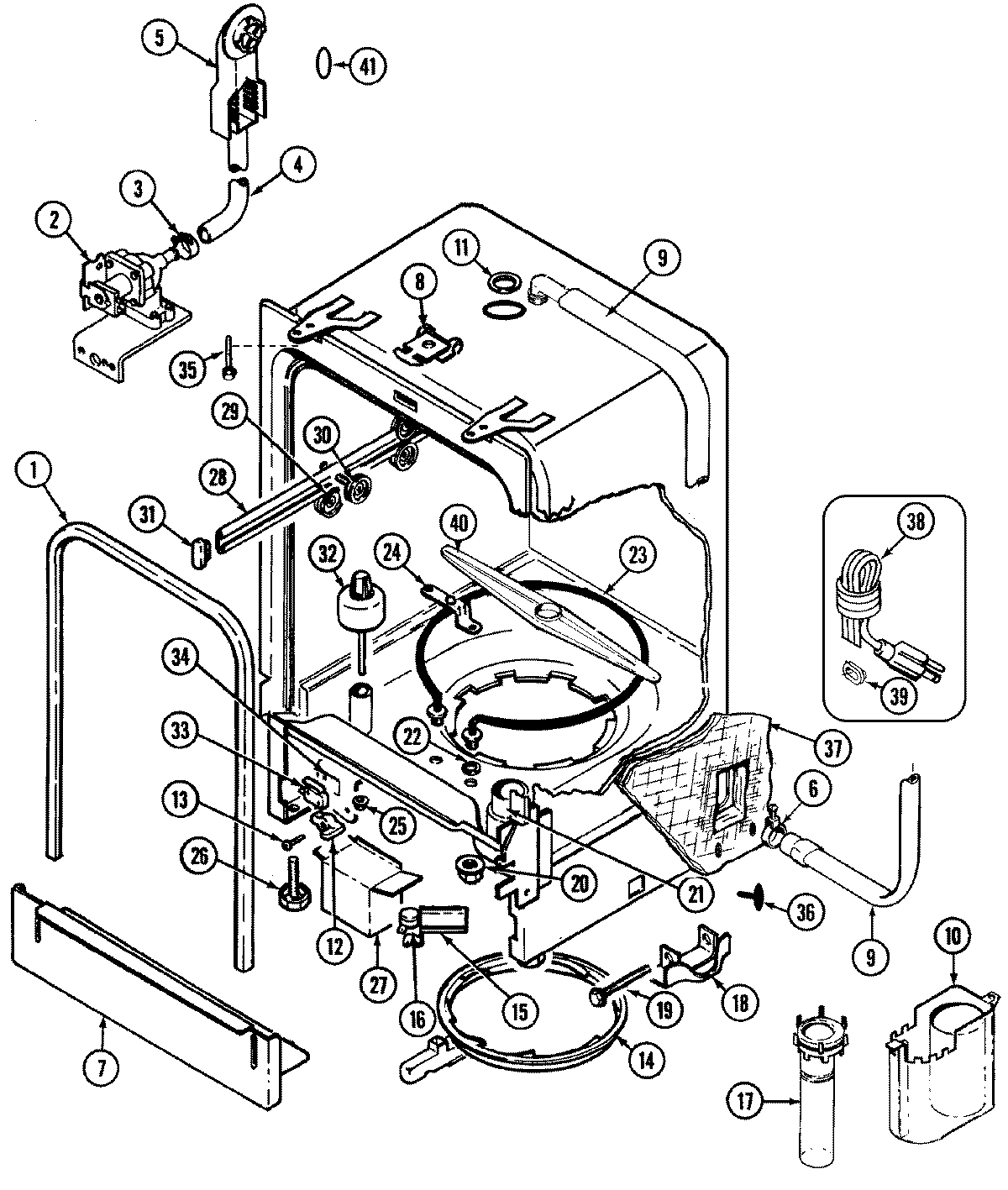

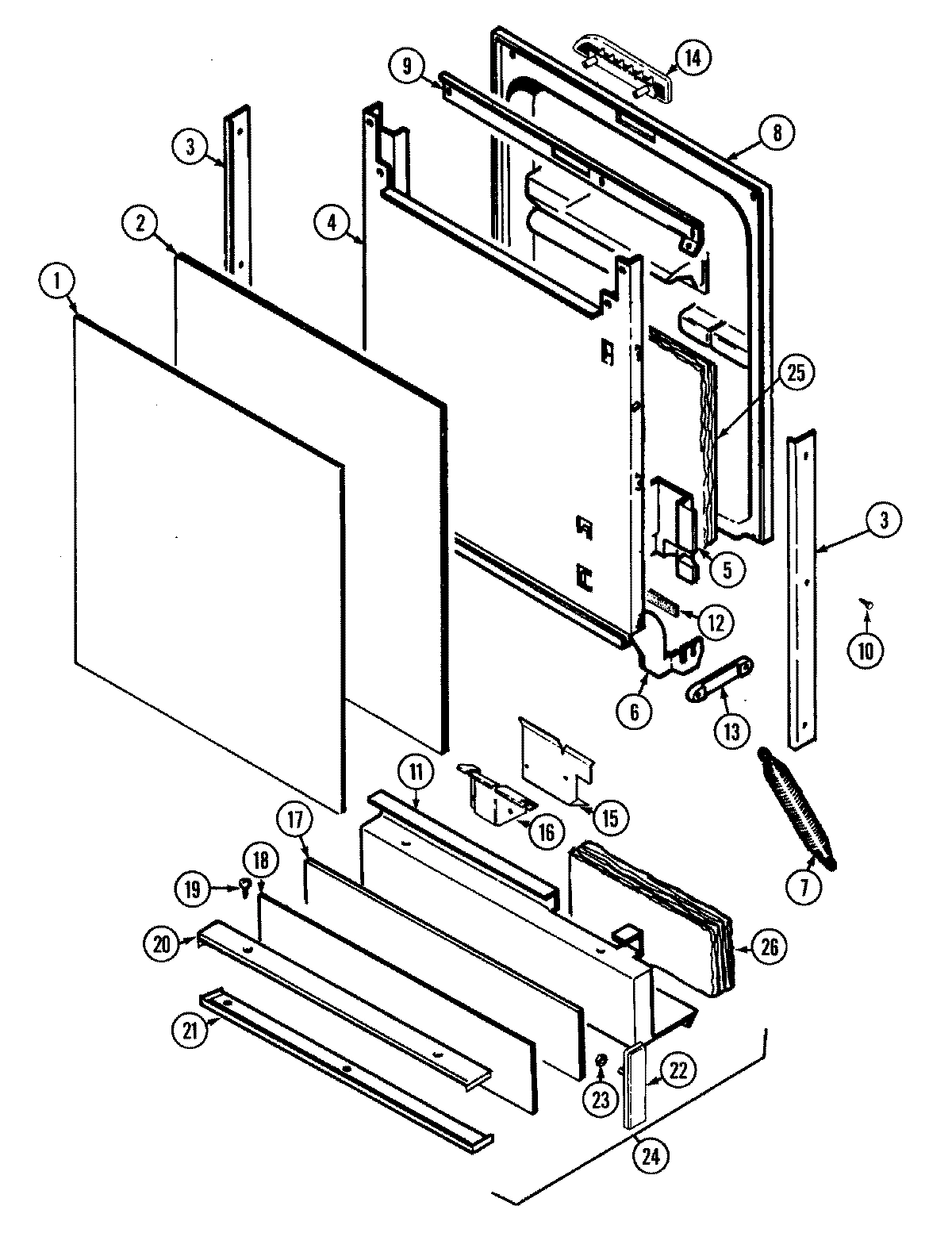

Model Whirlpool DU4KV-CAN DISHWASHER – Common Parts &amp; Diagrams

1

WP902899 Whirlpool Dishwasher Wax Motor Backorder WPL WP902899 $41.44

1

RIVET WPL 912024 Contact Us For Availability

1

TRIM, BOTTOM (WHT) WPL Y912955 Contact Us For Availability

1

INSERT, FRONT PANEL (WHT/ALM) WPL Y913165 Contact Us For Availability

1

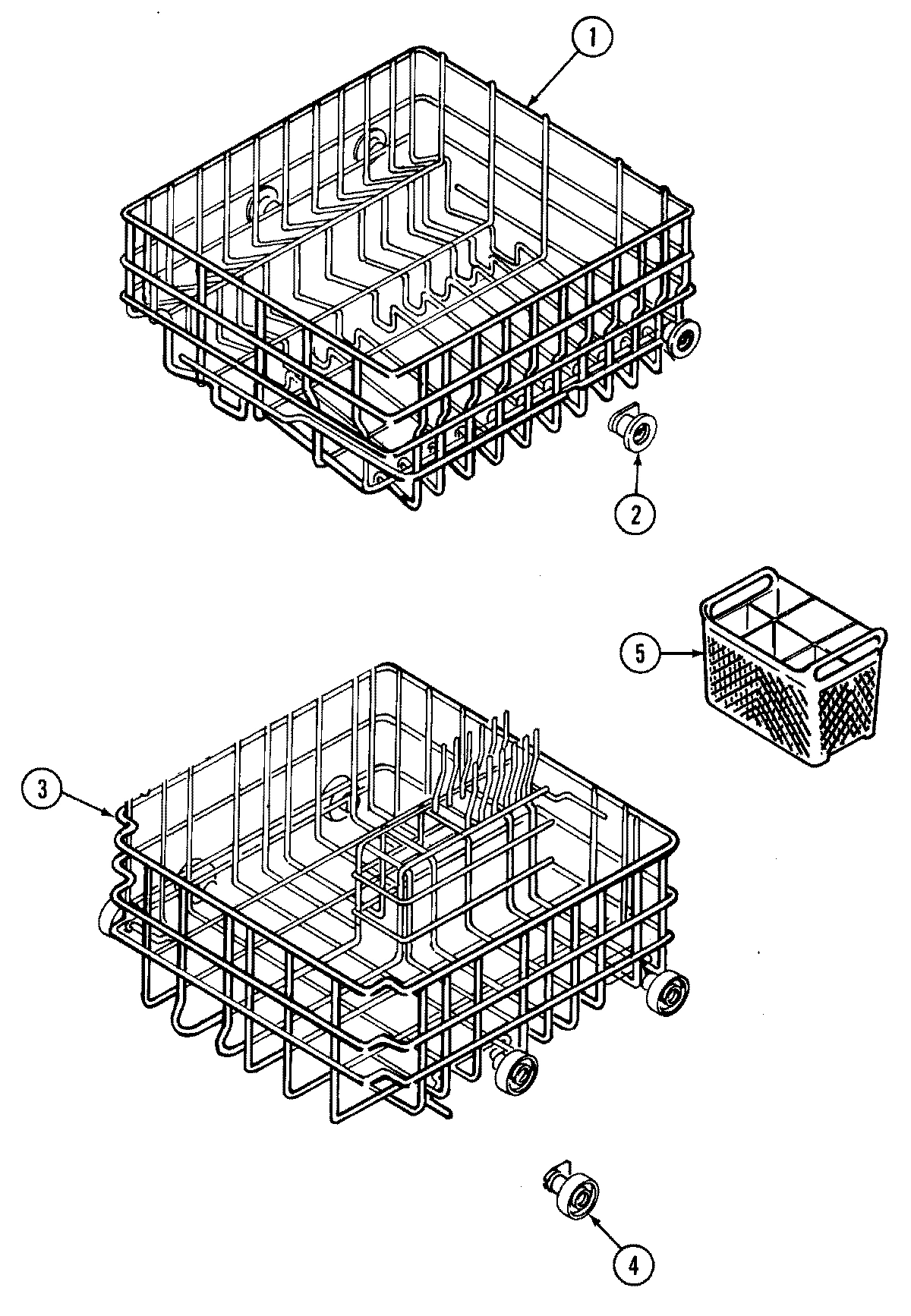

RACK (UPR) WPL 903919 Contact Us For Availability

2

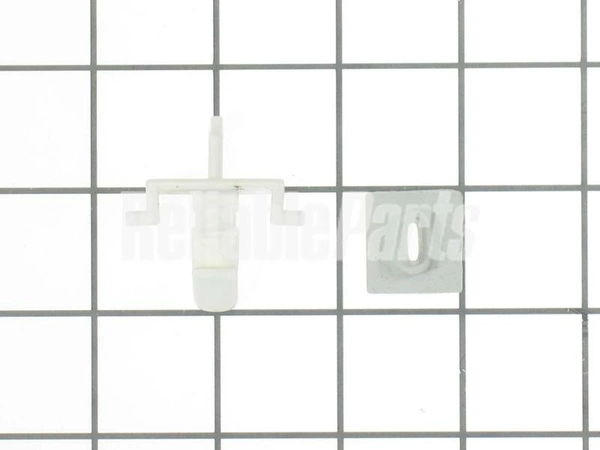

GROMMET, DISPENSER WPL W10131752 No Longer Available

2

WP903093 Whirlpool Dishwasher Rack Wheel In Stock WPL WP903093 $6.00

2

FAN, MOTOR WPL Y912903 Contact Us For Availability

2

FILLER, FRONT PANEL WPL Y913184 Contact Us For Availability

2

VALVE, WATER WPL 903868 Contact Us For Availability

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

3

RETAINER, IMPELLER WPL Y913173 Contact Us For Availability

3

``O`` RING, MOTOR WPL Y913174 Contact Us For Availability

3

TRIM, PANEL WPL Y912962 Contact Us For Availability

3

RACK (LWR) WPL 903921 Contact Us For Availability

3

RETAINER WPL Y912673 Contact Us For Availability

4

HOSE, INJECTOR WPL 912633 Contact Us For Availability

4

PANEL, DOOR WPL 904028 Contact Us For Availability

4

WHEEL ASSEMBLY (LWR) WPL 903815 Contact Us For Availability

5

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $2.55

5

WP6-904023 Whirlpool Drain Solenoid Backorder WPL WP6-904023 $85.85

5

RETAINER, WIRE WPL 912883 Contact Us For Availability

5

BASKET, SILVERWARE WPL Y912919 Contact Us For Availability

5

INJECTOR, WATER WPL 912533 Contact Us For Availability

5

LATCH, SLIDER WPL Y912675 Contact Us For Availability

6

WPW10116816 Whirlpool Dishwasher Spring Backorder WPL WPW10116816 $4.00

6

``E`` CLIP, ``D`` SHAFT WPL Y913109 Contact Us For Availability

6

HINGE (LT) WPL 903070 Contact Us For Availability

6

HINGE (RT) WPL 903071 Contact Us For Availability

6

SCREW WPL 99001075 Contact Us For Availability

7

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $2.55

7

WP912652 Whirlpool Dishwasher Spring In Stock WPL WP912652 $4.50

7

CRANK, ``D`` SHAFT WPL 913099 Contact Us For Availability

7

SCREW, ACCESS PANEL WPL 99001194 Contact Us For Availability

7

CLIP, GROUNDING WPL 912882 Contact Us For Availability

7

PANEL, TOE (WHT) WPL 99001112 Contact Us For Availability

7

PANEL, TOE (BLK) WPL Y912694 Contact Us For Availability

7

LID, DETERGENT CUP WPL 903483 Contact Us For Availability

8

SPRING, RETURN WPL Y913201 Contact Us For Availability

8

DOOR, INNER WPL Y912918 Contact Us For Availability

8

SPRING, LATCH WPL 912648 Contact Us For Availability

8

HOOK, LATCH WPL 912649 Contact Us For Availability

8

RETAINER, LATCH WPL 912650 Contact Us For Availability

8

SCREW, LATCH WPL Y912873 Contact Us For Availability

8

SPRING, CUP LID WPL Y912547 Contact Us For Availability

9

WP6-912678 Whirlpool Hinge Pin In Stock WPL WP6-912678 $3.70

9

BRACKET, SOLENOID WPL Y913203 Contact Us For Availability

9

BAR, REINFORCEMENT WPL Y913093 Contact Us For Availability

9

SEAL, REINFORCEMENT WPL Y913178 Contact Us For Availability

9

HOSE, TOP SHOWER WPL 912647 Contact Us For Availability

10

912619 Whirlpool Dishwasher Trim Screw P-1 Backorder WPL 912619 $9.28

10

VENT, INLET WPL Y913095 Contact Us For Availability

PANEL, ACCESS (BLK) WPL 912636 Contact Us For Availability

PANEL, ACCESS (WHT) WPL 99001188 Contact Us For Availability

WASHER, TUB TOP WPL 910069 Contact Us For Availability

GASKET, RESERVOIR WPL Y913061 Contact Us For Availability

12

WP99002833 Whirlpool Dishwasher Reservoir Backorder WPL WP99002833 $37.14

12

WIRE, GROUND WPL 903882 Contact Us For Availability

12

LEVER, ACTUATOR WPL 912014 Contact Us For Availability

WP912653 Whirlpool Dishwasher Door Spring Lin In Stock WPL WP912653 $3.06

``D`` SHAFT WPL 913105 Contact Us For Availability

PIN, LEVER PIVOT WPL 912015 Contact Us For Availability

NUT, RESERVOIR WPL Y913060 Contact Us For Availability

SCREW, MOTOR WPL Y912892 Contact Us For Availability

COVER, VENT WPL Y912910 Contact Us For Availability

RING, LOCKING WPL Y912686 Contact Us For Availability

ACTUATOR, RINSE AID WPL 912576 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.68

SHIELD, TUB (BLK) WPL 912641 Contact Us For Availability

SHIELD, TUB (WHT) WPL 99001131 Contact Us For Availability

THERMOSTAT WPL 903078 Contact Us For Availability

BRACKET, THERMOSTAT WPL 912685 Contact Us For Availability

THERMOSTAT, LIMITING WPL 99001006 Contact Us For Availability

PLUG, THERMOSTAT WPL 99001007 Contact Us For Availability

CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability

KNOB, RINSE AID (WHT) WPL Y912923 Contact Us For Availability

SHIELD, MOTOR WPL Y912931 Contact Us For Availability

COVER, WIRE (BLK) WPL 912642 Contact Us For Availability

COVER, WIRE (WHT) WPL 99001132 Contact Us For Availability

SEAL RING, INJECTOR WPL 912644 Contact Us For Availability

PLUNGER ASSEMBLY WPL 903124 Contact Us For Availability

17

HOSE, DRAIN (CANADA) WPL Y913159 Contact Us For Availability

17

FILLER, ACCESS PANEL WPL 912525 Contact Us For Availability

17

TUBE, INLET WPL Y913096 Contact Us For Availability

18

INSERT, ACCESS PANEL (WH/AL) WPL Y913164 Contact Us For Availability

18

BRACKET, ADJUSTING WPL 912651 Contact Us For Availability

19

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.55

19

GASKET, PUMP WPL 912529 Contact Us For Availability

19

SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability

20

WASHER, SHAFT SEAL WPL 913106 Contact Us For Availability

20

TRIM, PANEL (TOP) WPL 912956 Contact Us For Availability

20

NUT, HEATING ELEMENT WPL 912645 Contact Us For Availability

WP913108 Whirlpool Dishwasher Seal In Stock WPL WP913108 $3.92

SCREW WPL 912622 Contact Us For Availability

TRIM, PANEL (BOTTOM) WPL Y912957 Contact Us For Availability

CAP, AIR INLET WPL Y912659 Contact Us For Availability

22

NUT, SPRAY ARM SUPPORT WPL Y912930 Contact Us For Availability

22

END CAP, ACCESS PANEL (WHT) WPL 912958 Contact Us For Availability

22

WASHER, HEATING ELEMENT WPL 910603 Contact Us For Availability

23

LIFTER WPL Y913200 Contact Us For Availability

23

PALNUT, END CAP WPL 214872 Contact Us For Availability

23

ELEMENT, HEATING WPL 903096 Contact Us For Availability

24

``E`` CLIP, ``D`` SHAFT WPL 913110 Contact Us For Availability

24

PANEL ASSY., ACCESS WPL 903677 Contact Us For Availability

24

BRACKET, HEATING ELEMENT WPL Y912541 Contact Us For Availability

25

WP6-920580 Whirlpool Dishwasher Insulation Pa Backorder WPL WP6-920580 $12.48

25

SEAT, SEAL WPL 903494 Contact Us For Availability

26

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $5.45

26

SEAL HEAD ASSY. WPL 903493 Contact Us For Availability

27

4396672 Whirlpool Dishwasher Connector Backorder WPL 4396672 $7.61

27

IMPELLER, PUMP WPL 903962 Contact Us For Availability

27

BOX, TERMINAL WPL 912563 Contact Us For Availability

28

RING, WEAR WPL Y912901 Contact Us For Availability

29

PLATE, CHOPPER WPL Y912913 Contact Us For Availability

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $5.64

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $2.55

CHOPPER WPL Y912909 Contact Us For Availability

CHOPPER WPL Y913274 Contact Us For Availability

31

WP99002136 Whirlpool Rack Stop Backorder WPL WP99002136 $8.91

31

SCREW, CHOPPER WPL 913275 Contact Us For Availability

32

WP99002363 Whirlpool Dishwasher Float Backorder WPL WP99002363 $3.70

32

HOUSING, PUMP WPL Y912902 Contact Us For Availability

33

SCREW WPL 912012 Contact Us For Availability

34

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

34

FLAPPER, DRAIN WPL Y912924 Contact Us For Availability

34

BRACKET, WATER LEVEL SWITCH WPL 912656 Contact Us For Availability

35

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.55

35

SPRING, FLAPPER WPL Y913202 Contact Us For Availability

36

VOLUTE, PUMP (W/SHAFT) WPL Y912915 Contact Us For Availability

36

FASTENER, INSULATION WPL 911917 Contact Us For Availability

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $45.42

SCREW, PUMP VOLUTE WPL Y912891 Contact Us For Availability

FASTENER, PANEL WPL 99001057 Contact Us For Availability

STRAP, INSULATION WPL 99001076 Contact Us For Availability

38

SEAL, RING WPL Y912904 Contact Us For Availability

39

WPY912900 Whirlpool Dishwasher Support In Stock WPL WPY912900 $46.77

40

ARM, LOWER SPRAY (W/SHIELD) WPL 904026 Contact Us For Availability

41

SHIELD, RADIANT WPL Y912895 Contact Us For Availability

42

WPY912912 Whirlpool Dishwasher Spray Tower Backorder WPL WPY912912 $36.33

43

RELAY, MOTOR WPL 903482 Contact Us For Availability

43

SCREW, RELAY WPL 912612 Contact Us For Availability

43

BRACKET, RELAY WPL Y913156 Contact Us For Availability

44

STRAINER WPL Y912917 Contact Us For Availability
