Model Maytag DU35B- DISHWASHER – Common Parts & Diagrams
01 - CONTROL PANEL (DU38B)
02 - DETERGENT CUP

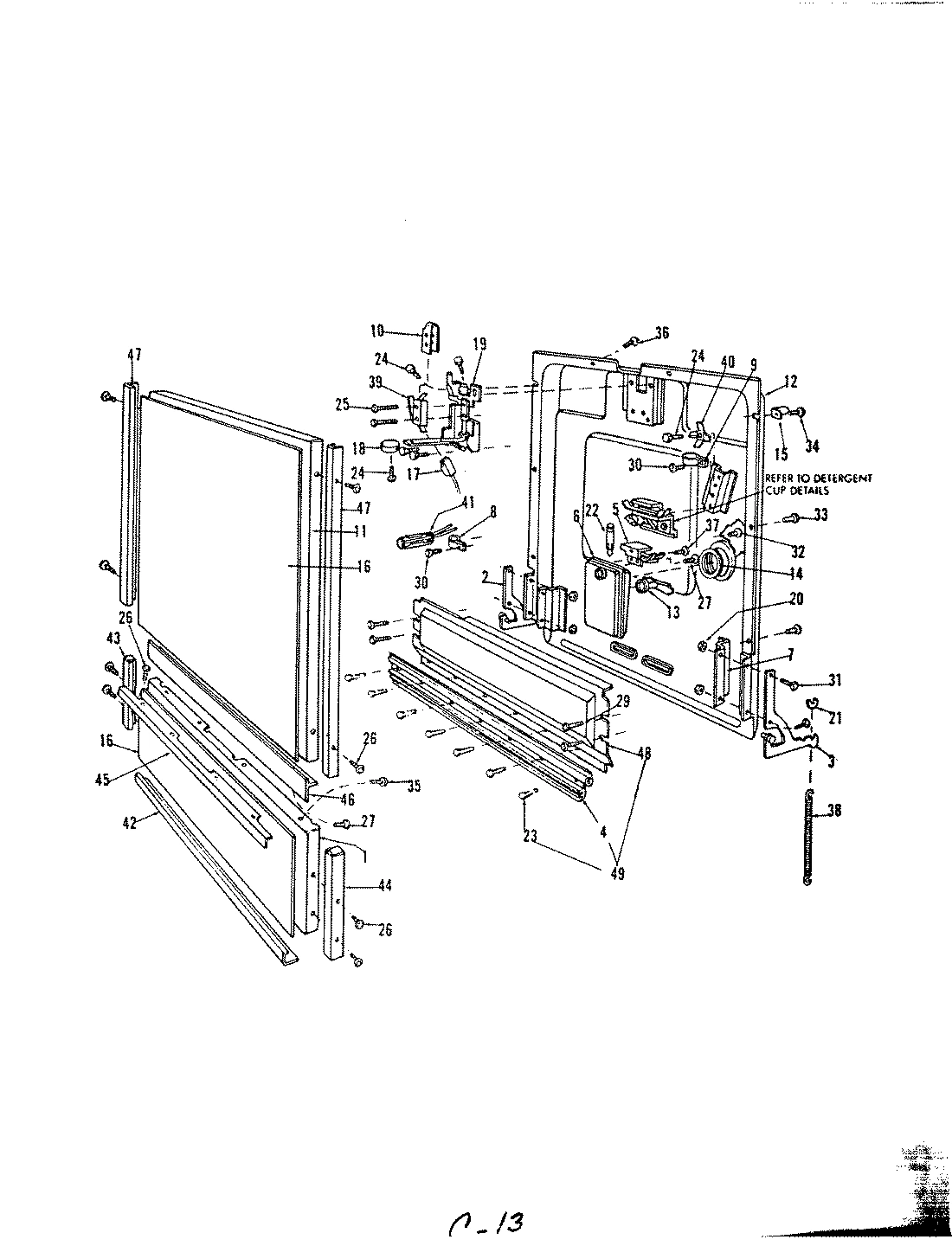

03 - DOOR (DU35B)

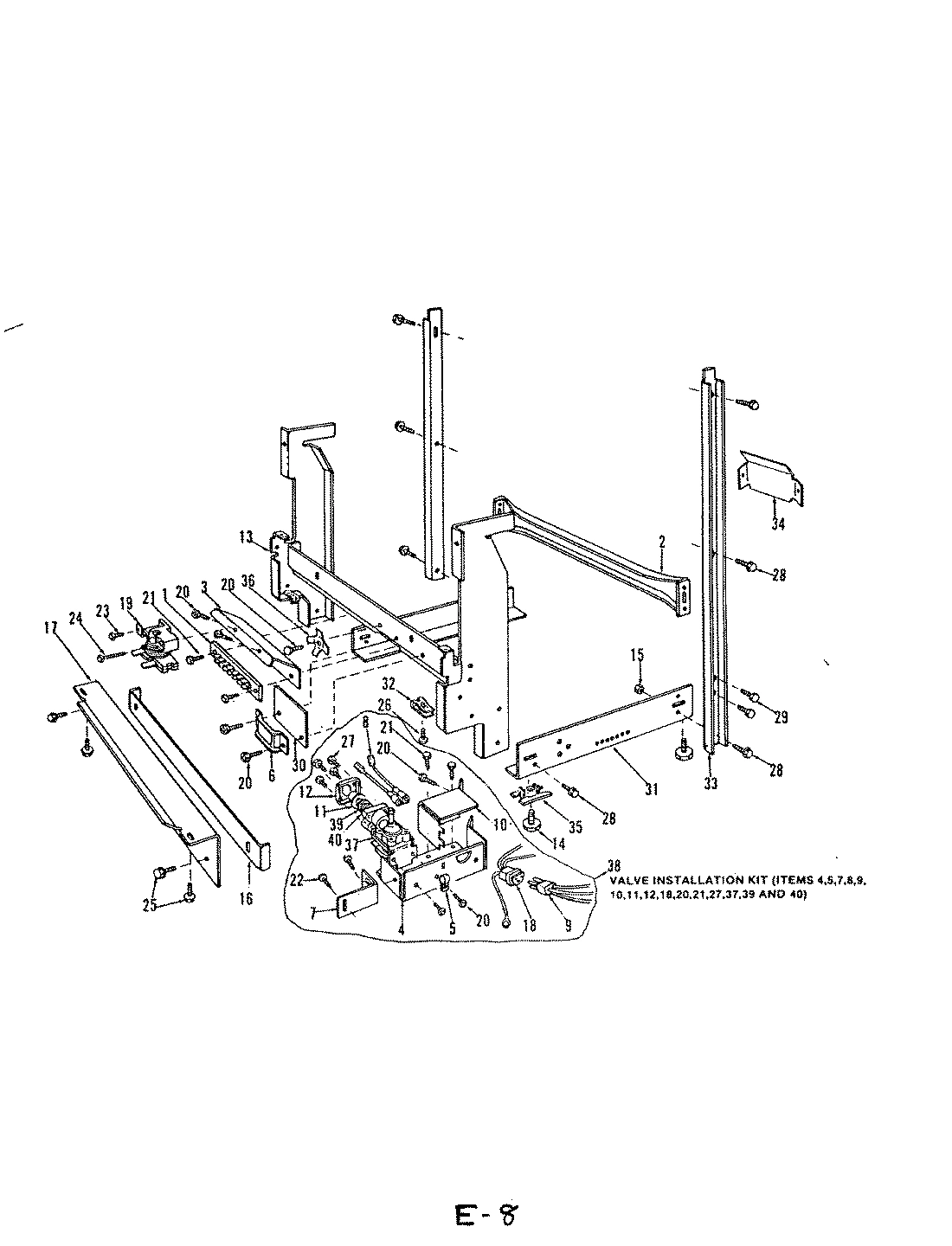

04 - FRAME PARTS

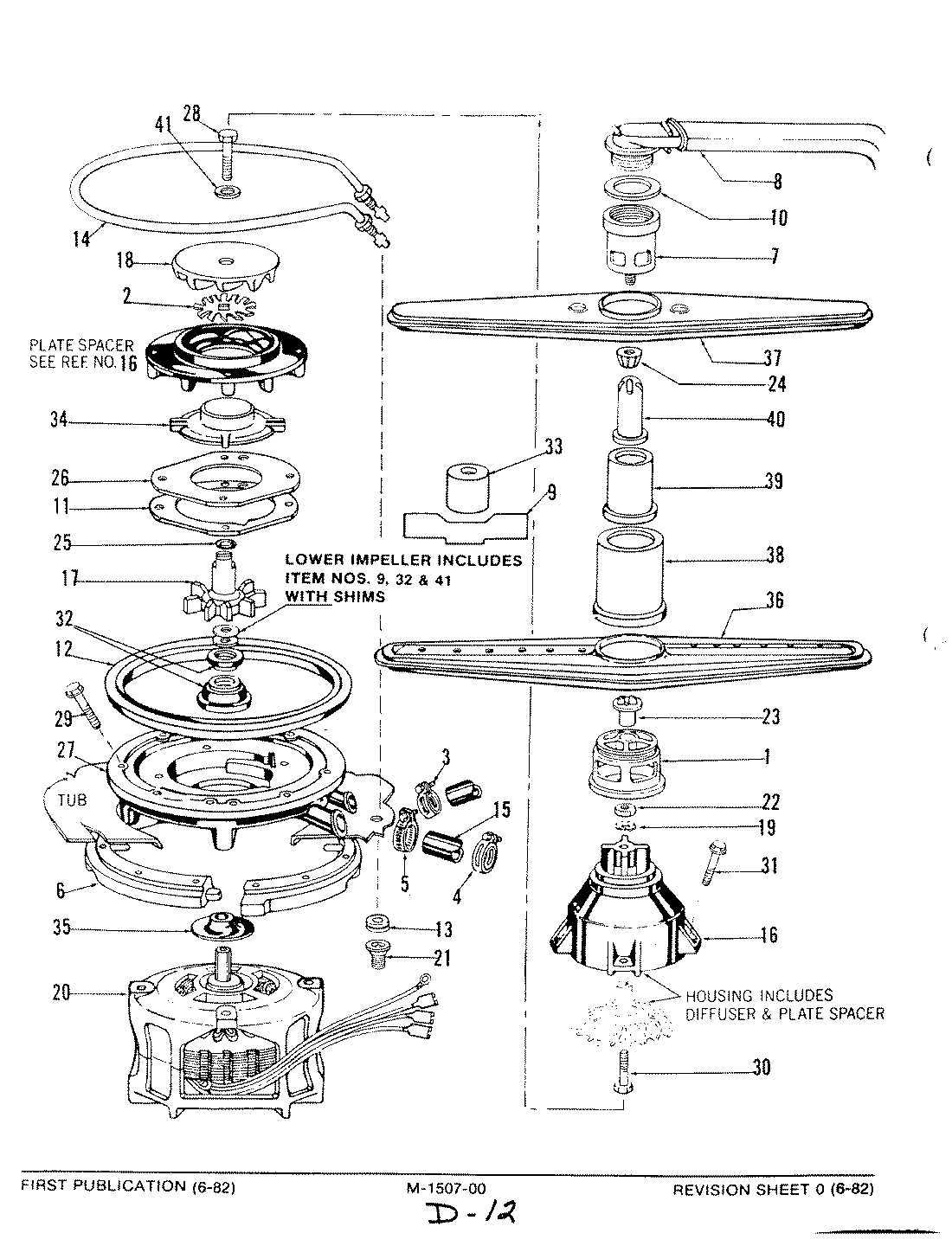

05 - MOTOR, HEATER & SPRAY ARM

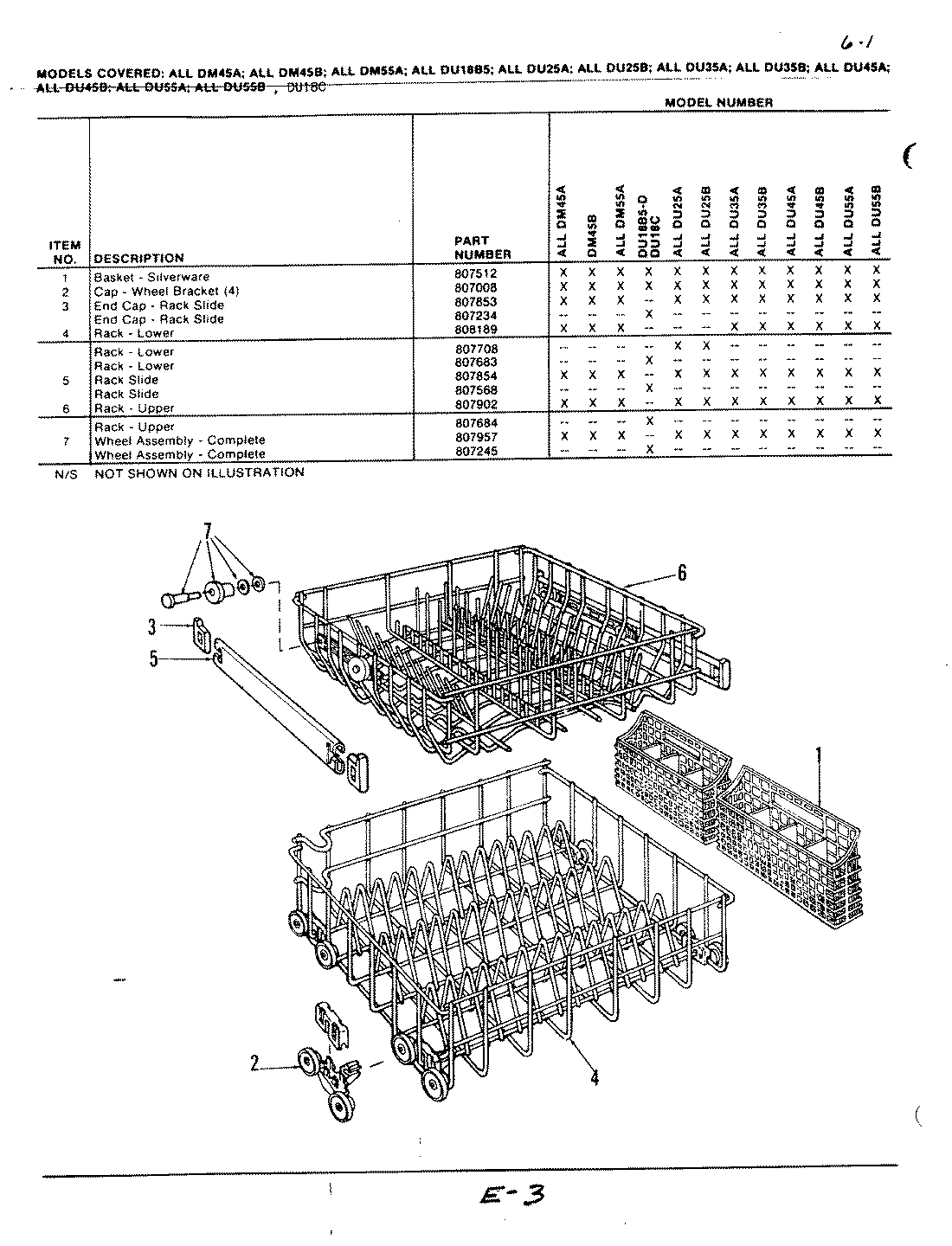

06 - RACKS

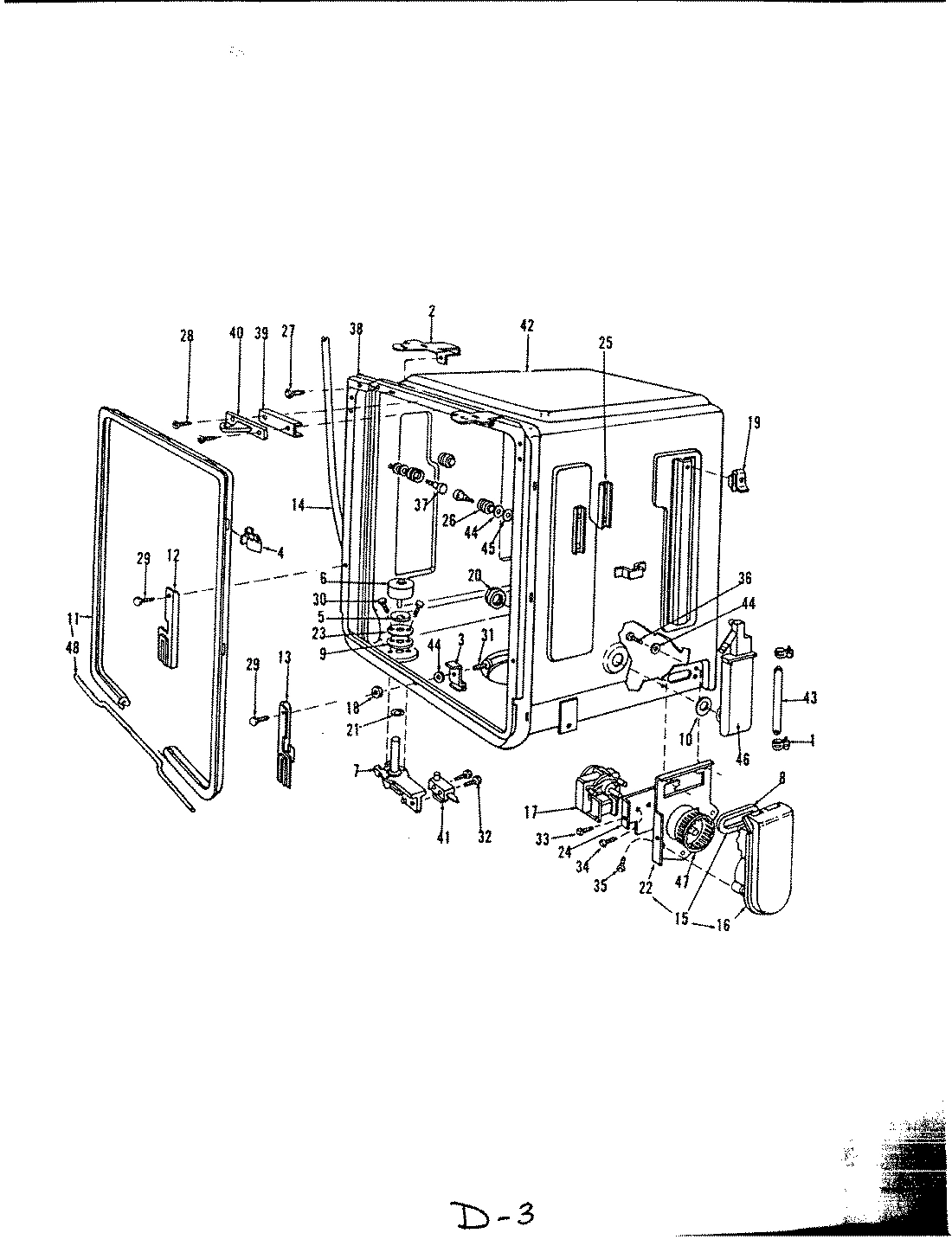

07 - TUB
Common parts from model Maytag DU35B- DISHWASHER
1
MAY 806564 MAY 806564 Contact Us For Availability
1
PANEL MAY 807257 Contact Us For Availability
1
MAY 807486 MAY 807486 Contact Us For Availability
1
LOWER BEARING MAY 808175 Contact Us For Availability
1
SILVRWR BASKET MAY 807512 Contact Us For Availability
1
MAY 807813 MAY 807813 Contact Us For Availability
2
MAY 806594 MAY 806594 Contact Us For Availability
2
MAY 806569 MAY 806569 Contact Us For Availability
2
LH ARM MAY 805682 Contact Us For Availability
2
MAY 807852 MAY 807852 Contact Us For Availability
2
MACERATOR BLADE MAY 808075 Contact Us For Availability
2
WHEEL ASM MAY 807008 Contact Us For Availability
2
CLIP MAY 808289 Contact Us For Availability
3
PUSH BUTTON MAY 807091 Contact Us For Availability
3
MAY 805626 MAY 805626 Contact Us For Availability
3
RH ARM MAY 805681 Contact Us For Availability
3
MAY 807849 MAY 807849 Contact Us For Availability
3
CLAMP MAY 806090 Contact Us For Availability
3
END CAP MAY 807853 Contact Us For Availability
3
MAY 808115 MAY 808115 Contact Us For Availability
4
MAY 808168 MAY 808168 Contact Us For Availability
4
MAY 806566 MAY 806566 Contact Us For Availability
4
MAY 808331 MAY 808331 Contact Us For Availability
4
MAY 808340 MAY 808340 Contact Us For Availability
4
CLAMP MAY 805495 Contact Us For Availability
4
MAY 808189 MAY 808189 Contact Us For Availability
4
MAY 805673 MAY 805673 Contact Us For Availability
5
DETRG CUP KIT MAY 807261 Contact Us For Availability
5
BRACKET MAY 806756 Contact Us For Availability
5
MAY 805584 MAY 805584 Contact Us For Availability
5
MAY 808186 MAY 808186 Contact Us For Availability
5
MAY 807854 MAY 807854 Contact Us For Availability
5
MAY 804149 MAY 804149 Contact Us For Availability
6
DIVIDER MAY 807140 Contact Us For Availability
6
NUT MAY 806568 Contact Us For Availability
6
DISPENSER MAY 806753 Contact Us For Availability
6
CLAMP MAY 806723 Contact Us For Availability
6
CLAMP RING MAY 807712 Contact Us For Availability
6
UPPER RACK MAY 807902 Contact Us For Availability
6
MAY 804630 MAY 804630 Contact Us For Availability
7
LH END CAP MAY 806407 Contact Us For Availability
7
O RING MAY 806647 Contact Us For Availability
7
ARM BRACKET MAY 806717 Contact Us For Availability
7
MAY 808339 MAY 808339 Contact Us For Availability
7
MAY 808183 MAY 808183 Contact Us For Availability
7
WHEEL ASM MAY 807957 Contact Us For Availability
7
FLOAT ASM MAY 807677 Contact Us For Availability
8
RH END CAP MAY 806406 Contact Us For Availability
8
O RING MAY 808210 Contact Us For Availability
8
MAY 805340 MAY 805340 Contact Us For Availability
8
MAY 808354 MAY 808354 Contact Us For Availability
8
ELBOW & TUBE MAY 808185 Contact Us For Availability
8
GASKET MAY 806797 Contact Us For Availability
9
MAY 807212 MAY 807212 Contact Us For Availability
9
MAY 806972 MAY 806972 Contact Us For Availability
9
SWITCH GUARD MAY 808398 Contact Us For Availability
9
ROLLPIN MAY 804734 Contact Us For Availability
9
MAY 808356 MAY 808356 Contact Us For Availability
9
SHIM GAUGE MAY 807077 Contact Us For Availability
9
GASKET MAY 808063 Contact Us For Availability
10
MAY 807921 MAY 807921 Contact Us For Availability
10
MAY 807421 MAY 807421 Contact Us For Availability
10
SWITCH COVER MAY 807450 Contact Us For Availability
10
MAY 808341 MAY 808341 Contact Us For Availability
10
MAY 808184 MAY 808184 Contact Us For Availability
10
WASHER MAY 803573 Contact Us For Availability
11
RH TIMER HOUSNG MAY 808231 Contact Us For Availability
11
LH TRIM MAY 808029 Contact Us For Availability
11
OUTER PANEL MAY 807262 Contact Us For Availability
11
FITTING MAY 808337 Contact Us For Availability
11
GASKET MAY 807709 Contact Us For Availability
11
DOOR GASKET MAY 808345 Contact Us For Availability
12
LH TIMER HOUSNG MAY 808232 Contact Us For Availability
12
SHAFT KIT MAY 806674 Contact Us For Availability
12
INNER PANEL MAY 807191 Contact Us For Availability
12
FITTING RETAINR MAY 808336 Contact Us For Availability
12
MAY 807710 MAY 807710 Contact Us For Availability
12
LH GUIDE MAY 807470 Contact Us For Availability
13
MAY 807094 MAY 807094 Contact Us For Availability
13
SPRING MAY 805227 Contact Us For Availability
13
MAY 807673 MAY 807673 Contact Us For Availability
13
MAY 807848 MAY 807848 Contact Us For Availability
13
GROMMET MAY 806833 Contact Us For Availability
13
RH GUIDE MAY 807471 Contact Us For Availability
14
RED LENS MAY 805664 Contact Us For Availability
14
SPRING MAY 806567 Contact Us For Availability
14
GROMMET MAY 805631 Contact Us For Availability
14
MAY 807672 MAY 807672 Contact Us For Availability
14
HEATER KIT MAY 806864 Contact Us For Availability
14
MAY 806089 MAY 806089 Contact Us For Availability
15
LIGHT ASM MAY 805866 Contact Us For Availability
15
GASKET MAY 802836 Contact Us For Availability
15
DOOR GUIDE MAY 807449 Contact Us For Availability
15
MAY 804619 MAY 804619 Contact Us For Availability
15
HOSE CONNECTOR MAY 808174 Contact Us For Availability
15
MAY 806838 MAY 806838 Contact Us For Availability
16
MAY 807644 MAY 807644 Contact Us For Availability
16
INSERT, DOOR PANEL MAY 807645 Contact Us For Availability
16
MAY 808215 MAY 808215 Contact Us For Availability
16
PANEL INSERT MAY 808404 Contact Us For Availability
16
TOE PLATE MAY 806295 Contact Us For Availability
16
PUMPHOUSING KIT MAY 806978 Contact Us For Availability
16
MAY 806844 MAY 806844 Contact Us For Availability
17
MAY 808211 MAY 808211 Contact Us For Availability
17
INSULATOR MAY 806846 Contact Us For Availability
17
TOE PLATE MAY 807850 Contact Us For Availability
17
IMPELLER KIT MAY 808042 Contact Us For Availability
17
BLOWER MOTOR MAY 807389 Contact Us For Availability
18
MAY 803346 MAY 803346 Contact Us For Availability
18
MAY 808400 MAY 808400 Contact Us For Availability
18
KNOB MAY 806893 Contact Us For Availability
18
MAY 808358 MAY 808358 Contact Us For Availability
18
UPPER IMPELLER MAY 808041 Contact Us For Availability
19
SCREW MAY 806943 Contact Us For Availability
19
LATCH ASM MAY 807016 Contact Us For Availability
19
RELAY MAY 805255 Contact Us For Availability
19
MAY 804526 MAY 804526 Contact Us For Availability
19
MAY 806291 MAY 806291 Contact Us For Availability
20
MAY 800928 MAY 800928 Contact Us For Availability
20
SCREW MAY 806830 Contact Us For Availability
20
MOTOR MAY 806300 Contact Us For Availability
21
SPRING PAD MAY 805884 Contact Us For Availability
21
NUT MAY 806834 Contact Us For Availability
21
O RING MAY 807759 Contact Us For Availability
22
MAY 806757 MAY 806757 Contact Us For Availability
22
MAY 804527 MAY 804527 Contact Us For Availability
22
PLATE MAY 806794 Contact Us For Availability
23
MAY 808330 MAY 808330 Contact Us For Availability
23
MAY 806593 MAY 806593 Contact Us For Availability
23
NUT MAY 808176 Contact Us For Availability
23
PLATE, FLOAT TUBE MAY 808064 Contact Us For Availability
24
MAY 807141 MAY 807141 Contact Us For Availability
24
MAY 804672 MAY 804672 Contact Us For Availability
24
MAY 808181 MAY 808181 Contact Us For Availability
24
PLATE MAY 806793 Contact Us For Availability
25
MAY 803051 MAY 803051 Contact Us For Availability
25
SCREW MAY 807001 Contact Us For Availability
25
O RING MAY 806521 Contact Us For Availability
25
TAPPING PLATE MAY 807038 Contact Us For Availability
26
MAY 805324 MAY 805324 Contact Us For Availability
26
MAY 807293 MAY 807293 Contact Us For Availability
26
MAY 807784 MAY 807784 Contact Us For Availability
26
PUMP PLATE MAY 807884 Contact Us For Availability
26
ROLLER MAY 807180 Contact Us For Availability
27
MAY 805323 MAY 805323 Contact Us For Availability
27
SCREW MAY 808368 Contact Us For Availability
27
PUMP HOUSING MAY 807711 Contact Us For Availability
27
SCREW MAY 807036 Contact Us For Availability
28
MAY 807425 MAY 807425 Contact Us For Availability
28
MAY 805063 MAY 805063 Contact Us For Availability
28
MAY 806889 MAY 806889 Contact Us For Availability
28
MAY 806353 MAY 806353 Contact Us For Availability
28
MAY 806890 MAY 806890 Contact Us For Availability
29
MAY 807737 MAY 807737 Contact Us For Availability
29
SCREW MAY 806810 Contact Us For Availability
29
MAY 807950 MAY 807950 Contact Us For Availability
29
MAY 806539 MAY 806539 Contact Us For Availability
30
SCREW MAY 803416 Contact Us For Availability
30
MAY 808401 MAY 808401 Contact Us For Availability
30
WIRE SHIELD MAY 808013 Contact Us For Availability
30
MAY 807268 MAY 807268 Contact Us For Availability
30
MAY 806945 MAY 806945 Contact Us For Availability
31
TERMINAL MAY 808000 Contact Us For Availability
31
MAY 803311 MAY 803311 Contact Us For Availability
31
SIDE CHANNEL MAY 807851 Contact Us For Availability
31
SCREW MAY 807359 Contact Us For Availability
31
MAY 803319 MAY 803319 Contact Us For Availability
32
TERMINAL MAY 808334 Contact Us For Availability
32
SCREW MAY 806863 Contact Us For Availability
32
MAY 808170 MAY 808170 Contact Us For Availability
32
GASKET MAY 803903 Contact Us For Availability
32
BOLT MAY 804594 Contact Us For Availability
33
MAY 808333 MAY 808333 Contact Us For Availability
33
SCREW MAY 806967 Contact Us For Availability
33
CHANNEL MAY 806290 Contact Us For Availability
33
SEAL TOOL MAY 803923 Contact Us For Availability
33
SCREW MAY 804164 Contact Us For Availability
34
MAY 808134 MAY 808134 Contact Us For Availability
34
MAY 806976 MAY 806976 Contact Us For Availability
34
MAY 808342 MAY 808342 Contact Us For Availability
34
SHROUD MAY 806267 Contact Us For Availability
34
SCREW MAY 803003 Contact Us For Availability
35
MAY 807501 MAY 807501 Contact Us For Availability
35
TEENUT MAY 807671 Contact Us For Availability
35
MAY D800062 MAY D800062 Contact Us For Availability
36
SCREW MAY 806894 Contact Us For Availability
36
GROUND TERMINAL MAY 807213 Contact Us For Availability
36
MAY 808177 MAY 808177 Contact Us For Availability
36
SCREW MAY 806901 Contact Us For Availability
37
MAY 804895 MAY 804895 Contact Us For Availability
37
MAY 808467 MAY 808467 Contact Us For Availability
37
UPR SPRAY ARM MAY 808259 Contact Us For Availability
37
SCREW MAY 807181 Contact Us For Availability
38
MAY 805863 MAY 805863 Contact Us For Availability
38
MAY 808362 MAY 808362 Contact Us For Availability
38
TOWER BASE MAY 808178 Contact Us For Availability
38
MAY 808366 MAY 808366 Contact Us For Availability
39
MAY 806100 MAY 806100 Contact Us For Availability
39
MAY 808179 MAY 808179 Contact Us For Availability
39
STRIKE SHIM MAY 807073 Contact Us For Availability
40
MAY 807609 MAY 807609 Contact Us For Availability
40
MAY 808180 MAY 808180 Contact Us For Availability
40
STRIKE MAY 807015 Contact Us For Availability
41
FLOAT SWITCH MAY 807680 Contact Us For Availability
42
MAY 808187 MAY 808187 Contact Us For Availability
43
INLET TUBE MAY 807891 Contact Us For Availability
44
MAY 803367 MAY 803367 Contact Us For Availability
45
SEALER MAY 805776 Contact Us For Availability
46
MAY 806470 MAY 806470 Contact Us For Availability
47
BLOWER WHEEL MAY 806230 Contact Us For Availability
48
WIRE,GASKT JUNC MAY 808344 Contact Us For Availability
× ![]()
