Model Maytag DU24H4B DISHWASHER – Common Parts & Diagrams

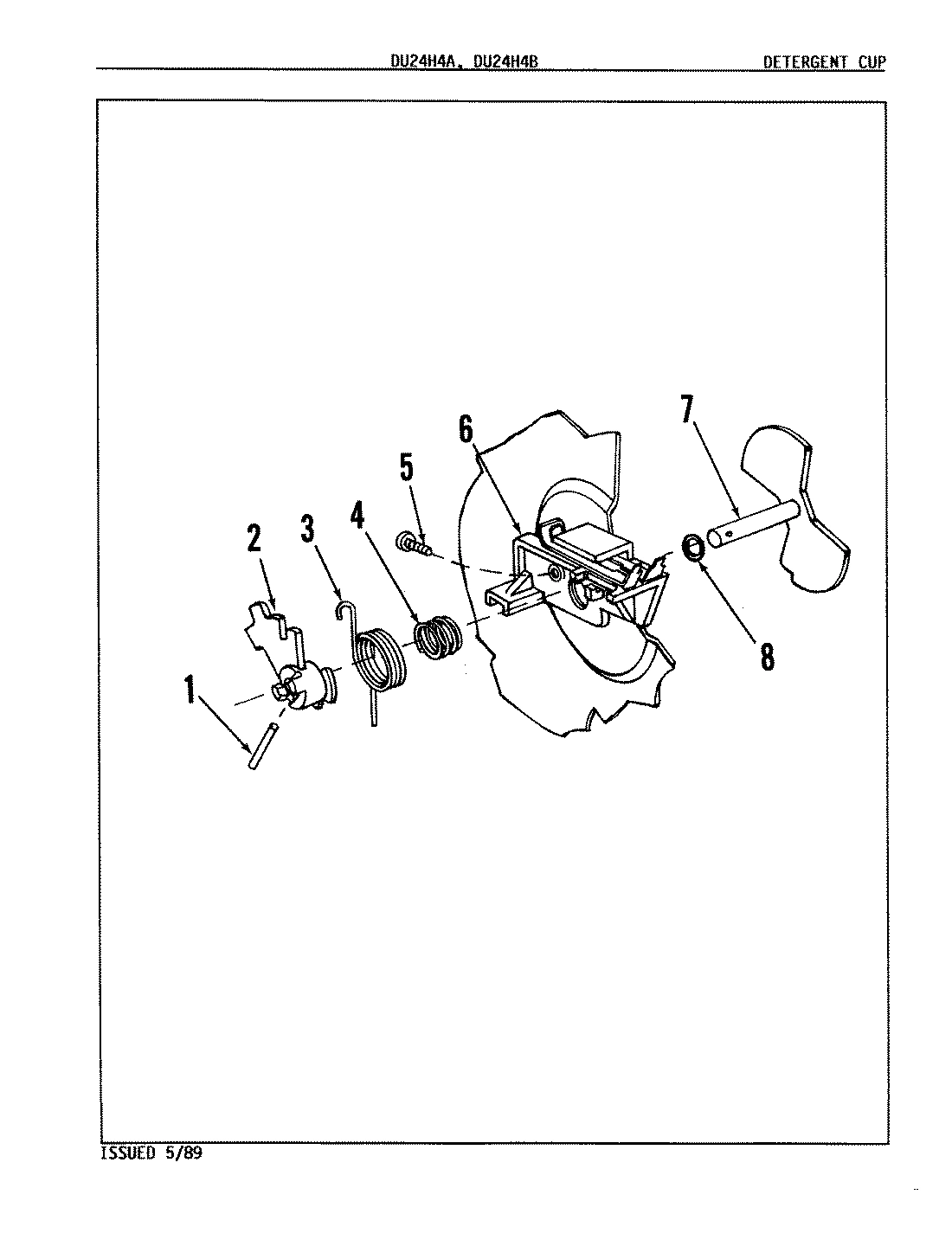

01 - DETERGENT CUP

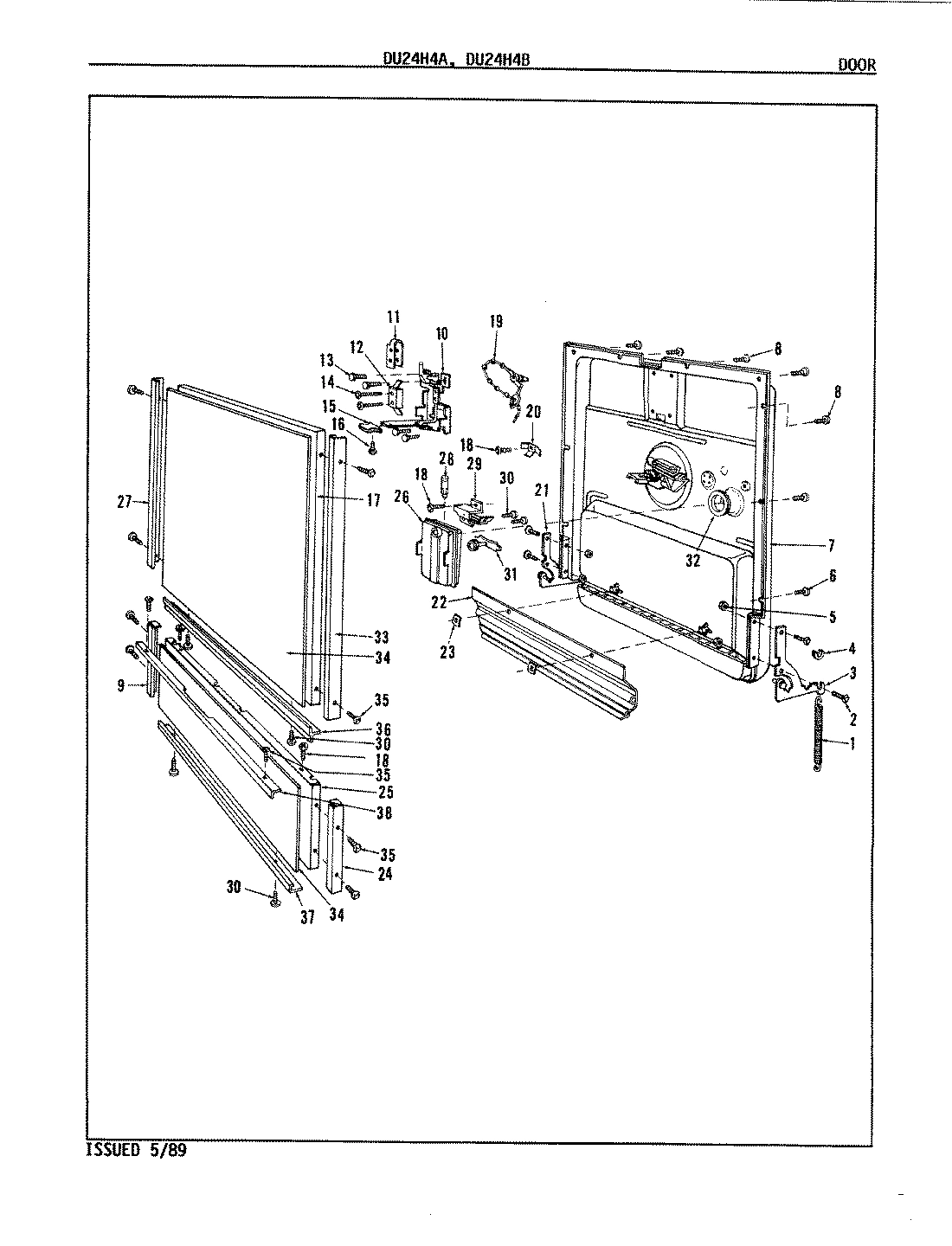

02 - DOOR
03 - FRAME

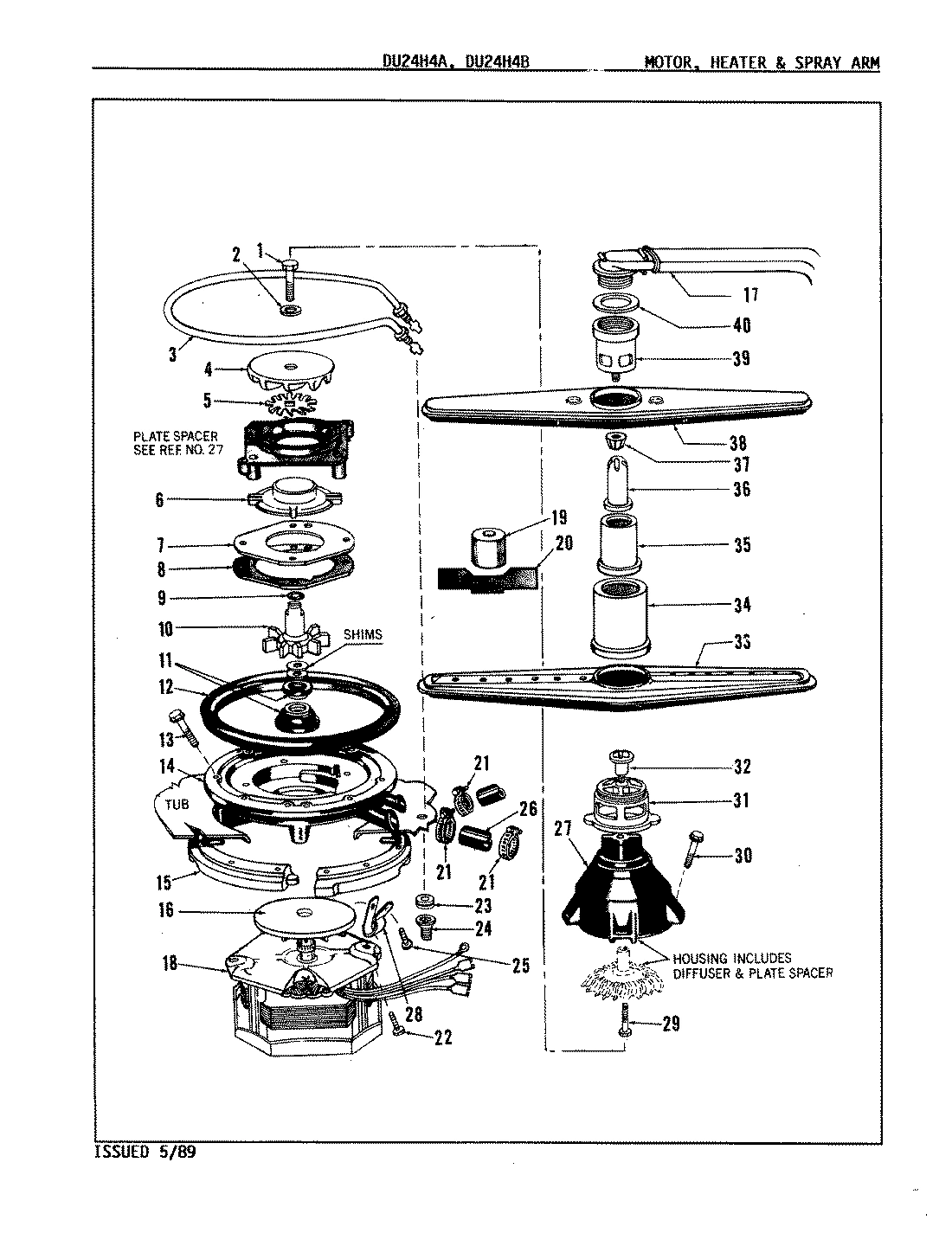

04 - MOTOR, HEATER & SPRAY ARM

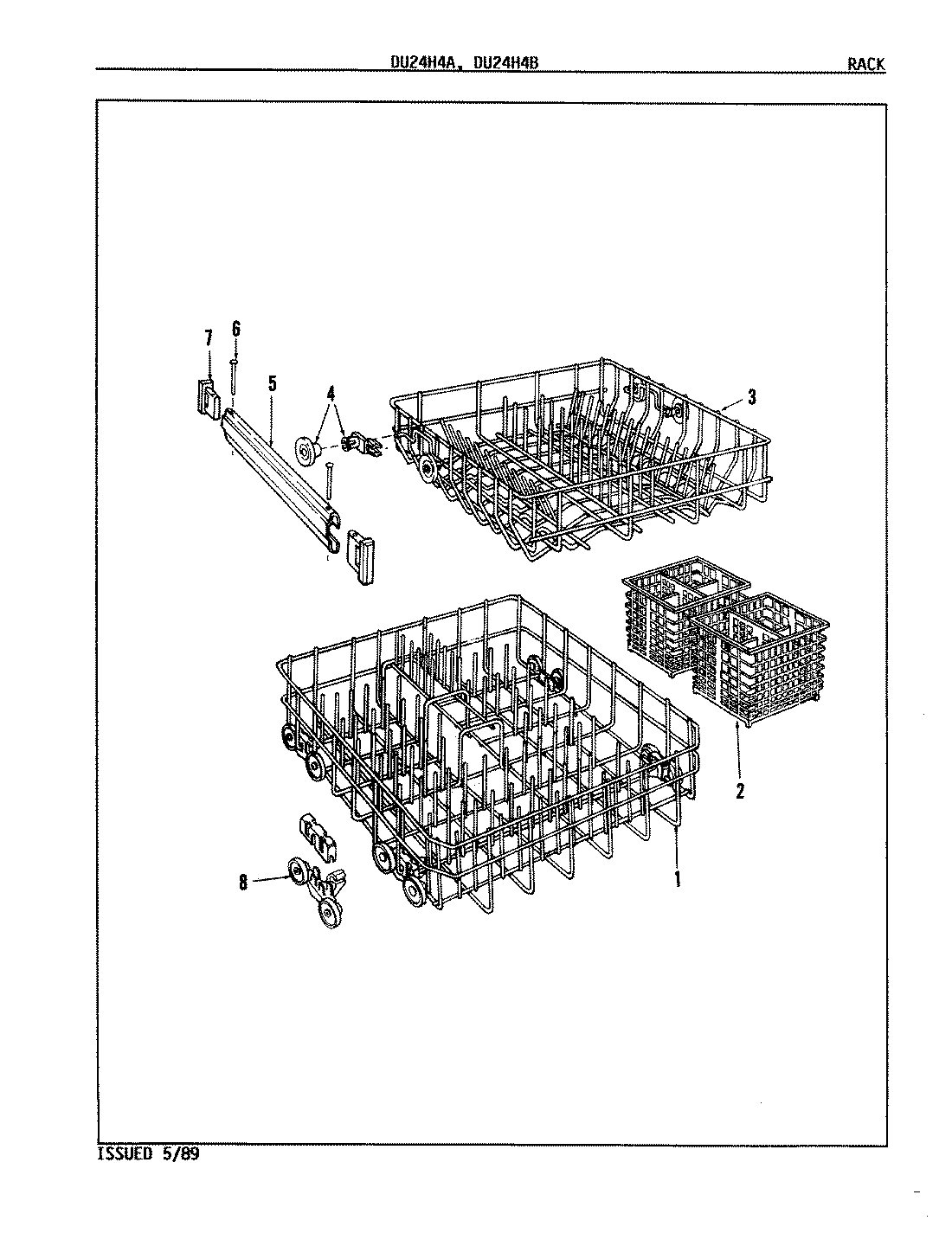

05 - RACK

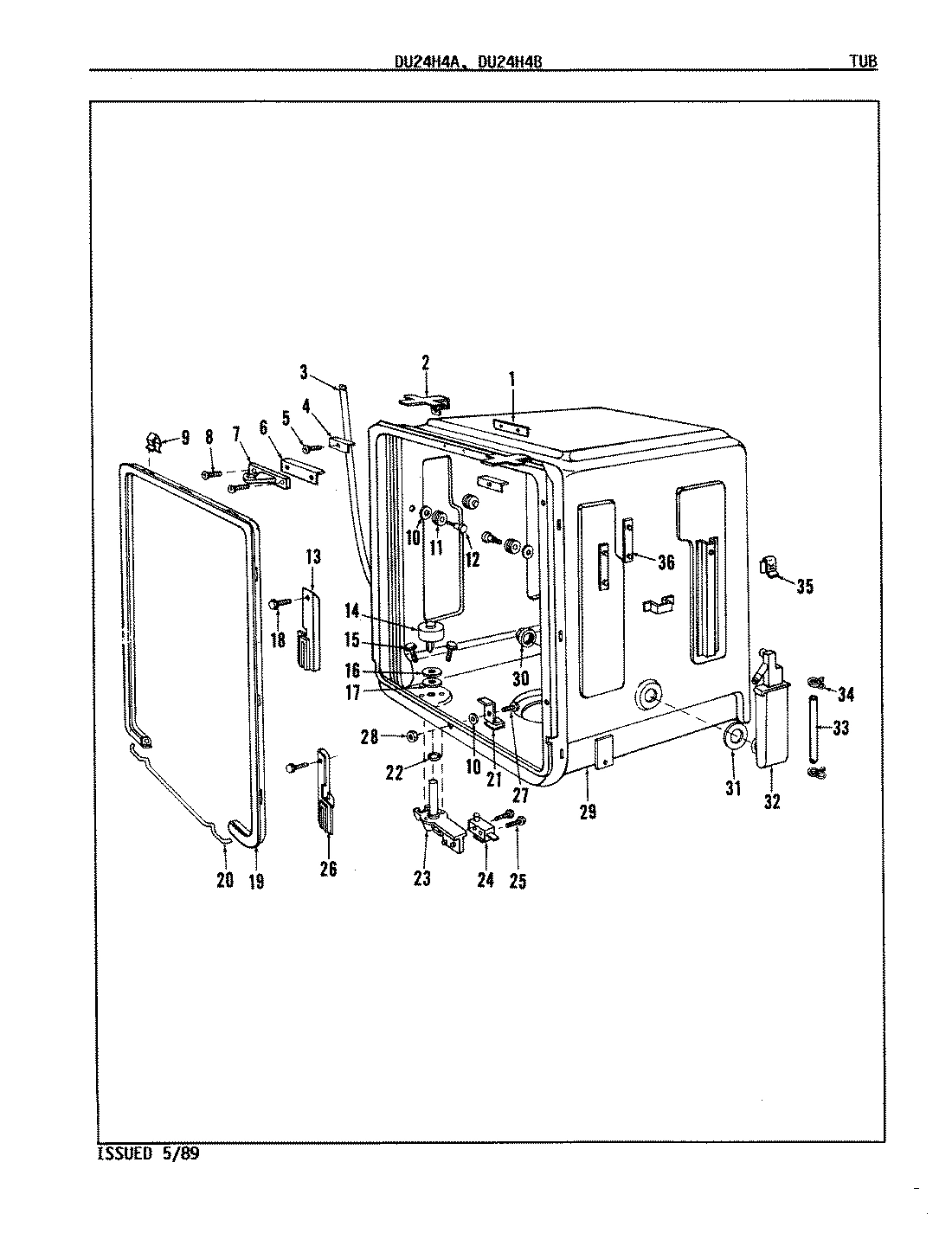

06 - TUB
Common parts from model Maytag DU24H4B DISHWASHER
1
ROLL PIN MAY 808827 Contact Us For Availability
1
DOOR SPRING MAY 809360 Contact Us For Availability
1
TERMINAL COVER MAY 800222 Contact Us For Availability
1
MAY 806353 MAY 806353 Contact Us For Availability
1
LOWER RACK MAY 809149 Contact Us For Availability
1
TAPPING PLATE MAY 808868 Contact Us For Availability
2
MAY 806566 MAY 806566 Contact Us For Availability
2
MAY 803311 MAY 803311 Contact Us For Availability
2
BRACKET MAY 807019 Contact Us For Availability
2
MAY 803367 MAY 803367 Contact Us For Availability
2
SLVRWARE BASKET MAY 808845 Contact Us For Availability
2
CLIP MAY 808289 Contact Us For Availability
3
SPRING MAY 805227 Contact Us For Availability
3
RH ARM MAY 805681 Contact Us For Availability
3
MAY 807951 MAY 807951 Contact Us For Availability
3
HEATER MAY 809060 Contact Us For Availability
3
UPPER RACK ASM MAY 809497 Contact Us For Availability
3
DRAIN HOSE MAY 809112 Contact Us For Availability
4
SPRING MAY 806567 Contact Us For Availability
4
SPRING PAD MAY 805884 Contact Us For Availability
4
MAY 807373 MAY 807373 Contact Us For Availability
4
UPPER IMPELLER MAY 809005 Contact Us For Availability
4
RACK WHEEL ASM MAY 809500 Contact Us For Availability
4
CLIP SHIM MAY 809199 Contact Us For Availability
5
LOCKNUT MAY 808470 Contact Us For Availability
5
MAY 807950 MAY 807950 Contact Us For Availability
5
MACERATOR BLADE MAY 808075 Contact Us For Availability
5
MAY 809501 MAY 809501 Contact Us For Availability
5
MAY 806976 MAY 806976 Contact Us For Availability
6
DET CUP TRIGGER MAY 809072 Contact Us For Availability
6
MAY 809055 MAY 809055 Contact Us For Availability
6
MAY 808658 MAY 808658 Contact Us For Availability
6
SHROUD MAY 806267 Contact Us For Availability
6
SLIDE CAP PIN MAY 809502 Contact Us For Availability
7
DISPENSER LID MAY 809028 Contact Us For Availability
7
DOOR ASSEMBLY MAY 809054 Contact Us For Availability
7
SIDE PANEL KIT MAY 808880 Contact Us For Availability
7
PUMP PLATE MAY 807884 Contact Us For Availability
7
SLIDE CAP MAY 809721 Contact Us For Availability
7
SHIM MAY 809214 Contact Us For Availability
8
O RING MAY 806647 Contact Us For Availability
8
MAY 808749 MAY 808749 Contact Us For Availability
8
RELAY MAY 805255 Contact Us For Availability
8
GASKET MAY 807709 Contact Us For Availability
8
WHEEL ASM MAY 807008 Contact Us For Availability
8
MAY 806890 MAY 806890 Contact Us For Availability
9
LH TRIM MAY 808029 Contact Us For Availability
9
MAY 806593 MAY 806593 Contact Us For Availability
9
O RING MAY 806521 Contact Us For Availability
9
CLIP KIT (TUB GASKET) MAY 805763 Contact Us For Availability
10
LATCH ASM MAY 807016 Contact Us For Availability
10
MAY 804672 MAY 804672 Contact Us For Availability
10
PUMP SEAL KIT MAY 809110 Contact Us For Availability
10
MAY 809044 MAY 809044 Contact Us For Availability
11
SWITCH COVER MAY 807450 Contact Us For Availability
11
SCREW MAY 807001 Contact Us For Availability
11
GASKET MAY 803903 Contact Us For Availability
11
ROLLER MAY 807180 Contact Us For Availability
12
MAY 807043 MAY 807043 Contact Us For Availability
12
TOE PLATE MAY 809304 Contact Us For Availability
12
PUMP GASKET MAY 809008 Contact Us For Availability
12
HARDWARE KIT MAY 808564 Contact Us For Availability
13
MAY 809029 MAY 809029 Contact Us For Availability
13
ADJ TOE PLATE MAY 809303 Contact Us For Availability
13
LH GUIDE MAY 807470 Contact Us For Availability
14
MAY 808618 MAY 808618 Contact Us For Availability
14
MAY 807486 MAY 807486 Contact Us For Availability
14
MAY 809102 MAY 809102 Contact Us For Availability
14
MAY 806430 MAY 806430 Contact Us For Availability
15
LATCH KNOB MAY 808712 Contact Us For Availability
15
MAY 807501 MAY 807501 Contact Us For Availability
15
MAY 807268 MAY 807268 Contact Us For Availability
15
CLAMP RING MAY 807712 Contact Us For Availability
16
MAY 809163 MAY 809163 Contact Us For Availability
16
CLAMP MAY 806723 Contact Us For Availability
16
WATERSHIELD ASM MAY 809366 Contact Us For Availability
16
PLATE, FLOAT TUBE MAY 808064 Contact Us For Availability
17
OUTER PANEL MAY 807262 Contact Us For Availability
17
WIRE SHIELD MAY 809144 Contact Us For Availability
17
ELBOW & TUBE MAY 808185 Contact Us For Availability
17
GASKET MAY 808063 Contact Us For Availability
18
MAY 807849 MAY 807849 Contact Us For Availability
18
MOTOR MAY 809100 Contact Us For Availability
18
MAY 806539 MAY 806539 Contact Us For Availability
19
WIRE TIE MAY 809075 Contact Us For Availability
19
GROUND TERMINAL MAY 807213 Contact Us For Availability
19
SEAL TOOL MAY 803923 Contact Us For Availability
19
GASKET ASM MAY 809035 Contact Us For Availability
20
MAY 809418 MAY 809418 Contact Us For Availability
20
SHIM GAUGE MAY 807077 Contact Us For Availability
20
JUNCTION ROD MAY 809320 Contact Us For Availability
21
LH ARM MAY 805682 Contact Us For Availability
21
WATER VALVE MAY 809240 Contact Us For Availability
21
MAY 808186 MAY 808186 Contact Us For Availability
21
MAY 808115 MAY 808115 Contact Us For Availability
22
MAY 809025 MAY 809025 Contact Us For Availability
22
MAY 809422 MAY 809422 Contact Us For Availability
22
MAY 809022 MAY 809022 Contact Us For Availability
22
O RING MAY 807759 Contact Us For Availability
23
MAY 809026 MAY 809026 Contact Us For Availability
23
MAY 808395 MAY 808395 Contact Us For Availability
23
GROMMET MAY 806833 Contact Us For Availability
23
FLOAT ASM MAY 807677 Contact Us For Availability
24
RH TRIM MAY 808028 Contact Us For Availability
24
MAY 809526 MAY 809526 Contact Us For Availability
24
NUT MAY 806834 Contact Us For Availability
24
FLOAT SWITCH MAY 807680 Contact Us For Availability
25
ACCESS PANEL MAY 809108 Contact Us For Availability
25
MAY 804619 MAY 804619 Contact Us For Availability
25
MAY 807270 MAY 807270 Contact Us For Availability
25
BOLT MAY 804594 Contact Us For Availability
26
DISPENSER MAY 806753 Contact Us For Availability
26
MAY 807852 MAY 807852 Contact Us For Availability
26
HOSE CONNECTOR MAY 808174 Contact Us For Availability
26
RH GUIDE MAY 807471 Contact Us For Availability
27
DOOR TRIM MAY 808977 Contact Us For Availability
27
MAY 807848 MAY 807848 Contact Us For Availability
27
IMPELR HSG KIT MAY 809119 Contact Us For Availability
27
MAY 803319 MAY 803319 Contact Us For Availability
28
MAY 806757 MAY 806757 Contact Us For Availability
28
MAY 808670 MAY 808670 Contact Us For Availability
28
WIRE CLAMP MAY 808442 Contact Us For Availability
28
MAY 803346 MAY 803346 Contact Us For Availability
29
BI-METAL ASM MAY 809109 Contact Us For Availability
29
SCREW MAY 809121 Contact Us For Availability
29
TUB & GASKET ASM MAY 809347 Contact Us For Availability
30
SCREW MAY 807359 Contact Us For Availability
30
MAY 805669 MAY 805669 Contact Us For Availability
31
MAY 807673 MAY 807673 Contact Us For Availability
31
MAY 809046 MAY 809046 Contact Us For Availability
31
WASHER MAY 803573 Contact Us For Availability
32
GROMMET MAY 805631 Contact Us For Availability
32
SPRAY ARM BOLT MAY 809018 Contact Us For Availability
32
MAY 806470 MAY 806470 Contact Us For Availability
33
DOOR TRIM MAY 808976 Contact Us For Availability
33
MAY 808177 MAY 808177 Contact Us For Availability
33
INLET TUBE MAY 807891 Contact Us For Availability
34
ACC PNL INSERT MAY 808914 Contact Us For Availability
34
TOWER BASE MAY 808178 Contact Us For Availability
34
MAY 807813 MAY 807813 Contact Us For Availability
35
MAY 807293 MAY 807293 Contact Us For Availability
35
MAY 808179 MAY 808179 Contact Us For Availability
35
MAY 806291 MAY 806291 Contact Us For Availability
36
DOOR TRIM MAY 807347 Contact Us For Availability
36
MAY 808180 MAY 808180 Contact Us For Availability
36
TAPPING PLATE MAY 807038 Contact Us For Availability
36
SEALANT MAY 807509 Contact Us For Availability
37
BOTTOM TRIM MAY 808027 Contact Us For Availability
37
MAY 808181 MAY 808181 Contact Us For Availability
38
ACC PNL TRIM MAY 808346 Contact Us For Availability
38
BLACK DOOR KIT MAY 808926 Contact Us For Availability
38
SPRAY ARM MAY 809021 Contact Us For Availability
39
MAY 808183 MAY 808183 Contact Us For Availability
40
MAY 808184 MAY 808184 Contact Us For Availability
40
BEARING SHIELD MAY 808924 Contact Us For Availability
× ![]()
