Model Maytag DU18J4 DISHWASHER – Common Parts & Diagrams
01 - CONTROL PANEL (DU18J4/DU18J4B)
02 - DETERGENT CUP (DU18J4/DU18J4B)

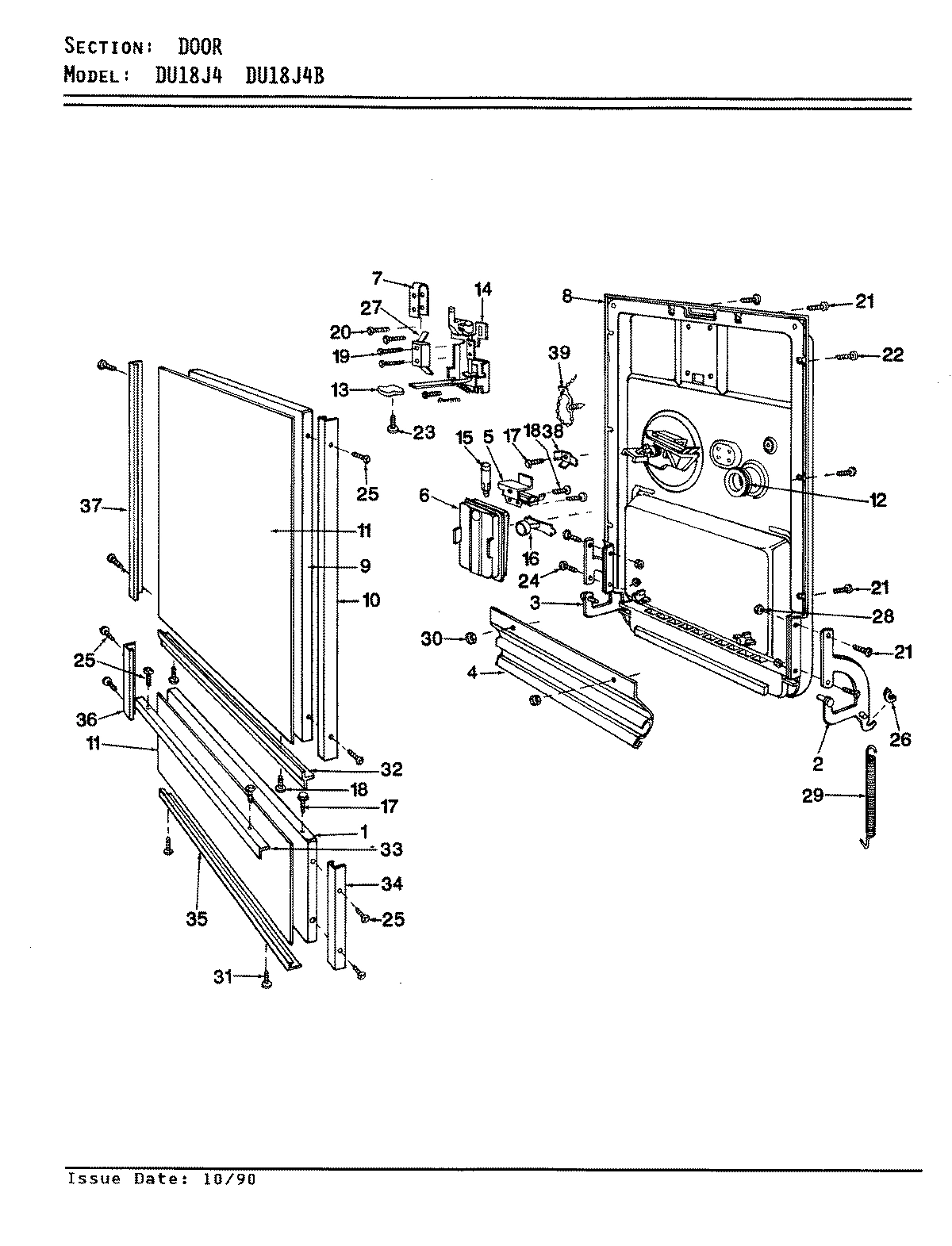

03 - DOOR (DU18J4/DU18J4B)

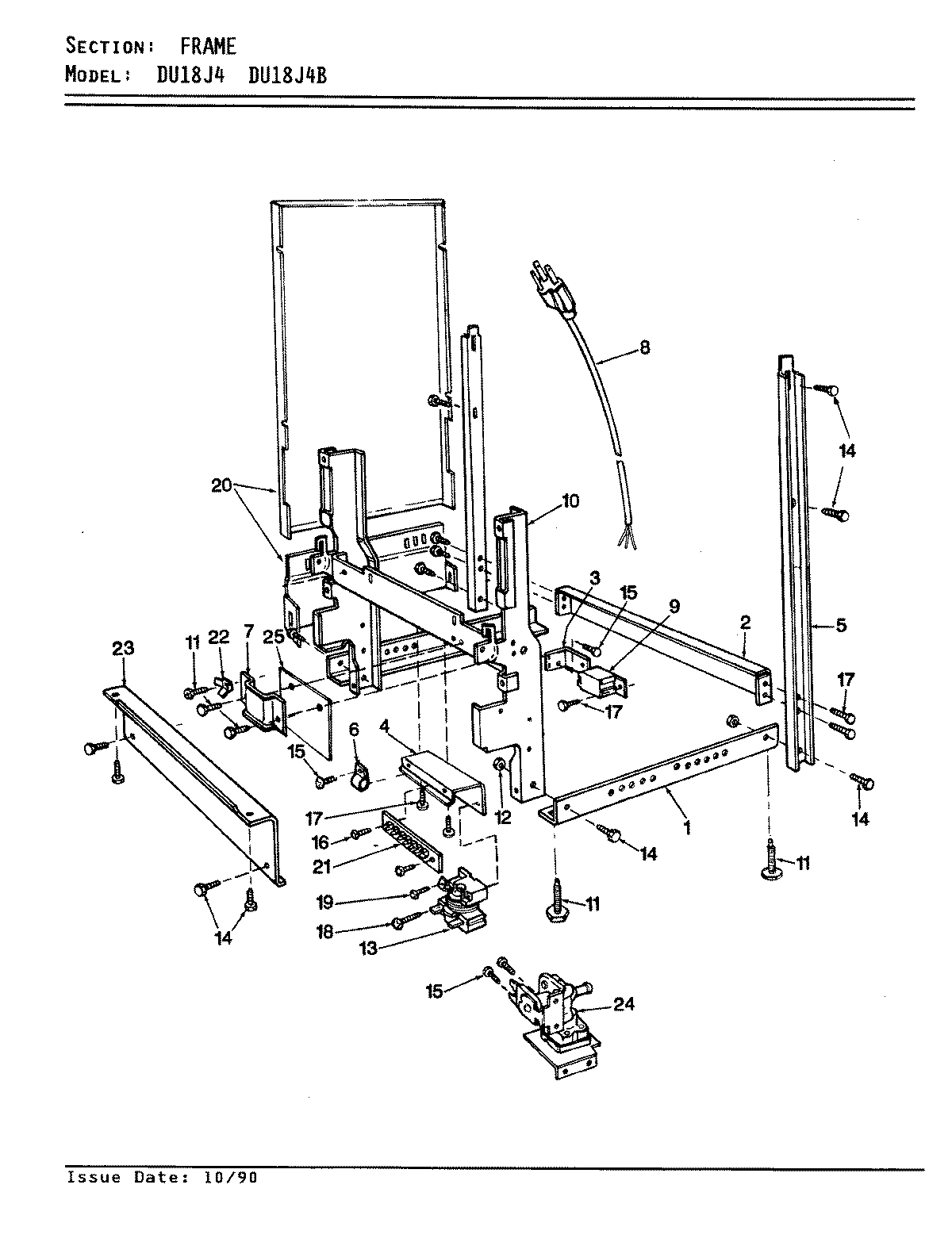

04 - FRAME (DU18J4/DU18J4B)
05 - MOTOR, HEATER & SPARY ARM (DU18J4)

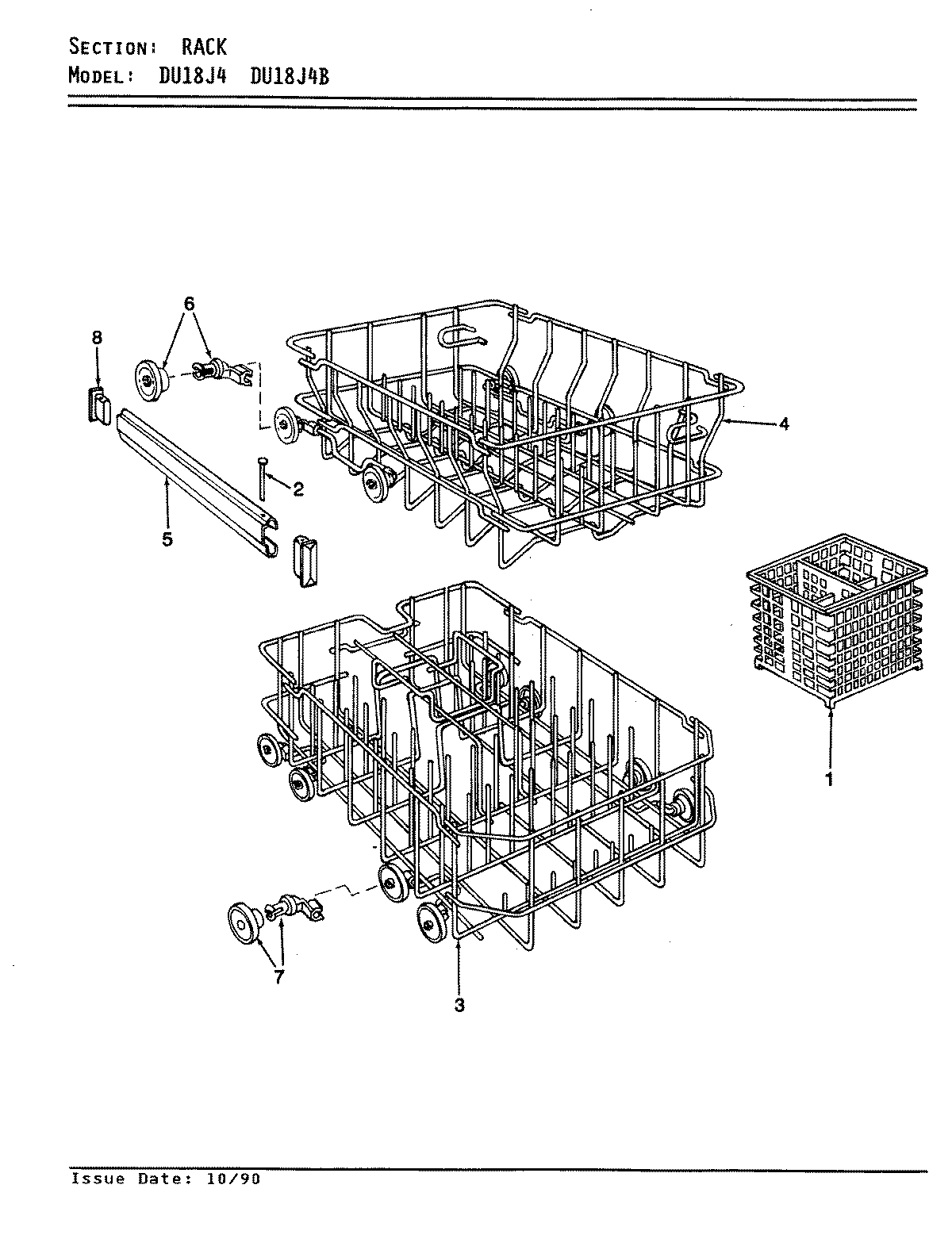

06 - RACK (DU18J4/DU18J4B)

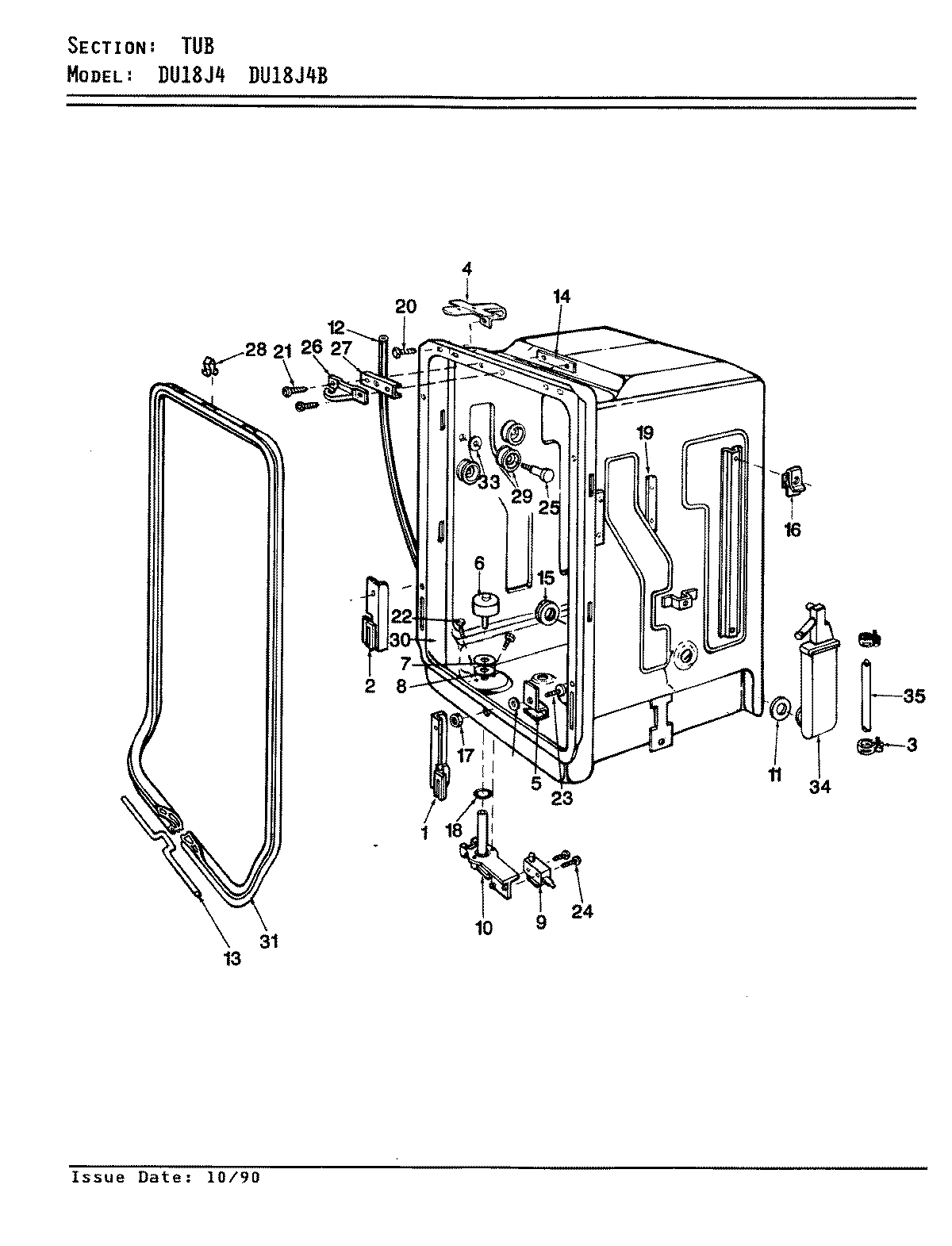

07 - TUB (DU18J4/DU18J4B)
Common parts from model Maytag DU18J4 DISHWASHER
1
MAY 805584 MAY 805584 Contact Us For Availability
1
DET CUP TRIGGER MAY 809072 Contact Us For Availability
1
ACCESS PANEL MAY 808304 Contact Us For Availability
1
MAY 809543 MAY 809543 Contact Us For Availability
1
MAY 806353 MAY 806353 Contact Us For Availability
1
SLVRWARE BASKET MAY 808845 Contact Us For Availability
1
RH GUIDE MAY 807600 Contact Us For Availability
2
MAY 806566 MAY 806566 Contact Us For Availability
2
RH ARM MAY 807538 Contact Us For Availability
2
MAY 807566 MAY 807566 Contact Us For Availability
2
MAY 803367 MAY 803367 Contact Us For Availability
2
SLIDE CAP PIN MAY 809502 Contact Us For Availability
2
LH GUIDE MAY 807599 Contact Us For Availability
3
MAY 809495 MAY 809495 Contact Us For Availability
3
DISPENSER LID MAY 809028 Contact Us For Availability
3
LH ARM MAY 807539 Contact Us For Availability
3
BRACKET MAY 807019 Contact Us For Availability
3
HEATER KIT MAY 806864 Contact Us For Availability
3
MAY 809641 MAY 809641 Contact Us For Availability
3
MAY 807813 MAY 807813 Contact Us For Availability
4
MAY 809702 MAY 809702 Contact Us For Availability
4
MAY 809636 MAY 809636 Contact Us For Availability
4
O RING MAY 806647 Contact Us For Availability
4
MAY 807849 MAY 807849 Contact Us For Availability
4
UPPER IMPELLER MAY 809005 Contact Us For Availability
4
MAY 03100013 MAY 03100013 Contact Us For Availability
4
MAY 809647 MAY 809647 Contact Us For Availability
4
CLIP MAY 808289 Contact Us For Availability
5
RH ENDCAP MAY 808693 Contact Us For Availability
5
BI-METAL ASM MAY 809109 Contact Us For Availability
5
MAY 808670 MAY 808670 Contact Us For Availability
5
MACERATOR BLADE MAY 808075 Contact Us For Availability
5
MAY 808115 MAY 808115 Contact Us For Availability
6
LH ENDCAP MAY 808694 Contact Us For Availability
6
SPRING MAY 806567 Contact Us For Availability
6
DISPENSER MAY 806753 Contact Us For Availability
6
SHROUD MAY 806267 Contact Us For Availability
6
RACK WHEEL ASM MAY 809500 Contact Us For Availability
6
MAY 804630 MAY 804630 Contact Us For Availability
7
MAY 808333 MAY 808333 Contact Us For Availability
7
SPRING MAY 805227 Contact Us For Availability
7
SWITCH COVER MAY 807450 Contact Us For Availability
7
CLAMP MAY 806723 Contact Us For Availability
7
PUMP PLATE MAY 807884 Contact Us For Availability
7
MAY 809640 MAY 809640 Contact Us For Availability
7
PLATE, FLOAT TUBE MAY 808064 Contact Us For Availability
8
MAY 809036 MAY 809036 Contact Us For Availability
8
ROLL PIN MAY 808827 Contact Us For Availability
8
MAY 809635 MAY 809635 Contact Us For Availability
8
MAY 808395 MAY 808395 Contact Us For Availability
8
GASKET MAY 807709 Contact Us For Availability
8
SLIDE CAP MAY 809721 Contact Us For Availability
8
GASKET MAY 808063 Contact Us For Availability
9
LIGHT ASSEMBLY MAY 809317 Contact Us For Availability
9
DOOR PANEL MAY 808298 Contact Us For Availability
9
TERMINAL COVER MAY 800222 Contact Us For Availability
9
O RING MAY 806521 Contact Us For Availability
9
FLOAT SWITCH MAY 807680 Contact Us For Availability
10
MAY 809668 MAY 809668 Contact Us For Availability
10
MAY 809669 MAY 809669 Contact Us For Availability
10
MAY 809700 MAY 809700 Contact Us For Availability
10
MAY 809701 MAY 809701 Contact Us For Availability
10
TRIM MAY 808990 Contact Us For Availability
10
HINGE ASM MAY 809212 Contact Us For Availability
10
PUMP SEAL KIT MAY 809116 Contact Us For Availability
10
FLOAT ASM MAY 807677 Contact Us For Availability
11
INSERT MAY 808919 Contact Us For Availability
11
MAY 809422 MAY 809422 Contact Us For Availability
11
GASKET MAY 803903 Contact Us For Availability
11
WASHER MAY 803573 Contact Us For Availability
12
MAY 804619 MAY 804619 Contact Us For Availability
12
PUMP GASKET MAY 809008 Contact Us For Availability
12
DRAIN HOSE MAY 809112 Contact Us For Availability
13
MAY 809175 MAY 809175 Contact Us For Availability
13
GROMMET MAY 805631 Contact Us For Availability
13
RELAY MAY 805255 Contact Us For Availability
13
MAY 809634 MAY 809634 Contact Us For Availability
14
MAY 807141 MAY 807141 Contact Us For Availability
14
LATCH ASM MAY 807016 Contact Us For Availability
14
SCREW MAY 807001 Contact Us For Availability
14
MAY 809059 MAY 809059 Contact Us For Availability
14
TAPPING PLATE MAY 808868 Contact Us For Availability
15
MAY 807425 MAY 807425 Contact Us For Availability
15
MAY 806757 MAY 806757 Contact Us For Availability
15
MAY 807950 MAY 807950 Contact Us For Availability
15
CLAMP RING MAY 807712 Contact Us For Availability
15
MAY 805669 MAY 805669 Contact Us For Availability
16
MAY 808475 MAY 808475 Contact Us For Availability
16
MAY 807673 MAY 807673 Contact Us For Availability
16
MAY 807501 MAY 807501 Contact Us For Availability
16
WATERSHIELD ASM MAY 809366 Contact Us For Availability
16
MAY 806291 MAY 806291 Contact Us For Availability
17
PB SWITCH MAY 809328 Contact Us For Availability
17
MAY 808658 MAY 808658 Contact Us For Availability
17
MOTOR MAY 809100 Contact Us For Availability
17
MAY 803346 MAY 803346 Contact Us For Availability
18
MAY 806594 MAY 806594 Contact Us For Availability
18
MAY 804672 MAY 804672 Contact Us For Availability
18
MAY 809022 MAY 809022 Contact Us For Availability
18
O RING MAY 807759 Contact Us For Availability
19
WIRE CLAMP MAY 808442 Contact Us For Availability
19
MAY 808483 MAY 808483 Contact Us For Availability
19
MAY 808618 MAY 808618 Contact Us For Availability
19
MAY 806593 MAY 806593 Contact Us For Availability
19
TAPPING PLATE MAY 807038 Contact Us For Availability
20
SCREW MAY 806894 Contact Us For Availability
20
MAY 809771 MAY 809771 Contact Us For Availability
20
MAY 809029 MAY 809029 Contact Us For Availability
20
SIDE PANEL MAY 808885 Contact Us For Availability
20
MAY 807270 MAY 807270 Contact Us For Availability
21
TERMINAL HOUSING MAY 809296 Contact Us For Availability
21
MAY 809055 MAY 809055 Contact Us For Availability
21
MAY 807486 MAY 807486 Contact Us For Availability
21
NUT MAY 806834 Contact Us For Availability
21
MAY 806890 MAY 806890 Contact Us For Availability
22
VENT TRIM MAY 808477 Contact Us For Availability
22
MAY 808749 MAY 808749 Contact Us For Availability
22
GROUND TERMINAL MAY 807213 Contact Us For Availability
22
MAY 807268 MAY 807268 Contact Us For Availability
22
GROMMET MAY 806833 Contact Us For Availability
23
SHIELD MAY 808574 Contact Us For Availability
23
MAY 809163 MAY 809163 Contact Us For Availability
23
TOE PLATE MAY 807559 Contact Us For Availability
23
MAY 808186 MAY 808186 Contact Us For Availability
23
MAY 803319 MAY 803319 Contact Us For Availability
24
MAY 803311 MAY 803311 Contact Us For Availability
24
WTR INLET VALVE MAY 809241 Contact Us For Availability
24
SHIM GAUGE MAY 807077 Contact Us For Availability
24
BOLT MAY 804594 Contact Us For Availability
25
MAY 807293 MAY 807293 Contact Us For Availability
25
WIRE SHIELD MAY 809144 Contact Us For Availability
25
SEAL TOOL MAY 803923 Contact Us For Availability
25
HARDWARE KIT MAY 808564 Contact Us For Availability
26
SPRING PAD MAY 805884 Contact Us For Availability
26
IMPELR HSG KIT MAY 809119 Contact Us For Availability
27
MAY 807043 MAY 807043 Contact Us For Availability
27
SCREW MAY 809121 Contact Us For Availability
27
SHIM MAY 809214 Contact Us For Availability
28
LOCKNUT MAY 808470 Contact Us For Availability
28
SCREW MAY 807359 Contact Us For Availability
28
CLIP KIT (TUB GASKET) MAY 805763 Contact Us For Availability
29
MAY 807601 MAY 807601 Contact Us For Availability
29
MAY 809046 MAY 809046 Contact Us For Availability
29
ROLLER MAY 807180 Contact Us For Availability
30
MAY 809026 MAY 809026 Contact Us For Availability
30
SPRAY ARM BOLT MAY 809018 Contact Us For Availability
30
MAY 809716 MAY 809716 Contact Us For Availability
31
SCREW MAY 803416 Contact Us For Availability
31
BEARING SHIELD MAY 808924 Contact Us For Availability
31
MAY 809633 MAY 809633 Contact Us For Availability
32
MAY 809637 MAY 809637 Contact Us For Availability
32
SPRAY ARM MAY 808848 Contact Us For Availability
32
SEALANT MAY 807509 Contact Us For Availability
33
ACCESS PNL TRIM MAY 808471 Contact Us For Availability
33
TOWER BASE MAY 808178 Contact Us For Availability
33
MAY 809044 MAY 809044 Contact Us For Availability
34
TRIM MAY 808103 Contact Us For Availability
34
MAY 808179 MAY 808179 Contact Us For Availability
34
MAY 806470 MAY 806470 Contact Us For Availability
35
TRIM MAY 808303 Contact Us For Availability
35
MAY 808849 MAY 808849 Contact Us For Availability
35
INLET TUBE MAY 807891 Contact Us For Availability
36
TRIM MAY 808104 Contact Us For Availability
37
LH DOOR TRIM MAY 808991 Contact Us For Availability
39
MAY 808935 MAY 808935 Contact Us For Availability
39
WIRE TIE MAY 809075 Contact Us For Availability
× ![]()
