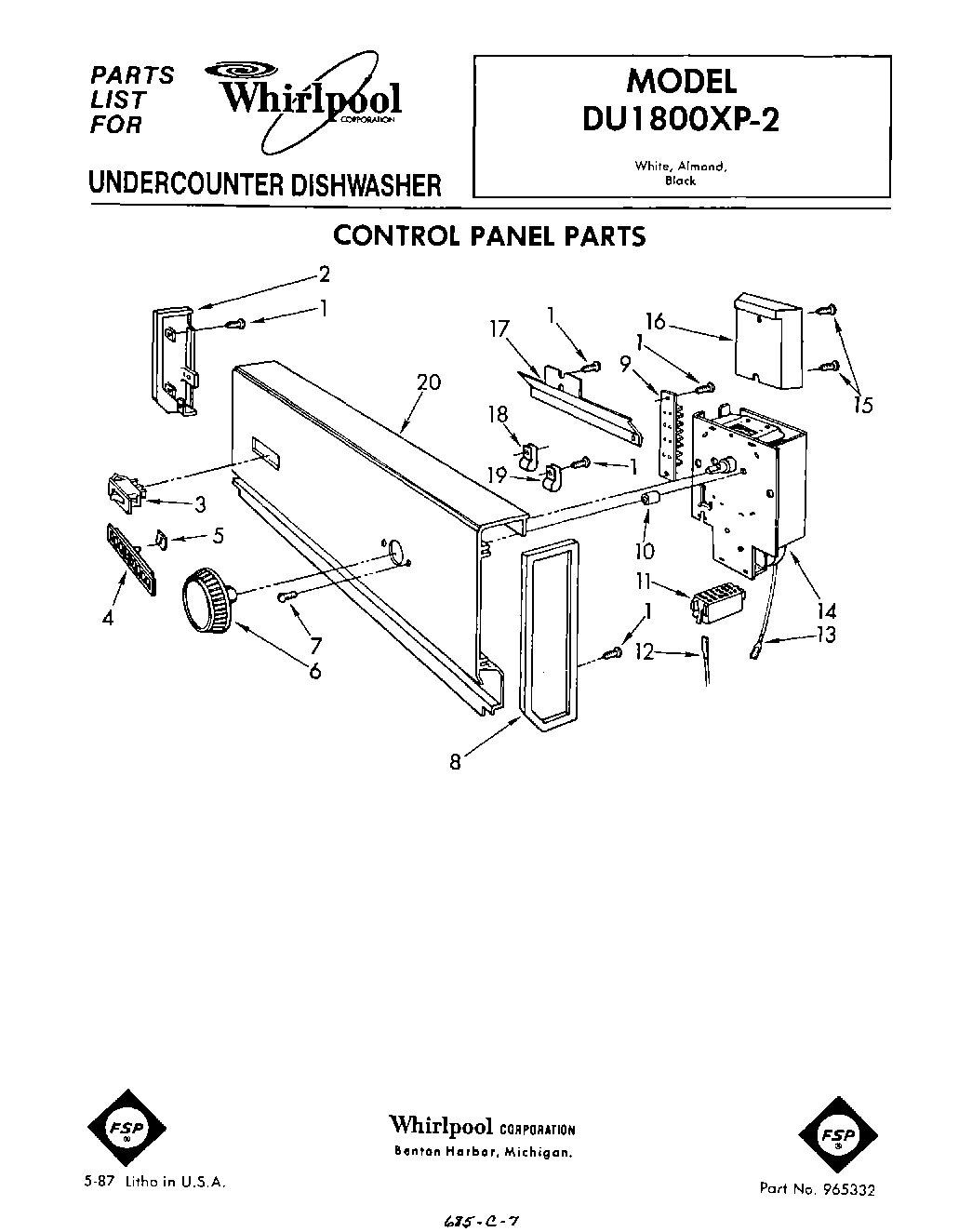

Model Whirlpool DU1800XP2 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability

Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability

Kit, Epoxy Patch (White) WPL 799640 Contact Us For Availability

Guide, Use & Care WPL LIT965138 Contact Us For Availability

Instructions, Installation WPL LIT965139 Contact Us For Availability

List, Repair Parts WPL LIT965332 Contact Us For Availability

1

Power Cord (optional) WPL 965337 Contact Us For Availability

1

Detergent Cup & Cover Kit WPL 965196 Contact Us For Availability

1

Tower Tip WPL 965275 Contact Us For Availability

1

Attach Clip (2) WPL 965210 Contact Us For Availability

1

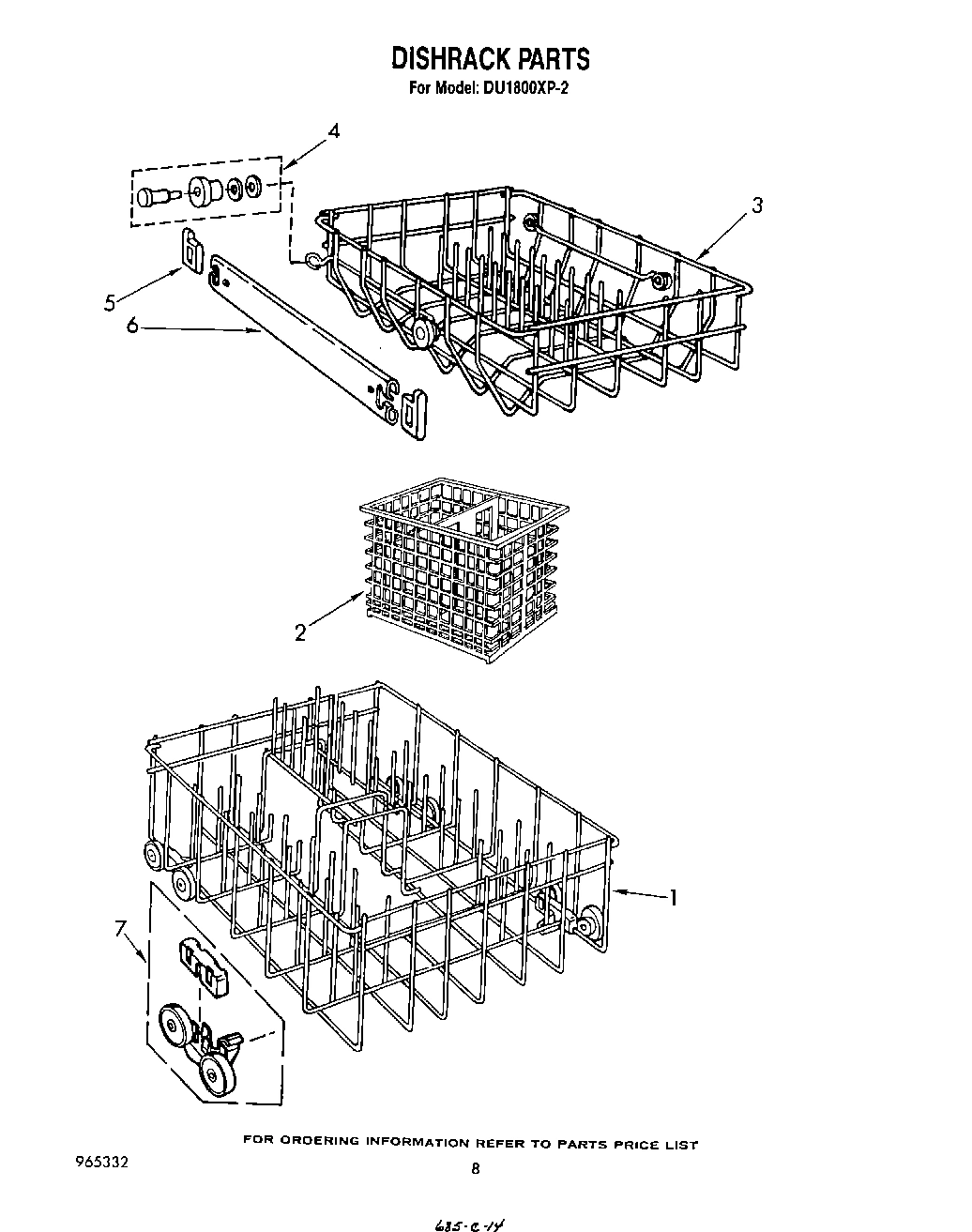

Rack Assembly, Lower (Includes Illus. 7) WPL 965310 Contact Us For Availability

1

Screw, 8 x 7/16 Phlps. truss hd. WPL 965333 Contact Us For Availability

1

Latch Assembly WPL 965163 Contact Us For Availability

2

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

2

Clamp, Wiring WPL 965248 Contact Us For Availability

2

``O`` Ring WPL 965197 Contact Us For Availability

2

Tower Section WPL 965276 Contact Us For Availability

2

Silverware Basket WPL 965290 Contact Us For Availability

2

End Cap, L.H. WPL 965144 Contact Us For Availability

3

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $31.90

3

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

3

Tower Base WPL 965277 Contact Us For Availability

3

Drain Hose WPL 965314 Contact Us For Availability

3

Rack Assembly, Upper (Includes Illus. 4) WPL 965344 Contact Us For Availability

3

Switch Cover WPL 965165 Contact Us For Availability

4

Screw, 8 x 3/8 WPL 965301 Contact Us For Availability

4

Cam WPL 965199 Contact Us For Availability

4

Spray Arm WPL 965278 Contact Us For Availability

4

Shim WPL 965212 Contact Us For Availability

4

Wheel Assembly, Complete (4) WPL 965345 Contact Us For Availability

4

Vent Grille WPL 965146 Contact Us For Availability

4

Screw, 6-32 x 1 Hex Hd. (4) WPL 965166 Contact Us For Availability

5

Toeplate WPL 965249 Contact Us For Availability

5

Rollpin, Cam WPL 965312 Contact Us For Availability

5

Nut, Spray Arm WPL 965323 Contact Us For Availability

5

Strike WPL 965213 Contact Us For Availability

5

End Cap, Slide (4) WPL 965346 Contact Us For Availability

5

Speednut WPL 965147 Contact Us For Availability

5

Switch WPL 965167 Contact Us For Availability

6

Terminal Bracket WPL 965334 Contact Us For Availability

6

Spring, Cam WPL 965201 Contact Us For Availability

6

Bearing, Spray Arm WPL 965322 Contact Us For Availability

6

Screw, 10-24 x 3/4 Phlps. Flat Hd. (2) WPL 965214 Contact Us For Availability

6

Slide, Rack (2) WPL 965347 Contact Us For Availability

6

Timer Knob WPL 965148 Contact Us For Availability

7

Spring, Cam Compression WPL 965202 Contact Us For Availability

7

Gasket Clips (Pkg. of 7 Illus. 7 & 1 Illus. 2 WPL 965215 Contact Us For Availability

7

Wheel & Bracket Assembly (4) WPL 965297 Contact Us For Availability

7

Screw, 10-32 x 1-1/4 Phlps. Truss Hd. (2) WPL 965149 Contact Us For Availability

7

Latch Knob WPL 965169 Contact Us For Availability

8

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

8

Nut WPL 965203 Contact Us For Availability

8

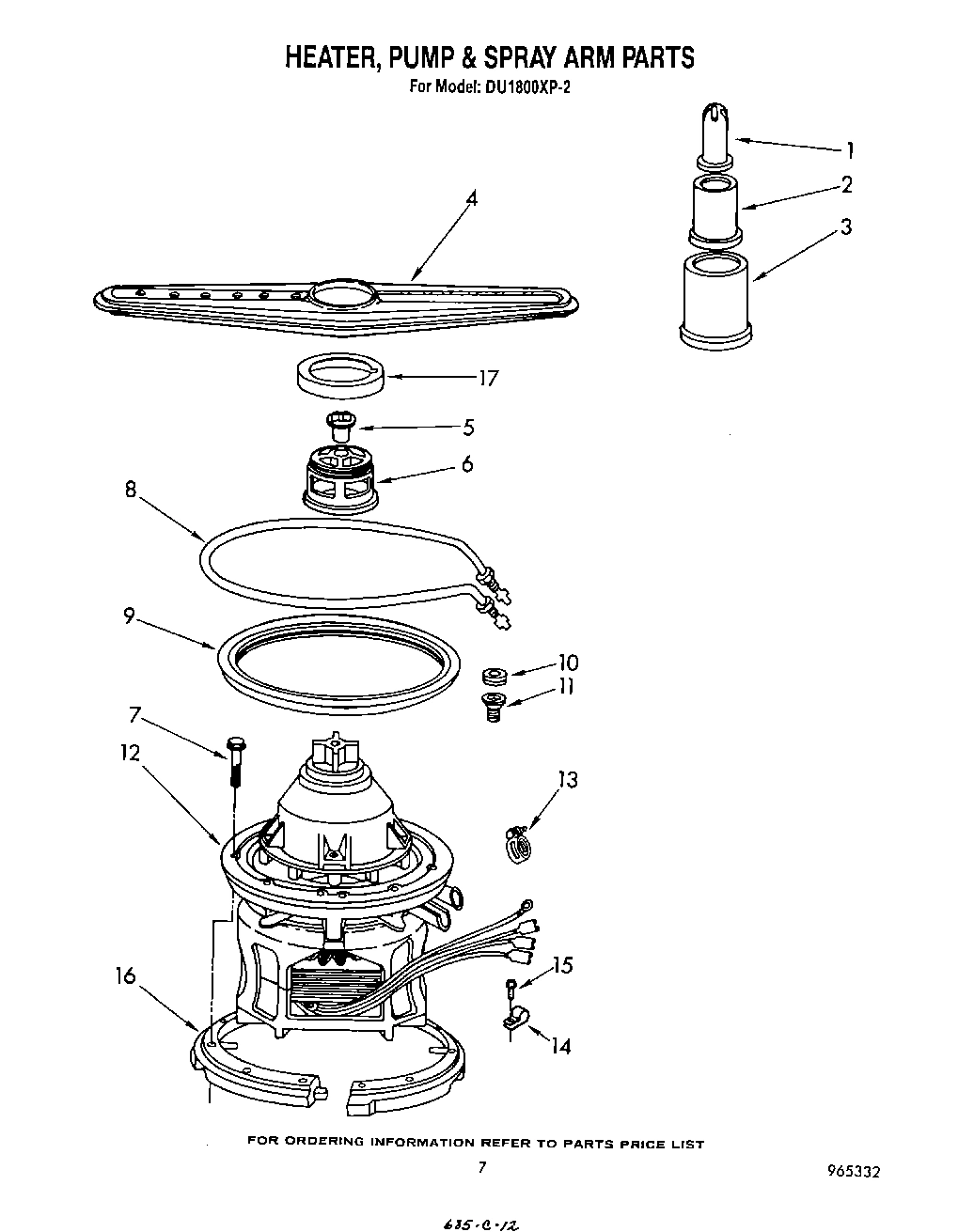

Heater (Includes Illus. 10 & 11) WPL 965319 Contact Us For Availability

8

Sealing Washer WPL 965315 Contact Us For Availability

8

End Cap, R.H. WPL 965150 Contact Us For Availability

9

Clamp, Wire WPL 965161 Contact Us For Availability

9

Terminal Block WPL 965251 Contact Us For Availability

9

Trigger Assembly WPL 965204 Contact Us For Availability

9

Gasket, Pump WPL 965320 Contact Us For Availability

9

Terminal Board WPL 965151 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Terminal, Grounding WPL 965300 Contact Us For Availability

Washer, Neoprene WPL 965205 Contact Us For Availability

Grommet, Heater (2) WPL 965283 Contact Us For Availability

Roller (8) WPL 965218 Contact Us For Availability

Spacer (2) WPL 965152 Contact Us For Availability

Screw, 8-32 x 1-1/4 Phlps. Fillister Hd. WPL 965253 Contact Us For Availability

Bushing WPL 965206 Contact Us For Availability

Nut, Heater 1/2`` (2) WPL 965282 Contact Us For Availability

Shoulder Screw (Includes Item 8) WPL 965219 Contact Us For Availability

Block, Timer (Black) WPL 965153 Contact Us For Availability

Counterbalance Arm, L.H. WPL 965172 Contact Us For Availability

Motor Relay WPL 965254 Contact Us For Availability

``O`` Ring WPL 965207 Contact Us For Availability

Pump & Motor Assembly (Includes Illus. 7, 9 & WPL 965299 Contact Us For Availability

Terminal, Housing WPL 965154 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Screw, 1/4-20 x 1/2 Hex Washer Slotted Hd. (4 WPL 965255 Contact Us For Availability

Shaft (Includes Items 5, 7, 8, 10, 11, 12 & 1 WPL 965209 Contact Us For Availability

Float WPL 965221 Contact Us For Availability

Terminal, Timer WPL 965155 Contact Us For Availability

Vent Plate WPL 965328 Contact Us For Availability

WP487939 Whirlpool Refrigerator Nut In Stock WPL WP487939 $2.51

Screw, 10 x 1 Hex Washer Hd. (2) WPL 965222 Contact Us For Availability

Timer WPL 965156 Contact Us For Availability

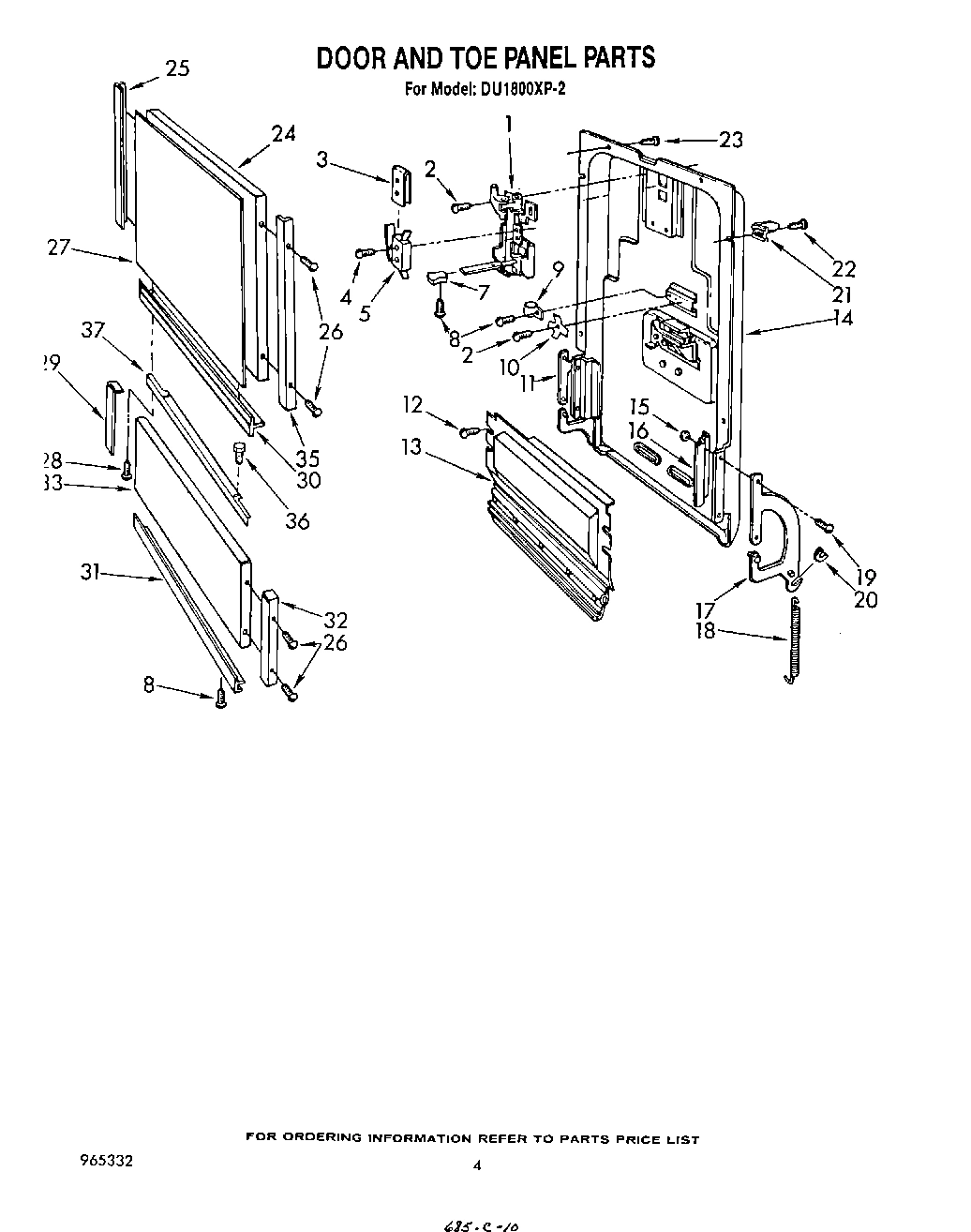

Door, Inner WPL 965175 Contact Us For Availability

15

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

15

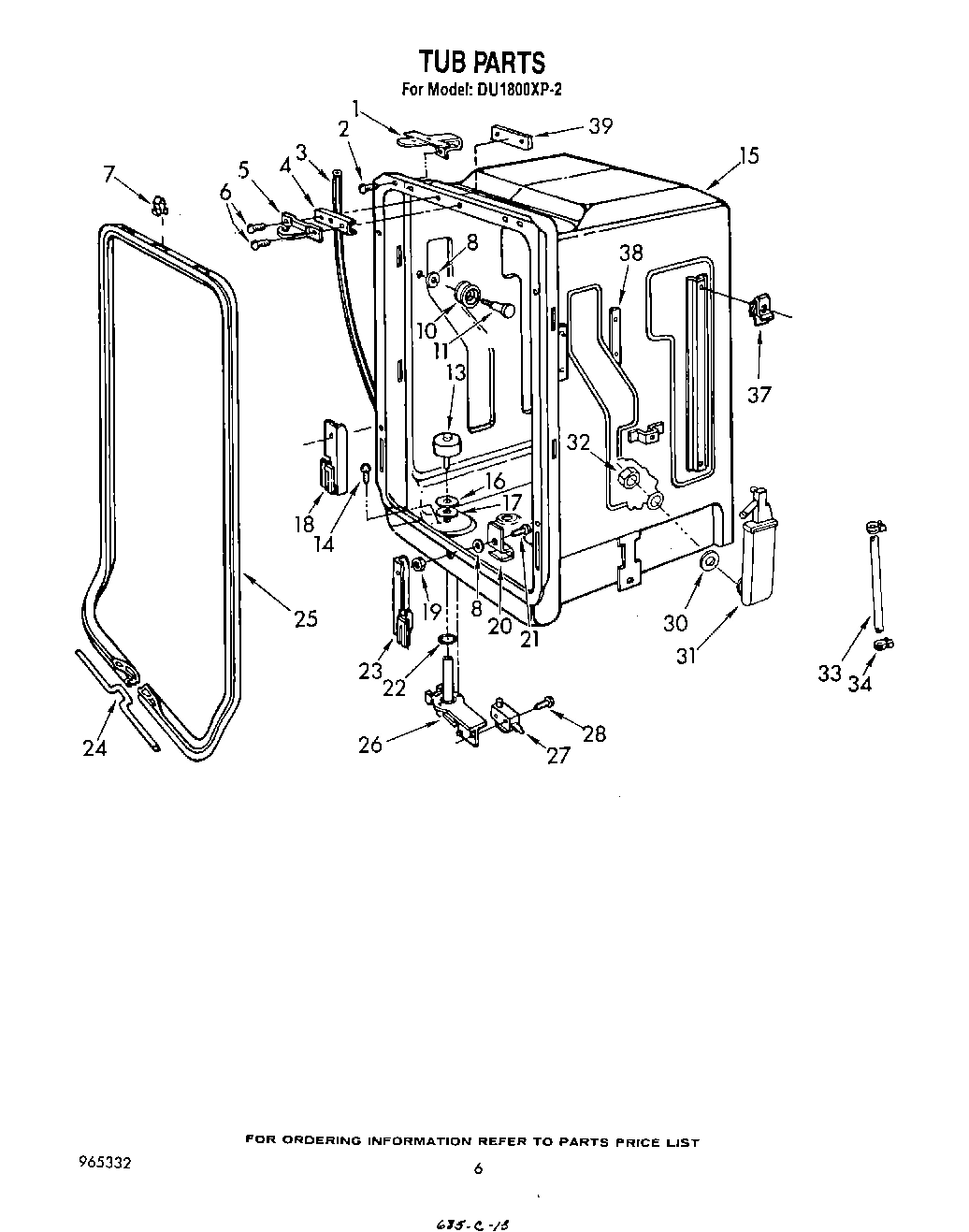

Tub (Includes Illus. 25) WPL 965340 Contact Us For Availability

Clamp Ring Half (2) WPL 965287 Contact Us For Availability

Float Tube Plate WPL 965224 Contact Us For Availability

Splash Pan WPL 965158 Contact Us For Availability

Bracket, Arm Mounting (2) WPL 965177 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Shield, Bearing WPL 965324 Contact Us For Availability

Float Tube Gasket WPL 965225 Contact Us For Availability

Shield, Vent Slot WPL 965159 Contact Us For Availability

Counterbalance Arm, R.H. WPL 965178 Contact Us For Availability

18

Arm Guide, L.H. WPL 965226 Contact Us For Availability

18

Clamp, Wire WPL 965160 Contact Us For Availability

18

Door Spring (2) WPL 965179 Contact Us For Availability

19

WP486255 Whirlpool Air Conditioner Nut Backorder WPL WP486255 $2.38

19

Screw, 10-24 x 5/8 Phlps. Truss Hd. (4) WPL 965180 Contact Us For Availability

20

Gasket Clip WPL 965228 Contact Us For Availability

20

Console Panel WPL 965162 Contact Us For Availability

20

Spring Pad (2) WPL 965181 Contact Us For Availability

21

Valve, Inlet (Includes Illus. 15) WPL 965335 Contact Us For Availability

21

Screw, 8-32 x 1/2 Phlps. Truss Hd. WPL 965229 Contact Us For Availability

21

Guide, Door (2) WPL 965182 Contact Us For Availability

22

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

22

Levelers (4) WPL 965263 Contact Us For Availability

22

``O`` Ring WPL 965230 Contact Us For Availability

23

WP355214 Whirlpool Screw In Stock WPL WP355214 $2.51

23

Teenut, Snap-In (4) WPL 965264 Contact Us For Availability

23

Arm Guide, R.H. WPL 965231 Contact Us For Availability

24

Wire, Gasket Junction WPL 965232 Contact Us For Availability

24

Door Panel (White) WPL 965184 Contact Us For Availability

25

Gasket, Tub (Includes Illus. 7 & 24) WPL 965317 Contact Us For Availability

25

Trim, Door Side L.H. WPL 965326 Contact Us For Availability

26

Angle, Base (2) WPL 965267 Contact Us For Availability

26

Float Assembly (Includes Items 16, 17, 22, 27 WPL 965234 Contact Us For Availability

26

Screw, 6A x 1/4 Phlps. Truss Hd. (8) WPL 965186 Contact Us For Availability

27

627512 Whirlpool Refrigerator MICR Switch Backorder WPL 627512 $12.44

27

Shield, Wire WPL 965268 Contact Us For Availability

27

Door Panel Insert (Almond & Black) WPL 965329 Contact Us For Availability

28

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

28

Channel, Side (2) WPL 965269 Contact Us For Availability

28

Screw, 4-40 x 5/8 Hex Hd. (2) WPL 965236 Contact Us For Availability

29

Brace, Rear WPL 965270 Contact Us For Availability

29

Trim, Access Panel L.H. WPL 965189 Contact Us For Availability

30

Cover, Junction Box WPL 965271 Contact Us For Availability

30

Gasket, Inlet WPL 965342 Contact Us For Availability

30

Door Trim, Bottom WPL 965190 Contact Us For Availability

31

Bracket, Junction Box WPL 965272 Contact Us For Availability

31

Water Inlet WPL 965343 Contact Us For Availability

31

Access Trim, Bottom WPL 965191 Contact Us For Availability

32

Hinge Weld Assembly WPL 965336 Contact Us For Availability

32

Nut WPL 965341 Contact Us For Availability

32

Trim, Access Panel R.H. WPL 965192 Contact Us For Availability

33

Tubing, Inlet (Includes Item 34) WPL 965241 Contact Us For Availability

33

Access Panel (Brown) WPL 965193 Contact Us For Availability

Side Panel Kit (White) WPL 965303 Contact Us For Availability

Side Panel Kit (Coffee) WPL 965304 Contact Us For Availability

Side Panel Kit (Avocado) WPL 965305 Contact Us For Availability

Side Panel Kit (Wheat) WPL 965306 Contact Us For Availability

Side Panel Kit (Almond) WPL 965307 Contact Us For Availability

Clamp (2) WPL 965318 Contact Us For Availability

35

Trim, Door Side R.H. WPL 965325 Contact Us For Availability

36

Screw, 8 x 3/8 Hex Washer Slot Hd. WPL 965338 Contact Us For Availability

37

Cage Nut WPL 965245 Contact Us For Availability

37

Trim, Access Panel Bottom WPL 965339 Contact Us For Availability

38

Tapping Plate (4) WPL 965246 Contact Us For Availability

39

Latch plate WPL 965313 Contact Us For Availability
