Model Whirlpool DU110DA-25 DISHWASHER – Common Parts & Diagrams

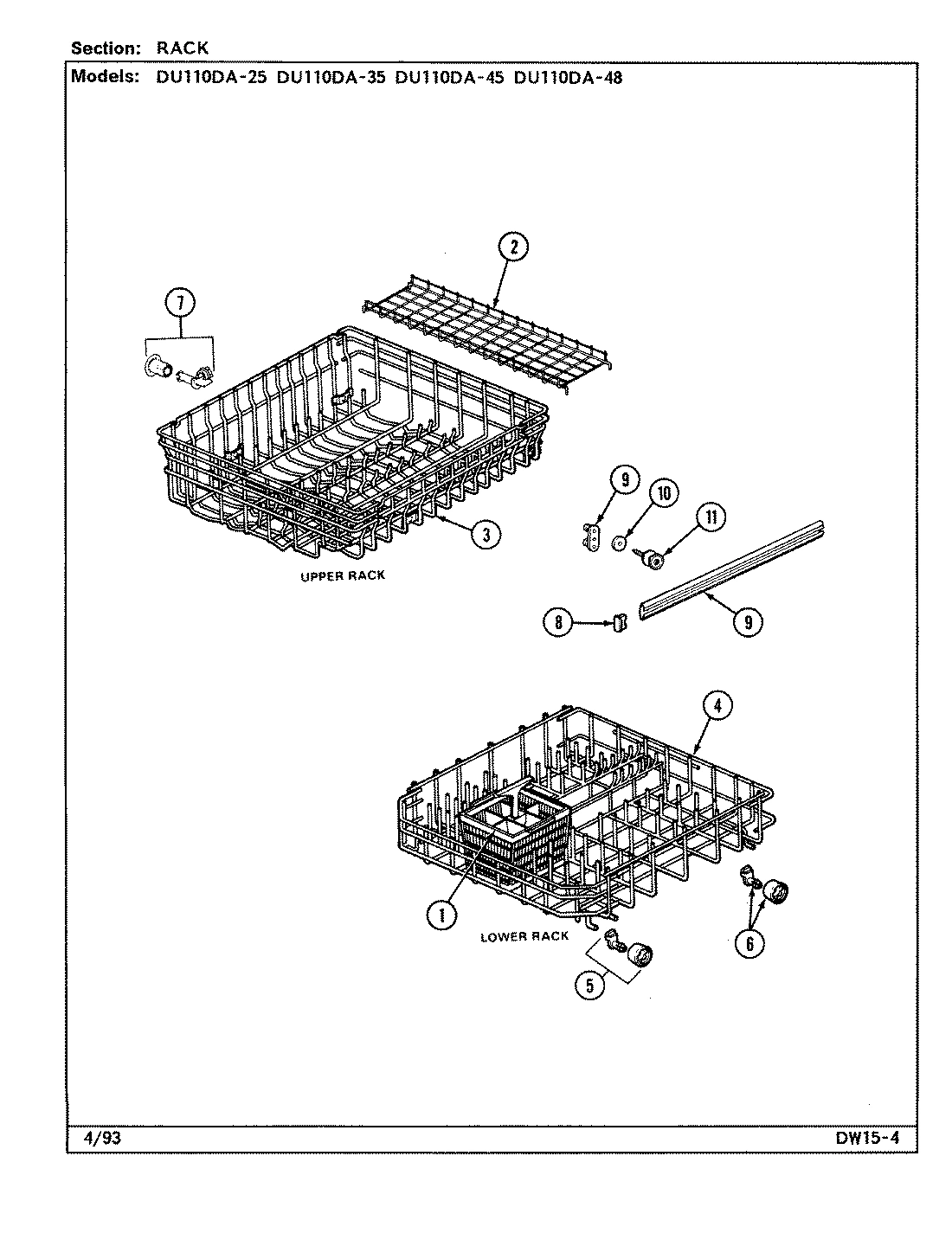

04 - RACK

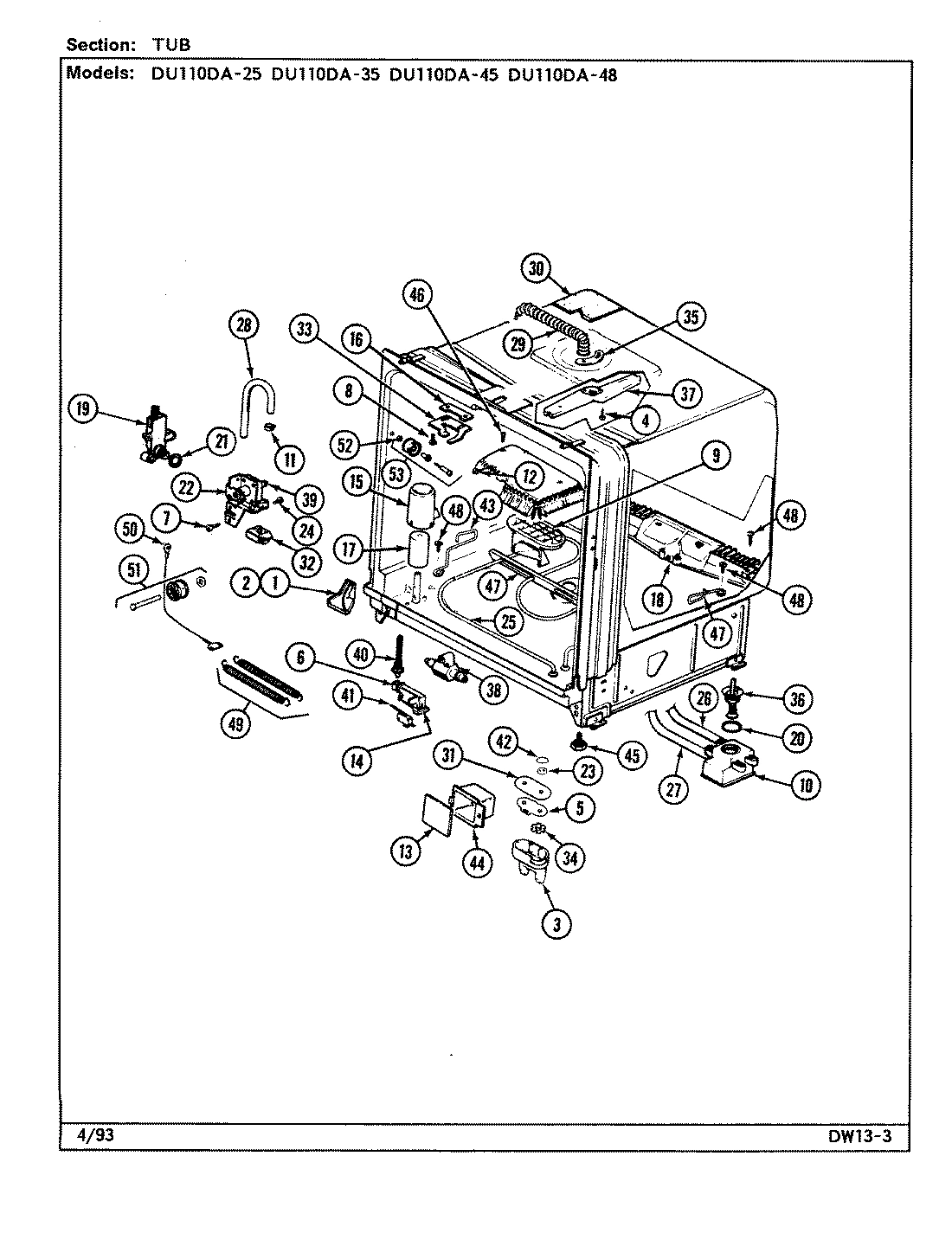

05 - TUB ASSEMBLY

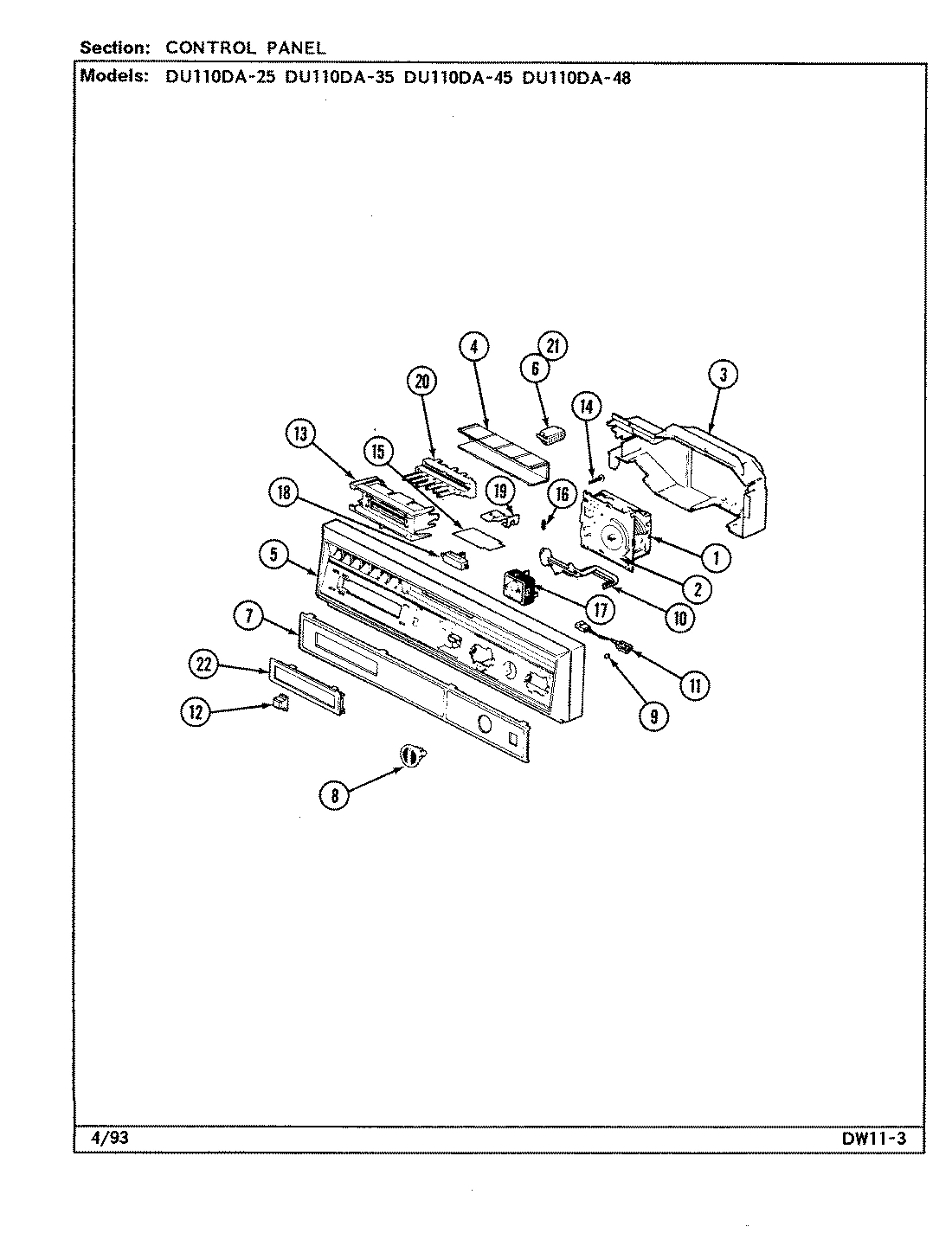

01 - CONTROL PANEL

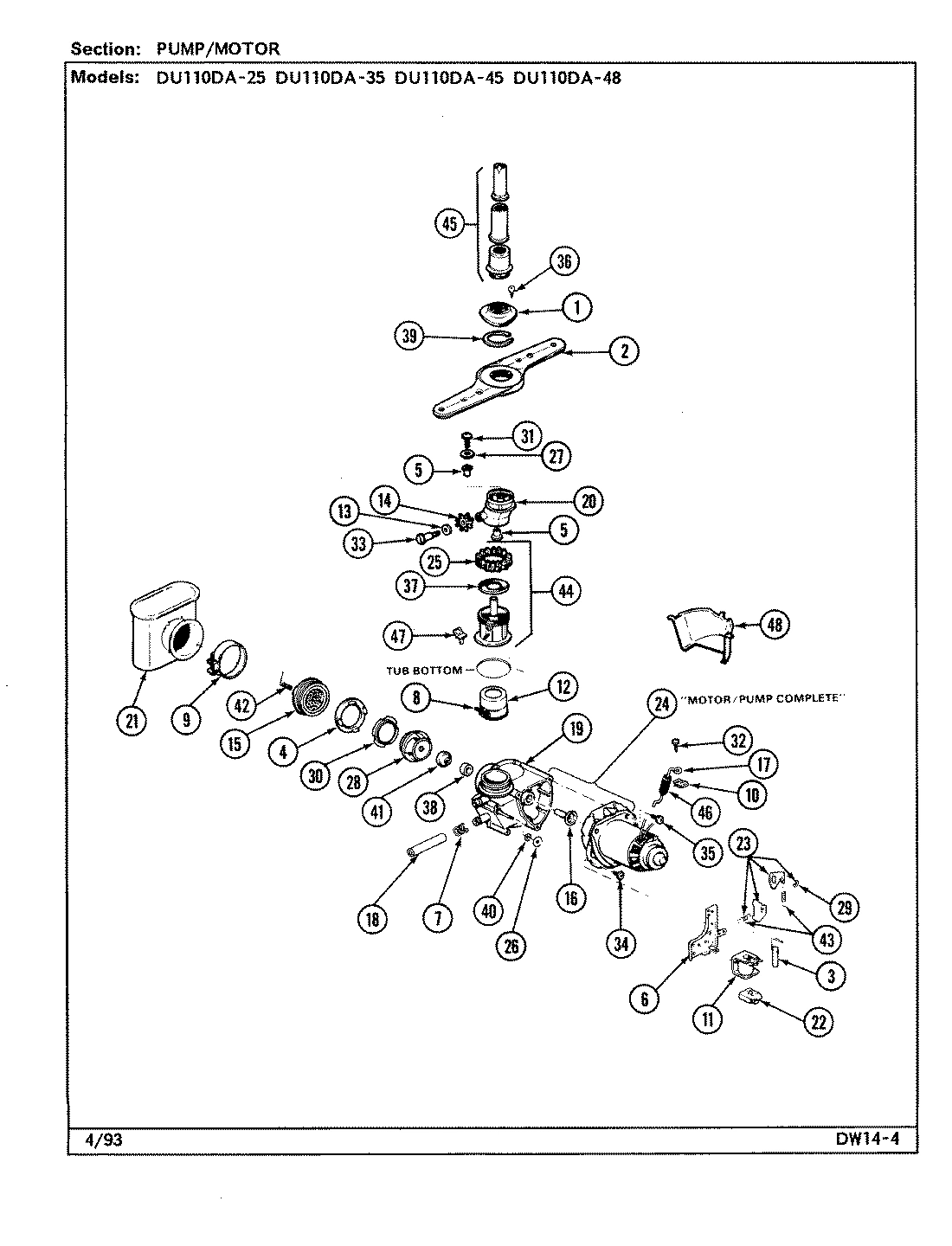

03 - PUMP & MOTOR ASSEMBLY

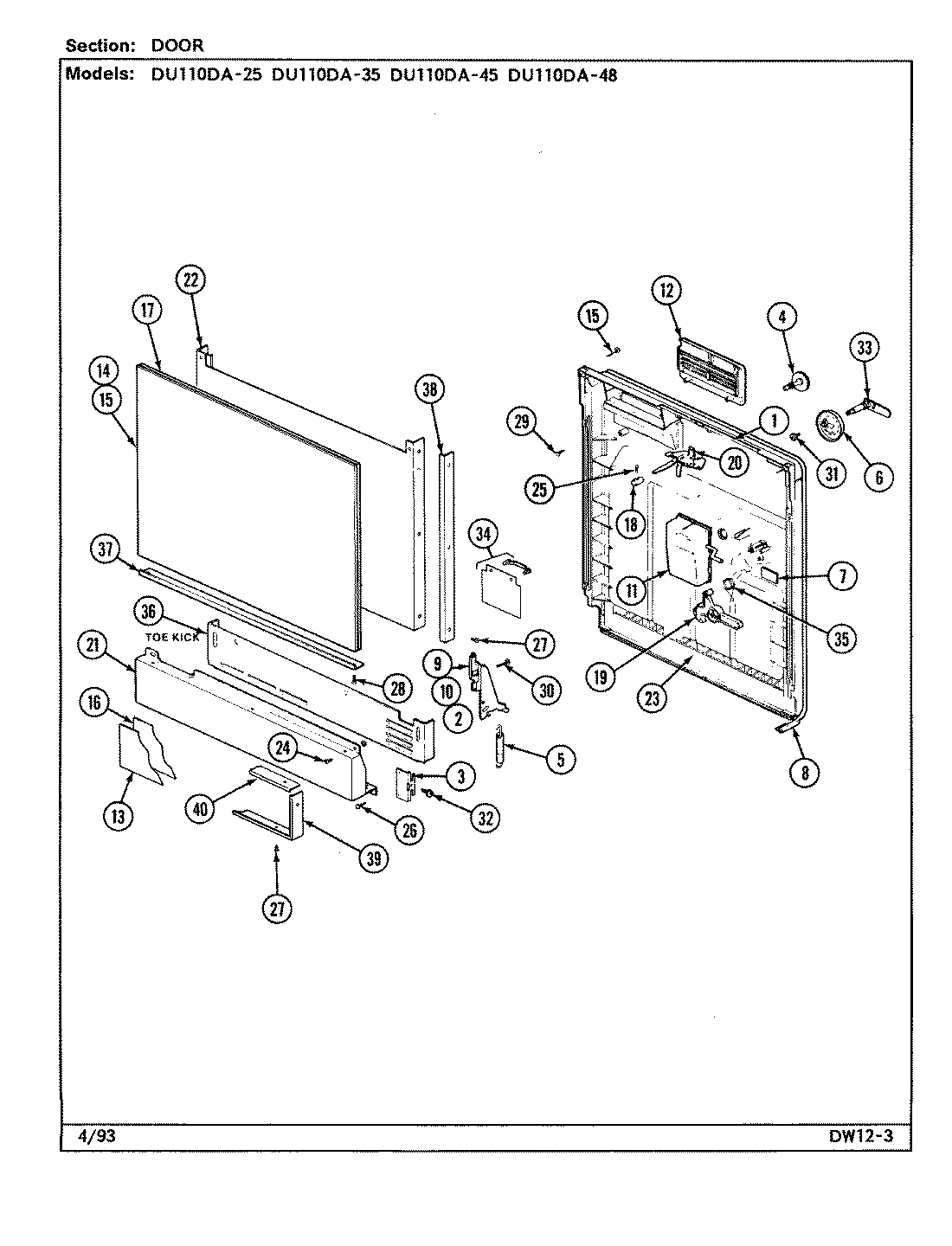

02 - DOOR
Common parts from model Whirlpool DU110DA-25 DISHWASHER
1
BASKET, SILVERWARE WPL Y03000021 Contact Us For Availability
1
BAFFLE, TUB (LT) WPL 20450006 Contact Us For Availability
1
TIMER WPL 31700013 Contact Us For Availability
1
ADAPTER, POWER TOWER WPL 20050001 Contact Us For Availability
1
BAR, DOOR WPL 20750001 Contact Us For Availability
2
SHELF, DISHWASHER WPL 03000098 Contact Us For Availability
2
BAFFLE, TUB (RT) WPL 20450005 Contact Us For Availability
2
CAM, TIMER WPL 21950009 Contact Us For Availability
2
SPRAY ARM WPL Y03000113 Contact Us For Availability
2
BEARING, HINGE ARM WPL 20950002 Contact Us For Availability
3
RACK ASSY. (UPR) WPL 29050008 Contact Us For Availability
3
BARRIER, ELEMENT WPL 20800002 Contact Us For Availability
3
COVER ELECTRICAL WPL 03000099 Contact Us For Availability
3
LINK & ARMATURE WPL 20250001 Contact Us For Availability
3
BRACKET, MTG. WPL 21450058 Contact Us For Availability
4
RACK & ROLLER ASSY. (LWR) WPL 29050009 Contact Us For Availability
4
SCREW WPL 30050030 Contact Us For Availability
4
COVER, SWITCH WPL 22750007 Contact Us For Availability
4
BASE, WEAR RING WPL 20850001 Contact Us For Availability
4
CAP, FILL WPL Y03000003 Contact Us For Availability
5
ROLLER ASSEMBLY,LOWER FRONT WPL 29550007 Contact Us For Availability
5
BARRIER, BRACKET WPL 21450025 Contact Us For Availability
5
ESCUTHEON WPL 03000102 Contact Us For Availability
5
BEARING WPL 20950001 Contact Us For Availability
5
SPRING, DOOR RED WPL 30700044 Contact Us For Availability
6
ROLLER ASSY. (REAR LOWER) WPL 29550008 Contact Us For Availability
6
BRACKET, SWITCH WPL 21450026 Contact Us For Availability
6
TERMINAL WPL Y03000076 Contact Us For Availability
6
BRACKET, SOLENOID WPL 21450001 Contact Us For Availability
6
COVER, DETERGENT CUP WPL 22750005 Contact Us For Availability
7
ROLLER & STUD ASSY WPL 31250006 Contact Us For Availability
7
SCREW WPL 30050046 Contact Us For Availability
7
CLAMP, FILL HOSE WPL 22350004 Contact Us For Availability
7
INSERT, ESCUTCHEON WPL 25800041 Contact Us For Availability
7
DEFLECTOR WPL 23070001 Contact Us For Availability
8
END CAP, RACK SLIDE WPL 23550002 Contact Us For Availability
8
SCREW WPL 03000001 Contact Us For Availability
8
KNOB, TIMER WPL 26150013 Contact Us For Availability
8
CLAMP WPL 22350007 Contact Us For Availability
8
GASKET WPL 24500016 Contact Us For Availability
9
NUT, PLASTIC WPL 03000082 Contact Us For Availability
9
CAP, SUMP WPL 22050003 Contact Us For Availability
9
LENS WPL 26550003 Contact Us For Availability
9
CLAMP WPL 22350008 Contact Us For Availability
9
HINGE, ARM L.H. WPL 25200016 Contact Us For Availability
10
INSERT SEAL WPL 03000081 Contact Us For Availability
10
CHAMBER, COLLECTION WPL 22310001 Contact Us For Availability
10
LEVER, DETERGENT TIMER WPL 26600003 Contact Us For Availability
10
FASTENER, U CLIP WPL 23850006 Contact Us For Availability
10
HINGE, ARM R.H. WPL 25200017 Contact Us For Availability
11
ROLLER & STUD ASSEMBLY WPL 29550009 Contact Us For Availability
11
LIGHT, SIGNAL WPL 26650002 Contact Us For Availability
11
SOLENOID, DRAIN COIL WPL 22500001 Contact Us For Availability
11
INJECTOR, RINSE WPL Y03000002 Contact Us For Availability
12
SLIDE, RACK WPL 30450002 Contact Us For Availability
12
COVER, SUMP INLET WPL 22750008 Contact Us For Availability
12
PUSHBUTTON WPL 21700011 Contact Us For Availability
12
PUSHBUTTON WPL 21700012 Contact Us For Availability
12
PUSHBUTTON WPL 21700013 Contact Us For Availability
12
PUSHBUTTON WPL 21700015 Contact Us For Availability
12
PUSHBUTTON, RINSE & HOLD WPL 21700016 Contact Us For Availability
12
CONNECTOR, PUMP WPL 22600009 Contact Us For Availability
12
VENT ASSY. WPL 32650002 Contact Us For Availability
13
COVER, JUNCTION BOX WPL 22750002 Contact Us For Availability
13
SCREW,No.10-16X1/2 WPL 30050007 Contact Us For Availability
13
RETAINER, SWITCH WPL 29400003 Contact Us For Availability
13
WASHER WPL 32800036 Contact Us For Availability
13
INSERT, PANEL (ALM/WHT) WPL 25800035 Contact Us For Availability
13
INSERT, PANEL (BLK/HARV) WPL 25800036 Contact Us For Availability
14
COVER WPL 22750020 Contact Us For Availability
14
GEAR, PINION WPL 24510001 Contact Us For Availability
14
INSERT,ALMOND/WHITE WPL 25800004 Contact Us For Availability
14
INSERT, BLACK/HVST WPL 25800005 Contact Us For Availability
15
FLOAT, DOME WPL 22750009 Contact Us For Availability
15
SHIELD, SWITCH WPL 30300006 Contact Us For Availability
15
GRADER/NUT WPL 24650002 Contact Us For Availability
15
SCREW WPL 30050028 Contact Us For Availability
16
KEEP, FASTENER WPL 23850001 Contact Us For Availability
16
SPRING, DET. TRIP WPL 30700007 Contact Us For Availability
16
SHAFT GUARD, SLINGER WPL 30500001 Contact Us For Availability
16
INSULATOR WPL 25900012 Contact Us For Availability
17
FLOAT, FLOOD WPL 24100002 Contact Us For Availability
17
SWITCH, CYCLING WPL 31350004 Contact Us For Availability
17
HANGER, MECHANISM WPL 25100003 Contact Us For Availability
17
INSULATOR WPL 25900010 Contact Us For Availability
18
FRAME, FILTER ASSY. WPL 24250011 Contact Us For Availability
18
SWITCH, INTERLOCK WPL 31350006 Contact Us For Availability
18
HOSE, DRAIN WPL 25300009 Contact Us For Availability
18
KNOB,LATCH HANDLE WPL 26150002 Contact Us For Availability
19
INLET, WATER WPL 25750003 Contact Us For Availability
19
SWITCH, LEAF ASSEMBLY WPL 31350035 Contact Us For Availability
19
HOUSING PUMP ASSEMBLY WPL 25350001 Contact Us For Availability
19
LATCH, DETERGENT CUP WPL 26450004 Contact Us For Availability
20
GASKET WPL 24500014 Contact Us For Availability
20
SWITCH, PUSHBUTTON WPL 31350074 Contact Us For Availability
20
HUB & PINION WPL 25400003 Contact Us For Availability
20
LATCH ASSEMBLY WPL 26450003 Contact Us For Availability
21
GASKET, INLET WPL 24500006 Contact Us For Availability
21
TERMINAL, HOUSING WPL Y03000072 Contact Us For Availability
21
SUMP-INLET WPL 25750004 Contact Us For Availability
21
LOWER ACCESS PANEL WPL 28000022 Contact Us For Availability
22
SOLENOID, ASSEMBLY WPL 22500002 Contact Us For Availability
22
MANUAL, USE & CARE WPL 03000223 Contact Us For Availability
22
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
22
BEZEL WPL 21030001 Contact Us For Availability
22
INSULATOR WPL 25900001 Contact Us For Availability
22
PANEL FRONT WELD ASSY WPL 03000105 Contact Us For Availability
23
GROMMET WPL 24800003 Contact Us For Availability
23
GATE VALVE ARM KIT WPL Y03000032 Contact Us For Availability
23
PANEL, INNER DOOR WPL 28000004 Contact Us For Availability
24
PUMP ASSY. WPL 27200001 Contact Us For Availability
24
SCREW WPL 30050025 Contact Us For Availability
25
ELEMENT, HEATER WPL 23500002 Contact Us For Availability
25
NUT, GEAR WPL 27350032 Contact Us For Availability
25
SCREW WPL 30050029 Contact Us For Availability
26
HOSE WPL Y03000084 Contact Us For Availability
26
NUT WPL 27350041 Contact Us For Availability
26
SCREW WPL 30050033 Contact Us For Availability
27
HOSE, CHAMBER TO PUMP WPL 25300010 Contact Us For Availability
27
WASHER WPL 32800001 Contact Us For Availability
27
SCREW WPL 30050031 Contact Us For Availability
28
HOSE FILL WPL 03000030 Contact Us For Availability
28
PUMP IMPELLER WPL 25600003 Contact Us For Availability
28
SCREW WPL 30050014 Contact Us For Availability
29
HOSE, POWER SHOWER WPL 25300012 Contact Us For Availability
29
SCREW WPL 30050032 Contact Us For Availability
29
RETAINER WPL 29400001 Contact Us For Availability
30
INSULATION WPL 25850001 Contact Us For Availability
30
WEAR RING WPL 29450001 Contact Us For Availability
30
SCREW, 8-32 X 5/8 WPL 30050136 Contact Us For Availability
31
INSULATOR WPL 25900005 Contact Us For Availability
31
SCREW WPL 30050044 Contact Us For Availability
31
SCREW WPL 30050113 Contact Us For Availability
32
SCREW WPL 30050076 Contact Us For Availability
32
INSULATOR WPL 25900004 Contact Us For Availability
33
KEEPER LATCH WPL 26450016 Contact Us For Availability
33
SCREW WPL 30050138 Contact Us For Availability
33
SHAFT, DET. CUP WPL 30200007 Contact Us For Availability
34
NUT WPL 27350009 Contact Us For Availability
34
SHIELD,DRIP WPL 30300001 Contact Us For Availability
35
NUT-STRIP WPL 31200002 Contact Us For Availability
35
SPRING, DETERGENT CUP WPL 30700005 Contact Us For Availability
36
PISTON & NUT ASSEMBLY WPL 27350033 Contact Us For Availability
36
SCREW WPL 30050115 Contact Us For Availability
36
TOEKICK, ASSY WPL 03000046 Contact Us For Availability
37
ARM, SPRAY WPL 20200003 Contact Us For Availability
37
SEAL, LIP LOWER WPL 30100018 Contact Us For Availability
37
TRIM BOTTOM DOOR WPL 03000095 Contact Us For Availability
38
VALVE CHECK ASSEMBLY WPL 32550008 Contact Us For Availability
38
SEAL, SEAT WPL 30100003 Contact Us For Availability
38
TRIM, DOOR (SIDE) WPL Y03000096 Contact Us For Availability
39
VALVE, WATER WPL 32550009 Contact Us For Availability
39
RING, SPLIT WPL 30100017 Contact Us For Availability
39
TRIM,BOTTOM, & SIDES WPL 32300089 Contact Us For Availability
40
STEM, FLOAT WPL 30850001 Contact Us For Availability
40
SEAL, SHAFT WPL 30100002 Contact Us For Availability
40
TRIM, TOP ACCES PANEL WPL 32300088 Contact Us For Availability
41
SWITCH, FLOAT WPL 31350005 Contact Us For Availability
41
SEAL, SHAFT WPL 30100004 Contact Us For Availability
42
WASHER WPL 32800009 Contact Us For Availability
42
SPRING, CUTTER WPL 30700001 Contact Us For Availability
43
SUPPORT, HEATER (FRONT) WPL 03000078 Contact Us For Availability
43
SPRING, GATE VALVE WPL 30700002 Contact Us For Availability
44
SUPPORT & NUT ASSEMBLY WPL 31300023 Contact Us For Availability
45
SCREW, LEG LEVELING WPL 30050135 Contact Us For Availability
45
TUBE, SPRAY CENTER WPL 31750001 Contact Us For Availability
46
SCREW WPL 30050034 Contact Us For Availability
46
TUBE, MECHANISM WPL 32350006 Contact Us For Availability
47
SUPPORT, HEATER (REAR) WPL 03000079 Contact Us For Availability
47
VALVE, CHECK WPL 32550001 Contact Us For Availability
× ![]()
