Model Whirlpool DU018DWTB0 18`` UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

1

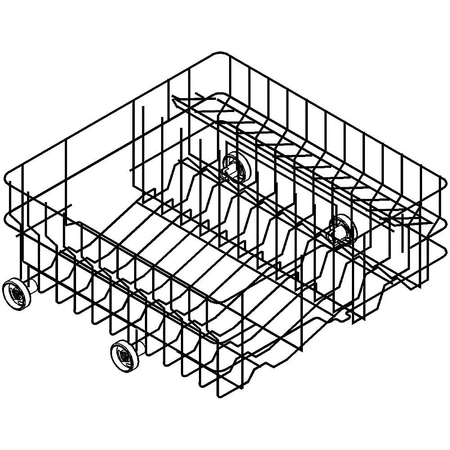

W10181624 Whirlpool Dishwasher Dish Rack Backorder WPL W10181624 $176.83

1

W10181654 Whirlpool Dishwasher Heater Backorder WPL W10181654 $129.16

1

Frame, Uprights (Right) WPL W10181556 Contact Us For Availability

1

Frame, Uprights (Left) WPL W10181557 Contact Us For Availability

1

Panel, Door (Black) WPL W10181615 Contact Us For Availability

1

Panel, Door (White) WPL W10199985 Contact Us For Availability

2

ADAPTER WPL W10181625 Contact Us For Availability

2

Block (White) WPL W10200350 Contact Us For Availability

2

Block (Black) WPL W10200351 Contact Us For Availability

2

Gasket, Vent WPL W10181602 Contact Us For Availability

2

COVER WPL W10181653 Contact Us For Availability

3

W10181626 Whirlpool Dishwasher Manifold Backorder WPL W10181626 $30.25

3

Switch, On/Off WPL W10181607 Contact Us For Availability

3

Sprayarm WPL W10181652 Contact Us For Availability

3

STRIKE WPL W10199509 Contact Us For Availability

3

Vent WPL W10181603 Contact Us For Availability

4

Sprayarm WPL W10181627 Contact Us For Availability

4

Switch, Heat Dry WPL W10181608 Contact Us For Availability

4

Brace, Upper (Black) WPL W10181578 Contact Us For Availability

4

Brace, Upper (White) WPL W10200369 Contact Us For Availability

4

Deflector WPL W10181600 Contact Us For Availability

4

Nut, Lower Sprayarm WPL W10181651 Contact Us For Availability

5

TIMER WPL W10181611 Contact Us For Availability

5

MOUNT WPL W10181628 Contact Us For Availability

5

PLATE WPL W10199513 Contact Us For Availability

5

Support, Arm WPL W10181650 Contact Us For Availability

6

DISPENSER WPL W10181617 Contact Us For Availability

6

Nut WPL W10181579 Contact Us For Availability

6

Rack, Lower WPL W10181629 Contact Us For Availability

6

Nut, Foot WPL W10199512 Contact Us For Availability

6

Support, Lower Manifold WPL W10181647 Contact Us For Availability

7

Bracket Dispenser WPL W10181616 Contact Us For Availability

7

Basket, Silverware WPL W10181630 Contact Us For Availability

7

Foot WPL W10181596 Contact Us For Availability

7

GASKET WPL W10181554 Contact Us For Availability

8

W10181599 Whirlpool Dishwasher Inner Door Backorder WPL W10181599 $172.04

8

TRACK WPL W10181581 Contact Us For Availability

8

Valve, Inlet WPL W10181595 Contact Us For Availability

8

Nut, Support Manifold WPL W10200362 Contact Us For Availability

9

W10181635 Whirlpool Dishwasher Clamp Backorder WPL W10181635 $10.76

9

W10199511 Whirlpool Gasket Backorder WPL W10199511 $188.04

9

Knob (White) WPL W10200366 Contact Us For Availability

9

Panel, Toe (Black) WPL W10181593 Contact Us For Availability

9

Panel, Toe (White) WPL W10200179 Contact Us For Availability

10

Brace, Lower WPL W10181589 Contact Us For Availability

10

Panel, Access (Black) WPL W10181594 Contact Us For Availability

10

Panel, Access (White) WPL W10200180 Contact Us For Availability

11

W10181592 Whirlpool Dishwasher Relay Motor Backorder WPL W10181592 $81.74

11

Latch WPL W10181606 Contact Us For Availability

11

PIN WPL W10181623 Contact Us For Availability

W10181643 Whirlpool Support Backorder WPL W10181643 $8.29

Handle (White) WPL W10200365 Contact Us For Availability

Spring, Door WPL W10181618 Contact Us For Availability

Handle (Black) WPL W10181610 Contact Us For Availability

Box, Terminal WPL W10181591 Contact Us For Availability

W10181588 Whirlpool Dishwasher Water Level Sw Backorder WPL W10181588 $38.25

Cover, Terminal Box WPL W10181590 Contact Us For Availability

Hinge, Bracket WPL W10181620 Contact Us For Availability

GROMMET WPL W10181642 Contact Us For Availability

W10181583 Whirlpool Dishwasher Clamp Backorder WPL W10181583 $7.28

Hinge, Door (Left) WPL W10181621 Contact Us For Availability

Hinge, Door (Right) WPL W10181622 Contact Us For Availability

Motor, Pump WPL W10181641 Contact Us For Availability

15

Wiring, Harness WPL W10181633 Contact Us For Availability

16

W10181638 Whirlpool Dishwasher Hose Backorder WPL W10181638 $30.25

17

HOSE WPL W10181636 Contact Us For Availability

18

W10181660 Whirlpool Dishwasher Sieve Backorder WPL W10181660 $51.31

18

Gasket, Door WPL W10181598 Contact Us For Availability

19

Filter, Drain WPL W10181659 Contact Us For Availability

20

W10181658 Whirlpool Dishwasher Microfilter Backorder WPL W10181658 $30.25

21

Nut, Sump WPL W10181657 Contact Us For Availability

22

W10181656 Whirlpool Dishwasher Gasket Backorder WPL W10181656 $30.25

23

W10181655 Whirlpool Dishwasher Sump Assembly Backorder WPL W10181655 $30.25

24

W10181634 Whirlpool Dishwasher Drain Hose Backorder WPL W10181634 $33.76
