Model Whirlpool DU018DWLB0 18`` UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

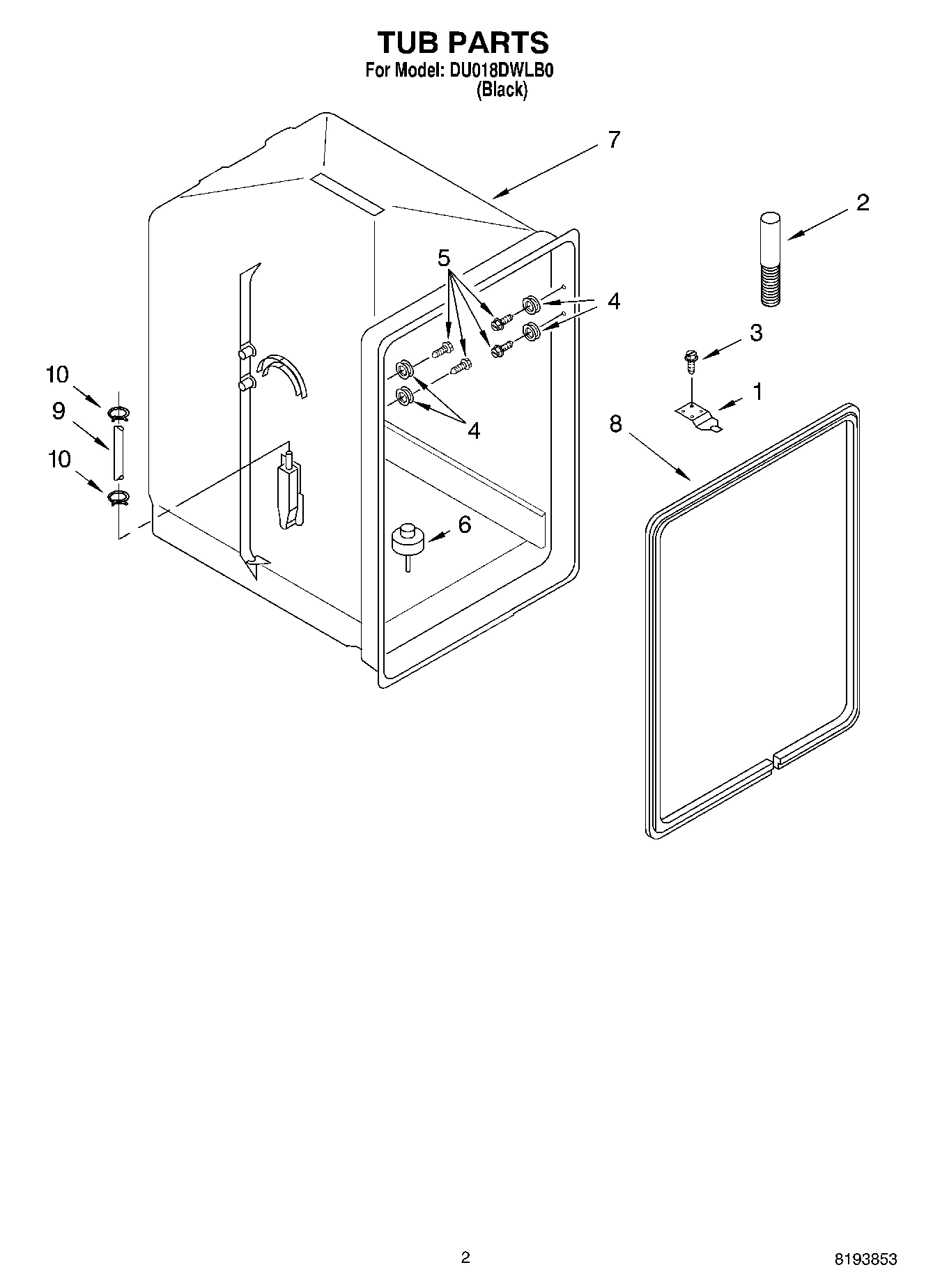

02 - TUB PARTS

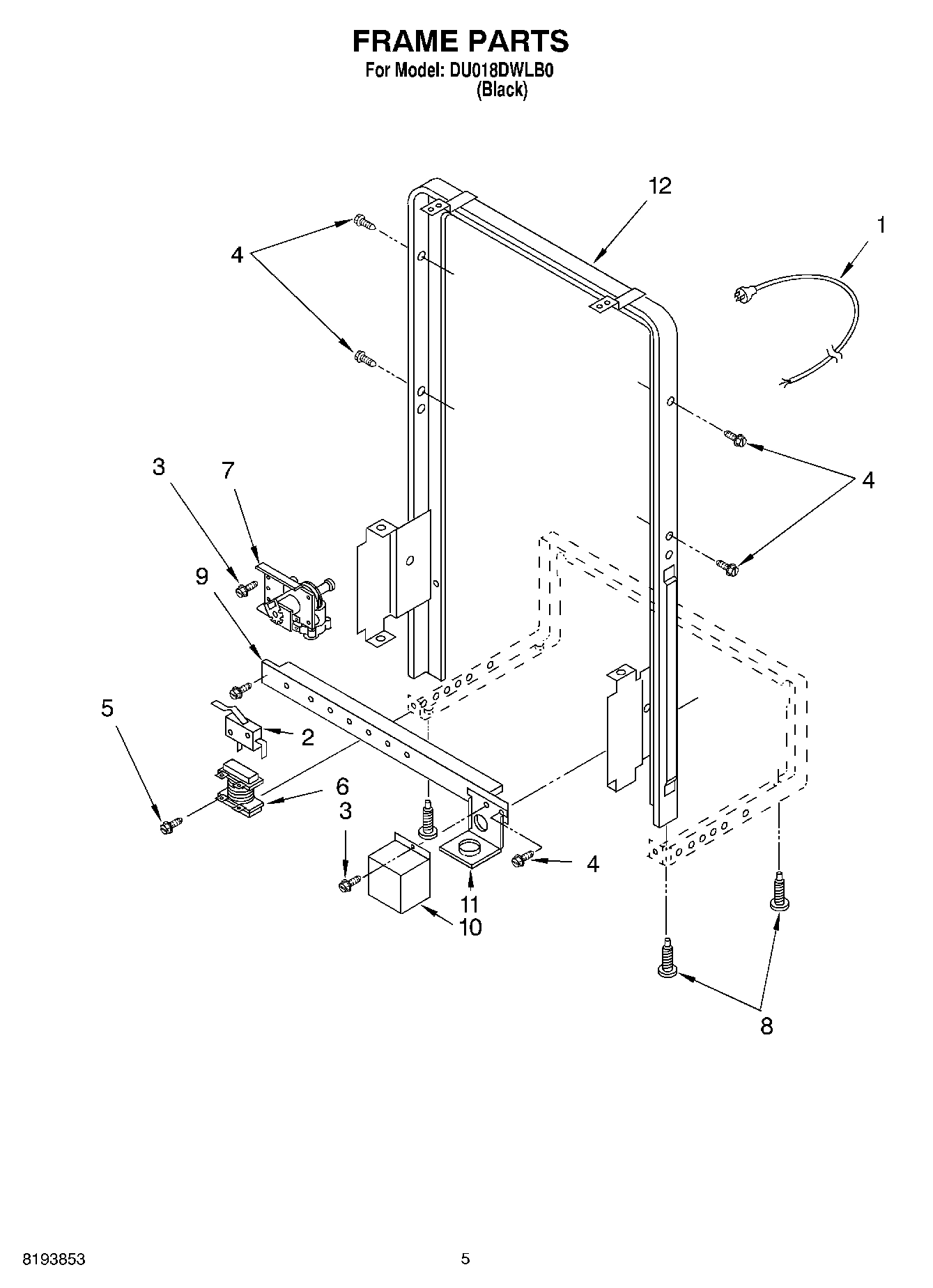

04 - FRAME PARTS
01 - CONTROL PANEL PARTS
03 - DOOR AND TOE PANEL PARTS
05 - PUMP AND SPRAYARM PARTS
06 - DISHRACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool DU018DWLB0 18`` UNDERCOUNTER DISHWASHER
Tool, Pump Seal Installation WPL 4340107 Contact Us For Availability
Kit, Epoxy Patch (White) WPL 799832 Contact Us For Availability
Optional Parts Not Included WPL ARI22852A2 Contact Us For Availability
TUB LINER REPAIR WPL ARI22853A4 Contact Us For Availability
DISHRACK REPAIR WPL ARI22854A1 Contact Us For Availability
1
Power Cord (optional) WPL 965337 Contact Us For Availability
1
Literature Parts (Guide, Energy) WPL LIT8193616 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8193831 Contact Us For Availability
1
Literature Parts (Guide, Use & Care) WPL LIT8193854 Contact Us For Availability
1
Latch Assembly WPL 8193592 Contact Us For Availability
1
Screw WPL 8193600 Contact Us For Availability
1
Dishrack, Lower (Includes Item 7) WPL 965550 Contact Us For Availability
2
Switch, Float WPL 8193826 Contact Us For Availability
2
Insert, Control Panel WPL 8193587 Contact Us For Availability
2
Screw WPL 965488 Contact Us For Availability
2
Cover, Pump Housing WPL 8193614 Contact Us For Availability
2
Basket, Silverware WPL 965551 Contact Us For Availability
3
Screw WPL 965510 Contact Us For Availability
3
Timer WPL 8193832 Contact Us For Availability
3
Cover, Vent WPL 965505 Contact Us For Availability
3
Heater WPL 965534 Contact Us For Availability
3
Dishrack, Upper (Includes Item 4) WPL 965552 Contact Us For Availability
4
Switch, Rocker WPL 8193589 Contact Us For Availability
4
Screw, Vent Cover WPL 965506 Contact Us For Availability
4
Upper Impeller WPL 8193605 Contact Us For Availability
4
Wheel Assembly, Upper Rack (4) WPL 965553 Contact Us For Availability
5
Screw, Relay WPL 4340129 Contact Us For Availability
5
Screw, Timer WPL 965571 Contact Us For Availability
5
Gasket, Vent Cover WPL 965507 Contact Us For Availability
5
Cover, Volute WPL 8193840 Contact Us For Availability
5
End Cap, Slide (4) WPL 965554 Contact Us For Availability
6
Relay, Motor WPL 8193597 Contact Us For Availability
6
Knob, Timer WPL 965486 Contact Us For Availability
6
Screw WPL 8193850 Contact Us For Availability
6
Macerator WPL 8193602 Contact Us For Availability
6
Slide, Rack (2) WPL 965555 Contact Us For Availability
7
Impeller, Lower WPL 8193604 Contact Us For Availability
7
Panel, Control (Also Order Item 2) WPL 965568 Contact Us For Availability
7
Panel, Toe WPL 8193851 Contact Us For Availability
7
Wheel Assembly, Lower Rack (4) WPL 965556 Contact Us For Availability
8
Slinger, Pump WPL 8193606 Contact Us For Availability
8
Levelers (4) WPL 8193838 Contact Us For Availability
8
Screw WPL 8193852 Contact Us For Availability
9
Sleeve & Seal Assembly WPL 8193841 Contact Us For Availability
9
Screw WPL 4340341 Contact Us For Availability
9
Brace, Front WPL 965519 Contact Us For Availability
10
Clamp (2) WPL 965532 Contact Us For Availability
10
Cover, Junction Box WPL 965515 Contact Us For Availability
10
Arm Assembly (R.H. & L.H.) WPL 965489 Contact Us For Availability
10
Gasket, Pump WPL 8193608 Contact Us For Availability
11
Bracket, Junction Box WPL 8193839 Contact Us For Availability
11
Seal, Baffle WPL 8193844 Contact Us For Availability
11
Screw, Pump Housing WPL 965536 Contact Us For Availability
12
Frame Assy., Front WPL 965517 Contact Us For Availability
12
Door, Inner WPL 965574 Contact Us For Availability
12
Housing, Pump WPL 8193842 Contact Us For Availability
13
Nut, Arm Assembly WPL 965492 Contact Us For Availability
13
Retainer, Sump WPL 8193843 Contact Us For Availability
14
Spring, Door WPL 965493 Contact Us For Availability
14
Valve, Check WPL 8193611 Contact Us For Availability
15
Screw, Arm Assembly WPL 965494 Contact Us For Availability
15
Motor Assembly WPL 8193612 Contact Us For Availability
16
Pad, Spring WPL 8193593 Contact Us For Availability
16
Washer, Insulating WPL 965541 Contact Us For Availability
17
Speednut, Baffle WPL 965495 Contact Us For Availability
17
Nut, Heater WPL 965542 Contact Us For Availability
18
Cap, Rinse Aid WPL 8193849 Contact Us For Availability
18
Nut, Spray Arm WPL 965548 Contact Us For Availability
19
Panel, Door WPL 8193845 Contact Us For Availability
19
Bracket, Heater WPL 8193601 Contact Us For Availability
20
Panel, Access WPL 8193846 Contact Us For Availability
20
Screw, Motor Mounting WPL 965543 Contact Us For Availability
21
Trim, Access Panel WPL 8193847 Contact Us For Availability
21
Diffuser WPL 8193613 Contact Us For Availability
22
Sprayarm, Lower WPL 965545 Contact Us For Availability
22
Body Assembly WPL 8193596 Contact Us For Availability
23
Clamp, wire WPL 8193848 Contact Us For Availability
23
Base, Tower WPL 965462 Contact Us For Availability
24
Harness, Wiring WPL 8193833 Contact Us For Availability
24
Middle, Tower WPL 965463 Contact Us For Availability
25
Tip, Tower WPL 965546 Contact Us For Availability
× ![]()
