Model Whirlpool DU018DWJX0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

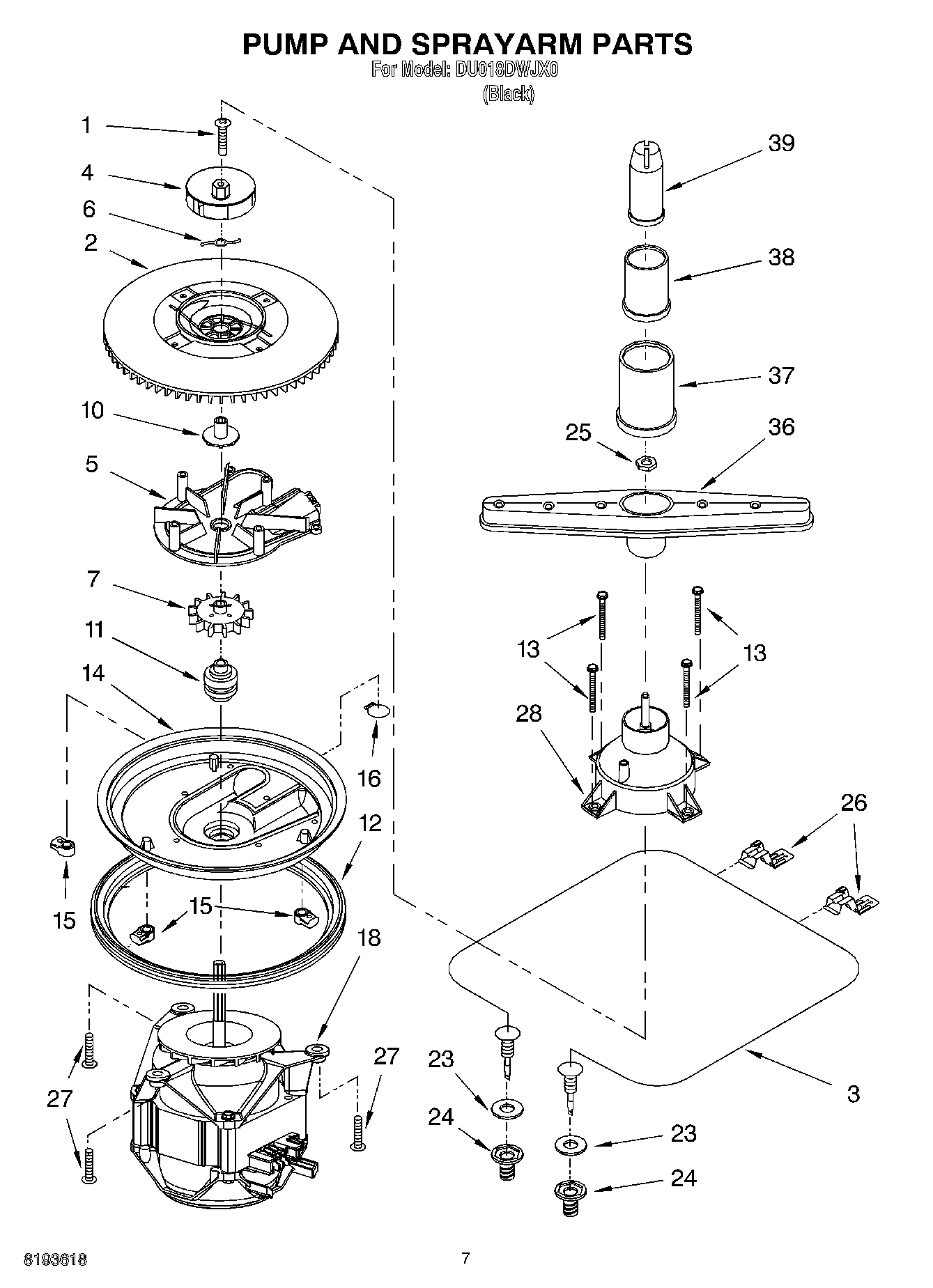

05 - PUMP AND SPRAYARM

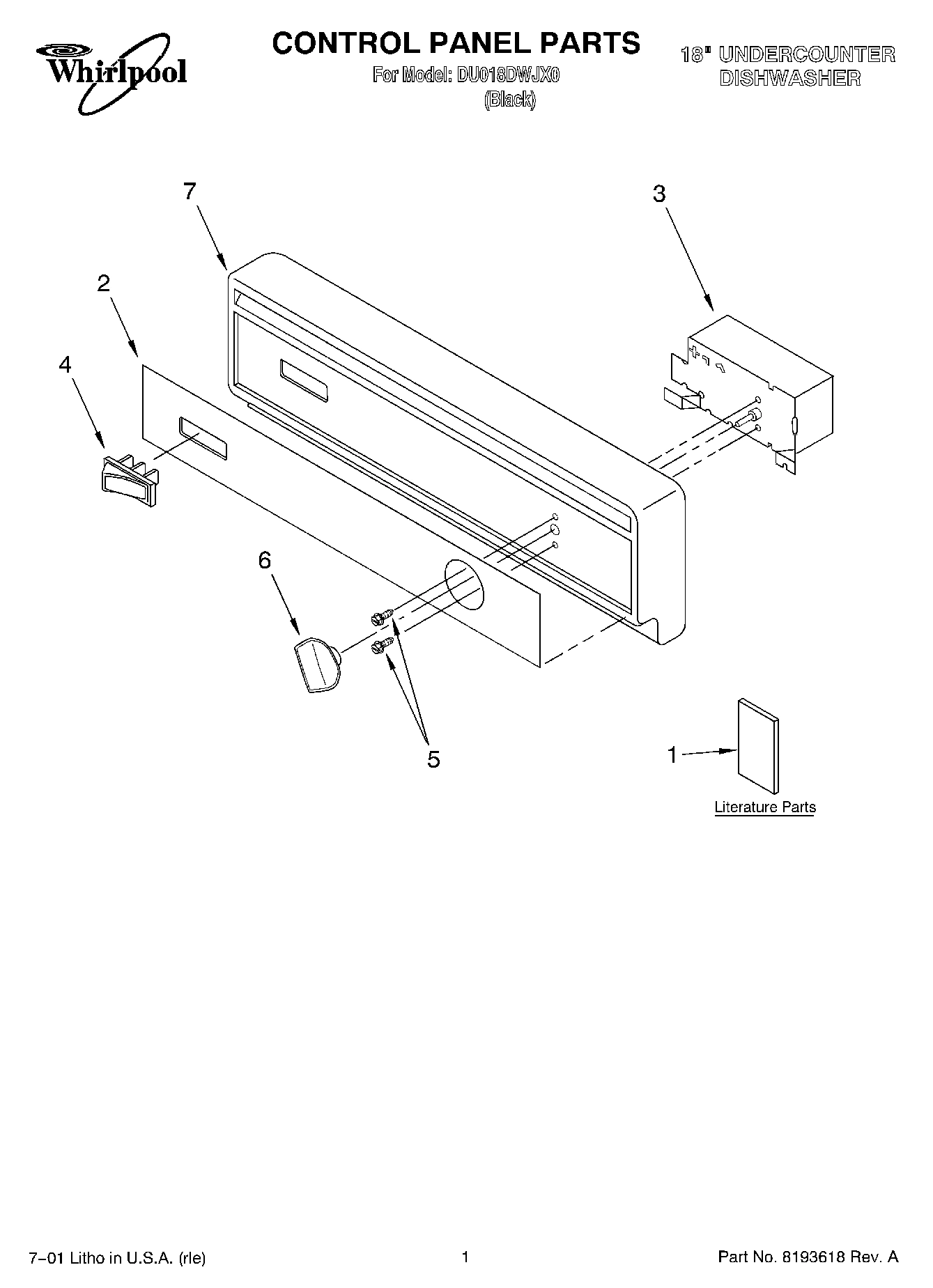

01 - CONTROL PANEL, LITERATURE
02 - TUB
03 - DOOR AND TOE PANEL
06 - DISHRACK
04 - FRAME
Common parts from model Whirlpool DU018DWJX0 UNDERCOUNTER DISHWASHER
1
Literature Parts (Instructions, Installation) WPL LIT8193615 Contact Us For Availability
1
Literature Parts (Guide, Energy) WPL LIT8193616 Contact Us For Availability
1
Literature Parts (Guide, Use & Care) WPL LIT8193617 Contact Us For Availability
1
Strike, Door WPL 965523 Contact Us For Availability
1
Latch Assembly WPL 8193592 Contact Us For Availability
1
Dishrack, Lower (Includes Item 7) WPL 965550 Contact Us For Availability
1
Power Cord (optional) WPL 965337 Contact Us For Availability
2
Insert, Control Panel WPL 8193587 Contact Us For Availability
2
Screw, 8 x 5/8 WPL 965488 Contact Us For Availability
2
Basket, Silverware WPL 965551 Contact Us For Availability
2
Toeplate, Adjustable WPL 965585 Contact Us For Availability
3
Timer WPL 8193588 Contact Us For Availability
3
Hose, Drain WPL 8193590 Contact Us For Availability
3
Cover, Vent WPL 965505 Contact Us For Availability
3
Dishrack, Upper (Includes Item 4) WPL 965552 Contact Us For Availability
3
Switch, Float WPL 965520 Contact Us For Availability
4
Switch, Rocker WPL 8193589 Contact Us For Availability
4
Screw, Vent Cover WPL 965506 Contact Us For Availability
4
Wheel Assembly, Upper Rack (4) WPL 965553 Contact Us For Availability
4
Screw, 10-32 x 3/8 WPL 965510 Contact Us For Availability
5
Screw, Timer WPL 965571 Contact Us For Availability
5
Gasket, Vent Cover WPL 965507 Contact Us For Availability
5
End Cap, Slide (4) WPL 965554 Contact Us For Availability
5
Toeplate WPL 965586 Contact Us For Availability
6
Knob, Timer WPL 965486 Contact Us For Availability
6
Slide, Rack (2) WPL 965555 Contact Us For Availability
7
Impeller, Lower WPL 8193604 Contact Us For Availability
7
Panel, Control (Also Order Item 2) WPL 965568 Contact Us For Availability
7
Tool, Pump Seal Installation WPL 4340107 Contact Us For Availability
7
Kit, Epoxy Patch (White) WPL 799832 Contact Us For Availability
7
Wheel Assembly, Lower Rack (4) WPL 965556 Contact Us For Availability
7
Screw, 10 x 5/8 WPL 965522 Contact Us For Availability
8
Screw, 10-10 x 9/16 WPL 4340341 Contact Us For Availability
9
Screw, 8 x 3/8 WPL 965578 Contact Us For Availability
10
Slinger, Pump WPL 8193606 Contact Us For Availability
10
Roller, Tub WPL 8193591 Contact Us For Availability
10
Screw, Relay WPL 4340129 Contact Us For Availability
11
Screw, Roller WPL 965527 Contact Us For Availability
11
Arm Assembly (R.H. & L.H.) WPL 965489 Contact Us For Availability
12
Relay, Motor WPL 8193597 Contact Us For Availability
13
Screw, Pump Housing WPL 965536 Contact Us For Availability
13
Float WPL 965528 Contact Us For Availability
13
Seal, Baffle WPL 965490 Contact Us For Availability
13
Screw, 8A x 3/8 WPL 4340701 Contact Us For Availability
14
Housing, Pump WPL 8193609 Contact Us For Availability
14
Door, Inner WPL 965574 Contact Us For Availability
15
Retainer, Sump WPL 8193610 Contact Us For Availability
15
Tub & Gasket Assembly (Includes Item 25) WPL 965529 Contact Us For Availability
15
Nut, Arm Assembly WPL 965492 Contact Us For Availability
16
Valve, Check WPL 8193611 Contact Us For Availability
18
Motor Assembly WPL 8193612 Contact Us For Availability
18
Spring, Door WPL 965493 Contact Us For Availability
19
Screw, Arm Assembly WPL 965494 Contact Us For Availability
20
Pad, Spring WPL 8193593 Contact Us For Availability
21
Speednut, Baffle WPL 965495 Contact Us For Availability
22
Levelers (4) WPL 8193599 Contact Us For Availability
23
Washer, Insulating WPL 965541 Contact Us For Availability
23
Harness, Wiring WPL 8193594 Contact Us For Availability
24
Nut, Heater WPL 965542 Contact Us For Availability
24
Panel, Door WPL 965497 Contact Us For Availability
25
Nut, Spray Arm WPL 965548 Contact Us For Availability
25
Gasket, Tub WPL 965530 Contact Us For Availability
25
Trim, Side Door WPL 965459 Contact Us For Availability
26
Bracket, Heater WPL 8193601 Contact Us For Availability
27
Screw, Motor Mounting WPL 965543 Contact Us For Availability
27
Insert, Access Panel (White & Clear) WPL 965498 Contact Us For Availability
27
Brace, Front WPL 965519 Contact Us For Availability
28
Diffuser WPL 8193613 Contact Us For Availability
28
Insert, Door Panel (White & Clear) WPL 965561 Contact Us For Availability
29
Trim, Access Panel - L.H. WPL 965500 Contact Us For Availability
30
Trim, Door Bottom WPL 8193595 Contact Us For Availability
30
Cover, Junction Box WPL 965515 Contact Us For Availability
31
Inlet, Water WPL 965533 Contact Us For Availability
31
Trim, Access Panel Bottom WPL 965413 Contact Us For Availability
31
Bracket, Junction Box WPL 965516 Contact Us For Availability
32
Trim, Access Panel - R.H. WPL 965559 Contact Us For Availability
32
Frame Assy., Front WPL 965517 Contact Us For Availability
33
Tubing, Inlet (Includes Item 34) WPL 965531 Contact Us For Availability
33
Panel, Access WPL 965502 Contact Us For Availability
34
Clamp (2) WPL 965532 Contact Us For Availability
36
Sprayarm, Lower WPL 965545 Contact Us For Availability
37
Base, Tower WPL 965462 Contact Us For Availability
37
Trim, Access Panel Top WPL 965339 Contact Us For Availability
38
Middle, Tower WPL 965463 Contact Us For Availability
39
Tip, Tower WPL 965546 Contact Us For Availability
40
Body Assembly WPL 8193596 Contact Us For Availability
51
Clamp, wire WPL 965579 Contact Us For Availability
× ![]()
