Model GE DSXH47GG2WW – Common Parts & Diagrams

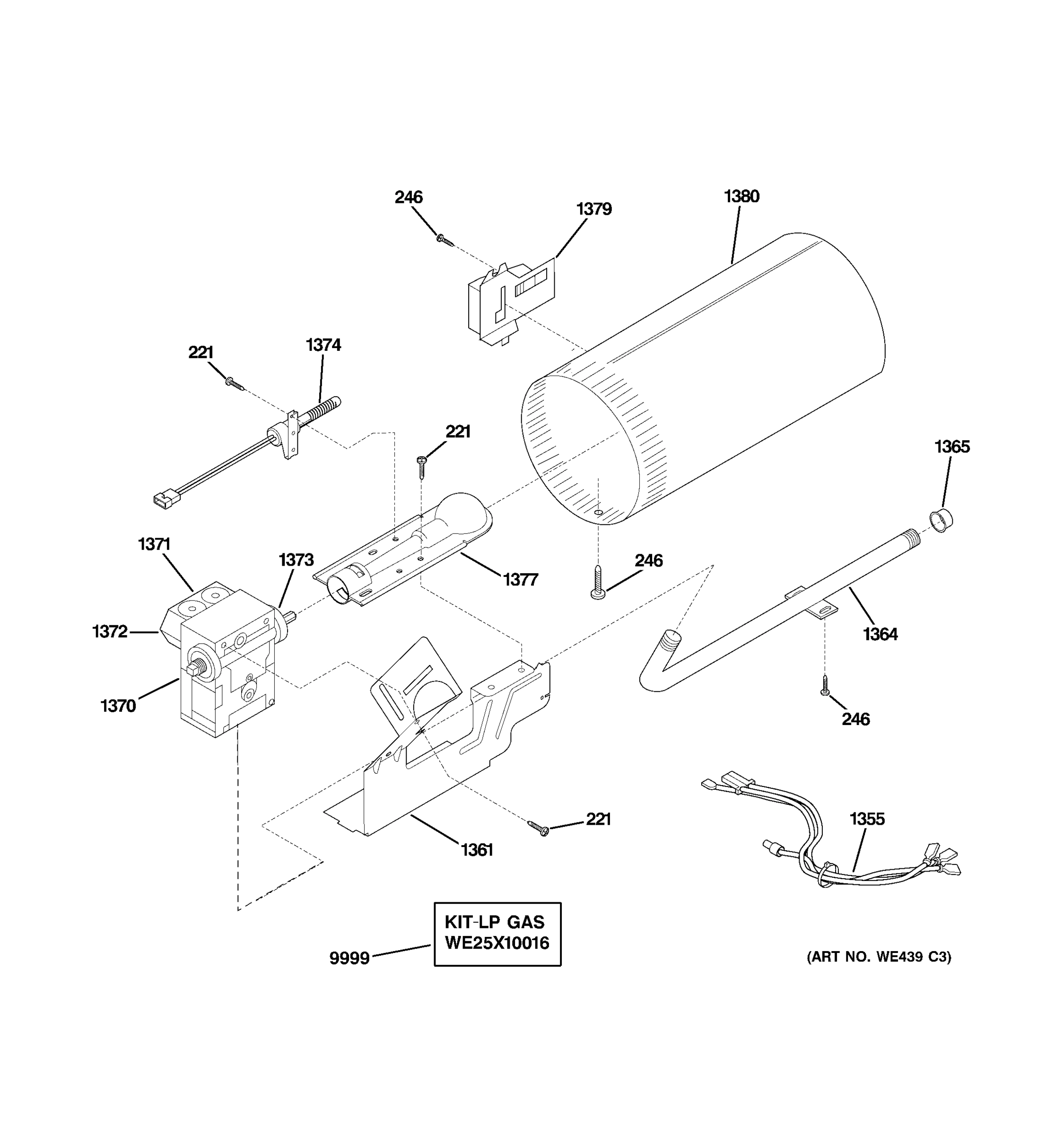

BURNER

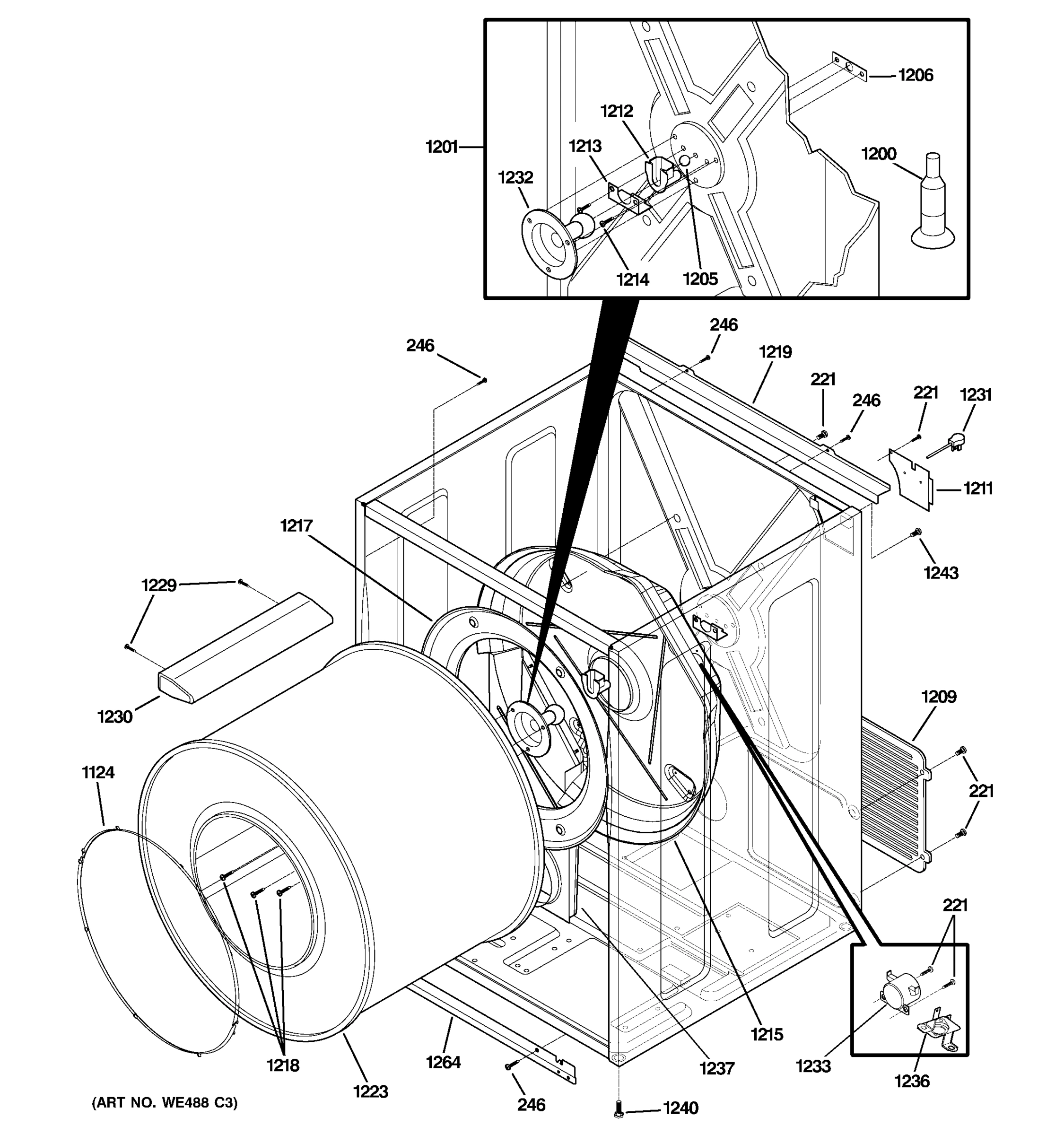

CABINET & DRUM

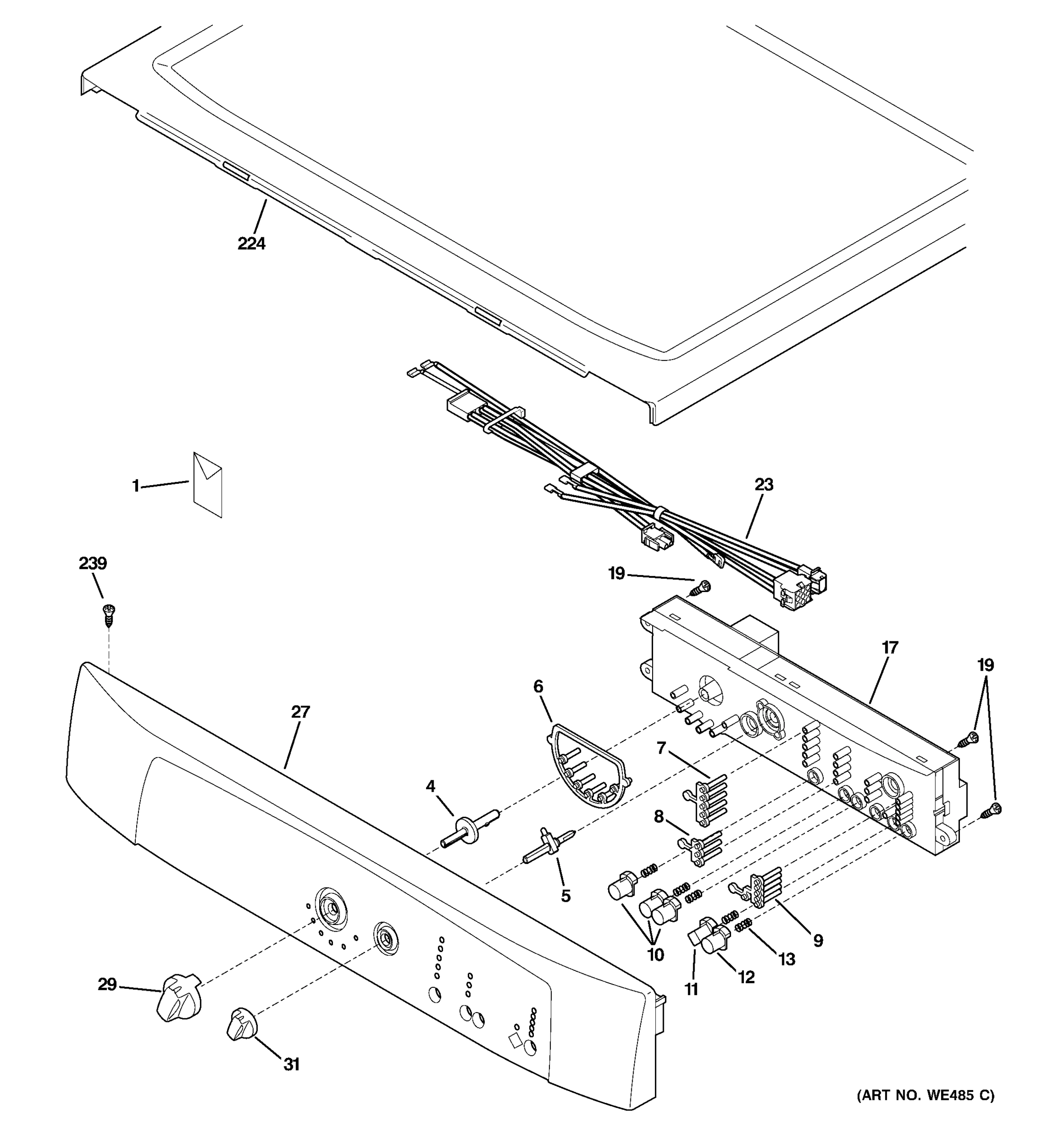

CONTROLS & TOP PANEL

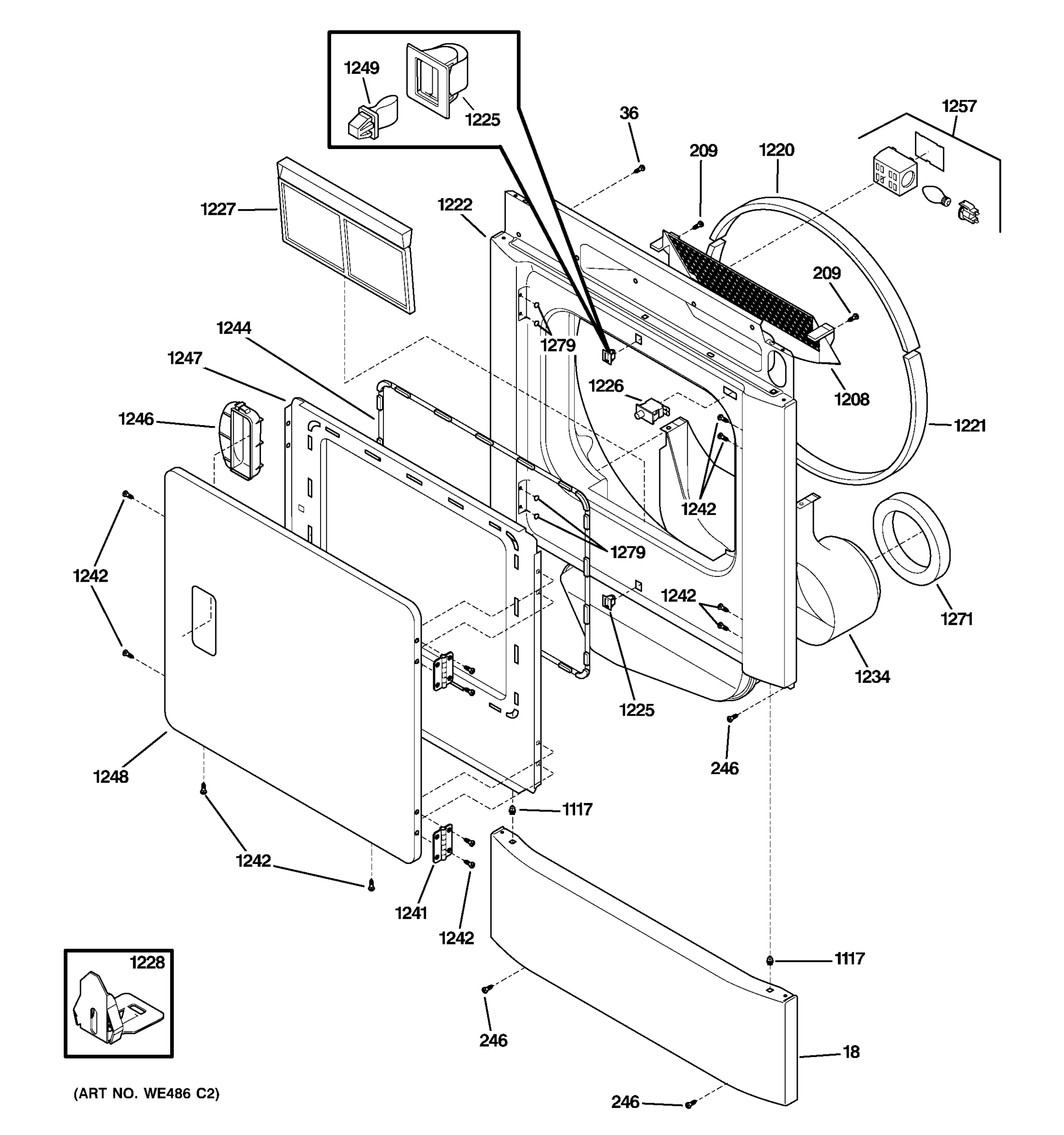

FRONT PANEL & DOOR

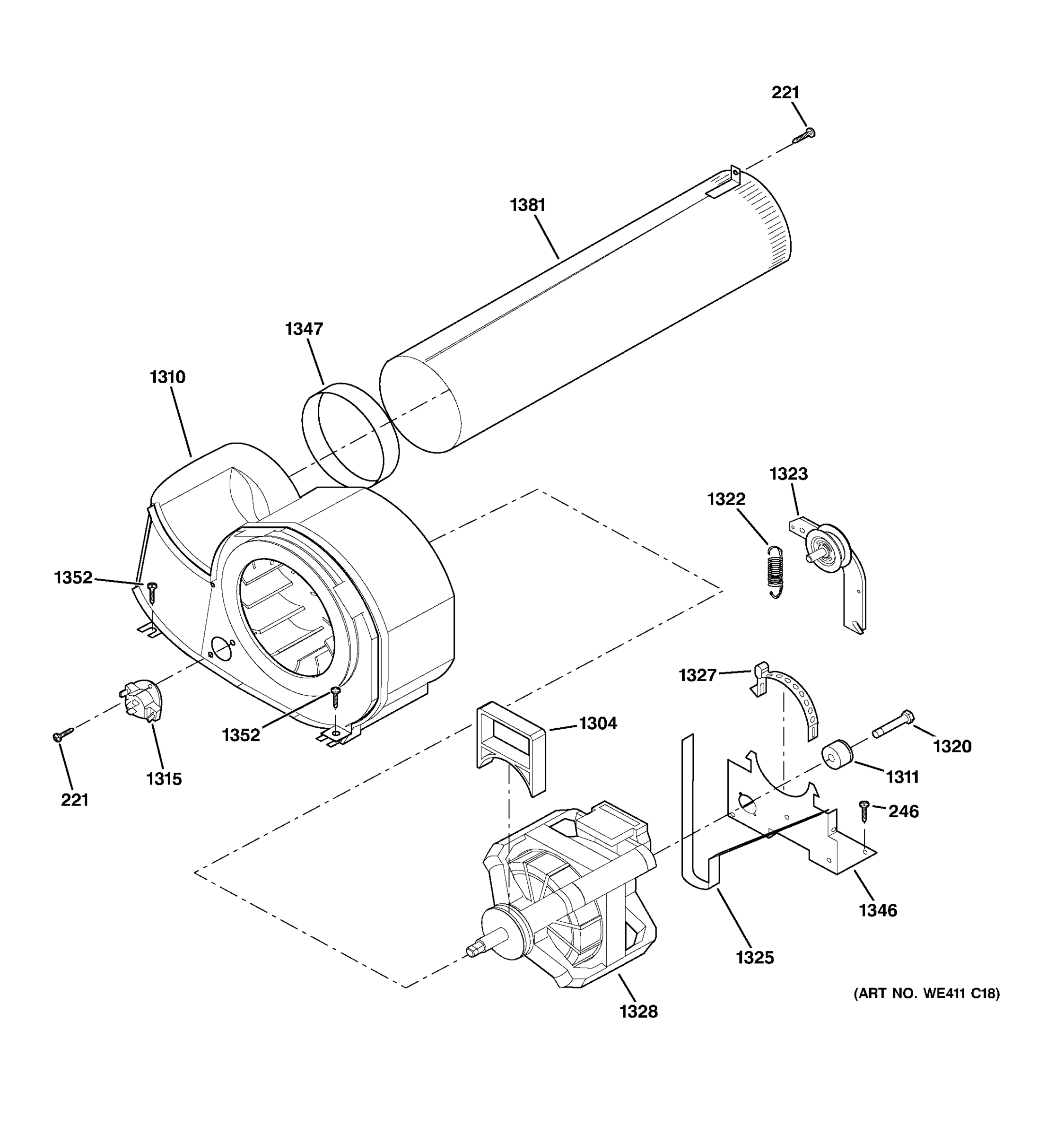

MOTOR
Common parts from model GE DSXH47GG2WW
1
GEN WE25X10027 GEN WE25X10027 Contact Us For Availability
4
GEN WE01X10223 GEN WE01X10223 Contact Us For Availability
18
GEN WE20X10088 GEN WE20X10088 Contact Us For Availability
19
SCREW, PHILLIPS, 6-19 X GEN WE02X10070 Contact Us For Availability
23
GEN WE08X10071 GEN WE08X10071 Contact Us For Availability
27
GEN WE20X10087 GEN WE20X10087 Contact Us For Availability
29
GEN WE01X10222 GEN WE01X10222 Contact Us For Availability
31
GEN WE01X10221 GEN WE01X10221 Contact Us For Availability
36
GEN WH02X10007 GEN WH02X10007 Contact Us For Availability
209
SCREW-LOCK, 10-16 X .500 GEN WH02X10009 Contact Us For Availability
221
GEN WH01X10004 GEN WH01X10004 Contact Us For Availability
224
GEN WE04X10137 GEN WE04X10137 Contact Us For Availability
239
GEN WH02X10228 GEN WH02X10228 Contact Us For Availability
246
GEN WH02X10227 GEN WH02X10227 Contact Us For Availability
1117
GEN WE02X10072 GEN WE02X10072 Contact Us For Availability
1200
GEN WE25X10013 GEN WE25X10013 Contact Us For Availability
1208
GEN WE18X10013 GEN WE18X10013 Contact Us For Availability
1213
BRACKET BEARING GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1218
SCREW 10-16 X.375 GEN WE02X10006 Contact Us For Availability
1220
GEN WE09X10016 GEN WE09X10016 Contact Us For Availability
1221
GEN WE09X10014 GEN WE09X10014 Contact Us For Availability
1222
GEN WE20X10102 GEN WE20X10102 Contact Us For Availability
1223
GEN WE21X10013 GEN WE21X10013 Contact Us For Availability
1225
CATCH DOOR, UPPER GEN WE01X10023 Contact Us For Availability
1226
SWITCH, DOOR, RECTANGLE, GEN WE04X10148 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1228
GEN WE02X10069 GEN WE02X10069 Contact Us For Availability
1229
GEN WE02X10007 GEN WE02X10007 Contact Us For Availability
1231
GEN WE08X10069 GEN WE08X10069 Contact Us For Availability
1234
GEN WE14X10073 GEN WE14X10073 Contact Us For Availability
1236
GEN WE04X10147 GEN WE04X10147 Contact Us For Availability
1241
GEN WE01X10233 GEN WE01X10233 Contact Us For Availability
1242
GEN WE02X10071 GEN WE02X10071 Contact Us For Availability
1244
GEN WE09X10017 GEN WE09X10017 Contact Us For Availability
1246
GEN WE01X10234 GEN WE01X10234 Contact Us For Availability
1247
GEN WE10X10024 GEN WE10X10024 Contact Us For Availability
1248
GEN WE10X10023 GEN WE10X10023 Contact Us For Availability
1249
GEN WE01X10235 GEN WE01X10235 Contact Us For Availability
1257
GEN WE04X10058 GEN WE04X10058 Contact Us For Availability
1271
GEN WE09X10004 GEN WE09X10004 Contact Us For Availability
1279
GEN WE01X10011 GEN WE01X10011 Contact Us For Availability
1304
GEN WE01X10016 GEN WE01X10016 Contact Us For Availability
1310
GEN WE14X10025 GEN WE14X10025 Contact Us For Availability
1311
SPACER IDLER GEN WE01X10029 Contact Us For Availability
1315
GEN WE04X10138 GEN WE04X10138 Contact Us For Availability
1320
SCREW HX HD 1/4-20TX1.25 GEN WE02X10014 Contact Us For Availability
1322
SPRING IDLER GEN WE01X10027 Contact Us For Availability
1323
GEN WE01X10236 GEN WE01X10236 Contact Us For Availability
1327
GEN WE01X10211 GEN WE01X10211 Contact Us For Availability
1328
GEN WE17X10001 GEN WE17X10001 Contact Us For Availability
1346
GEN WE13X10026 GEN WE13X10026 Contact Us For Availability
1347
GEN WE09X10003 GEN WE09X10003 Contact Us For Availability
1352
GEN WE02X10002 GEN WE02X10002 Contact Us For Availability
1371
GEN WE04X10020 GEN WE04X10020 Contact Us For Availability
1373
ORIFICE NATURAL GAS GEN WE01X10022 Contact Us For Availability
1381
GEN WE14X10007 GEN WE14X10007 Contact Us For Availability
× ![]()
