Model GE DSXH47EG1WW Dryer Electric – Common Parts & Diagrams
CABINET & DRUM
CONTROLS & TOP PANEL

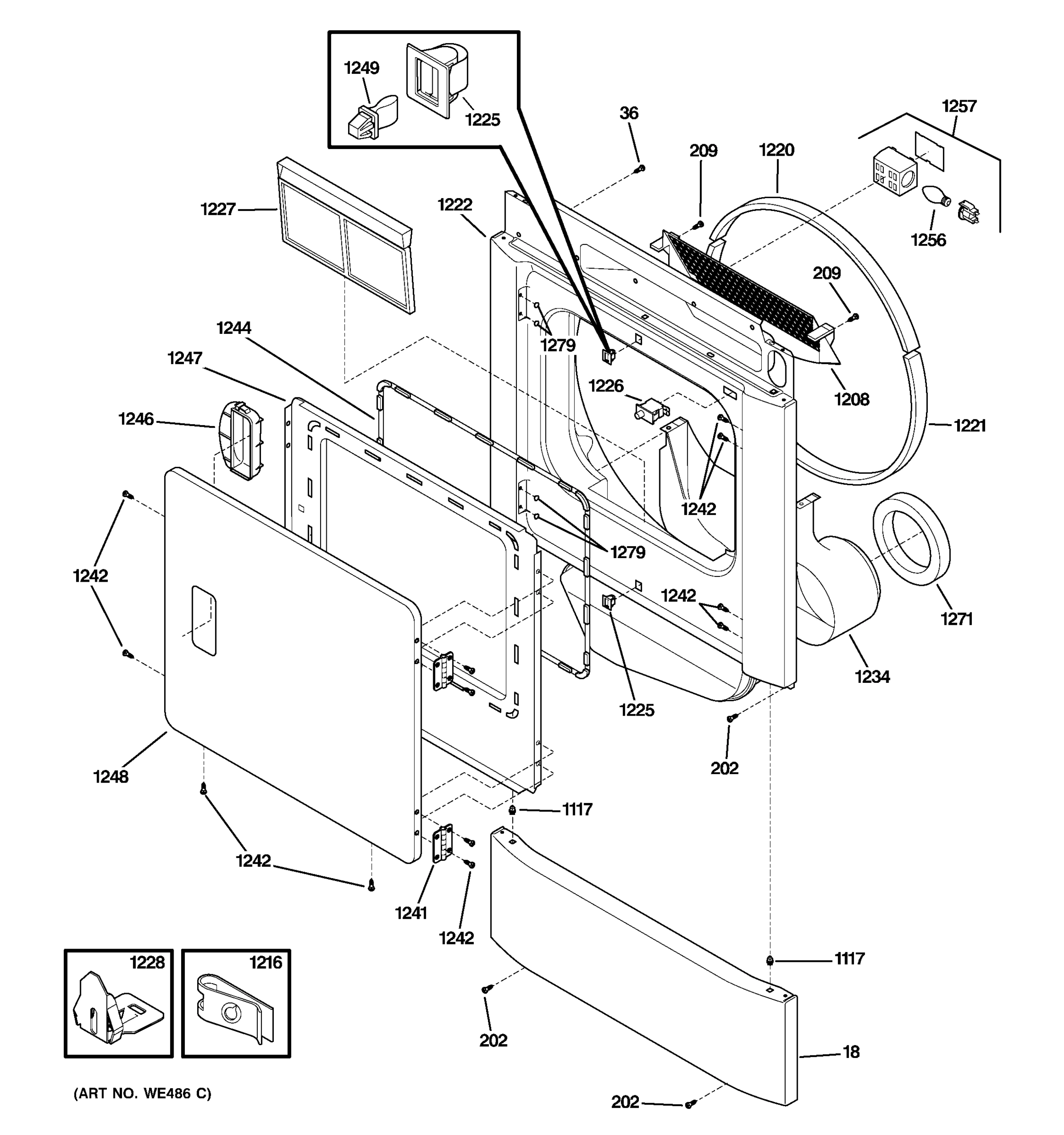

FRONT PANEL & DOOR

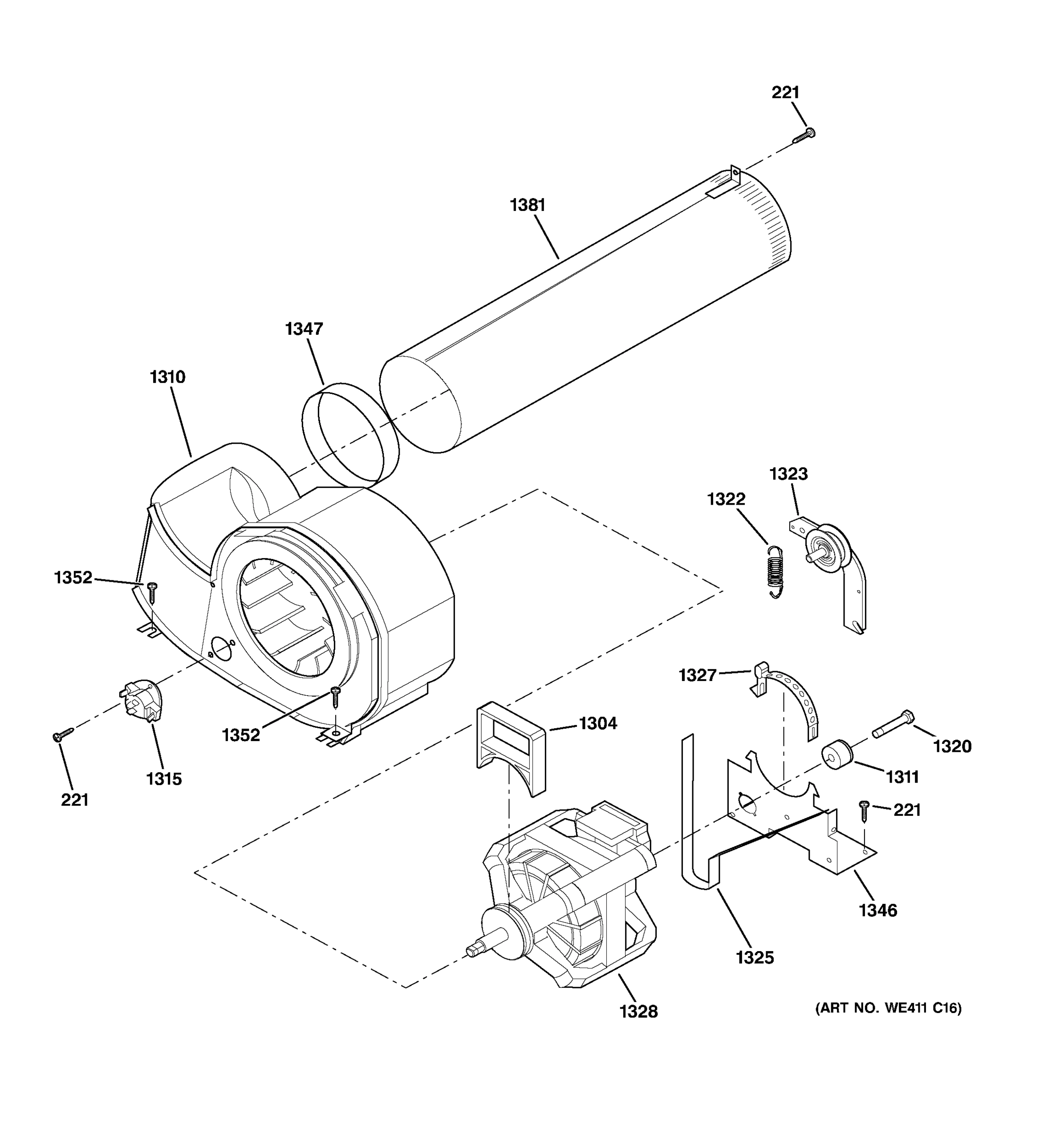

MOTOR

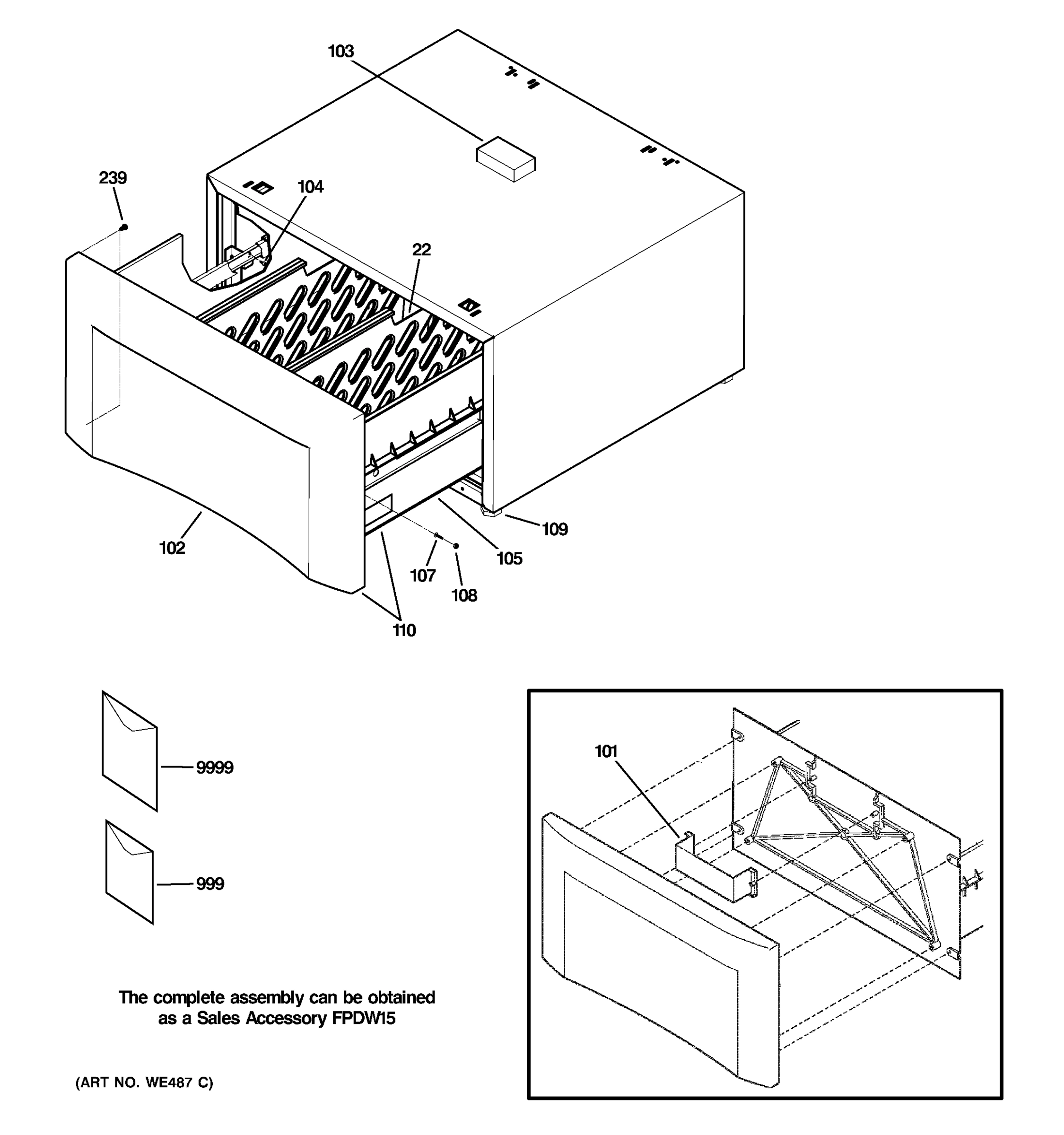

PEDESTAL
Common parts from model GE DSXH47EG1WW Dryer Electric
1
GEN WE25X10020 GEN WE25X10020 Contact Us For Availability
4
GEN WE01X10223 GEN WE01X10223 Contact Us For Availability
18
GEN WE20X10088 GEN WE20X10088 Contact Us For Availability
22
GEN WH16X10095 GEN WH16X10095 Contact Us For Availability
27
GEN WE20X10087 GEN WE20X10087 Contact Us For Availability
29
GEN WE01X10222 GEN WE01X10222 Contact Us For Availability
101
GEN WH01X10341 GEN WH01X10341 Contact Us For Availability
102
GEN WH46X10166 GEN WH46X10166 Contact Us For Availability
103
DAMPENER VIBRATION FOAM GEN WH01X10325 Contact Us For Availability
104
GEN WH02X10253 GEN WH02X10253 Contact Us For Availability
105
GEN WH16X10094 GEN WH16X10094 Contact Us For Availability
107
GEN WH02X10254 GEN WH02X10254 Contact Us For Availability
108
GEN WH02X10255 GEN WH02X10255 Contact Us For Availability
109
GEN WH01X10338 GEN WH01X10338 Contact Us For Availability
110
GEN WH44X10185 GEN WH44X10185 Contact Us For Availability
209
SCREW-LOCK, 10-16 X .500 GEN WH02X10009 Contact Us For Availability
221
GEN WH01X10004 GEN WH01X10004 Contact Us For Availability
239
GEN WH02X10228 GEN WH02X10228 Contact Us For Availability
999
GEN WH49X10045 GEN WH49X10045 Contact Us For Availability
1200
GEN WE25X10013 GEN WE25X10013 Contact Us For Availability
1204
BRACKET CORD GEN WE13X10010 Contact Us For Availability
1211
GEN WE20X10005 GEN WE20X10005 Contact Us For Availability
1213
BRACKET BEARING GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1215
HEATER-HOUSING ASS'Y GEN WE14X10015 Contact Us For Availability
1216
GEN WE02X10068 GEN WE02X10068 Contact Us For Availability
1218
SCREW 10-16 X.375 GEN WE02X10006 Contact Us For Availability
1220
GEN WE09X10016 GEN WE09X10016 Contact Us For Availability
1221
GEN WE09X10014 GEN WE09X10014 Contact Us For Availability
1223
GEN WE21X10013 GEN WE21X10013 Contact Us For Availability
1225
CATCH DOOR, UPPER GEN WE01X10023 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1229
GEN WE02X10007 GEN WE02X10007 Contact Us For Availability
1237
INSULATOR, HEATER HSNG GEN WE04X10026 Contact Us For Availability
1241
GEN WE01X10233 GEN WE01X10233 Contact Us For Availability
1242
GEN WE02X10071 GEN WE02X10071 Contact Us For Availability
1244
GEN WE09X10017 GEN WE09X10017 Contact Us For Availability
1248
GEN WE10X10023 GEN WE10X10023 Contact Us For Availability
1249
GEN WE01X10235 GEN WE01X10235 Contact Us For Availability
1256
GEN WE04X10045 GEN WE04X10045 Contact Us For Availability
1257
GEN WE04X10058 GEN WE04X10058 Contact Us For Availability
1271
GEN WE09X10004 GEN WE09X10004 Contact Us For Availability
1279
GEN WE01X10011 GEN WE01X10011 Contact Us For Availability
1304
GEN WE01X10016 GEN WE01X10016 Contact Us For Availability
1310
GEN WE14X10025 GEN WE14X10025 Contact Us For Availability
1311
SPACER IDLER GEN WE01X10029 Contact Us For Availability
1315
GEN WE04X10138 GEN WE04X10138 Contact Us For Availability
1320
SCREW HX HD 1/4-20TX1.25 GEN WE02X10014 Contact Us For Availability
1322
SPRING IDLER GEN WE01X10027 Contact Us For Availability
1323
GEN WE01X10236 GEN WE01X10236 Contact Us For Availability
1327
GEN WE01X10211 GEN WE01X10211 Contact Us For Availability
1328
GEN WE17X10001 GEN WE17X10001 Contact Us For Availability
1346
GEN WE13X10026 GEN WE13X10026 Contact Us For Availability
1347
GEN WE09X10003 GEN WE09X10003 Contact Us For Availability
1352
GEN WE02X10002 GEN WE02X10002 Contact Us For Availability
1381
GEN WE14X10007 GEN WE14X10007 Contact Us For Availability
2751
GEN WE04X10095 GEN WE04X10095 Contact Us For Availability
9999
GEN WH49X10044 GEN WH49X10044 Contact Us For Availability
× ![]()
