Model GE DSXH43GV2WW Dryer Gas – Common Parts & Diagrams
BURNER
CABINET & DRUM

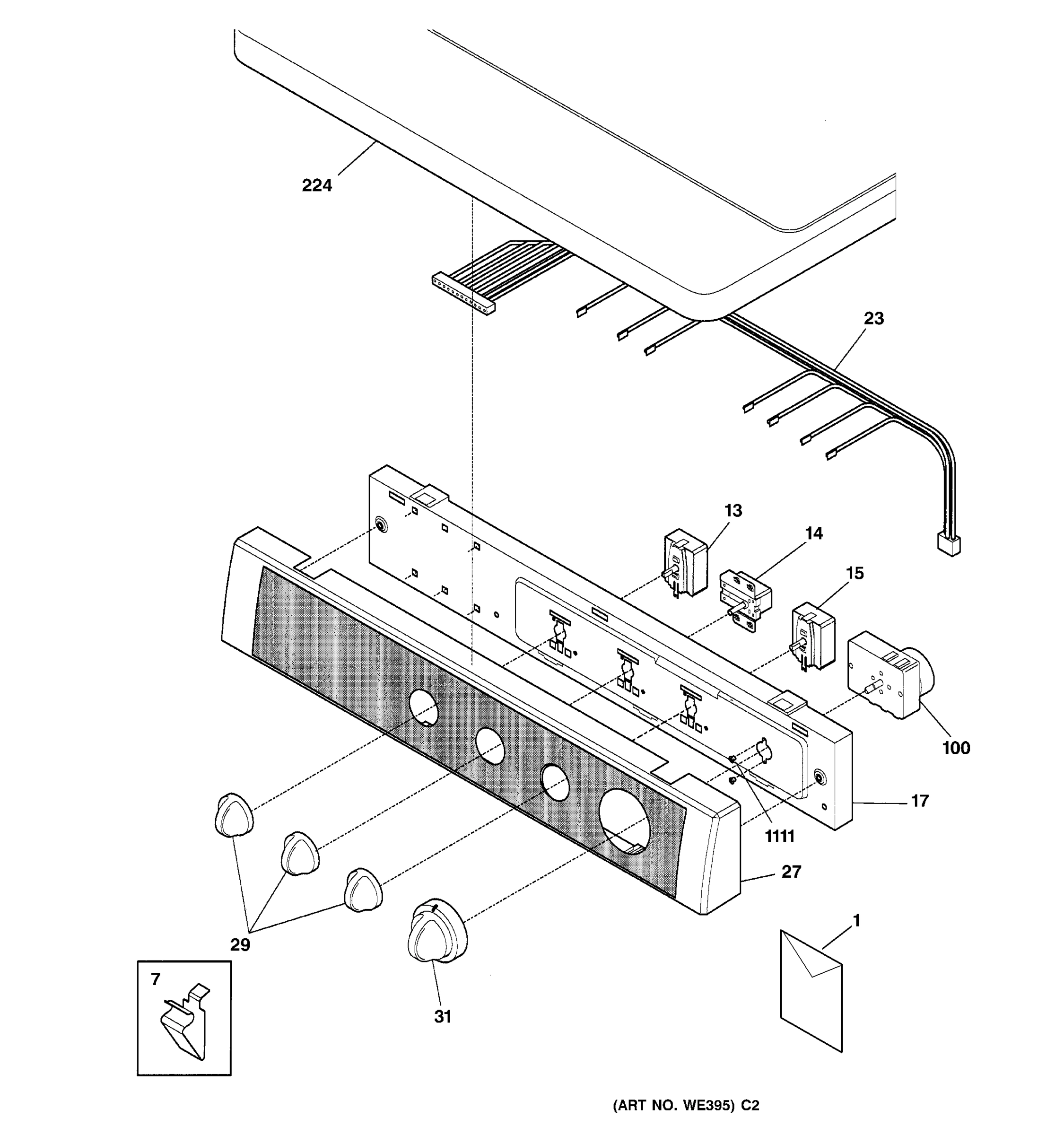

CONTROL PANEL

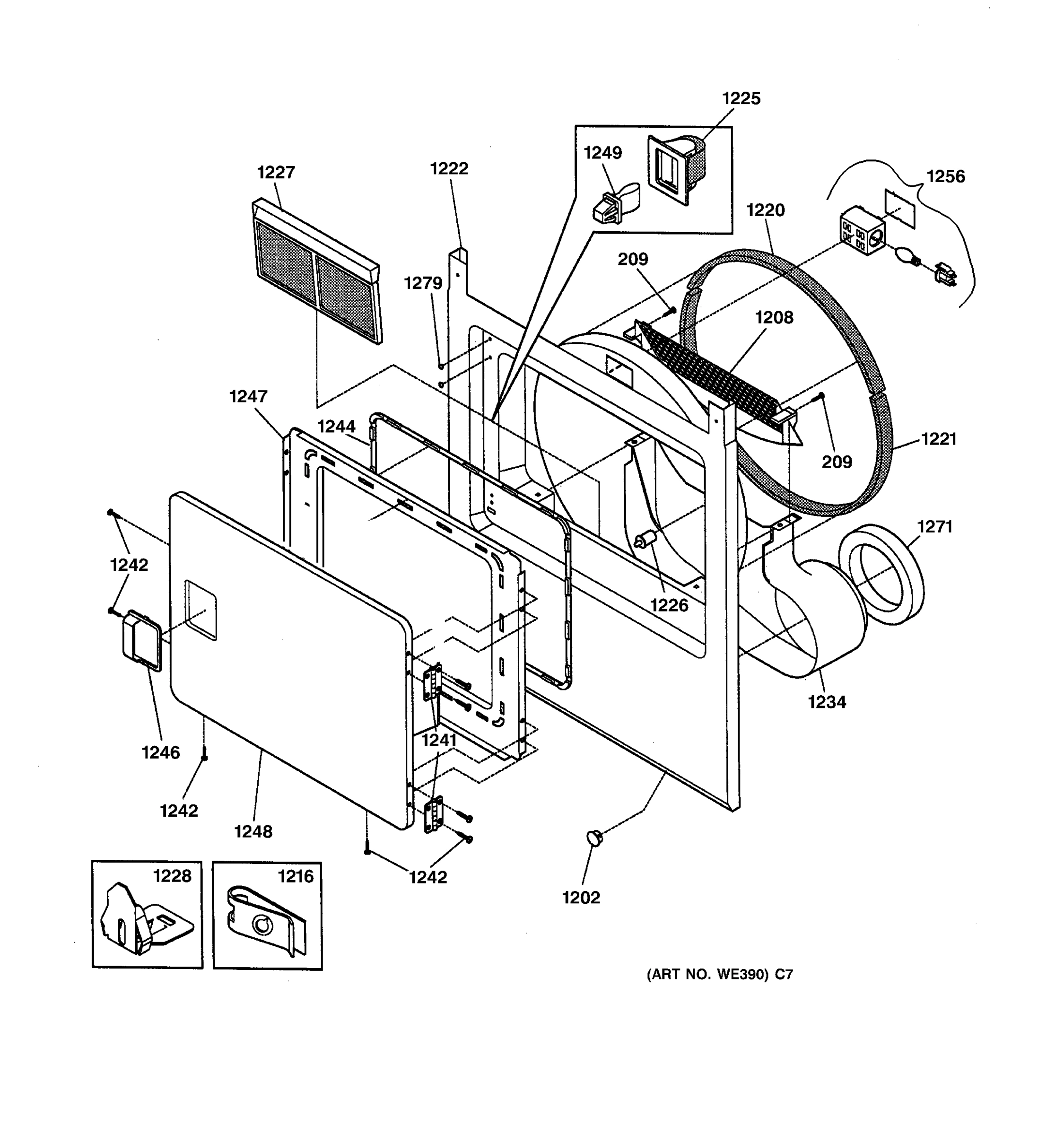

FRONT PANEL & LINT FILTER

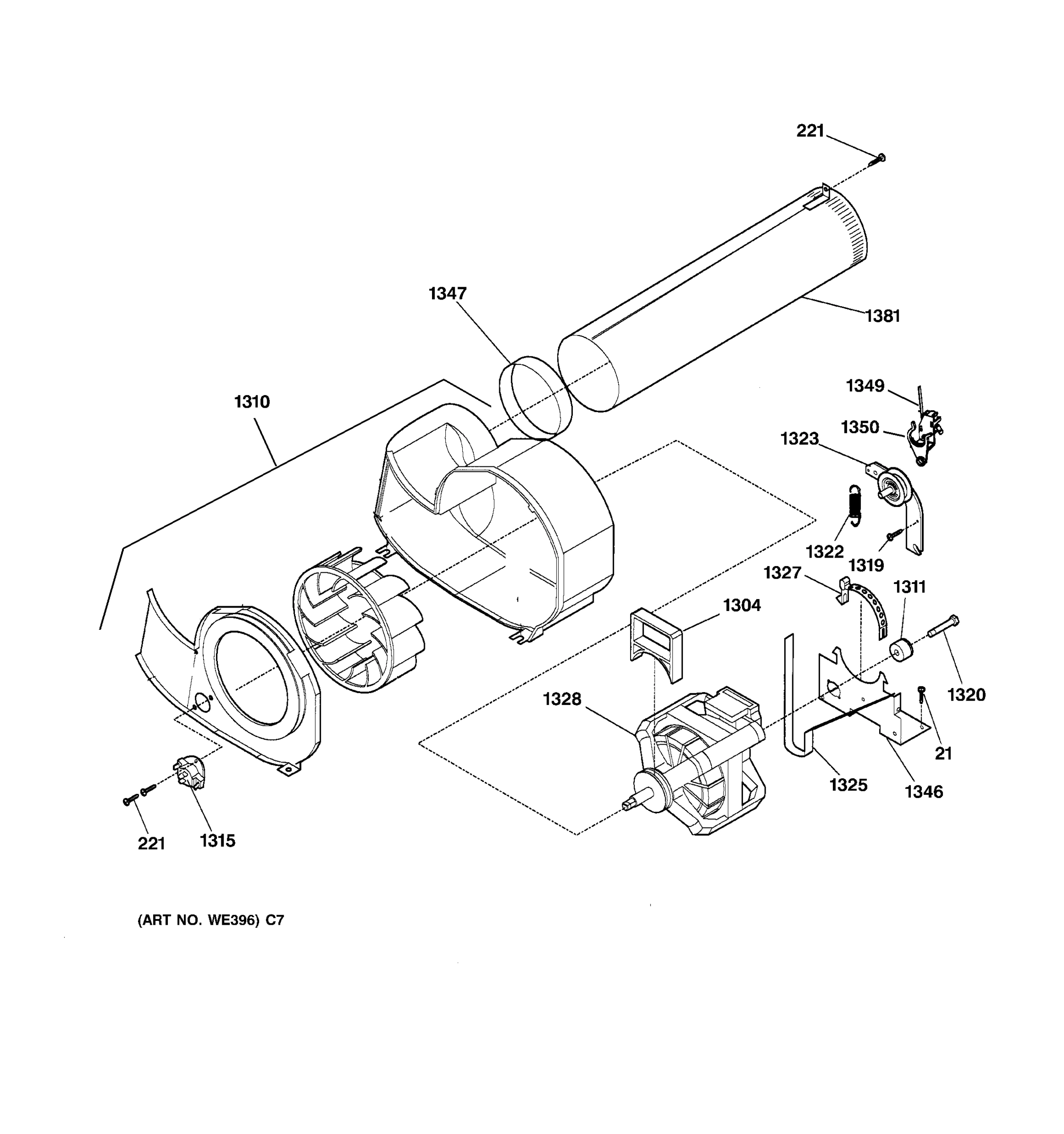

MOTOR
Common parts from model GE DSXH43GV2WW Dryer Gas
1
STACKING KIT GEN WE25X10004 Contact Us For Availability
13
SWITCH TEMP GEN WE04X10023 Contact Us For Availability
14
GEN WE04X10010 GEN WE04X10010 Contact Us For Availability
15
SWITCH START GEN WE04X10008 Contact Us For Availability
17
BRACKET CONTROL GEN WE13X10013 Contact Us For Availability
21
SCREW,8-18 X 0.31 GEN WR02X9494 Contact Us For Availability
23
GEN WE08X10013 GEN WE08X10013 Contact Us For Availability
27
GEN WE20X10008 GEN WE20X10008 Contact Us For Availability
29
GEN WE01X10031 GEN WE01X10031 Contact Us For Availability
31
GEN WE01X10032 GEN WE01X10032 Contact Us For Availability
100
TIMER-DRYER P GAS GEN WE04X10006 Contact Us For Availability
209
SCREW GEN WH02X10009 Contact Us For Availability
221
SCREW 8-18 AB X.375 GEN WH01X10004 Contact Us For Availability
224
GEN WH44X10001 GEN WH44X10001 Contact Us For Availability
1111
GEN WH02X1150 GEN WH02X1150 Contact Us For Availability
1202
GEN WE01X10010 GEN WE01X10010 Contact Us For Availability
1208
GEN WE18X10001 GEN WE18X10001 Contact Us For Availability
1213
BRACKET BEARING GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1216
GEN WE02X10010 GEN WE02X10010 Contact Us For Availability
1218
SCREW 10-16 X .375 GEN WE02X10006 Contact Us For Availability
1220
GEN WE03X0073 GEN WE03X0073 Contact Us For Availability
1221
GEN WE09X0105 GEN WE09X0105 Contact Us For Availability
1222
GEN WE20X10016 GEN WE20X10016 Contact Us For Availability
1225
GEN WE01X10023 GEN WE01X10023 Contact Us For Availability
1226
GEN WE04X10046 GEN WE04X10046 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1228
CLIP GUIDE GEN WE02X0361 Contact Us For Availability
1229
SCREW VANE 10-14 X 1 GEN WE02X10007 Contact Us For Availability
1234
GEN WE14X10005 GEN WE14X10005 Contact Us For Availability
1240
LEVELING FOOT GEN WE02X10012 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1242
SCREW 8-18 AB X .44 GEN WH02X10038 Contact Us For Availability
1244
GASKET DOOR GEN WE09X0107 Contact Us For Availability
1245
SCREW 8-18 X .375 GEN WE02X10011 Contact Us For Availability
1246
HANDLE DOOR WH GEN WE01X10013 Contact Us For Availability
1247
GEN WE10X10008 GEN WE10X10008 Contact Us For Availability
1248
GEN WE10X10009 GEN WE10X10009 Contact Us For Availability
1249
STRIKE DOOR GEN WE01X1158 Contact Us For Availability
1256
GEN WE04X10058 GEN WE04X10058 Contact Us For Availability
1264
CLIP CABINET BTM GEN WE02X10013 Contact Us For Availability
1271
GEN WE09X10002 GEN WE09X10002 Contact Us For Availability
1279
GEN WE01X10011 GEN WE01X10011 Contact Us For Availability
1304
GEN WE01X10016 GEN WE01X10016 Contact Us For Availability
1310
GEN WE14X10025 GEN WE14X10025 Contact Us For Availability
1311
SPACER IDLER GEN WE01X10029 Contact Us For Availability
1315
THERMOSTAT CONTROL GEN WE04X10018 Contact Us For Availability
1319
CLIP IGNITER GEN WE02X10023 Contact Us For Availability
1320
SCREW HX HD 1/4-20TX1.25 GEN WE02X10014 Contact Us For Availability
1321
SCREW DOOR 10-16X.75 GEN WE02X10017 Contact Us For Availability
1322
SPRING IDLER GEN WE01X10027 Contact Us For Availability
1323
IDLER BRKT & PULLEY ASM GEN WE01X10037 Contact Us For Availability
1327
CLAMP MOTOR GEN WE01X10003 Contact Us For Availability
1328
MOTOR & PULLEY GEN WE17X10001 Contact Us For Availability
1346
BRACKET MOTOR GEN WE13X10006 Contact Us For Availability
1347
GEN WE09X10003 GEN WE09X10003 Contact Us For Availability
1349
SWITCH-BELT GEN WE04X10030 Contact Us For Availability
1350
GEN WE13X10008 GEN WE13X10008 Contact Us For Availability
1371
GEN WE04X10020 GEN WE04X10020 Contact Us For Availability
1373
ORIFICE NATURAL GAS GEN WE01X10022 Contact Us For Availability
1381
GEN WE14X10007 GEN WE14X10007 Contact Us For Availability
× ![]()
