Model GE DSXH43EV2WW Dryer Electric – Common Parts & Diagrams
CABINET & DRUM
CONTROL PANEL

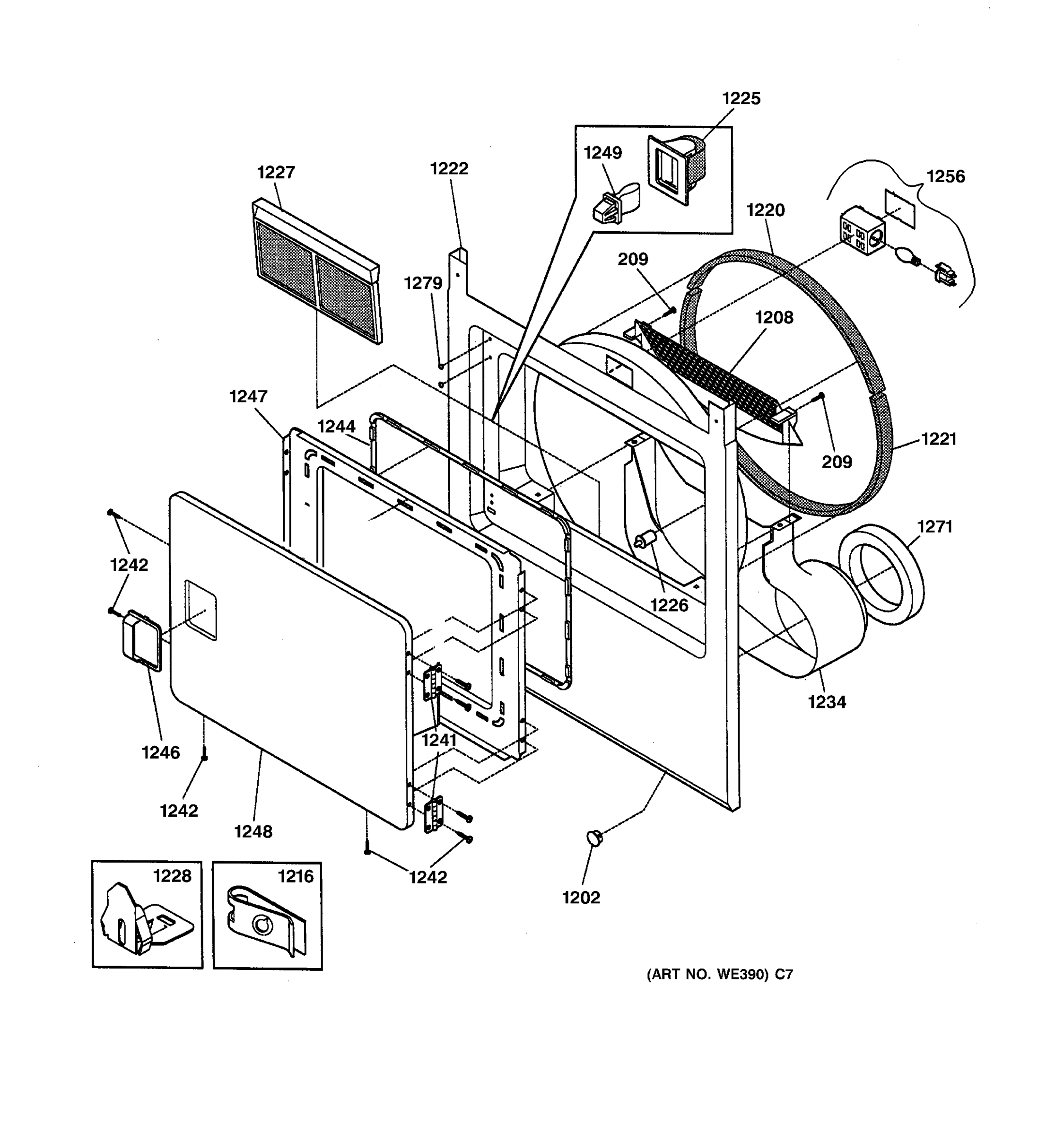

FRONT PANEL & LINT FILTER

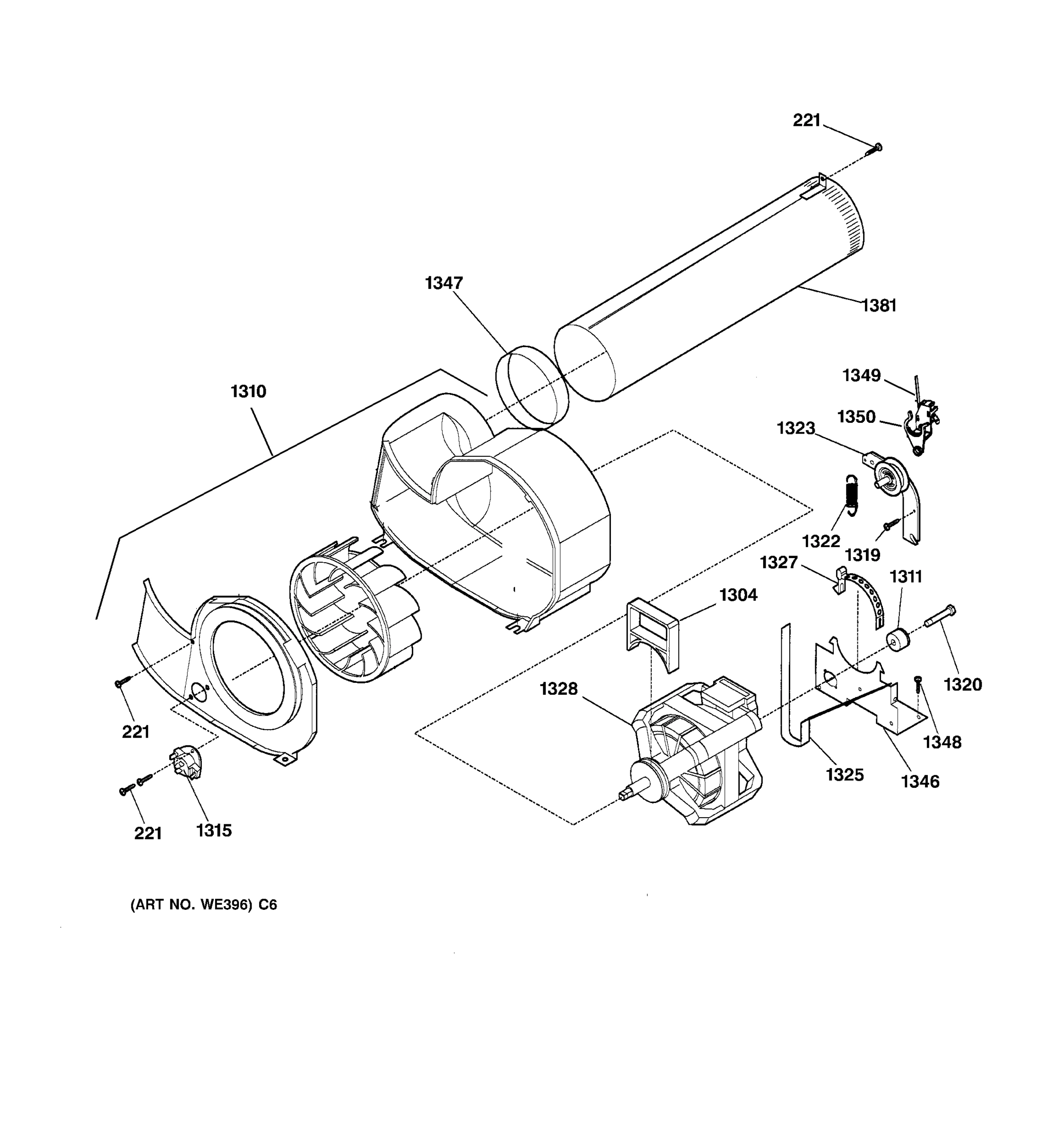

MOTOR
Common parts from model GE DSXH43EV2WW Dryer Electric
1
GEN WE25X10004 GEN WE25X10004 Contact Us For Availability
14
GEN WE04X10010 GEN WE04X10010 Contact Us For Availability
15
GEN WE04X10008 GEN WE04X10008 Contact Us For Availability
29
ROTARY WH GEN WE01X10031 Contact Us For Availability
31
GEN WE01X10032 GEN WE01X10032 Contact Us For Availability
209
SCREW-LOCK, 10-16X05 GEN WH02X10009 Contact Us For Availability
221
SCREW, 8-18ABX.44 GEN WH01X10004 Contact Us For Availability
224
GEN WH44X10001 GEN WH44X10001 Contact Us For Availability
1204
BRACKET CORD GEN WE13X10010 Contact Us For Availability
1208
COVER-LINT TRAP GEN WE18X10001 Contact Us For Availability
1211
COVER-TERM BLOCK GEN WE20X10005 Contact Us For Availability
1213
GEN WE13X10009 GEN WE13X10009 Contact Us For Availability
1214
SCREW-BRACKET,10-16B X 1 GEN WE02X10005 Contact Us For Availability
1215
HEATER-HOUSING ASSY GEN WE14X10015 Contact Us For Availability
1218
SCREW 10-16X.375 GEN WE02X10006 Contact Us For Availability
1223
DRUM-DRYER,GALVANIZED BA GEN WE21X10003 Contact Us For Availability
1225
CATCH-DOOR GEN WE01X10023 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1229
SCREW-VANE,QUADREX HEAD GEN WE02X10007 Contact Us For Availability
1237
INSULATOR,HEATER HOUSING GEN WE04X10026 Contact Us For Availability
1240
FOOT-CABINET GEN WE02X10012 Contact Us For Availability
1241
HINGE-DOOR GEN WE01X10012 Contact Us For Availability
1246
HANDLE-DOOR,WHITE GEN WE01X10013 Contact Us For Availability
1256
GEN WE04X10058 GEN WE04X10058 Contact Us For Availability
1264
CLIP,CABINET BOTTOM GEN WE02X10013 Contact Us For Availability
1271
SEAL-AIR DUCT GEN WE09X10002 Contact Us For Availability
1279
PLUG, WHITE GEN WE01X10011 Contact Us For Availability
1304
LOCK-FAN HOUSING GEN WE01X10016 Contact Us For Availability
1310
GEN WE14X10025 GEN WE14X10025 Contact Us For Availability
1311
GEN WE01X10029 GEN WE01X10029 Contact Us For Availability
1319
SCREW-DOOR,10-16X.75 GEN WE02X10017 Contact Us For Availability
1320
SCREW-SPACER,HEX HEAD ,1 GEN WE02X10014 Contact Us For Availability
1322
SPRING-IDLER GEN WE01X10027 Contact Us For Availability
1323
ASMY-IDLER BRKT & PULLEY GEN WE01X10037 Contact Us For Availability
1327
CLAMP-MOTOR GEN WE01X10003 Contact Us For Availability
1328
GEN WE17X10001 GEN WE17X10001 Contact Us For Availability
1346
BRACKET-MOTOR GEN WE13X10006 Contact Us For Availability
1347
SEAL-EXHAUST TUBE GEN WE09X10003 Contact Us For Availability
1348
SCREW,8-18 X 0.31 GEN WR02X9494 Contact Us For Availability
1349
SWITCH-BELT GEN WE04X10030 Contact Us For Availability
1350
BRACKET-BELT SWITCH GEN WE13X10008 Contact Us For Availability
1381
TUBE ASSY,EXHAUST GEN WE14X10007 Contact Us For Availability
× ![]()
