Model GE DSXH43EV0WW – Common Parts & Diagrams

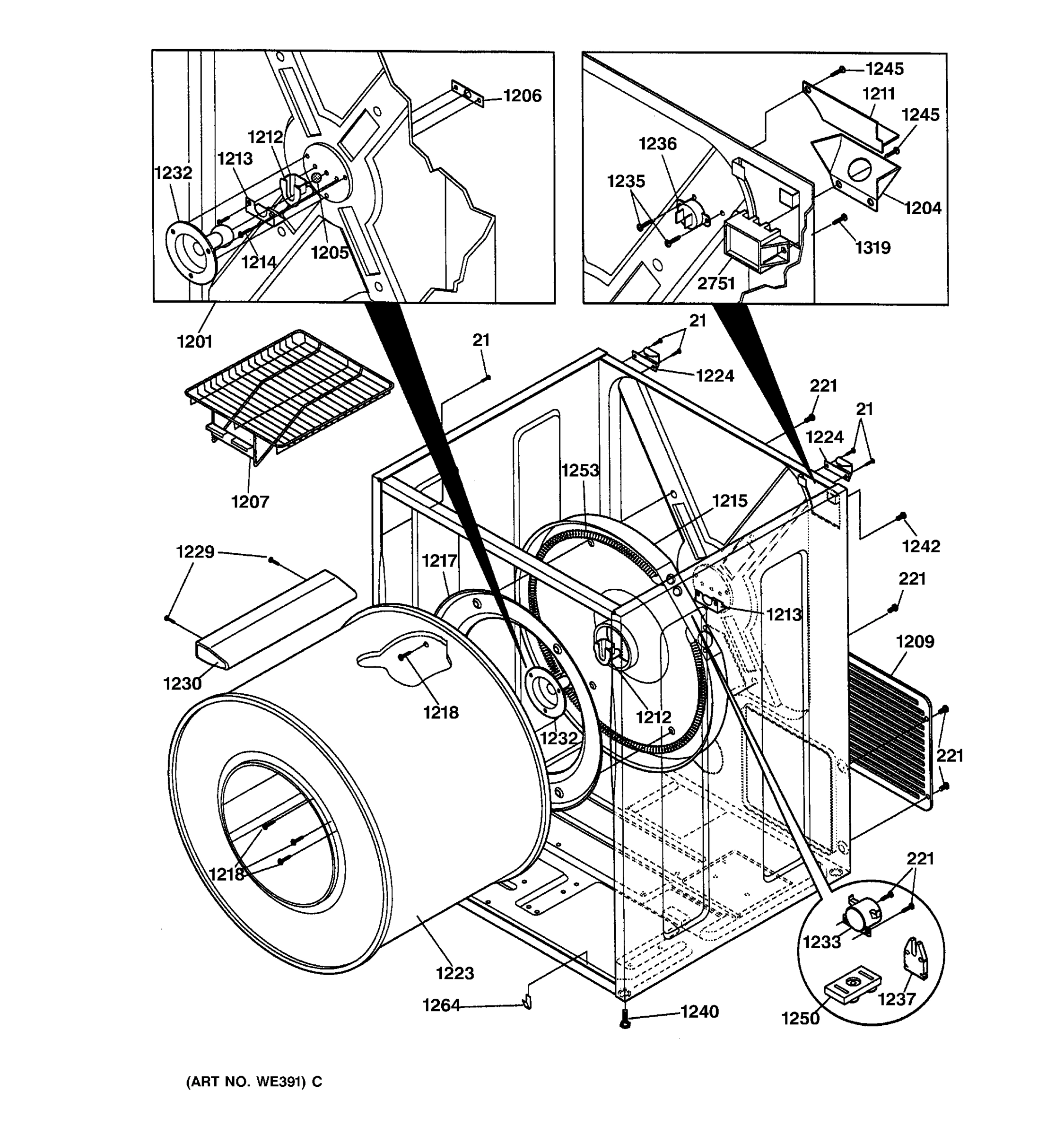

CABINET & DRUM

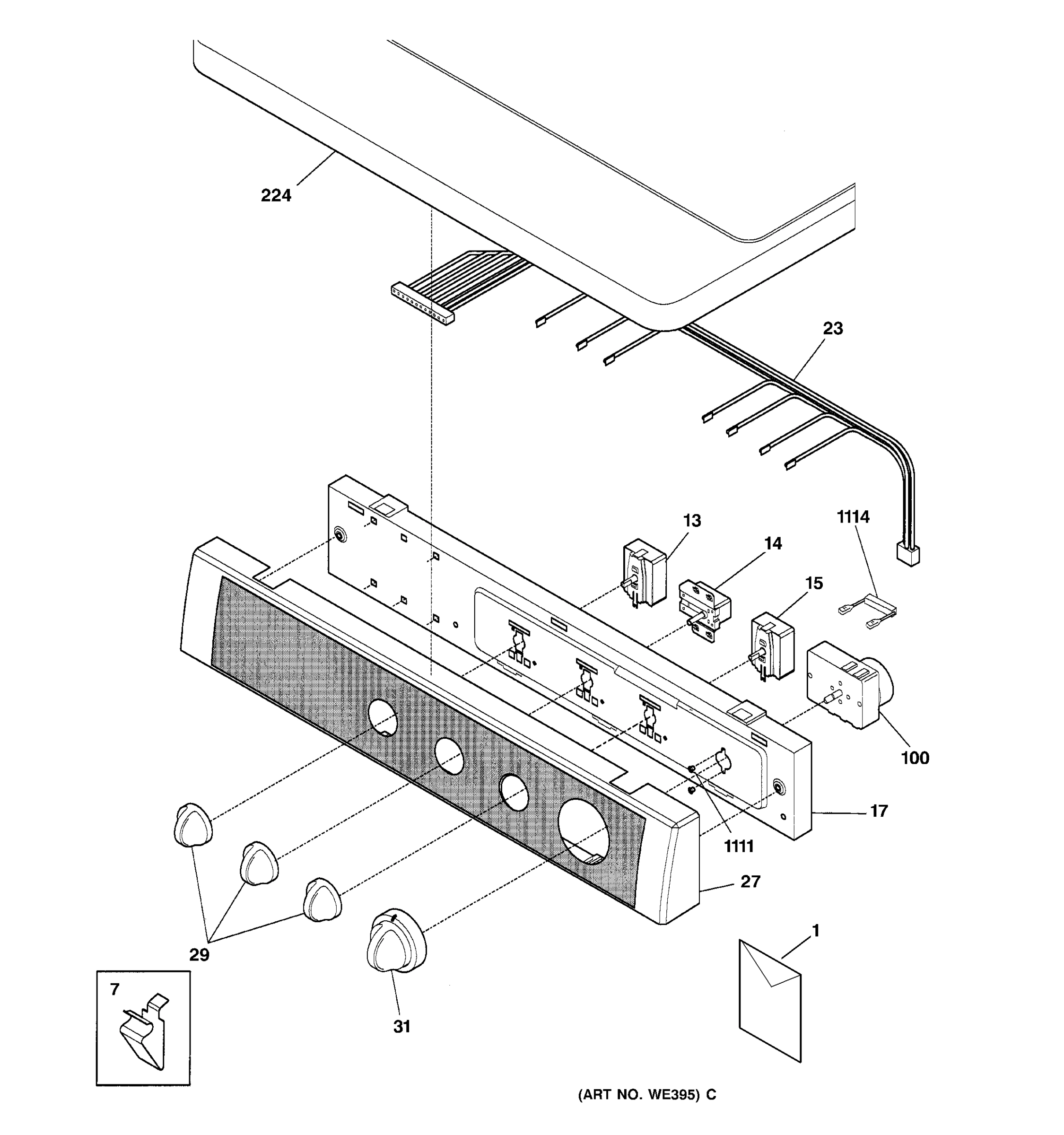

CONTROL PANEL

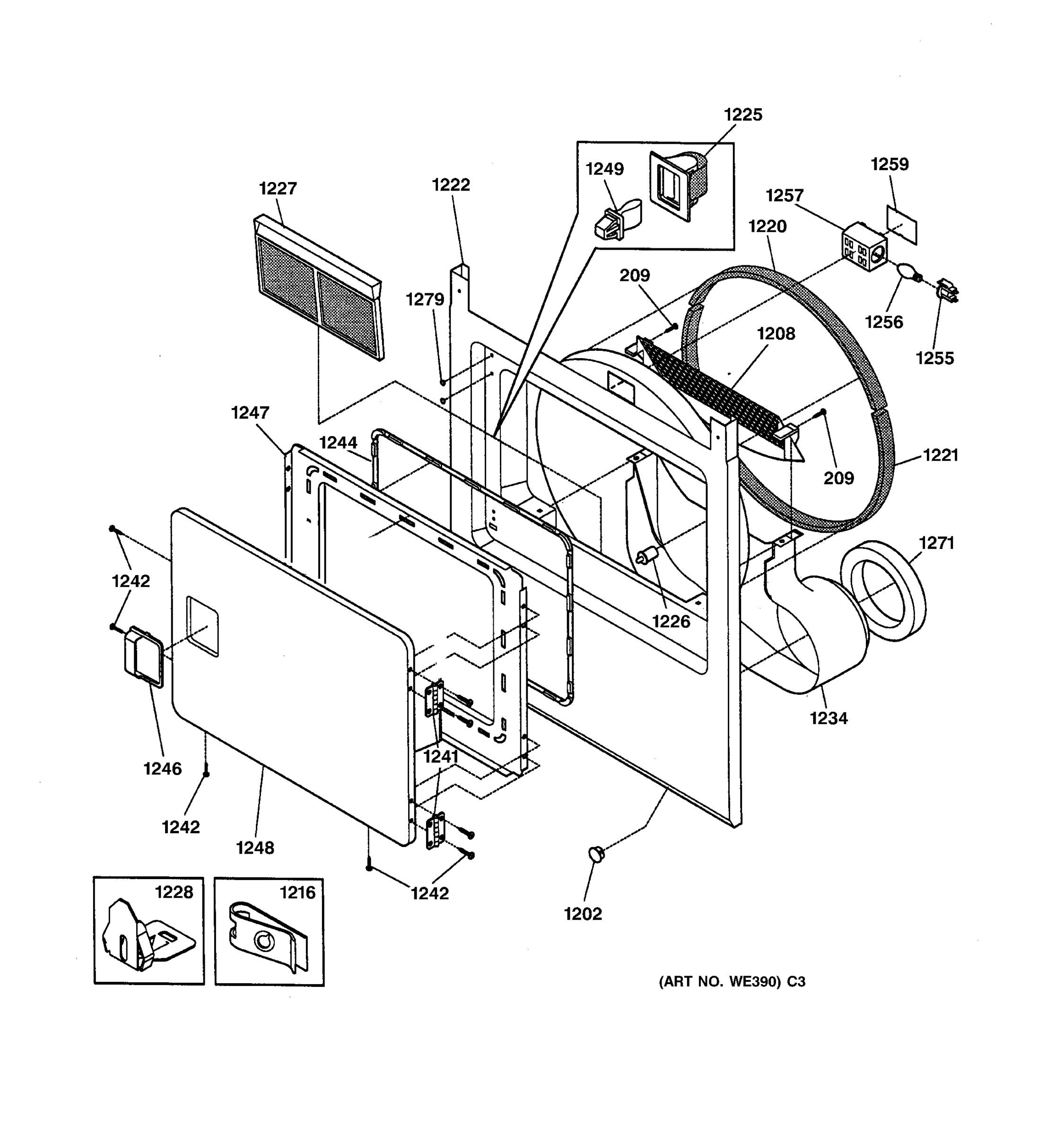

FRONT PANEL & LINT FILTER

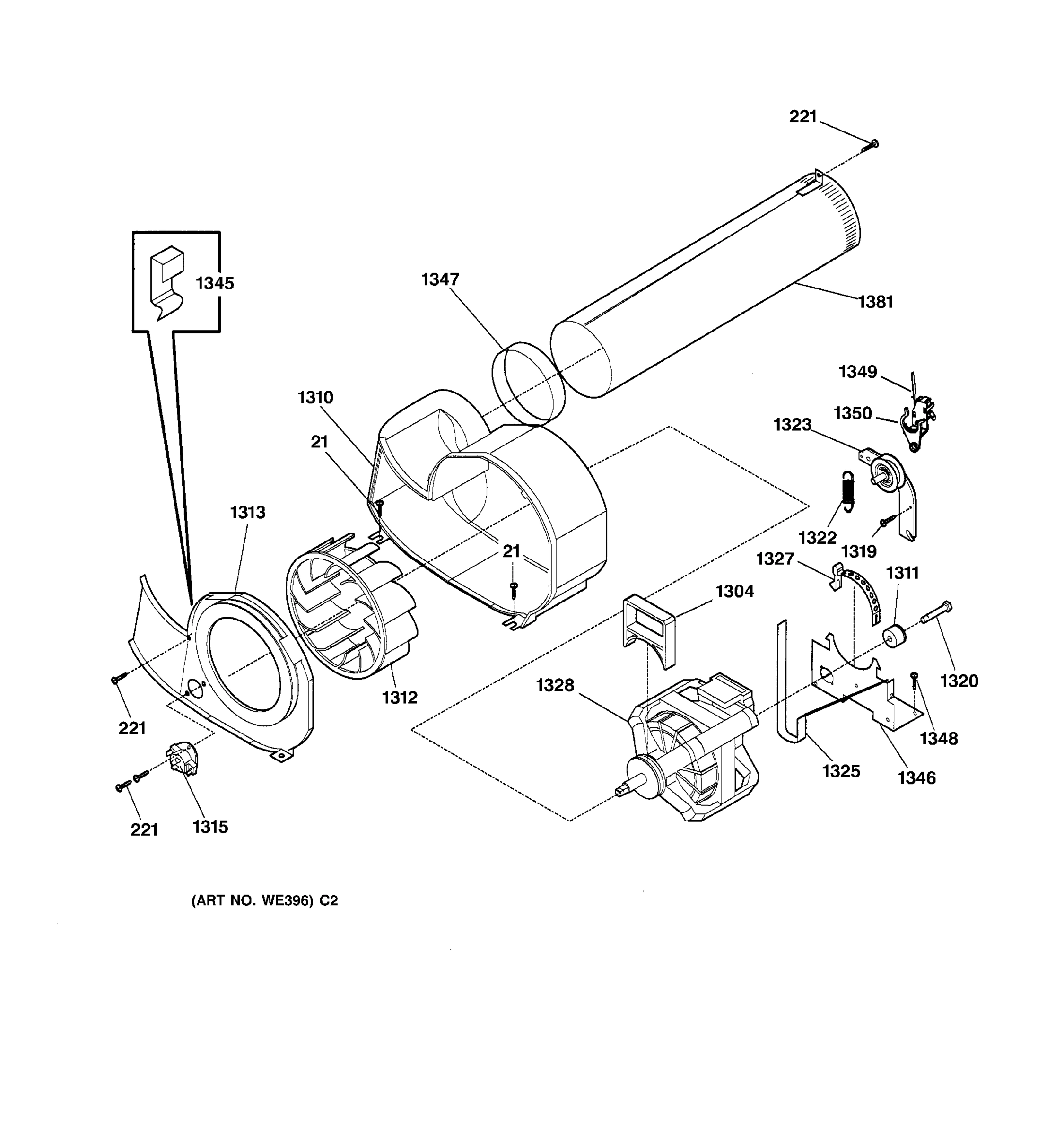

MOTOR
Common parts from model GE DSXH43EV0WW
14
GEN WE04X10010 GEN WE04X10010 Contact Us For Availability
15
SWITCH START GEN WE04X10008 Contact Us For Availability
21
SCREW PANEL GEN WR02X9494 Contact Us For Availability
29
GEN WE01X10031 GEN WE01X10031 Contact Us For Availability
31
GEN WE01X10032 GEN WE01X10032 Contact Us For Availability
209
SCREW-LOCK 10-16X.50 GEN WH02X10009 Contact Us For Availability
221
SCREW PAN HD.8-18ABX.375 GEN WH01X10004 Contact Us For Availability
1208
GEN WE18X10001 GEN WE18X10001 Contact Us For Availability
1211
COVER TERM BLK GEN WE20X10005 Contact Us For Availability
1214
SCREW 10-16 B X 1 3/8 GEN WE02X10005 Contact Us For Availability
1215
GEN WE14X10015 GEN WE14X10015 Contact Us For Availability
1218
SCREW 10-16 X 3/8 GEN WE02X10006 Contact Us For Availability
1221
SEAL LOWER BASKET GEN WE09X0105 Contact Us For Availability
1222
GEN WE20X10002 GEN WE20X10002 Contact Us For Availability
1223
DRUM ASM GEN WE21X10003 Contact Us For Availability
1224
BRACKET HINGE GEN WE13X10005 Contact Us For Availability
1225
CATCH DOOR GEN WE01X10023 Contact Us For Availability
1226
GEN WE04X10012 GEN WE04X10012 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1228
CLIP GUIDE GEN WE02X0361 Contact Us For Availability
1229
SCREW VANE 10-14 X 1 GEN WE02X10007 Contact Us For Availability
1234
GEN WE14X10005 GEN WE14X10005 Contact Us For Availability
1237
INSULATOR HTR HSNG GEN WE04X10026 Contact Us For Availability
1240
LEVELING SCREW GEN WE02X10012 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1242
SCREW 10-32T X .375 GEN WE02X10020 Contact Us For Availability
1244
GASKET DOOR WH GEN WE09X0107 Contact Us For Availability
1245
SCREW GEN WE02X10011 Contact Us For Availability
1246
HANDLE GEN WE01X10013 Contact Us For Availability
1247
GEN WE10X10001 GEN WE10X10001 Contact Us For Availability
1248
GEN WE10X10002 GEN WE10X10002 Contact Us For Availability
1249
STRIKE DOOR GEN WE01X1158 Contact Us For Availability
1255
RECEPTACLE LAMP GEN WE04X10013 Contact Us For Availability
1256
GEN WE04X10014 GEN WE04X10014 Contact Us For Availability
1257
HOLDER LAMP GEN WE04X10015 Contact Us For Availability
1259
COVER LAMP GEN WE04X10016 Contact Us For Availability
1264
CLIP CABINET BTM GEN WE02X10013 Contact Us For Availability
1271
GEN WE09X10002 GEN WE09X10002 Contact Us For Availability
1279
GEN WE01X10011 GEN WE01X10011 Contact Us For Availability
1304
GEN WE01X10016 GEN WE01X10016 Contact Us For Availability
1310
HOUSING FAN GEN WE14X10008 Contact Us For Availability
1311
SPACER IDLER GEN WE01X10029 Contact Us For Availability
1312
WHEEL BLOWER GEN WE16X10001 Contact Us For Availability
1313
COVER FAN GEN WE14X10009 Contact Us For Availability
1319
SCREW 10-16 X .75 GEN WE02X10017 Contact Us For Availability
1320
SCREW-SPACER HEX 1/4T-20 GEN WE02X10014 Contact Us For Availability
1322
SPRING IDLER GEN WE01X10027 Contact Us For Availability
1323
GEN WE01X10030 GEN WE01X10030 Contact Us For Availability
1327
CLAMP MOTOR GEN WE01X10003 Contact Us For Availability
1328
MOTOR & PULLEY GEN WE17X10001 Contact Us For Availability
1345
CLIP BLOWER HOUSING GEN WE02X10015 Contact Us For Availability
1346
BRACKET MOTOR GEN WE13X10006 Contact Us For Availability
1347
GEN WE09X10003 GEN WE09X10003 Contact Us For Availability
1349
GEN WE04X10030 GEN WE04X10030 Contact Us For Availability
1350
GEN WE13X10008 GEN WE13X10008 Contact Us For Availability
1381
TUBE EXHAUST GEN WE14X10007 Contact Us For Availability
× ![]()
