Model GE DSXH43EF0WW Dryer Electric – Common Parts & Diagrams
CABINET & DRUM
CONTROLS & TOP PANEL

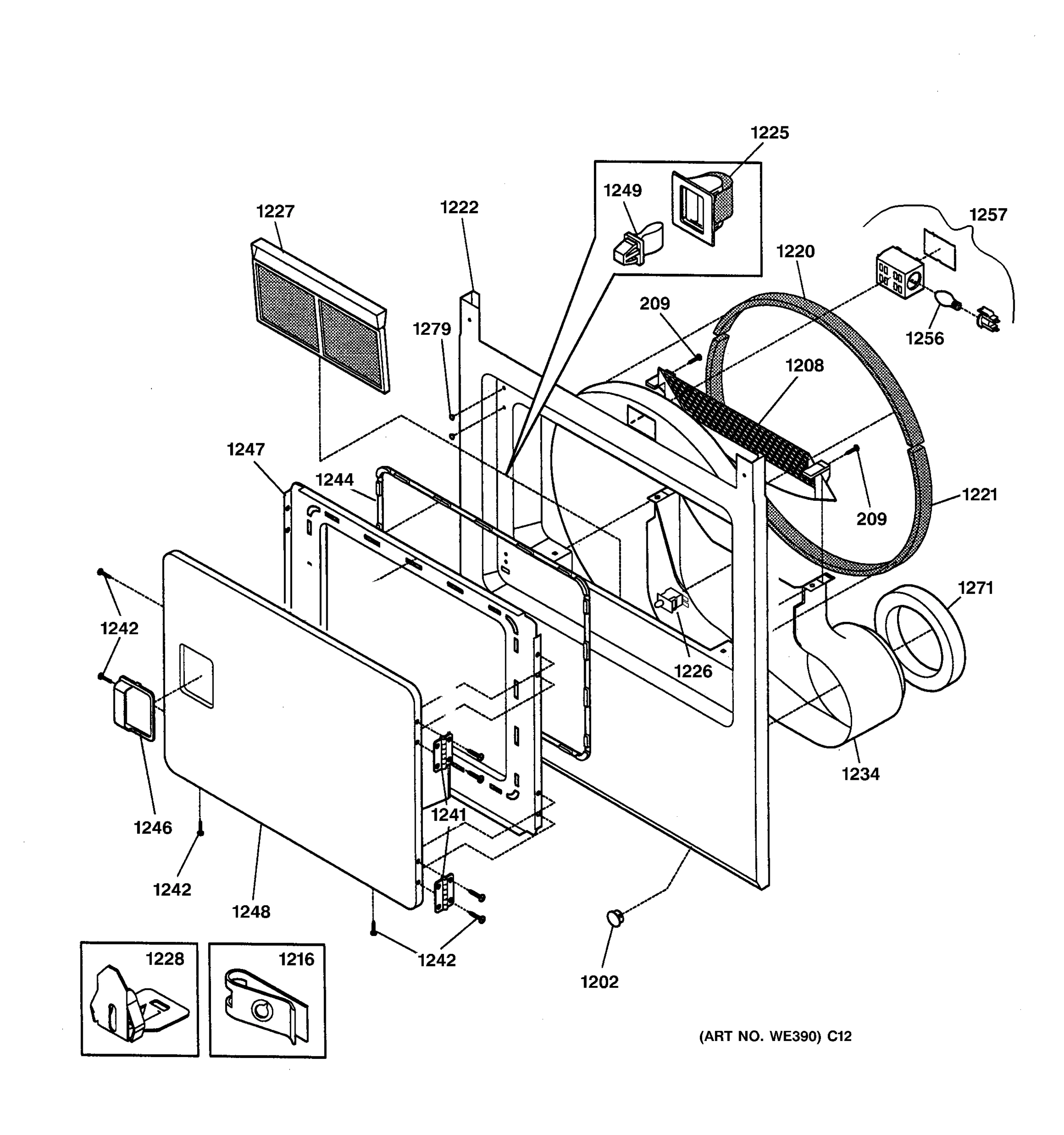

FRONT PANEL & DOOR

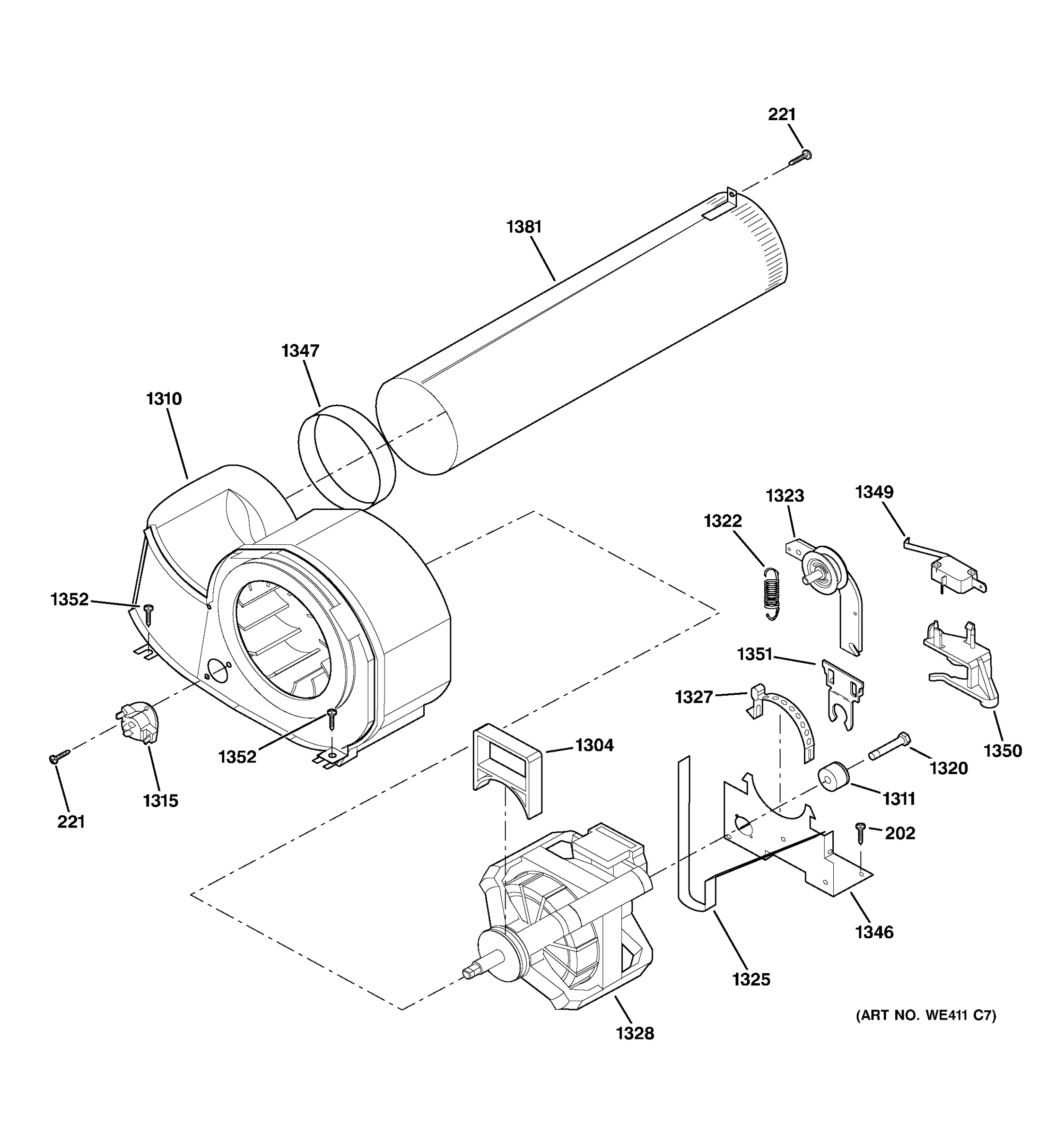

MOTOR
Common parts from model GE DSXH43EF0WW Dryer Electric
1
GEN WE25X10004 GEN WE25X10004 Contact Us For Availability
14
GEN WE04X10010 GEN WE04X10010 Contact Us For Availability
15
GEN WE04X10067 GEN WE04X10067 Contact Us For Availability
27
GEN WE20X10083 GEN WE20X10083 Contact Us For Availability
29
KNOB-ROTARY GEN WE01X10083 Contact Us For Availability
209
SCREW-LOCK, 10-16 X .500 GEN WH02X10009 Contact Us For Availability
221
SCREW 8-18AB X 375 GEN WH01X10004 Contact Us For Availability
224
GEN WE04X10097 GEN WE04X10097 Contact Us For Availability
1110
GEN WE01X10068 GEN WE01X10068 Contact Us For Availability
1200
GEN WE25X10013 GEN WE25X10013 Contact Us For Availability
1204
BRACKET CORD GEN WE13X10010 Contact Us For Availability
1211
GEN WE20X10005 GEN WE20X10005 Contact Us For Availability
1213
BRACKET BEARING GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1215
HEATER-HOUSING ASS'Y GEN WE14X10015 Contact Us For Availability
1216
GEN WE02X10068 GEN WE02X10068 Contact Us For Availability
1218
SCREW 10-16 X.375 GEN WE02X10006 Contact Us For Availability
1220
GEN WE09X10016 GEN WE09X10016 Contact Us For Availability
1221
GEN WE09X10014 GEN WE09X10014 Contact Us For Availability
1223
GEN WE21X10013 GEN WE21X10013 Contact Us For Availability
1224
GEN WE13X10005 GEN WE13X10005 Contact Us For Availability
1225
CATCH DOOR GEN WE01X10023 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1229
GEN WE02X10007 GEN WE02X10007 Contact Us For Availability
1237
INSULATOR, HEATER HSNG GEN WE04X10026 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1245
SCREW, 8-18 X .375 GEN WE02X10011 Contact Us For Availability
1246
HANDLE-DOOR WH GEN WE01X10013 Contact Us For Availability
1257
GEN WE04X10058 GEN WE04X10058 Contact Us For Availability
1264
CLIP CABINET BTM GEN WE02X10013 Contact Us For Availability
1271
GEN WE09X10004 GEN WE09X10004 Contact Us For Availability
1304
GEN WE01X10016 GEN WE01X10016 Contact Us For Availability
1310
GEN WE14X10025 GEN WE14X10025 Contact Us For Availability
1322
SPRING IDLER GEN WE01X10027 Contact Us For Availability
1323
GEN WE01X10218 GEN WE01X10218 Contact Us For Availability
1327
GEN WE01X10211 GEN WE01X10211 Contact Us For Availability
1328
GEN WE17X10001 GEN WE17X10001 Contact Us For Availability
1346
GEN WE13X10026 GEN WE13X10026 Contact Us For Availability
1349
GEN WE04X10096 GEN WE04X10096 Contact Us For Availability
1350
GEN WE13X10008 GEN WE13X10008 Contact Us For Availability
2751
GEN WE04X10095 GEN WE04X10095 Contact Us For Availability
× ![]()
