Model GE DSKP233ETAWB Dryer Electric – Common Parts & Diagrams

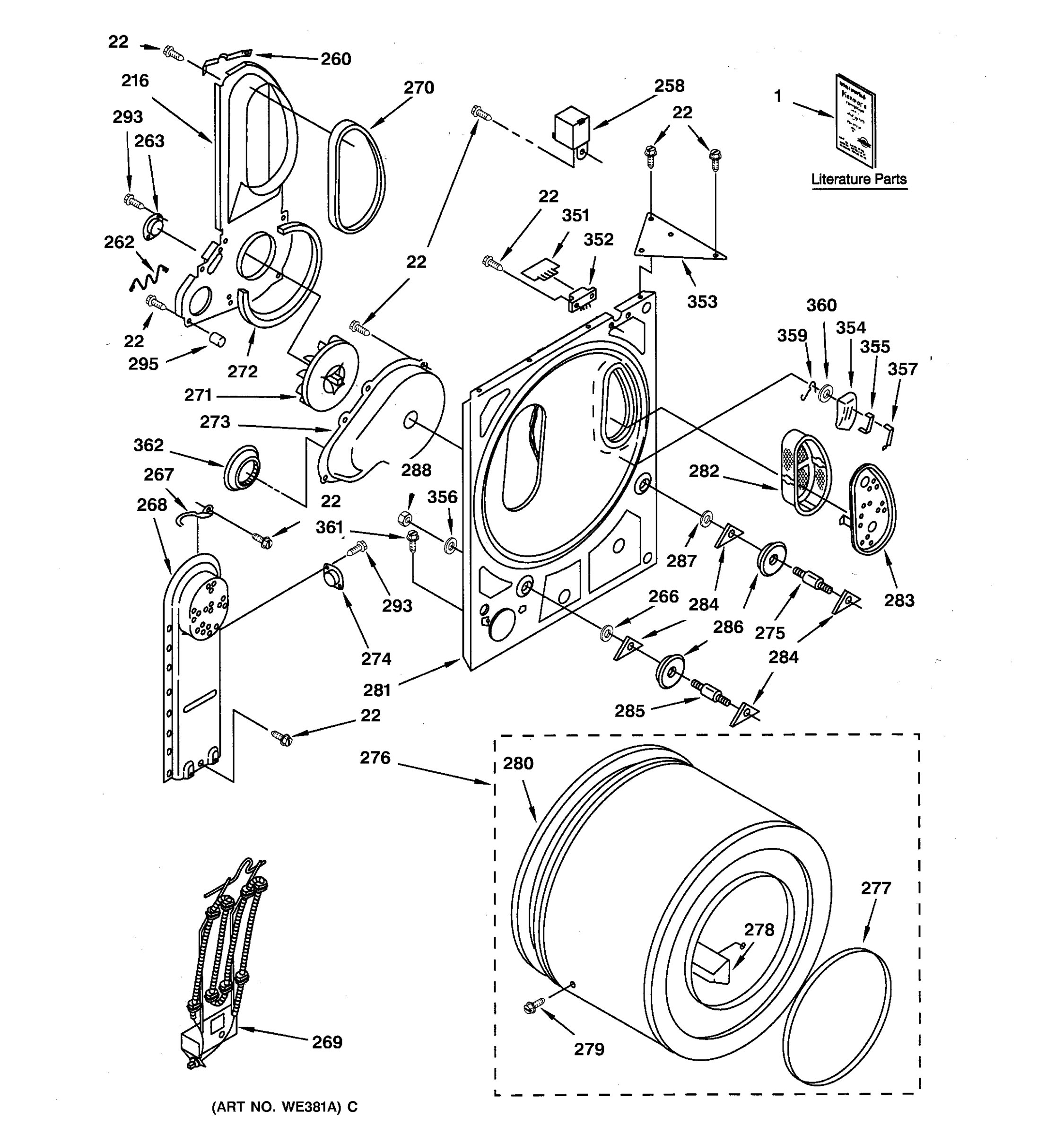

BACK PANEL & DRUM

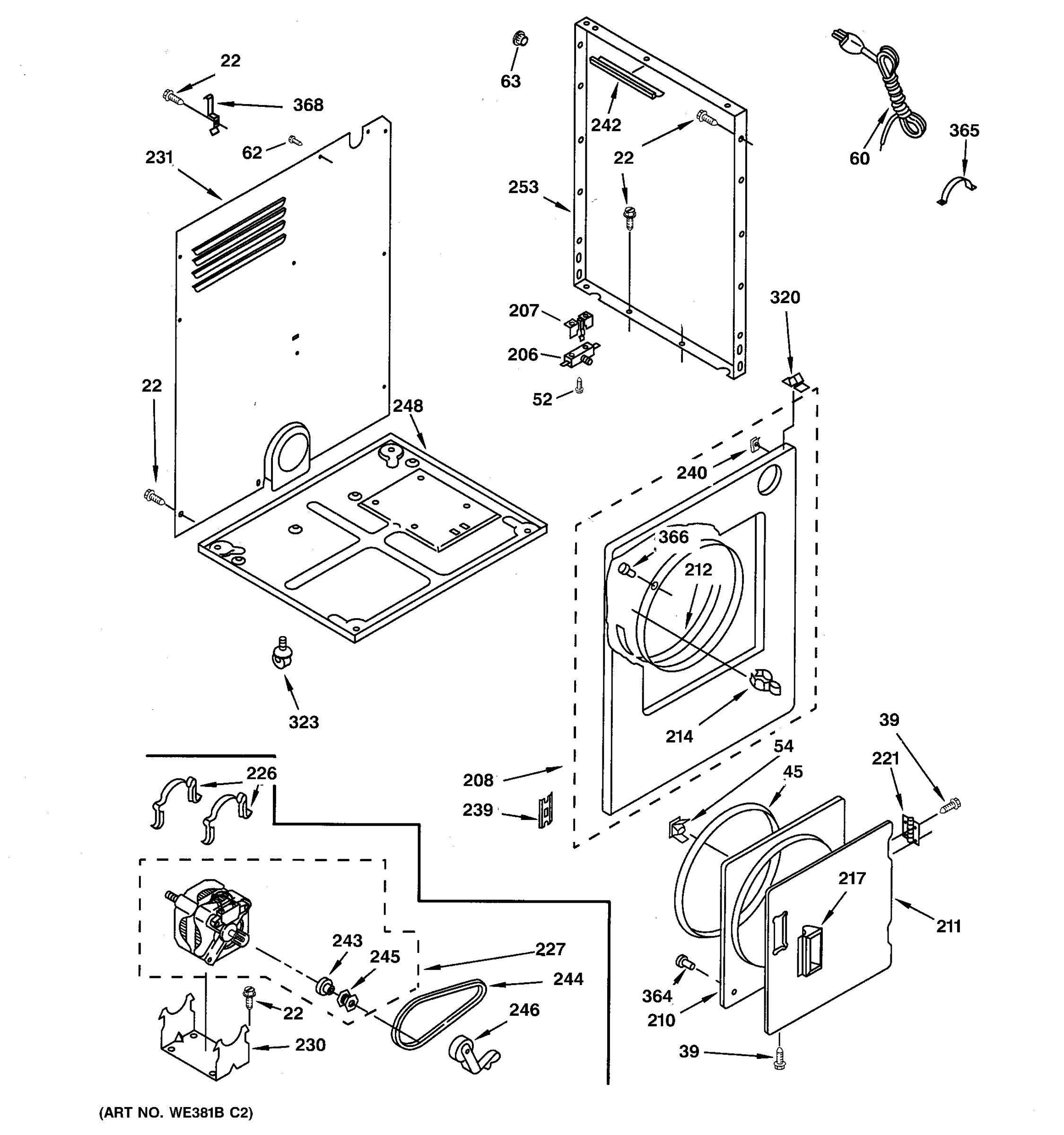

CABINET, FRONT PANEL, DOOR & MOTOR

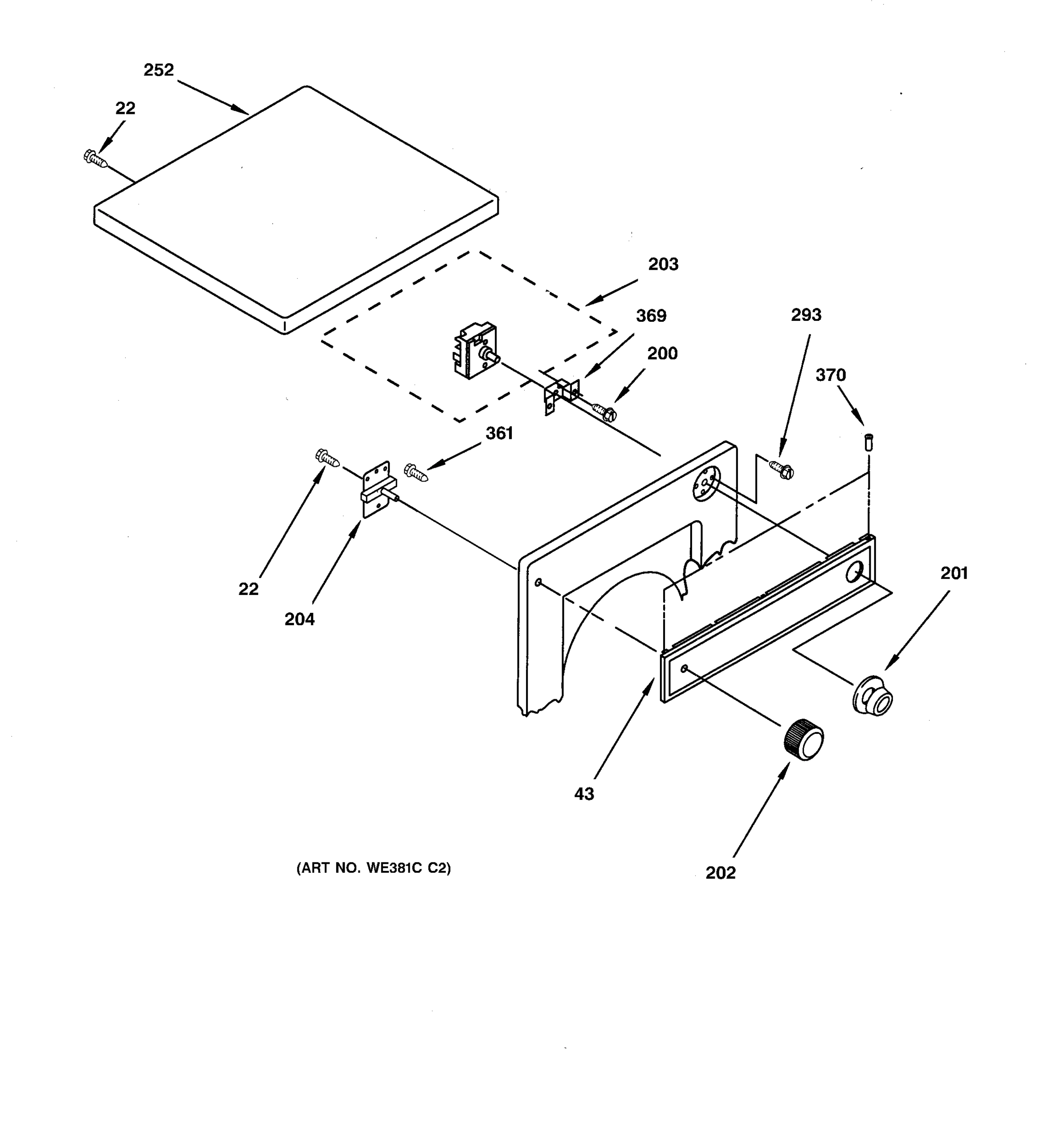

TOP & CONTROL PANEL PARTS
Common parts from model GE DSKP233ETAWB Dryer Electric
1
USE CARE GUIDE GEN 49-9903 Contact Us For Availability
39
GEN WH02X1178 GEN WH02X1178 Contact Us For Availability
43
GEN WE19X0981 GEN WE19X0981 Contact Us For Availability
45
SEAL, DOOR GEN WE09X0111 Contact Us For Availability
52
SCREW, DOOR SW. GEN WE02X0379 Contact Us For Availability
60
GEN WE08X10019 GEN WE08X10019 Contact Us For Availability
62
GEN WE02X10031 GEN WE02X10031 Contact Us For Availability
63
GEN WE01X10060 GEN WE01X10060 Contact Us For Availability
200
GEN WE02X10030 GEN WE02X10030 Contact Us For Availability
201
KNOB DIAL TIMER GEN WE01X1260 Contact Us For Availability
202
GEN WE01X1259 GEN WE01X1259 Contact Us For Availability
203
GEN WE04X0867 GEN WE04X0867 Contact Us For Availability
204
GEN WE04X0868 GEN WE04X0868 Contact Us For Availability
206
GEN WE04X0814 GEN WE04X0814 Contact Us For Availability
207
GEN WE04X0815 GEN WE04X0815 Contact Us For Availability
208
GEN WE20X0806 GEN WE20X0806 Contact Us For Availability
210
GEN WE10X0327 GEN WE10X0327 Contact Us For Availability
211
GEN WE10X0328 GEN WE10X0328 Contact Us For Availability
212
GEN WE03X0078 GEN WE03X0078 Contact Us For Availability
214
GEN WE01X1194 GEN WE01X1194 Contact Us For Availability
216
AIR DUCT ASM. GEN WE14X0233 Contact Us For Availability
217
GEN WE01X1196 GEN WE01X1196 Contact Us For Availability
221
GEN WE01X1198 GEN WE01X1198 Contact Us For Availability
226
GEN WE02X0383 GEN WE02X0383 Contact Us For Availability
227
GEN WE17X0050 GEN WE17X0050 Contact Us For Availability
230
GEN WE13X0201 GEN WE13X0201 Contact Us For Availability
231
GEN WE20X0801 GEN WE20X0801 Contact Us For Availability
239
CLIP, FRT PANEL GEN WE01X1212 Contact Us For Availability
240
GEN WE01X1213 GEN WE01X1213 Contact Us For Availability
242
GEN WE01X1258 GEN WE01X1258 Contact Us For Availability
243
GEN WE01X1215 GEN WE01X1215 Contact Us For Availability
245
GEN WE12X0096 GEN WE12X0096 Contact Us For Availability
246
IDLER BRACKET GEN WE12X0095 Contact Us For Availability
248
BASE ASM. GEN WE20X0803 Contact Us For Availability
252
GEN WE20X0808 GEN WE20X0808 Contact Us For Availability
253
GEN WE20X0804 GEN WE20X0804 Contact Us For Availability
258
GEN WH12X0954 GEN WH12X0954 Contact Us For Availability
260
GEN WE01X1243 GEN WE01X1243 Contact Us For Availability
262
GEN WE01X1242 GEN WE01X1242 Contact Us For Availability
263
GEN WE04X0859 GEN WE04X0859 Contact Us For Availability
266
GEN WE02X0390 GEN WE02X0390 Contact Us For Availability
267
CLIP GEN WE01X1239 Contact Us For Availability
268
GEN WE11X0097 GEN WE11X0097 Contact Us For Availability
269
GEN WE11X10005 GEN WE11X10005 Contact Us For Availability
270
GEN WE09X0112 GEN WE09X0112 Contact Us For Availability
271
WHEEL, BLOWER GEN WE16X0029 Contact Us For Availability
272
SEAL, FAN SCROLL GEN WE09X0116 Contact Us For Availability
273
GEN WE14X0234 GEN WE14X0234 Contact Us For Availability
274
GEN WE04X0861 GEN WE04X0861 Contact Us For Availability
275
GEN WE03X0085 GEN WE03X0085 Contact Us For Availability
276
GEN WE21X0072 GEN WE21X0072 Contact Us For Availability
277
RING, BEARING GEN WE03X0080 Contact Us For Availability
278
GEN WE21X0073 GEN WE21X0073 Contact Us For Availability
279
GEN WH02X10068 GEN WH02X10068 Contact Us For Availability
280
GEN WE09X0114 GEN WE09X0114 Contact Us For Availability
281
GEN WE20X0790 GEN WE20X0790 Contact Us For Availability
284
GEN WE02X0392 GEN WE02X0392 Contact Us For Availability
285
GEN WE03X0086 GEN WE03X0086 Contact Us For Availability
287
GEN WE02X0397 GEN WE02X0397 Contact Us For Availability
288
SCREW 10-16X3/8 GEN NOT STOCKED Contact Us For Availability
293
GEN WH02X10066 GEN WH02X10066 Contact Us For Availability
295
GEN WE01X1219 GEN WE01X1219 Contact Us For Availability
320
GEN WH01X2700 GEN WH01X2700 Contact Us For Availability
323
GEN WE01X1257 GEN WE01X1257 Contact Us For Availability
351
GEN WE04X0862 GEN WE04X0862 Contact Us For Availability
352
GEN WE01X1244 GEN WE01X1244 Contact Us For Availability
353
GEN WE13X10015 GEN WE13X10015 Contact Us For Availability
354
GEN WE04X0863 GEN WE04X0863 Contact Us For Availability
355
GEN WE04X0864 GEN WE04X0864 Contact Us For Availability
356
GEN WE02X0393 GEN WE02X0393 Contact Us For Availability
357
GEN WE04X0865 GEN WE04X0865 Contact Us For Availability
359
GEN WE01X1245 GEN WE01X1245 Contact Us For Availability
360
GEN WE02X0400 GEN WE02X0400 Contact Us For Availability
362
GEN WE14X0235 GEN WE14X0235 Contact Us For Availability
364
GEN WE01X1248 GEN WE01X1248 Contact Us For Availability
365
GEN WE01X1250 GEN WE01X1250 Contact Us For Availability
366
GEN WE01X1193 GEN WE01X1193 Contact Us For Availability
368
GEN WE13X0214 GEN WE13X0214 Contact Us For Availability
369
GEN WE13X0216 GEN WE13X0216 Contact Us For Availability
370
GEN WE02X0403 GEN WE02X0403 Contact Us For Availability
× ![]()
