Model LG DR1F9H – Common Parts & Diagrams
Diagram 0
Diagram 1

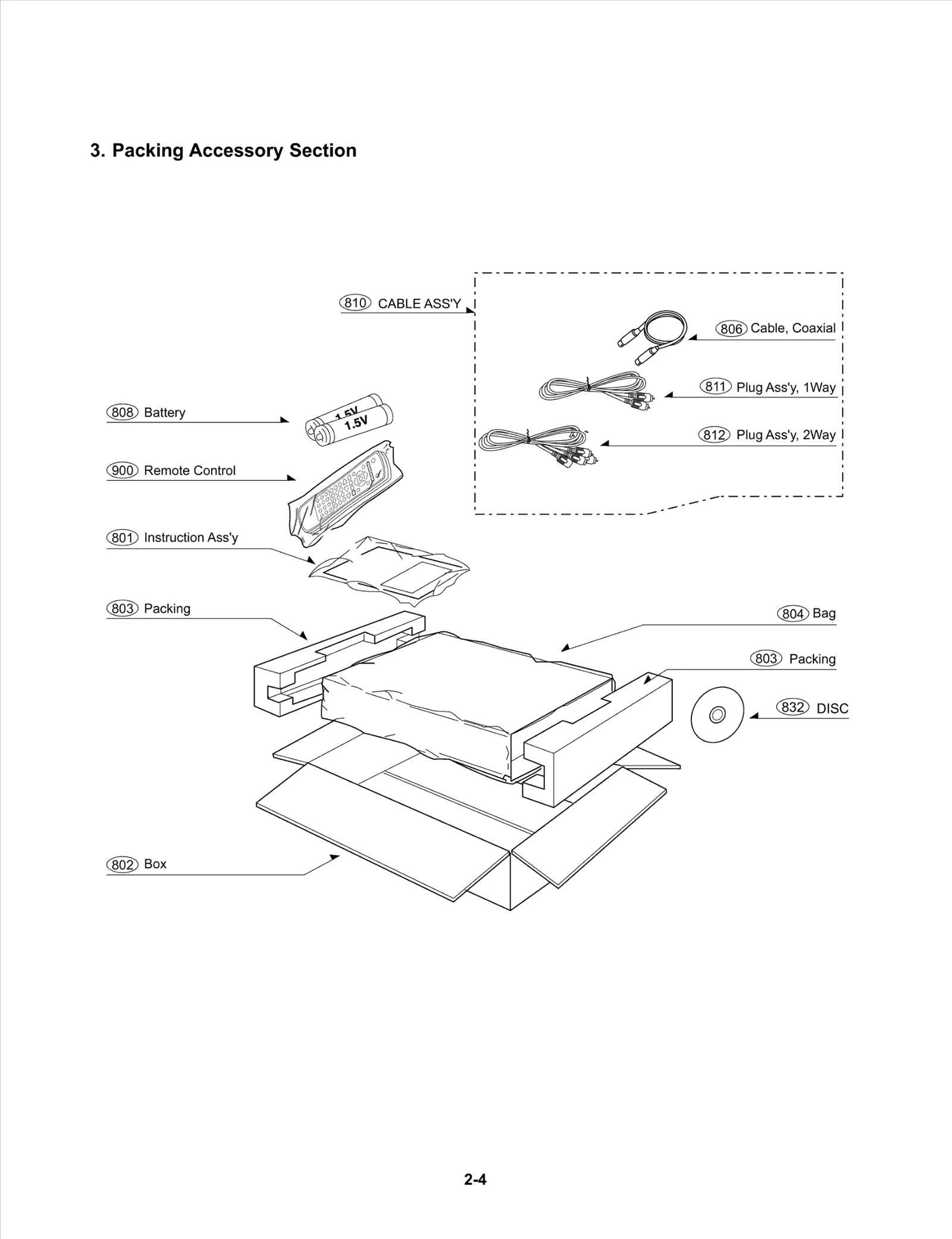

Diagram 2
Diagram 3
Common parts from model LG DR1F9H
250
CASE LGE 3110R-D034G Contact Us For Availability
253
BRACKET LGE 4810R-8002A Contact Us For Availability
260
CHASSIS LGE 3140R-D030B Contact Us For Availability
261
RUBBER LGE 5040R-0069Q Contact Us For Availability
264
HOLDER LGE 4930R-8001A Contact Us For Availability
265
HOLDER LGE 4930R-0348A Contact Us For Availability
267
HOLDER LGE 4930R-0558A Contact Us For Availability
268
FAN,DC LGE 5900R-D023C Contact Us For Availability
273
BRACKET ASSEMBLY LGE 4811R-8003C Contact Us For Availability
274
PLATE LGE 3300R-D089A Contact Us For Availability
275
Plate LGE 3300R-0211A Contact Us For Availability
280
PANEL ASSEMBLY,FRONT LGE 3721R-F980S Contact Us For Availability
300
POWER CORD LGE 6410RAHK02D Contact Us For Availability
320
PANEL,VIDEO LGE 3720R-D148E Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
467
SCREW,DRAWING LGE 1SZZR-0098X Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
471
SCREW,DRAWING LGE 1SZZR-0098Y Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RD0087T Contact Us For Availability
802
BOX LGE 3890R-C333Y Contact Us For Availability
803
PACKING LGE 3920R-E193A Contact Us For Availability
804
Sheet LGE 3858R-S001A Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA8E Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0039A Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
832
DISC LGE 3008R-0010J Contact Us For Availability
900
REMOTE CONTROLLER AS LGE 6711R1N206A Contact Us For Availability
1001
COVER LGE 3550H-1116A Contact Us For Availability
1002
COVER LGE 3550R-2003A Contact Us For Availability
1003
CLAMP ASSEMBLY LGE 4861R-0021A Contact Us For Availability
1011
BASE LGE 3040H-1138A Contact Us For Availability
1012
GUIDE LGE 4974H-1117A Contact Us For Availability
1013
GEAR LGE 4470H-1164A Contact Us For Availability
1014
LEVER LGE 4510H-1070A Contact Us For Availability
1015
BELT LGE 4400H-1014A Contact Us For Availability
1016
PULLEY LGE 4560H-1018A Contact Us For Availability
1017
GEAR LGE 4470H-1163A Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
BASE LGE 3040R-D026A Contact Us For Availability
1025
RUBBER LGE 5040H-1104C Contact Us For Availability
1026
TRAY LGE 3390R-0037A Contact Us For Availability
1030
CABLE,FLAT LGE 6850R-EA78Z Contact Us For Availability
1032
BRACKET LGE 4810H-1105A Contact Us For Availability
1033
BRACKET LGE 4810H-1108A Contact Us For Availability
1034
RUBBER LGE 5040H-1078A Contact Us For Availability
1036
MOTOR(MECH) LGE 4680HP5025C Contact Us For Availability
1038
HOLDER LGE 4930H-1127A Contact Us For Availability
1041
RUBBER LGE 5040H-1103C Contact Us For Availability
1042
Switch,Tact LGE 558-026I Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1044
CONNECTOR (CIRC),FFC LGE 6630X60119A Contact Us For Availability
1045
CABLE,FLAT LGE 6850R-GG64Z Contact Us For Availability
1046
RUBBER LGE 5040H-1074D Contact Us For Availability
1047
COVER LGE 3550R-2004A Contact Us For Availability
1048
COVER ASSEMBLY LGE 3551R-0678A Contact Us For Availability
1431
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
1432
SCREW,DRAWING LGE 1SZZH-1072D Contact Us For Availability
1434
SCREW,DRAWING LGE 1SZZH-1072E Contact Us For Availability
1437
SCREW,DRAWING LGE 1SZZH-1003E Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
COVER ASSEMBLY LGE 3551R-0677A Contact Us For Availability
A002
DECK ASSEMBLY,DVD LGE 6721R-D021A Contact Us For Availability
A005
PWB(PCB) ASSEMBLY,TO LGE 6871R-0P54A Contact Us For Availability
A43
BOARD ASSEMBLY LGE 3501R-7931S Contact Us For Availability
A44
CHASSIS ASSEMBLY LGE 3141R-D088E Contact Us For Availability
A46
SUB PWB(PCB) ASSEMBL LGE 6885R-9120D Contact Us For Availability
A47
PWB(PCB) ASSEMBLY,TO LGE 6871R-2361B Contact Us For Availability
A50
PWB(PCB) ASSEMBLY,TO LGE 6871R-8154A Contact Us For Availability
A52
BOARD ASSEMBLY LGE 3501R-1893S Contact Us For Availability
A54
PWB(PCB) ASSEMBLY,TO LGE 6871R-1884B Contact Us For Availability
A55
PWB(PCB) ASSEMBLY,TO LGE 6871R-1888A Contact Us For Availability
A56
PWB(PCB) ASSEMBLY,OT LGE 6871RZ8974C Contact Us For Availability
A60
Board Assembly LGE AAX36470824 Contact Us For Availability
A60
DECK ASSEMBLY,DVD LGE 6721R-N021A Contact Us For Availability
AR15A3
Resistor,Array LGE 0RR0222Q62A Contact Us For Availability
AR1103
Resistor,Array LGE 0RRZVTA001J Contact Us For Availability
AR1203
Resistor,Array LGE 0RR1002Q62C Contact Us For Availability
AR1703
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
BC101
COIL LGE 636-004D Contact Us For Availability
BD101
DIODE,RECTIFIERS LGE 0DRDI00211A Contact Us For Availability
BD101
DIODE,RECTIFIERS LGE 0DRDI00201A Contact Us For Availability
BD101
DIODE,RECTIFIERS LGE 0DRVH00060A Contact Us For Availability
BD811
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
C8D3
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088J Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C103
CAPACITOR,FIXED ELEC LGE 0CE227JR6A0 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C106
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C107
Capacitor,Ceramic,Axial LGE 0CN2220K518 Contact Us For Availability
C109
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C111
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C114
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C121
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C122
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C123
CAPACITOR,FIXED ELEC LGE 0CE2282F611 Contact Us For Availability
C124
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C125
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C126
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C127
Capacitor,AL,Radial LGE 624-082G Contact Us For Availability
C129
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C131
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C135
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C154
CAPACITOR,AL.ELECTROLYTIC LGE 0CE477CD638 Contact Us For Availability
C159
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C602
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C706
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C707
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C709
Capacitor,Ceramic,Chip LGE 0CH4240K412 Contact Us For Availability
C710
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C721
CAPACITOR,DRAWING LGE 0CZZR00034A Contact Us For Availability
C722
Capacitor,Ceramic,Chip LGE 0CH1103K512 Contact Us For Availability
C729
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C731
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C735
Capacitor,AL,Radial LGE 0CE4775C618 Contact Us For Availability
C808
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C821
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C855
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C914
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C919
Capacitor,Ceramic,Chip LGE 0CH1225F946 Contact Us For Availability
C927
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C930
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C937
Capacitor,Ceramic,Chip LGE 0CH1474K942 Contact Us For Availability
C963
CAPACITOR,FIXED CERA LGE 0CK225CF94A Contact Us For Availability
C1144
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C1163
Capacitor,TA,Niobium LGE 0CH7476D651 Contact Us For Availability
C1173
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C1208
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8476C611 Contact Us For Availability
C1415
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C1419
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C1421
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C1429
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C1430
Capacitor,Ceramic,Chip LGE 0CH1104K562 Contact Us For Availability
C1607
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C1610
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C1619
Capacitor,Ceramic,Chip LGE 0CH4360K412 Contact Us For Availability
C1703
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C1704
Capacitor,TA,Niobium LGE 0CH7106D611 Contact Us For Availability
C1709
CAPACITOR,CHIP[TANTALUM] LGE 0CH7226D621 Contact Us For Availability
C1722
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
CABLE1
CONNECTOR ASSEMBLY LGE 6631R-E116L Contact Us For Availability
CABLE3
CABLE,FLAT LGE 6850R-GJ10Z Contact Us For Availability
CABLE3
CABLE,FLAT LGE 6850R-EA08V Contact Us For Availability
CABLE5
CABLE,FLAT LGE 6850R-EA18Y Contact Us For Availability
CABLE9
CONNECTOR ASSEMBLY LGE 6631R-H007A Contact Us For Availability
CF1702
Filter,Line Noise LGE 6200J000039 Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D125
DIODE,RECTIFIERS LGE 0DRSD00210A Contact Us For Availability
D125
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D127
DIODE,SWITCHING LGE 0DSDI00110A Contact Us For Availability
D127
DIODE,SWITCHING LGE 0DSGF00040A Contact Us For Availability
D128
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D128
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D154
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D901
Diode,Switching LGE 0DS121009AA Contact Us For Availability
D1102
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
DIG601
LED ASSEMBLY LGE 6301R2U017E Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
FH02
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMG00047B Contact Us For Availability
IC102
SENSOR LGE 6500RDB011B Contact Us For Availability
IC102
SENSOR,PHOTO LGE 6500RDB010A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC131
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC131
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC132
IC,POWER MANAGEMENT LGE 0IPMGKE047A Contact Us For Availability
IC132
IC,POWER MANAGEMENT LGE 0IPMGFA050A Contact Us For Availability
IC152
IC,SHARP LGE 0ISH313000C Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGGM002A Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGFA015A Contact Us For Availability
IC153
LGE 0IPMGFA032A LGE 0IPMGFA032A Contact Us For Availability
IC153
IC,POWER MANAGEMENT LGE 0IPMGKE018A Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMG78350A Contact Us For Availability
IC601
IC,LINEAR LGE 0ILNRPY001B Contact Us For Availability
IC701
IC,MICRO CONTROLLER LGE 0IMCR02254A Contact Us For Availability
IC703
IC,PERIPHERALS LGE 0IPRPMT002A Contact Us For Availability
IC704
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC705
IC,SAMSUNG ELECTRONICS LGE 0ISS241610B Contact Us For Availability
IC706
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC801
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC802
IC,PERIPHERALS LGE 0IPRPRH017A Contact Us For Availability
IC808
IC,PERIPHERALS LGE 0IPRP00015A Contact Us For Availability
IC901
IC,LINEAR LGE 0ILNR00182A Contact Us For Availability
IC1101
IC,LINEAR LGE 0ILNR00159A Contact Us For Availability
IC1201
IC,POWER MANAGEMENT LGE 0IPMG00017A Contact Us For Availability
IC1203
IC,MEMORIES LGE 0IMMRIH038A Contact Us For Availability
IC1301
IC,STANDARD LOGIC LGE 0ISTLPH043A Contact Us For Availability
IC1302A
PROGRAM LGE 6957R-9120B Contact Us For Availability
IC1408
IC,STANDARD LOGIC LGE 0ISTLPH040A Contact Us For Availability
IC1501
IC,Gate LGE 0ISTLPH049A Contact Us For Availability
IC1502
IC,Inverter LGE 0ISTLPH039A Contact Us For Availability
IC1503
IC,CMOS LGE 0ISTLPH018A Contact Us For Availability
IC1601
IC,PERIPHERALS LGE 0IPRPTI044A Contact Us For Availability
IC1701
IC,PERIPHERALS LGE 0IPRP00666A Contact Us For Availability
IC1703
IC,PERIPHERALS LGE 0IPRP00664A Contact Us For Availability
JK701
CONNECTOR(CIRC),DRAW LGE 6630R-SY08W Contact Us For Availability
JK802
JACK,RCA LGE 6612J00048G Contact Us For Availability
JK803
JACK,FIBER OPTIC LGE 6612K00003D Contact Us For Availability
JK804
JACK,RCA LGE 6612JH002NB Contact Us For Availability
JK805
JACK,RCA LGE 6612JH002NA Contact Us For Availability
JK806
JACK,RCA LGE 6612JH002NC Contact Us For Availability
JK807
JACK,DIN LGE 6612B00010A Contact Us For Availability
JK808
CONNECTOR (CIRC),USB LGE 6630SD01104 Contact Us For Availability
L102
FILTER(CIRC),EMC LGE 6200JB8012B Contact Us For Availability
L122
COIL,RF LGE 6140RCC009A Contact Us For Availability
L123
COIL,RF LGE 6140R-C011A Contact Us For Availability
L123
COIL,CHOKE LGE 633-088G Contact Us For Availability
L162
COIL LGE 6140H-A001A Contact Us For Availability
L601
Filter,Bead LGE 636-004C Contact Us For Availability
L602
Inductor,Wire Wound,Chip LGE 6140H-B003G Contact Us For Availability
L808
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L823
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L928
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L1428
INDUCTOR,CHIP LGE 0LC1700003C Contact Us For Availability
L1607
FILTER(CIRC),EMC LGE 6200RJC003A Contact Us For Availability
LAR106
RESISTOR,DRAWING LGE 0RRZVTA0018 Contact Us For Availability
LAR261
RESISTOR,DRAWING LGE 0RRZVTA0014 Contact Us For Availability
LAR275
Resistor,Array LGE 0RRZVTA001V Contact Us For Availability
LC105
Capacitor,Ceramic,Chip LGE 0CK106FF94A Contact Us For Availability
LC128
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
LC137
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
LC148
Capacitor,Ceramic,Chip LGE 0CH1182K512 Contact Us For Availability
LC151
Capacitor,Ceramic,Chip LGE 0CH4392K412 Contact Us For Availability
LC153
Capacitor,Ceramic,Chip LGE 0CH4681K412 Contact Us For Availability
LC164
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
LC202
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
LC221
Capacitor,Ceramic,Chip LGE 0CK124DH56A Contact Us For Availability
LC222
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
LC224
Capacitor,Ceramic,Chip LGE 0CH1563K516 Contact Us For Availability
LC225
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
LC226
Capacitor,Ceramic,Chip LGE 0CH1823F562 Contact Us For Availability
LC228
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
LC240
Capacitor,Ceramic,Chip LGE 0CH1333K512 Contact Us For Availability
LC304
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
LC308
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
LC322
Capacitor,Ceramic,Chip LGE 0CH4820K412 Contact Us For Availability
LC325
Capacitor,Ceramic,Chip LGE 0CH4151K412 Contact Us For Availability
LC328
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
LC402
Capacitor,TA,Niobium LGE 0CS476HD6DC Contact Us For Availability
LC520
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
LC521
Capacitor,Ceramic,Chip LGE 0CK106EDD7A Contact Us For Availability
LIC101
IC,LINEAR LGE 0ILNR00023A Contact Us For Availability
LIC121
IC,LINEAR LGE 0ILNR00022A Contact Us For Availability
LIC201
IC,MICRO CONTROLLER LGE 0IMCR02031A Contact Us For Availability
LIC261
IC,MEMORIES LGE 0IMMREB006C Contact Us For Availability
LIC261
IC,MEMORIES LGE 0IMMREO002A Contact Us For Availability
LIC261
IC,MEMORIES LGE 0IMMRHY001G Contact Us For Availability
LIC262
IC,MEMORIES LGE 0IMMRMR019F Contact Us For Availability
LIC271
IC,Voltage Detector LGE 0IPMGRH014A Contact Us For Availability
LIC301
IC,LINEAR LGE 0ILNR00045A Contact Us For Availability
LIC401
IC,POWER MANAGEMENT LGE 0IPMGRH015B Contact Us For Availability
LL102
COIL,TRAP FM LGE 6140R-G006A Contact Us For Availability
LL402
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
LPB271
CONNECTOR (CIRC),BOA LGE 6630B00077F Contact Us For Availability
LPF303
CONNECTOR (CIRC),FFC LGE 6630X60074D Contact Us For Availability
LPM101
CONNECTOR (CIRC),FFC LGE 6630HXE440E Contact Us For Availability
LPM301
CONNECTOR (CIRC),FFC LGE 6630X60108A Contact Us For Availability
LPM302
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
LR102
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
LR122
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
LR155
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
LR213
Resistor,Chip LGE 0RJ3601C477 Contact Us For Availability
LR218
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
LR221
LGE 0RJ1004C677 LGE 0RJ1004C677 Contact Us For Availability
LR224
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
LR227
RESISTOR,METAL GLAZE LGE 0RJ1501C477 Contact Us For Availability
LR233
Resistor,Chip LGE 0RJ5601C477 Contact Us For Availability
LR284
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
LR298
Resistor,Chip LGE 0RJ0332C477 Contact Us For Availability
LR310
Resistor,Chip LGE 0RH1803C622 Contact Us For Availability
LR312
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
LR319
Resistor,Chip LGE 0RH0181D622 Contact Us For Availability
LR401
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
LX201
RESONATOR,CERAMIC LGE 6212BB3241A Contact Us For Availability
P1D01
Connector,Wafer LGE 6630VK20604 Contact Us For Availability
P101
Connector,BtoB LGE 6630R-BF03J Contact Us For Availability
P104
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PHM01
CONNECTOR (CIRC),FFC LGE 6630X60142A Contact Us For Availability
PLL1604
CONNECTOR (CIRC),WAF LGE 6630VL1004Z Contact Us For Availability
PMV01
CONNECTOR (CIRC),BOA LGE 6630B00147A Contact Us For Availability
PMV02
LGE 6630R-BE034 LGE 6630R-BE034 Contact Us For Availability
PTM01
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
PTT02
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
PVM01
CONNECTOR (CIRC),BOA LGE 6630R-BE024 Contact Us For Availability
PVM03
Connector,BtoB LGE 6630R-BE01L Contact Us For Availability
PVX02
CONNECTOR FH-R20R UG3 LGE 561-711D Contact Us For Availability
PW101
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
PWVS1
Connector,BtoB LGE 6630R-BF07J Contact Us For Availability
Q152
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q152
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q152
TR,Bipolar LGE 0TRON80009A Contact Us For Availability
Q154
TRANSISTOR LGE 0TR115100AA Contact Us For Availability
Q154
LGE 0TR115100AC LGE 0TR115100AC Contact Us For Availability
Q155
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
Q159
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
Q161
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q162
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
Q162
LGE 0TRON80007A LGE 0TRON80007A Contact Us For Availability
Q162
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q164
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q709
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q709
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q709
TR,Bipolar LGE 0TRAU80008A Contact Us For Availability
Q709
TR,Bipolar LGE 0TRON80008A Contact Us For Availability
R7T2
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R7T5
Resistor,Chip LGE 0RH3303C622 Contact Us For Availability
R8A9
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R8U5
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R15A1
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R15A4
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R104
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R105
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R109
RESISTOR,FIXED METAL OXIDE FIL LGE 0RS0510K619 Contact Us For Availability
R121
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R122
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R124
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R125
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R126
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R127
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R131
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R132
Resistor,Metal Oxide Film LGE 0RS1000K619 Contact Us For Availability
R154
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R163
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R164
RESISTOR,METAL GLAZE LGE 0RJ3601E472 Contact Us For Availability
R169
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
R170
RESISTOR,METAL GLAZE LGE 0RH0512D422 Contact Us For Availability
R614
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R712
Resistor,Chip LGE 0RH4703C622 Contact Us For Availability
R730
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R745
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R767
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R798
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R823
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R849
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R871
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R884
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R901
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R946
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R948
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R950
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R951
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R952
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R953
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R971
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
R977
Resistor,Chip LGE 0RH3001C622 Contact Us For Availability
R1114
RESISTOR,METAL GLAZE LGE 0RH1101C422 Contact Us For Availability
R1217
Resistor,Chip LGE 0RH0512C622 Contact Us For Availability
R1224
Resistor,Chip LGE 0RH2002C422 Contact Us For Availability
R1343
RESISTOR,METAL GLAZE LGE 0RJ0000H680 Contact Us For Availability
R1406
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R1504
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R1613
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R1618
Resistor,Chip LGE 0RH0562C422 Contact Us For Availability
R1620
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R1625
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R1626
Resistor,Chip LGE 0RH0000E622 Contact Us For Availability
R1706
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R1707
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R1712
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R1715
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R1718
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
RC601
REMOTE CONTROLLER RE LGE 6712R1638GB Contact Us For Availability
SW609
SWITCH,TACT LGE 6600R000028 Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW23P Contact Us For Availability
TU701
TUNER LGE 6700NFNL08A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
V1703
Varistor LGE 6102R7E001A Contact Us For Availability
X701
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X702
RESONATOR,CRYSTAL LGE 6212AA2148F Contact Us For Availability
X901
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X1101
RESONATOR,CRYSTAL LGE 6212AB2136C Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZ200009BB Contact Us For Availability
ZD101
DIODE,ZENER LGE 0DZ202609AA Contact Us For Availability
ZD102
DIODE,ZENERS LGE 0DZ332609BA Contact Us For Availability
ZD102
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD151
LGE 0DZ021209BA LGE 0DZ021209BA Contact Us For Availability
ZD869
LGE 0DZAU00038A LGE 0DZAU00038A Contact Us For Availability
ZD869
LGE 0DZ026809CA LGE 0DZ026809CA Contact Us For Availability
× ![]()
Login and Registration Form
