Model Maytag DQ22HS COMMERCIAL MICROWAVE – Common Parts & Diagrams

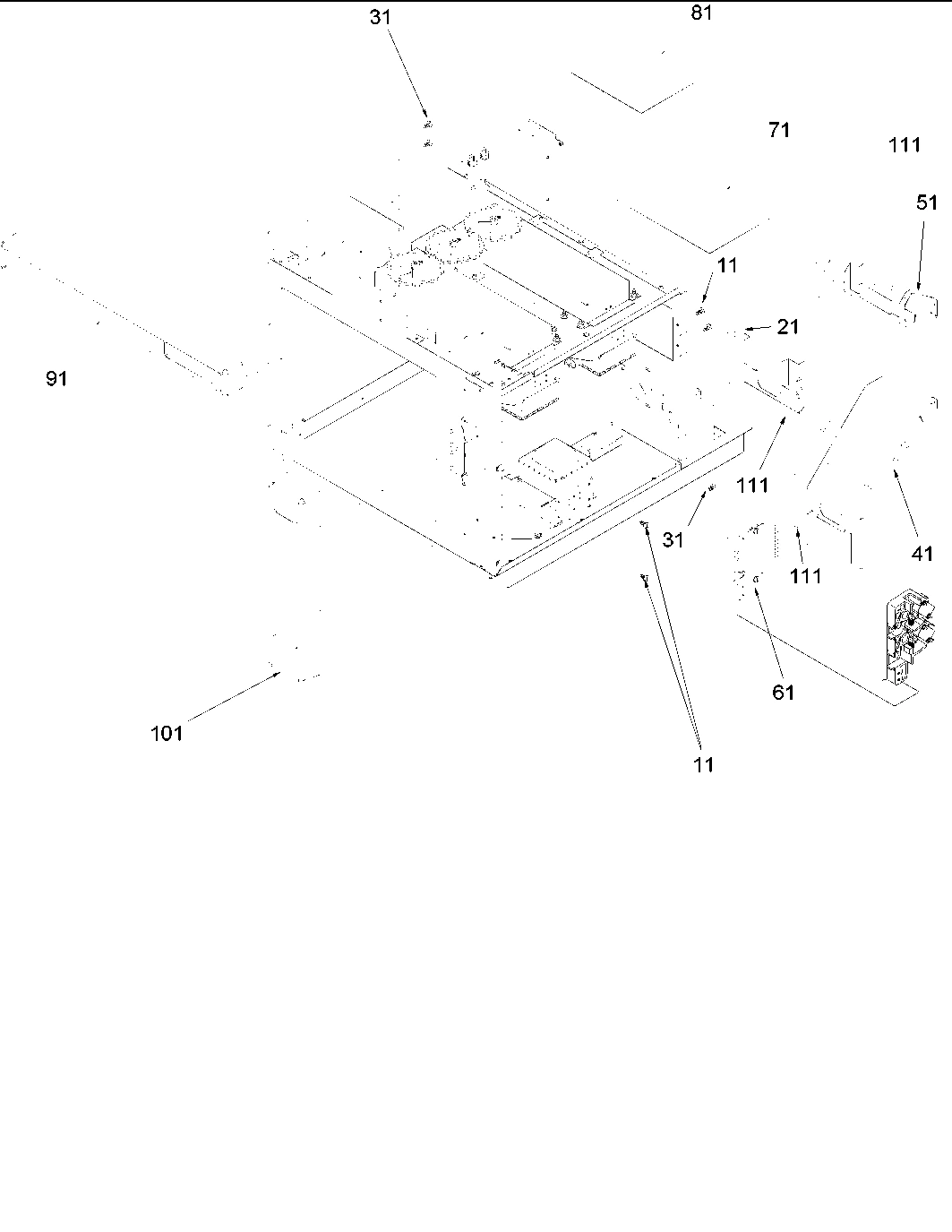

01 - CHASSIS & BLOWER-TRIAC ASSEMBLY PARTS

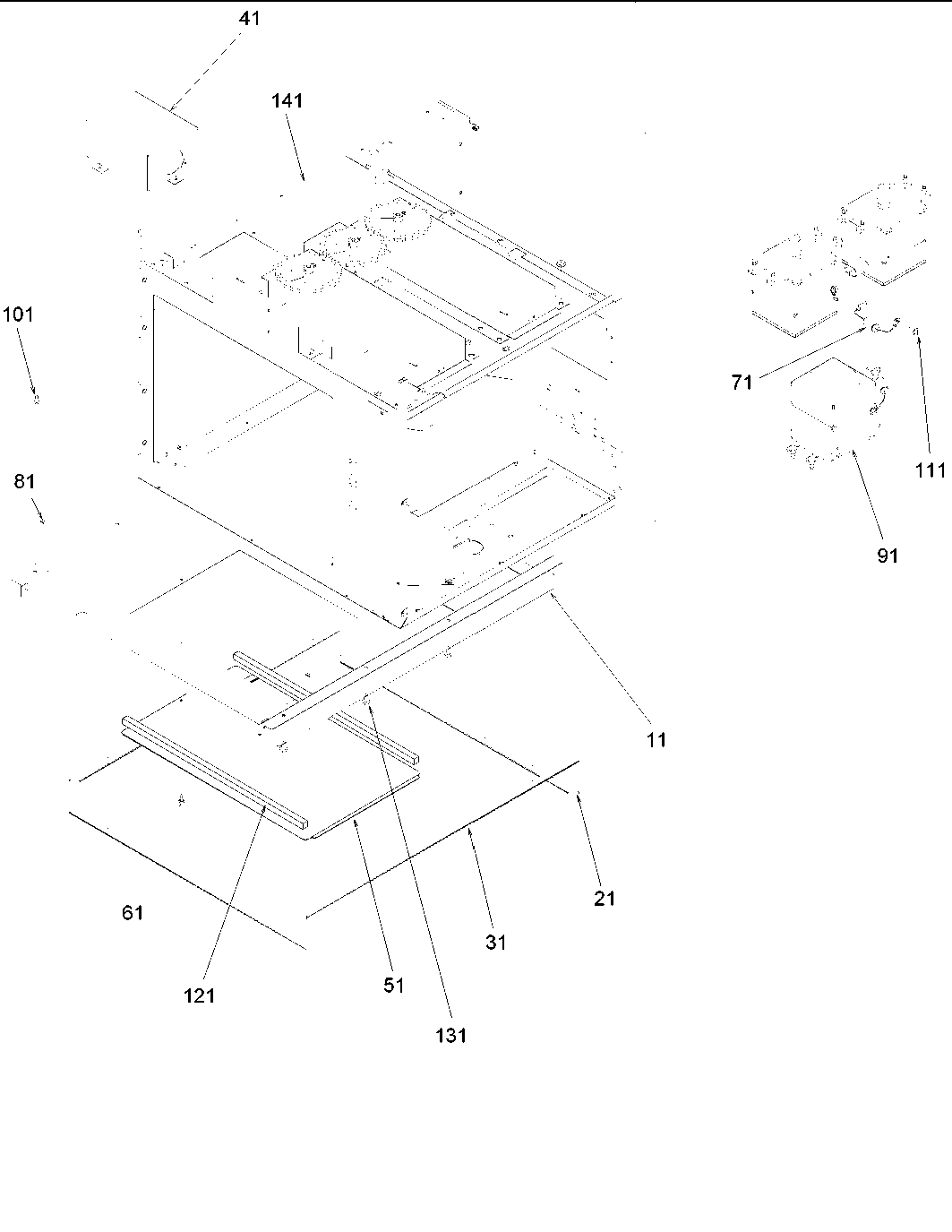

02 - CHASSIS ASSEMBLY PARTS

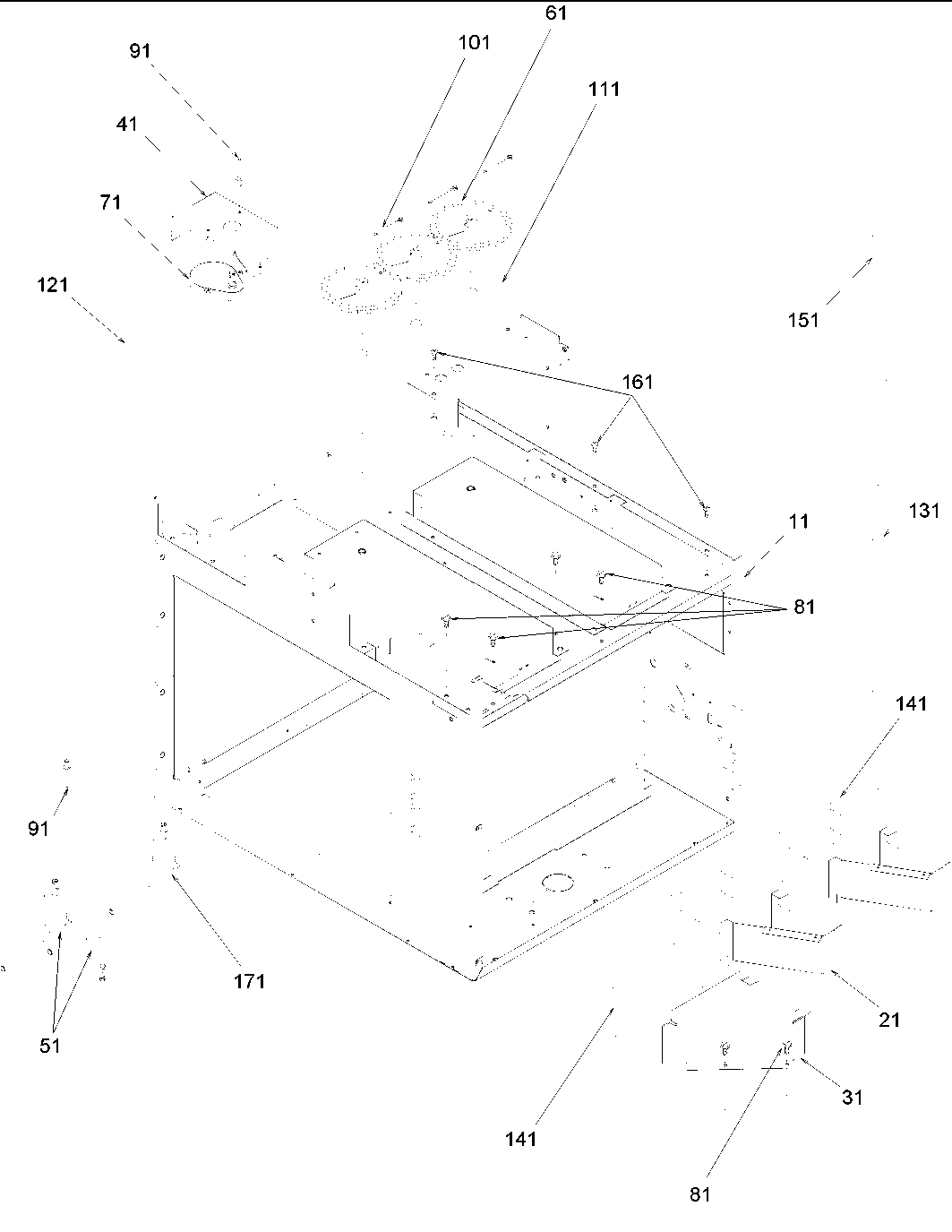

03 - CHASSIS ASSEMBLY PARTS

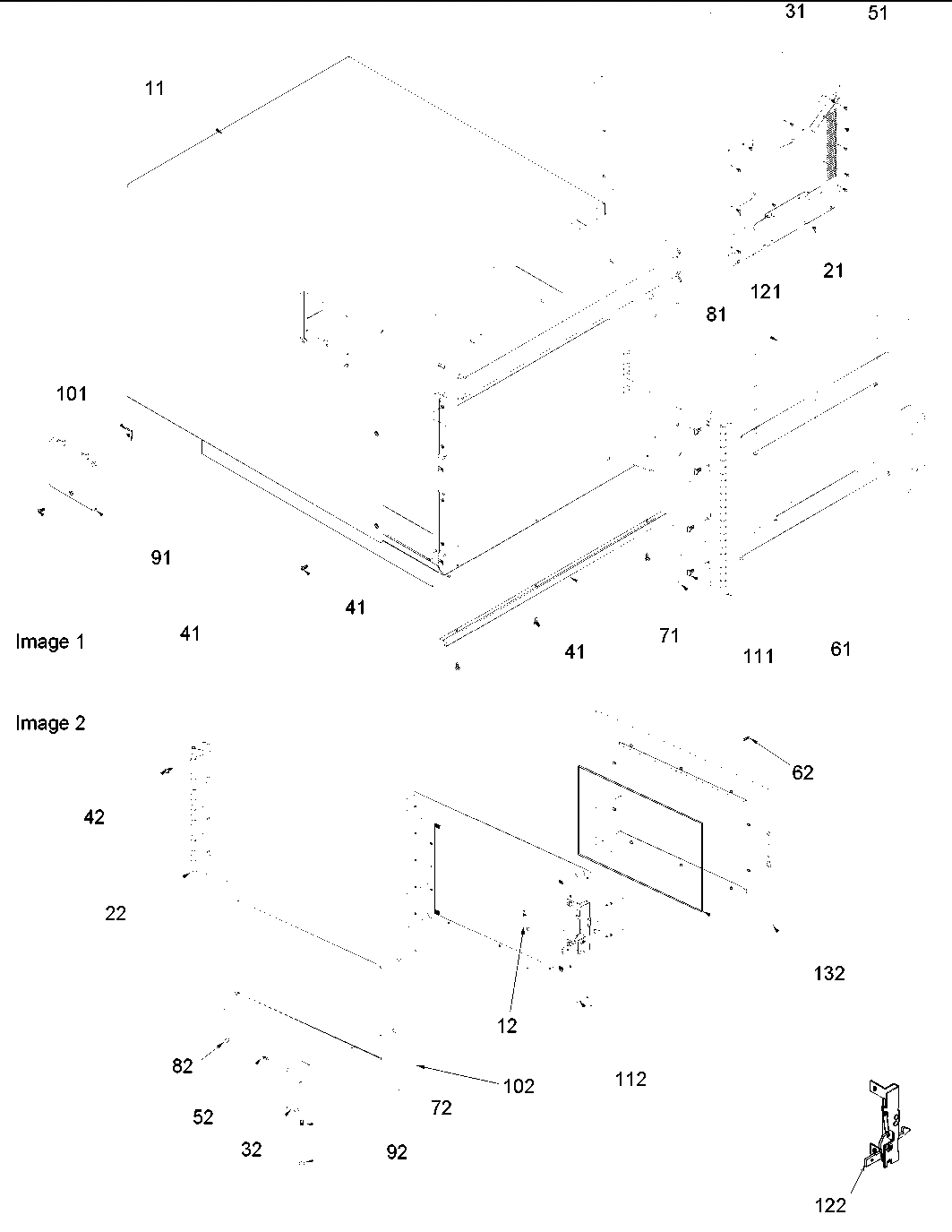

04 - CHASSIS ASSEMBLY PARTS

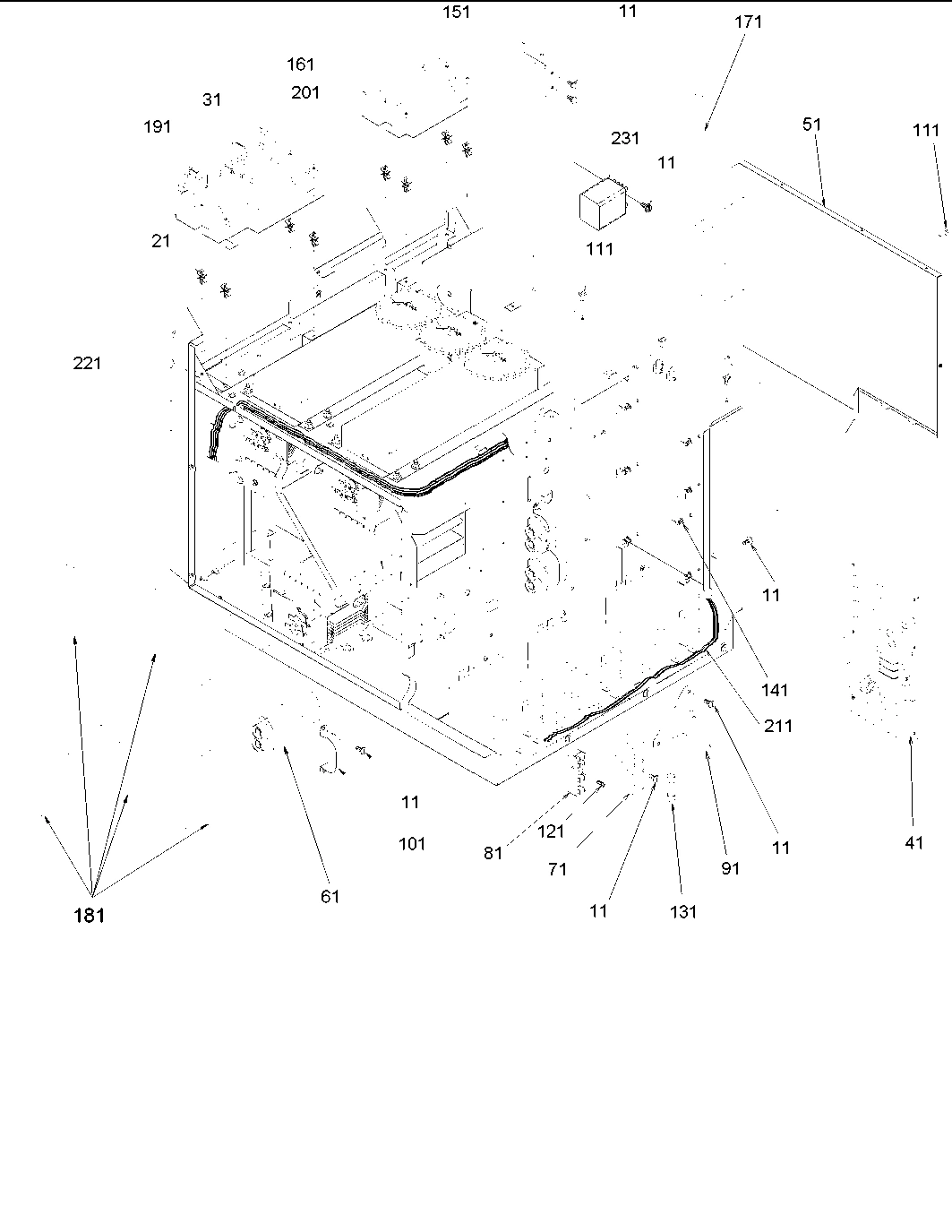

05 - CHASSIS ASSEMBLY PARTS

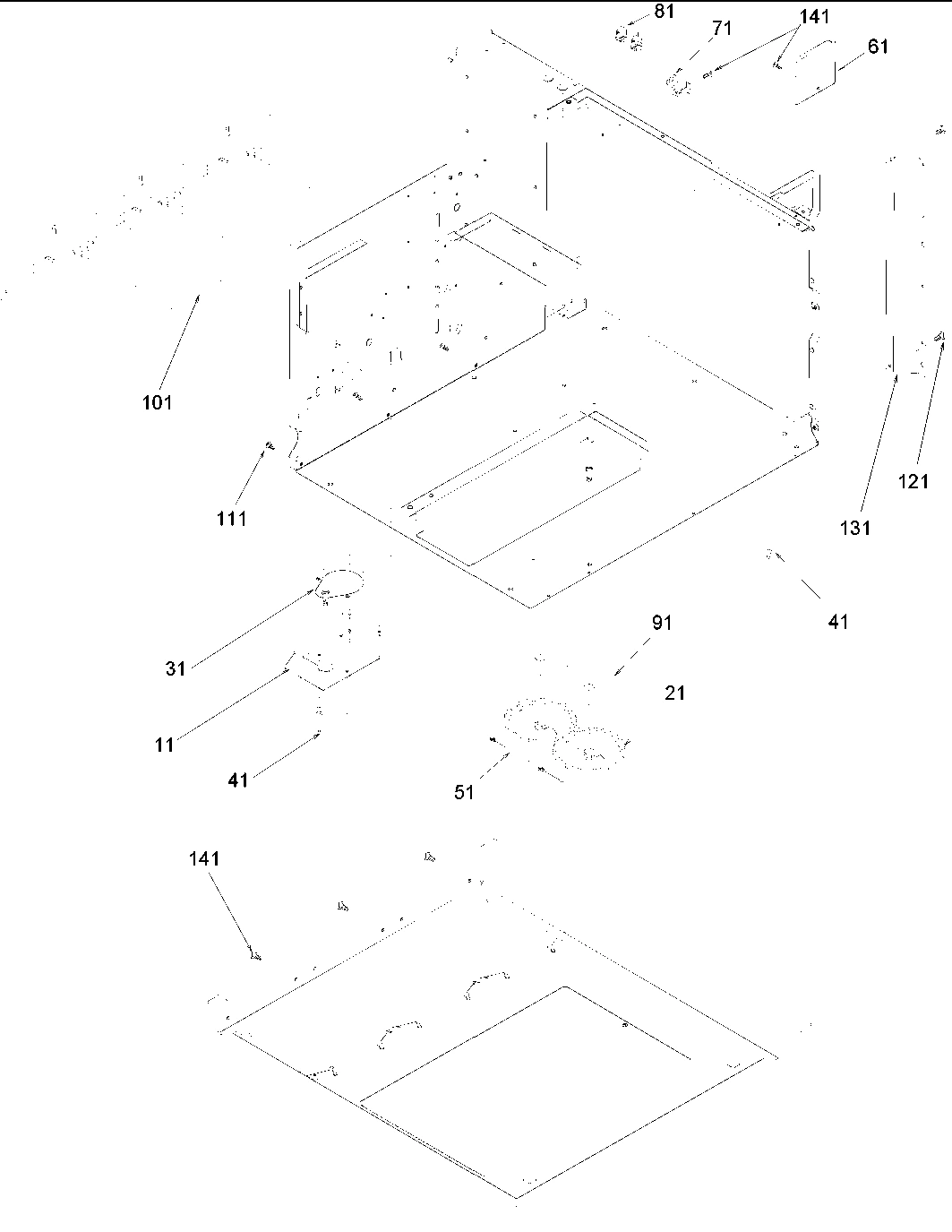

06 - CHASSIS ASSEMBLY PARTS
07 - CHASSIS ASSEMBLY PARTS
08 - MISCELLAEOUS INFORMATION
09 - OUTERCASE & DOOR ASSEMBLY
Common parts from model Maytag DQ22HS COMMERCIAL MICROWAVE
1
MAY RP2200001 MAY RP2200001 Contact Us For Availability
2
MNL-SVC COM RR MAY RS2220001 Contact Us For Availability
3
MAY R0193574 MAY R0193574 Contact Us For Availability
4
MNL, EQUIPMENT (DQ22HS) MAY 10492908 Contact Us For Availability
5
MAY R0000108 MAY R0000108 Contact Us For Availability
6
MAY 12001916 MAY 12001916 Contact Us For Availability
11
MAY R0156942 MAY R0156942 Contact Us For Availability
11
ASSY, BASE PAN MAY R0156923 Contact Us For Availability
11
MAY 10768304 MAY 10768304 Contact Us For Availability
11
WRAPPER-OC (SS) MAY 10908901Q Contact Us For Availability
12
MAY C3670809 MAY C3670809 Contact Us For Availability
12
MAY C8893502 MAY C8893502 Contact Us For Availability
21
STRAIN RELIEF MAY M0370003 Contact Us For Availability
21
MAY 10766601 MAY 10766601 Contact Us For Availability
21
ASSY, TOP DIVIDER MAY R0156937 Contact Us For Availability
21
MAY M0585505 MAY M0585505 Contact Us For Availability
21
GASKET, BASEPAN (CUT) MAY 10732512 Contact Us For Availability
21
ASSY, TOP EXH DUCT MAY R0156940 Contact Us For Availability
22
MAY 10984001 MAY 10984001 Contact Us For Availability
22
MAY C8961811 MAY C8961811 Contact Us For Availability
31
MAY 10098907 MAY 10098907 Contact Us For Availability
31
MAY M0308801 MAY M0308801 Contact Us For Availability
31
KIT, BOARD - LV MAY R0163317 Contact Us For Availability
31
GASKET, BASEPAN MAY 10732513 Contact Us For Availability
31
MAY R0156939 MAY R0156939 Contact Us For Availability
32
WELD, SCROLL MAY 10797202 Contact Us For Availability
32
MAY 10822301 MAY 10822301 Contact Us For Availability
41
MAY B8380601 MAY B8380601 Contact Us For Availability
41
ASSY, BOT DIVIDER MAY R0156936 Contact Us For Availability
41
MAY 10763207 MAY 10763207 Contact Us For Availability
41
BRKT-MOTOR MTG MAY 10782201 Contact Us For Availability
41
MAY A4539605 MAY A4539605 Contact Us For Availability
41
MAY 10782501 MAY 10782501 Contact Us For Availability
42
MAY 10773303 MAY 10773303 Contact Us For Availability
51
MAY A3293503 MAY A3293503 Contact Us For Availability
51
MAY M0229916 MAY M0229916 Contact Us For Availability
51
ASSY, REAR DIVIDER MAY R0156935 Contact Us For Availability
51
ASSY, EXH DUCT MAY R0156941 Contact Us For Availability
51
MAY 10782402 MAY 10782402 Contact Us For Availability
51
ACCESS PAN WLD-E CT MAY 10827214 Contact Us For Availability
52
SET SCREW No.10 X .25 MAY 5051032202 Contact Us For Availability
61
MAY M0232012 MAY M0232012 Contact Us For Availability
61
KIT, INTERLOCK MAY R0150155 Contact Us For Availability
61
MAY D8547928 MAY D8547928 Contact Us For Availability
61
KIT, GEAR MAY R0156917 Contact Us For Availability
61
MAY 10847601 MAY 10847601 Contact Us For Availability
62
MAY M0253916 MAY M0253916 Contact Us For Availability
71
MAY A3293505 MAY A3293505 Contact Us For Availability
71
MAY M0209701 MAY M0209701 Contact Us For Availability
71
MAY 12160601 MAY 12160601 Contact Us For Availability
71
FUSE HOLDER MAY 10091101 Contact Us For Availability
71
MOTOR-ANTENNA MAY R0150102 Contact Us For Availability
71
MAY B5795306 MAY B5795306 Contact Us For Availability
71
MAY B8383102 MAY B8383102 Contact Us For Availability
71
MAY 10909001 MAY 10909001 Contact Us For Availability
72
MAY D7681501 MAY D7681501 Contact Us For Availability
72
SCREW, SET MAY M0208342 Contact Us For Availability
81
MAY 12160602 MAY 12160602 Contact Us For Availability
81
MAY B5677203 MAY B5677203 Contact Us For Availability
81
MAY M0325401 MAY M0325401 Contact Us For Availability
81
MAY M0294701 MAY M0294701 Contact Us For Availability
81
MAY 10432501 MAY 10432501 Contact Us For Availability
82
MAY 10172901Q MAY 10172901Q Contact Us For Availability
82
MAY 12360701 MAY 12360701 Contact Us For Availability
91
MAY 10863402 MAY 10863402 Contact Us For Availability
91
ASSY, TOUCH PNL- TOP MAY R0156973 Contact Us For Availability
91
TRANSFORMER, AUTO MAY C8901507 Contact Us For Availability
91
MAGNETRON-T MAY D7831005 Contact Us For Availability
91
MAY 10785602 MAY 10785602 Contact Us For Availability
92
MAY B5706704 MAY B5706704 Contact Us For Availability
92
MAY M0310305 MAY M0310305 Contact Us For Availability
101
MAY 10893601 MAY 10893601 Contact Us For Availability
101
MAY R0156955 MAY R0156955 Contact Us For Availability
101
MAY A4055406 MAY A4055406 Contact Us For Availability
101
MAY M1200005 MAY M1200005 Contact Us For Availability
101
TRANSFORMER-HV MAY 10788602 Contact Us For Availability
101
MAY M0288213 MAY M0288213 Contact Us For Availability
102
MAY R0156920 MAY R0156920 Contact Us For Availability
111
THERMAL PROTECTOR MAY B5684106 Contact Us For Availability
111
MAY A3263904 MAY A3263904 Contact Us For Availability
112
INNER DOOR & GLASS ASSY MAY R0156921 Contact Us For Availability
121
MAY M0104101 MAY M0104101 Contact Us For Availability
121
CUTOUT, THERMAL MAY B5684118 Contact Us For Availability
121
MAY M0234117 MAY M0234117 Contact Us For Availability
121
MAY B8367702 MAY B8367702 Contact Us For Availability
122
MAY R0000282 MAY R0000282 Contact Us For Availability
131
HARNESS, HI VOLT MAY 10993401 Contact Us For Availability
131
MAY M0274066 MAY M0274066 Contact Us For Availability
131
MAY M0805201 MAY M0805201 Contact Us For Availability
131
BRKT, HINGE SUPPORT MAY 12189001 Contact Us For Availability
132
MAY D7784901 MAY D7784901 Contact Us For Availability
141
MAY 3010003001 MAY 3010003001 Contact Us For Availability
141
SUPPORT P-C BD A MAY M0590602 Contact Us For Availability
151
MAY 10853001 MAY 10853001 Contact Us For Availability
161
MAY R0163320 MAY R0163320 Contact Us For Availability
171
ASSY, ANTENNA (PLAIN TIP) MAY 10787601 Contact Us For Availability
191
MAY 12160801 MAY 12160801 Contact Us For Availability
201
BARRIER, EXT MEM BD MAY 12160701 Contact Us For Availability
211
MAY 10901001 MAY 10901001 Contact Us For Availability
221
HARNESS, WIRING MAY 10772701 Contact Us For Availability
231
RELAY, CONTROL MAY C8873928 Contact Us For Availability
NI
MAY 10944101 MAY 10944101 Contact Us For Availability
NI
HARNESS, LVB/EXM MAY 10859701 Contact Us For Availability
× ![]()
