Model GE DPXH46GF0WW Dryer Gas – Common Parts & Diagrams
BURNER
CABINET & DRUM

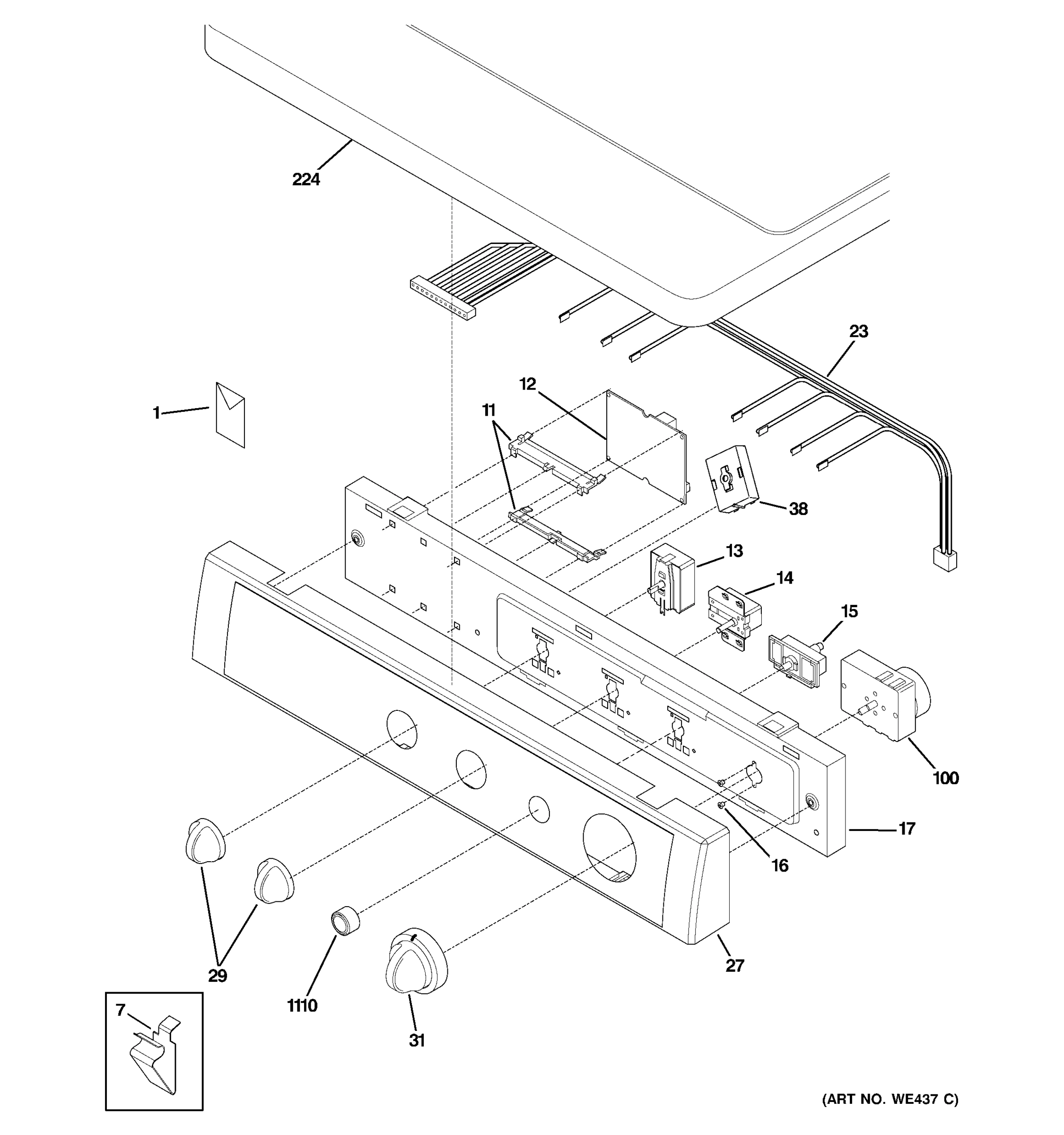

CONTROLS & TOP PANEL

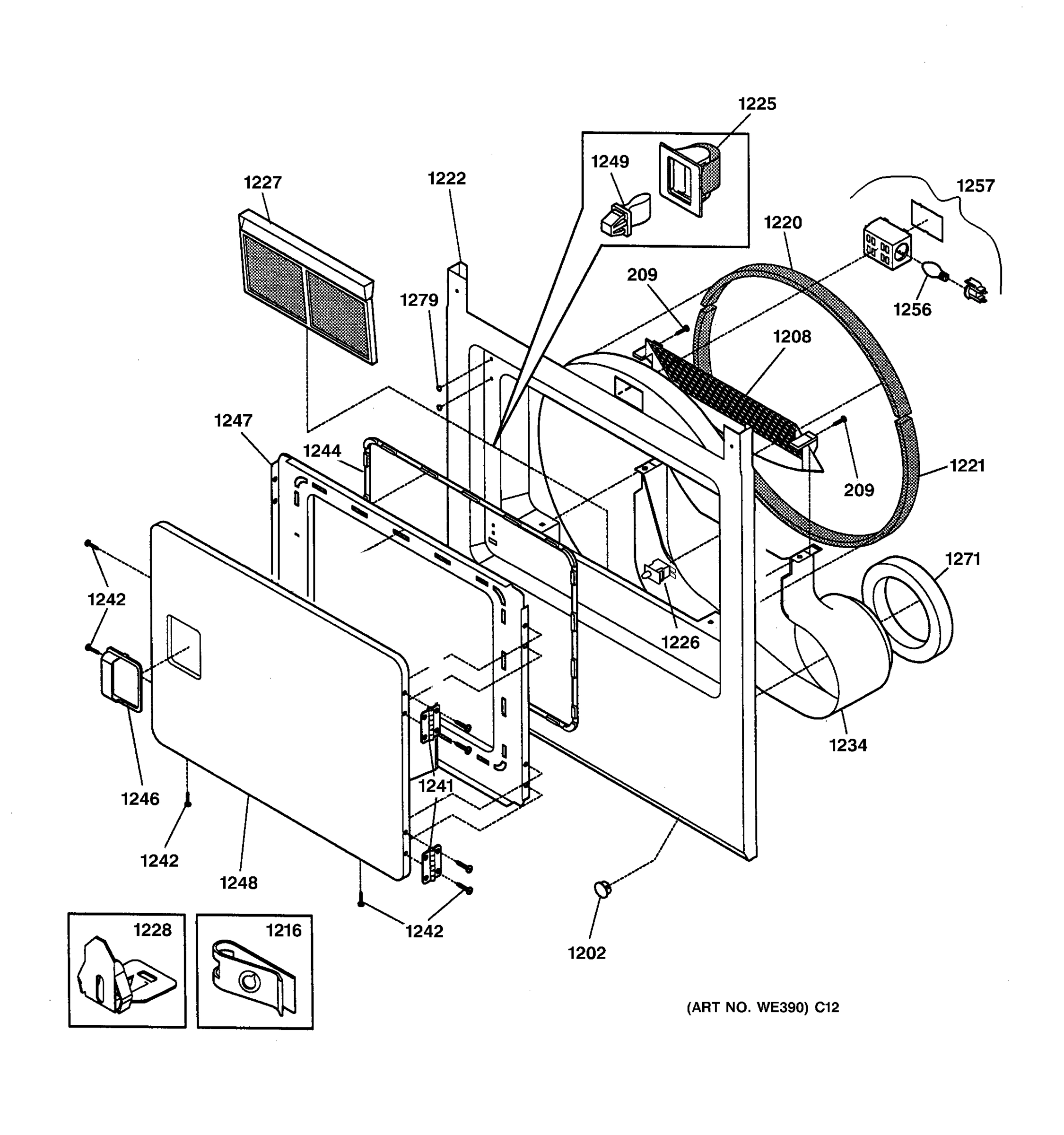

FRONT PANEL & DOOR

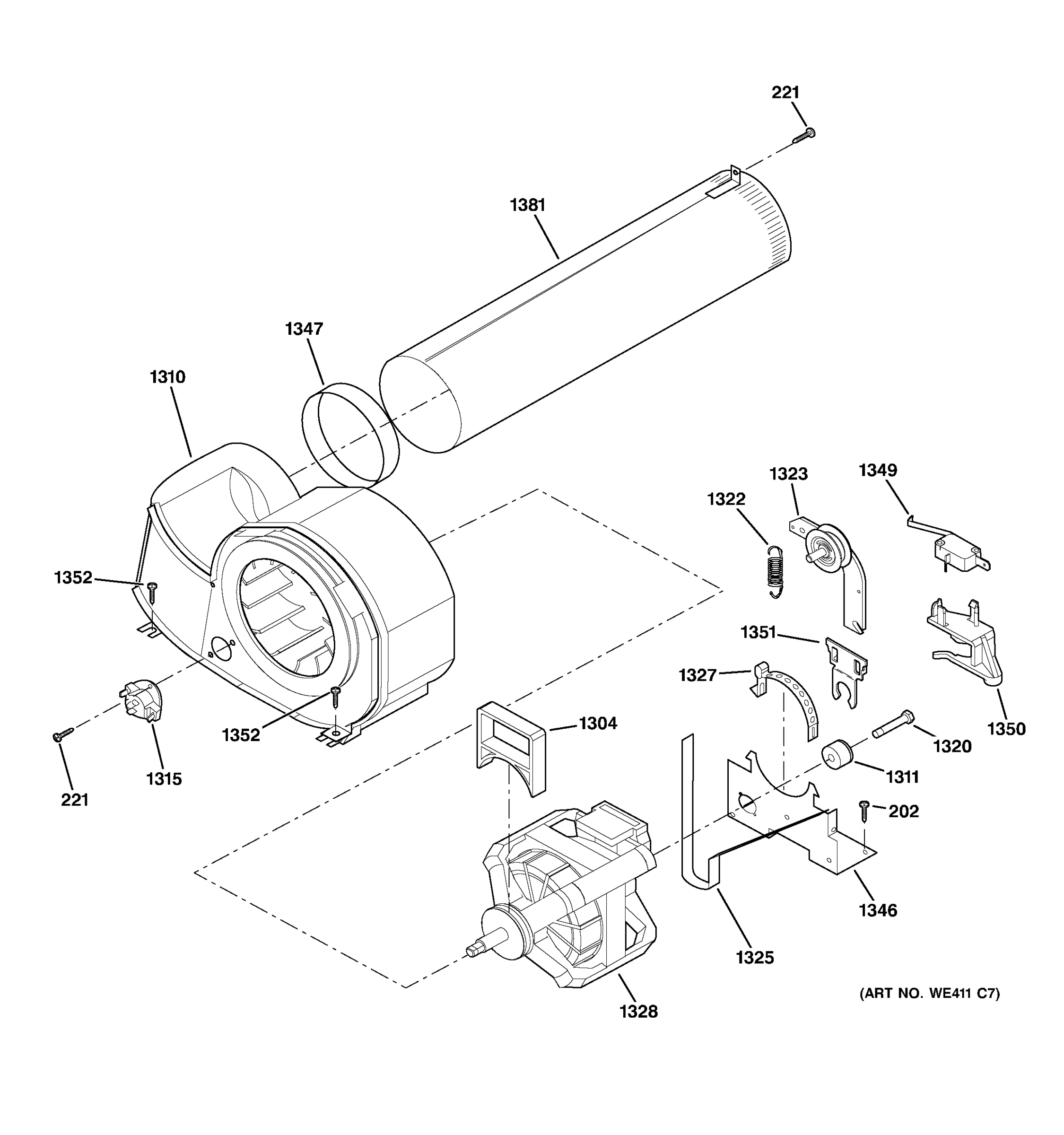

MOTOR
Common parts from model GE DPXH46GF0WW Dryer Gas
1
GEN WE25X10004 GEN WE25X10004 Contact Us For Availability
13
SWITCH,TEMPERATURE GEN WE04X10135 Contact Us For Availability
15
GEN WE04X10067 GEN WE04X10067 Contact Us For Availability
29
GEN WE01X10167 GEN WE01X10167 Contact Us For Availability
29
GEN WE01X10165 GEN WE01X10165 Contact Us For Availability
31
GEN WE01X10166 GEN WE01X10166 Contact Us For Availability
31
GEN WE01X10168 GEN WE01X10168 Contact Us For Availability
100
GEN WE04X10060 GEN WE04X10060 Contact Us For Availability
202
SCREW 8-18B x 0.31 GEN WR02X9494 Contact Us For Availability
209
SCREW-LOCK, 10-16 X .500 GEN WH02X10009 Contact Us For Availability
221
GEN WH01X10004 GEN WH01X10004 Contact Us For Availability
224
PANEL-TOP WH GEN WE04X10097 Contact Us For Availability
1110
GEN WE01X10068 GEN WE01X10068 Contact Us For Availability
1200
GEN WE25X10013 GEN WE25X10013 Contact Us For Availability
1202
PLUG BQ GEN WE01X10088 Contact Us For Availability
1213
BRACKET BEARING GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1216
CLIP,U-NUT GEN WE02X10068 Contact Us For Availability
1218
SCREW 10-16 X.375 GEN WE02X10006 Contact Us For Availability
1220
GEN WE09X10016 GEN WE09X10016 Contact Us For Availability
1221
GEN WE09X10014 GEN WE09X10014 Contact Us For Availability
1223
GEN WE21X10013 GEN WE21X10013 Contact Us For Availability
1224
GEN WE13X10005 GEN WE13X10005 Contact Us For Availability
1225
CATCH DOOR GEN WE01X10023 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1229
GEN WE02X10007 GEN WE02X10007 Contact Us For Availability
1231
GEN WE08X10069 GEN WE08X10069 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1245
SCREW, 8-18 X .375 GEN WE02X10011 Contact Us For Availability
1246
HANDLE-DOOR WH GEN WE01X10013 Contact Us For Availability
1246
HANDLE-DOOR BQ GEN WE01X10089 Contact Us For Availability
1248
DOOR-OUTER WH GEN WE10X10009 Contact Us For Availability
1248
DOOR-OUTER BQ GEN WE10X10012 Contact Us For Availability
1249
STRIKE DOOR GEN WE01X1158 Contact Us For Availability
1256
GEN WE04X10045 GEN WE04X10045 Contact Us For Availability
1257
GEN WE04X10058 GEN WE04X10058 Contact Us For Availability
1264
CLIP CABINET BTM GEN WE02X10013 Contact Us For Availability
1271
GEN WE09X10004 GEN WE09X10004 Contact Us For Availability
1279
PLUG BQ GEN WE01X10169 Contact Us For Availability
1279
PLUG WH GEN WE01X10170 Contact Us For Availability
1304
GEN WE01X10016 GEN WE01X10016 Contact Us For Availability
1310
GEN WE14X10025 GEN WE14X10025 Contact Us For Availability
1311
SPACER IDLER GEN WE01X10029 Contact Us For Availability
1315
GEN WE04X10099 GEN WE04X10099 Contact Us For Availability
1320
SCREW HX HD 1/4-20TX1.25 GEN WE02X10014 Contact Us For Availability
1322
SPRING IDLER GEN WE01X10027 Contact Us For Availability
1323
GEN WE01X10218 GEN WE01X10218 Contact Us For Availability
1327
GEN WE01X10211 GEN WE01X10211 Contact Us For Availability
1328
GEN WE17X10001 GEN WE17X10001 Contact Us For Availability
1346
GEN WE13X10026 GEN WE13X10026 Contact Us For Availability
1347
GEN WE09X10003 GEN WE09X10003 Contact Us For Availability
1349
GEN WE04X10096 GEN WE04X10096 Contact Us For Availability
1350
GEN WE13X10008 GEN WE13X10008 Contact Us For Availability
1351
GEN WE02X10053 GEN WE02X10053 Contact Us For Availability
1352
GEN WE02X10002 GEN WE02X10002 Contact Us For Availability
1371
GEN WE04X10020 GEN WE04X10020 Contact Us For Availability
1373
ORIFICE NATURAL GAS GEN WE01X10022 Contact Us For Availability
1381
GEN WE14X10007 GEN WE14X10007 Contact Us For Availability
9999
GEN WE25X10016 GEN WE25X10016 Contact Us For Availability
× ![]()
