Model Whirlpool DP8500XTN0 PORTABLE DISHWASHER – Common Parts & Diagrams
03 - DOOR
04 - TUB , LITERATURE AND OPTIONAL

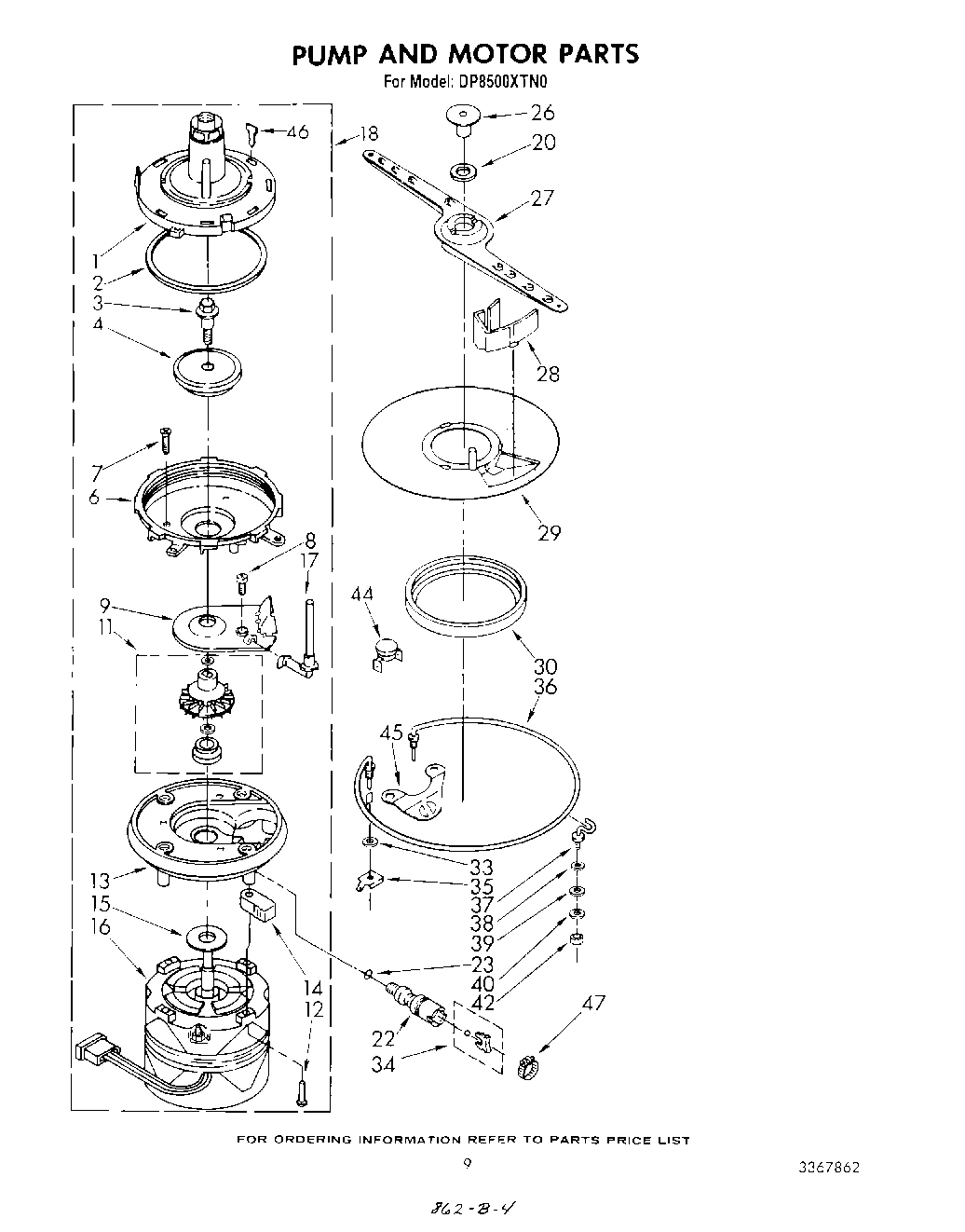

06 - PUMP AND MOTOR

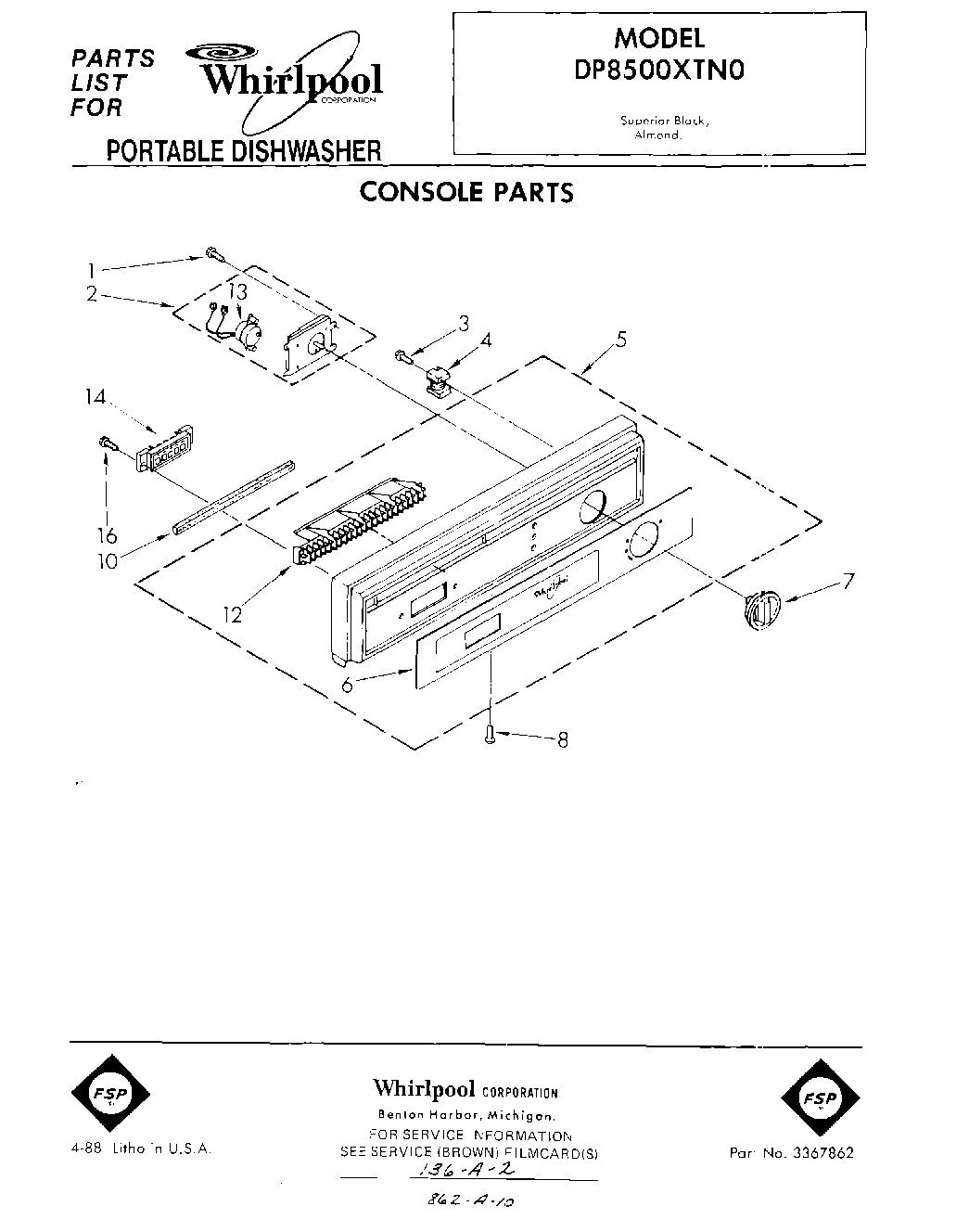

01 - CONSOLE

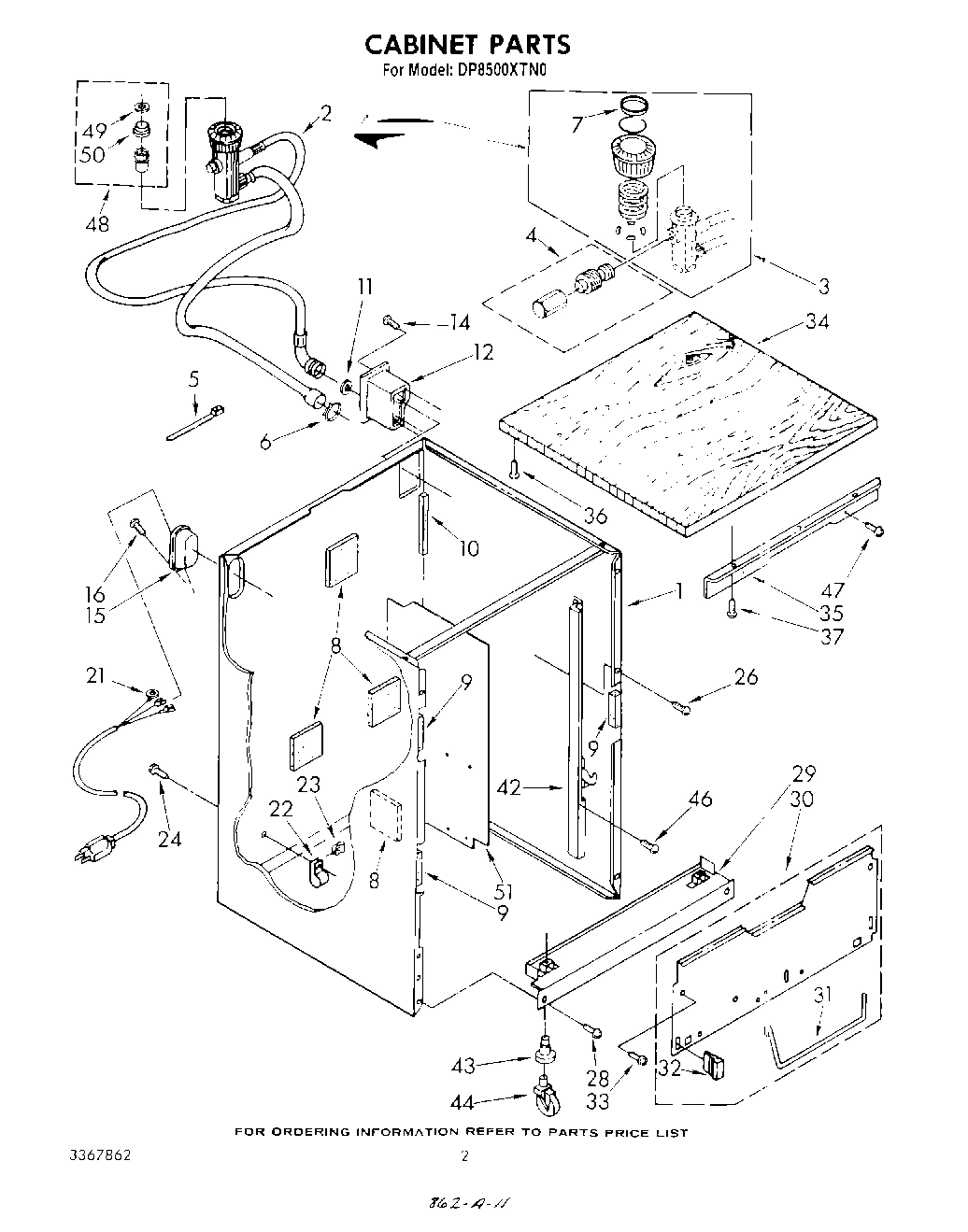

02 - CABINET

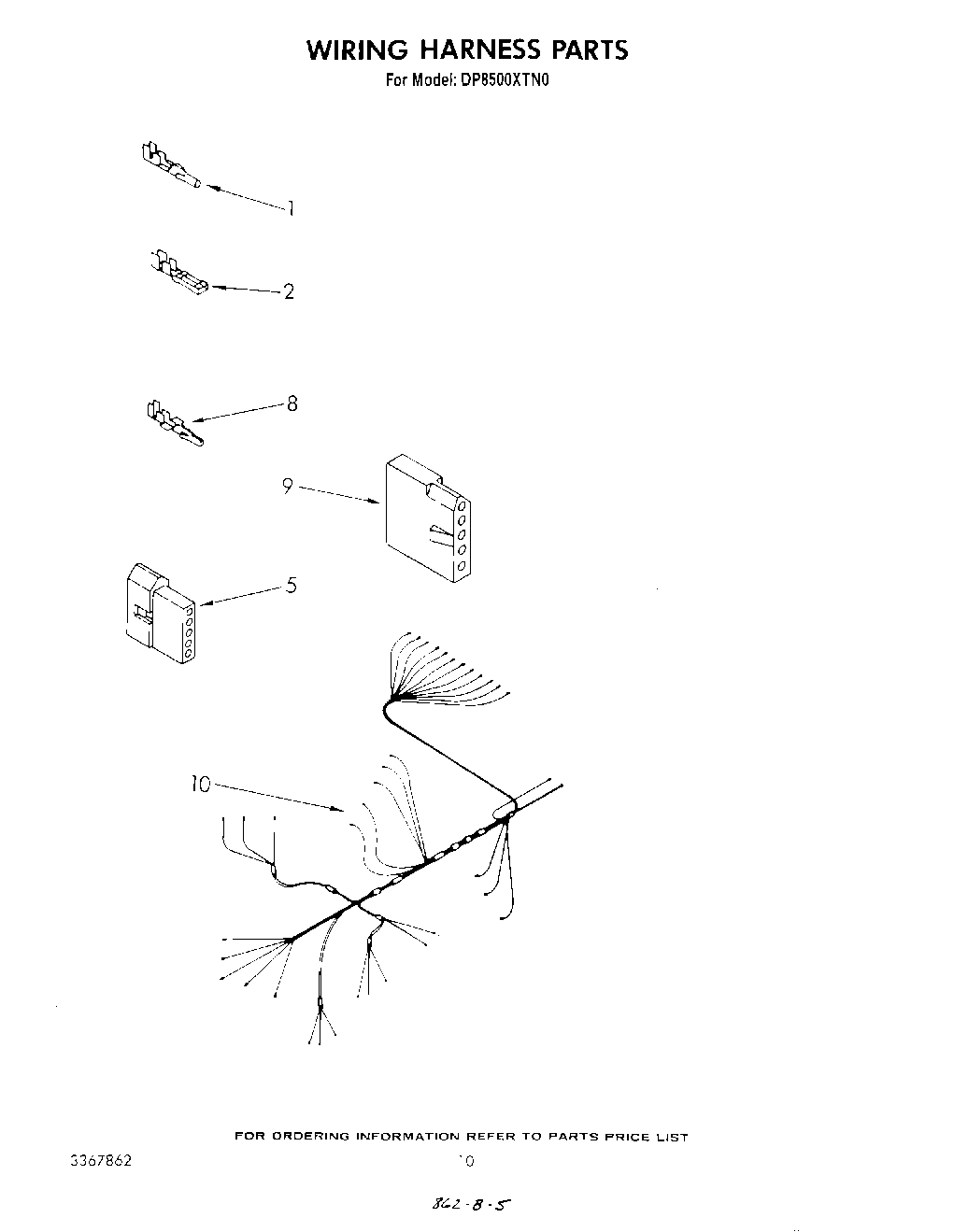

07 - WIRING HARNESS

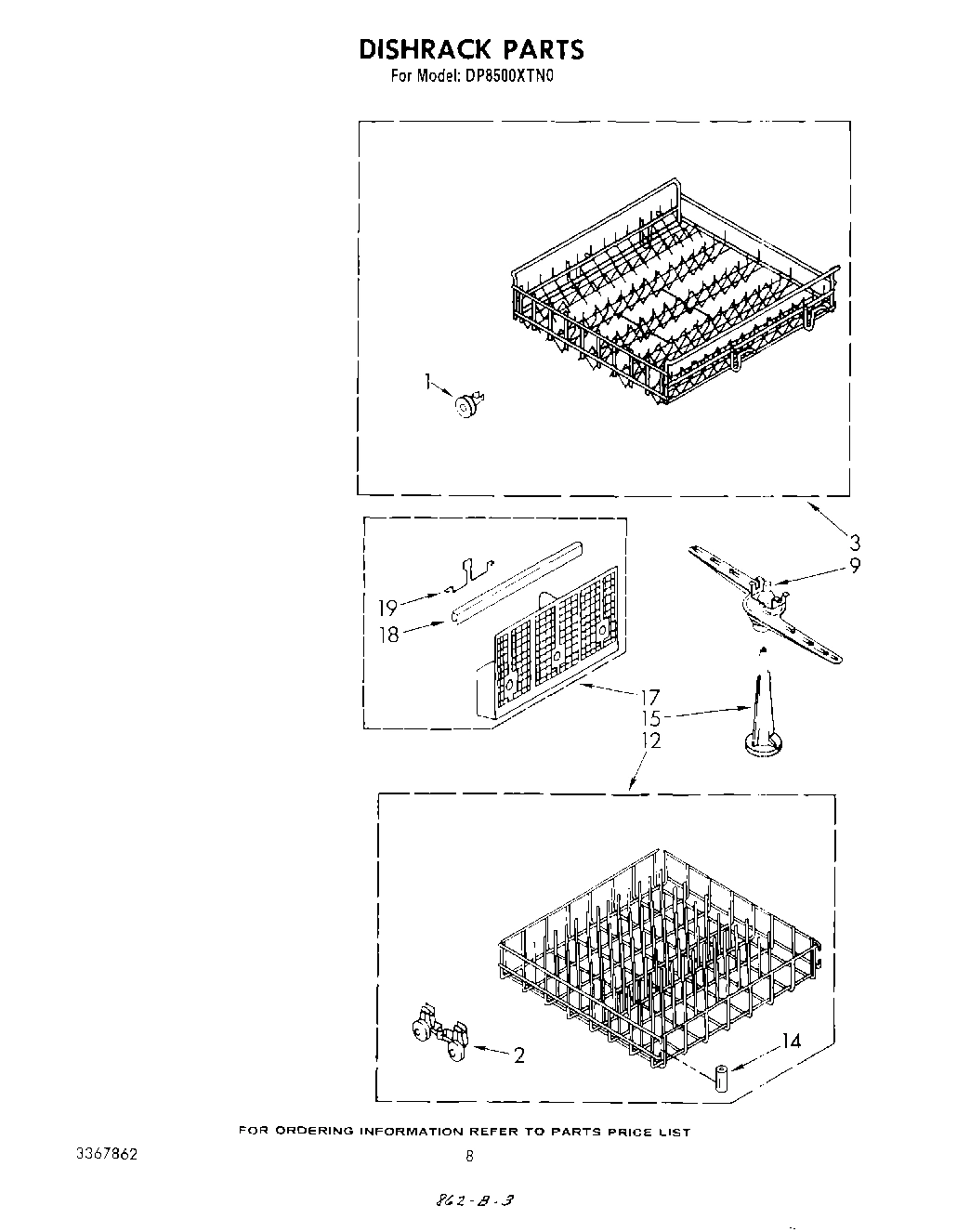

05 - DISHRACK
Common parts from model Whirlpool DP8500XTN0 PORTABLE DISHWASHER
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
Toast WPL 285365 Contact Us For Availability
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
Platinum (Uncut) WPL 285368 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability
Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability
Paint, (Touch-Up 1/2 WPL 72112 Contact Us For Availability
WPL 799640 WPL 799640 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT304298 WPL LIT304298 Contact Us For Availability
WPL LIT3367225 WPL LIT3367225 Contact Us For Availability
WPL LIT3367803 WPL LIT3367803 Contact Us For Availability
WPL LIT3367862 WPL LIT3367862 Contact Us For Availability
WPL LIT3368317 WPL LIT3368317 Contact Us For Availability
1
Pump Housing, Upper WPL 3367439 Contact Us For Availability
1
Shell Assembly (Almond) WPL 302898 Contact Us For Availability
1
Screw, 8-18 x 5/8 WPL 303090 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
2
Timer WPL 304459 Contact Us For Availability
2
Coupler Assembly WPL 302902 Contact Us For Availability
3
Screw, 8-18 x 1-1/4 Slot Hex Wash Hd WPL 304232 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
4
Impeller WPL 303517 Contact Us For Availability
4
Relay, Start WPL 304409 Contact Us For Availability
4
Valve, Pressure Relief WPL 285171 Contact Us For Availability
5
Hose, Inlet WPL 304669 Contact Us For Availability
5
Console WPL 3367887 Contact Us For Availability
5
Cap, 5 Pin WPL 719584 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
6
insert, decorative WPL 3367840 Contact Us For Availability
6
Clamp, Hose WPL 719953 Contact Us For Availability
6
Plug, One Pin WPL 351297 Contact Us For Availability
7
Seal WPL 711696 Contact Us For Availability
7
Knob, Timer WPL 3367282 Contact Us For Availability
8
Pad (4) WPL 3368108 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
9
Pad (3) WPL 3368110 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
10
Baffle WPL 719860 Contact Us For Availability
10
Pad WPL 3368109 Contact Us For Availability
10
Harness, Wiring WPL 3368015 Contact Us For Availability
11
Kit, Drain Impeller WPL 675468 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
12
Grill, Vent WPL 304602 Contact Us For Availability
12
Housing, Hose WPL 302891 Contact Us For Availability
13
Base, Pump WPL 3367203 Contact Us For Availability
13
Motor, Timer WPL 301074 Contact Us For Availability
14
switch pushbutton WPL 3367739 Contact Us For Availability
14
Bumper (2) WPL 717970 Contact Us For Availability
15
Tower WPL 304170 Contact Us For Availability
15
Nut, 7/18-16 WPL 713799 Contact Us For Availability
15
Housing, Cord WPL 716234 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
Motor WPL 303574 Contact Us For Availability
17
Nut, .125 WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
17
Silverware Basket Assembly WPL 304166 Contact Us For Availability
18
Bracket, Overflow Switch WPL 719342 Contact Us For Availability
18
Pump & Motor Assembly WPL 3367440 Contact Us For Availability
18
Trim Basket (2) WPL 717528 Contact Us For Availability
19
Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
20
Gasket WPL 3367679 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
21
Cord, Power WPL 303651 Contact Us For Availability
22
Alternate WPL 301671 Contact Us For Availability
22
Alternate WPL 301672 Contact Us For Availability
22
Alternate WPL 304589 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
22
Clamp, Strain Relief WPL 596553 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Nut, J-Type WPL 717337 Contact Us For Availability
26
Valve, Water Inlet WPL 661511 Contact Us For Availability
26
Cap, Nozzle WPL 3367198 Contact Us For Availability
27
Spray Arm, Lower WPL 302767 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
29
Toeplate Assembly (Includes Illus. 43) WPL 719513 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
30
Plate, Cover WPL 719091 Contact Us For Availability
31
Bar, Torsion (R.H.) WPL 719093 Contact Us For Availability
31
Bar, Torsion (L.H.) WPL 719094 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Bumper, Rubber WPL 719235 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut (8) WPL 718829 Contact Us For Availability
34
Check Ball & Retainer WPL 675488 Contact Us For Availability
34
Panel, Top WPL 304598 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability
35
Trim, Front WPL 302250 Contact Us For Availability
36
Alternate WPL 302113 Contact Us For Availability
36
Alternate WPL 302562 Contact Us For Availability
36
Heater WPL 660318 Contact Us For Availability
36
Alternate WPL 717141 Contact Us For Availability
36
Alternate WPL 719687 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
41
Screw, 4-40 x 9/16 WPL 302203 Contact Us For Availability
42
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
42
leg assembly, r.h. WPL 3367436 Contact Us For Availability
42
Leg Assembly, L.H. WPL 3367438 Contact Us For Availability
43
Socket, Caster (Alternate) WPL 300450 Contact Us For Availability
43
Socket, Caster (Alternate) WPL 717588 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
44
Alternate WPL 303282 Contact Us For Availability
44
Alternate WPL 303652 Contact Us For Availability
44
Thermostat WPL 661504 Contact Us For Availability
45
Barrier, Console WPL 303908 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
45
Bracket, Thermostat WPL 3368272 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
47
screw, 8-18 x 5/8 (2) WPL 3367953 Contact Us For Availability
48
Panel, Front WPL ARI22813A6 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Trim, Door (R.H.) WPL 3367487 Contact Us For Availability
49
Trim, Door (L.H.) WPL 3367488 Contact Us For Availability
49
Wheel Tub (8) WPL 300844 Contact Us For Availability
49
Washer WPL 713747 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
50
Bushing WPL 713748 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
51
Barrier, Hose WPL 301543 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw, 8-18 x 5/8 (10) WPL 719266 Contact Us For Availability
54
Gasket, Standpipe (2) WPL 301662 Contact Us For Availability
55
Clip, Gasket (2) WPL 301663 Contact Us For Availability
56
Pad, Sound (2) WPL 302340 Contact Us For Availability
62
Panel, Access WPL ARI22814A7 Contact Us For Availability
63
Cap, End R.H. WPL 3367527 Contact Us For Availability
63
Cap, End L.H. WPL 3367531 Contact Us For Availability
64
Foot (2) WPL 719581 Contact Us For Availability
66
Overlay, Access Panel (Brushed Aluminum (Opti WPL 302595 Contact Us For Availability
66
overlay, access panel (black) WPL 303445 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
77
Washer (2) WPL 300237 Contact Us For Availability
84
Screw, 4-20 WPL 304444 Contact Us For Availability
85
WPL 304443 WPL 304443 Contact Us For Availability
86
WPL 304391 WPL 304391 Contact Us For Availability
89
WPL 304408 WPL 304408 Contact Us For Availability
91
WPL 301582 WPL 301582 Contact Us For Availability
92
WPL 3367288 WPL 3367288 Contact Us For Availability
93
WPL 715779 WPL 715779 Contact Us For Availability
94
WPL 301857 WPL 301857 Contact Us For Availability
95
WPL 3367720 WPL 3367720 Contact Us For Availability
96
WPL 303362 WPL 303362 Contact Us For Availability
98
WPL 301774 WPL 301774 Contact Us For Availability
× ![]()
