Model LG DOTRC11B – Common Parts & Diagrams
Diagram 0
Diagram 1

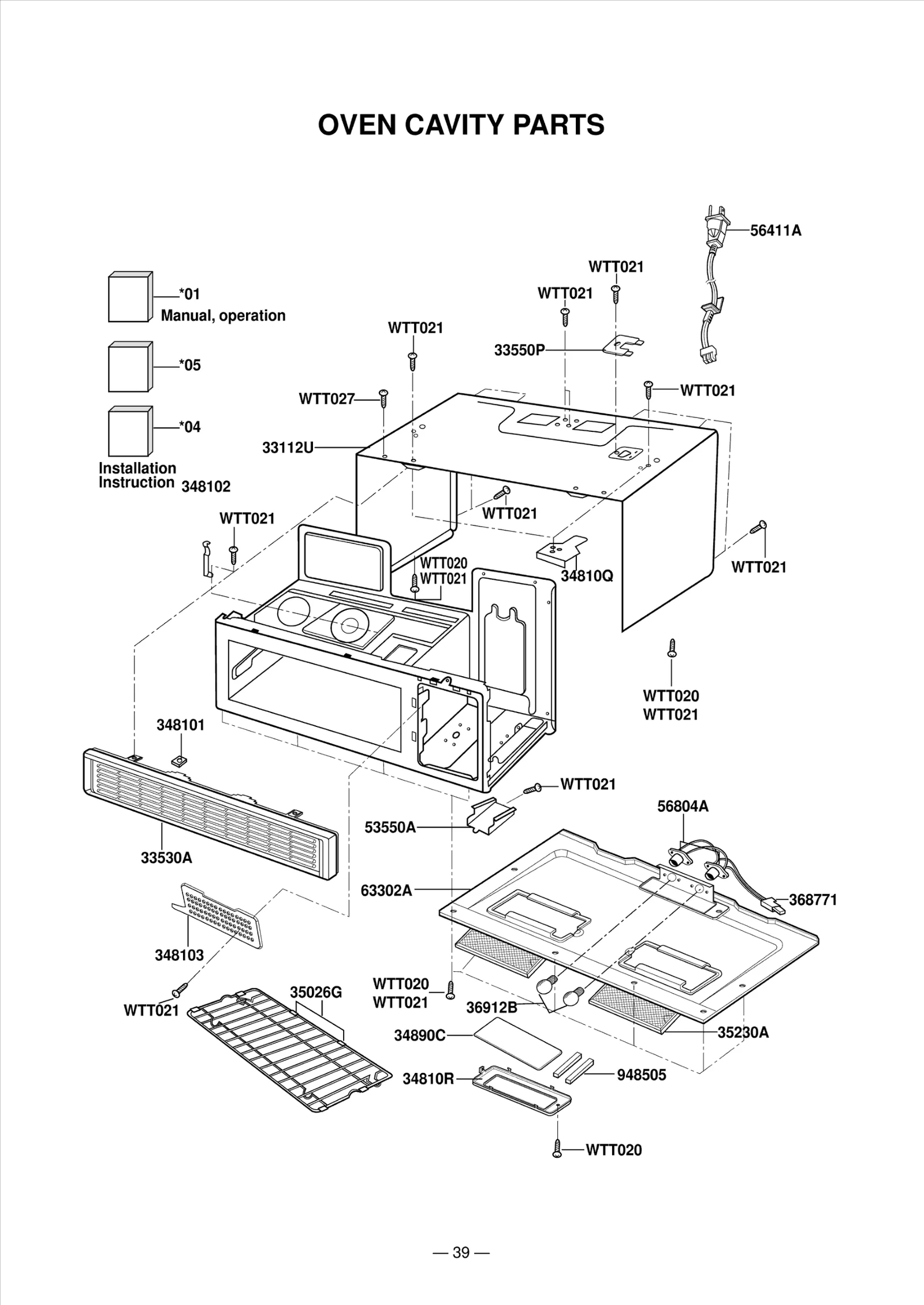

Diagram 2
Diagram 3

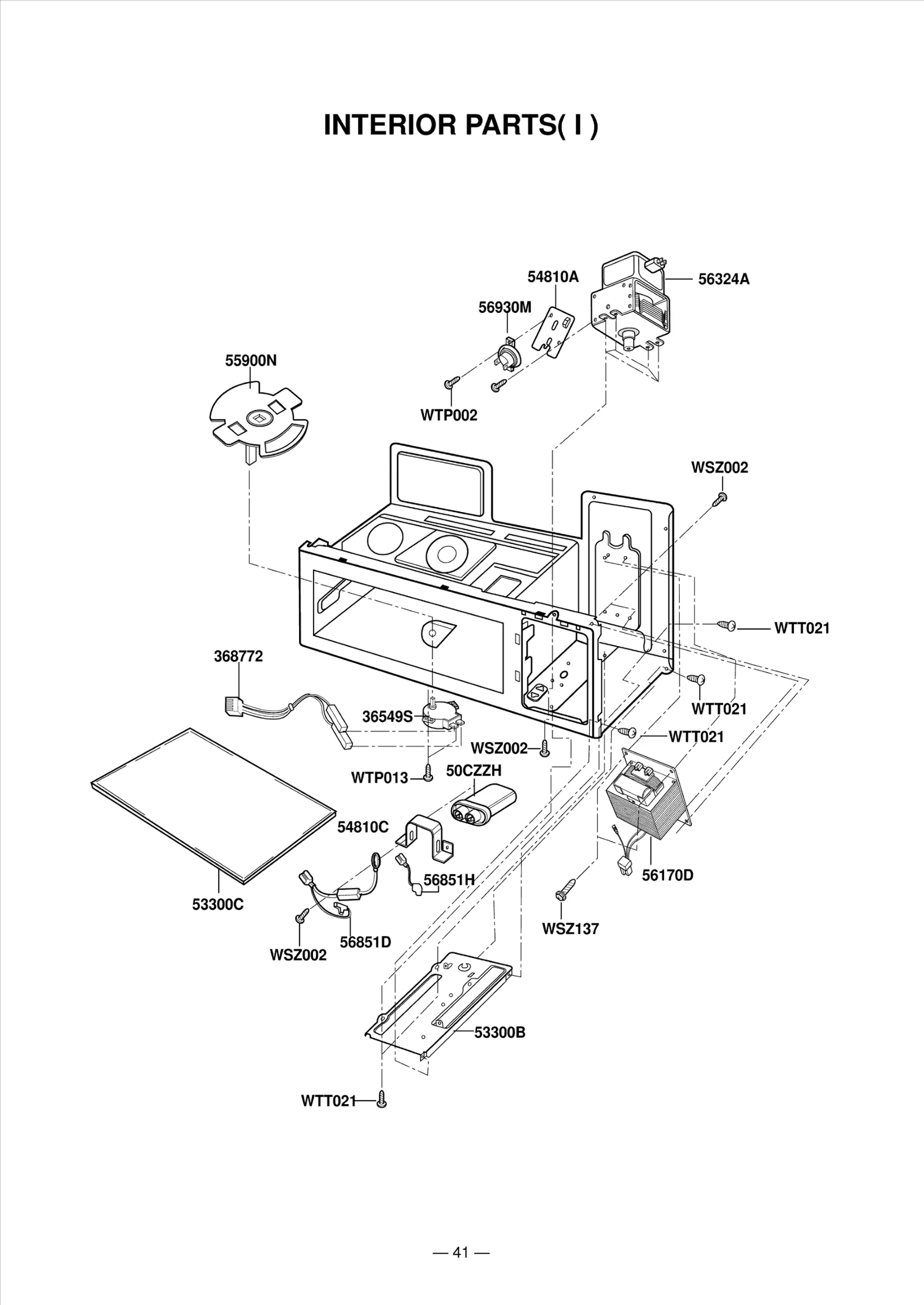

Diagram 4

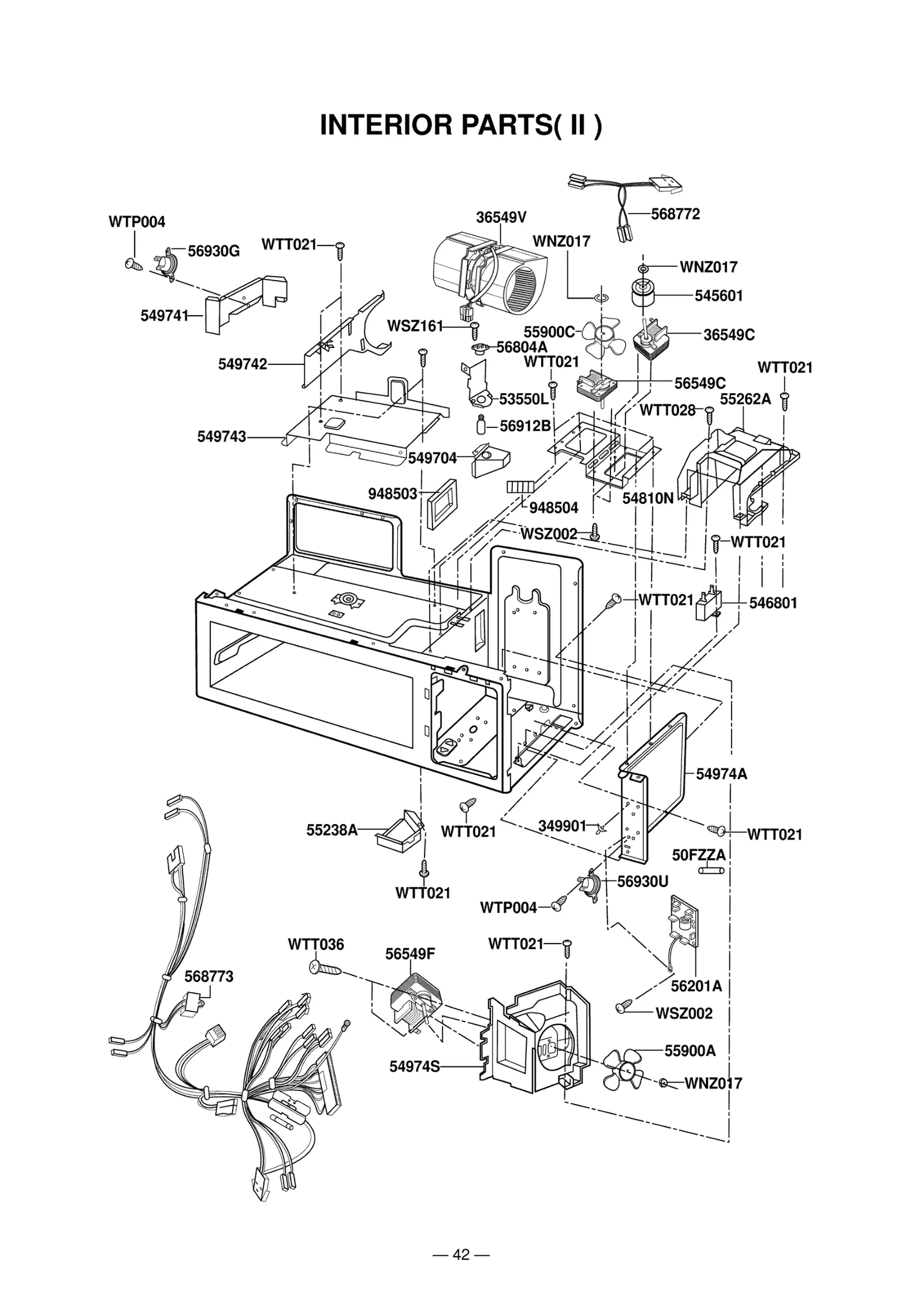

Diagram 5

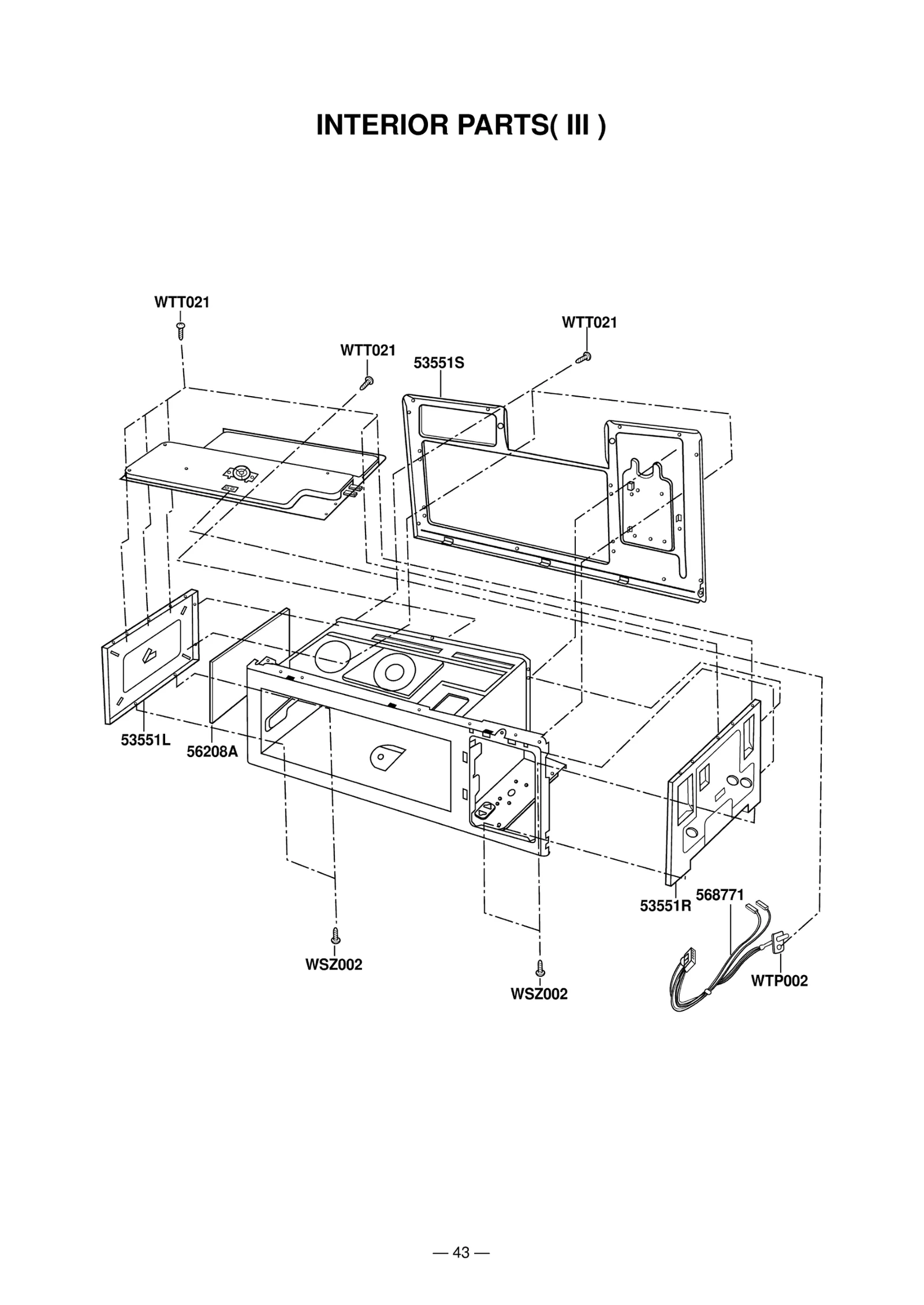

Diagram 6

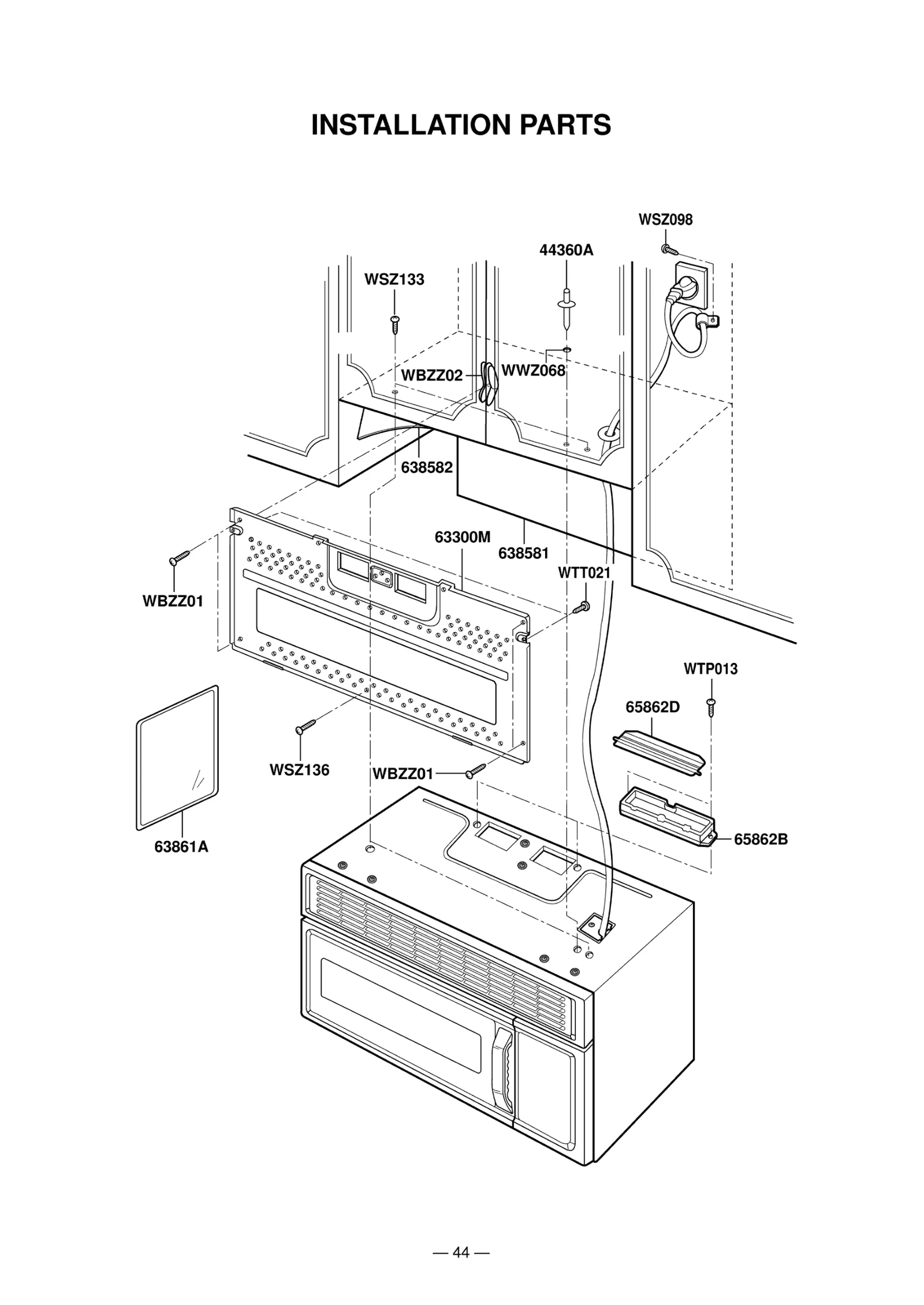

Diagram 7

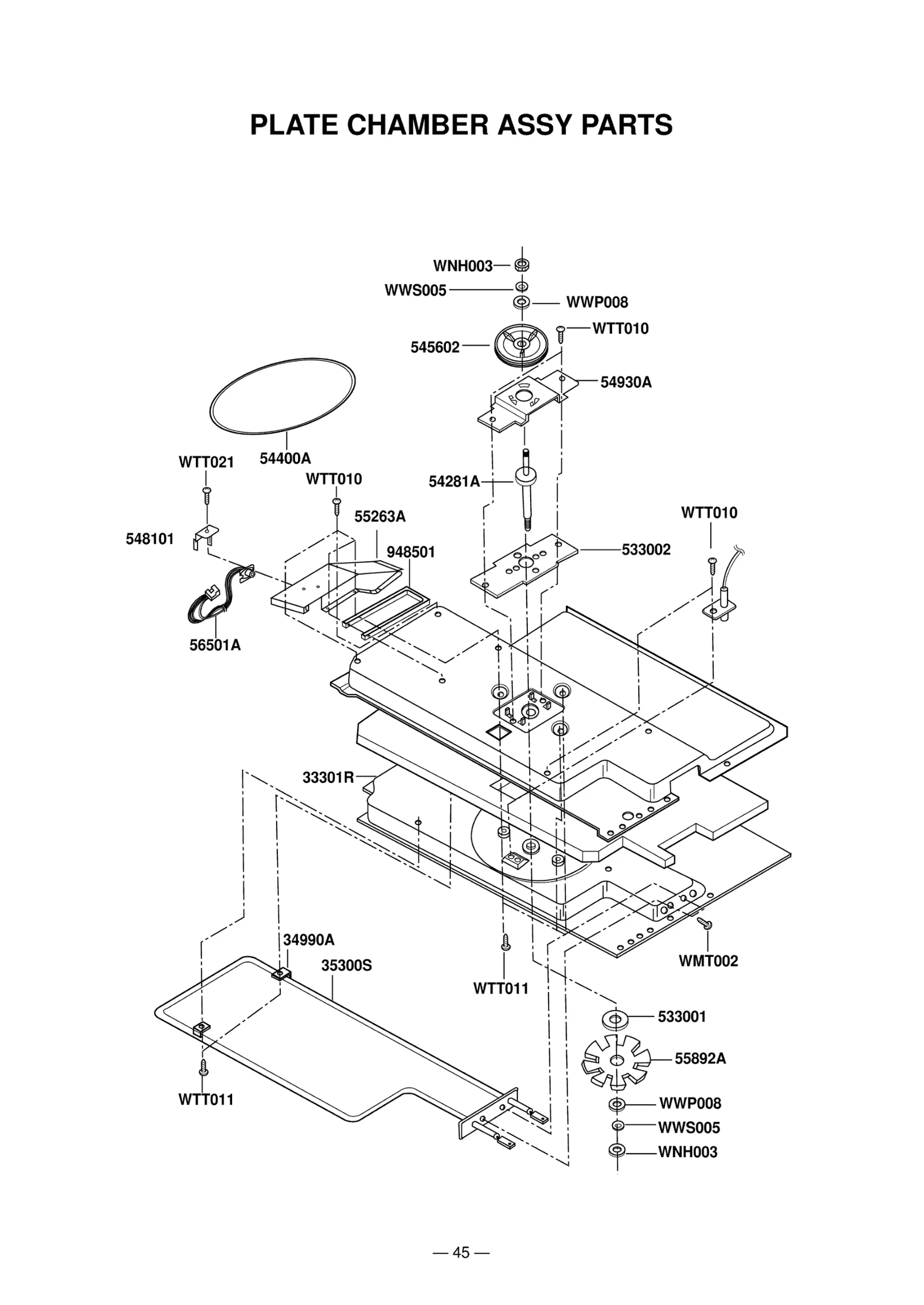

Diagram 8
Diagram 9
Common parts from model LG DOTRC11B
*01
Manual,Owners LGE 3828W5A0823 Contact Us For Availability
*02
MANUAL,[SERVICE] LGE 3828W5S0803 Contact Us For Availability
*04
MANUAL,[INSTALLATION] LGE 3828W5U0043 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W3A388A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3858W3T014U Contact Us For Availability
50CZZH
CAPACITOR[HIGH VOLTAGE] LGE 0CZZW1H002F Contact Us For Availability
50FZZA
FUSE LGE 3B70856G Contact Us For Availability
33112U
OUT CASE,U-BENDING LGE 3112W1U004U Contact Us For Availability
33301R
PLATE LGE 3301W1A005A Contact Us For Availability
33530A
GRILLE,VENT LGE 3530W1A006H Contact Us For Availability
33550P
COVER PLATE MH6110XBBO W/POOL LGE 3550W4A025A Contact Us For Availability
34810Q
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
34810R
COVER - LIGHT LGE 3550W3A014B Contact Us For Availability
34890C
GLASS COOK TOP LAMP MV-1120 LGE 4890W4A001A Contact Us For Availability
35026G
SHELF ASSY CONVECTION ENAMELED LGE 5026W1A006C Contact Us For Availability
36549C
MOTOR CIRCULATION MV-1130SC,11 LGE 6549W2C001A Contact Us For Availability
36549S
MOTOR-STIRRER LGE 6549WRS001F Contact Us For Availability
36549V
MOTOR(CIRC),VENTILATION LGE 6549W1V002B Contact Us For Availability
36912B
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
43500A
BOARD,LATCH LGE 3500W1A030A Contact Us For Availability
43501A
Holder Assembly,Locker LGE 3501W2A002R Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
53300B
COVER-BOTTOM (MH6110XBB0) LGE 3300W1G018A Contact Us For Availability
53300C
CERAMIC PLATE ASM ER-832PV BK LGE 2B71919A Contact Us For Availability
53504A
PLATE C-FAN MV-1130SC,STS430 W LGE 3300W4G038A Contact Us For Availability
53550A
Cover,Inner LGE 3550W3A020A Contact Us For Availability
53550L
COVER OVEN LAMP MV-1130SC,1135 LGE 3550W3A040A Contact Us For Availability
53551S
COVER ASSY BACK MV-1130SC,1135 LGE 3551W0A008A Contact Us For Availability
54281A
BEARING ASSY MV-1130SC BEARING LGE 4281W3A003A Contact Us For Availability
54400A
BELT- SILICON RUBBER LGE 4400W3A001A Contact Us For Availability
54810A
THERMO-BRACKET SECC, T 0.6 LGE 4B74584A Contact Us For Availability
54810S
BRACKET C-MOTOR MV-1130SC,1135 LGE 4810W2N013A Contact Us For Availability
54930A
HOLDER BEARING MV-1130SC,STS LGE 4281W4A001A Contact Us For Availability
54974A
GUIDE-AIR (WPOOL MH7110XBB0) LGE 4974W2G011A Contact Us For Availability
54974S
SUCTION-GUIDE (WPOOL MH7110XBB LGE 4974W0S008A Contact Us For Availability
54975G
GUIDE CHAMBER-A MV-1130SC 1135 LGE 4974W2G028B Contact Us For Availability
55238A
COVER-CONN MH6110XBBO W/POOL LGE 3550W3A019A Contact Us For Availability
55262A
AIR DUCT MV-1130SC PP,BLACK LGE 5262W1A015A Contact Us For Availability
55263A
AIR TUNNEL ASSY MV-1130SC STS LGE 5263W2A012A Contact Us For Availability
55900C
PROPELLER LGE 2B72125A Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56208A
GLASS WOOL CHAMBER MV-1130SC,4 LGE 6208W2A002A Contact Us For Availability
56324A
MAGNETRON 2M214-19F MV-1130SC LGE 2B71165E Contact Us For Availability
56411A
POWER CORD ASSY A-2 SJT14(AP-3 LGE 6411W2A002C Contact Us For Availability
56501A
SENSOR-H ASSY TGS-2180,MV-1130 LGE 6501W3A004F Contact Us For Availability
56549C
MOTOR TOWER MV-1130SC,1135SC W LGE 6549W2A002A Contact Us For Availability
56549F
MOTOR-FAN LGE 6549W2F005A Contact Us For Availability
56804A
SOCKET-LMP MH6110XBBO W/POOL LGE 3B71048D Contact Us For Availability
56851D
H.V.DIODE-CABLE ASM HVR-1X SER LGE 3B73348S Contact Us For Availability
56851H
H.V.CABLE ASM-A UL 3249 AWG18, LGE 3B73347J Contact Us For Availability
56930M
THERMOSTAT,BIMETAL LGE 6930W1A002C Contact Us For Availability
56930V
BASE THERMOSTAT LGE 3B70068V Contact Us For Availability
63300M
PLATE ASSY LGE 1B71211C Contact Us For Availability
63302A
BASE PLATE BLACK MV-1130SC 112 LGE 3302W0A005E Contact Us For Availability
63861A
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
65862D
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
348101
BRACKET GRILLE - BLACK LGE 4810W4G044A Contact Us For Availability
348102
BRACKET-SUPPORT MH6110XBBO W/P LGE 4810W4G036A Contact Us For Availability
348103
BRACKET INLET MV-1130SC MV-113 LGE 4810W3G047A Contact Us For Availability
349801
PCB SUPPORT DASS-9N MV-1120M W LGE 4B73792B Contact Us For Availability
349802
HANGER HEATER MV-1130SC,1135SC LGE 4990W4A004A Contact Us For Availability
368771
HARNS-WIRE MH6110XBBO W/POOL LGE 6877W2S003A Contact Us For Availability
368772
HARNESS-WIRE (WPOOL MH6110XBB0 LGE 6877W2S004A Contact Us For Availability
466002
MICRO SWITCH SZM-V01-FA-33 11 LGE 3B73362A Contact Us For Availability
466004
Switch,Micro LGE 3B73360C Contact Us For Availability
538081
COVER G/WOOL-L MV-1130SC,SECC- LGE 3550W2A039A Contact Us For Availability
538082
COVER G/WOOL-R MV-1130SC,SECC- LGE 3550W2A038A Contact Us For Availability
542811
PLATE BEARING MV-1130SC,STA LGE 4281W4A002A Contact Us For Availability
545601
PULLEY MOTOR LGE 4560W3A002A Contact Us For Availability
545602
PULLEY CHAMBER MV-1130SC,PPS LGE 4560W3A001A Contact Us For Availability
546801
Capacitor,Film,Box LGE 3B72440A Contact Us For Availability
548101
BRACKET SENSOR MV-1130SC STS43 LGE 4810W4G053A Contact Us For Availability
549741
GUIDE CHAMBER-B MV-1130SC,SECC LGE 4974W1G025A Contact Us For Availability
549742
GUIDE CHAMBER MV-1130SC SECC LGE 4974W1G026A Contact Us For Availability
549743
***NLA*** LGE 4974W2G029A Contact Us For Availability
568771
Harness,Single LGE 6877W3A004B Contact Us For Availability
568772
Harness,Single LGE 6877W1S021A Contact Us For Availability
568773
LEAD WIRE ASSY-E LGE 6877W3A006A Contact Us For Availability
638581
SHEET WALL TEMPLATE SEARS MV-1 LGE 3858W5A013B Contact Us For Availability
638582
BAG,SHEET LGE 3858W5A014H Contact Us For Availability
948501
CUSHION 5X8X530 MA-1190M MA-11 LGE 3B72244P Contact Us For Availability
948504
CUSHION 30X15X100 LGE 3B72246G Contact Us For Availability
948505
CUSHION-GLASS (4158315) LGE 4B73230A Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C09
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C10
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C42
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C64
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
CN1
CONNECTOR YW396-10AV 10PIN,2VO LGE 6630W5YA10H Contact Us For Availability
CN2
CONNECTOR YW396-06AV 6PIN,2VOI LGE 6630W5YA10D Contact Us For Availability
CN3
LGE 6630W5YA19E LGE 6630W5YA19E Contact Us For Availability
CN4
LGE 6630W5V003B LGE 6630W5V003B Contact Us For Availability
D01
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D07
DIODE 1N4004TA(06220071)MV-100 LGE 0DD400409AA Contact Us For Availability
D30
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON 7-LT-81GN (MV-1120M) LGE 6302W5YA05A Contact Us For Availability
PT1
TRANS POWER 120V/60HZ 13V/320M LGE 6010W2P012A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q22
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q30
TANSISTOR KRC 106M KEC (MA-693 LGE 0TR106009AF Contact Us For Availability
Q50
LGE 0TR106009AC LGE 0TR106009AC Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R04
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R07
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R09
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R20
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R22
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R30
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R36
RESISTOR FIX METAL FILM 50K 1/ LGE 0RN5002F408 Contact Us For Availability
R38
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R41
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R50
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R53
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
R54
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
RY4
LGE 6920WRD007A LGE 6920WRD007A Contact Us For Availability
RY7
RELAY MA-885M SGESEA MA-1190M LGE 6920WRD005B Contact Us For Availability
RY9
RELAY MA-885M SGESEA LOC. RY LGE 6920WRD004A Contact Us For Availability
U01
LSI LGE 6000W5YB25B Contact Us For Availability
U02
LGE 0IKE704200A LGE 0IKE704200A Contact Us For Availability
U03
LGE 0ITO200400A LGE 0ITO200400A Contact Us For Availability
U04
HEAT SINK ASSY GL7905 MV-1155S LGE 4920W3YA04C Contact Us For Availability
VR1
VARISTOR LGE 6102W5V006A Contact Us For Availability
WNZ017
PUSH NUT MV-1000T/1000M MVH11 LGE 4B74694B Contact Us For Availability
WSZ161
SPECIAL SCREW MV-1000M,1000T LGE 4B75675A Contact Us For Availability
ZD1
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
