Model Whirlpool DNT22H9 REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

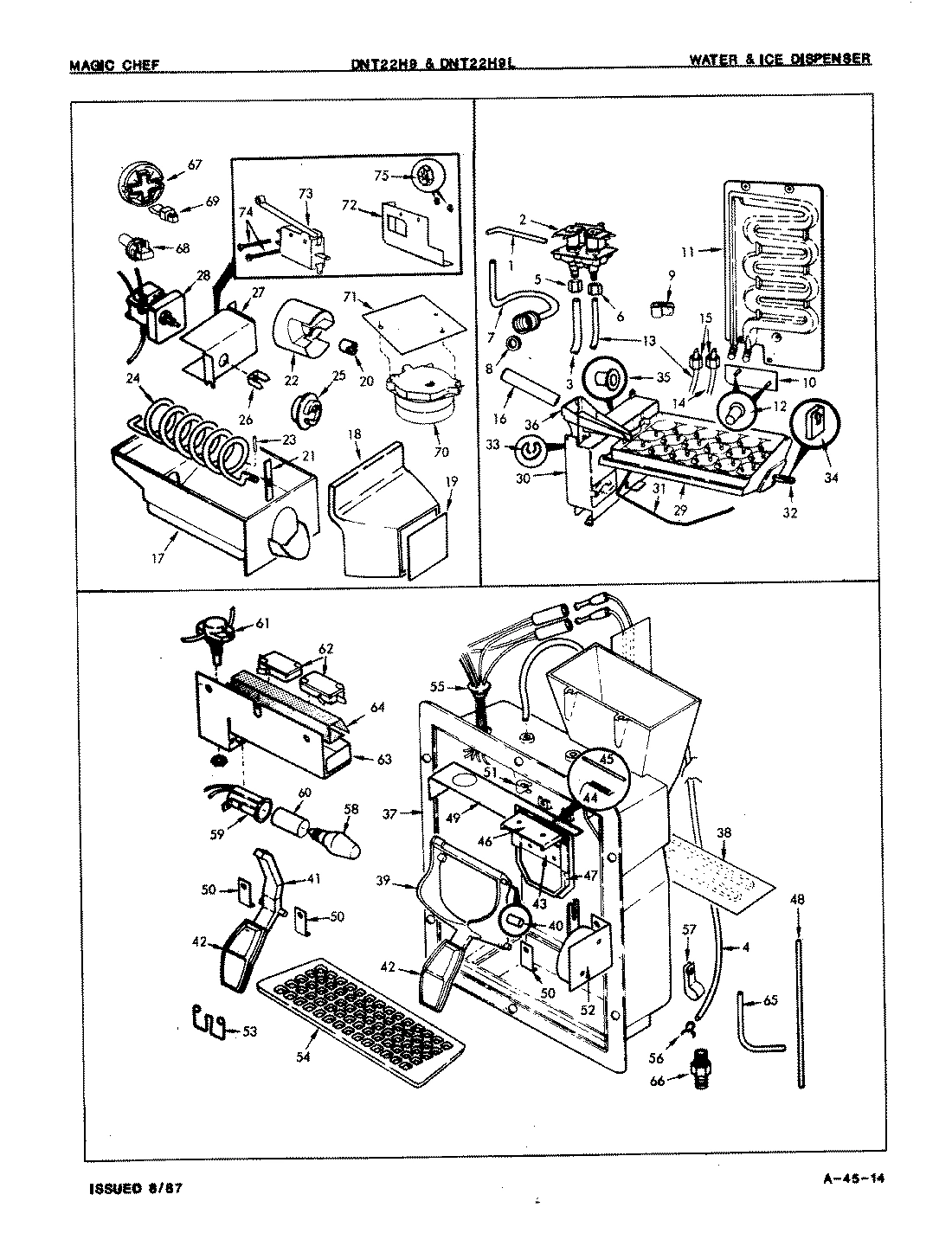

03 - WATER & ICE DISPENSER
02 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool DNT22H9 REFRIGERATOR
1
TRAY, DIVIDER WPL 605765 Contact Us For Availability
1
TUBE WPL 667582 Contact Us For Availability
2
SEAL WPL 663258 Contact Us For Availability
2
SCREW WPL 4010181 Contact Us For Availability
2
VALVE, WATER WPL 565953 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
3
TUBING WPL 556038 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TUBING WPL 556023 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
5
OVERLOAD WPL 6329411 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
TUNNEL, AIR WPL 660444 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
CLAMP WPL 535162 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664035 Contact Us For Availability
10
COVER WPL 654971 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
BOTTOM, FRZ. WPL 6047415 Contact Us For Availability
11
SCREW WPL 40004828 Contact Us For Availability
11
TANK, WATER WPL 654571 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
FRONT WPL 605031 Contact Us For Availability
12
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
DOOR, ICE CHUTE WPL 605023 Contact Us For Availability
13
SCREW WPL 652753 Contact Us For Availability
13
TUBING 34`` WPL 5560224 Contact Us For Availability
14
HINGE PIN WPL 605051 Contact Us For Availability
14
TUBE WPL 5560226 Contact Us For Availability
14
TUBING WPL 5560229 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
15
ICE CHUTE WPL 605041 Contact Us For Availability
15
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
SHELF WPL 605141 Contact Us For Availability
16
TUBE, FILL WPL 584613 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
TRIM WPL 6041410 Contact Us For Availability
17
BIN, ICE WPL 664471 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
18
WASHER WPL 420051900 Contact Us For Availability
18
WASHER WPL 420052900 Contact Us For Availability
18
DIVIDER WPL 656222 Contact Us For Availability
18
SCREW WPL 405022103 Contact Us For Availability
18
ICE DISP FRONT WPL 662051 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
LATCH WPL 661461 Contact Us For Availability
19
INSERT WPL 6570711 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
SWITCH WPL 557322 Contact Us For Availability
20
NUT, AUGER WPL 660981 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
21
IM ENCL FRONT WPL 656271 Contact Us For Availability
21
HUB, REINFORCING WPL 630841 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
INSERT WPL 6562811 Contact Us For Availability
22
IMPELLER, AUGER WPL 664481 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
CUP, SHELF WPL 603131 Contact Us For Availability
23
PIN, AUGER WPL 630711 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
24
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
24
AUGER WPL 664351 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
DAMPER WPL 606681 Contact Us For Availability
25
RING, DRIVE WPL 630171 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
LINK RETAINER WPL 606761 Contact Us For Availability
26
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
SCREW WPL 4000161 Contact Us For Availability
27
HINGE WPL 606691 Contact Us For Availability
27
LEAD WPL 5465331 Contact Us For Availability
27
MOTOR BRACKET WPL 605592 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
LINK WPL 606771 Contact Us For Availability
28
MOTOR, AUGER WPL 651861 Contact Us For Availability
28
EVAPORATOR WPL RA4362012 Contact Us For Availability
29
HOUSING WPL 606702 Contact Us For Availability
29
TRAY, ICE WPL 596881 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
30
ACTUATOR WPL 606712 Contact Us For Availability
30
SCREW WPL 400018103 Contact Us For Availability
30
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
ACTUATOR WPL 606721 Contact Us For Availability
31
SENSOR ARM WPL 604671 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
SPRING WPL 661711 Contact Us For Availability
32
SHAFT, DRIVE WPL 653191 Contact Us For Availability
32
HEATER, DEFROST WPL 6010636 Contact Us For Availability
33
SPRING WPL 606731 Contact Us For Availability
33
RING, RETAINER WPL 587061 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
34
COVER WPL 606752 Contact Us For Availability
34
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
IM DUCT WPL 657594 Contact Us For Availability
35
SPACER WPL 653171 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
SCREW WPL 405009103 Contact Us For Availability
36
SPOUT, FILL WPL 537481 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
DISPENSER, WATER WPL 630003 Contact Us For Availability
37
INSULATION KIT WPL RA950591 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
HEATER WPL 605081 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
ACTUATOR ARM (ICE) WPL 666201 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
40
COVER WPL 600673 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 606231 Contact Us For Availability
40
WIRE HARNESS WPL 667931 Contact Us For Availability
41
ACTUATOR ARM (WATER) WPL 666181 Contact Us For Availability
42
PAD, ARM WPL 630661 Contact Us For Availability
42
COVER WPL 666161 Contact Us For Availability
43
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
44
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
45
PIN, ICE DOOR WPL 630531 Contact Us For Availability
46
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
47
INSULATION WPL 630892 Contact Us For Availability
47
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
48
TUBING, WATER LINE WPL 6500215 Contact Us For Availability
49
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
50
CLIP WPL 630352 Contact Us For Availability
51
CLAMP, SPRING WPL 603331 Contact Us For Availability
52
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
52
MOTOR, INERTIA WPL 652121 Contact Us For Availability
52
CLIP WPL 655171 Contact Us For Availability
53
SPRING WPL 633061 Contact Us For Availability
54
CLAMP, SPRING WPL 603332 Contact Us For Availability
54
WIRE HARNESS WPL 605231 Contact Us For Availability
54
SPACER WPL 620284 Contact Us For Availability
54
GRILL WPL 630252 Contact Us For Availability
54
WIRE HARNESS WPL 652923 Contact Us For Availability
55
WIRE HARNESS WPL 606241 Contact Us For Availability
56
CLAMP, TUBING WPL 96029 Contact Us For Availability
57
CLAMP WPL 535169 Contact Us For Availability
58
BULB, LIGHT WPL 631791 Contact Us For Availability
59
SCREW WPL 4010111 Contact Us For Availability
59
SOC WPL 630391 Contact Us For Availability
60
WPL 630561 WPL 630561 Contact Us For Availability
61
WPL 630401 WPL 630401 Contact Us For Availability
62
WPL 4050711 WPL 4050711 Contact Us For Availability
62
WPL 554402 WPL 554402 Contact Us For Availability
63
WPL 4000221 WPL 4000221 Contact Us For Availability
63
WPL 630132 WPL 630132 Contact Us For Availability
63
WPL 634592 WPL 634592 Contact Us For Availability
64
WPL 653331 WPL 653331 Contact Us For Availability
65
WPL 630382 WPL 630382 Contact Us For Availability
66
WPL 592051 WPL 592051 Contact Us For Availability
67
WPL 651761 WPL 651761 Contact Us For Availability
68
WPL 651771 WPL 651771 Contact Us For Availability
69
WPL 651851 WPL 651851 Contact Us For Availability
70
WPL 4050221 WPL 4050221 Contact Us For Availability
70
WPL 651321 WPL 651321 Contact Us For Availability
71
WPL 657981 WPL 657981 Contact Us For Availability
72
WPL 652862 WPL 652862 Contact Us For Availability
73
WPL 406026103 WPL 406026103 Contact Us For Availability
73
WPL 4060431 WPL 4060431 Contact Us For Availability
73
WPL 652851 WPL 652851 Contact Us For Availability
74
WPL 4050721 WPL 4050721 Contact Us For Availability
75
WPL 4300021 WPL 4300021 Contact Us For Availability
75
WPL 643291 WPL 643291 Contact Us For Availability
× ![]()
Login and Registration Form
