Model Whirlpool DNS24H9W REFRIGERATOR – Common Parts & Diagrams

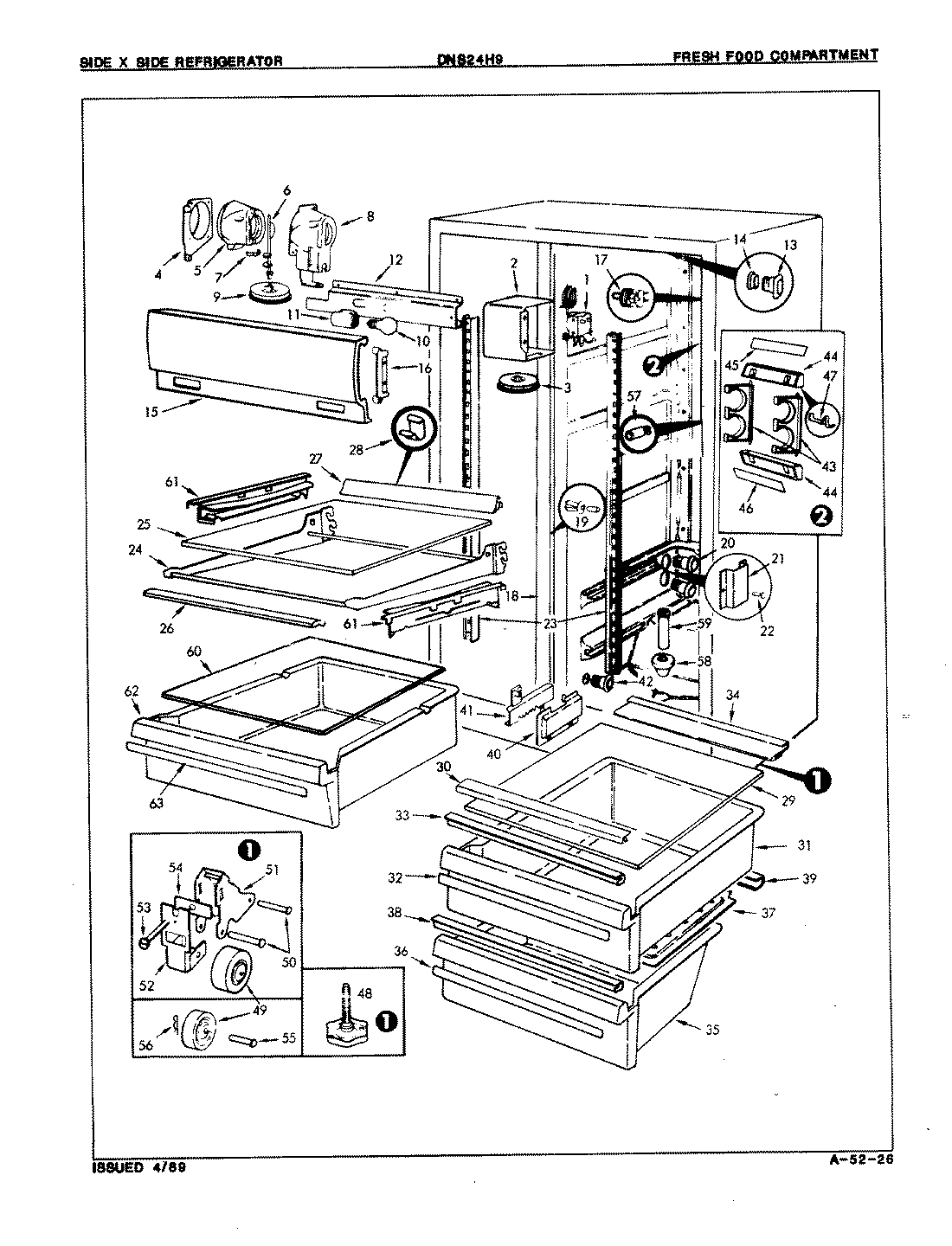

01 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool DNS24H9W REFRIGERATOR
1
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
13
TUNNEL WPL 574102 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557817 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
SPACER WPL 655121 Contact Us For Availability
19
CLIP WPL 530604 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
24
FRAME, SHELF WPL 656182 Contact Us For Availability
25
SHELF, GLASS WPL 6660414 Contact Us For Availability
26
TRIM WPL 656144 Contact Us For Availability
27
TRIM WPL 6527614 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
29
SHELF, CRISPER WPL 656872 Contact Us For Availability
30
TRIM, SHELF WPL 65561401 Contact Us For Availability
31
PAN, STORAGE WPL 666362 Contact Us For Availability
33
SEAL WPL 655932 Contact Us For Availability
34
CRISPER SEAL WPL 660922 Contact Us For Availability
35
PAN, STORAGE WPL 666364 Contact Us For Availability
37
COVER, MEAT PAN WPL 656084 Contact Us For Availability
38
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
39
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
40
CONTROL HOUSING WPL 657371 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
42
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
45
INSERT WPL 657533 Contact Us For Availability
46
INSERT WPL 6575317 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
50
PIN, WHEEL WPL 649651 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
54
SCREW WPL 4000171 Contact Us For Availability
54
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
55
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
56
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
56
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
56
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
56
WIRE HARNESS WPL 661571 Contact Us For Availability
57
NYLON NUT WPL 195302 Contact Us For Availability
58
GROMMET WPL 555121 Contact Us For Availability
59
TUBE WPL 555131 Contact Us For Availability
60
SHELF, GLASS WPL 6660416 Contact Us For Availability
61
SLIDE RAIL WPL 668121 Contact Us For Availability
62
TRAY WPL 6663630 Contact Us For Availability
63
INSERT WPL 6558377 Contact Us For Availability
× ![]()
