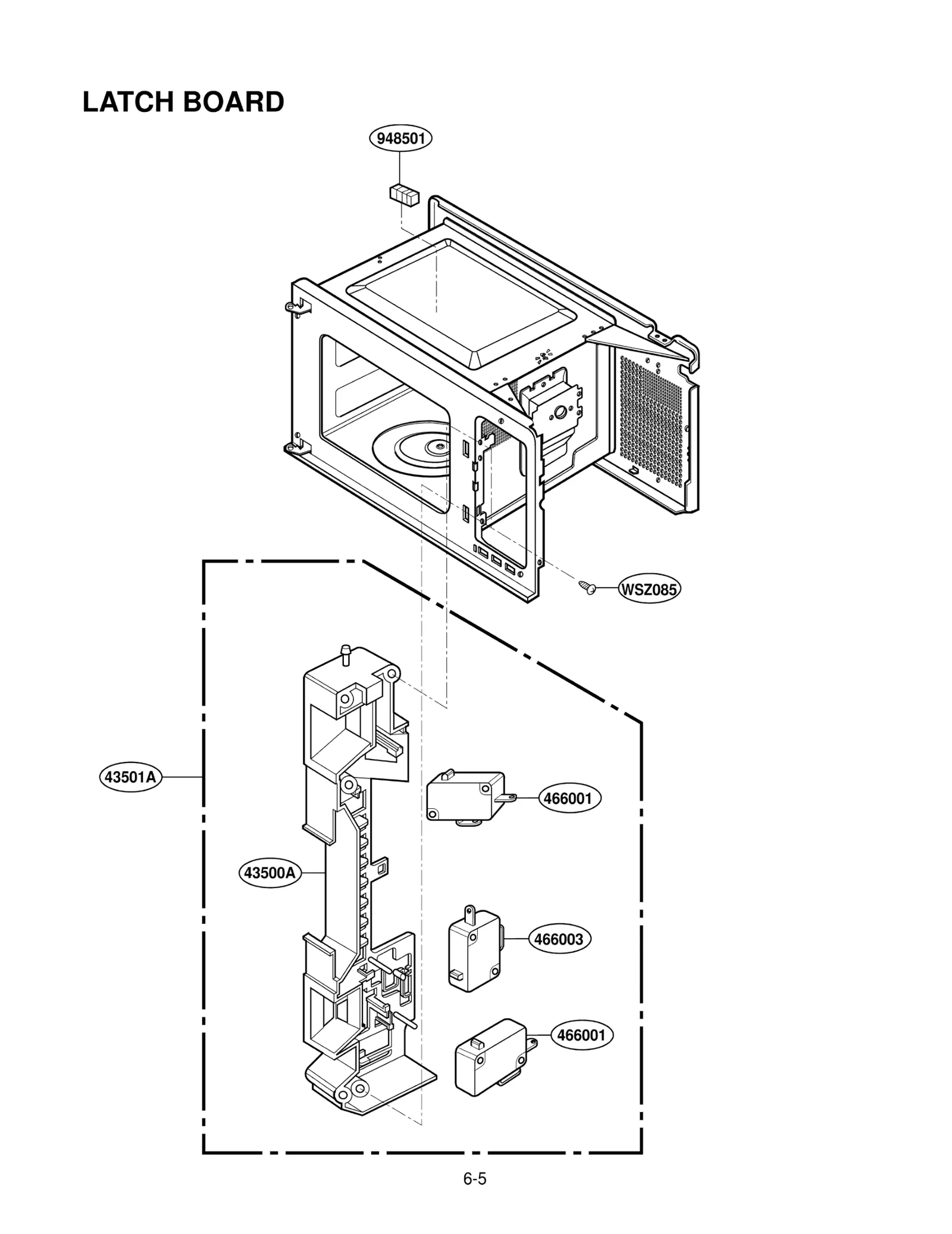

Diagram 1

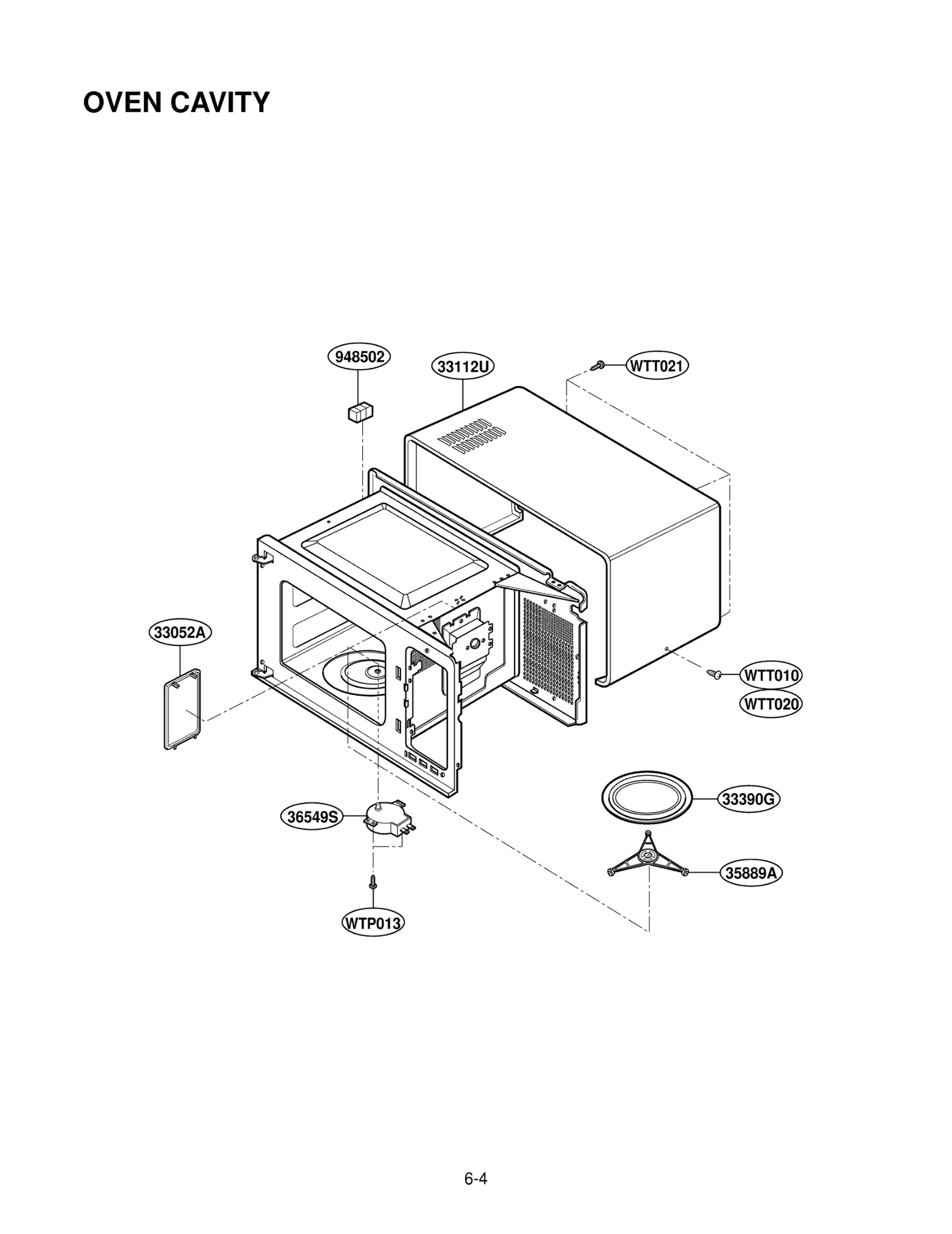

Diagram 2

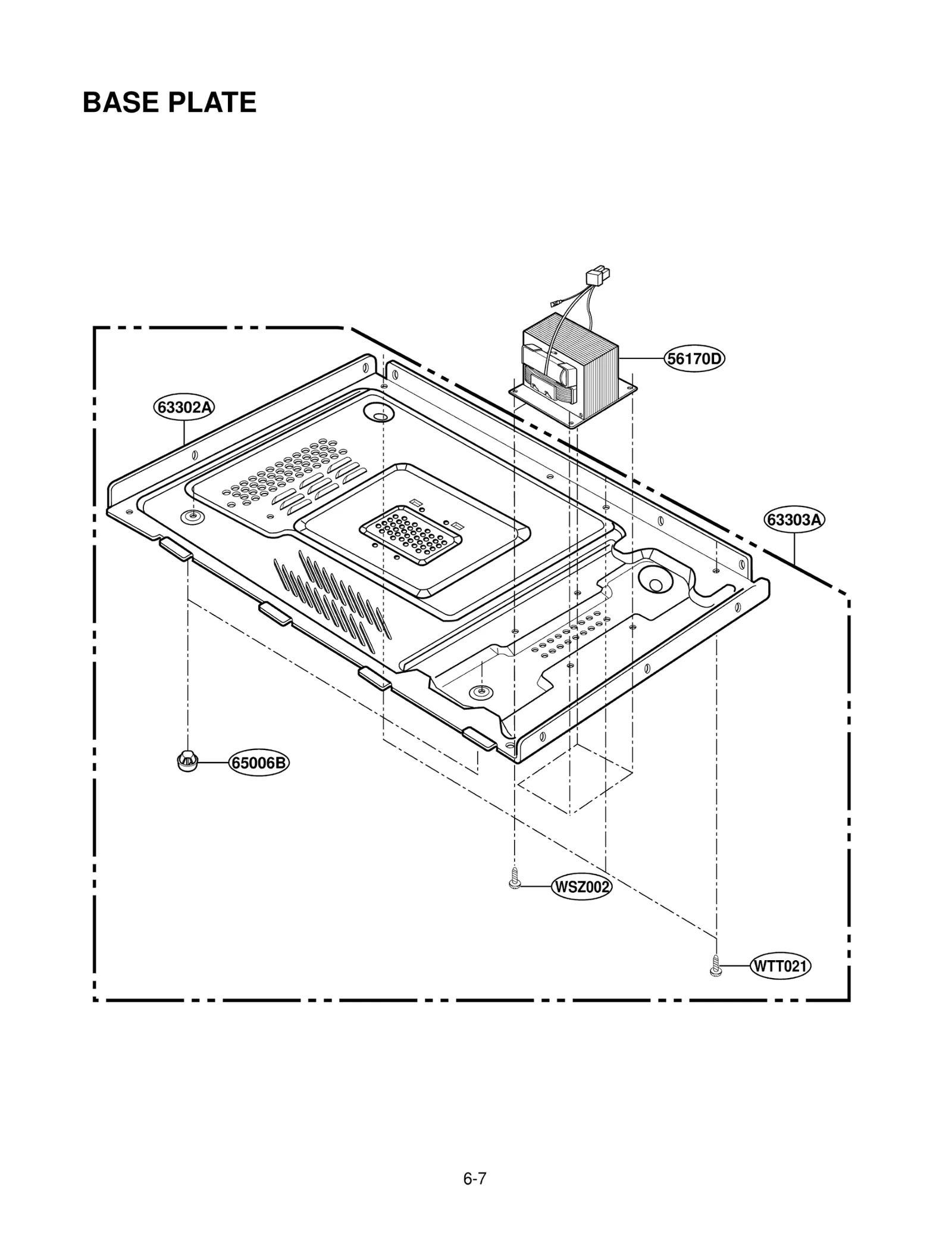

Diagram 3

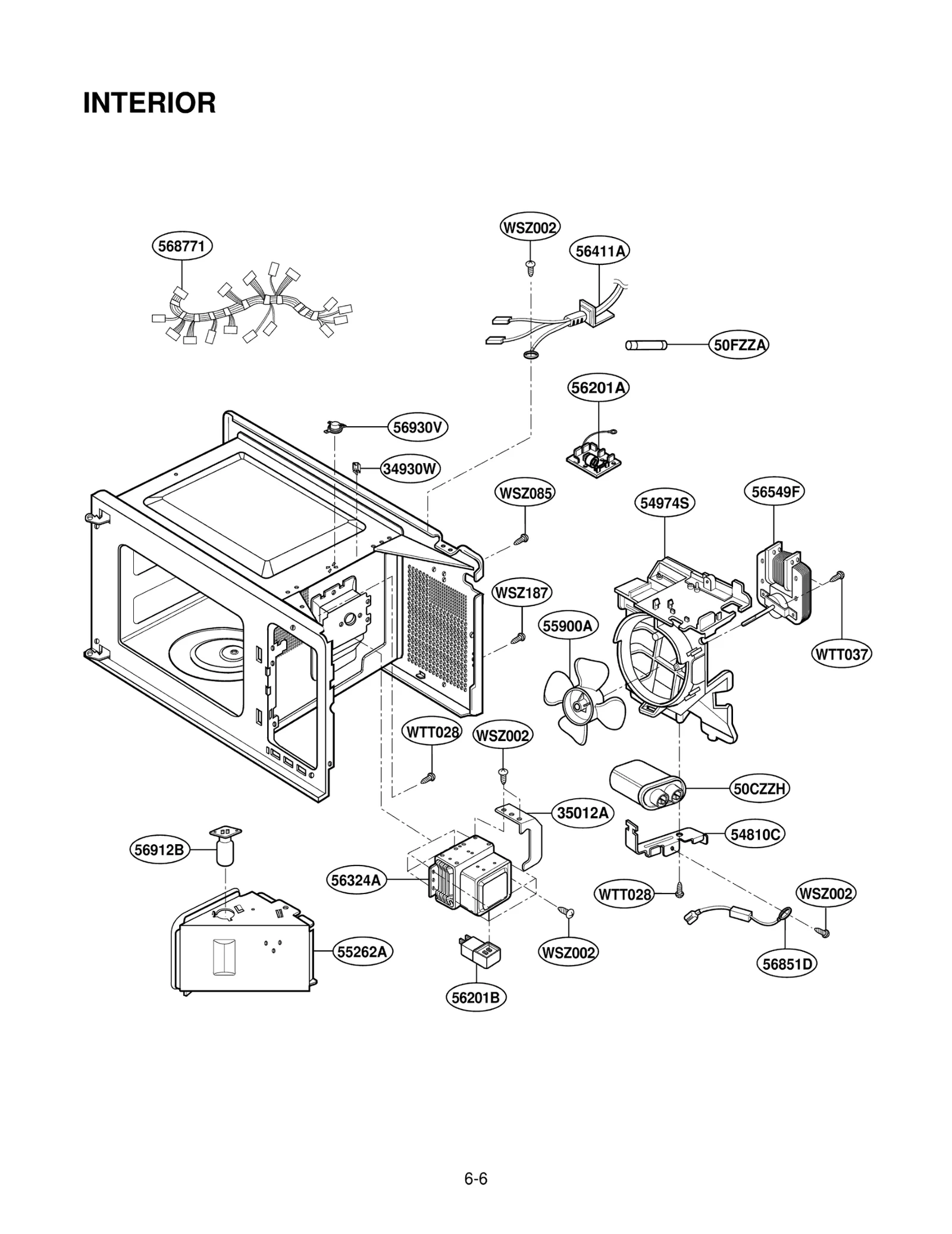

Diagram 4
Diagram 5
Diagram 6

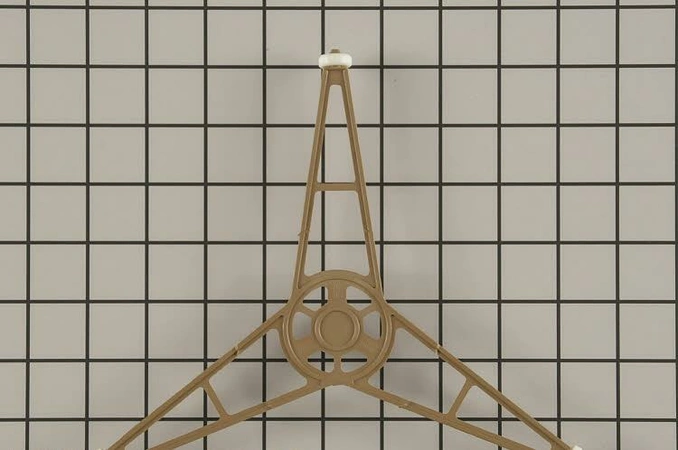

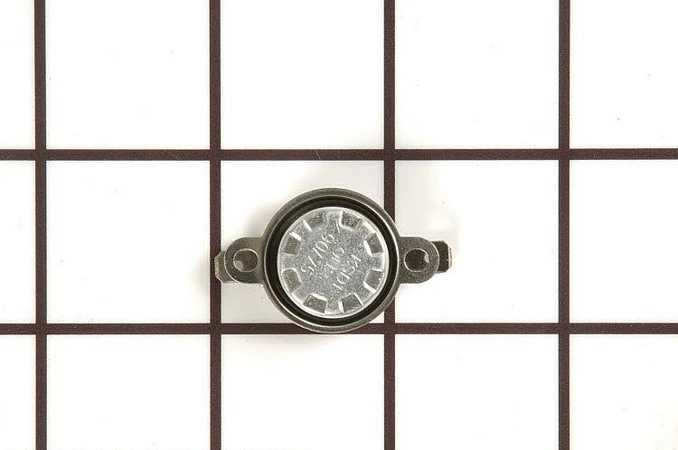

Common parts from model LG DMW14MB MWO-L
*01
MANUAL,OWNERS LGE 3828W5A2795 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S2455 Contact Us For Availability
*10
BOX,YELLOW LGE 3890W2Y168C Contact Us For Availability
23506A
KEY MEMBRANE LGE 3506W1A297B Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
CONTROL PANEL LGE 3572W0A229B Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
CONTROLLER ASSEMBLY,MICOM LGE 4781W0M001N Contact Us For Availability
33112U
OUT CASE,U-BENDING LGE 3112W0U047E Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
35012A
INSULATOR LGE 5012W3A020A Contact Us For Availability
43500A
BOARD,LATCH LGE 3500W1A008A Contact Us For Availability
43501A
Holder Assembly,Locker LGE 3501W1A003S Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
Guide,Suction LGE 4974W0A003A Contact Us For Availability
55900A
FAN LGE 5900W1A007A Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D065D Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56411A
POWER CORD ASS Y MA-870RV 1161 LGE 6411W2A002B Contact Us For Availability
56549F
Confirmed NLA with no LTB option 5/9/14 NB LGE 6549W1F009A Contact Us For Availability
63302A
BASE PLATE LGE 3302W0A036A Contact Us For Availability
63303A
BASE PLATE ASSEMBLY LGE 3303W0A019A Contact Us For Availability
63861A
KIT ASSEMBLY LGE 3861W2A002P Contact Us For Availability
268711
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S082F Contact Us For Availability
568771
HARNESS LGE 6877W1A186L Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C12
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C13
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C15
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C16
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C20
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C81
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1020K518 Contact Us For Availability
CN1
CONNECTOR (CIRC),WAFER LGE 6630W5YA12D Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D13
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D83
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q20
TRANSISTOR,BIPOLARS LGE 0TRFC90012A Contact Us For Availability
Q30
TRANSISTOR,BIPOLARS LGE 0TRFC80002A Contact Us For Availability
Q31
TRANSISTOR,BIPOLARS LGE 0TRFC90002A Contact Us For Availability
Q71
TRANSISTOR,BIPOLARS LGE 0TRFC90021A Contact Us For Availability
R1
RESISTOR,FIXED METAL FILM LGE 0RN4702F408 Contact Us For Availability
R5
RESISTOR,FIXED METAL FILM LGE 0RN1503F408 Contact Us For Availability
R6
RESISTOR,FIXED METAL FILM LGE 0RN4702G408 Contact Us For Availability
R11
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R12
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R15
LGE 0RD0471G608 LGE 0RD0471G608 Contact Us For Availability
R16
LGE 0RD1003G608 LGE 0RD1003G608 Contact Us For Availability
R21
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R23
LGE 0RD2700G608 LGE 0RD2700G608 Contact Us For Availability
R25
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R27
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R32
LGE 0RD2001G608 LGE 0RD2001G608 Contact Us For Availability
R50
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R71
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R80
LGE 0RN2202G408 LGE 0RN2202G408 Contact Us For Availability
R81
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R83
RESISTOR,FIXED METAL FILM LGE 0RN5602F408 Contact Us For Availability
R95
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
RY1
RELAY LGE 6920WRD008A Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A164D Contact Us For Availability
WSZ187
SCREW, LGE 1SZZW2A002B Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE,ZENERS LGE 0DZ750009QA Contact Us For Availability
× ![]()
