Model Electrolux DMT103T1W1 MICROWAVE – Common Parts & Diagrams

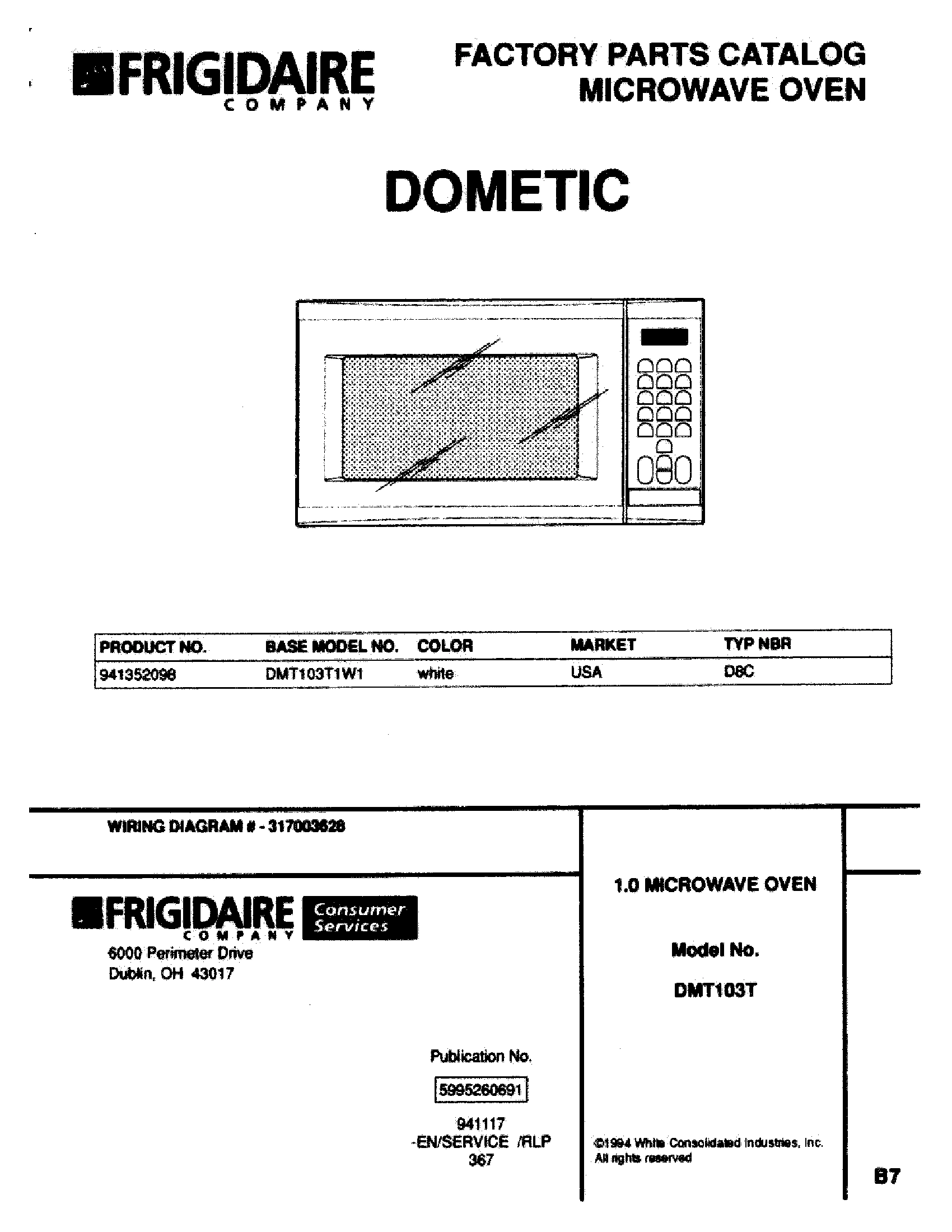

01 - COVER

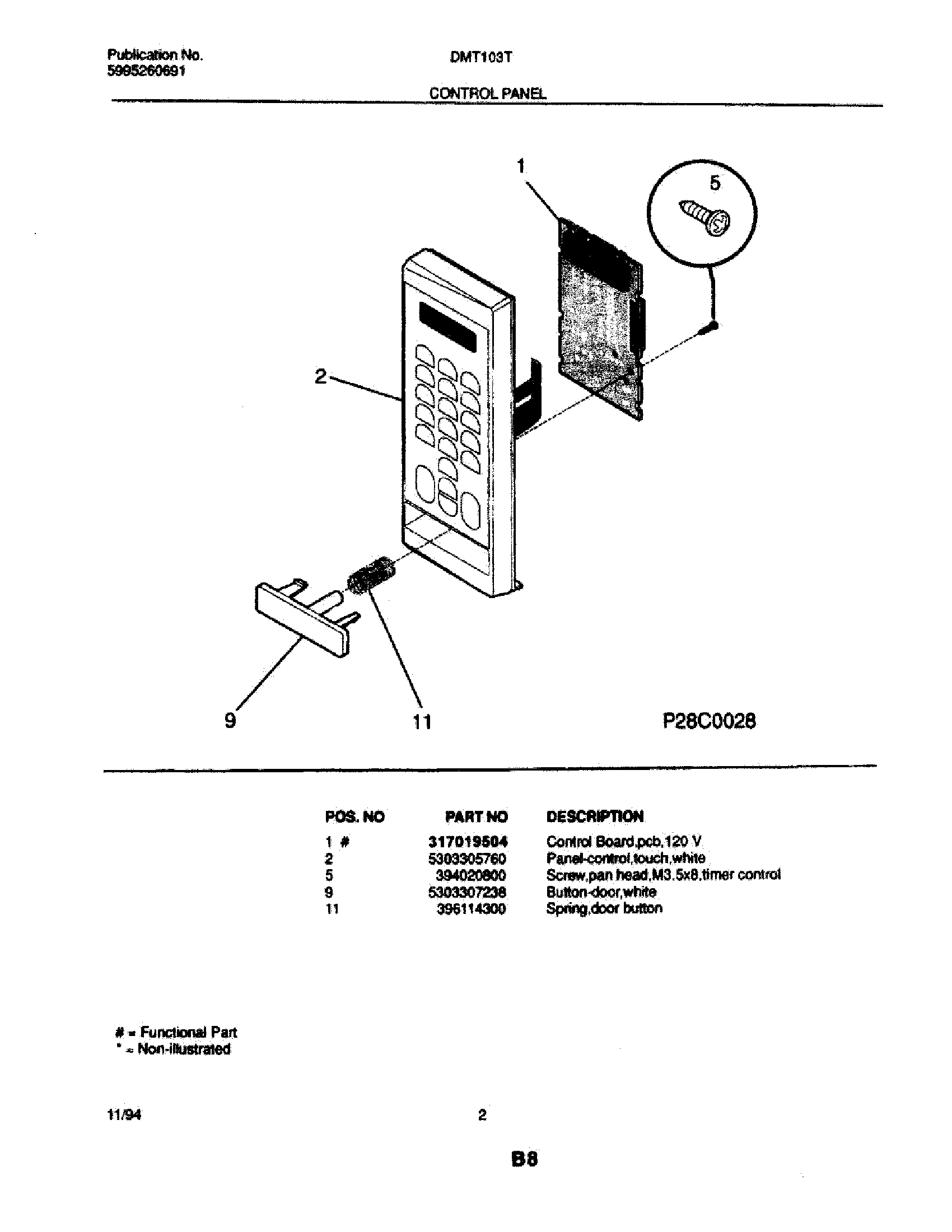

02 - CONTROL PANEL
03 - DOOR
05 - FUNCTIONAL PARTS
07 - WRAPPER/BODY
08 - WIRING DIAGRAM
Common parts from model Electrolux DMT103T1W1 MICROWAVE
WCI 5303305762 WCI 5303305762 Contact Us For Availability
WCI 317000337 WCI 317000337 Contact Us For Availability
WCI 5303203121 WCI 5303203121 Contact Us For Availability
WCI 5303281325 WCI 5303281325 Contact Us For Availability
WCI 5303212809 WCI 5303212809 Contact Us For Availability
1
WCI 5308037723 WCI 5308037723 Contact Us For Availability
2
WCI 5303305760 WCI 5303305760 Contact Us For Availability
2
SCREW, CR FLAT HEAD, 8-15(A) X 1/2, HINGE WCI 5303013882 Contact Us For Availability
2
PLUG BUTTON (BROWNER) WCI 5303013626 Contact Us For Availability
3
WCI 5303013771 WCI 5303013771 Contact Us For Availability
4
WCI 317012701 WCI 317012701 Contact Us For Availability
5
WCI 394020800 WCI 394020800 Contact Us For Availability
5
WCI 5303017864 WCI 5303017864 Contact Us For Availability
6
WCI 5303305761 WCI 5303305761 Contact Us For Availability
7
WCI 5303305739 WCI 5303305739 Contact Us For Availability
8
HINGE-DOOR, WHITE, SEE NOTE 3 WCI 5303279273 Contact Us For Availability
8
WCI 5303203636 WCI 5303203636 Contact Us For Availability
9
WCI 5303307238 WCI 5303307238 Contact Us For Availability
9
WCI 5303206781 WCI 5303206781 Contact Us For Availability
10
WCI 5303922180 WCI 5303922180 Contact Us For Availability
10
WCI 5303212775 WCI 5303212775 Contact Us For Availability
11
WCI 396114300 WCI 396114300 Contact Us For Availability
11
WCI 5303273356 WCI 5303273356 Contact Us For Availability
12
WCI 5303212773 WCI 5303212773 Contact Us For Availability
12
SUPPORT, THRM PROTECTOR WCI 5303212788 Contact Us For Availability
13
WCI 317005405 WCI 317005405 Contact Us For Availability
13
WCI 5303280263 WCI 5303280263 Contact Us For Availability
14
WCI 317000703 WCI 317000703 Contact Us For Availability
14
WCI 5303305444 WCI 5303305444 Contact Us For Availability
16
WCI 5303212799 WCI 5303212799 Contact Us For Availability
16
SCREW, TAMPER PROOF, 8-15(A) X 1/2 WCI 394027600 Contact Us For Availability
17
WCI 317018001 WCI 317018001 Contact Us For Availability
18
WCI 317013501 WCI 317013501 Contact Us For Availability
18
WCI 317016901 WCI 317016901 Contact Us For Availability
20
WCI 317019004 WCI 317019004 Contact Us For Availability
21
MOTOR-FAN, 120 V, INCLUDES MOTOR, FAN DUCT, F WCI 5303922053 Contact Us For Availability
22
SCREW, THREAD FORMING, 8-32 X 1/2, FAN MTR/GR WCI 317004703 Contact Us For Availability
22
WCI 5303295061 WCI 5303295061 Contact Us For Availability
23
WCI 317012905 WCI 317012905 Contact Us For Availability
24
WCI 317012801 WCI 317012801 Contact Us For Availability
25
WCI 317011203 WCI 317011203 Contact Us For Availability
26
WCI 5303272172 WCI 5303272172 Contact Us For Availability
26
WCI 317013101 WCI 317013101 Contact Us For Availability
27
SCREW-TURNTABLE MTR, 6-32 X 3/4 WCI 317009502 Contact Us For Availability
29
WCI 317008102 WCI 317008102 Contact Us For Availability
30
WCI 317005503 WCI 317005503 Contact Us For Availability
32
SCREW, HX SERR WSHR HD, 1/4-20 X 1/2, TRANSFO WCI 5303013944 Contact Us For Availability
33
WCI 5303305736 WCI 5303305736 Contact Us For Availability
34
WCI 5303305735 WCI 5303305735 Contact Us For Availability
35
WCI 5303305737 WCI 5303305737 Contact Us For Availability
35
WCI 5303305785 WCI 5303305785 Contact Us For Availability
41
WCI 394057100 WCI 394057100 Contact Us For Availability
44
WCI 317013303 WCI 317013303 Contact Us For Availability
49
WCI 317017801 WCI 317017801 Contact Us For Availability
51
FOOT WCI 317005302 Contact Us For Availability
52
WCI 317005121 WCI 317005121 Contact Us For Availability
54
WCI 317009903 WCI 317009903 Contact Us For Availability
55
FAN BLADE, FAN MOTOR WCI 5303212786 Contact Us For Availability
55
SCREW, 8-18 X 1/2, CAPACITOR, WRAPPER & COVER WCI 5303273263 Contact Us For Availability
56
WCI 5303271581 WCI 5303271581 Contact Us For Availability
56
WCI 317013202 WCI 317013202 Contact Us For Availability
57
WCI 317013203 WCI 317013203 Contact Us For Availability
58
WCI 5303301275 WCI 5303301275 Contact Us For Availability
59
WCI 317018801 WCI 317018801 Contact Us For Availability
62
WCI 317005120 WCI 317005120 Contact Us For Availability
81
WCI 396122800 WCI 396122800 Contact Us For Availability
82
SCREW-THERMAL CUTOUT, PH PAN TAPTITE, 6-32 X WCI 317009503 Contact Us For Availability
84
WCI 5303212803 WCI 5303212803 Contact Us For Availability
85
NUT,HEX,MAGNETRON WCI 5308008918 Contact Us For Availability
× ![]()
