Model Whirlpool DM85L MICROWAVE – Common Parts & Diagrams

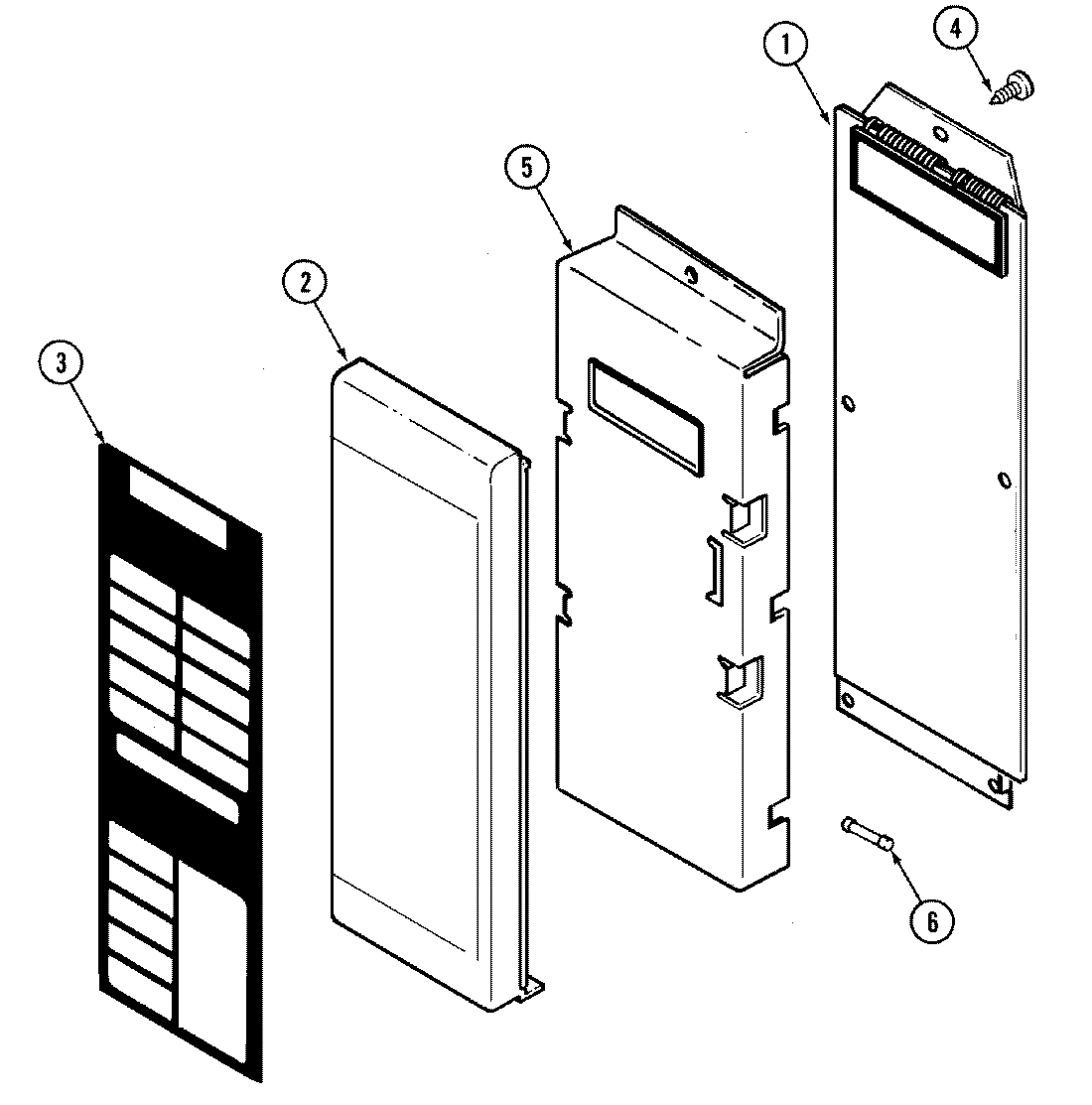

02 - CONTROL PANEL

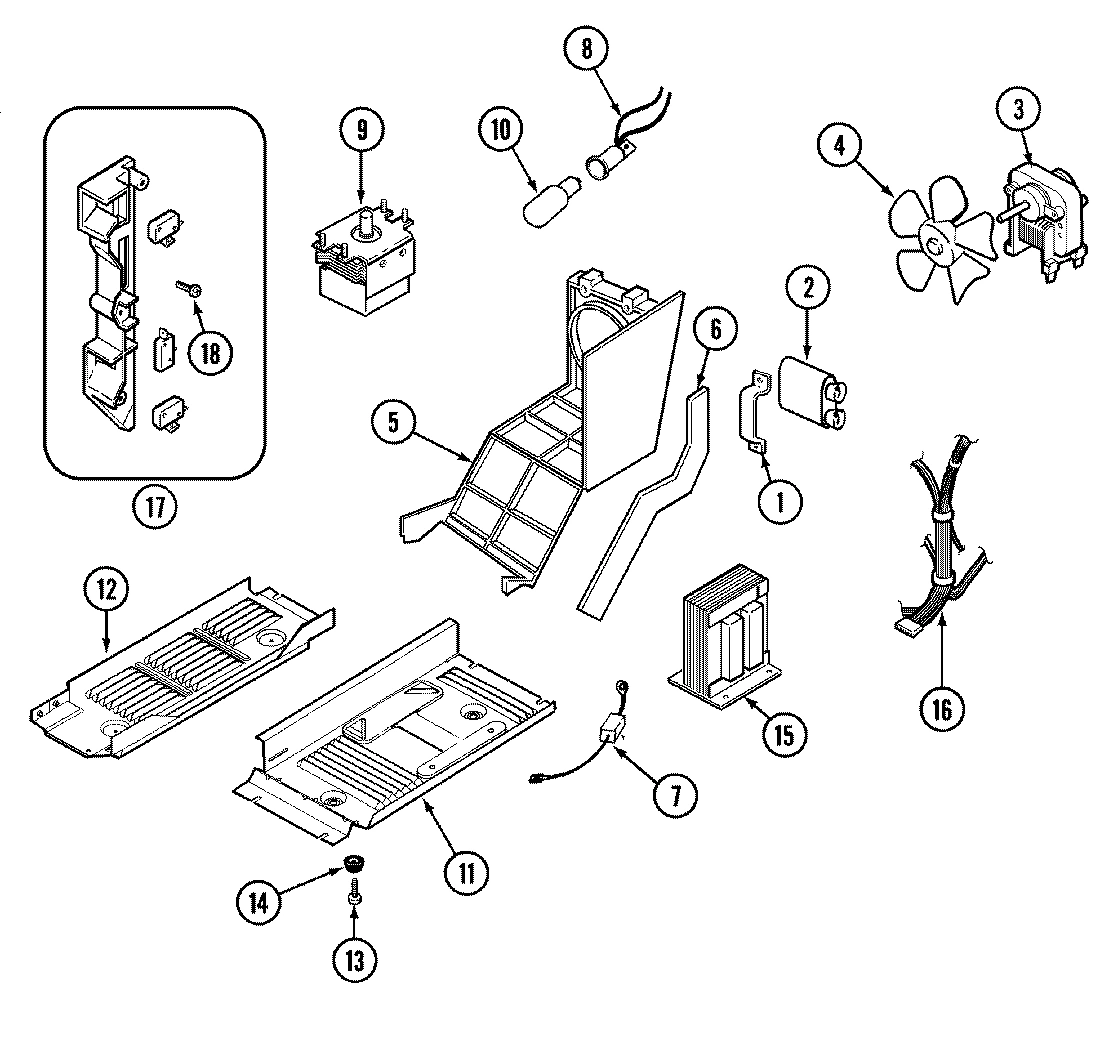

04 - INTERNAL CONTROLS
03 - DOOR
05 - TURNTABLE
06 - WIRING INFORMATION
01 - BASE
Common parts from model Whirlpool DM85L MICROWAVE
1
BOARD, CONTROL WPL 51001340 Contact Us For Availability
1
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
1
WINDOW, DOOR (OUTER-BLK) WPL 51001040 Contact Us For Availability
1
PIN, PIVOT WPL Y03070041 Contact Us For Availability
1
BLADE, STIRRER WPL 51001048 Contact Us For Availability
2
PANEL, CONTROL (BLK) WPL 51001052 Contact Us For Availability
2
CAPACITOR (800/1100 WATT) WPL 51001301 Contact Us For Availability
2
CHOKE, DOOR (BLK) WPL 51001038 Contact Us For Availability
2
COVER, TURNTABLE MOTOR WPL 51001061 Contact Us For Availability
2
DUCT, STIRRER WPL 51001027 Contact Us For Availability
3
SWITCH, CONTROL (BLK) WPL 51001055 Contact Us For Availability
3
SCREW WPL 51001101 Contact Us For Availability
3
MOTOR, FAN WPL 51001265 Contact Us For Availability
3
LATCH, STRIKE WPL 51001036 Contact Us For Availability
3
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
3
COVER, STIRRER WPL 51001028 Contact Us For Availability
4
BLADE, FAN WPL 51001051 Contact Us For Availability
4
LINING, DOOR (BLK) WPL 51001295 Contact Us For Availability
4
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
4
CAVITY (WHT) WPL 51001281 Contact Us For Availability
5
BRACKET, CONTROL WPL 51001054 Contact Us For Availability
5
BRACKET, FAN WPL 51001049 Contact Us For Availability
5
WINDOW, DOOR (INNER) WPL 51001039 Contact Us For Availability
5
ROLLER WPL 02210011 Contact Us For Availability
5
WRAPPER (WDGRN) WPL 51001356 Contact Us For Availability
6
TAPE, FOAM WPL 05140007 Contact Us For Availability
6
SPRING, DOOR WPL 51001197 Contact Us For Availability
6
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
7
MANUAL, USE & CARE/COOKBOOK WPL 51001355 Contact Us For Availability
7
DIODE ASSY. WPL Y04010219 Contact Us For Availability
7
SCREW WPL 03010151 Contact Us For Availability
7
CLIP WPL Y03110050 Contact Us For Availability
8
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
8
RECEPTACLE, BULB WPL 51001095 Contact Us For Availability
8
LABEL, COOKING GUIDE WPL 51001108 Contact Us For Availability
9
MAGNETRON (1100 WATT) WPL 51001240 Contact Us For Availability
9
SCREW WPL 03020030 Contact Us For Availability
9
TURNTABLE WPL Y02460009 Contact Us For Availability
9
CORD, POWER WPL 01080066 Contact Us For Availability
10
BULB, LIGHT WPL Y01060024 Contact Us For Availability
10
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
10
BUTTON, DOOR RELEASE (BLK) WPL 51001041 Contact Us For Availability
11
CHANNEL, BASE (RT) WPL 51001059 Contact Us For Availability
11
HINGE, DOOR (LOWER) WPL 51001284 Contact Us For Availability
12
CHANNEL, BASE (LT) WPL 51001057 Contact Us For Availability
12
BAFFLE, AIR (LT) WPL 51001058 Contact Us For Availability
12
HINGE, DOOR (UPPER) WPL 51001285 Contact Us For Availability
13
SCREW WPL Y03020076 Contact Us For Availability
13
WASHER WPL 51001100 Contact Us For Availability
14
FOOT, BASE WPL Y02230009 Contact Us For Availability
15
SCREW WPL 03010094 Contact Us For Availability
15
TRANSFORMER (1100 WATT) WPL 51001243 Contact Us For Availability
16
HARNESS, WIRE WPL 51001331 Contact Us For Availability
17
INTERLOCK ASSY. WPL 51001245 Contact Us For Availability
18
SCREW WPL 51001217 Contact Us For Availability
19
WIRE, H.V. LEAD (16``) WPL 51001146 Contact Us For Availability
19
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
19
CLIP WPL Y03110078 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001259 Contact Us For Availability
× ![]()
