Model Maytag DM5K-7TS MICROWAVE – Common Parts & Diagrams
01 - BASE
02 - CONTROL PANEL

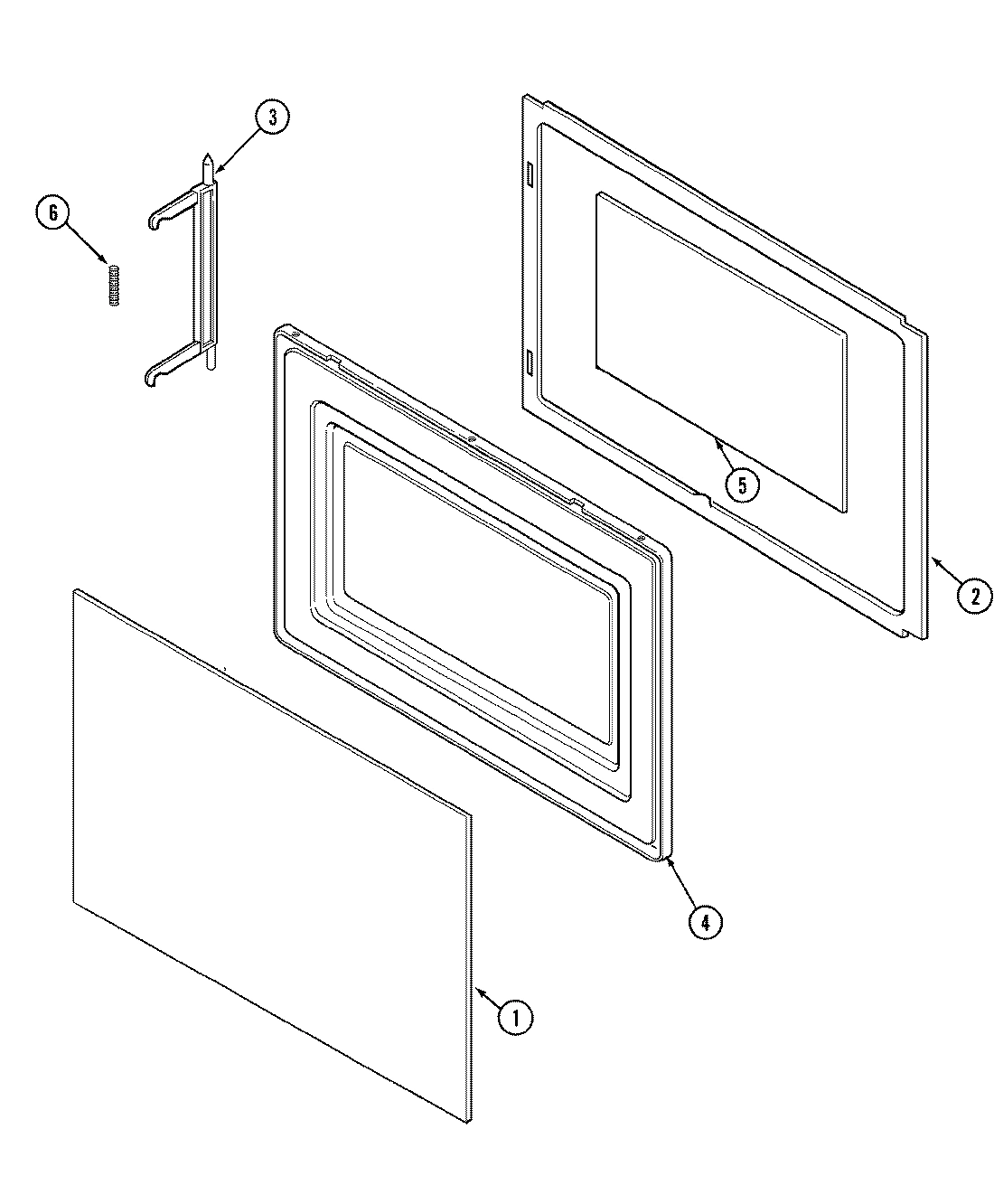

03 - DOOR

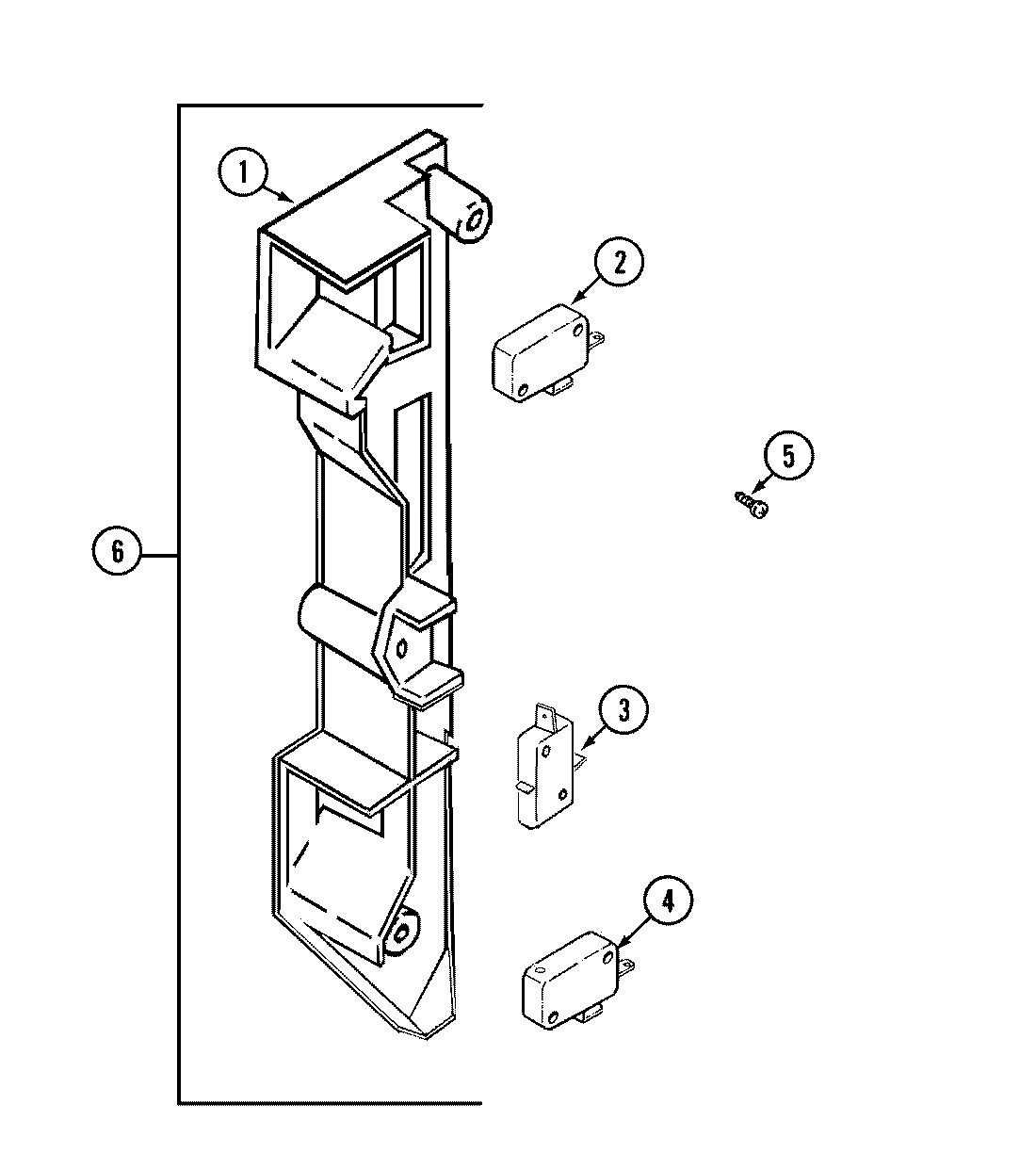

04 - INTERLOCK SWITCHES

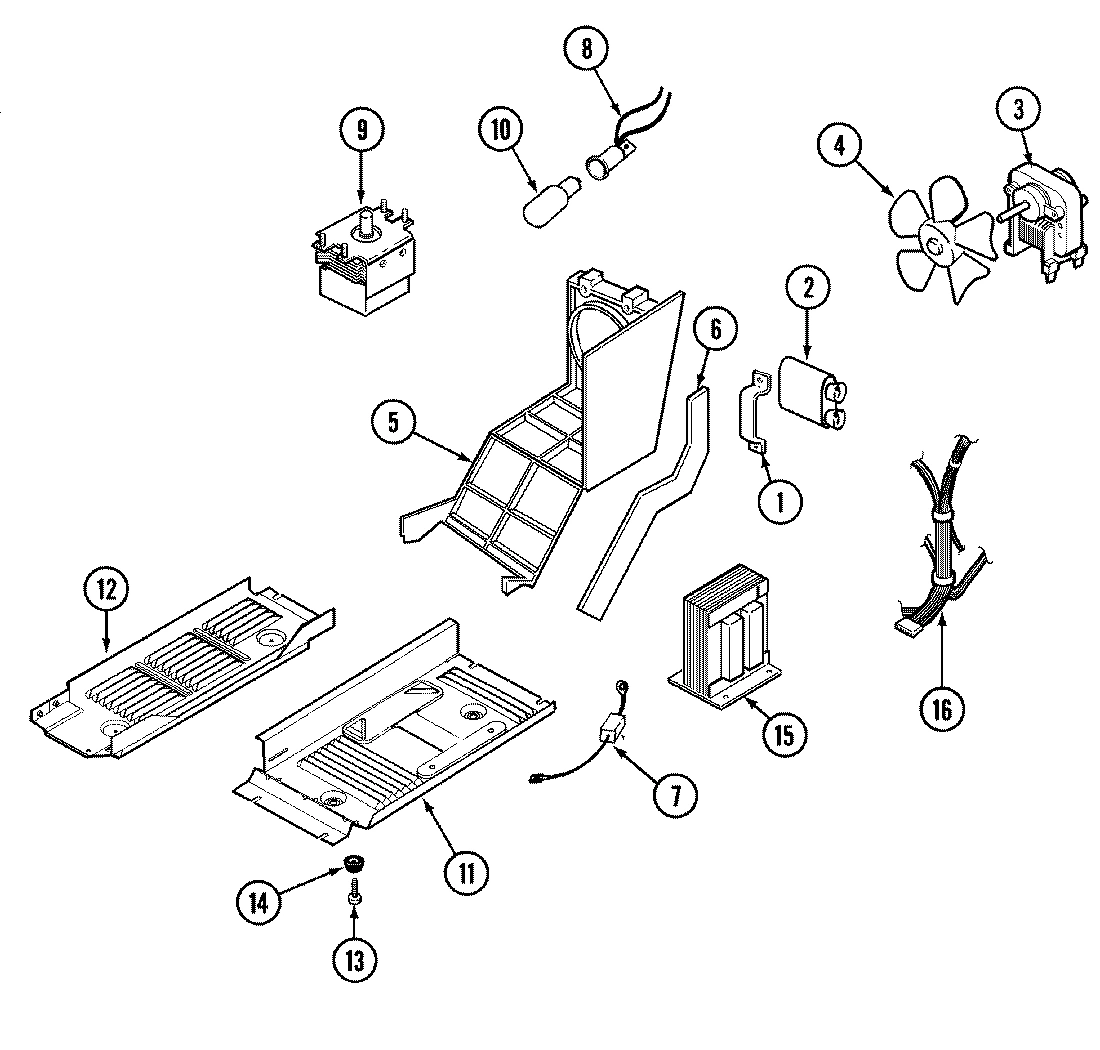

05 - INTERNAL CONTROLS

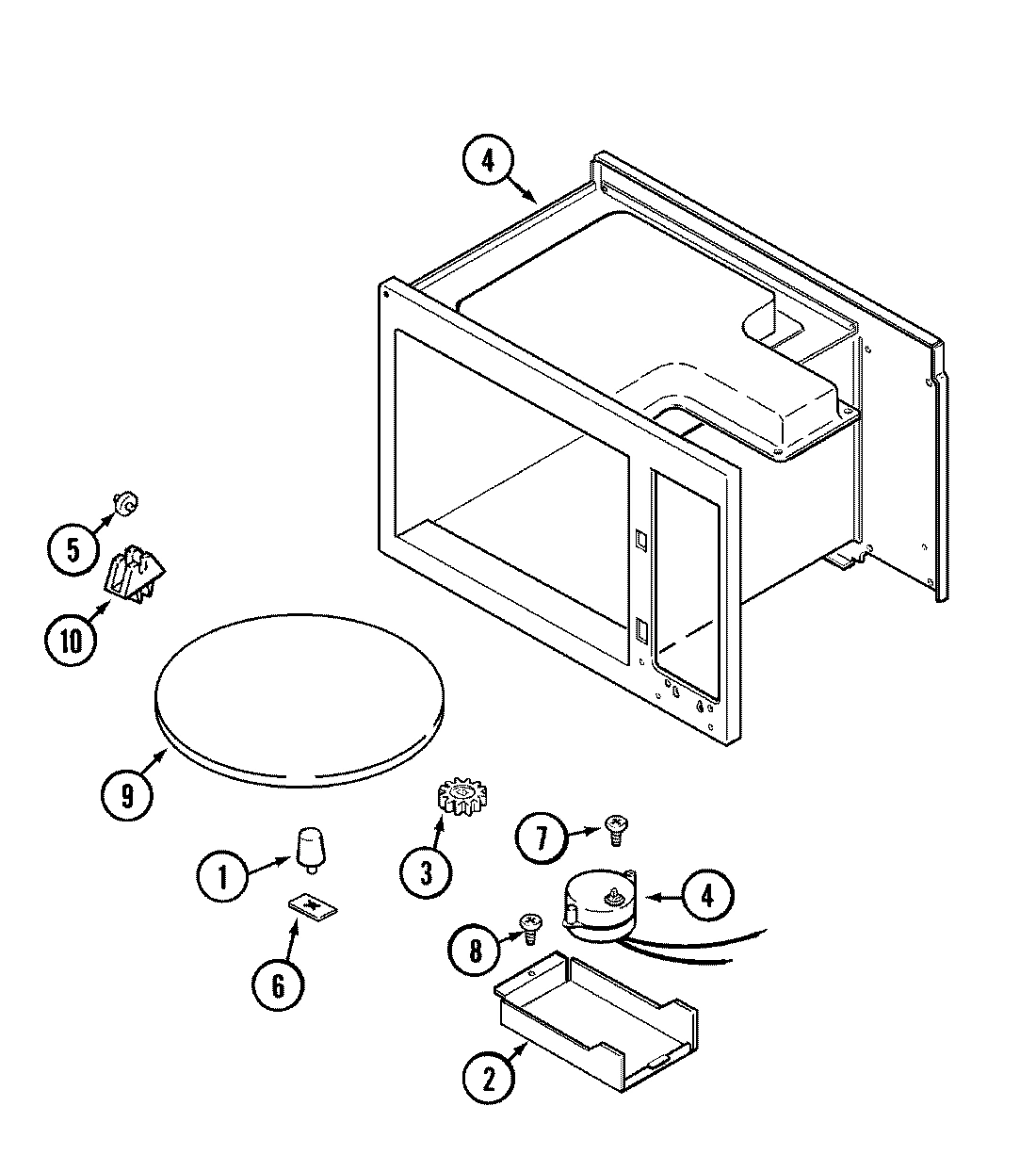

06 - TURNTABLE

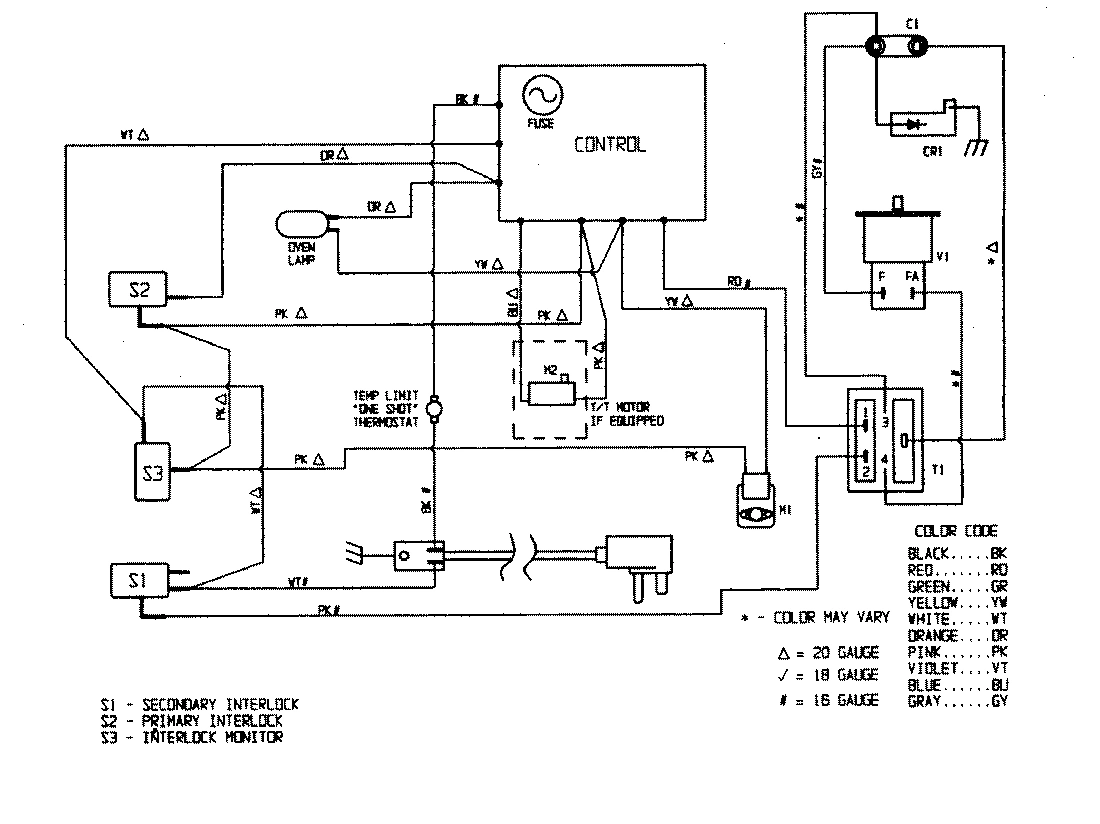

07 - WIRING INFORMATION
Common parts from model Maytag DM5K-7TS MICROWAVE
1
MAY 51001053 MAY 51001053 Contact Us For Availability
1
MAY 51001336 MAY 51001336 Contact Us For Availability
1
MAY 51001196 MAY 51001196 Contact Us For Availability
1
MAY 51001043 MAY 51001043 Contact Us For Availability
1
MAY 02030175 MAY 02030175 Contact Us For Availability
1
MAY Y03070041 MAY Y03070041 Contact Us For Availability
2
MAY 51001210 MAY 51001210 Contact Us For Availability
2
MAY 51001052 MAY 51001052 Contact Us For Availability
2
MAY 51001038 MAY 51001038 Contact Us For Availability
2
MAY 51001044 MAY 51001044 Contact Us For Availability
2
MAY 51001071 MAY 51001071 Contact Us For Availability
2
MAY 51001301 MAY 51001301 Contact Us For Availability
2
MAY 51001061 MAY 51001061 Contact Us For Availability
3
MAY 51001028 MAY 51001028 Contact Us For Availability
3
MAY 51001187 MAY 51001187 Contact Us For Availability
3
MAY 51001036 MAY 51001036 Contact Us For Availability
3
MAY 51001045 MAY 51001045 Contact Us For Availability
3
MAY 51001050 MAY 51001050 Contact Us For Availability
3
MAY 51001101 MAY 51001101 Contact Us For Availability
3
MAY Y02450002 MAY Y02450002 Contact Us For Availability
4
MAY 51001042 MAY 51001042 Contact Us For Availability
4
MAY Y03020094 MAY Y03020094 Contact Us For Availability
4
MAY 51001081 MAY 51001081 Contact Us For Availability
4
MAY 51001046 MAY 51001046 Contact Us For Availability
4
MAY 51001051 MAY 51001051 Contact Us For Availability
4
MAY 01110022 MAY 01110022 Contact Us For Availability
5
MAY 51001099 MAY 51001099 Contact Us For Availability
5
MAY 51001054 MAY 51001054 Contact Us For Availability
5
MAY 51001039 MAY 51001039 Contact Us For Availability
5
MAY 03020092 MAY 03020092 Contact Us For Availability
5
MAY 03030001 MAY 03030001 Contact Us For Availability
5
MAY 51001049 MAY 51001049 Contact Us For Availability
5
MAY 51001094 MAY 51001094 Contact Us For Availability
5
MAY 02210011 MAY 02210011 Contact Us For Availability
6
MAY Y01050005 MAY Y01050005 Contact Us For Availability
6
MAY 51001197 MAY 51001197 Contact Us For Availability
6
MAY 51001078 MAY 51001078 Contact Us For Availability
6
MAY 05140007 MAY 05140007 Contact Us For Availability
6
MAY Y03110070 MAY Y03110070 Contact Us For Availability
7
MAY Y03110050 MAY Y03110050 Contact Us For Availability
7
MAY 51001188 MAY 51001188 Contact Us For Availability
7
MAY 51001350 MAY 51001350 Contact Us For Availability
7
MAY Y04010219 MAY Y04010219 Contact Us For Availability
7
MAY 03010151 MAY 03010151 Contact Us For Availability
8
MAY 51001100 MAY 51001100 Contact Us For Availability
8
MAY Y03020076 MAY Y03020076 Contact Us For Availability
8
MAY 16000329 MAY 16000329 Contact Us For Availability
8
MAY 03110061 MAY 03110061 Contact Us For Availability
8
MAY 51001030 MAY 51001030 Contact Us For Availability
8
MAY 51001095 MAY 51001095 Contact Us For Availability
9
MAY 01080066 MAY 01080066 Contact Us For Availability
9
MAY 51001074 MAY 51001074 Contact Us For Availability
9
MAY 51001145 MAY 51001145 Contact Us For Availability
10
MAY 51001041 MAY 51001041 Contact Us For Availability
10
MAY Y02100186 MAY Y02100186 Contact Us For Availability
11
MAY 03020030 MAY 03020030 Contact Us For Availability
11
MAY 51001047 MAY 51001047 Contact Us For Availability
11
MAY 51001059 MAY 51001059 Contact Us For Availability
12
MAY 51001035 MAY 51001035 Contact Us For Availability
12
MAY 51001057 MAY 51001057 Contact Us For Availability
12
MAY 51001058 MAY 51001058 Contact Us For Availability
13
MAY Y03020068 MAY Y03020068 Contact Us For Availability
14
MAY Y02230009 MAY Y02230009 Contact Us For Availability
15
MAY 25-7764 MAY 25-7764 Contact Us For Availability
15
MAY 51001073 MAY 51001073 Contact Us For Availability
16
MAY 51001064 MAY 51001064 Contact Us For Availability
17
MAY Y04060535 MAY Y04060535 Contact Us For Availability
18
MAY 51001253 MAY 51001253 Contact Us For Availability
19
MAY Y03110078 MAY Y03110078 Contact Us For Availability
NI
MAY 15001259 MAY 15001259 Contact Us For Availability
× ![]()
