Model LG DM2350D-PU – Common Parts & Diagrams

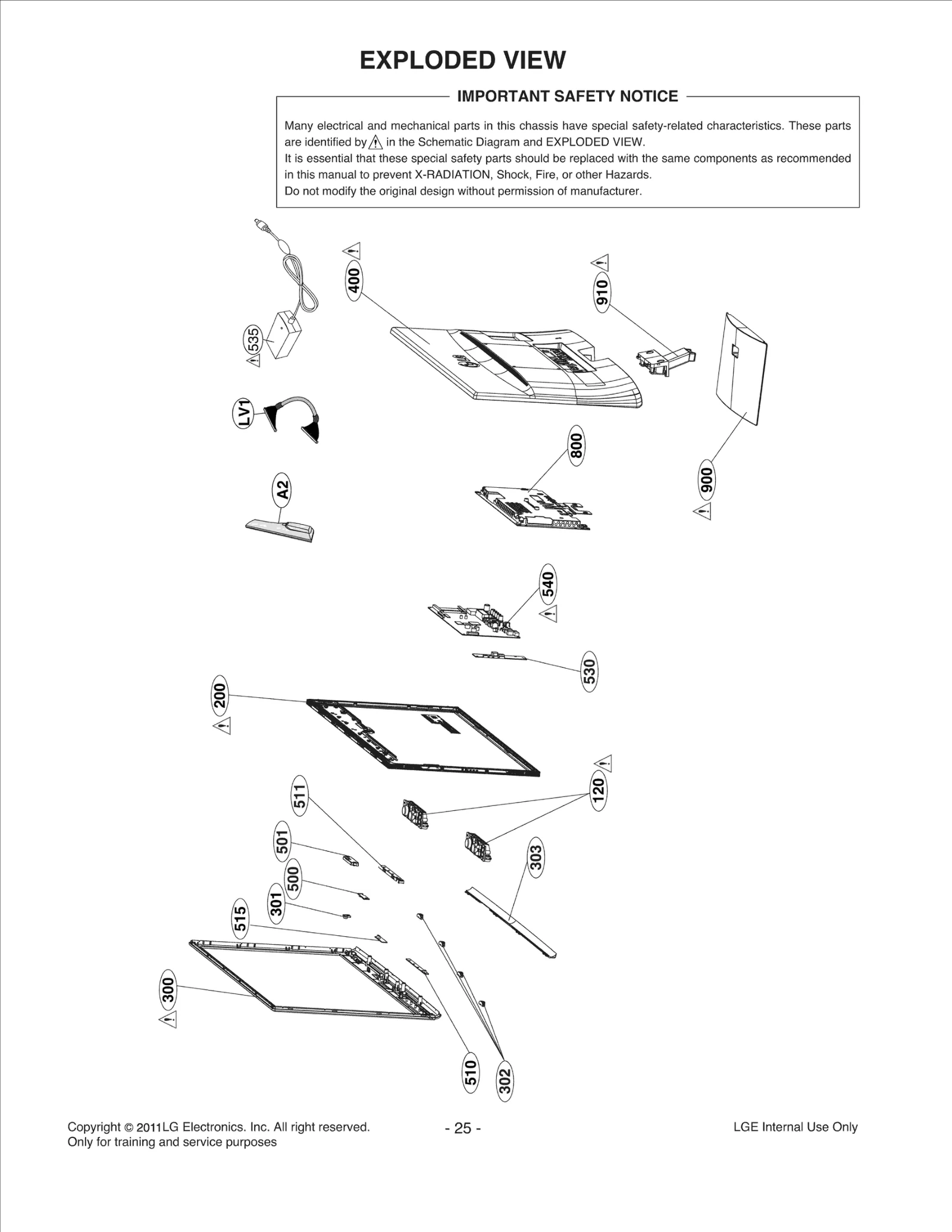

Diagram 0
Diagram 1
Common parts from model LG DM2350D-PU
120
Speaker Assembly LGE EAB61988401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61928701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73187716 Contact Us For Availability
301
Lens LGE MFB62212902 Contact Us For Availability
302
Bracket LGE MAZ62567101 Contact Us For Availability
303
Decor LGE MCR64357701 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ81429218 Contact Us For Availability
500
Package Assembly LGE AGF76084802 Contact Us For Availability
501
Bracket LGE MAZ62606802 Contact Us For Availability
510
Package Assembly LGE AGF76084601 Contact Us For Availability
511
Bracket LGE MAZ62604302 Contact Us For Availability
515
Package Assembly LGE AGF76084701 Contact Us For Availability
535
Adapters LGE EAY61231401 Contact Us For Availability
535
Adapters LGE EAY61231403 Contact Us For Availability
540
DMS Chassis Assembly LGE EBT61705603 Contact Us For Availability
800
Frame Assembly LGE ADV73967507 Contact Us For Availability
900
Base Assembly LGE AAN73350309 Contact Us For Availability
910
Base Assembly LGE AAN73350008 Contact Us For Availability
A1
Title LGE SAC34415320 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915295 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
CORD,A/V LGE 6852TAZ006J Contact Us For Availability
A11
Title LGE SAC34415311 Contact Us For Availability
AR103
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR313
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR959
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR1201
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C104
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C106
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C109
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C114
Capacitor,AL,Chip LGE EAE62301701 Contact Us For Availability
C120
Capacitor,Ceramic,Chip LGE EAE61103401 Contact Us For Availability
C123
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C227
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C245
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C248
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C286
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C321
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C414
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C703
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C705
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C714
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C720
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C731
Capacitor,Ceramic,Chip LGE 0CC391CK41A Contact Us For Availability
C734
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C747
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C804
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C809
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C811
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C829
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C830
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C836
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C855
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C857
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C870
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C878
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C901
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C909
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C911
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C937
Capacitor,Ceramic,Chip LGE EAE58746801 Contact Us For Availability
C946
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C947
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C982
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C988
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1311
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1313
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
D100
Diode,Schottky LGE EAH61112701 Contact Us For Availability
D600
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D622
Diode,TVS LGE EAH33945901 Contact Us For Availability
D801
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D900
Diode,TVS LGE EAH36618701 Contact Us For Availability
D902
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D1300
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
IC100
IC,LED Driver LGE EAN60866801 Contact Us For Availability
IC104
IC,EEPROM LGE EAN61086701 Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC301
IC,DDR2 SDRAM LGE EAN60762902 Contact Us For Availability
IC600
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC600
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
IC703
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC809
IC,Voltage Regulator LGE EAN60994801 Contact Us For Availability
IC810
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC900
IC,Tuner LGE EAN61857401 Contact Us For Availability
IC903
IC,Receiver LGE EAN58270401 Contact Us For Availability
JK402
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK900
Connector,RF LGE EAG60685102 Contact Us For Availability
L100
Inductor,Wire Wound,Chip LGE EAP61007301 Contact Us For Availability
L802
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L808
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L901
Filter,Bead LGE EAM58113401 Contact Us For Availability
L903
Inductor,Wire Wound,Chip LGE EAP59193504 Contact Us For Availability
L905
Inductor,Wire Wound,Chip LGE EAP59177601 Contact Us For Availability
LV1
Cable,FFC LGE EAD61170811 Contact Us For Availability
P400
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P401
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P700
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P1006
Connector,Wafer LGE 6630V90141B Contact Us For Availability
Q601
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q802
FET LGE EBK38029201 Contact Us For Availability
Q802
FET LGE EBK60752501 Contact Us For Availability
Q908
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R105
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R113
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R116
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R116
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R116
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R118
Resistor,Chip LGE 0RH7501D422 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R132
Resistor,Chip LGE 0RH5603D622 Contact Us For Availability
R151
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R239
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R251
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R284
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R445
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R630
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R689
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R715
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R734
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R738
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R756
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R776
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R789
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R806
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R807
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R818
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R822
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R824
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R829
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R830
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R838
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R842
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R845
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R849
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R874
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R876
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R914
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R915
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R951
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R952
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R966
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R971
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R1031
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1153
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1158
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1165
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1171
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1202
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1204
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1209
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1311
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1316
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
S2
Harness,Single LGE EAD60732907 Contact Us For Availability
S3
Harness,Single LGE EAD58345811 Contact Us For Availability
S4
Harness,Single LGE EAD61169601 Contact Us For Availability
S5
Cable,FFC LGE EAD61486407 Contact Us For Availability
S6
Cable,Assembly LGE 68509F0003A Contact Us For Availability
X902
Crystal LGE 6212AB2015C Contact Us For Availability
× ![]()
Login and Registration Form
