Model Whirlpool DM15KW-15T MICROWAVE – Common Parts & Diagrams

1
PIN, PIVOT
PIN, PIVOT WPL Y03070041 Contact Us For Availability
View on Model
1

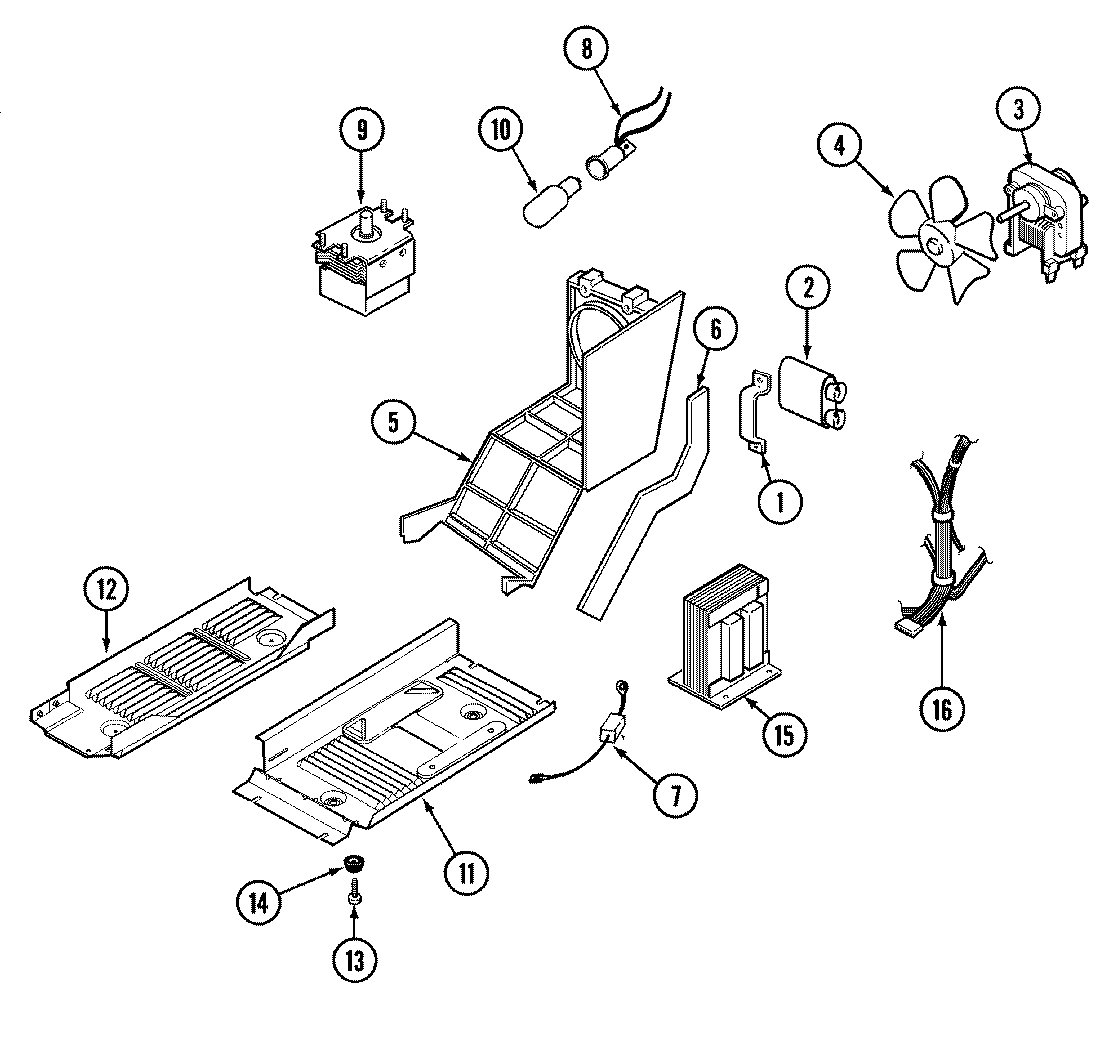

BRACKET, CAPACITOR
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
View on Model
1
BRACKET, SWITCH
BRACKET, SWITCH WPL 51001043 Contact Us For Availability
View on Model
1

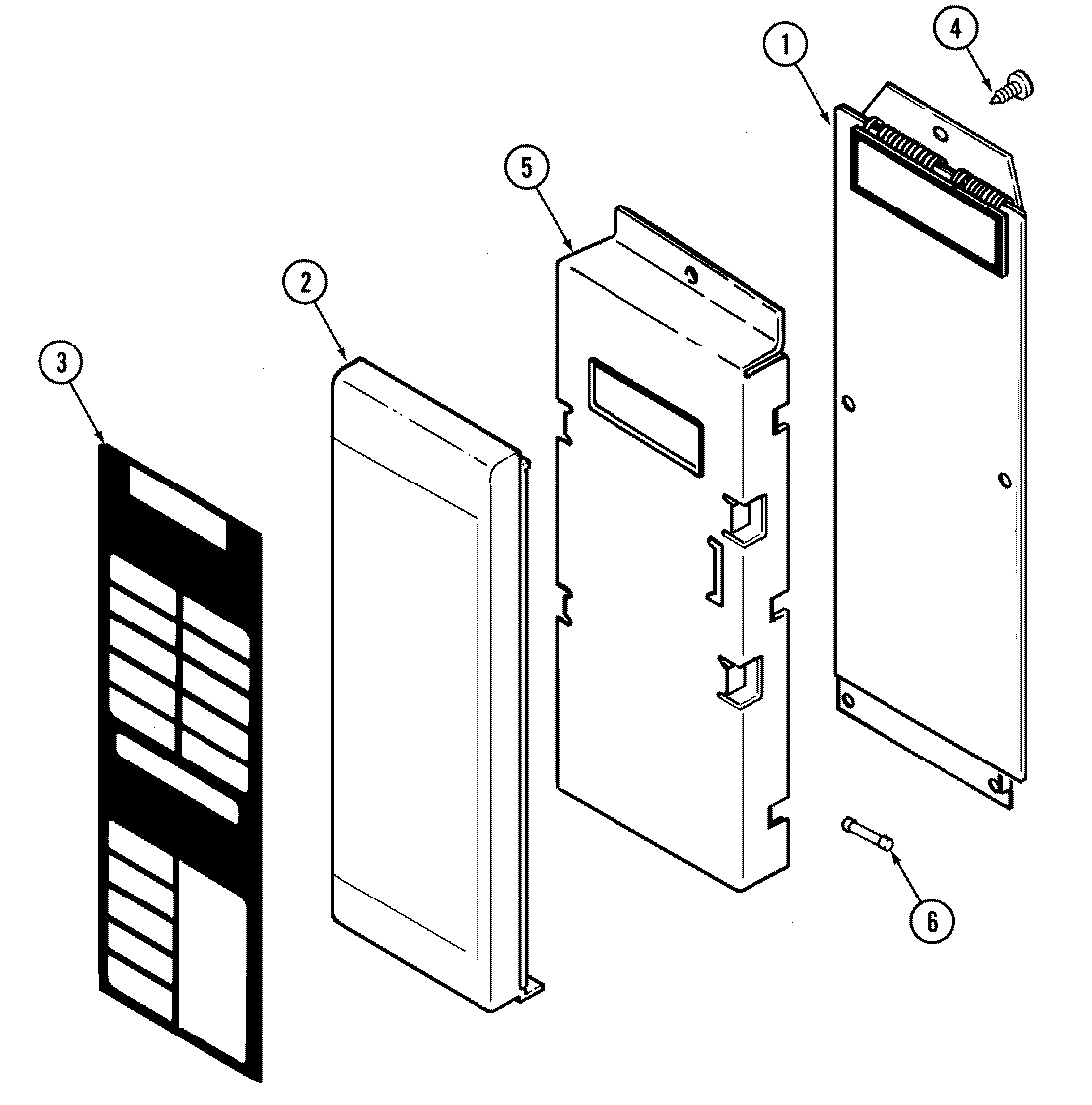

BOARD, CONTROL
BOARD, CONTROL WPL 51001053 Contact Us For Availability
View on Model
1
BOARD, CONTROL (W/OUT FUSE)
BOARD, CONTROL (W/OUT FUSE) WPL 51001336 Contact Us For Availability
View on Model
1
BOARD, CONTROL
BOARD, CONTROL WPL 51001338 Contact Us For Availability
View on Model
1

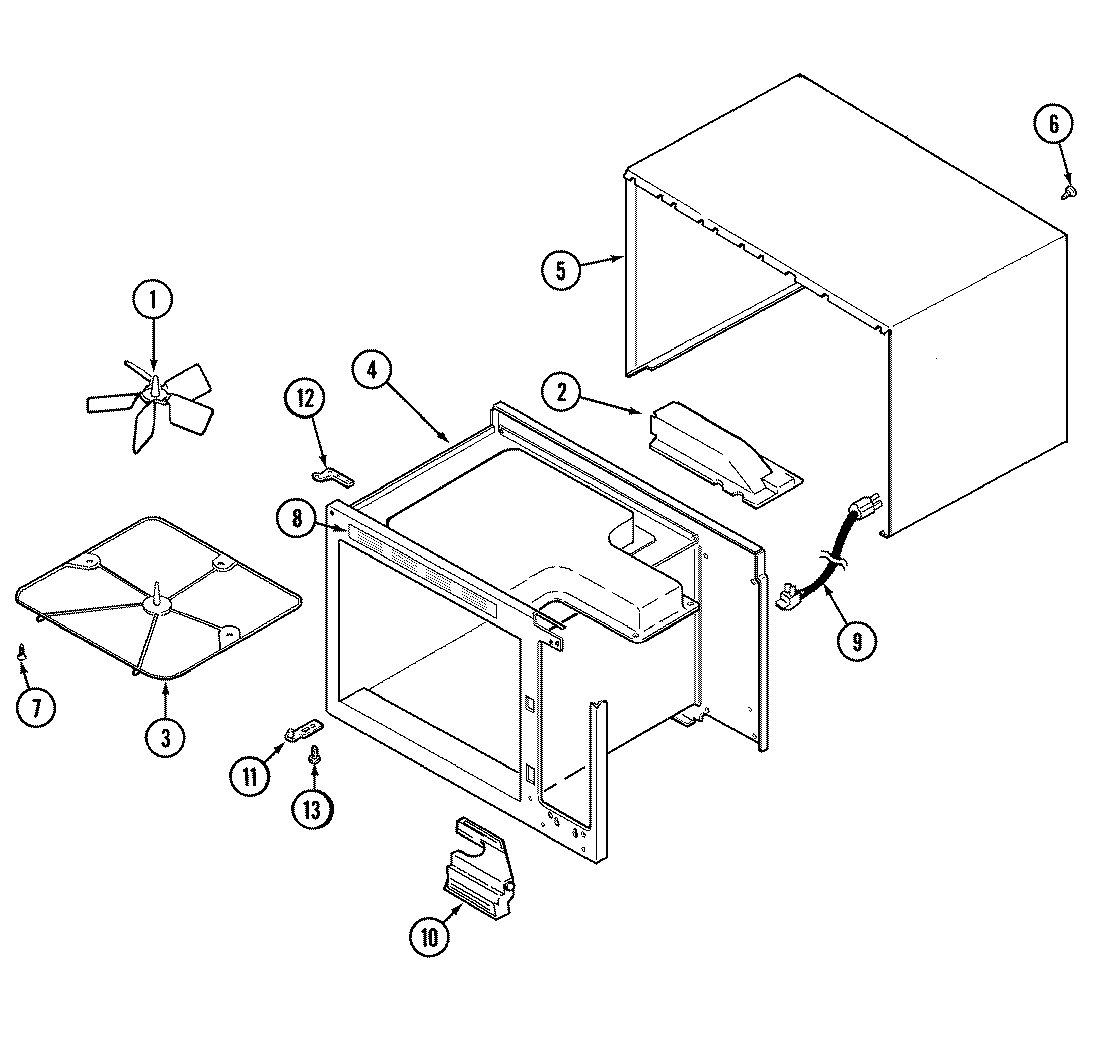

BLADE, STIRRER
BLADE, STIRRER WPL 51001048 Contact Us For Availability
View on Model
2

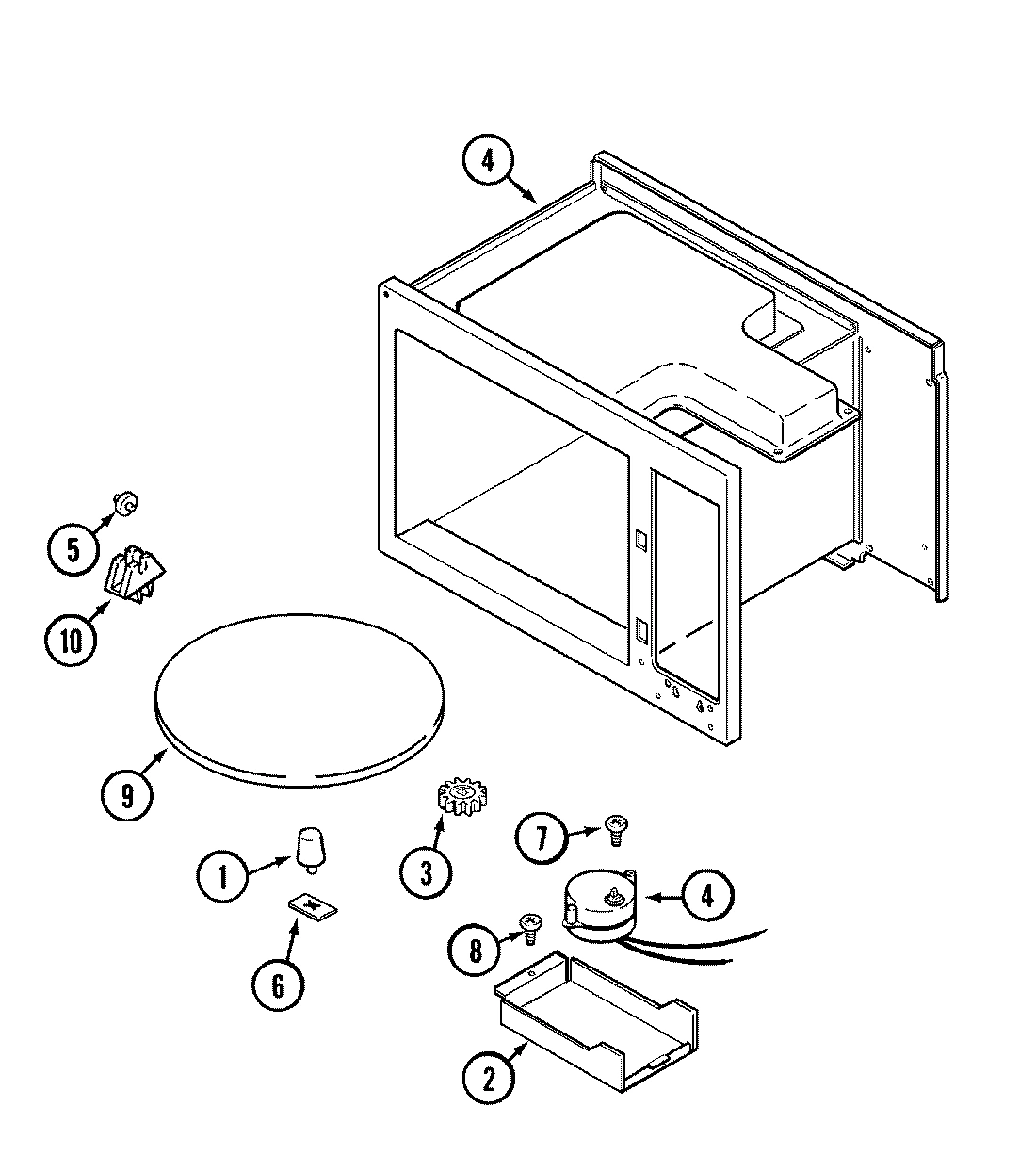

COVER, TURNTABLE MOTOR
COVER, TURNTABLE MOTOR WPL 51001061 Contact Us For Availability
View on Model
2
CAPACITOR (900 WATT)
CAPACITOR (900 WATT) WPL 51001056 Contact Us For Availability
View on Model
2

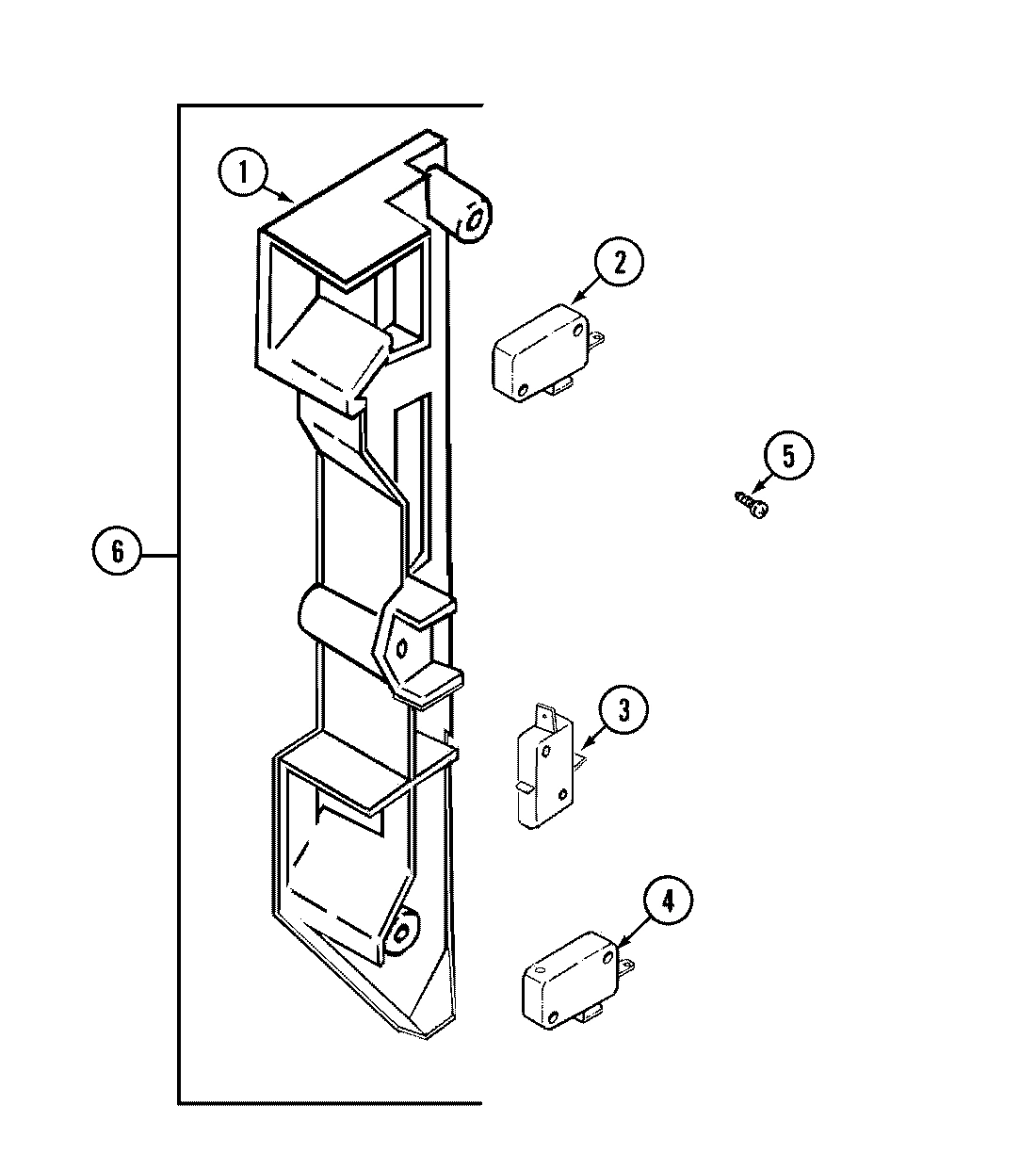

SWITCH, INTERLOCK (PRIMARY)
SWITCH, INTERLOCK (PRIMARY) WPL 51001044 Contact Us For Availability
View on Model
2
TRIM, CONTROL (WHT)
TRIM, CONTROL (WHT) WPL 51001185 Contact Us For Availability
View on Model
2
DUCT, STIRRER
DUCT, STIRRER WPL 51001027 Contact Us For Availability
View on Model
2
BAFFLE, STIRRER DUCT
BAFFLE, STIRRER DUCT WPL 51001210 Contact Us For Availability
View on Model
3
GEAR, TURNTABLE
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
View on Model
3
MOTOR, FAN
MOTOR, FAN WPL 51001050 Contact Us For Availability
View on Model
3
SCREW
SCREW WPL 51001101 Contact Us For Availability
View on Model
3
SWITCH, INTERLOCK (MONITOR)
SWITCH, INTERLOCK (MONITOR) WPL 51001045 Contact Us For Availability
View on Model
3
SWITCH, CONTROL (WHT)
SWITCH, CONTROL (WHT) WPL 51001223 Contact Us For Availability
View on Model
3
COVER, STIRRER
COVER, STIRRER WPL 51001028 Contact Us For Availability
View on Model
4
MOTOR, TURNTABLE
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
View on Model
4
BLADE, FAN
BLADE, FAN WPL 51001051 Contact Us For Availability
View on Model
4
SWITCH, INTERLOCK (SECONDARY)
SWITCH, INTERLOCK (SECONDARY) WPL 51001046 Contact Us For Availability
View on Model
4
CAVITY (WHT)
CAVITY (WHT) WPL 51001042 Contact Us For Availability
View on Model
5
ROLLER
ROLLER WPL 02210011 Contact Us For Availability
View on Model
5
BRACKET, FAN
BRACKET, FAN WPL 51001049 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 51001094 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 51001217 Contact Us For Availability
View on Model
5
BRACKET, CONTROL
BRACKET, CONTROL WPL 51001054 Contact Us For Availability
View on Model
5
WRAPPER, CABINET (WHT)
WRAPPER, CABINET (WHT) WPL 51001099 Contact Us For Availability
View on Model
6
CLIP - PUSH ON
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
View on Model
6
TAPE, FOAM
TAPE, FOAM WPL 05140007 Contact Us For Availability
View on Model
6
INTERLOCK ASSY.
INTERLOCK ASSY. WPL 51001078 Contact Us For Availability
View on Model
7
SCREW
SCREW WPL 03010151 Contact Us For Availability
View on Model
7
DIODE ASSY.
DIODE ASSY. WPL Y04010219 Contact Us For Availability
View on Model
7
MANUAL, USE & CARE/COOKBOOK
MANUAL, USE & CARE/COOKBOOK WPL 51001133 Contact Us For Availability
View on Model
7
CLIP
CLIP WPL Y03110050 Contact Us For Availability
View on Model
8
CLIP, CANOE
CLIP, CANOE WPL 03110061 Contact Us For Availability
View on Model
8
BAFFLE, BULB
BAFFLE, BULB WPL 51001030 Contact Us For Availability
View on Model
8
RECEPTACLE, BULB
RECEPTACLE, BULB WPL 51001095 Contact Us For Availability
View on Model
8
GUIDE, QUICK REF. - MAGIC CHEF
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
View on Model
8
LABEL, COOKING GUIDE
LABEL, COOKING GUIDE WPL 51001128 Contact Us For Availability
View on Model
9
TURNTABLE
TURNTABLE WPL Y02460009 Contact Us For Availability
View on Model
9
MAGNETRON (900 WATT)
MAGNETRON (900 WATT) WPL 51001063 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 03020030 Contact Us For Availability
View on Model
9
CORD, POWER
CORD, POWER WPL 01080066 Contact Us For Availability
View on Model
10
SUPPORT, ROLLER
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
View on Model
10
BULB, LIGHT
BULB, LIGHT WPL Y01060024 Contact Us For Availability
View on Model
10
BUTTON, DOOR RELEASE (WHT)
BUTTON, DOOR RELEASE (WHT) WPL 51001156 Contact Us For Availability
View on Model
11
CHANNEL, BASE (RT)
CHANNEL, BASE (RT) WPL 51001059 Contact Us For Availability
View on Model
11
HINGE, DOOR (LOWER)
HINGE, DOOR (LOWER) WPL 51001047 Contact Us For Availability
View on Model
12
CHANNEL, BASE (LT)
CHANNEL, BASE (LT) WPL 51001057 Contact Us For Availability
View on Model
12
BAFFLE, AIR (LT)
BAFFLE, AIR (LT) WPL 51001058 Contact Us For Availability
View on Model
12
HINGE, DOOR (UPPER)
HINGE, DOOR (UPPER) WPL 51001035 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL Y03020076 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL Y03020104 Contact Us For Availability
View on Model
13
WASHER
WASHER WPL 51001100 Contact Us For Availability
View on Model
14
FOOT, BASE
FOOT, BASE WPL Y02230009 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 03010094 Contact Us For Availability
View on Model
15
TRANSFORMER (900 WATT)
TRANSFORMER (900 WATT) WPL 51001062 Contact Us For Availability
View on Model
16
WIRE HARNESS
WIRE HARNESS WPL 51001064 Contact Us For Availability
View on Model
17
HV LEAD WIRE (16``)
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
View on Model
18
FUSE, THERMAL (W/WIRES)
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
View on Model
19
CLIP
CLIP WPL Y03110078 Contact Us For Availability
View on Model
NI

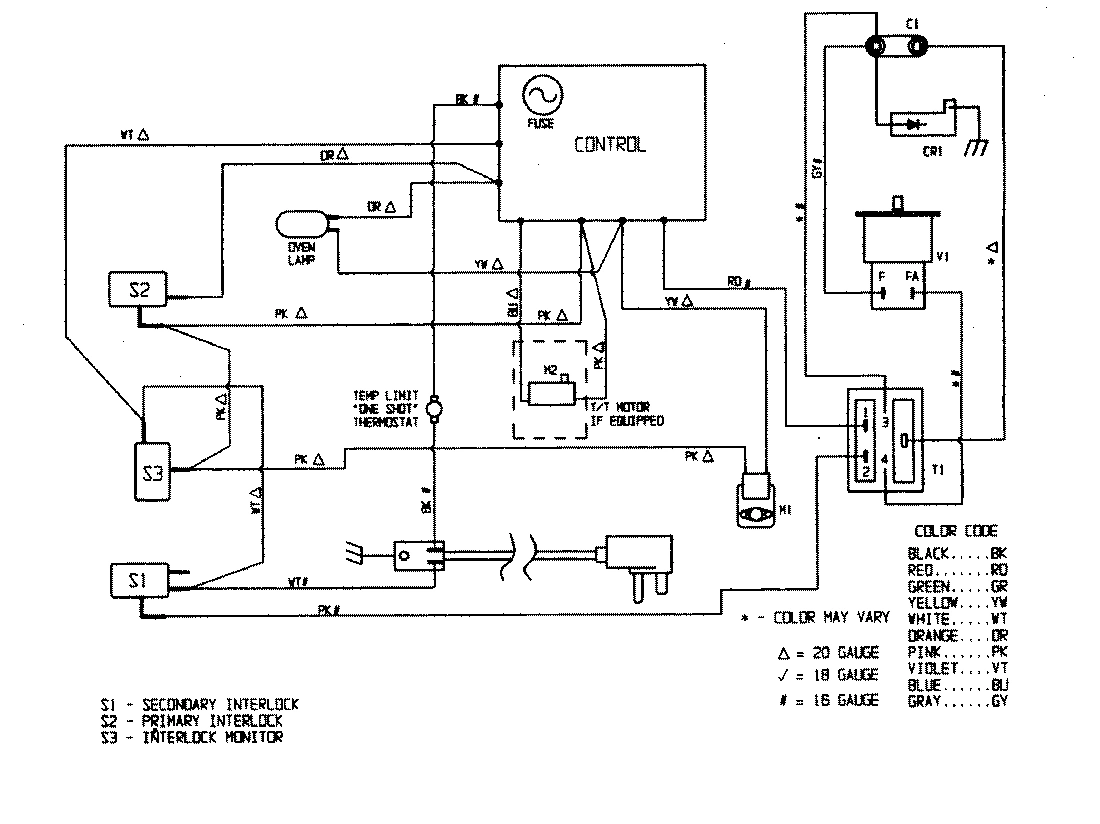

WIRING INFORMATION
WIRING INFORMATION WPL 15001259 Contact Us For Availability
View on Model
NI
WIRING INFORMATION
WIRING INFORMATION WPL 51001337 Contact Us For Availability
View on Model
