LG DLHC5502V Dryer Parts List

A101

4581EL3001M LG Roller Assembly Backorder LGE 4581EL3001M $33.69

View on Model

A102

4020FA3041B LG Common Nut Backorder LGE 4020FA3041B $6.19

View on Model

A103

6500EL3001A LG Dryer Moisture Sensor In Stock LGE 6500EL3001A $9.86

View on Model

A112

MCD64907901 LG Hose Connector Backorder LGE MCD64907901 $6.19

View on Model

A123

3920ER3002A LG Packing Backorder LGE 3920ER3002A $6.19

View on Model

A160

EBR33073324 LG PCB Main Assembly Backorder LGE EBR33073324 $235.58

View on Model

A161

EBR33073411 LG Inverter PCB Assembly Backorder LGE EBR33073411 $321.92

View on Model

A170

Cover,Protect LGE MCK71530501 Contact Us For Availability

View on Model

A180

Package Assembly,Shelf LGE AGF30609866 Contact Us For Availability

View on Model

A195

Bag,Parts Assembly,SVC LGE AGM30120001 Contact Us For Availability

View on Model

A300

MAZ67119501 LG Hinge Bracket Backorder LGE MAZ67119501 $33.69

View on Model

A310

MCK71548534 LG Cover,Cabinet Backorder LGE MCK71548534 $650.87

View on Model

A320

COVER ASSEMBLY,CABINET Backorder LGE ACQ30422676 $2,581.43

View on Model

A325

1TTL0402618 LG Tapping Screw Backorder LGE 1TTL0402618 $6.11

View on Model

A330

MCR68422801 LG Top Decorative Plate Backorder LGE MCR68422801 $49.19

View on Model

A331

MBG67856201 LG Button,Power Switch Backorder LGE MBG67856201 $26.26

View on Model

A332

BUTTON,CONTROL Backorder LGE MBG67856301 $26.26

View on Model

A333

WINDOW ASSEMBLY Backorder LGE AJX75332105 $72.49

View on Model

A334

CASE Backorder LGE MBN66562502 $14.79

View on Model

A335

Cap,Cover,Parts Assembly,SVC LGE AGM30016973 Contact Us For Availability

View on Model

A336

AFK73049601 LG Locker Assembly Backorder LGE AFK73049601 $1.56

View on Model

A337

MCQ68874003 LG Damper,Lid Backorder LGE MCQ68874003 $6.19

View on Model

A338

Cover,Safety LGE MCK71110401 Contact Us For Availability

View on Model

A366

Harness,Single LGE EAD65926007 Contact Us For Availability

View on Model

A385

Filter Assembly LGE EAM63891339 Contact Us For Availability

View on Model

A390

Frame,Panel LGE MDQ66729201 Contact Us For Availability

View on Model

A400

ADC30016929 LG Door Assembly Backorder LGE ADC30016929 $291.33

View on Model

A400

DOOR ASSEMBLY Backorder LGE ADC30016934 $650.87

View on Model

A410

AFK73489601 LG Dryer Slide-Out Hood Locker A Backorder LGE AFK73489601 $14.79

View on Model

A500

Cabinet Assembly LGE ABJ76752401 Contact Us For Availability

View on Model

A501

CABINET ASSEMBLY Backorder LGE ABJ76752501 $167.80

View on Model

A510

Frame,Top Backorder LGE MDQ66729301 $20.35

View on Model

A540

4778EL3001B LG Dryer Leveling Leg In Stock LGE 4778EL3001B $3.64

View on Model

A592

Sensor Assembly LGE EBD64408001 Contact Us For Availability

View on Model

A600

Harness,Multi LGE EAD65926711 Contact Us For Availability

View on Model

A610

HARNESS,SINGLE Backorder LGE EAD65926022 $20.35

View on Model

A620

Harness,Single LGE EAD65926020 Contact Us For Availability

View on Model

A630

Harness,Single LGE EAD65926005 Contact Us For Availability

View on Model

A640

Harness,Single LGE EAD65926023 Contact Us For Availability

View on Model

A801

Screw,Customized Washer Hinge Screw for Bulle LGE 4000FD4191D Contact Us For Availability

View on Model

B196

6601EA2001B LG Switch Assembly Backorder LGE 6601EA2001B $26.26

View on Model

C147

EAU61663202 LG Cooling DC Motor Assembly Backorder LGE EAU61663202 $63.62

View on Model

C180

Impeller,Blower Backorder LGE MER63464701 $41.23

View on Model

C190

AJB76315015 LG Combined Stator Assembly Backorder LGE AJB76315015 $153.83

View on Model

C200

Rotor Assembly,Combined LGE AHL76195102 Contact Us For Availability

View on Model

C201

FAD33190601 LG Common Nut Backorder LGE FAD33190601 $41.23

View on Model

C210

MOTOR ASSEMBLY,DC,WASHER Backorder LGE 4681ED1004P $212.13

View on Model

C220

Housing Assembly,Gear LGE AEN75456901 Contact Us For Availability

View on Model

C230

Bracket LGE MAZ67586001 Contact Us For Availability

View on Model

C240

Bracket,Rear LGE MAZ67539701 Contact Us For Availability

View on Model

C250

COVER,PARTS ASSEMBLY,SVC Backorder LGE AGM30016960 $33.69

View on Model

C251

AGM30016913 LG Parts Assembly Backorder LGE AGM30016913 $92.89

View on Model

C252

Cover Assembly Backorder LGE ACQ30604002 $41.23

View on Model

C260

Cover,Water Inlet LGE MCK71529301 Contact Us For Availability

View on Model

C290

Cover,Blower LGE MCK71529601 Contact Us For Availability

View on Model

C310

Cover Assembly,Base LGE ACQ30416001 Contact Us For Availability

View on Model

C313

AJU75838901 LG Valve Assembly,Convert Backorder LGE AJU75838901 $82.70

View on Model

C320

AJU73292502 LG Valve Assembly, Convert Backorder LGE AJU73292502 $82.70

View on Model

C340

AGM30050411 LG Accessory Parts Assembly Backorder LGE AGM30050411 $53.62

View on Model

C362

EBG60806202 LG Thermistor Assembly Backorder LGE EBG60806202 $33.69

View on Model

C364

EBG60806203 LG Thermistor Assembly Backorder LGE EBG60806203 $26.26

View on Model

C590

Cover,Parts Assembly,SVC LGE AGM30016979 Contact Us For Availability

View on Model

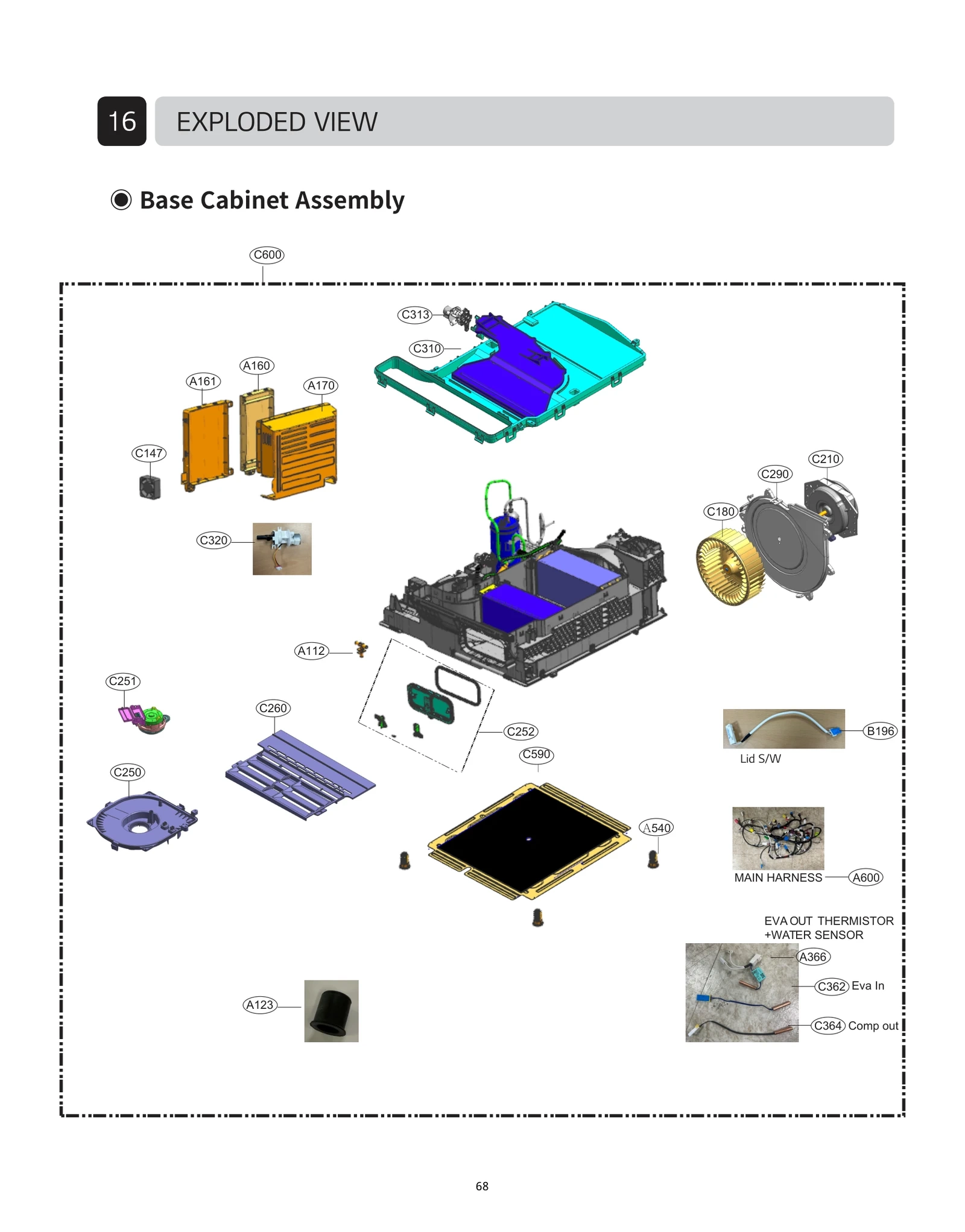

C600

BASE ASSEMBLY,CABINET Backorder LGE AAN30034318 $690.99

View on Model

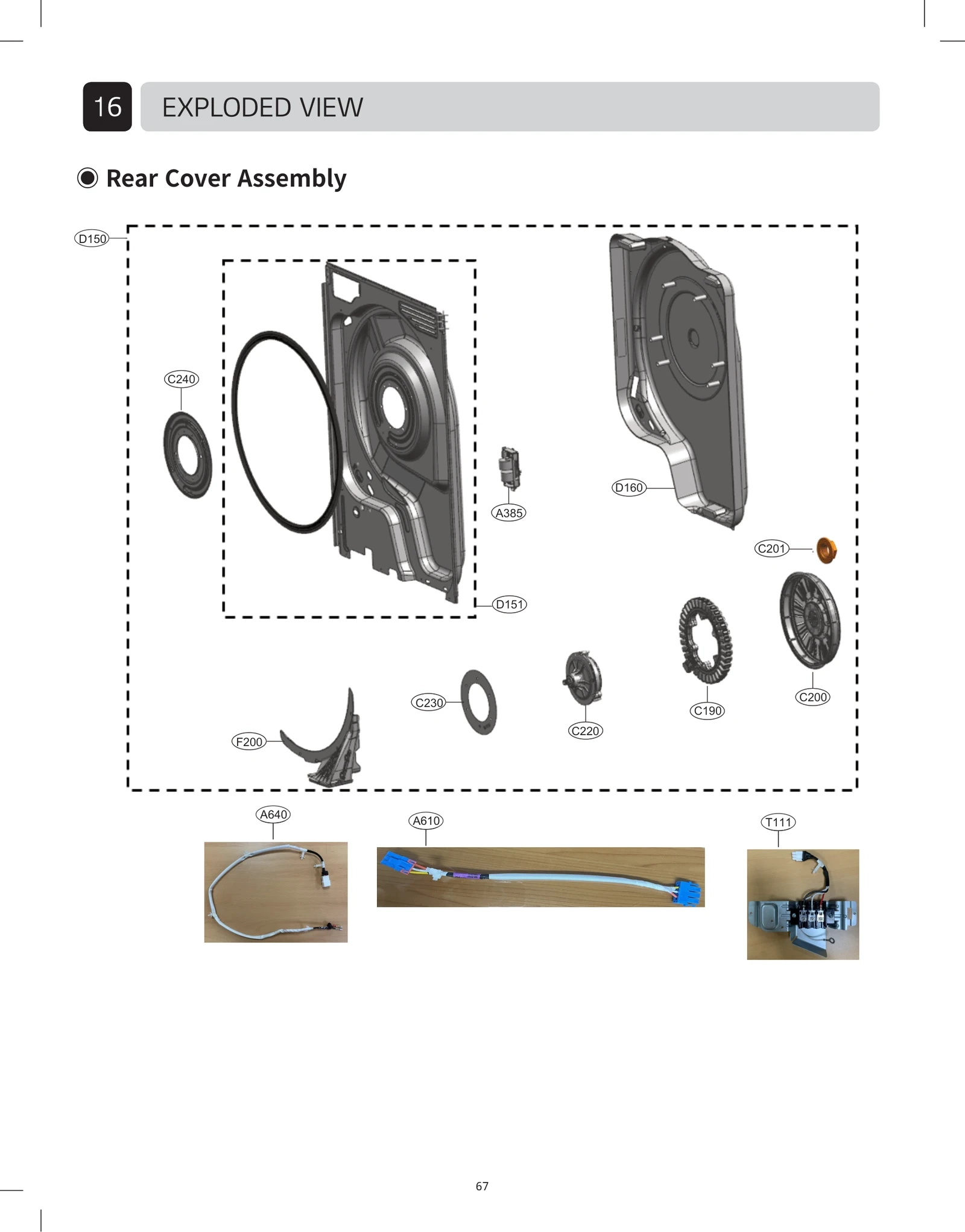

D150

ACQ30399828 LG Cover Assembly,Rear Backorder LGE ACQ30399828 $451.44

View on Model

D151

Cover,Parts Assembly,SVC LGE AGM30016959 Contact Us For Availability

View on Model

D160

Cover,Protect LGE MCK71532103 Contact Us For Availability

View on Model

F200

Duct Assembly LGE ADJ75616001 Contact Us For Availability

View on Model

K100

TUB ASSY,PARTS ASSEMBLY,SVC Backorder LGE AGM30098401 $419.43

View on Model

K141

FAB32139906 LG Tapping Screw Backorder LGE FAB32139906 $6.19

View on Model

K145

Damper LGE 3858EL3001T Contact Us For Availability

View on Model

K150

Lifter LGE MFE62361201 Contact Us For Availability

View on Model

K160

Cap Assembly LGE ABN76541801 Contact Us For Availability

View on Model

K161

Nut,Customized LGE FAD33760701 Contact Us For Availability

View on Model

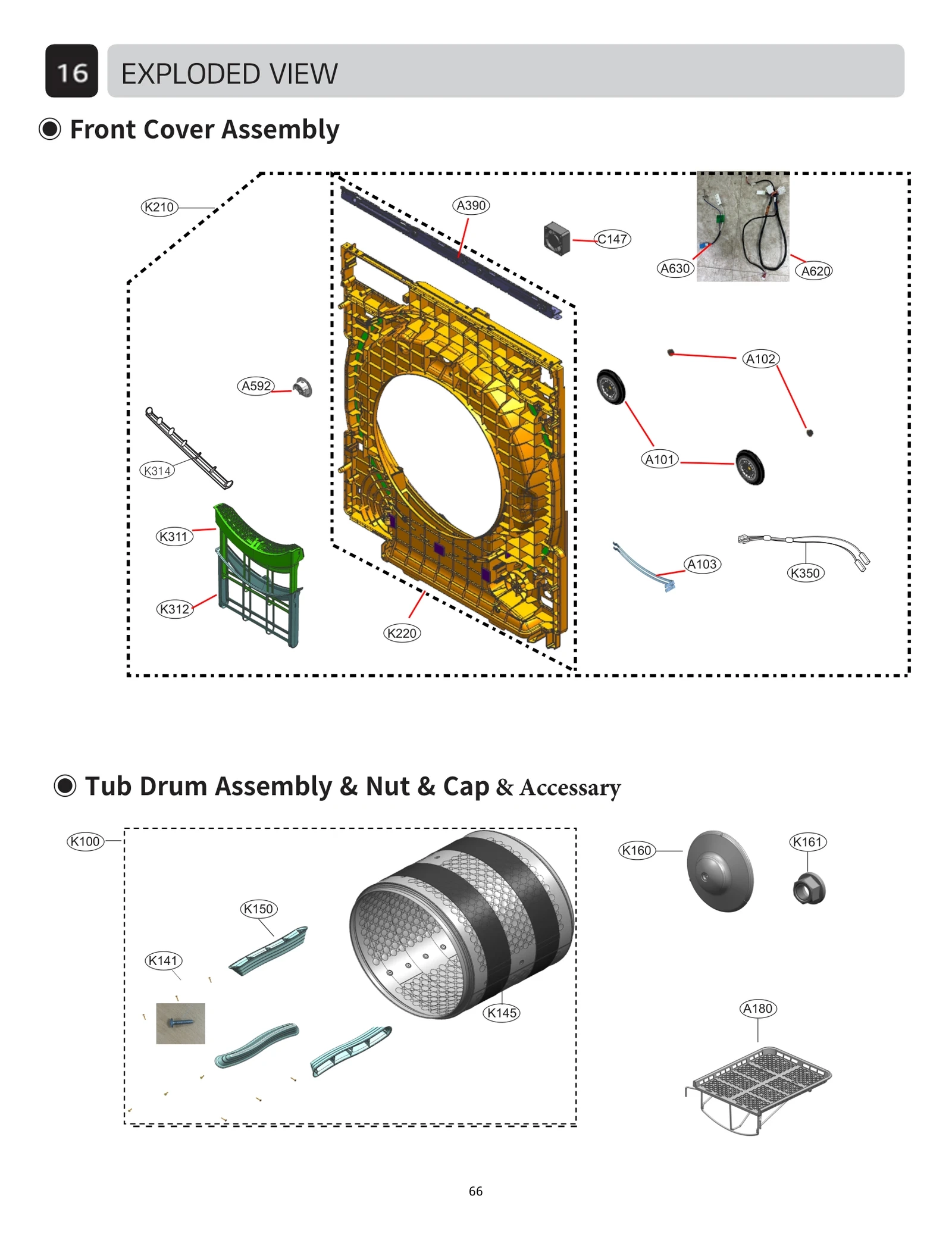

K210

Cover Assembly,Front LGE AJQ75296215 Contact Us For Availability

View on Model

K220

TUB ASSY,PARTS ASSEMBLY,SVC Backorder LGE AGM30016978 $153.83

View on Model

K311

ADQ75373205 LG Lint Filter Assembly Backorder LGE ADQ75373205 $82.70

View on Model

K312

Backorder LGE ADQ75373319 $91.26

View on Model

K314

Filter Assembly,Lint LGE ADQ75373318 Contact Us For Availability

View on Model

K350

Harness,Single LGE 6631EL3003M Contact Us For Availability

View on Model

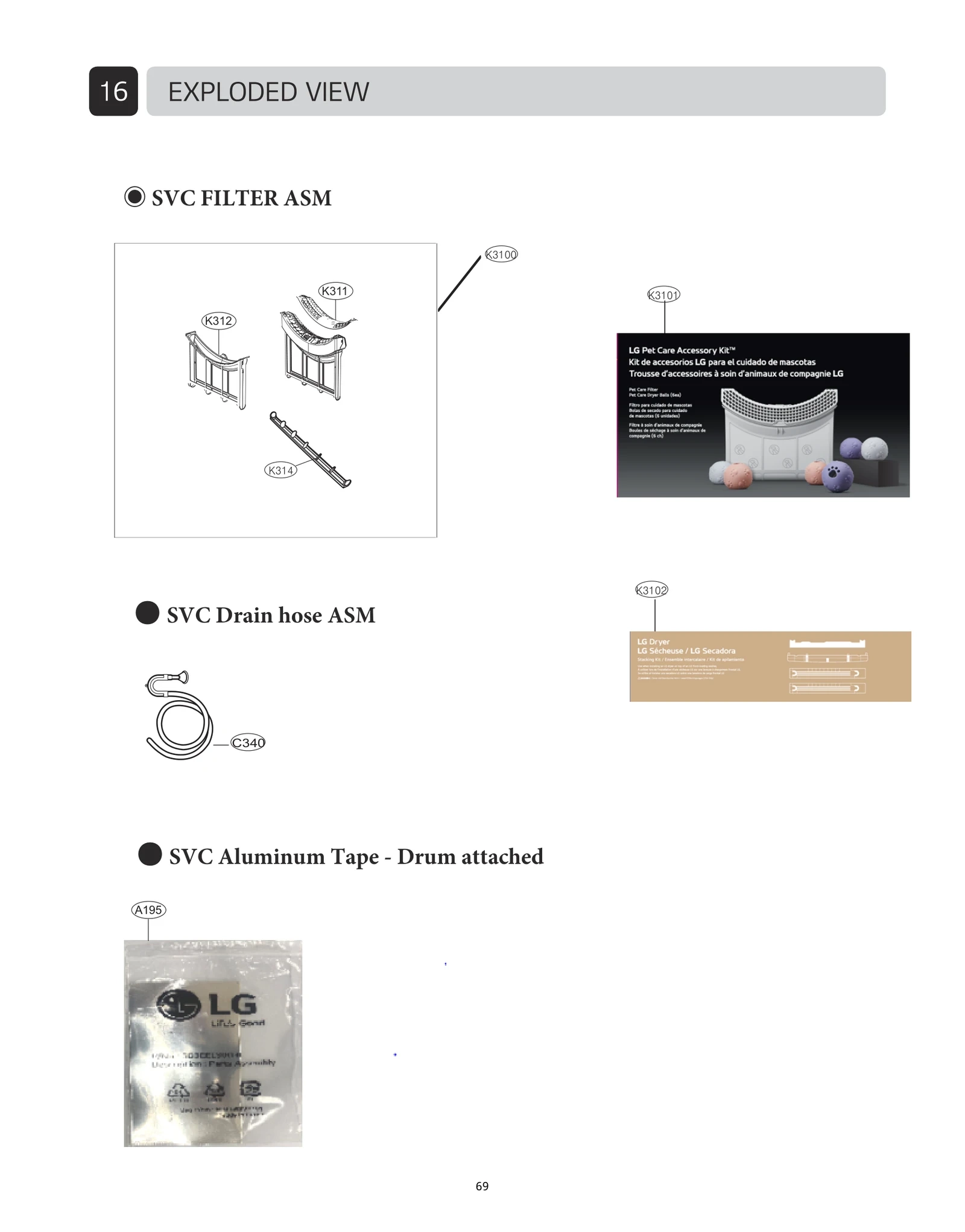

K3100

Filter,Parts Assembly,SVC LGE AGM30050410 Contact Us For Availability

View on Model

K3101

AAA76553295 LG Accessory Assembly Backorder LGE AAA76553295 $255.48

View on Model

K3102

AGF30609867 LG Package Assembly,Stacking Kit Backorder LGE AGF30609867 $48.11

View on Model

T111

Holder Assembly LGE AEJ76315501 Contact Us For Availability

View on Model

Model LG DLHC5502V Dryer – Common Parts & Diagrams

Common parts from model LG DLHC5502V Dryer
