Model LG DLEX9500K.ABSEEUS LG SIGNATURE 9.0 cu. ft. Large Smart wi-fi Enabled Electric Dryer w/ TurboSteam – Common Parts & Diagrams

Common parts from model LG DLEX9500K.ABSEEUS LG SIGNATURE 9.0 cu. ft. Large Smart wi-fi Enabled Electric Dryer w/ TurboSteam

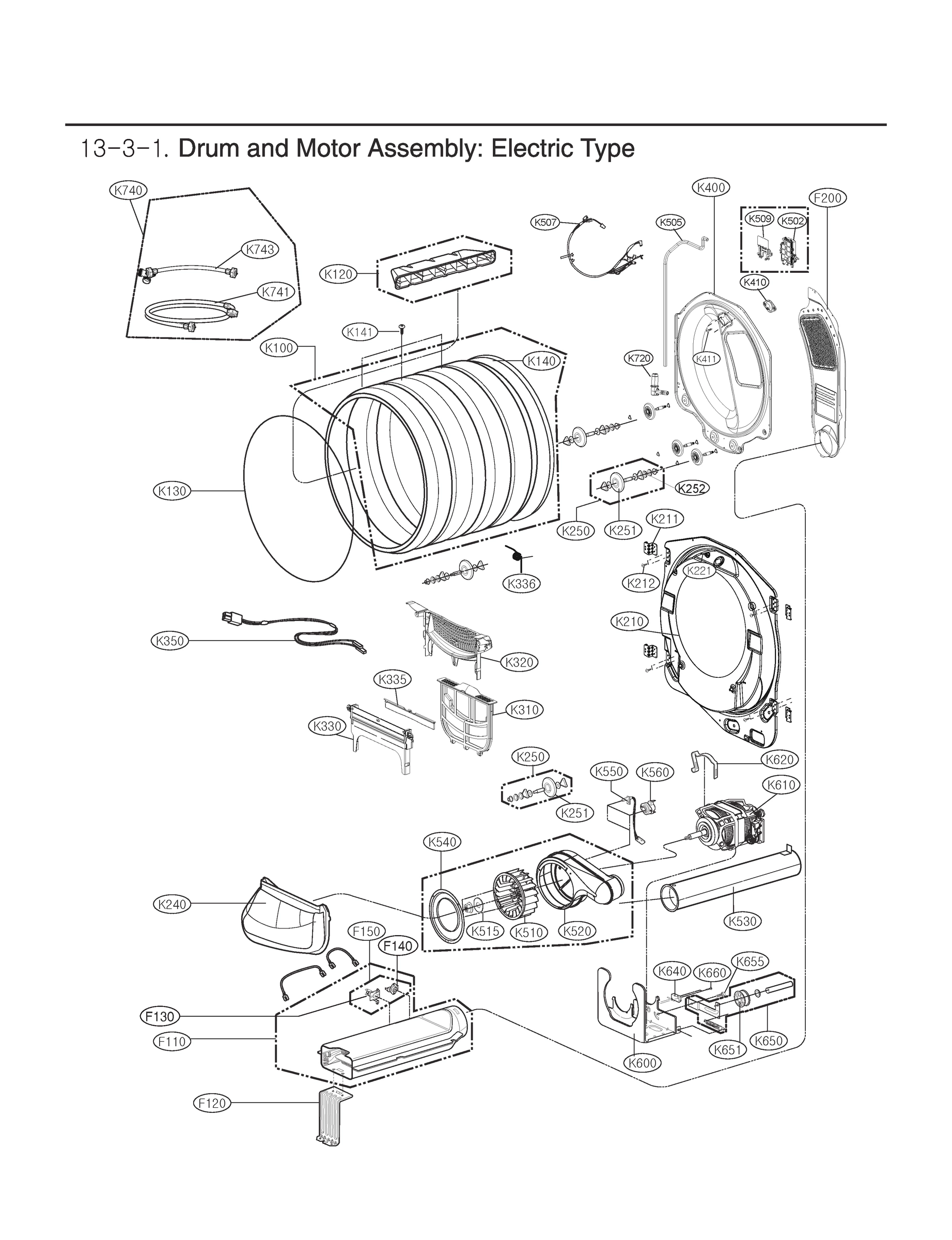

DIAGRAM 1

Print

• This Diagram
• All Diagrams

A120

EBR81219401 LG Display PCB Assembly Backorder LGE EBR81219401 View Details $321.92

View on Model

A130

EBR80198605 LG Main PCB Assembly Backorder LGE EBR80198605 View Details $255.48

View on Model

A308

1APF0402608 LG Laptop Screw Backorder LGE 1APF0402608 View Details $6.19

View on Model

A310

ACQ88270003 LG Assembly Cabinet Cover Backorder LGE ACQ88270003 View Details $451.44

View on Model

A320

4027EL1001B LG Locker Assembly Backorder LGE 4027EL1001B View Details $14.79

View on Model

A325

1MTC0402632 LG Machine Screw Backorder LGE 1MTC0402632 View Details $6.19

View on Model

A410

4026EL3007B LG Locker Door Latch Hook Backorder LGE 4026EL3007B View Details $26.26

View on Model

A520

4810EL3001A LG Base Bracket Backorder LGE 4810EL3001A View Details $9.86

View on Model

A525

4810EL3009A LG Dryer Base Bracket Backorder LGE 4810EL3009A View Details $20.35

View on Model

A530

4810EL3009B LG Dryer Leveling Leg Bracket Backorder LGE 4810EL3009B View Details $9.86

View on Model

A540

4778EL3001B LG Dryer Leveling Leg In Stock LGE 4778EL3001B View Details $3.46

View on Model

A560

3550EL3007D LG Cover Guide Backorder LGE 3550EL3007D View Details $9.86

View on Model

A570

3550EL3002A LG Safety Cover In Stock LGE 3550EL3002A View Details $6.19

View on Model

A610

383EEL9001H LG Assembly Parts In Stock LGE 383EEL9001H View Details $14.79

View on Model

A800

383EEL9001L LG Dryer Side Vent Kit Backorder LGE 383EEL9001L View Details $68.75

View on Model

F110

5301EL1001J LG Dryer Heater Element Assembly In Stock LGE 5301EL1001J View Details $223.20

View on Model

F130

6931EL3003D LG Dryer High-Limit Thermal Fuse In Stock LGE 6931EL3003D View Details $7.58

View on Model

F140

6931EL3001F LG Thermostat Assembly In Stock LGE 6931EL3001F View Details $36.62

View on Model

F150

383EEL9001C LG Parts Assembly In Stock LGE 383EEL9001C View Details $63.62

View on Model

K100

AJQ73274302 LG Drum Tub Assembly Backorder LGE AJQ73274302 View Details $337.55

View on Model

K130

4400EL2001D LG Dryer Poly V Drum Belt In Stock LGE 4400EL2001D View Details $63.62

View on Model

K140

4036EL3001B LG Gasket Backorder LGE 4036EL3001B View Details $49.19

View on Model

K212

1SBF0402618 LG Taptite Screw Backorder LGE 1SBF0402618 View Details $6.11

View on Model

K221

EAQ61400801 LG LED Lamp Backorder LGE EAQ61400801 View Details $41.23

View on Model

K240

ADJ73372401 LG Duct Assembly Backorder LGE ADJ73372401 View Details $82.70

View on Model

K250

4581EL2002H LG Dryer Drum Roller Assembly Backorder LGE 4581EL2002H View Details $24.80

View on Model

K251

4581EL3001M LG Roller Assembly Backorder LGE 4581EL3001M View Details $33.69

View on Model

K252

4W50100F LG Customized In Stock LGE 4W50100F View Details $6.19

View on Model

K310

ADQ73373201 LG Dryer Lint Screen Filter Repla In Stock LGE ADQ73373201 View Details $54.34

View on Model

K320

383EEL9001N LG Assembly Parts Backorder LGE 383EEL9001N View Details $26.26

View on Model

K336

4970EL4002C LG Dryer Distortion Spring In Stock LGE 4970EL4002C View Details $6.19

View on Model

K400

MJT62002905 LG Tub Drum Rear Backorder LGE MJT62002905 View Details $212.13

View on Model

K411

1SZZEL2001A LG Screw Customized Backorder LGE 1SZZEL2001A View Details $6.19

View on Model

K502

ADZ73410101 LG Dryer Generator Assembly Backorder LGE ADZ73410101 View Details $167.80

View on Model

K502

ADZ73410102 LG Generator Assembly In Stock LGE ADZ73410102 View Details $131.67

View on Model

K505

MEJ62404702 LG Inlet Hose Assembly Backorder LGE MEJ62404702 View Details $41.23

View on Model

K507

EAD39301910 LG Multi Harness Backorder LGE EAD39301910 View Details $92.89

View on Model

K510

5835EL1002A LG Dryer Blower Fan Assembly In Stock LGE 5835EL1002A View Details $72.49

View on Model

K515

383EEL9001G LG Assembly Parts In Stock LGE 383EEL9001G View Details $6.19

View on Model

K520

MEK37661701 LG Blower Housing Backorder LGE MEK37661701 View Details $117.30

View on Model

K530

5209EL1006F LG Duct Assembly Backorder LGE 5209EL1006F View Details $41.23

View on Model

K550

6323EL2001B LG Dryer Thermistor Assembly In Stock LGE 6323EL2001B View Details $33.69

View on Model

K560

6931EL3002M LG Dryer Thermostat In Stock LGE 6931EL3002M View Details $26.93

View on Model

K610

4681EL1008J LG Drum Motor DC Assembly In Stock LGE 4681EL1008J View Details $291.33

View on Model

K620

4860EL3001A LG Dryer Blower Motor Clamp Backorder LGE 4860EL3001A View Details $6.19

View on Model

K640

EBF61734701 LG Dryer Micro Switch In Stock LGE EBF61734701 View Details $14.79

View on Model

K650

4561EL3002A LG Dryer Idler Pulley Assembly In Stock LGE 4561EL3002A View Details $43.28

View on Model

K651

4560EL3001A LG Dryer Idler Pulley Wheel In Stock LGE 4560EL3001A View Details $14.16

View on Model

K655

1SZZEL3001A LG Customized Screw Backorder LGE 1SZZEL3001A View Details $6.19

View on Model

K660

1TPL0303218 LG Tapping Screw In Stock LGE 1TPL0303218 View Details $6.19

View on Model

K720

MCD63206801 LG Nozzle Connector Backorder LGE MCD63206801 View Details $6.19

View on Model

K730

AJU73432602 LG Inlet Valve Assembly In Stock LGE AJU73432602 View Details $91.26

View on Model

K741

5215FD3715V LG Washer Cold Water Inlet Fill H Backorder LGE 5215FD3715V View Details $26.88

View on Model

K743

MEJ64525001 LG Inlet Hose Backorder LGE MEJ64525001 View Details $41.23

View on Model

×
