Model Maytag DLD10E COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - MISCELLAEOUS INFORMATION
02 - DOOR, INTERLOCK & CONTROL PANEL PARTS
03 - OVEN CAVITY & BASEPAN
04 - AIR HANDLING & ELECTRICAL

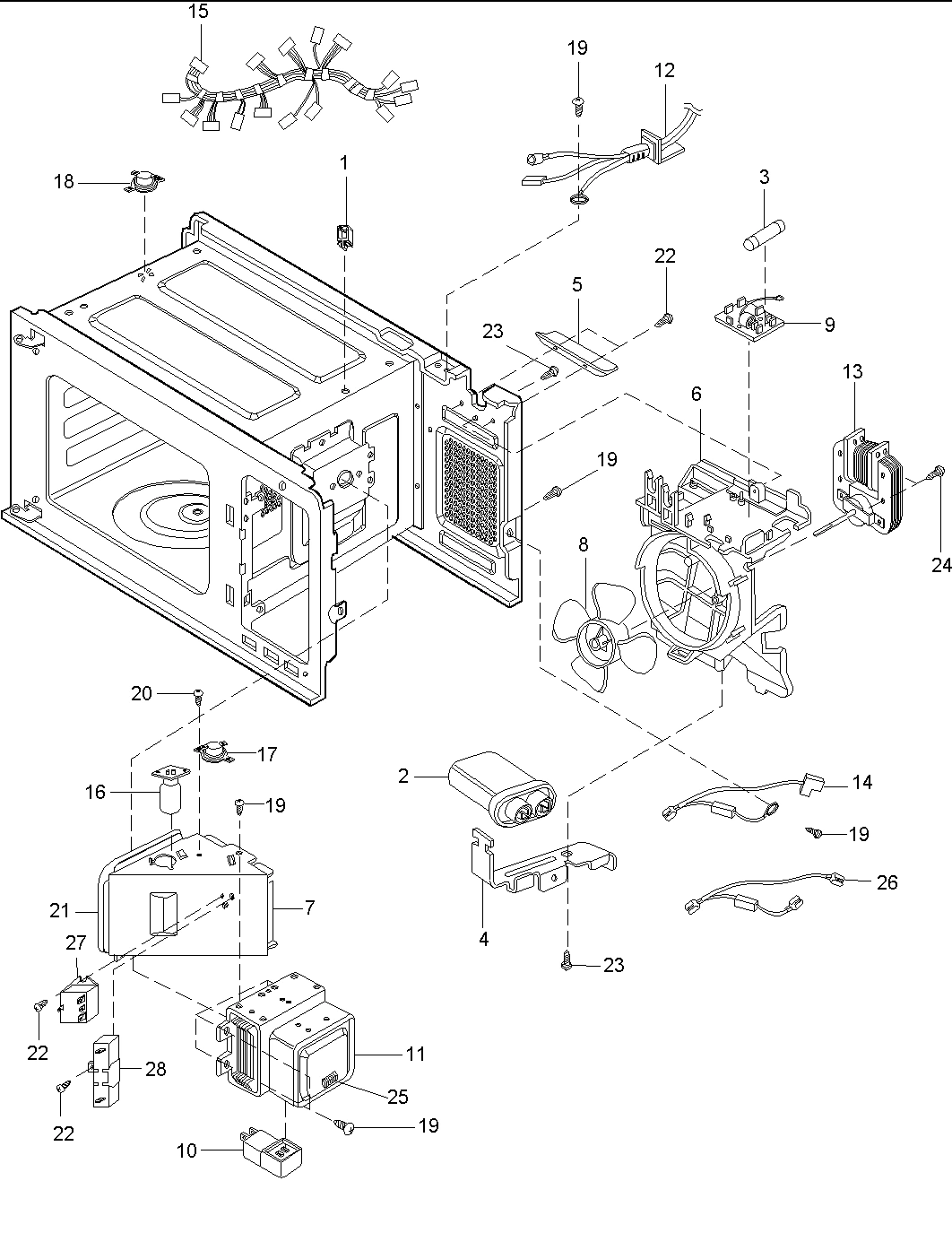

01 - Air Handling & Electrical

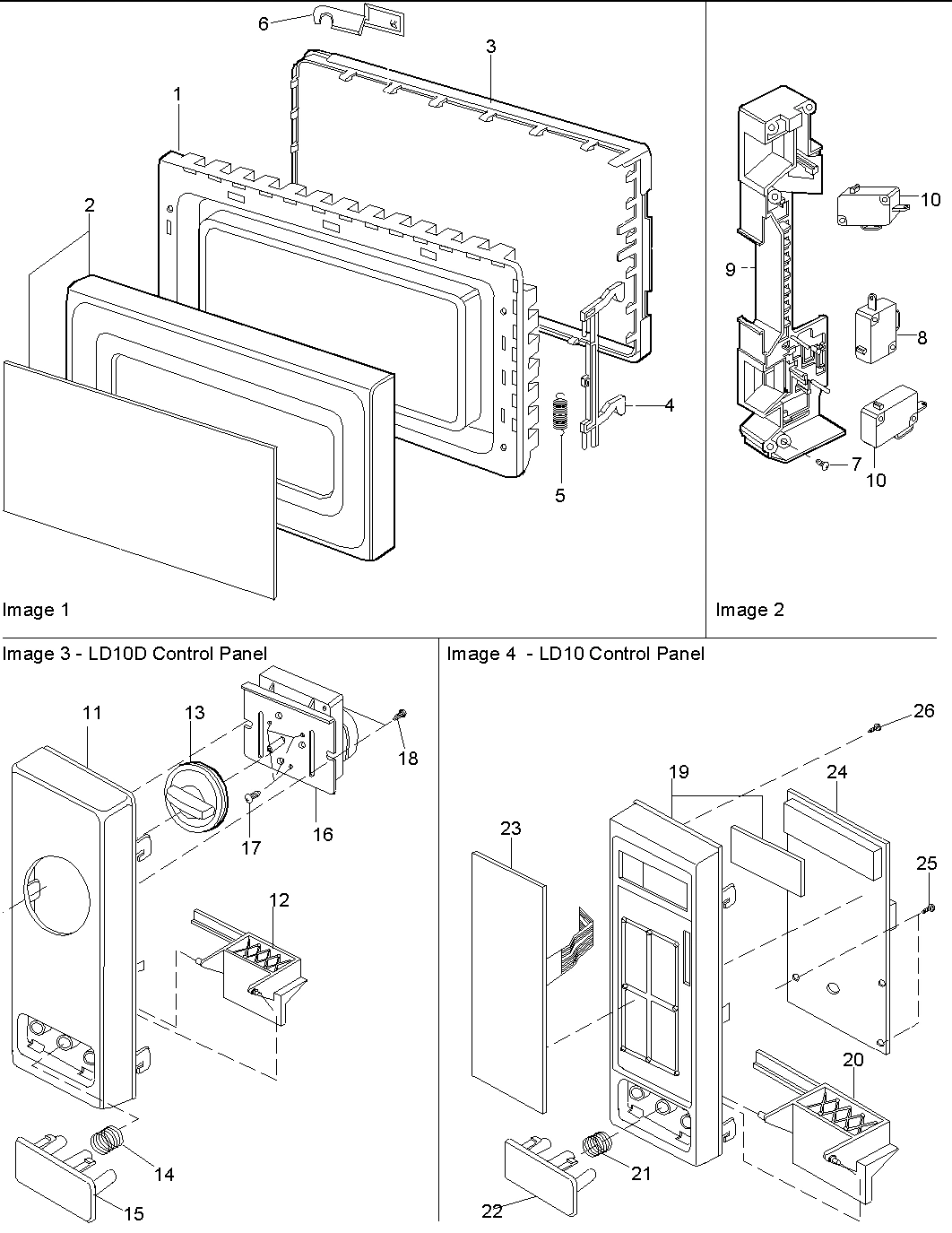

02 - Door, Interlock & Control Panel Parts

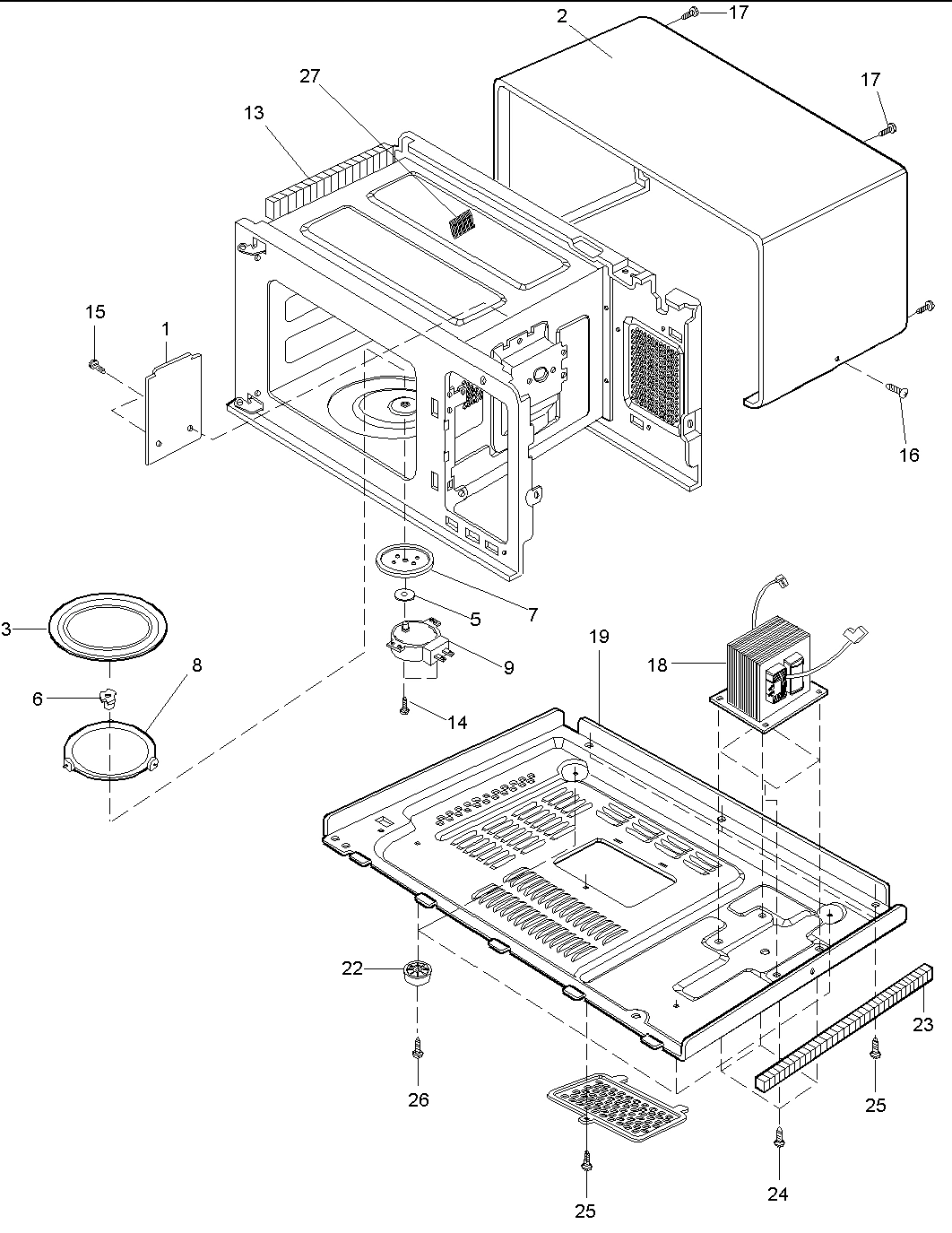

03 - Oven Cavity & Basepan
Common parts from model Maytag DLD10E COMMERCIAL MICROWAVE
000
MAY 12474306 MAY 12474306 Contact Us For Availability
000
MAY RP5320018 MAY RP5320018 Contact Us For Availability
000
MAY RS5320011 MAY RS5320011 Contact Us For Availability
1
ASSY,DOOR FRAME/CHOKE/VAPOR B. MAY R9900560 Contact Us For Availability
1
MAY R9900052 MAY R9900052 Contact Us For Availability
1
MAY R9800440 MAY R9800440 Contact Us For Availability
2
ASSY,OUTER DOOR(MENUMASTER) MAY R9900562 Contact Us For Availability
2
OUTER CASE MAY R9900516 Contact Us For Availability
2
CAPACITOR MAY R9900521 Contact Us For Availability
3
MAY R9800273 MAY R9800273 Contact Us For Availability
3
MAY R9800455 MAY R9800455 Contact Us For Availability
3
MAY R9900522 MAY R9900522 Contact Us For Availability
4
MAY R9800284 MAY R9800284 Contact Us For Availability
4
MAY R9900337 MAY R9900337 Contact Us For Availability
5
MAY R9800292 MAY R9800292 Contact Us For Availability
5
SEAL, WATER (MOTOR TT) MAY R9900068 Contact Us For Availability
5
MAY R9900076 MAY R9900076 Contact Us For Availability
6
MAY R9900077 MAY R9900077 Contact Us For Availability
6
MAY R9900067 MAY R9900067 Contact Us For Availability
6
SHROUD, FAN MOTOR MAY R9900362 Contact Us For Availability
7
MAY R9800691 MAY R9800691 Contact Us For Availability
7
DUCT, AIR MAY R9900523 Contact Us For Availability
7
MAY R9900072 MAY R9900072 Contact Us For Availability
8
MAY R9900520 MAY R9900520 Contact Us For Availability
8
RING, ROTATING MAY R9900565 Contact Us For Availability
8
MAY R9800458 MAY R9800458 Contact Us For Availability
9
MAY R9900057 MAY R9900057 Contact Us For Availability
9
MAY R9900518 MAY R9900518 Contact Us For Availability
9
MAY R9900525 MAY R9900525 Contact Us For Availability
10
ASSY, CHOKE FILTER MAY R9800442 Contact Us For Availability
11
MAY R9900549 MAY R9900549 Contact Us For Availability
12
MAY R9900526 MAY R9900526 Contact Us For Availability
13
MAY R9800394 MAY R9800394 Contact Us For Availability
13
MAY R9900528 MAY R9900528 Contact Us For Availability
14
MAY R0654180 MAY R0654180 Contact Us For Availability
14
MAY R9900530 MAY R9900530 Contact Us For Availability
15
MAY R9900539 MAY R9900539 Contact Us For Availability
15
HARNESS, WIRE MAY R9900531 Contact Us For Availability
16
MAY R9800309 MAY R9800309 Contact Us For Availability
16
MAY R9900548 MAY R9900548 Contact Us For Availability
17
MAY R9900542 MAY R9900542 Contact Us For Availability
18
TRANSFORMER,H.V. MAY R9900524 Contact Us For Availability
18
THERMOSTAT MAY R9900532 Contact Us For Availability
19
ASSY,CONTROL PANEL MAY R9900563 Contact Us For Availability
19
MAY R9900533 MAY R9900533 Contact Us For Availability
20
MAY R9800357 MAY R9800357 Contact Us For Availability
20
MAY R0654030 MAY R0654030 Contact Us For Availability
21
MAY R9800320 MAY R9800320 Contact Us For Availability
21
MAY R9900065 MAY R9900065 Contact Us For Availability
22
BUTTON, DOOR RELEASE MAY R9900564 Contact Us For Availability
22
MAY R9900534 MAY R9900534 Contact Us For Availability
23
MAY R9900512 MAY R9900512 Contact Us For Availability
24
MAY R9900514 MAY R9900514 Contact Us For Availability
24
MAY R0654143 MAY R0654143 Contact Us For Availability
24
MAY R9800411 MAY R9800411 Contact Us For Availability
25
MAY R0654185 MAY R0654185 Contact Us For Availability
025
GASKET MAY NLA Contact Us For Availability
25
MAY 10966605 MAY 10966605 Contact Us For Availability
26
MAY R0654183 MAY R0654183 Contact Us For Availability
26
MAY R9900559 MAY R9900559 Contact Us For Availability
26
ASSY,CIRC PROT/WIRE MAY R9900529 Contact Us For Availability
27
MAY R9900064 MAY R9900064 Contact Us For Availability
× ![]()
