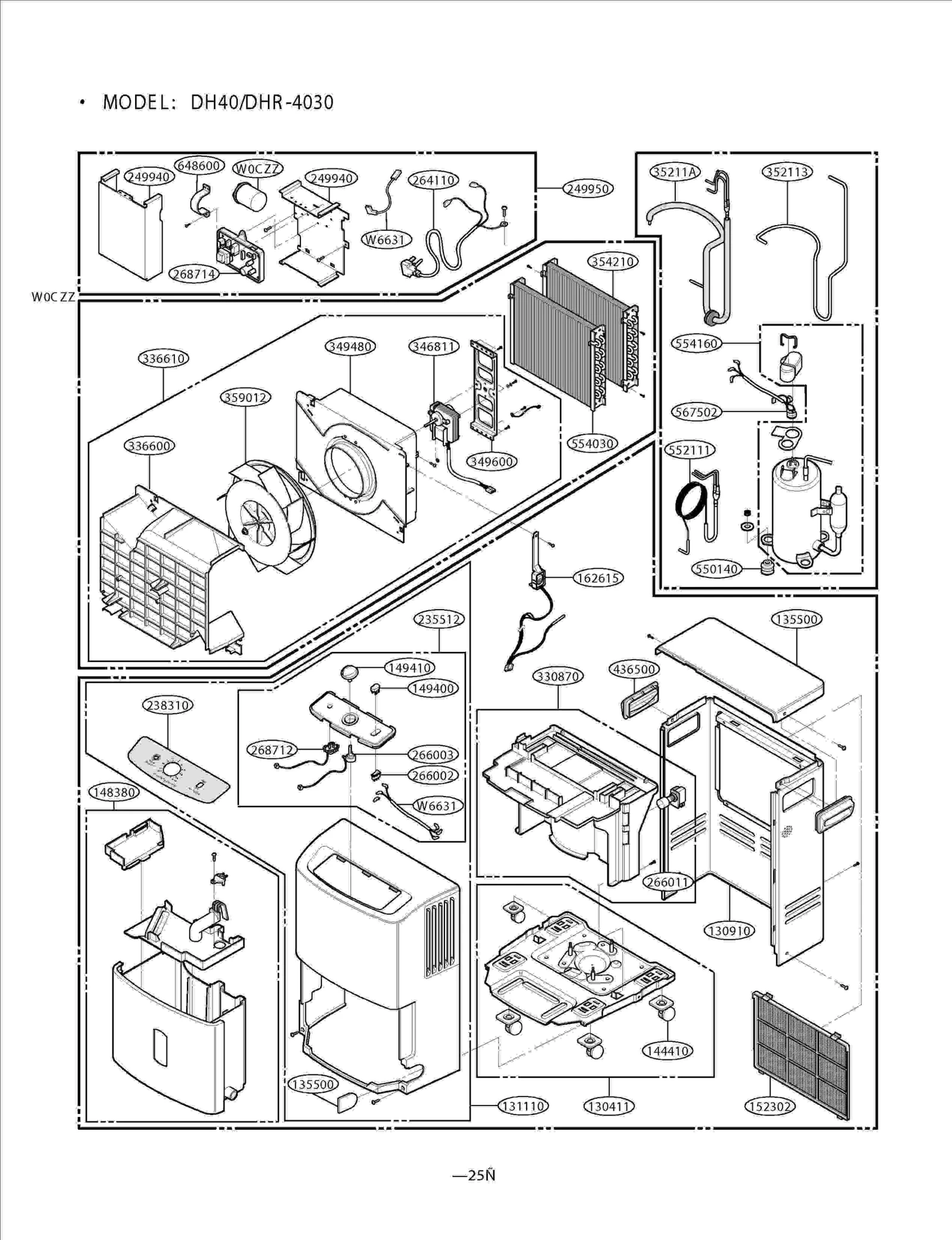

Model LG DH40 – Common Parts & Diagrams

35211A
TUBE ASSEMBLY,SUCTION SINGLE
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20781A Contact Us For Availability
View on Model
130411
BASE ASSEMBLY,SINGLE
BASE ASSEMBLY,SINGLE LGE 3041A10028E Contact Us For Availability
View on Model
130910
LGE 3091A20015G
LGE 3091A20015G LGE 3091A20015G Contact Us For Availability
View on Model
131110
CASE ASSEMBLY,SINGLE
CASE ASSEMBLY,SINGLE LGE 3111A10012F Contact Us For Availability
View on Model
135500
COVER
COVER LGE 3550A30193A Contact Us For Availability
View on Model
135500
COVER
COVER LGE 3550A20162A Contact Us For Availability
View on Model
148380
TANK ASSEMBLY,BUCKET
TANK ASSEMBLY,BUCKET LGE 4839A10001D Contact Us For Availability
View on Model
149400
KNOB
KNOB LGE 4940A30057B Contact Us For Availability
View on Model
149410
KNOB ASSEMBLY
KNOB ASSEMBLY LGE 4941A30019B Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5230A20026C Contact Us For Availability
View on Model
162615
SENSOR ASSEMBLY
SENSOR ASSEMBLY LGE 6877A30013G Contact Us For Availability
View on Model
235512
COVER ASSEMBLY,DISPLAY
COVER ASSEMBLY,DISPLAY LGE 3551A10021B Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A20051A Contact Us For Availability
View on Model
249940
CONTROL BOX,SINGLE
CONTROL BOX,SINGLE LGE 4994A20057B Contact Us For Availability
View on Model
249940
CONTROL BOX,SINGLE
CONTROL BOX,SINGLE LGE 4994A20056B Contact Us For Availability
View on Model
249950
CONTROL BOX ASSEMBLY,SINGLE
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A10074M Contact Us For Availability
View on Model
264110
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20001Y Contact Us For Availability
View on Model
266002
SWITCH,ROCKER
SWITCH,ROCKER LGE 6600FX5001E Contact Us For Availability
View on Model
266003
SWITCH ASSEMBLY,ROTARY
SWITCH ASSEMBLY,ROTARY LGE 6601A30001B Contact Us For Availability
View on Model
266011
SWITCH ASSY,MICRO
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
View on Model
268712
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20289A Contact Us For Availability
View on Model
268714
PWB(PCB) ASSEMBLY,MAIN
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10091A Contact Us For Availability
View on Model
330870
DRAIN PAN ASSEMBLY
DRAIN PAN ASSEMBLY LGE 3087A10011E Contact Us For Availability
View on Model
336600
HOUSING (MECH),WRAPPER
HOUSING (MECH),WRAPPER LGE 3660A10003A Contact Us For Availability
View on Model
336610
HOUSING ASSEMBLY (MECH)
HOUSING ASSEMBLY (MECH) LGE 3661A10019C Contact Us For Availability
View on Model
346811
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A20040E Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A10023A Contact Us For Availability
View on Model
349600
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960A20009B Contact Us For Availability
View on Model
352111
BUSHING
BUSHING LGE 4830A30005A Contact Us For Availability
View on Model
352113
TUBE ASSEMBLY,DISCHARGE SINGLE
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A20780B Contact Us For Availability
View on Model
359012
FAN,TURBO
FAN,TURBO LGE 5900A20032A Contact Us For Availability
View on Model
436500
HANDLE
HANDLE LGE 3650A20003B Contact Us For Availability
View on Model
552111
TUBE ASSEMBLY,CAPILLARY
TUBE ASSEMBLY,CAPILLARY LGE 5211A20789A Contact Us For Availability
View on Model
554030
CONDENSER ASSEMBLY,FIRST
CONDENSER ASSEMBLY,FIRST LGE 5403A20114D Contact Us For Availability
View on Model
554160
COMPRESSOR
COMPRESSOR LGE 5416A90009A Contact Us For Availability
View on Model
567502
O.L.P ASSEMBLY
O.L.P ASSEMBLY LGE 6751A20001F Contact Us For Availability
View on Model
W0CZZ
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 0CZZA20003D Contact Us For Availability
View on Model
W1NHA
NUT.M8 D 8.0 M C 1 SM20C/FZ GA
NUT.M8 D 8.0 M C 1 SM20C/FZ GA LGE 1NHA0801206 Contact Us For Availability
View on Model
W6631
CONNECTOR ASSEMBLY
CONNECTOR ASSEMBLY LGE 6877A20035K Contact Us For Availability
View on Model
