Model Alliance DH1250 Washer – Common Parts & Diagrams

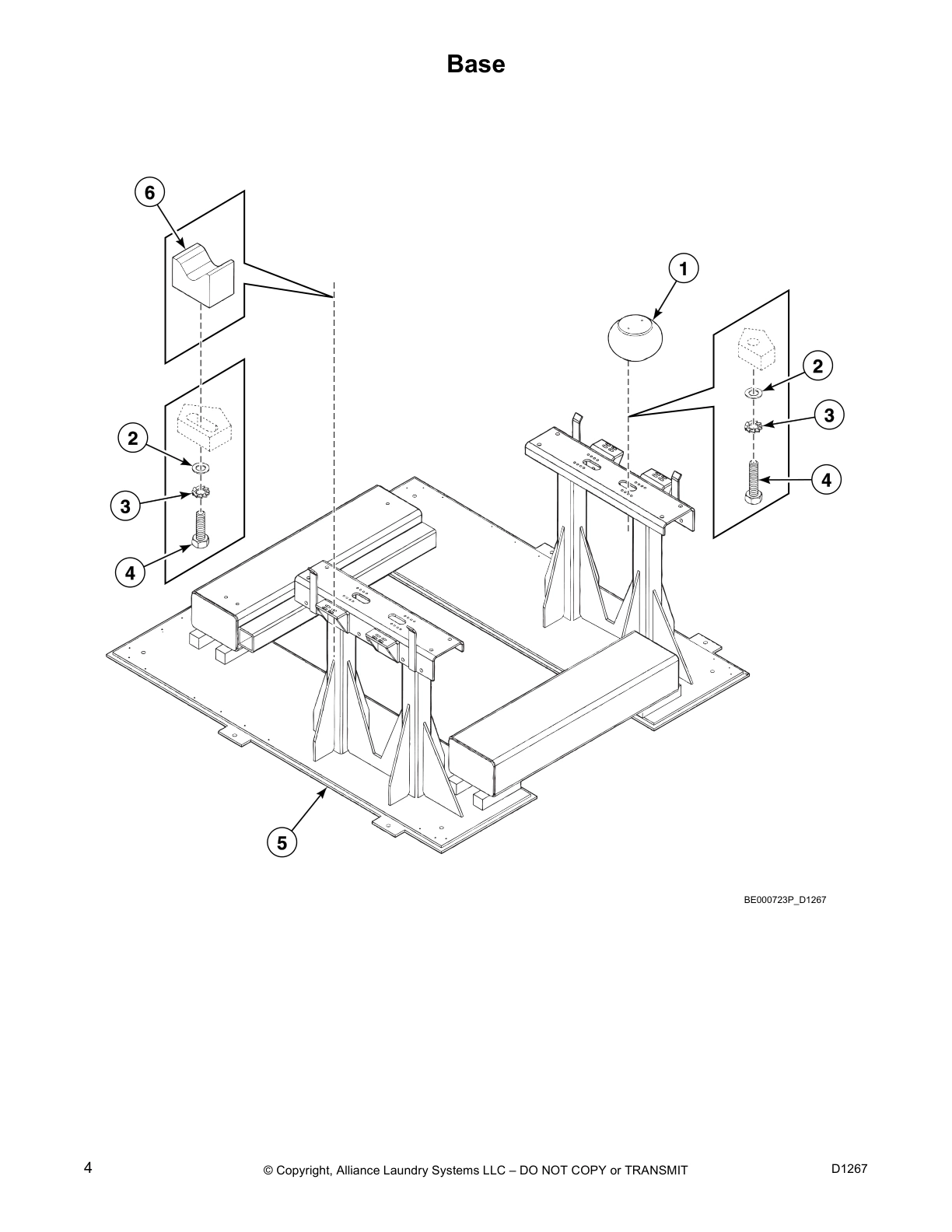

Base

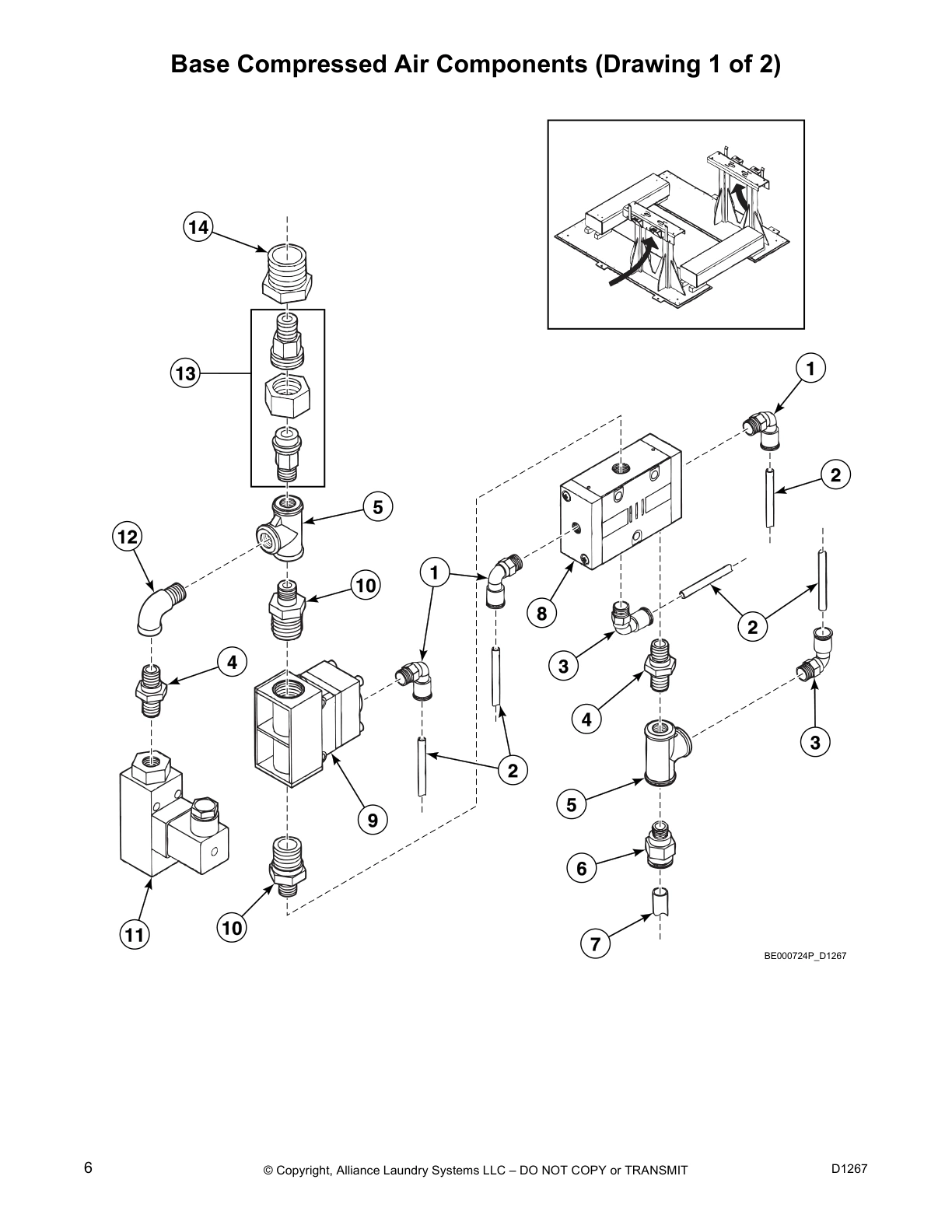

Base Compressed Air Components (Drawing 1 of 2)

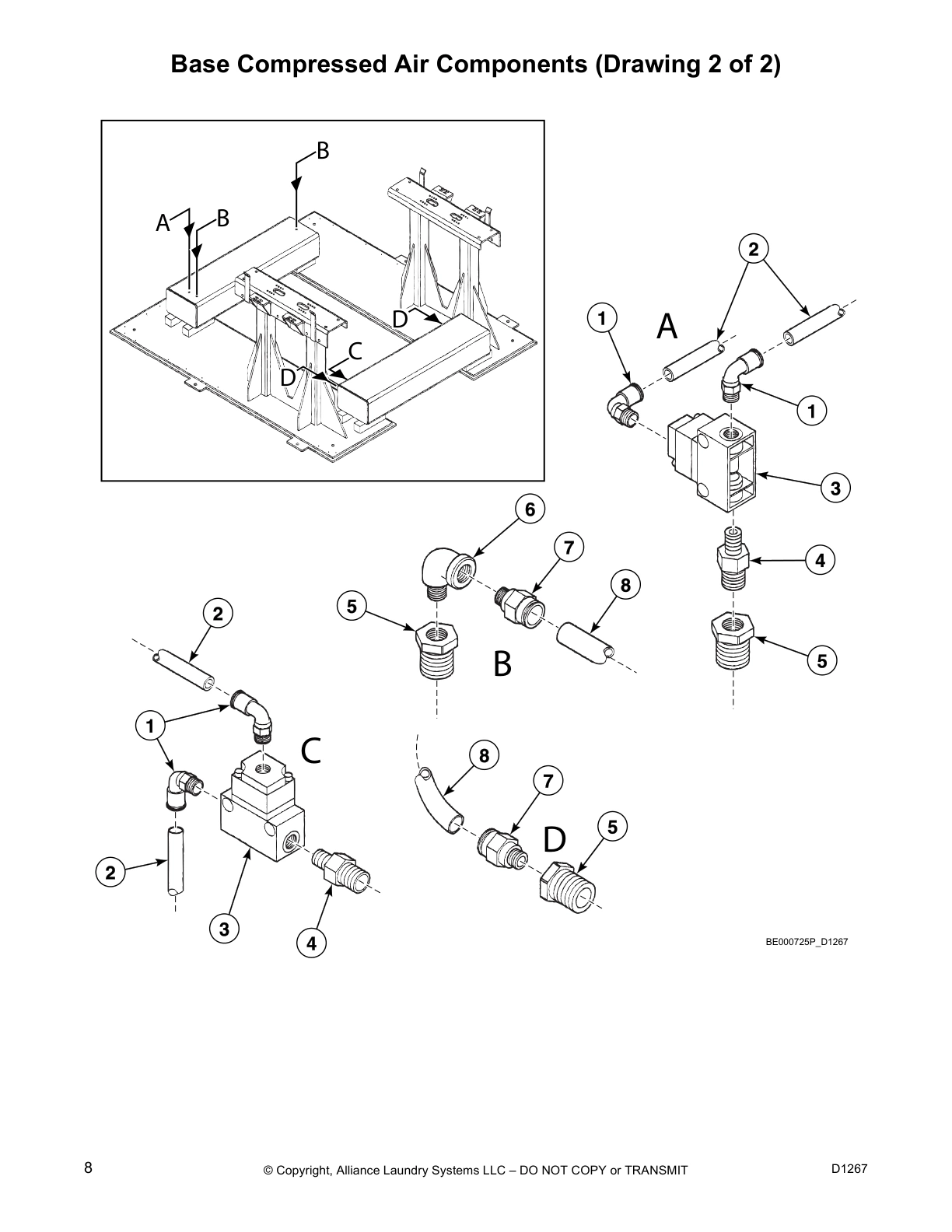

Base Compressed Air Components (Drawing 2 of 2)

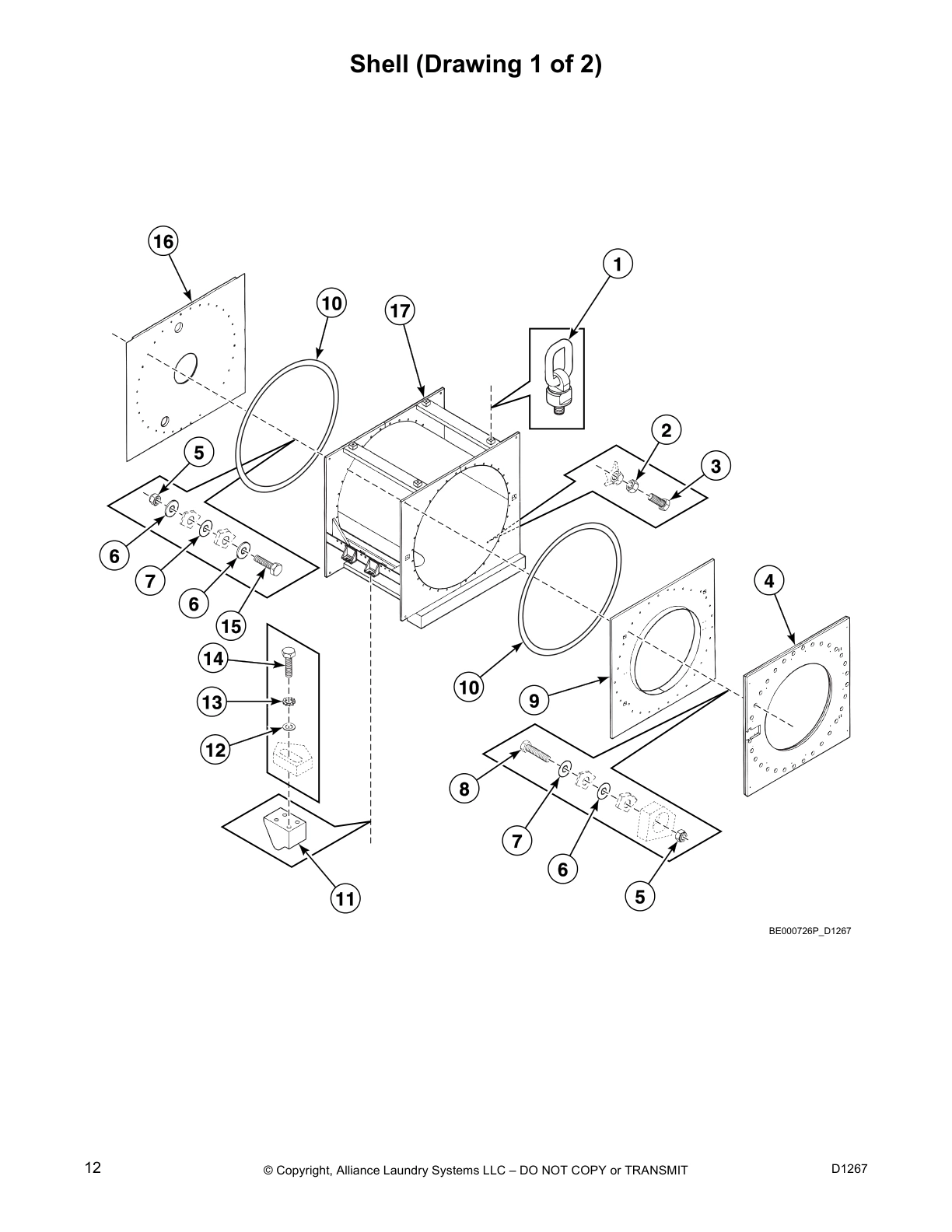

Shell (Drawing 1 of 2)

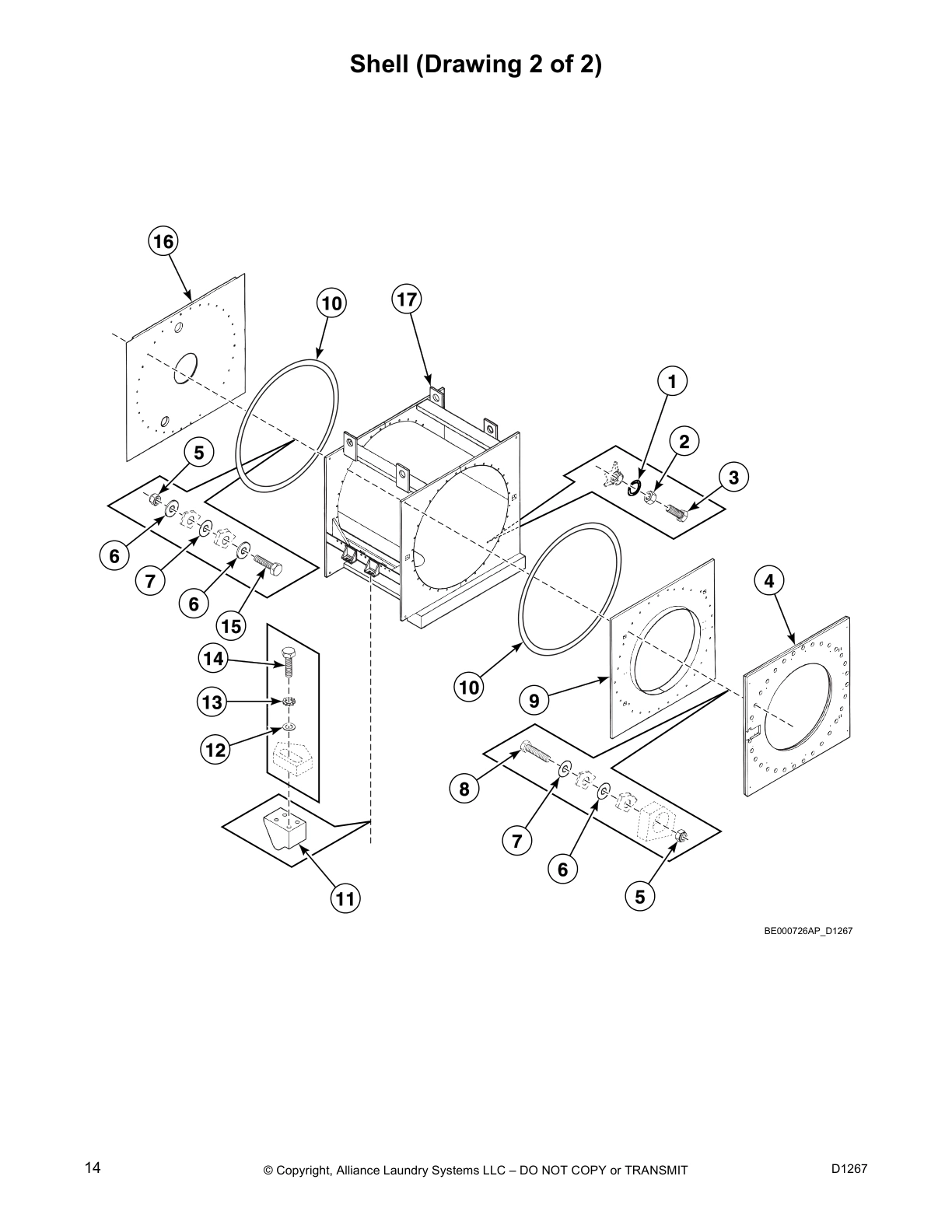

Shell (Drawing 2 of 2)

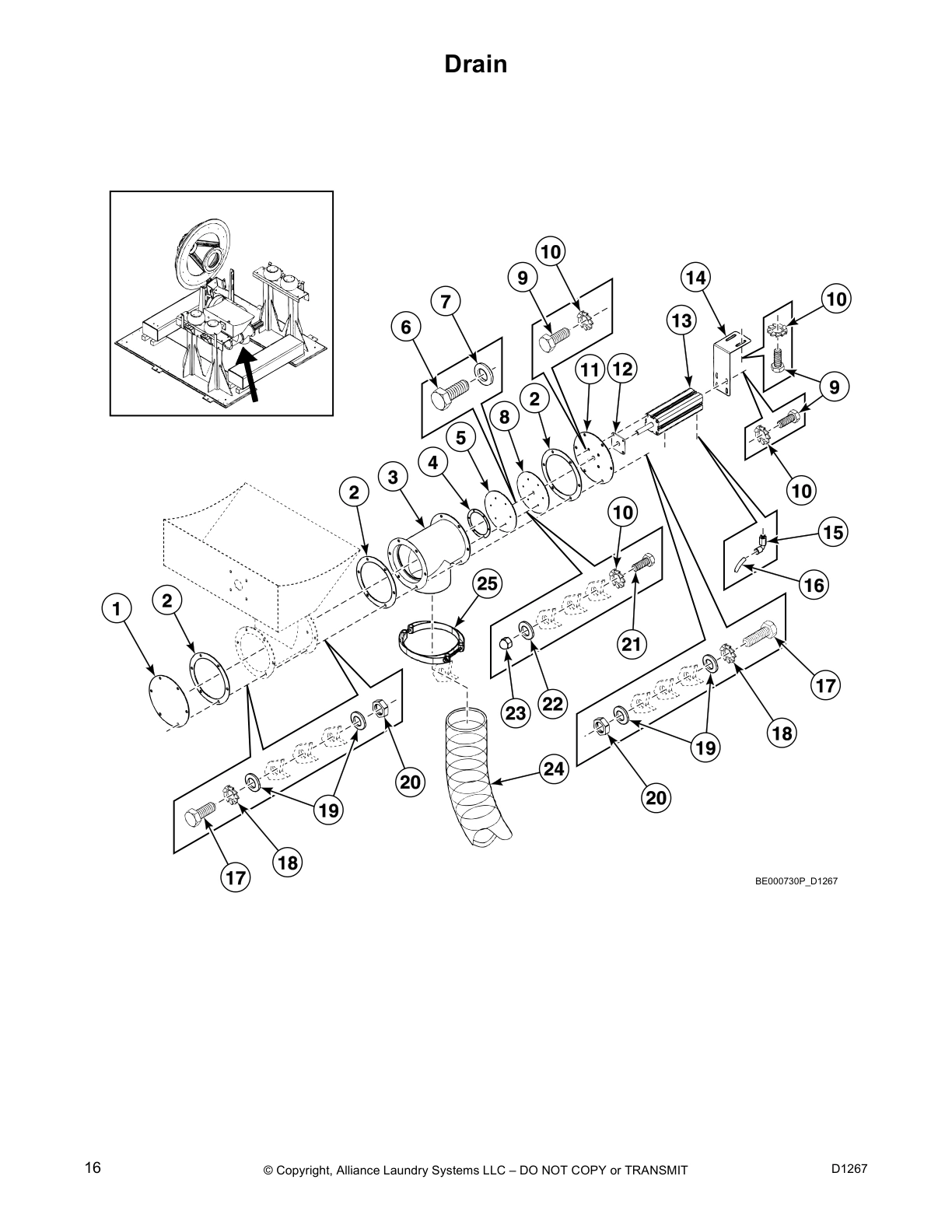

Drain

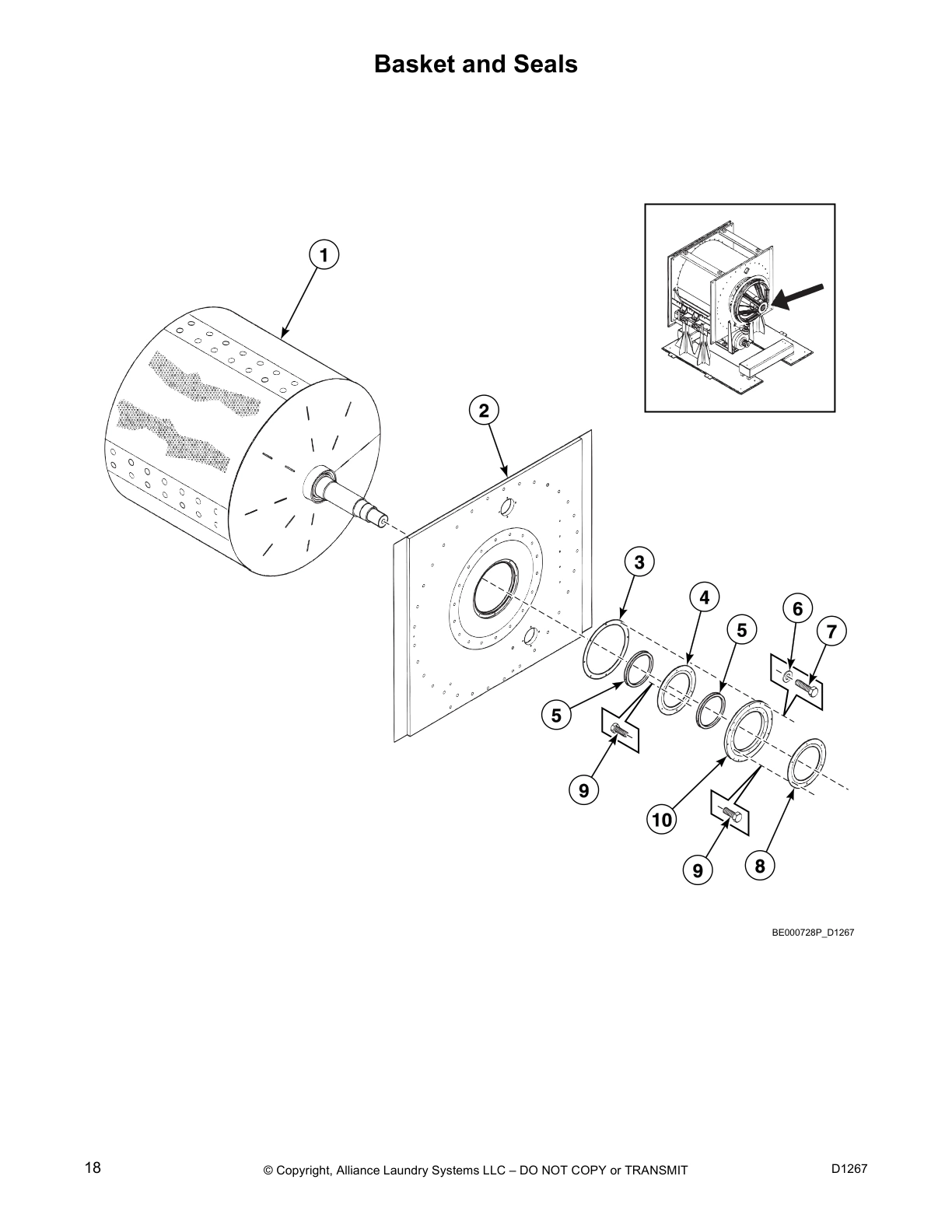

Basket and Seals

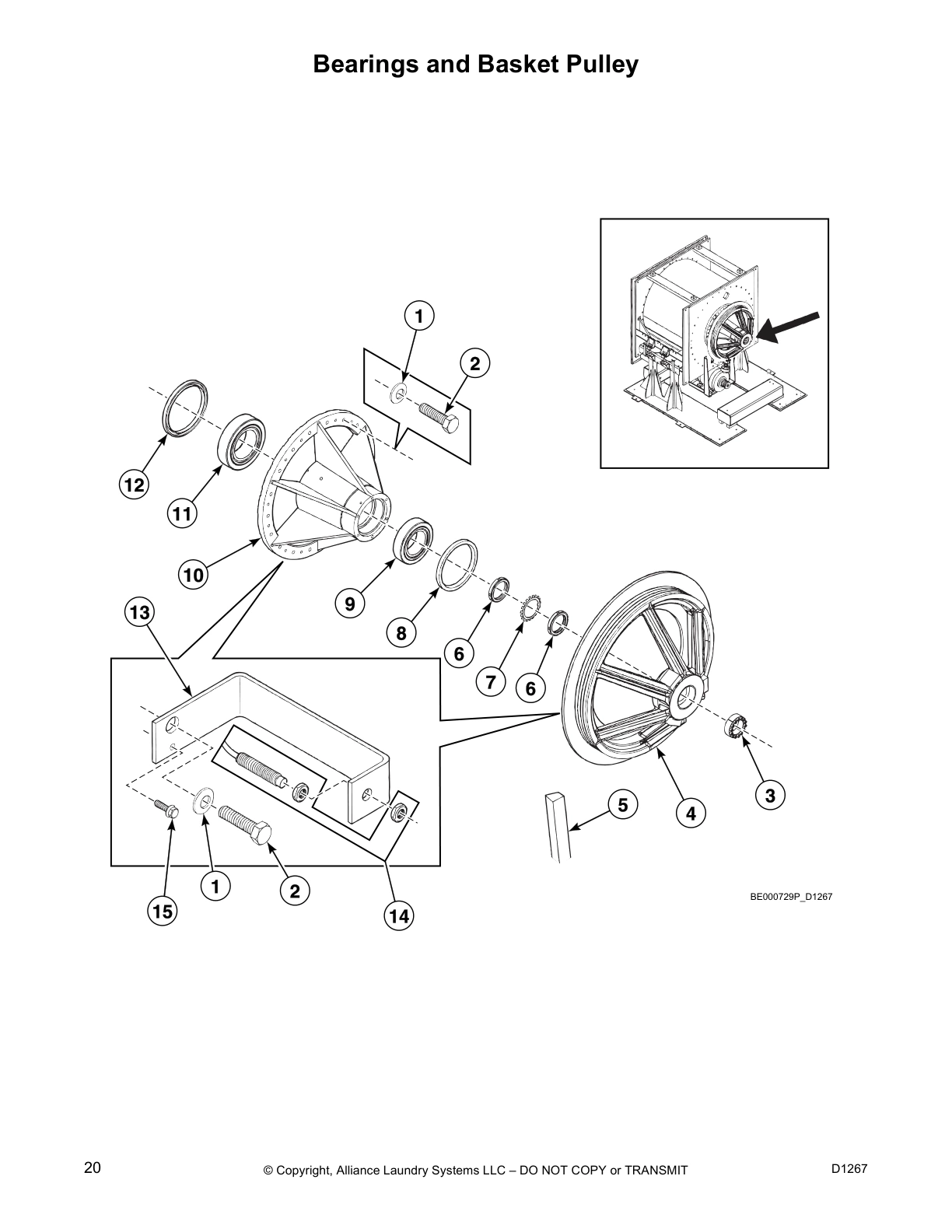

Bearings and Basket Pulley

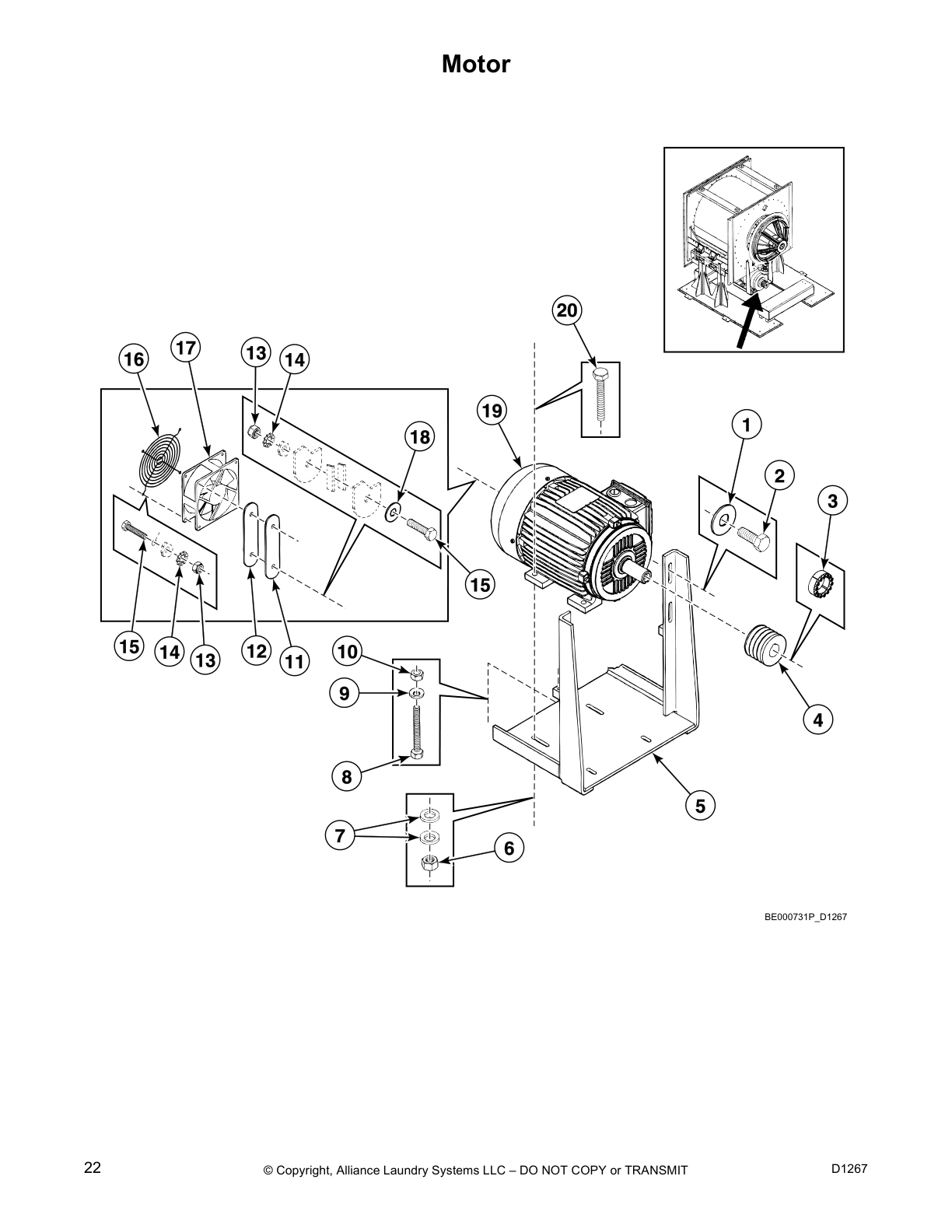

Motor

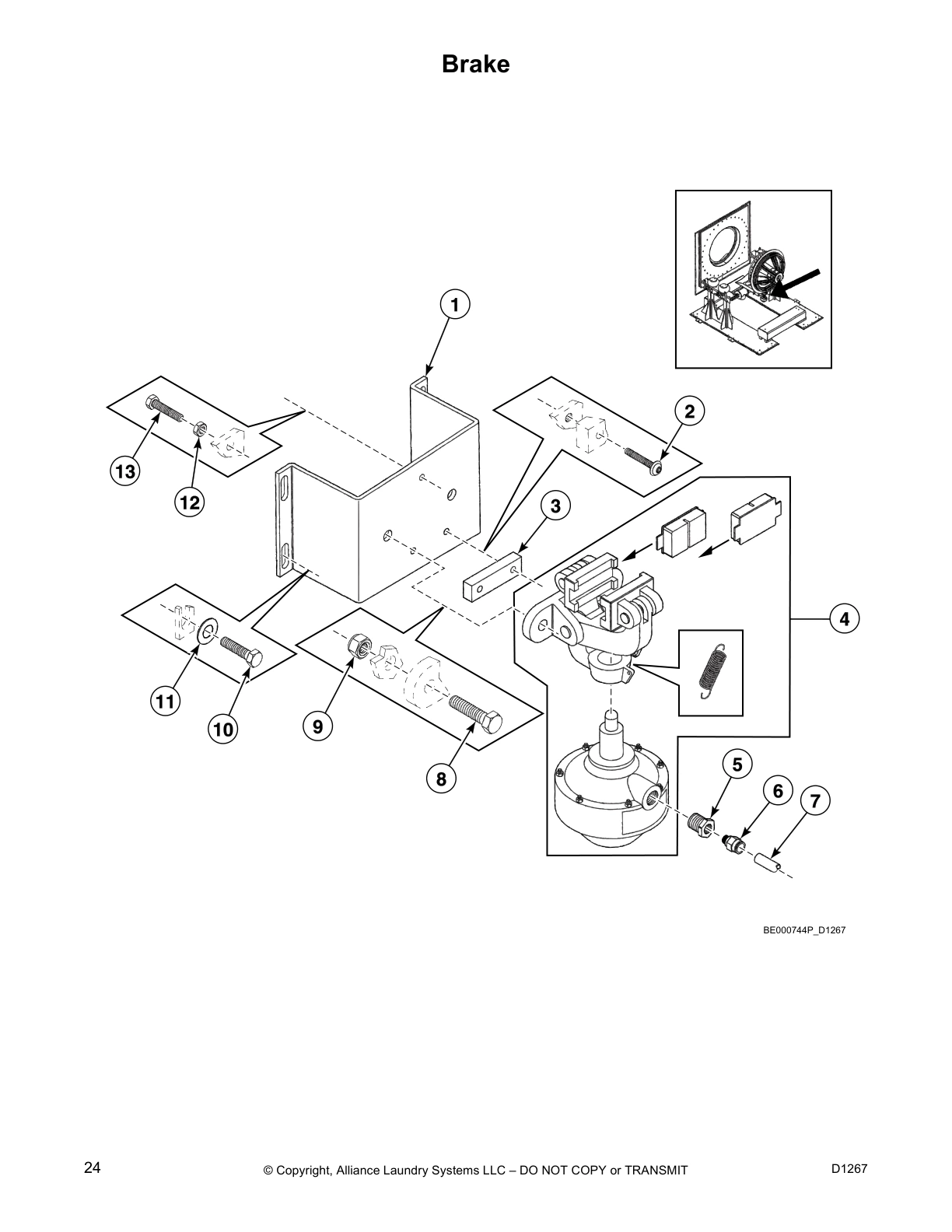

Brake

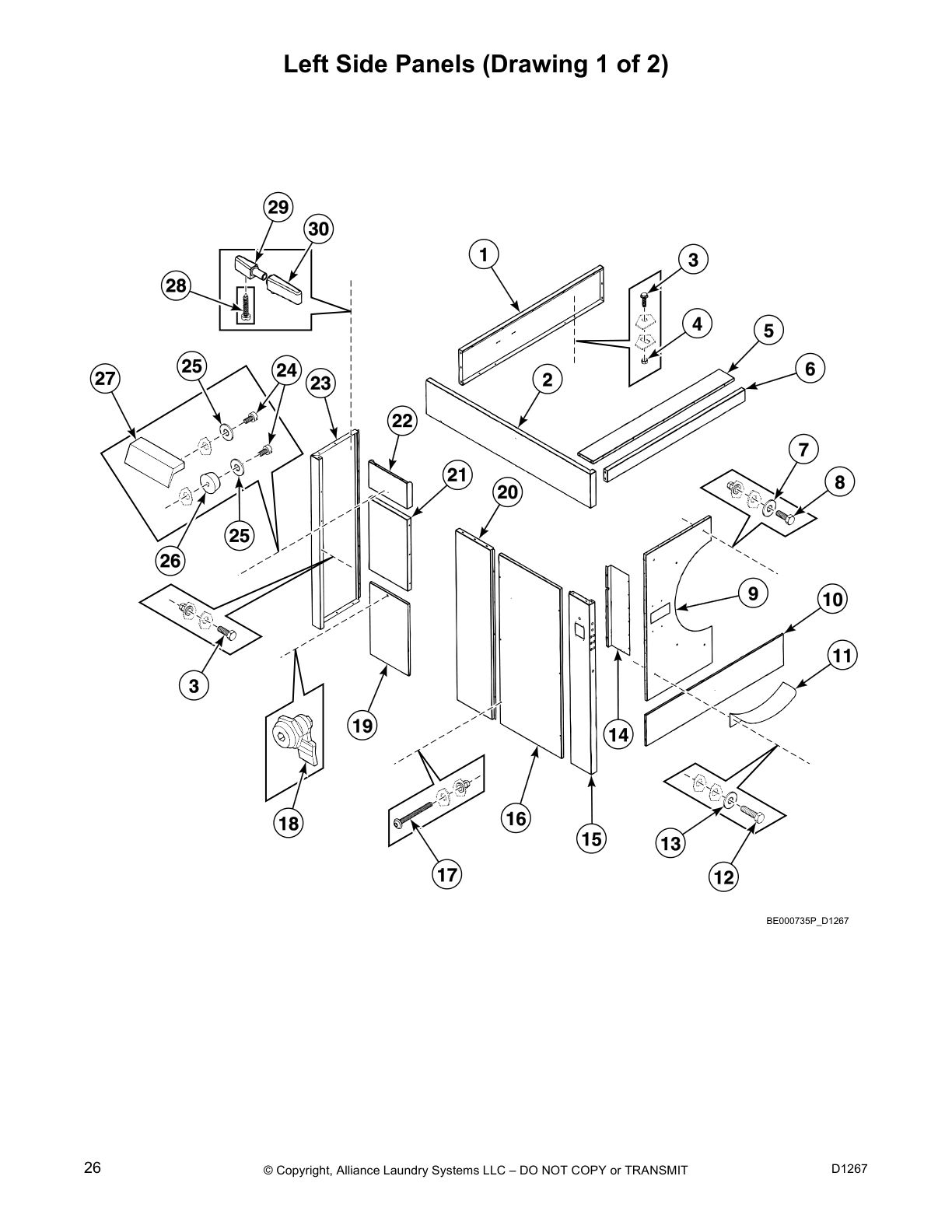

Left Side Panels (Drawing 1 of 2)
Left Side Panels (Drawing 2 of 2)

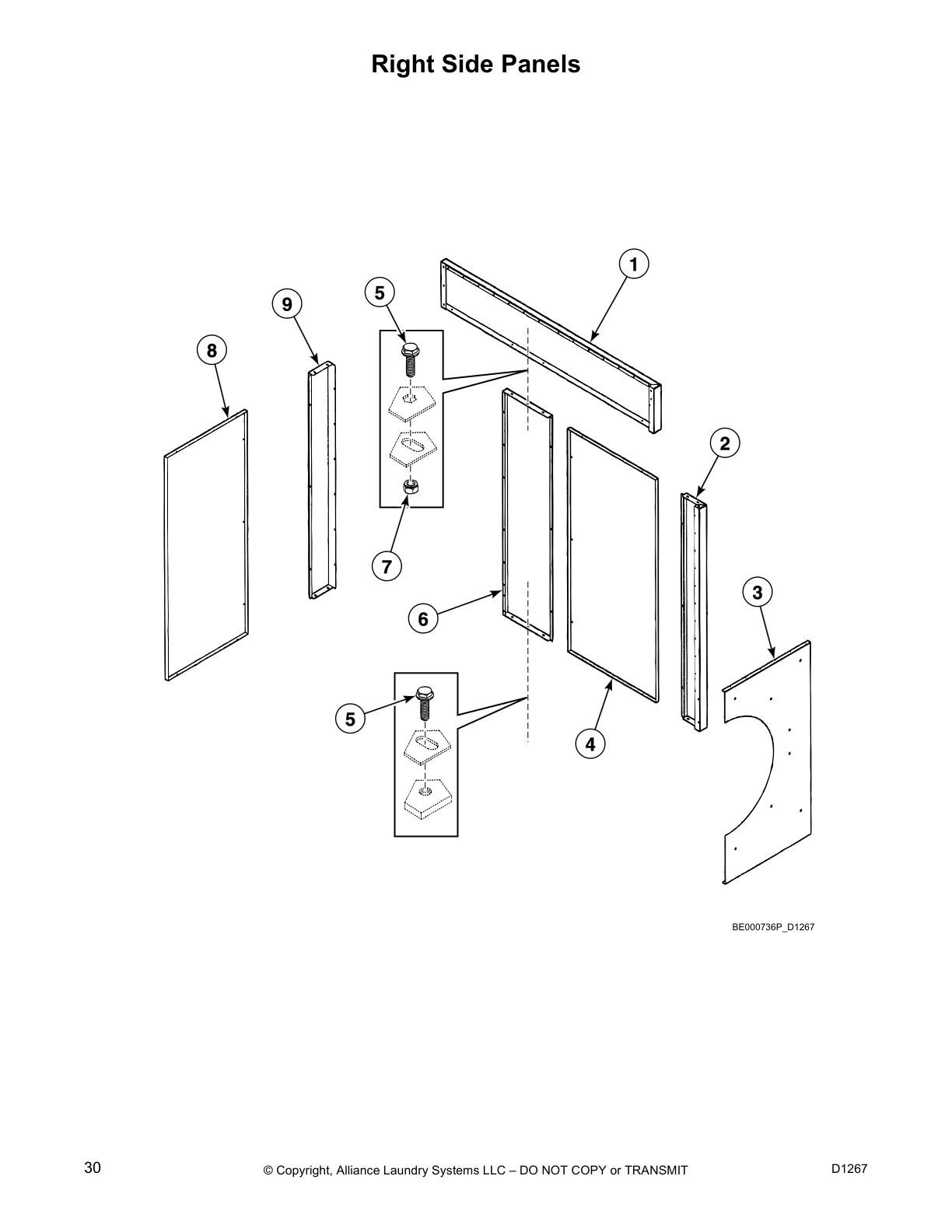

Right Side Panels

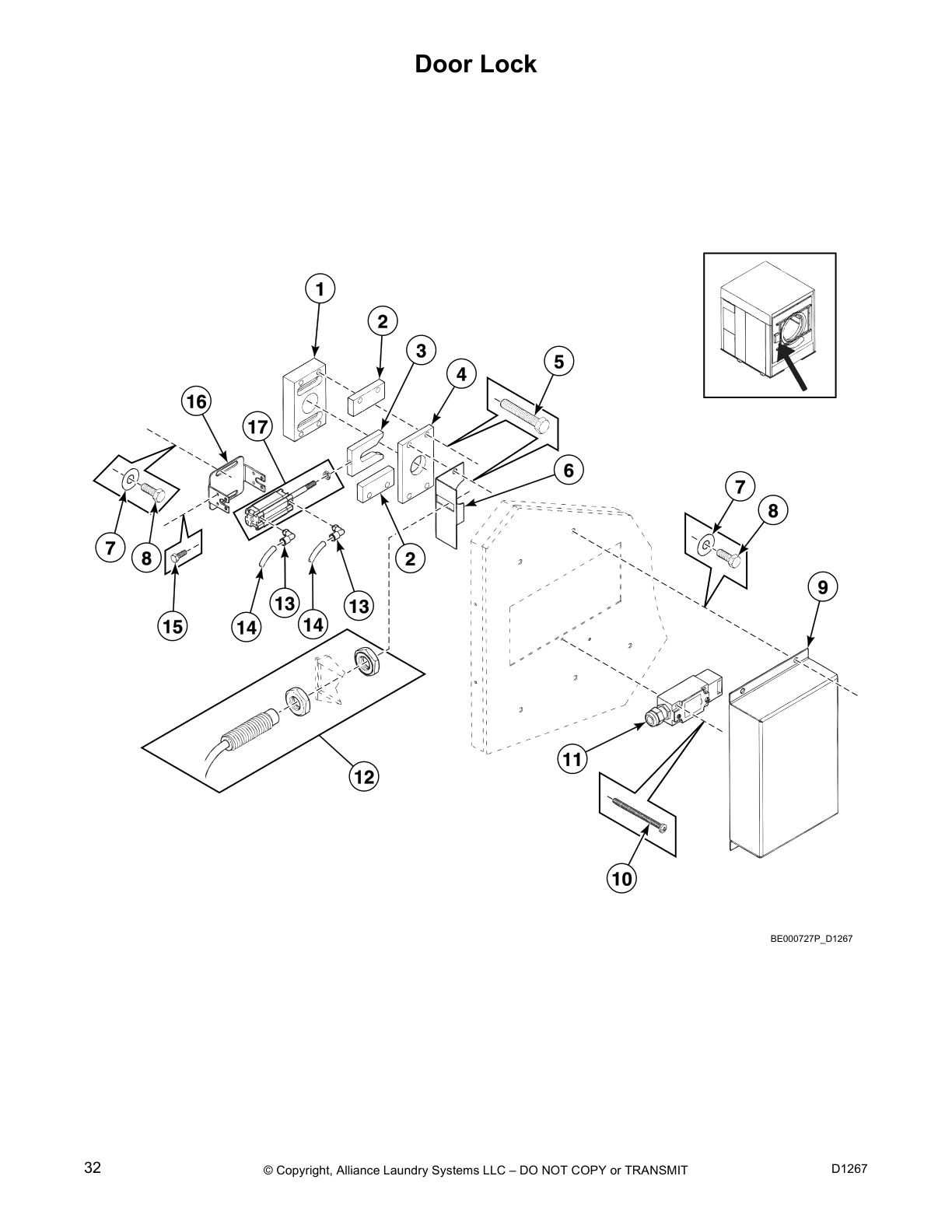

Door Lock

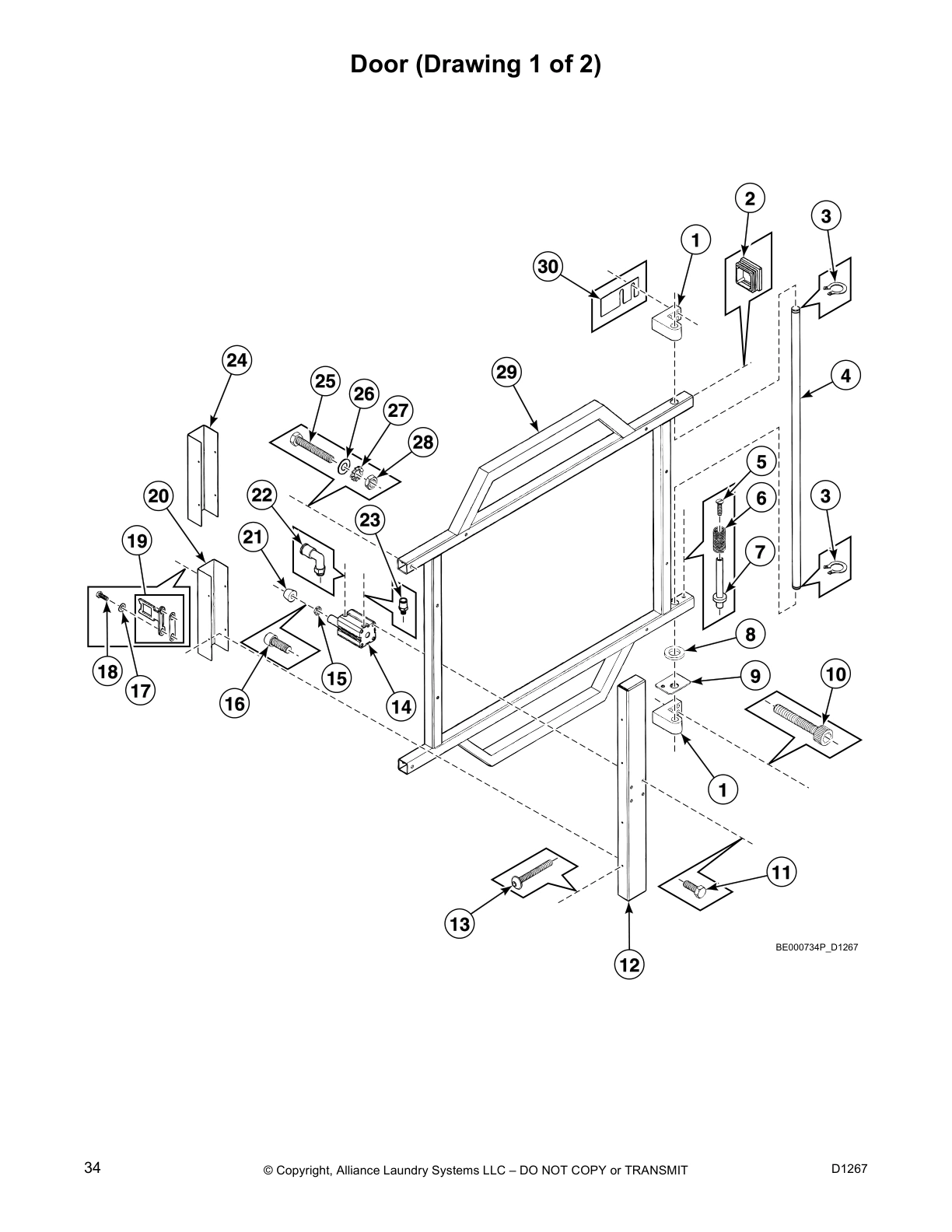

Door (Drawing 1 of 2)

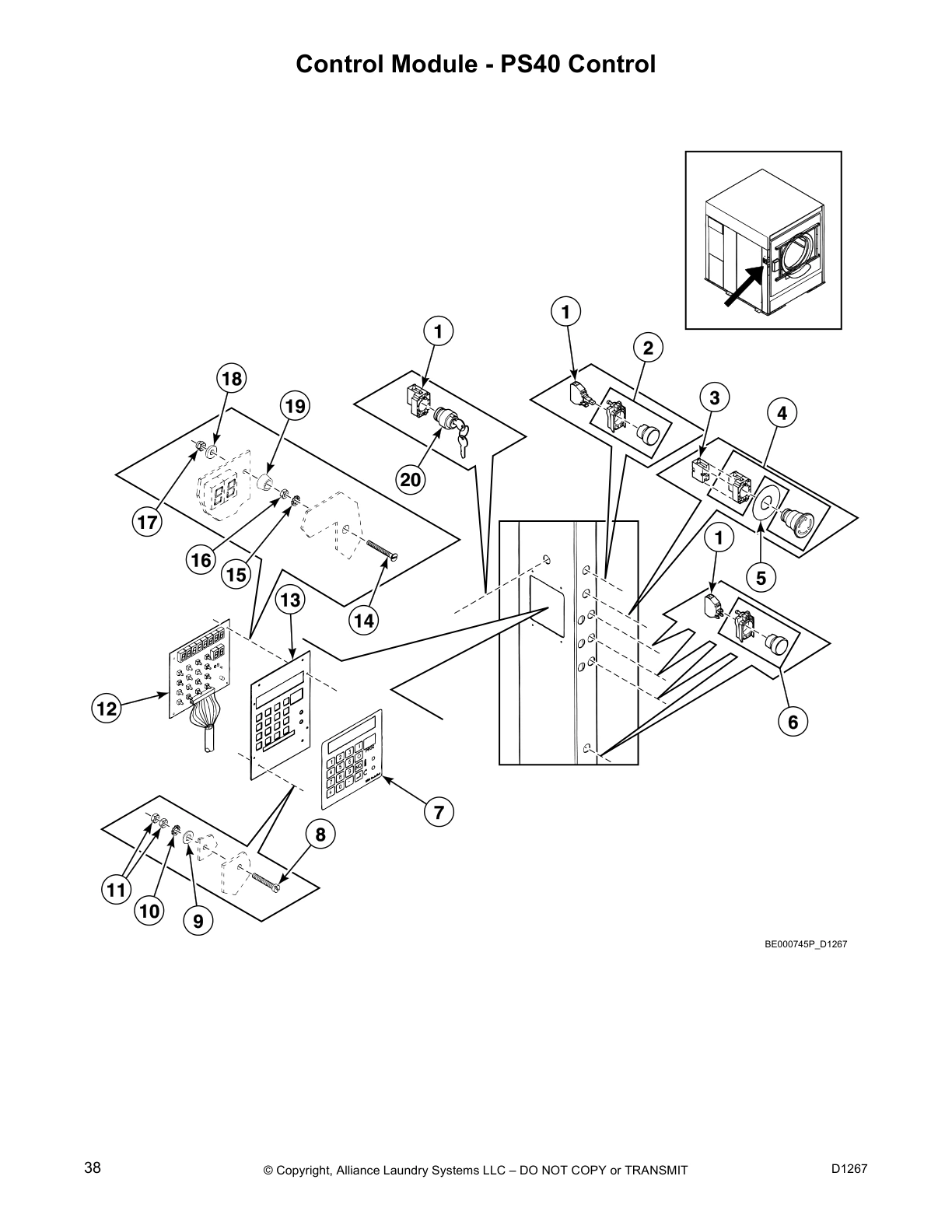

Control Module - PS40 Control

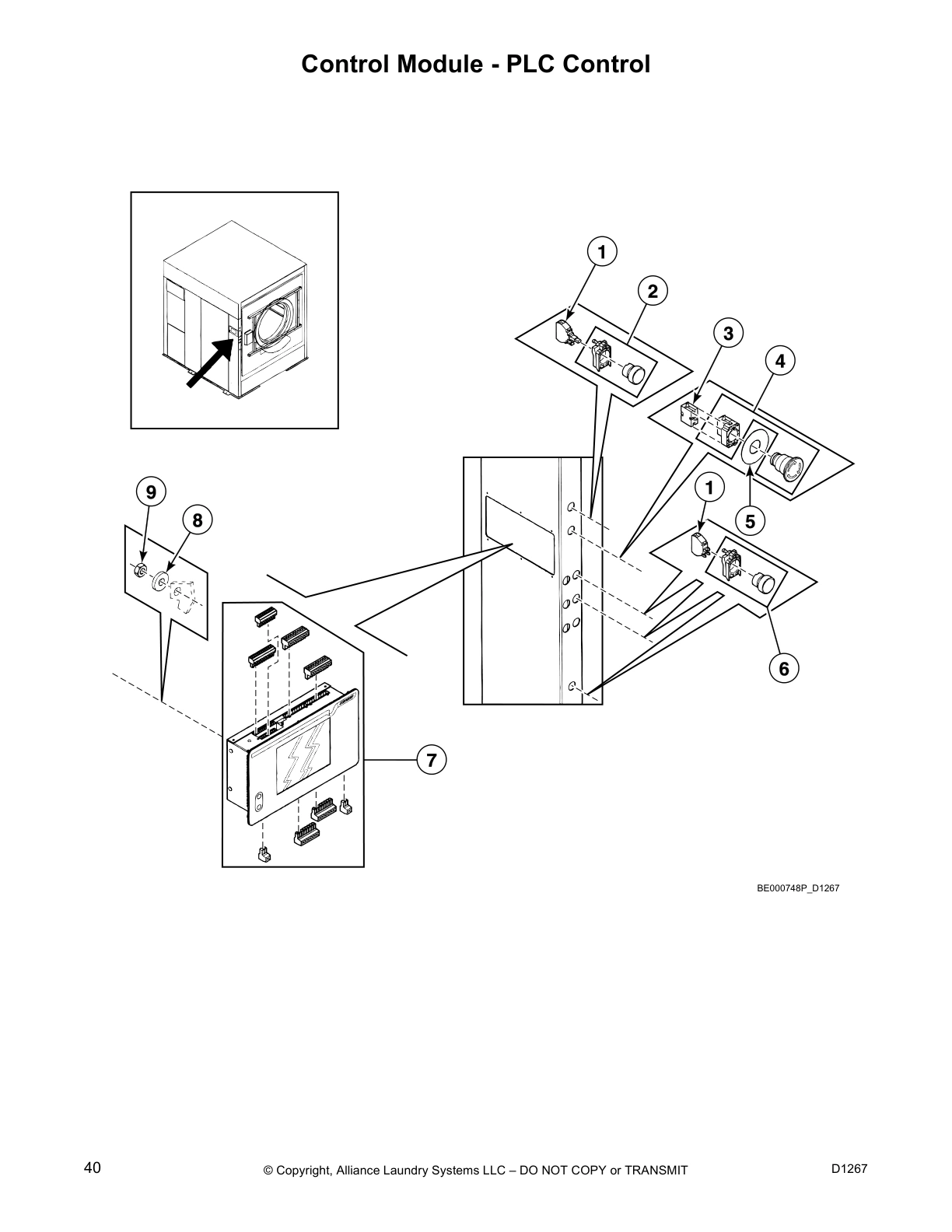

Control Module - PLC Control

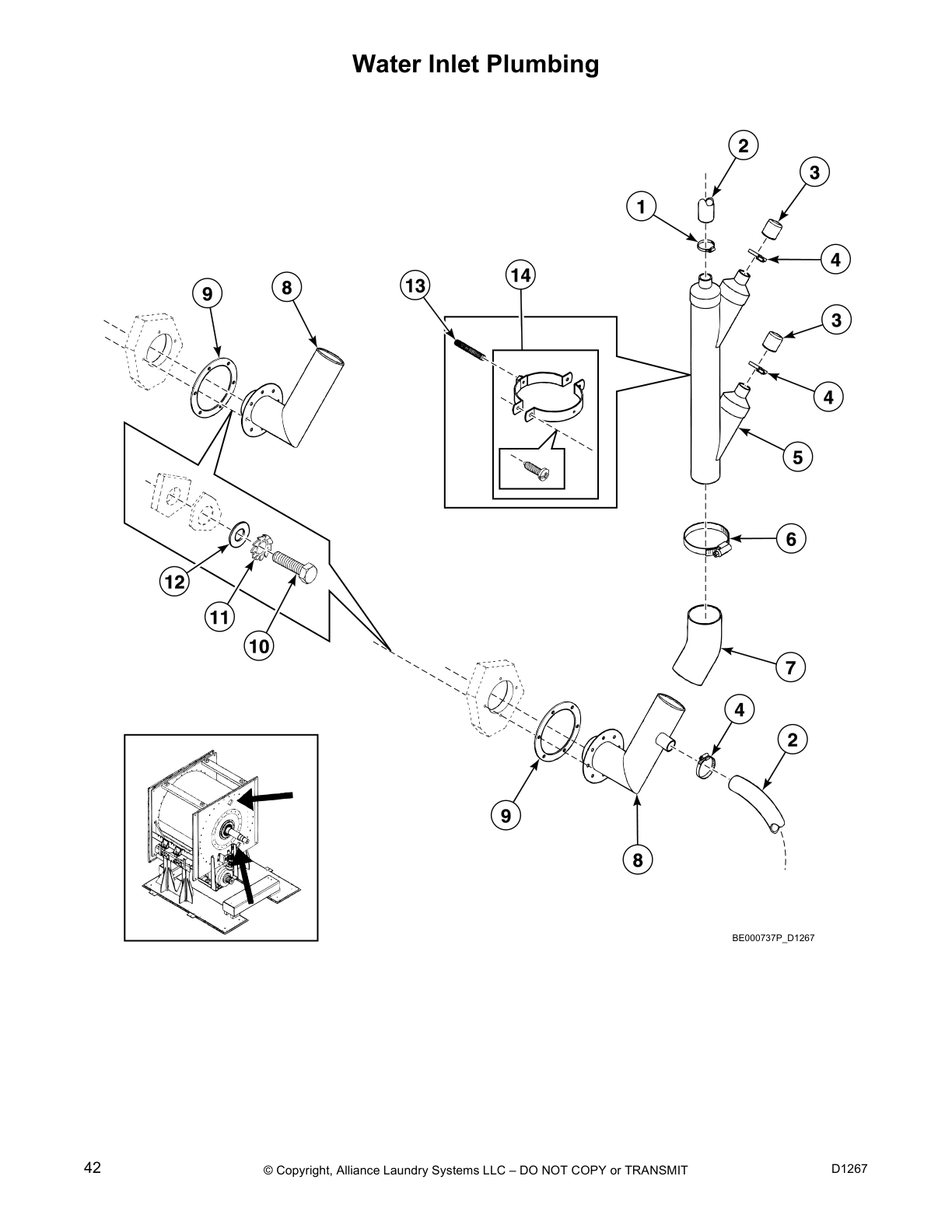

Water Inlet Plumbing

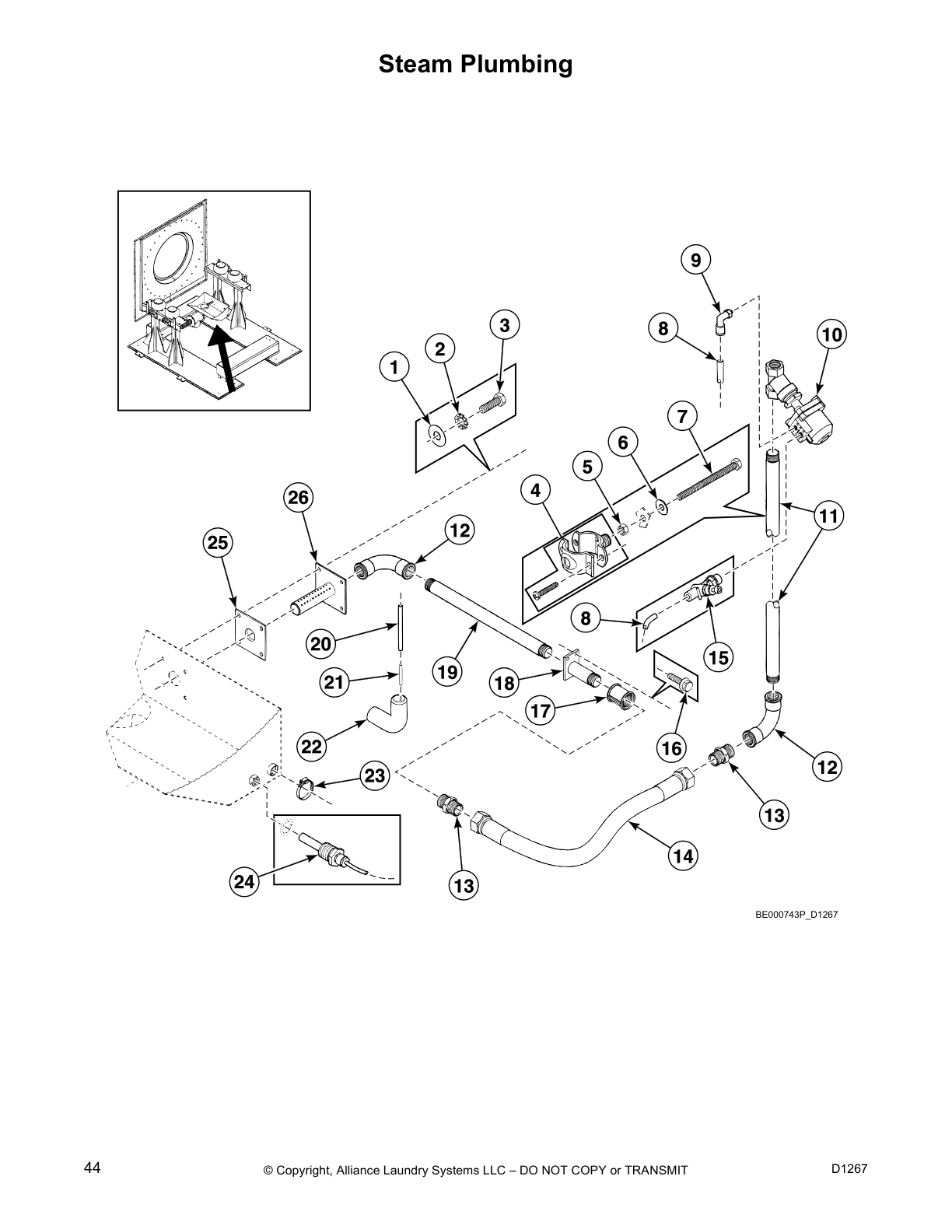

Steam Plumbing

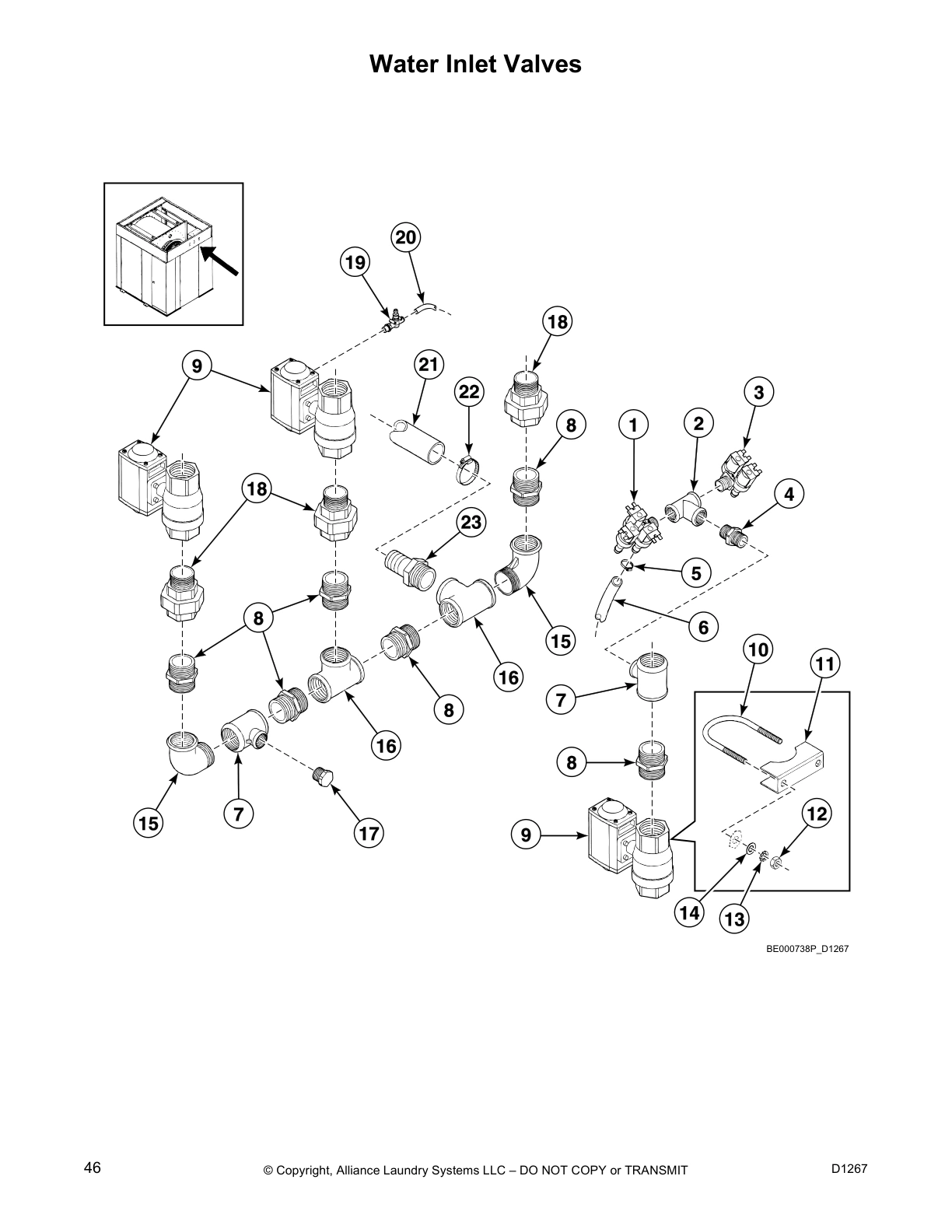

Water Inlet Valves

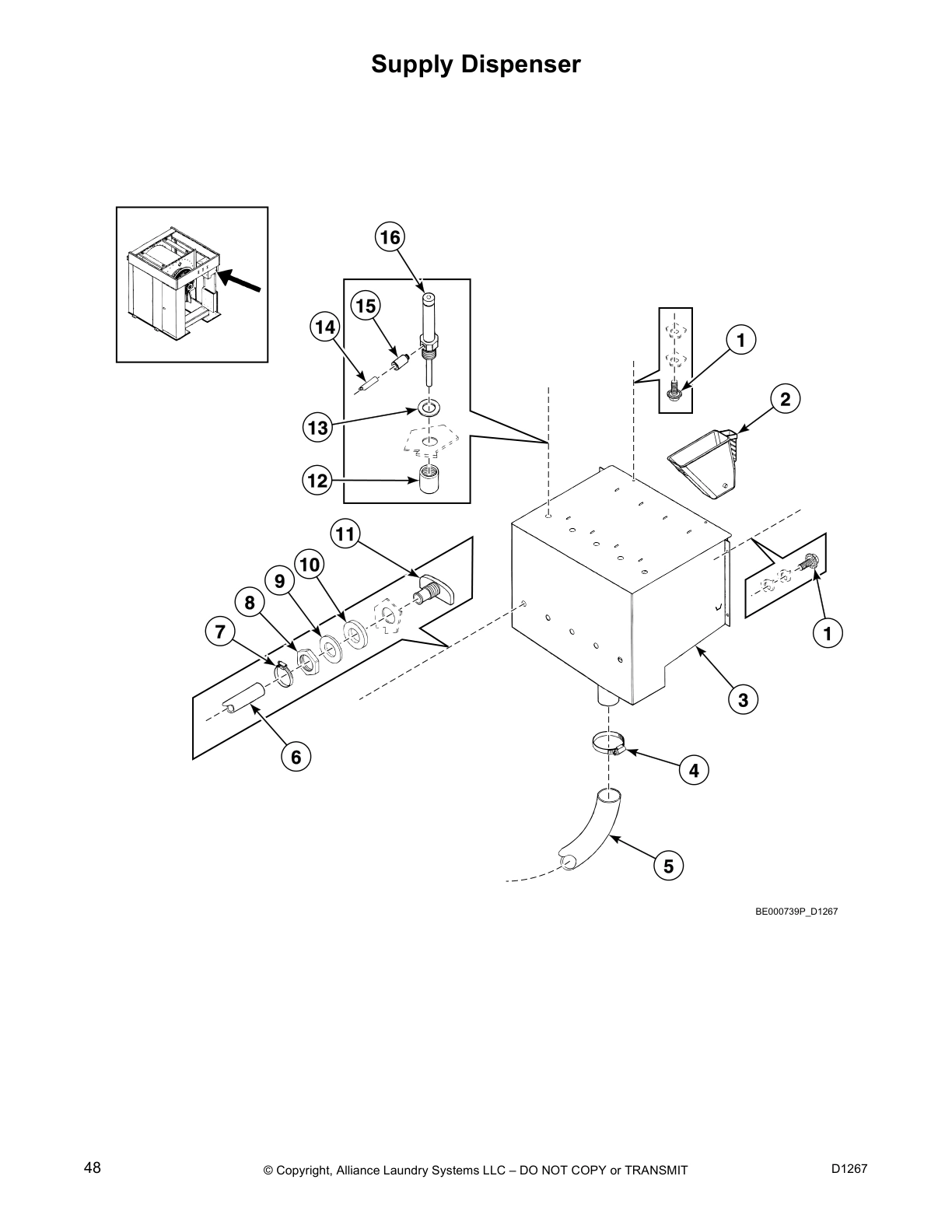

Supply Dispenser

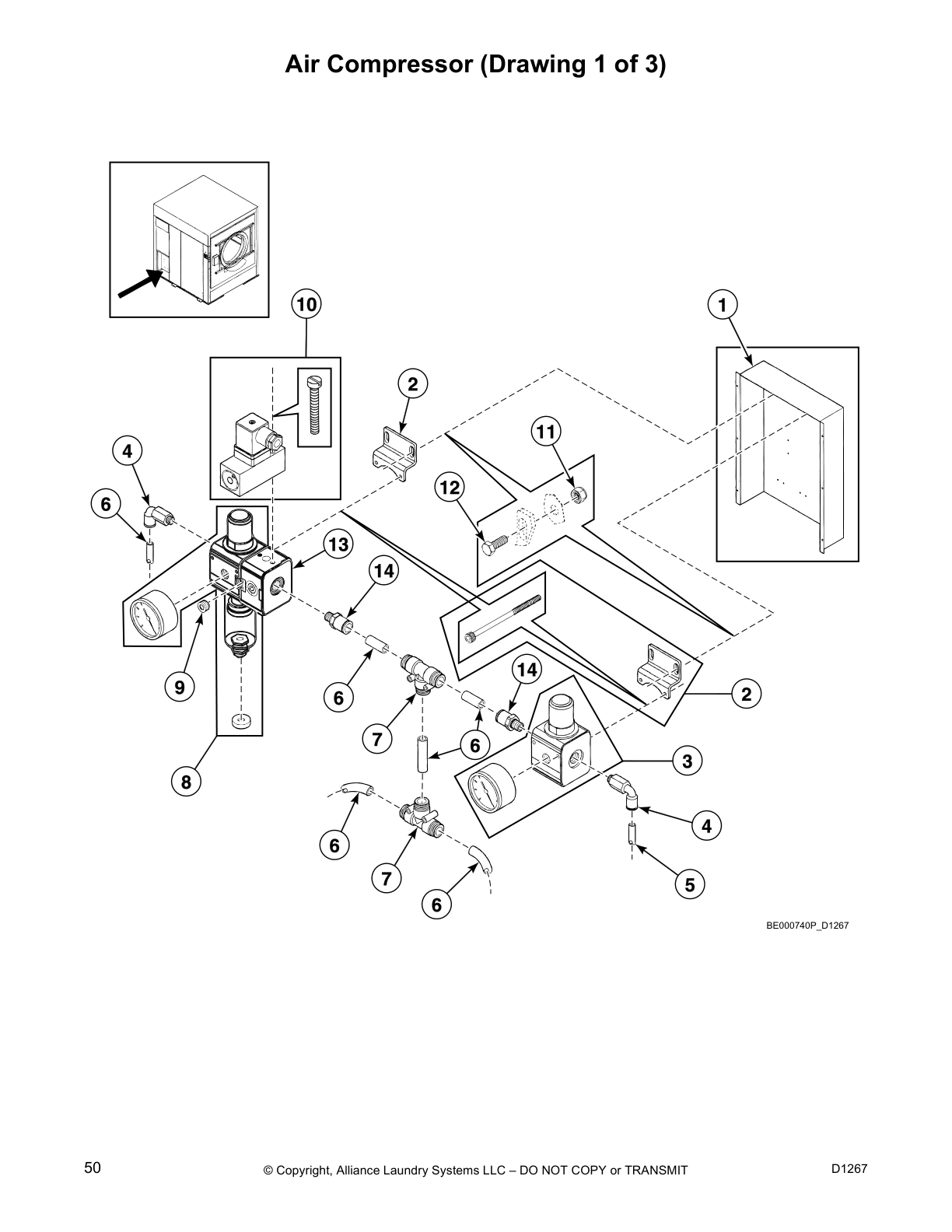

Air Compressor (Drawing 1 of 3)

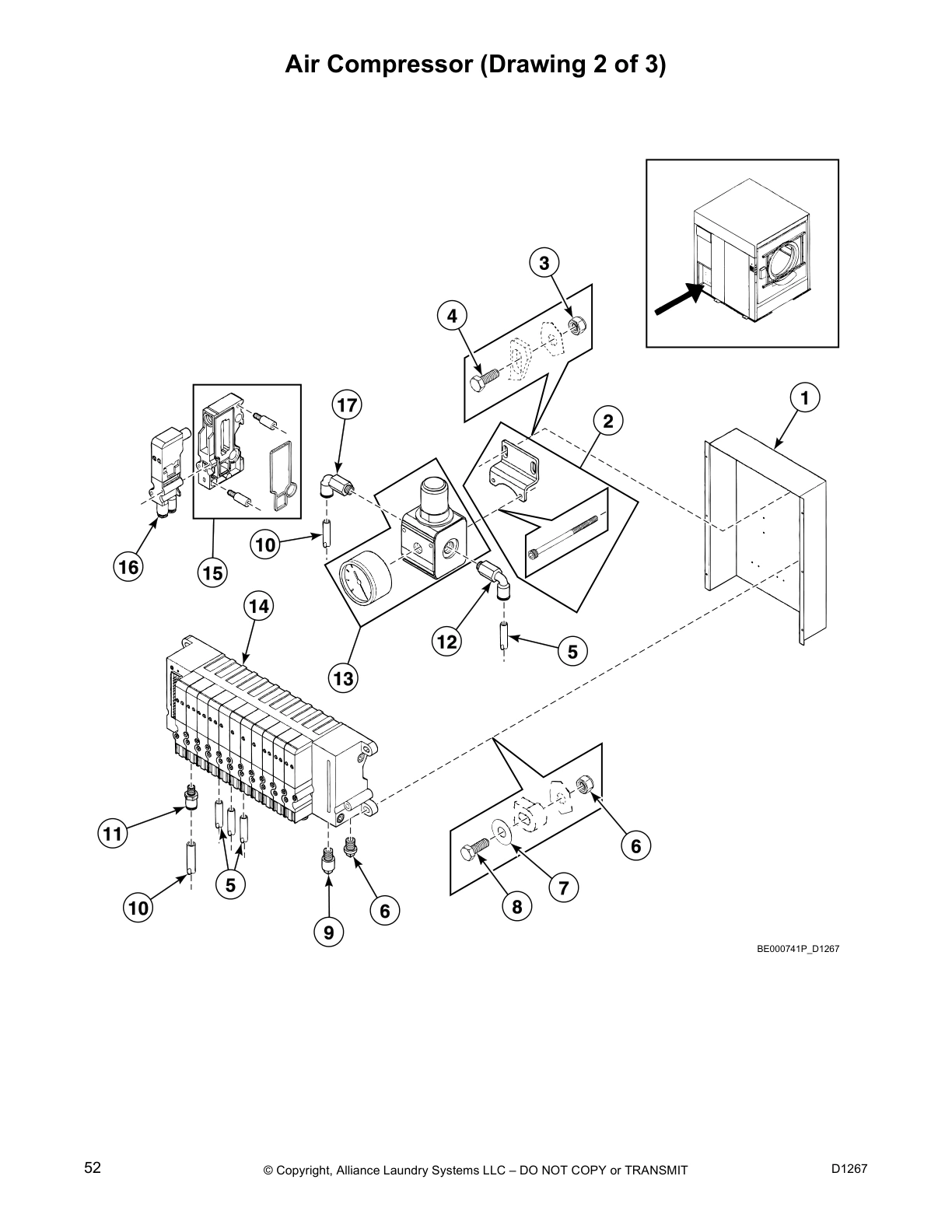

Air Compressor (Drawing 2 of 3)

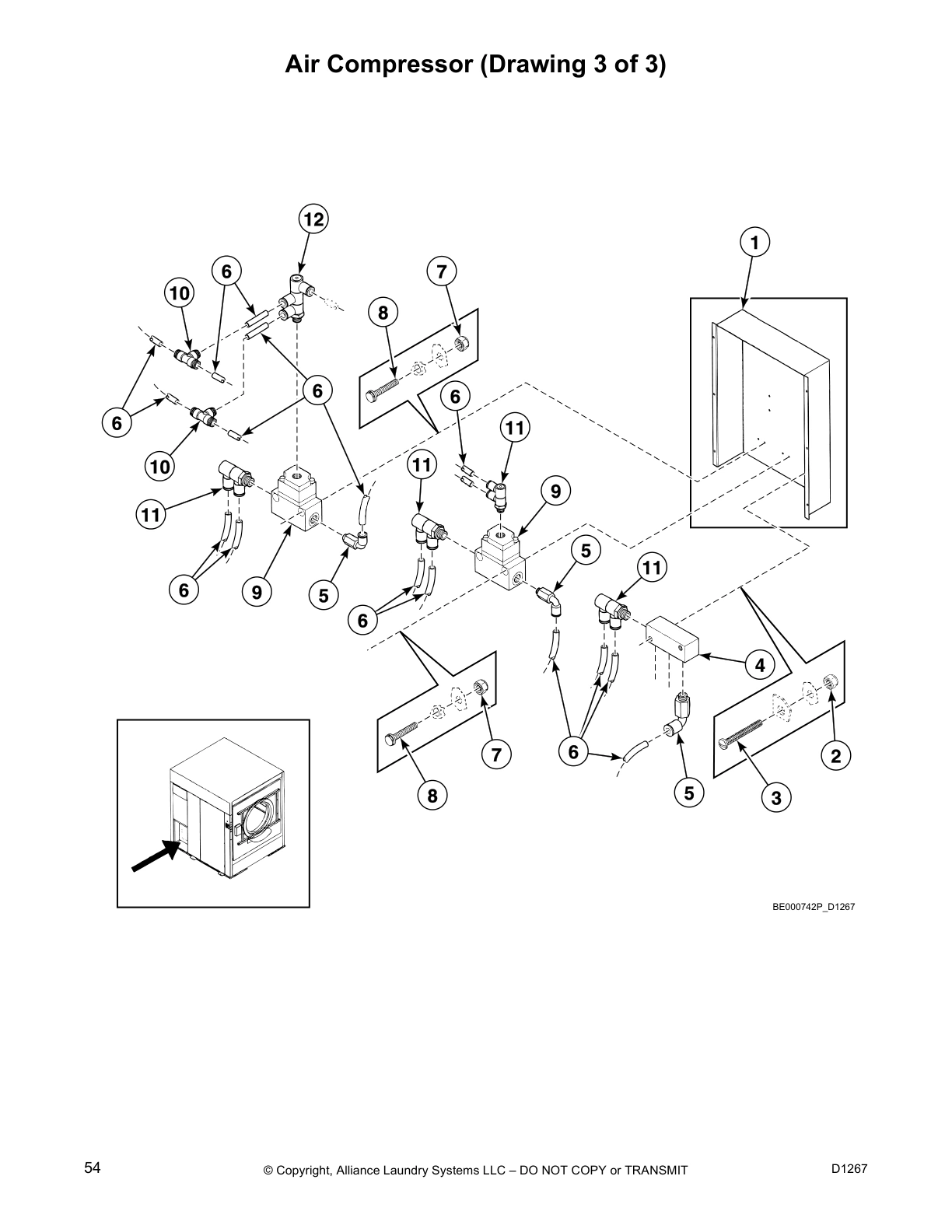

Air Compressor (Drawing 3 of 3)

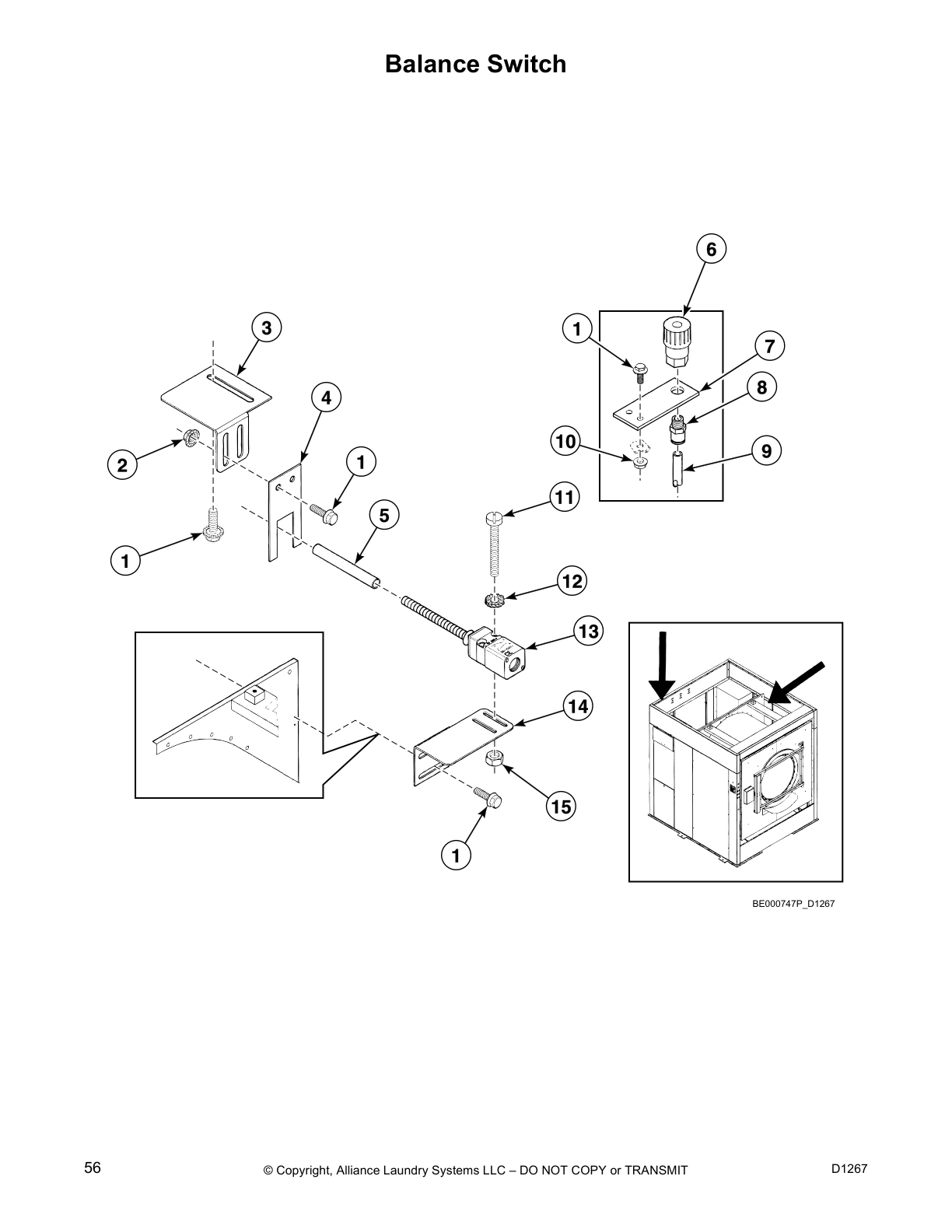

Balance Switch

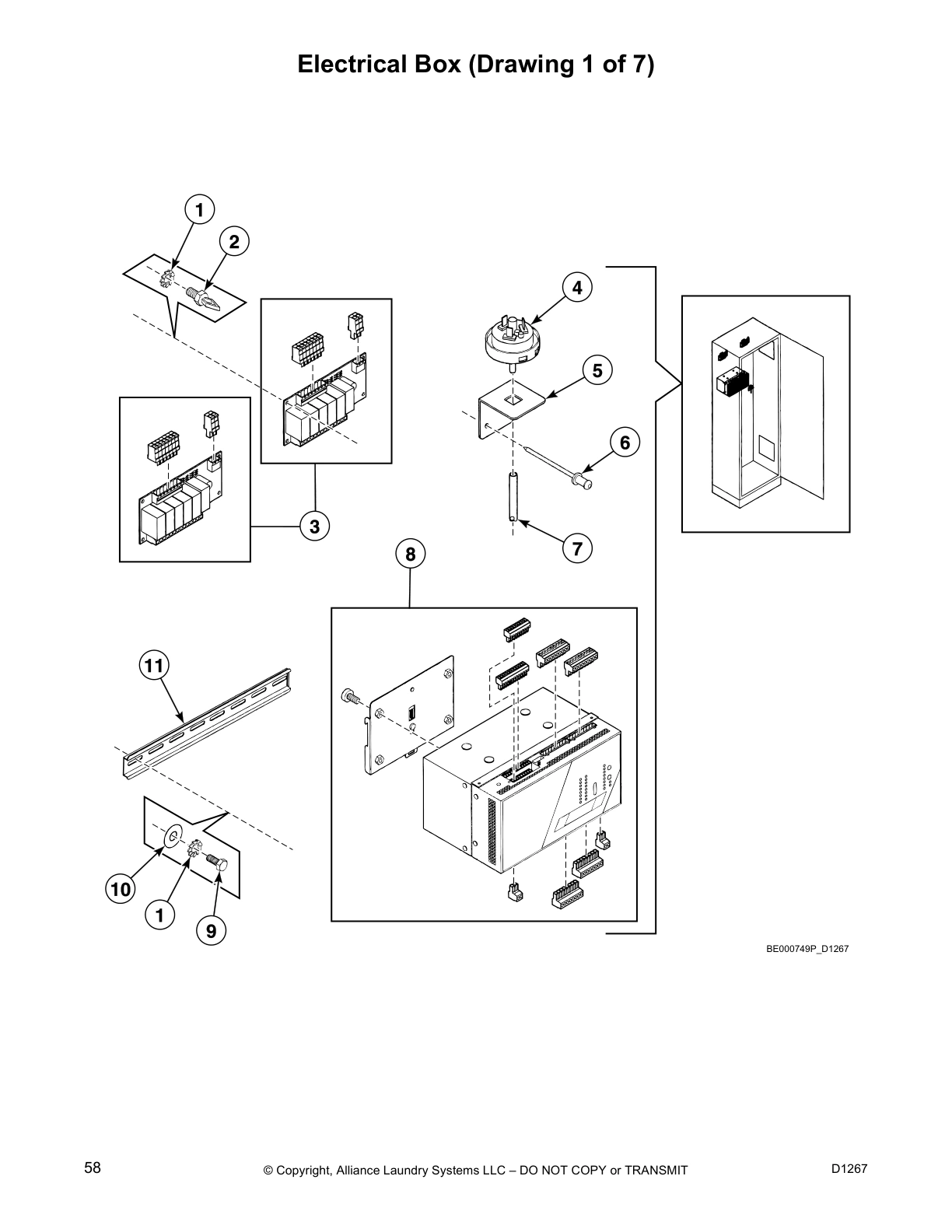

Electrical Box (Drawing 1 of 7)

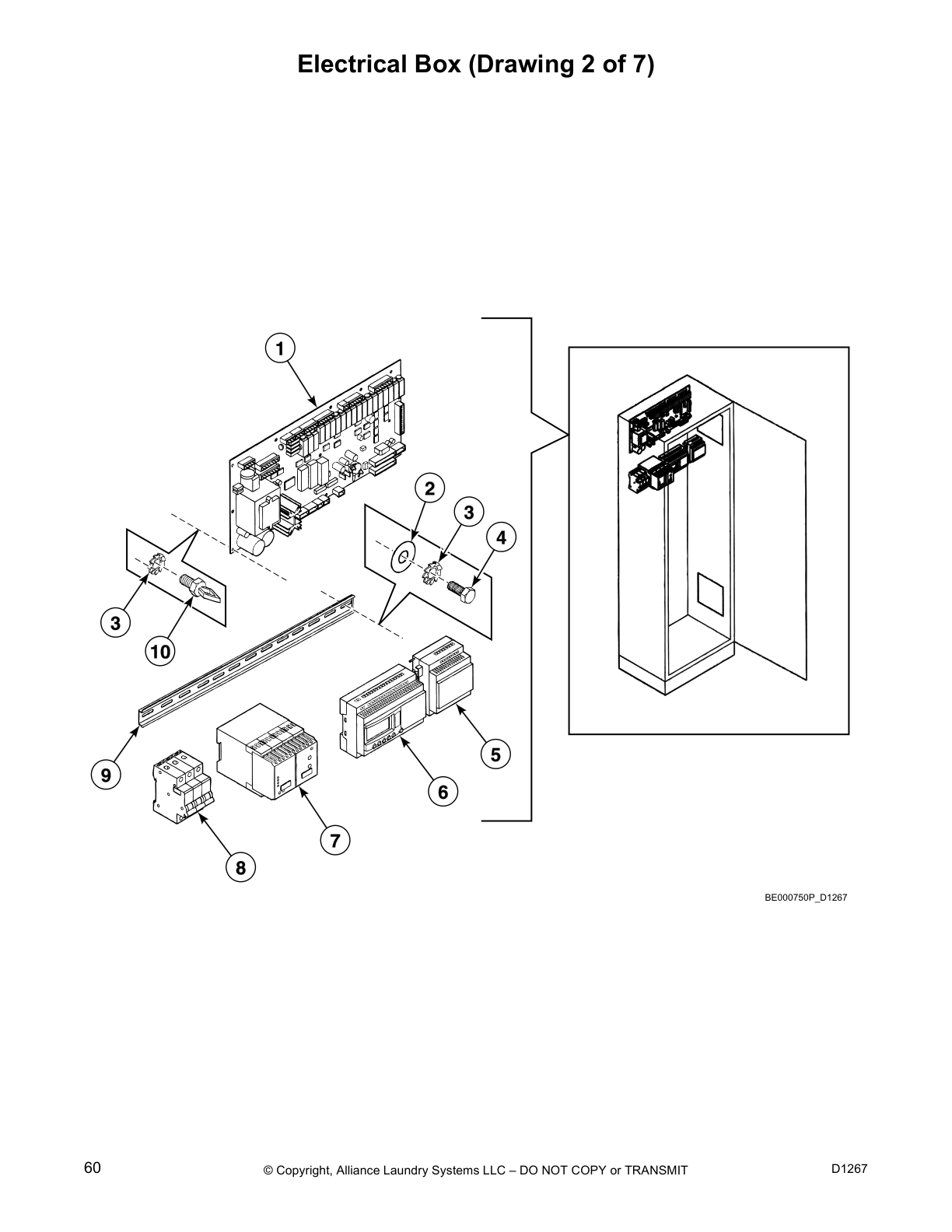

Electrical Box (Drawing 2 of 7)

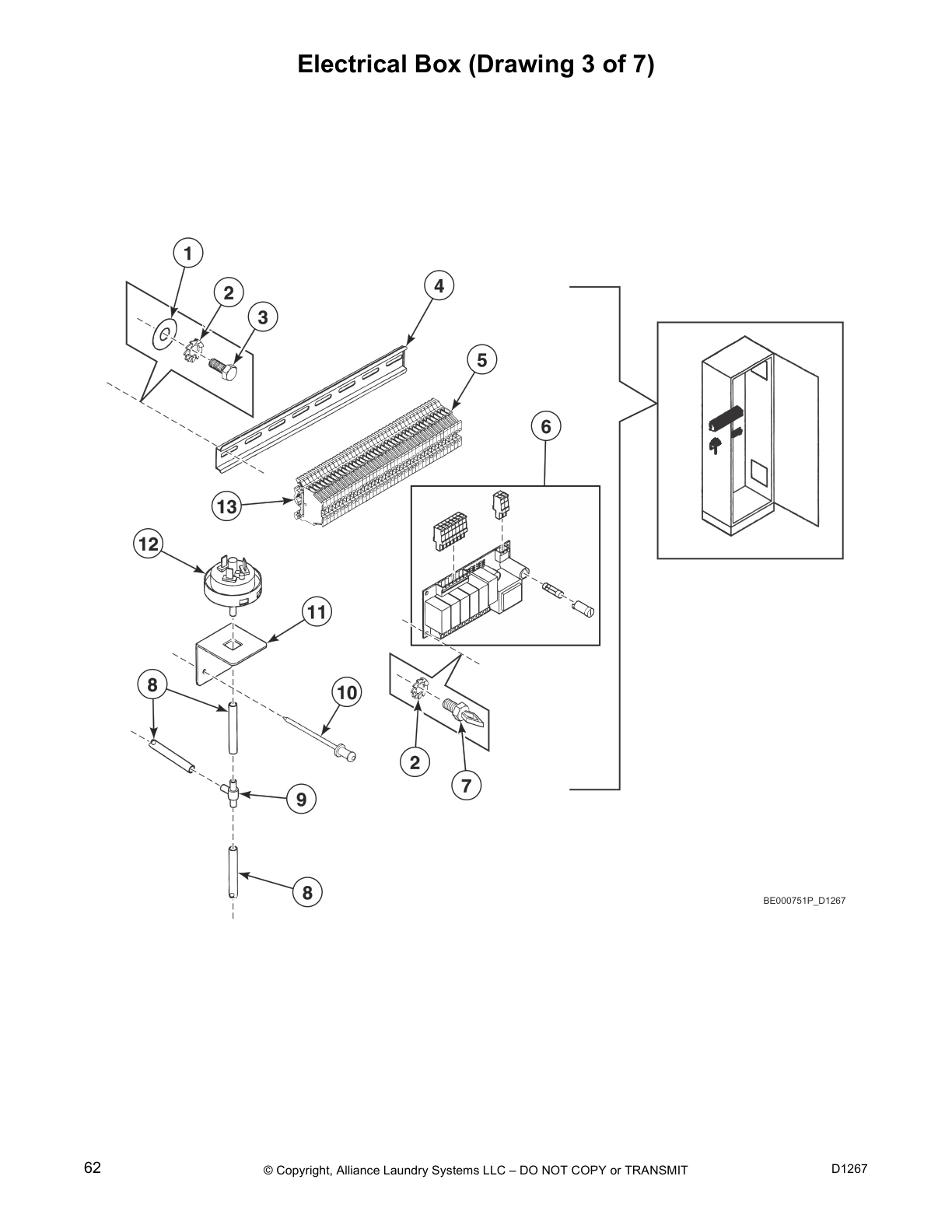

Electrical Box (Drawing 3 of 7)

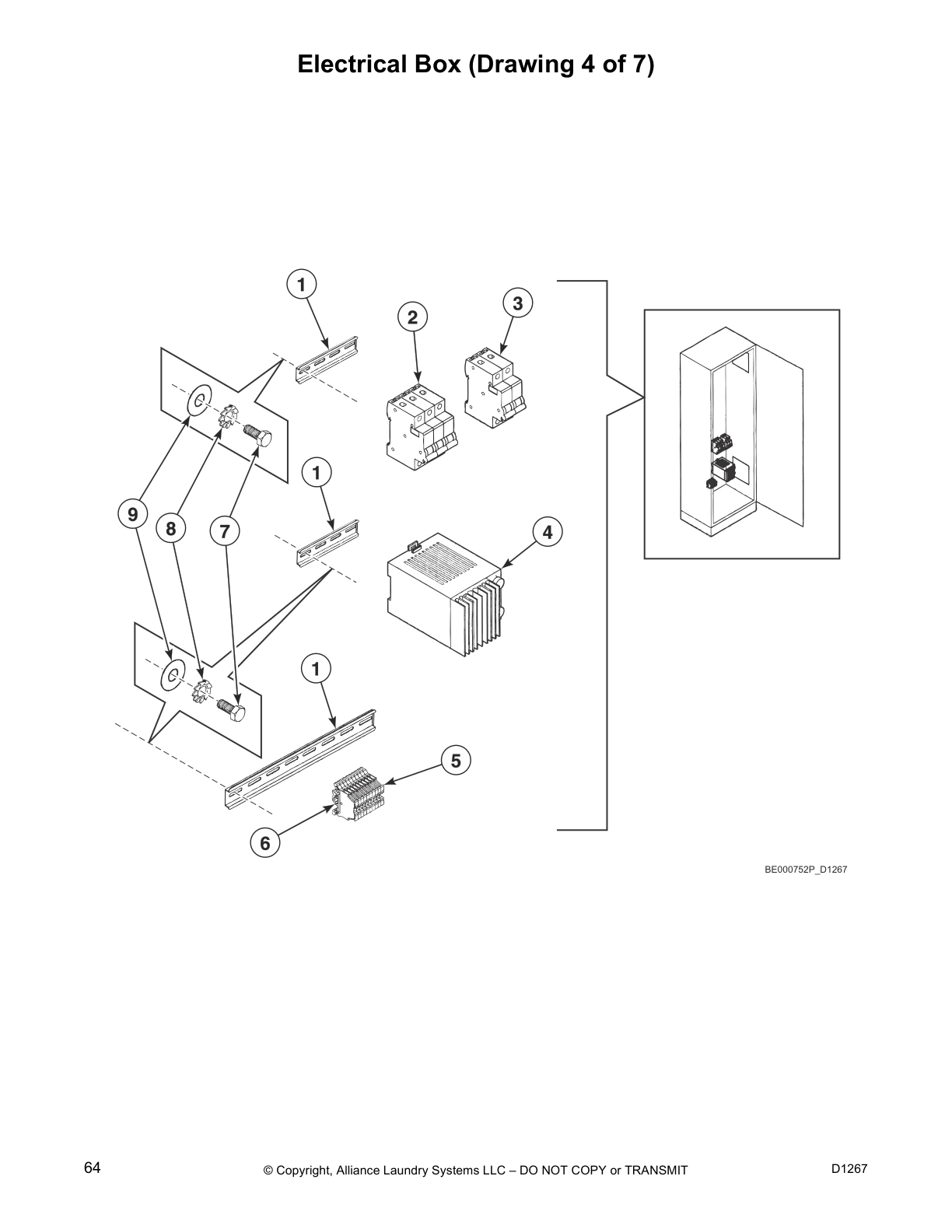

Electrical Box (Drawing 4 of 7)

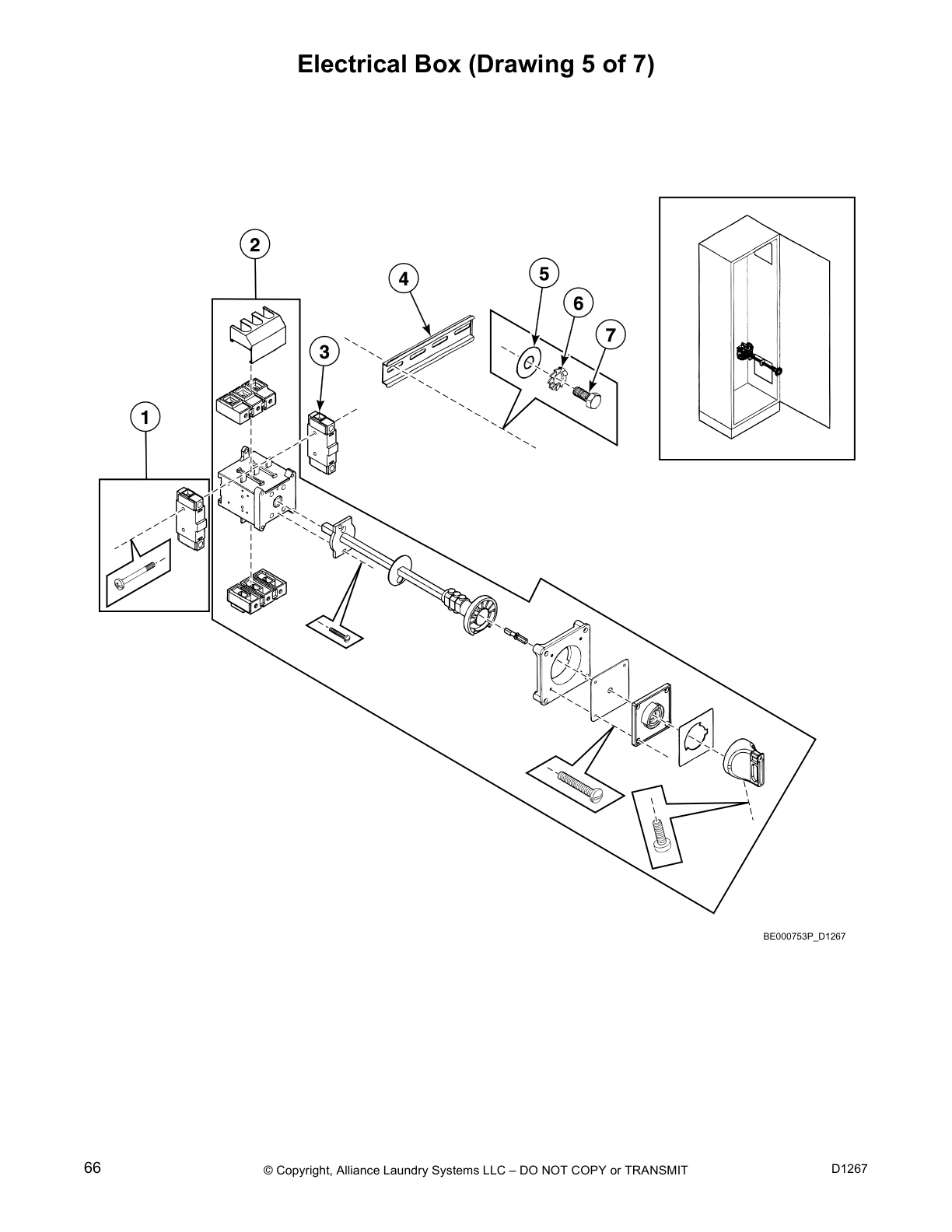

Electrical Box (Drawing 5 of 7)

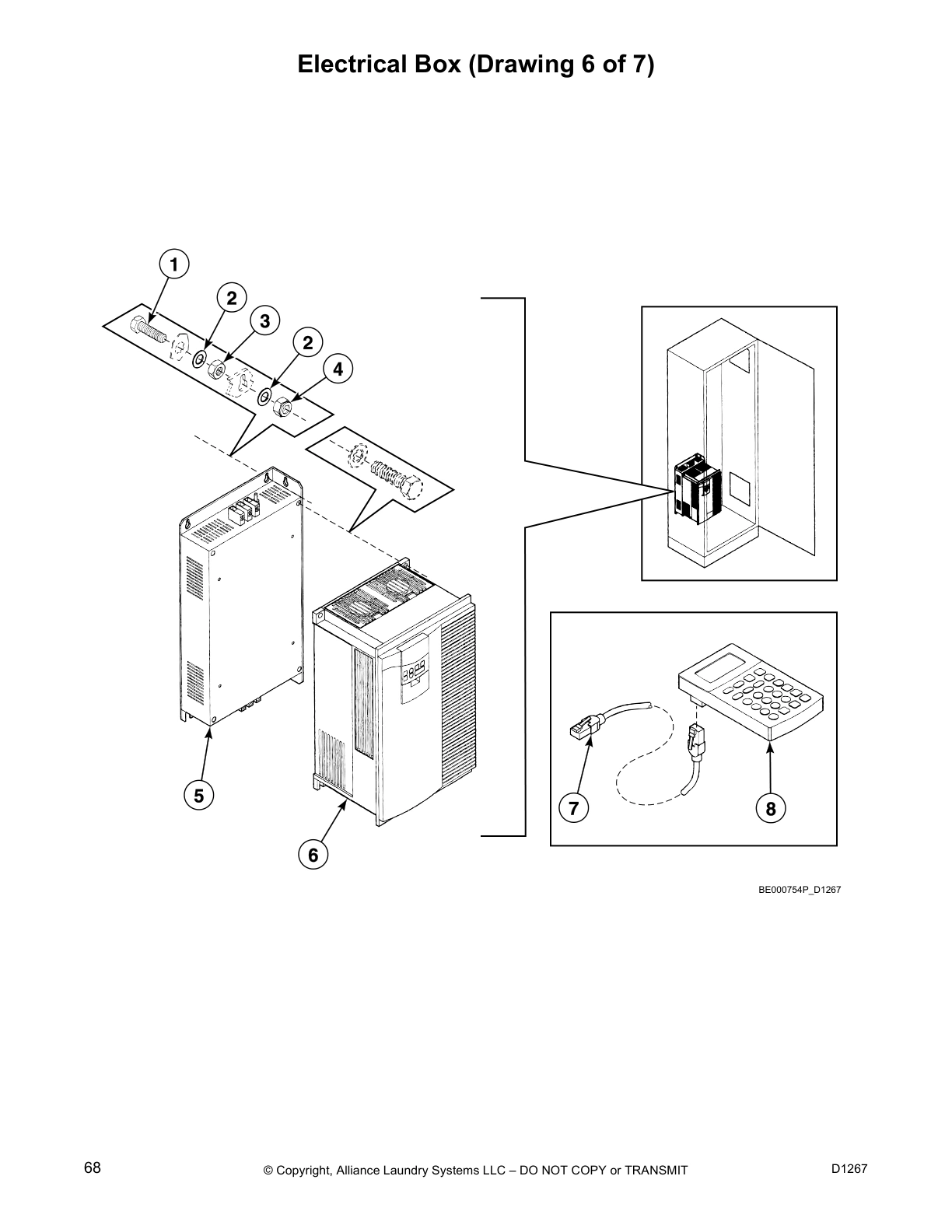

Electrical Box (Drawing 6 of 7)
Common parts from model Alliance DH1250 Washer
1
Air Mount SPQ 225/00100/00 Contact Us For Availability
1
Bolt SPQ 206/00099/00 Contact Us For Availability
1
Switch Base SPQ 209/00099/25 Contact Us For Availability
1
Main Printboard SPQ 209/00505/10 Contact Us For Availability
1
Terminal Block SPQ 209/00528/00 Contact Us For Availability
1
Bolt SPQ 205/00108/00 Contact Us For Availability
2
Plate SPQ 223/00319/00 Contact Us For Availability
2
Nut SPQ 204/00114/00 Contact Us For Availability
2
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
2
Washer SPQ 202/00103/00 Contact Us For Availability
3
SPQ 205/00122/00 SPQ 205/00122/00 Contact Us For Availability
3
Bearing SPQ Z02613016 Contact Us For Availability
3
SPQ Z02801018 SPQ Z02801018 Contact Us For Availability
3
Hose Clamp SPQ 223/00158/00 Contact Us For Availability
3
Nut SPQ 204/00107/00 Contact Us For Availability
4
SPQ 125/02060/00 SPQ 125/02060/00 Contact Us For Availability
4
Shaft Seal SPQ Z62721000 Contact Us For Availability
4
Brake SPQ 225/00110/00 Contact Us For Availability
4
SPQ 223/00223/00 SPQ 223/00223/00 Contact Us For Availability
4
Nut SPQ 206/00016/00 Contact Us For Availability
5
SPQ 223/00326/00 SPQ 223/00326/00 Contact Us For Availability
5
Lip Seal SPQ Z03663047 Contact Us For Availability
5
Bolt SPQ B12340601 Contact Us For Availability
5
Washer SPQ 201/00008/00 Contact Us For Availability
5
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
5
SPQ 223/00246/00 SPQ 223/00246/00 Contact Us For Availability
5
Inverter Drive Filter SPQ 227/00182/00 Contact Us For Availability
6
SPQ 201/00001/00 SPQ 201/00001/00 Contact Us For Availability
6
Seal SPQ Z03610141 Contact Us For Availability
6
Bolt SPQ 203/00006/00 Contact Us For Availability
6
Button SPQ 209/00099/23 Contact Us For Availability
6
Valve SPQ 223/00044/00 Contact Us For Availability
6
Washer SPQ 204/00009/00 Contact Us For Availability
6
Clamp SPQ Z07612006 Contact Us For Availability
6
Inverter Drive SPQ 227/00209/00 Contact Us For Availability
7
Retainer SPQ Z03610163 Contact Us For Availability
7
SPQ 202/00101/00 SPQ 202/00101/00 Contact Us For Availability
7
SPQ 225/00397/00 SPQ 225/00397/00 Contact Us For Availability
7
SPQ 204/00124/00 SPQ 204/00124/00 Contact Us For Availability
7
Pressure Switch Hose Tee SPQ 211/00120/00 Contact Us For Availability
7
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
7
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
8
SPQ 125/02070/00 SPQ 125/02070/00 Contact Us For Availability
8
SPQ Z62721300 SPQ Z62721300 Contact Us For Availability
8
SPQ Z03650480 SPQ Z03650480 Contact Us For Availability
8
Washer SPQ 202/00004/00 Contact Us For Availability
8
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
8
Nut SPQ 204/00201/00 Contact Us For Availability
8
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
8
SPQ 207/00126/00 SPQ 207/00126/00 Contact Us For Availability
9
SPQ 201/00002/00 SPQ 201/00002/00 Contact Us For Availability
9
SPQ Z01902093 SPQ Z01902093 Contact Us For Availability
9
SPQ Z03607135 SPQ Z03607135 Contact Us For Availability
9
SPQ Z02303453 SPQ Z02303453 Contact Us For Availability
10
Washer SPQ 203/00004/00 Contact Us For Availability
10
Screw SPQ 206/00137/00 Contact Us For Availability
10
Steam Valve SPQ Z02505012 Contact Us For Availability
10
Washer SPQ 223/00001/07 Contact Us For Availability
10
Nut SPQ 206/00105/00 Contact Us For Availability
11
Conical Bearing SPQ Z03607139 Contact Us For Availability
11
Washer SPQ Z01757008 Contact Us For Availability
11
Prewash and Mainwash Nozzle SPQ 223/00001/04 Contact Us For Availability
11
Screw SPQ 207/00018/00 Contact Us For Availability
12
Cover SPQ 223/00320/00 Contact Us For Availability
12
Seal Ring SPQ Z03650483 Contact Us For Availability
12
Display Printboard SPQ 209/00722/00 Contact Us For Availability
12
Nut SPQ 204/00004/00 Contact Us For Availability
13
Washer SPQ 203/00003/00 Contact Us For Availability
13
Washer SPQ 202/00110/00 Contact Us For Availability
13
Screw SPQ Z01705122 Contact Us For Availability
14
Water Hose SPQ 202/00002/00 Contact Us For Availability
14
SPQ 206/00042/00 SPQ 206/00042/00 Contact Us For Availability
14
Component SPQ 225/50020/00 Contact Us For Availability
14
Screw SPQ 207/00025/00 Contact Us For Availability
14
Hose SPQ Z21947300 Contact Us For Availability
14
Component SPQ 225/50120/00 Contact Us For Availability
15
Out-of-Balance Switch Boot SPQ 204/00007/00 Contact Us For Availability
15
Nut SPQ 203/00007/00 Contact Us For Availability
15
Bolt SPQ 225/50140/00 Contact Us For Availability
16
Fan Grill SPQ 209/00287/01 Contact Us For Availability
16
Handle Grommet SPQ 204/00008/00 Contact Us For Availability
17
Programming Key Contact Switch SPQ 223/00008/01 Contact Us For Availability
17
Solenoid SPQ 225/50010/00 Contact Us For Availability
18
Telem Sticker SPQ 223/00123/00 Contact Us For Availability
19
Button SPQ 204/00116/00 Contact Us For Availability
20
Screw SPQ 204/00121/00 Contact Us For Availability
20
Label SPQ 209/00326/20 Contact Us For Availability
21
SPQ 205/00107/00 SPQ 205/00107/00 Contact Us For Availability
21
Hose Clamp SPQ 223/00016/00 Contact Us For Availability
22
Elbow SPQ Z02503700 Contact Us For Availability
23
SPQ 204/00123/00 SPQ 204/00123/00 Contact Us For Availability
23
Coupling SPQ Z02503730 Contact Us For Availability
23
Temperature Sensor SPQ 223/00011/00 Contact Us For Availability
24
Screw SPQ 207/00110/00 Contact Us For Availability
24
SPQ Z62729900 SPQ Z62729900 Contact Us For Availability
26
Circlip SPQ 202/00104/00 Contact Us For Availability
27
SPQ 203/00011/00 SPQ 203/00011/00 Contact Us For Availability
× ![]()
