Model Electrolux DGCSFL0 DRYER – Common Parts & Diagrams
02 - CABINET AND COMPONENT PARTS
03 - DOOR PARTS

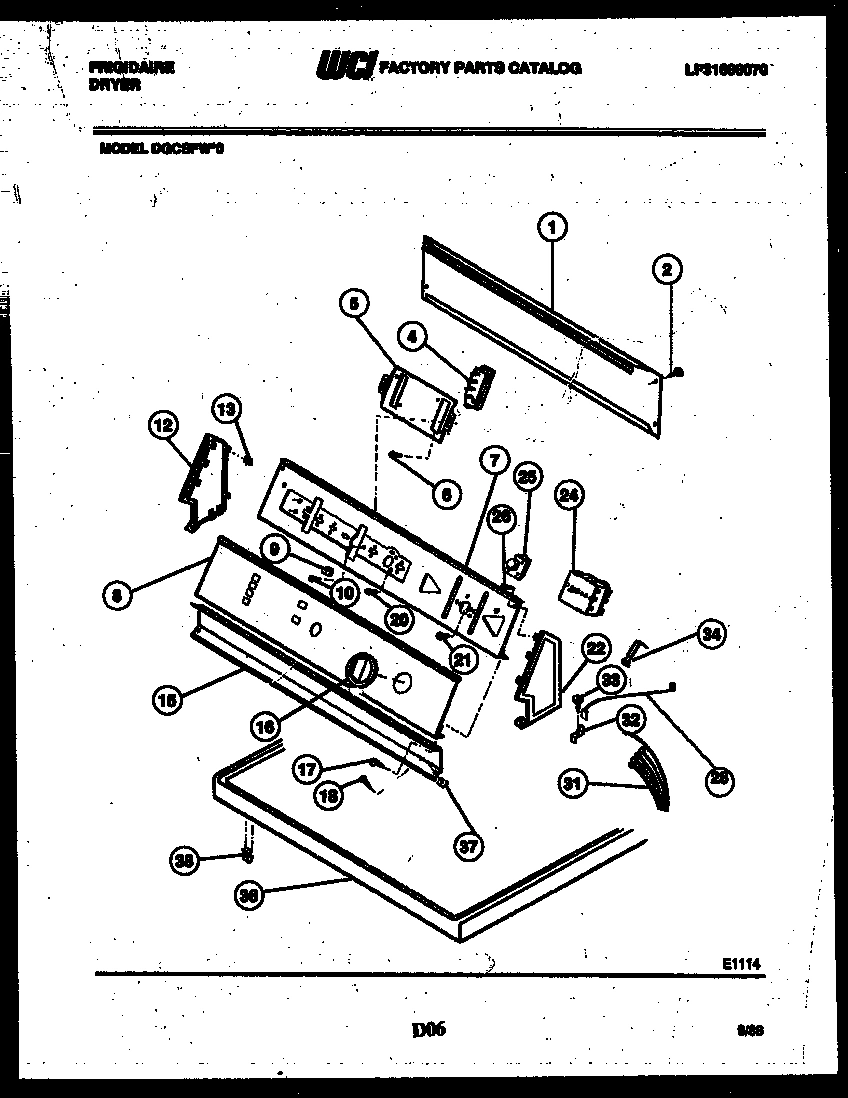

04 - CONSOLE AND CONTROL PARTS

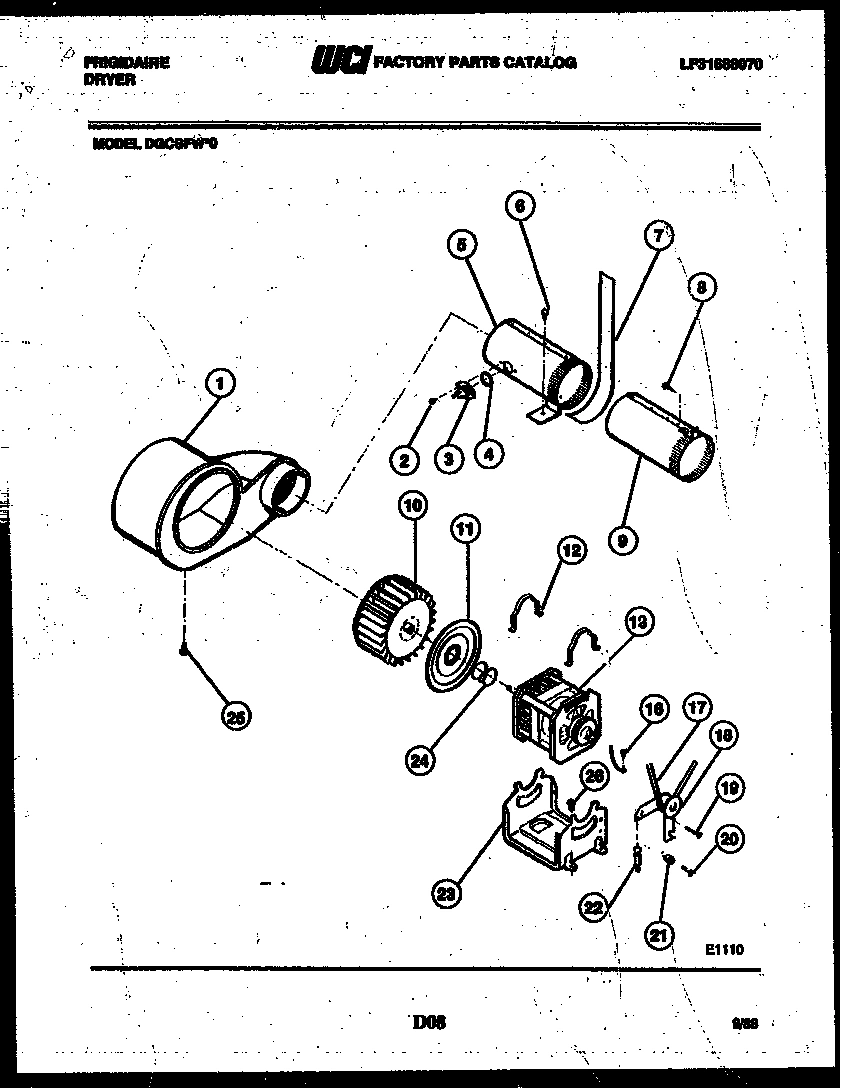

05 - MOTOR AND BLOWER PARTS

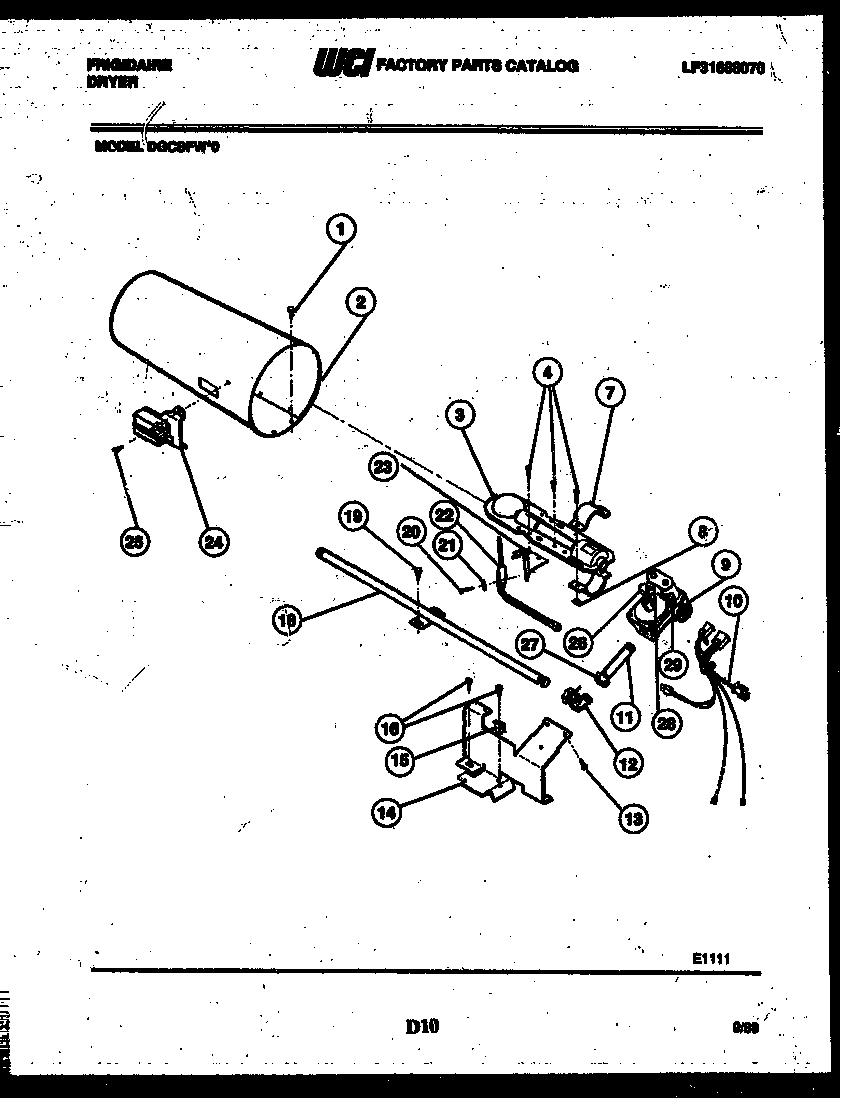

06 - BURNER, IGNITER AND VALVE
Common parts from model Electrolux DGCSFL0 DRYER
*25152
SCREW-SWITCH TO MOUNTING BRACKET WCI 3161259 Contact Us For Availability
*25152
WCI 08014340 WCI 08014340 Contact Us For Availability
*25152
SWITCH FABRIC SELECTOR WCI 3201468 Contact Us For Availability
1
WCI 3281053 WCI 3281053 Contact Us For Availability
1
BACK COVER WCI 3201322 Contact Us For Availability
1
FAN HOUSING ASSY WCI 3281014 Contact Us For Availability
2
DOOR - OUTER - ALMOND WCI 3201204 Contact Us For Availability
2
BURNER TUBE ASSY WCI 3201240 Contact Us For Availability
3
SCREW (2) WCI 3281043 Contact Us For Availability
3
HEAT SHIELD WCI 3281067 Contact Us For Availability
3
WCI 3281121 WCI 3281121 Contact Us For Availability
4
SPACER (2) WCI 3281058 Contact Us For Availability
4
SWITCH PUSHBUTTON (4) WCI 3201323 Contact Us For Availability
4
WCI 3281015 WCI 3281015 Contact Us For Availability
4A
WCI 3201205 WCI 3201205 Contact Us For Availability
5
SERVICE CORD WCI 3281129 Contact Us For Availability
5
WCI 3201207 WCI 3201207 Contact Us For Availability
5
WCI 3201324 WCI 3201324 Contact Us For Availability
5
WCI 3201234 WCI 3201234 Contact Us For Availability
6
WCI 3281130 WCI 3281130 Contact Us For Availability
6
WCI 3281051 WCI 3281051 Contact Us For Availability
6
SCREW (2) WCI 08010804 Contact Us For Availability
7
WCI 3201326 WCI 3201326 Contact Us For Availability
7
ALUMINUM TAPE WCI 3201235 Contact Us For Availability
7
AIR SHUTTER (2) WCI 3281138 Contact Us For Availability
8
WASHER WCI 3281107 Contact Us For Availability
8
WCI 3201465 WCI 3201465 Contact Us For Availability
8
NUT (2) WCI 3281148 Contact Us For Availability
9
SEAL WCI 3281049 Contact Us For Availability
9
BUTTON PUSHBUTTON SWITCH WCI 08010807 Contact Us For Availability
9
DUCT-EXHAUST WCI 3201236 Contact Us For Availability
9
WCI 3281147 WCI 3281147 Contact Us For Availability
10
WCI 3281018 WCI 3281018 Contact Us For Availability
10
SCREW (4) WCI 08004660 Contact Us For Availability
10
WHEEL-BLOWER WCI 3281079 Contact Us For Availability
10
HARNESS WCI 3281137 Contact Us For Availability
11
CABINET ASSEMBLY WHITE WCI 3201196 Contact Us For Availability
11
CABINET ASSEMBLY ALMOND WCI 3201197 Contact Us For Availability
11
WCI 08015173 WCI 08015173 Contact Us For Availability
11
COVER-FAN WCI 3281080 Contact Us For Availability
11
WCI 08015421 WCI 08015421 Contact Us For Availability
12
WCI 3281089 WCI 3281089 Contact Us For Availability
12
WCI 08010783 WCI 08010783 Contact Us For Availability
12
CLAMP MOTOR WCI 3281084 Contact Us For Availability
12
ANGLE VALVE WCI 3281146 Contact Us For Availability
13
WCI 3241013 WCI 3241013 Contact Us For Availability
13
CLIP, END CAP (8) WCI 08014350 Contact Us For Availability
13
MOTOR & PULLEY ASSY WCI 3201237 Contact Us For Availability
14
WCI 3201353 WCI 3201353 Contact Us For Availability
15
CLIP-GUIDE (4) WCI 3281074 Contact Us For Availability
15
WCI 3201333 WCI 3201333 Contact Us For Availability
16
HEATER HOUSING & SEAL ASSEMBLY WCI 3281119 Contact Us For Availability
16
WCI 3281120 WCI 3281120 Contact Us For Availability
16
SCREW (2) WCI 3010202 Contact Us For Availability
16
CLIP (4) WCI 3281039 Contact Us For Availability
16
TIMER KNOB & INDICATOR ASSEMBLY WCI 08015693 Contact Us For Availability
17
WCI 08010782 WCI 08010782 Contact Us For Availability
18
CLIP (2) WCI 3281102 Contact Us For Availability
18
SCREW (2) WCI 08011318 Contact Us For Availability
18
IDLER ASSEMBLY WCI 3201238 Contact Us For Availability
18
WCI 08015271 WCI 08015271 Contact Us For Availability
19
LINT TRAP FRAME WCI 3281060 Contact Us For Availability
19
SCREW-STOP WCI 3261230 Contact Us For Availability
19
SCREW (2) WCI 3281126 Contact Us For Availability
20
WCI 3281059 WCI 3281059 Contact Us For Availability
20
WCI 08001544 WCI 08001544 Contact Us For Availability
20
WCI 3281073 WCI 3281073 Contact Us For Availability
20
SCREW WCI 3281150 Contact Us For Availability
21
WCI 3201199 WCI 3201199 Contact Us For Availability
21
WCI 3281044 WCI 3281044 Contact Us For Availability
21
WCI 08006636 WCI 08006636 Contact Us For Availability
21
SPACER WCI 3281076 Contact Us For Availability
22
WCI 3201210 WCI 3201210 Contact Us For Availability
22
WCI 08010787 WCI 08010787 Contact Us For Availability
23
WCI 3281149 WCI 3281149 Contact Us For Availability
24
WCI 3291029 WCI 3291029 Contact Us For Availability
24
HINGE-DOOR (2) WCI 3281050 Contact Us For Availability
24
WCI 3201466 WCI 3201466 Contact Us For Availability
24
WCI 3281083 WCI 3281083 Contact Us For Availability
25
WCI 3281027 WCI 3281027 Contact Us For Availability
25
SCREW WCI 3281035 Contact Us For Availability
25
SCREW (8) WCI 3281176 Contact Us For Availability
25
PUSH TO START SWITCH WCI 1132293 Contact Us For Availability
25
WCI 3281036 WCI 3281036 Contact Us For Availability
26
HEAT DUCT ASSEMBLY WCI 3281123 Contact Us For Availability
26
SCREW (2) WCI 08010789 Contact Us For Availability
26
SCREW (2) WCI 3281077 Contact Us For Availability
26
ORIFICE, NATURAL GAS WCI 3201241 Contact Us For Availability
26A
ORIFICE MFD GAS WCI 3201242 Contact Us For Availability
26B
LP GAS KIT (NON-ILLUSTRATED) WCI 3201265 Contact Us For Availability
27
UNION - HEX NUT WCI 08015194 Contact Us For Availability
28
WCI 3201202 WCI 3201202 Contact Us For Availability
28
WCI 3201340 WCI 3201340 Contact Us For Availability
29
WCI 3281032 WCI 3281032 Contact Us For Availability
31
DOOR-ACCESS ALMOND WCI 3201213 Contact Us For Availability
31
WCI 3201467 WCI 3201467 Contact Us For Availability
32
WCI 08002341 WCI 08002341 Contact Us For Availability
33
PANEL FRONT ALMOND WCI 3201217 Contact Us For Availability
34
WCI 3201264 WCI 3201264 Contact Us For Availability
34
WCI 08014349 WCI 08014349 Contact Us For Availability
36
WCI 3201347 WCI 3201347 Contact Us For Availability
37
WCI 08001912 WCI 08001912 Contact Us For Availability
38
CATCH SPRING (2) WCI 3281170 Contact Us For Availability
× ![]()
