Model Electrolux DGA500F2D DRYER – Common Parts & Diagrams
02 - TUB AND COMPONENT PARTS
03 - DOOR PARTS

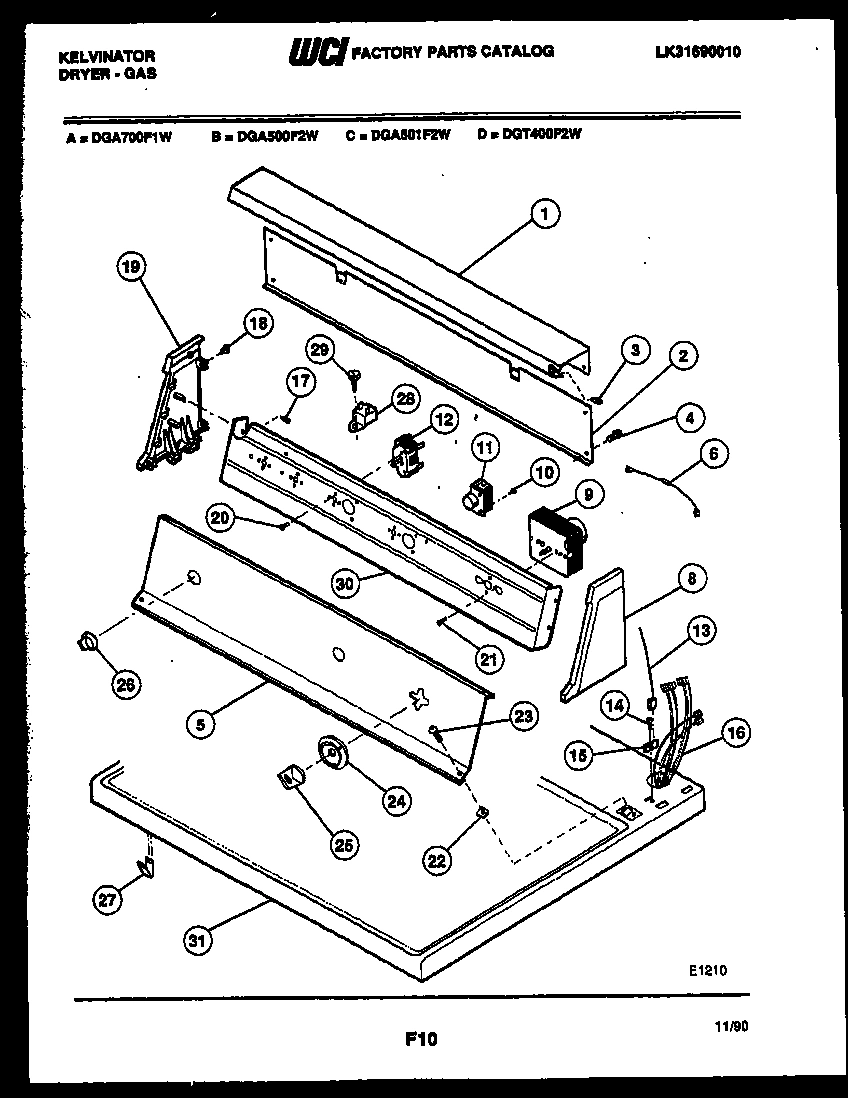

04 - CONSOLE AND CONTROL PARTS

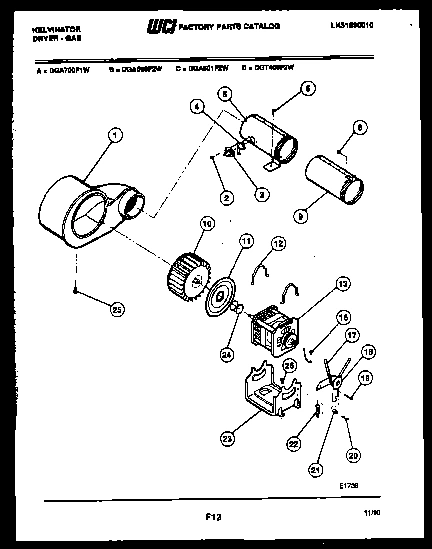

05 - BLOWER AND DRIVE PARTS

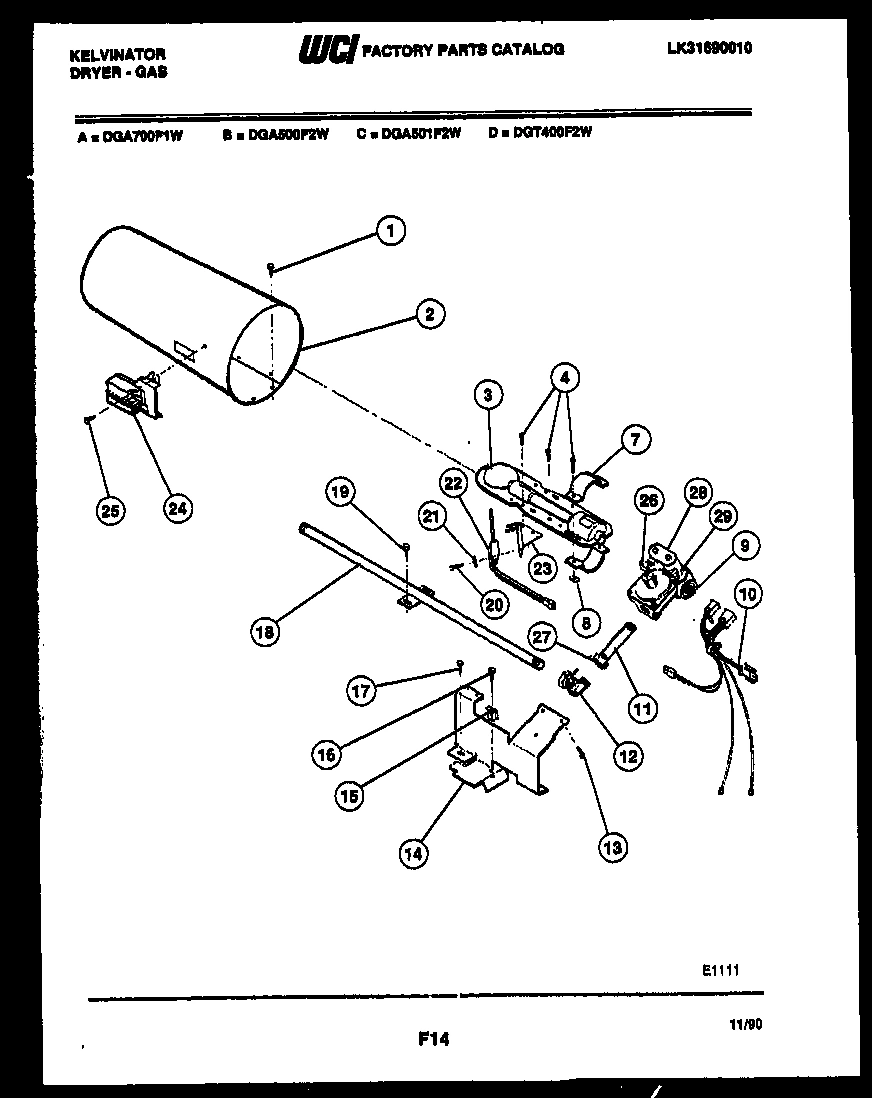

06 - ELEMENT AND HOUSING PARTS
Common parts from model Electrolux DGA500F2D DRYER
1
WCI 3281053 WCI 3281053 Contact Us For Availability
1
WCI 3201609 WCI 3201609 Contact Us For Availability
1
FAN HOUSING ASSY WCI 3281014 Contact Us For Availability
2
WCI 3201204 WCI 3201204 Contact Us For Availability
2
WCI 3201349 WCI 3201349 Contact Us For Availability
2
SCREW (2) WCI 3261048 Contact Us For Availability
2
BURNER TUBE ASSY WCI 3201240 Contact Us For Availability
3
HEAT SHIELD WCI 3281067 Contact Us For Availability
3
CLIP (3) WCI 5308010825 Contact Us For Availability
4
SPACER (2) WCI 3281058 Contact Us For Availability
4
WCI 5308013214 WCI 5308013214 Contact Us For Availability
4A
WCI 3201205 WCI 3201205 Contact Us For Availability
5
SERVICE CORD WCI 3281129 Contact Us For Availability
5
WCI 3201207 WCI 3201207 Contact Us For Availability
5
WCI 3206002 WCI 3206002 Contact Us For Availability
5
TUBE ASSY THERMOSTAT WCI 3205671 Contact Us For Availability
6
WCI 3281130 WCI 3281130 Contact Us For Availability
6
WCI 3281051 WCI 3281051 Contact Us For Availability
6
RESISTOR WCI 5308015784 Contact Us For Availability
7
AIR SHUTTER (2) WCI 3281138 Contact Us For Availability
8
WASHER WCI 3281107 Contact Us For Availability
8
WCI 3206005 WCI 3206005 Contact Us For Availability
8
NUT (2) WCI 3281148 Contact Us For Availability
9
SEAL WCI 3281049 Contact Us For Availability
9
WCI 3201336 WCI 3201336 Contact Us For Availability
9
WCI 3201236 WCI 3201236 Contact Us For Availability
9
WCI 3281147 WCI 3281147 Contact Us For Availability
10
WCI 3281018 WCI 3281018 Contact Us For Availability
10
SCREW (2) WCI 08010804 Contact Us For Availability
10
BLOWER WHEEL WCI 3281079 Contact Us For Availability
10
HARNESS WCI 3281137 Contact Us For Availability
11
WCI 3205658 WCI 3205658 Contact Us For Availability
11
WCI 08015173 WCI 08015173 Contact Us For Availability
11
WCI 01132293 WCI 01132293 Contact Us For Availability
11
FAN COVER WCI 3281080 Contact Us For Availability
11
WCI 08015421 WCI 08015421 Contact Us For Availability
12
WCI 3281089 WCI 3281089 Contact Us For Availability
12
MOTOR CLAMP (2) WCI 3281084 Contact Us For Availability
12
ANGLE VALVE WCI 3281146 Contact Us For Availability
13
WIRE-GROUND WCI 3201340 Contact Us For Availability
13
MOTOR & PULLEY ASSY WCI 3201237 Contact Us For Availability
14
WCI 0801689 WCI 0801689 Contact Us For Availability
14
WCI 3201353 WCI 3201353 Contact Us For Availability
15
CLIP-GUIDE (4) WCI 3281074 Contact Us For Availability
15
WCI 5379171000 WCI 5379171000 Contact Us For Availability
15
CLIP WCI 3281126 Contact Us For Availability
16
HEATER HOUSING & SEAL ASSEMBLY WCI 3205699 Contact Us For Availability
16
WCI 3281120 WCI 3281120 Contact Us For Availability
16
CLIP (4) WCI 3281039 Contact Us For Availability
16
WCI 3206006 WCI 3206006 Contact Us For Availability
18
CLIP (2) WCI 3281102 Contact Us For Availability
18
WCI 5308010830 WCI 5308010830 Contact Us For Availability
18
WCI 3201238 WCI 3201238 Contact Us For Availability
18
WCI 08015271 WCI 08015271 Contact Us For Availability
19
SCREW (2) WCI 3010202 Contact Us For Availability
19
LINT TRAP FRAME WCI 3281060 Contact Us For Availability
19
WCI 3206007 WCI 3206007 Contact Us For Availability
19
SCREW-STOP WCI 3261230 Contact Us For Availability
20
WCI 3281059 WCI 3281059 Contact Us For Availability
20
WCI 3281073 WCI 3281073 Contact Us For Availability
20
SCREW WCI 3281150 Contact Us For Availability
21
WCI 3202753 WCI 3202753 Contact Us For Availability
21
DOOR SWITCH WCI 3281044 Contact Us For Availability
21
SCREW (2) WCI 3161188 Contact Us For Availability
21
SPACER WCI 3281076 Contact Us For Availability
22
WCI 3201210 WCI 3201210 Contact Us For Availability
22
CLIP (2) WCI 5300503065 Contact Us For Availability
23
SCREW (2) WCI 3205820 Contact Us For Availability
23
BRACKET-IGNITOR WCI 3281149 Contact Us For Availability
24
WCI 5303207393 WCI 5303207393 Contact Us For Availability
24
DOOR HINGE (2) WCI 3281050 Contact Us For Availability
24
WCI 08015702 WCI 08015702 Contact Us For Availability
24
WCI 3281083 WCI 3281083 Contact Us For Availability
25
SCREW (3) (PART OF REAR BEARING KIT) WCI 3281027 Contact Us For Availability
25
SCREW WCI 3281035 Contact Us For Availability
25
SCREW (8) WCI 3281176 Contact Us For Availability
25
KNOB TIMER WCI 5303206987 Contact Us For Availability
25
WCI 3281036 WCI 3281036 Contact Us For Availability
26
HEAT DUCT ASSY WCI 3201608 Contact Us For Availability
26
SCREW (2) WCI 3281077 Contact Us For Availability
26
ORIFICE, NATURAL GAS WCI 3201241 Contact Us For Availability
26A
ORIFICE MFD GAS WCI 3201242 Contact Us For Availability
26B
LP GAS KIT WCI 3201265 Contact Us For Availability
27
UNION - HEX NUT WCI 08015194 Contact Us For Availability
28
WCI 3201202 WCI 3201202 Contact Us For Availability
29
WCI 3281032 WCI 3281032 Contact Us For Availability
30
BRACKET-CONTROL WCI 3205822 Contact Us For Availability
31
ACCESS DOOR-ALMOND WCI 3201213 Contact Us For Availability
31
PANEL TOP-ALMOND WCI 3205825 Contact Us For Availability
33
WCI 3205961 WCI 3205961 Contact Us For Availability
34
WCI 3201264 WCI 3201264 Contact Us For Availability
× ![]()
