Model Electrolux DGA500A1T DRYER – Common Parts & Diagrams
01 - COVER
02 - CONSOLE & CONTROLS

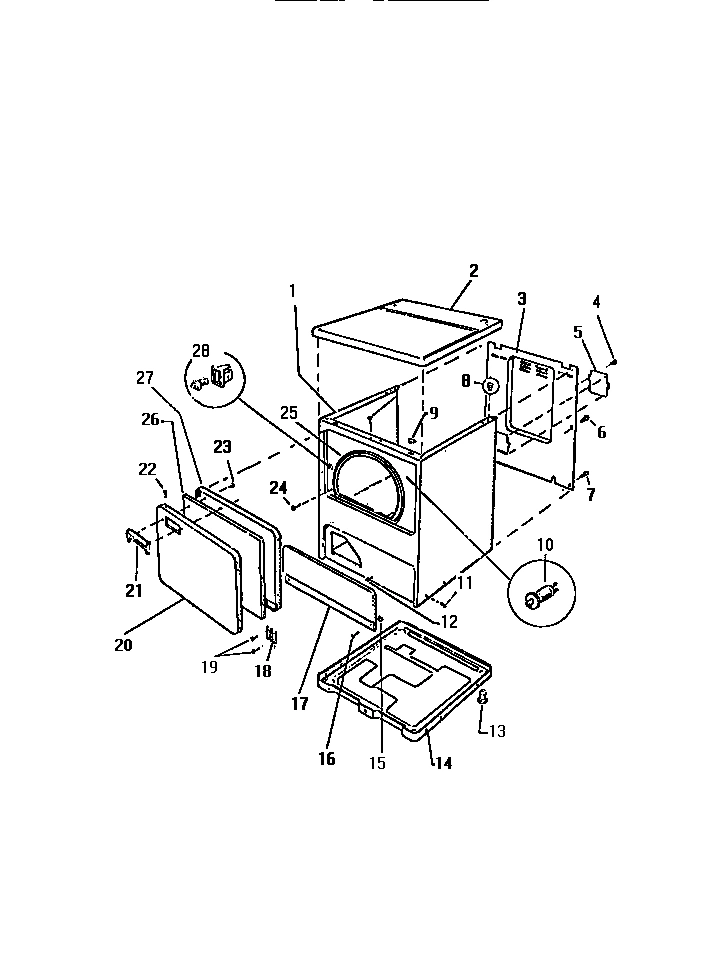

03 - CABINET
04 - DRUM

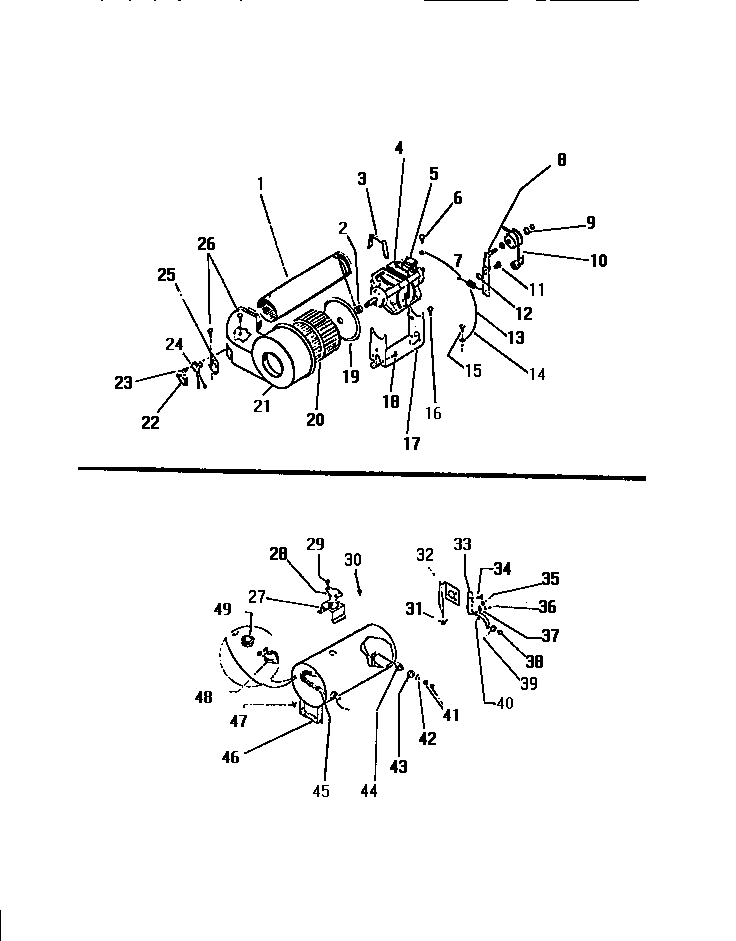

05 - BLOWER & HEATER HOUSING COMPONENTS

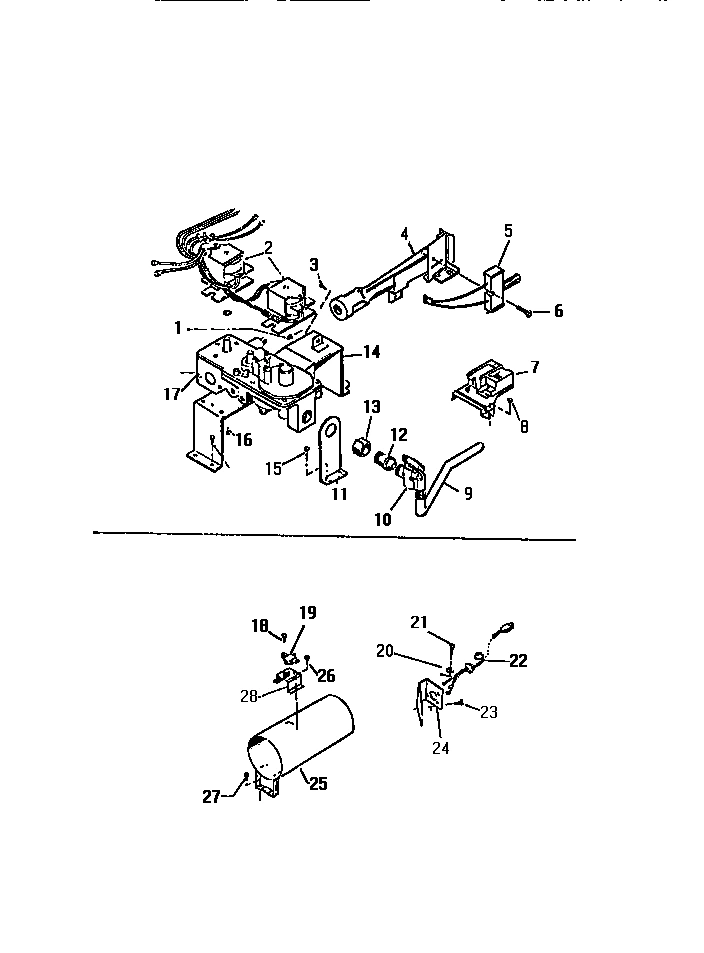

06 - GLOW BAR BURNER & COMBUSTION CHAMBE
Common parts from model Electrolux DGA500A1T DRYER
*01004
WCI F139944-000 WCI F139944-000 Contact Us For Availability
*01005
WCI F140369-000 WCI F140369-000 Contact Us For Availability
*01006
WCI F140330-000 WCI F140330-000 Contact Us For Availability
*01007
INSTAL. INSTRUCTIONS WCI F140075-000 Contact Us For Availability
*01010
WCI F94666-61 WCI F94666-61 Contact Us For Availability
*01011
WCI F133024-00 WCI F133024-00 Contact Us For Availability
*01013
CONSISTS OF 1 HEATER HOUSING WCI F133078-100 Contact Us For Availability
*01014
CONSISTS OF 1 HEATING ELEMENT WCI F133285-000 Contact Us For Availability
*01015
CONSISTS OF 2 MALE BUSHING WCI F078253-000 Contact Us For Availability
*01016
CONSISTS OF 2 FEMALE BUSHING WCI F078254-000 Contact Us For Availability
*01017
CONSISTS OF 11 CLIPS WCI F131734-000 Contact Us For Availability
*01018
CONSISTS OF 2 WASHERS WCI F063602-000 Contact Us For Availability
*01019
CONSISTS OF 2 NUTS WCI F073340-000 Contact Us For Availability
*01020
WCI F137071-000 WCI F137071-000 Contact Us For Availability
*01021
WCI F137070-000 WCI F137070-000 Contact Us For Availability
*01022
DRUM WHEEL (INCLUDED IN KIT) WCI F133024-000 Contact Us For Availability
*01023
PERMAWICK LUBRICANT (INCLUDED IN KIT) WCI F133047-000 Contact Us For Availability
*01025
KIT WCI F133006-500 Contact Us For Availability
*01026
CONSISTS OF 11 INSULATORS WCI F131735-000 Contact Us For Availability
1
END TRIM & CAP ASSY. L.H. WCI F139719-100 Contact Us For Availability
1
WCI F134920-338 WCI F134920-338 Contact Us For Availability
1
WCI F134722-000 WCI F134722-000 Contact Us For Availability
1
EXHAUST PIPE ASSY WCI F140283-000 Contact Us For Availability
1
WCI F066452-019 WCI F066452-019 Contact Us For Availability
1
WCI F066452-020 WCI F066452-020 Contact Us For Availability
2
CLIP (4 REQ) WCI F139577-000 Contact Us For Availability
2
TOP PANEL, WHEAT WCI F139207-038 Contact Us For Availability
2
DRUM SUPPORT ASSY WCI F078825-000 Contact Us For Availability
2
WCI 064360-000 WCI 064360-000 Contact Us For Availability
2
COIL ASSY WCI F133075-000 Contact Us For Availability
3
WCI F139218-526 WCI F139218-526 Contact Us For Availability
3
GROMMET (2 REQ) WCI F131653-000 Contact Us For Availability
3
MOTOR CLIP (2 REQ) WCI F002618-000 Contact Us For Availability
4
WCI F139230-026 WCI F139230-026 Contact Us For Availability
4
BURNER & BRKT ASSY WCI F139744-000 Contact Us For Availability
4A
(EMERSON) MOTOR & PULLEY ASSY WCI F133072-000 Contact Us For Availability
5
TOP COVER (ROSE WOOD GRAIN) WCI F139795-000 Contact Us For Availability
5
ACCESS PLATE TERM. BLOCK WCI F139218-326 Contact Us For Availability
5
WCI F133007-100 WCI F133007-100 Contact Us For Availability
5
(GE) MOTOR SWITCH WCI F067634-006 Contact Us For Availability
5A
WCI F067634-002 WCI F067634-002 Contact Us For Availability
6
CLIP (3 REQ) WCI F139635-000 Contact Us For Availability
6
DRUM W/ BAFFLES WCI F076951-300 Contact Us For Availability
6
WCI F134225-000 WCI F134225-000 Contact Us For Availability
7
WCI F133007-000 WCI F133007-000 Contact Us For Availability
7
WCI F131652-000 WCI F131652-000 Contact Us For Availability
8
BUMPER (4 REQ) WCI F001345-000 Contact Us For Availability
8
WCI F133060-100 WCI F133060-100 Contact Us For Availability
8
IDLER WHEEL ASSY, IDLER BAR ASSY. WHEEL & WAS WCI F079499-000 Contact Us For Availability
8A
RESISTOR (GAS MODELS) WCI F065111-018 Contact Us For Availability
9
CLIP (2 REQ) WCI F130448-000 Contact Us For Availability
9
WCI F078202-100 WCI F078202-100 Contact Us For Availability
10
WCI F139771-000 WCI F139771-000 Contact Us For Availability
10
DOOR SWITCH WCI F130791-000 Contact Us For Availability
10
PLENUM SUPT. ASSY WCI F137077-000 Contact Us For Availability
10
BELT WCI F131654-000 Contact Us For Availability
10
WCI F133170-000 WCI F133170-000 Contact Us For Availability
10A
WCI F079459-021 WCI F079459-021 Contact Us For Availability
11
PUSH TO START SWITCH WCI F135006-000 Contact Us For Availability
11
HINGE (2 REQ) WCI F131174-000 Contact Us For Availability
11
WCI F079485-000 WCI F079485-000 Contact Us For Availability
11
WCI F079904-000 WCI F079904-000 Contact Us For Availability
12
SCREW (2 REQ) WCI F137505-000 Contact Us For Availability
12
WCI F076822-000 WCI F076822-000 Contact Us For Availability
12
WCI F062791-300 WCI F062791-300 Contact Us For Availability
13
CONTROL MTG BRKT WCI F140183-022 Contact Us For Availability
13
LEVELING LEG (4 REQ) WCI F137033-000 Contact Us For Availability
13
WCI F132353-000 WCI F132353-000 Contact Us For Availability
13
WCI F062792-300 WCI F062792-300 Contact Us For Availability
14
SCREW (2 REQ) WCI F060796-000 Contact Us For Availability
14
WCI F140281-026 WCI F140281-026 Contact Us For Availability
14
SHAFT & MTG. PLATE (3 REQ) WCI F133165-000 Contact Us For Availability
14
WCI F076992-000 WCI F076992-000 Contact Us For Availability
14A
GROUND WIRE, GAS WCI F140282-100 Contact Us For Availability
15
END TRIM & CAP ASSY R.H. WCI F139719-000 Contact Us For Availability
15
SCREW (6 REQ) WCI F132080-000 Contact Us For Availability
15A
SPPED NUT (2 REQ) (GAS MODELS) WCI F133279-000 Contact Us For Availability
16
KNURLED SCREW (2 REQ) (GAS MODELS) WCI F066904-000 Contact Us For Availability
16
BAFFLE (3 REQ) WCI F076968-000 Contact Us For Availability
16
SCREW (2 REQ) WCI F132144-000 Contact Us For Availability
16
SEMS SCREW WCI F133911-000 Contact Us For Availability
17
WCI F079171-000 WCI F079171-000 Contact Us For Availability
17
CLIP (5 REQ) WCI F063124-000 Contact Us For Availability
17
ACCESS PANEL, WHEAT WCI F134145-038 Contact Us For Availability
17
WCI F078190-026 WCI F078190-026 Contact Us For Availability
17
ASSY VALVE, COILS & ORIFICE (LP) (GAS MODEL) WCI F137060-000 Contact Us For Availability
17
WCI F139745-00 WCI F139745-00 Contact Us For Availability
18
WCI F139816-000 WCI F139816-000 Contact Us For Availability
18
HINGE (2 REQ) WCI F078319-000 Contact Us For Availability
18
WHEEL, TIRE, CYLINDER ASSY (5 REQ) WCI F133006-000 Contact Us For Availability
19
CLIP HARN. TO RH CAB. (2 REQ) WCI F140144-000 Contact Us For Availability
19
WCI F07999-000 WCI F07999-000 Contact Us For Availability
19
SCREW (4 REQ) WCI F132459-000 Contact Us For Availability
19
WCI F064354-028 WCI F064354-028 Contact Us For Availability
19
SAFETY THERMO WCI F132077-000 Contact Us For Availability
19A
CABLE TIE HARN. TO R.H. CAB WCI F133780-000 Contact Us For Availability
19D
(GAS MODELS) HARNESS REPAIR LOCALLY WCI F140235-000 Contact Us For Availability
19G
WIRE RING HARN. TO SIDE OF BASE WCI F136345-000 Contact Us For Availability
20
SCREW (2 REQ) WCI F140203-000 Contact Us For Availability
20
OUTER DOOR PANEL, WHEAT WCI F137874-038 Contact Us For Availability
20
SHAFT & MTG PLATE (2 REQ) WCI F133163-000 Contact Us For Availability
20
WCI F076829-000 WCI F076829-000 Contact Us For Availability
20
WCI F078101-000 WCI F078101-000 Contact Us For Availability
21
WCI F078951-000 WCI F078951-000 Contact Us For Availability
21
WCI F078673-200 WCI F078673-200 Contact Us For Availability
21
WCI F133008-000 WCI F133008-000 Contact Us For Availability
21
WCI F078201-100 WCI F078201-100 Contact Us For Availability
22
WCI F078950-100 WCI F078950-100 Contact Us For Availability
22
SCREW (3 REQ) WCI F079999-000 Contact Us For Availability
22
WCI F133005-000 WCI F133005-000 Contact Us For Availability
22
CONTROL THERMOSTAT (GAS MODELS) WCI F136797-000 Contact Us For Availability
22
SERVICE CORD WCI F079022-000 Contact Us For Availability
23
WCI F140233-100 WCI F140233-100 Contact Us For Availability
23
SCREW (4 REQ) WCI F134584-000 Contact Us For Availability
23
SCREW (2 REQ) WCI F136470-000 Contact Us For Availability
23
WCI F137050-000 WCI F137050-000 Contact Us For Availability
24
WCI F078861-100 WCI F078861-100 Contact Us For Availability
24
EXTERNAL THERMO HTR (GAS) WCI F136777-100 Contact Us For Availability
24
WCI F063536-026 WCI F063536-026 Contact Us For Availability
25
WCI F133271-000 WCI F133271-000 Contact Us For Availability
25
NUT PLATE WCI F76979 Contact Us For Availability
25
BRACKET WCI F078680-000 Contact Us For Availability
25
COMBUSTION CHAMBER WCI F133078-300 Contact Us For Availability
26
WCI F132413-000 WCI F132413-000 Contact Us For Availability
27
WCI F137873-028 WCI F137873-028 Contact Us For Availability
28
WCI F070956-200 WCI F070956-200 Contact Us For Availability
× ![]()
