Model Electrolux DG800KXD2 DRYER – Common Parts & Diagrams

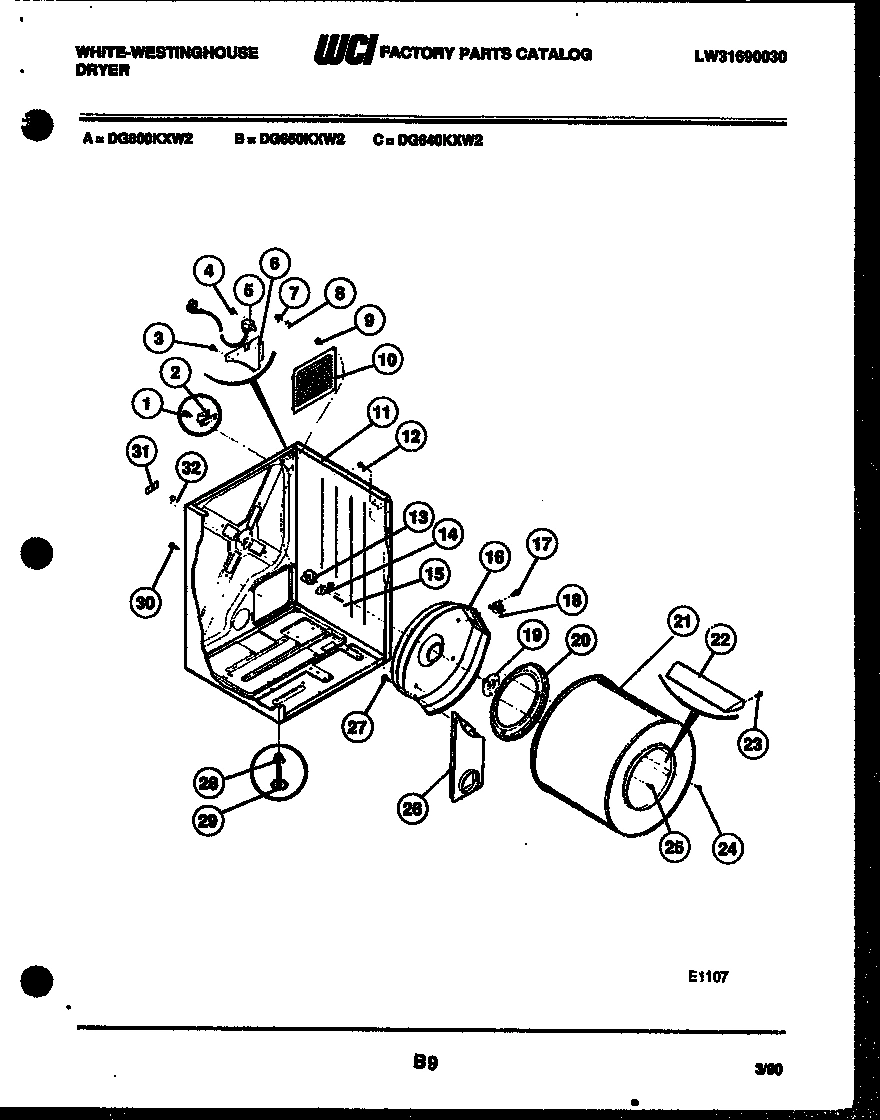

02 - CABINET AND COMPONENT PARTS

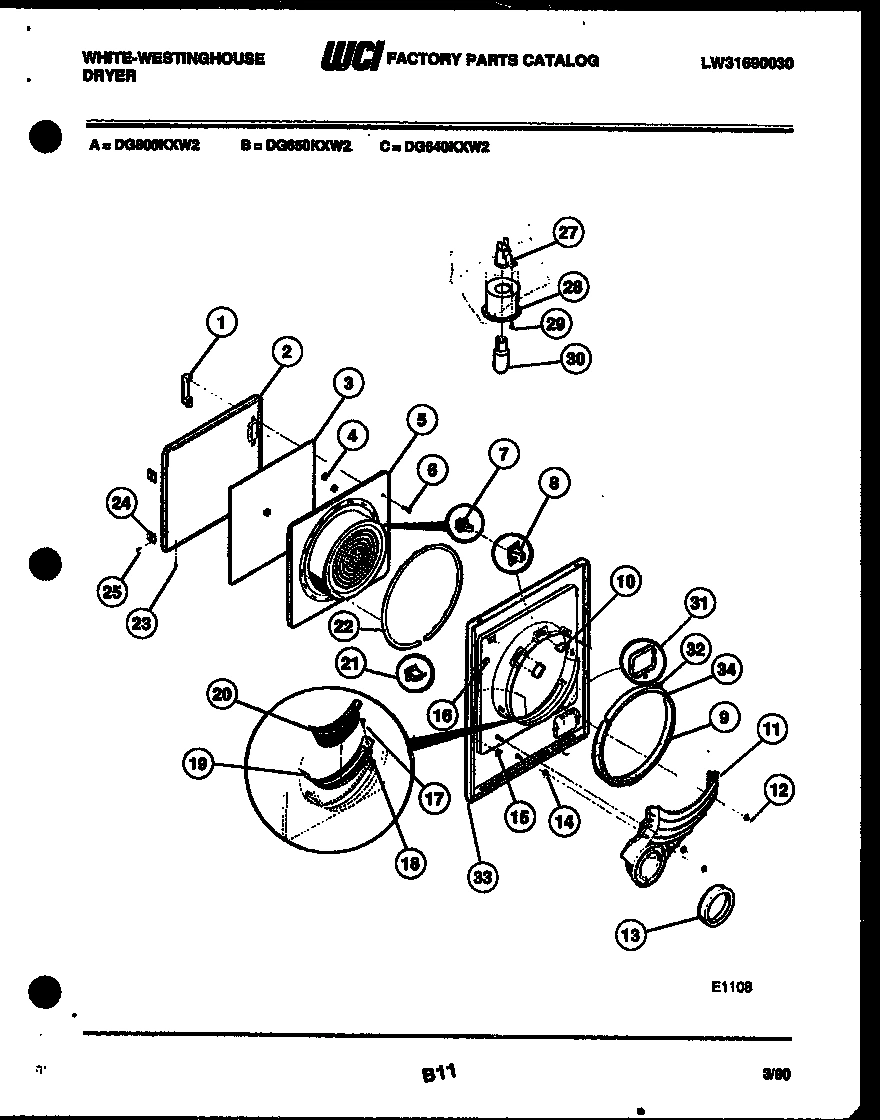

03 - DOOR PARTS

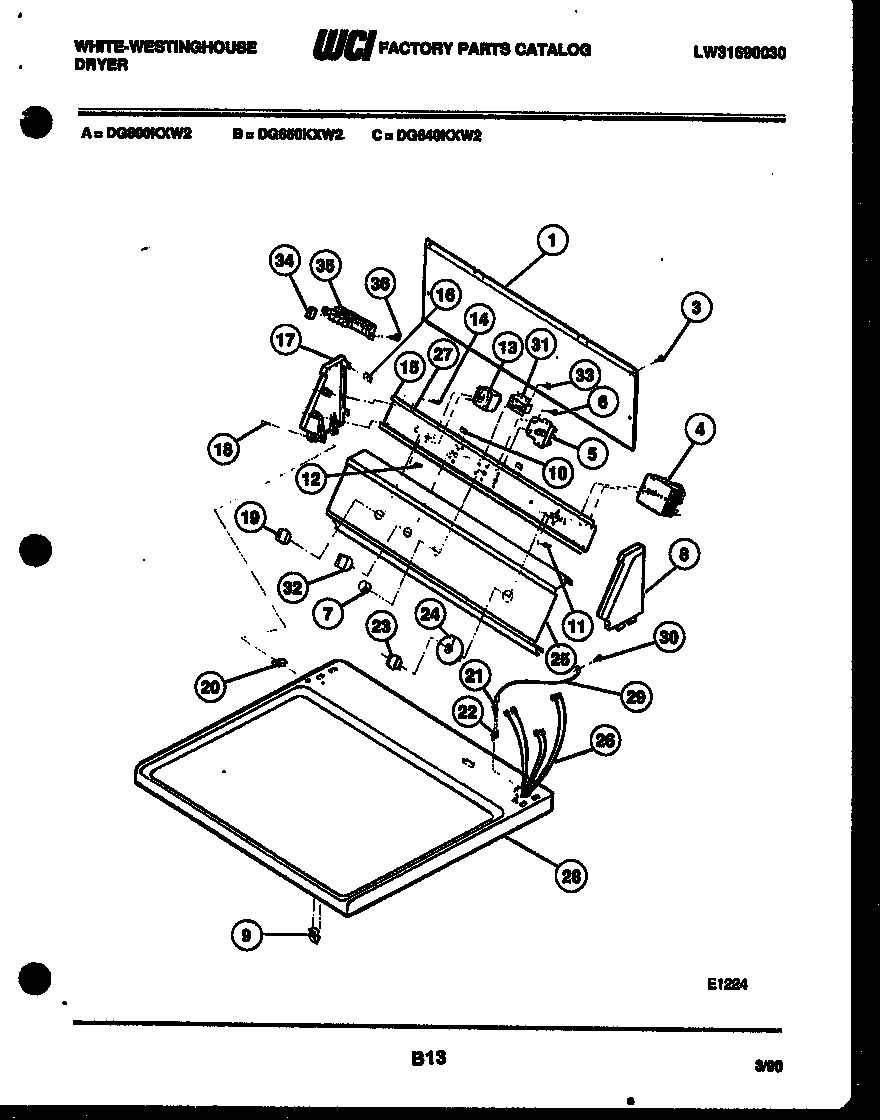

04 - CONSOLE AND CONTROL PARTS

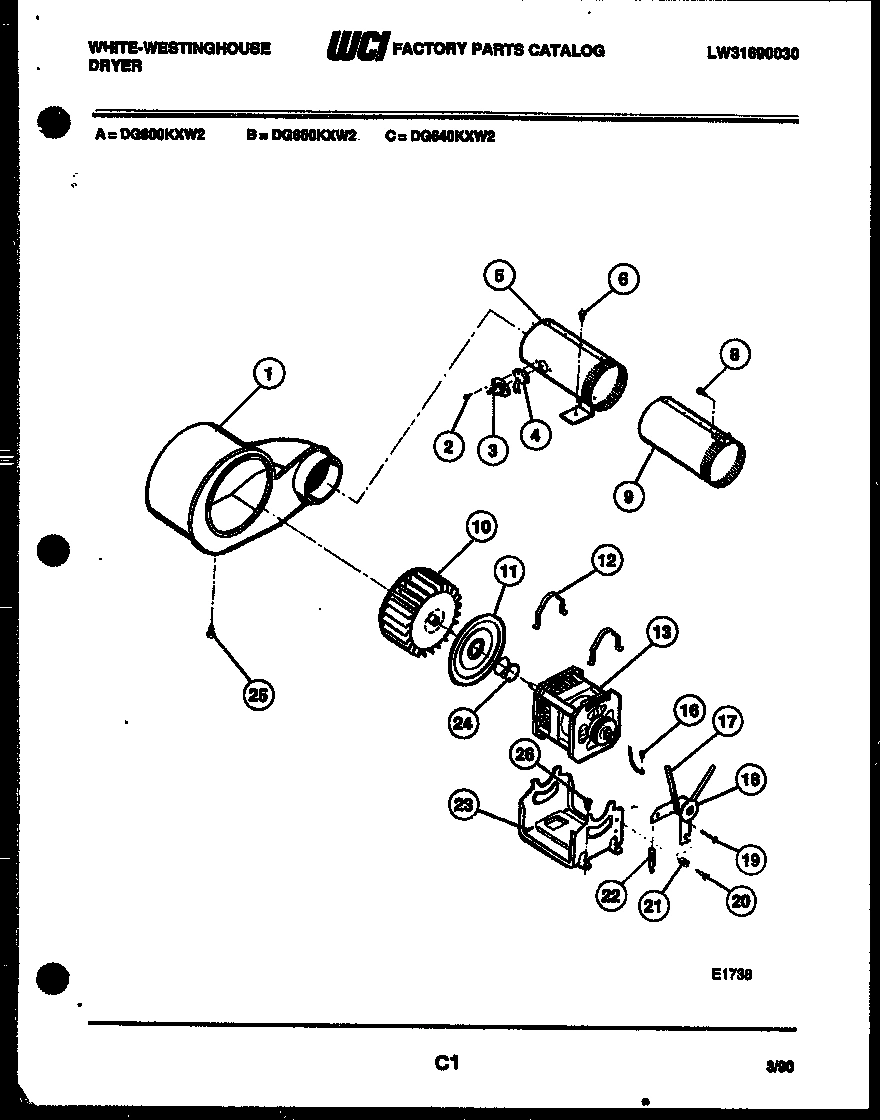

05 - MOTOR AND BLOWER PARTS

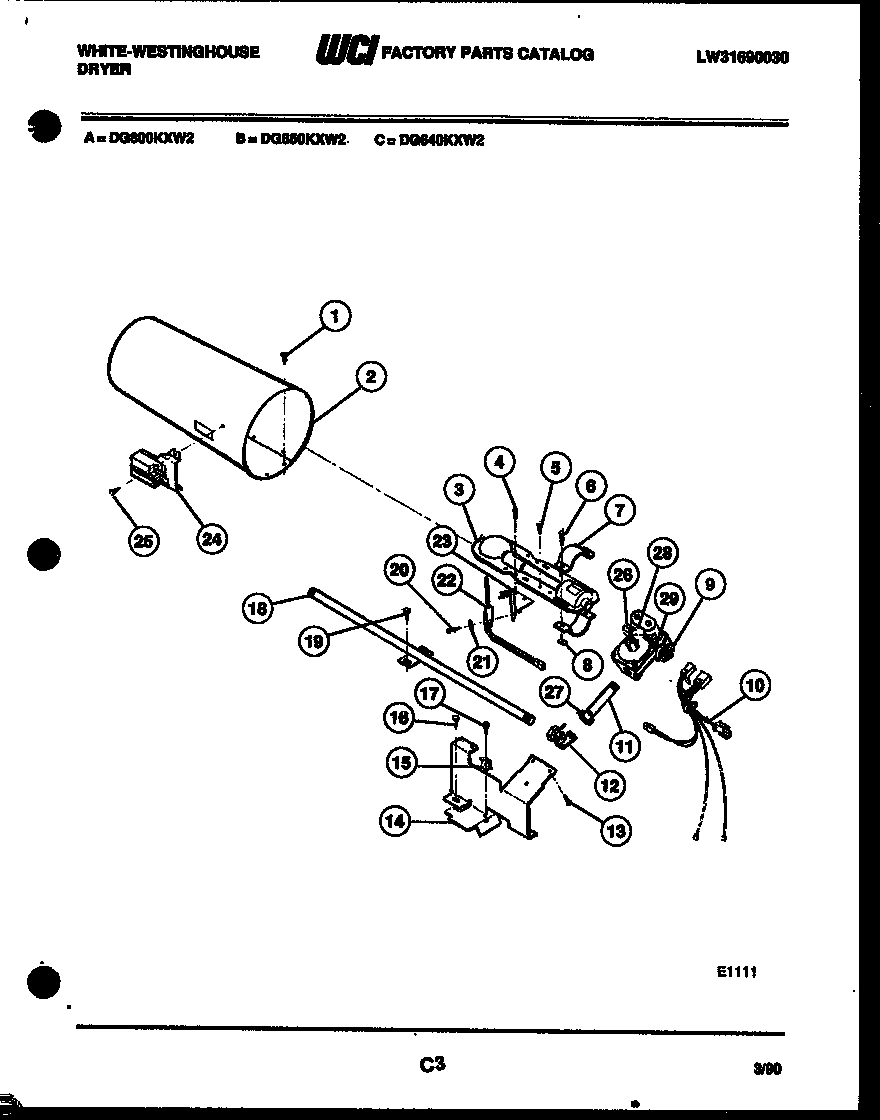

06 - BURNER, IGNITER AND VALVE
Common parts from model Electrolux DG800KXD2 DRYER
1
WCI 3281053 WCI 3281053 Contact Us For Availability
1
COVER-BACK WCI 5303205838 Contact Us For Availability
1
FAN HOUSING ASSY (1) WCI 3281014 Contact Us For Availability
2
PANEL-O.D. WHITE WCI 3201203 Contact Us For Availability
2
PANEL-O.D. ALMD WCI 3201204 Contact Us For Availability
2
PANEL-O.D. WHEAT WCI 3201317 Contact Us For Availability
2
SCREW (2) WCI 3261048 Contact Us For Availability
2
BURNER TUBE ASSEMBLY (1) WCI 3201240 Contact Us For Availability
3
WCI 3281067 WCI 3281067 Contact Us For Availability
4
SPACER (2) WCI 3281058 Contact Us For Availability
4
WCI 3201218 WCI 3201218 Contact Us For Availability
4
WCI 5308013214 WCI 5308013214 Contact Us For Availability
4A
WCI 3201205 WCI 3201205 Contact Us For Availability
5
SERVICE CORD (1) WCI 3281129 Contact Us For Availability
5
PANEL-I.D. ALMD WCI 3201207 Contact Us For Availability
5
SWITCH - START WCI 3201219 Contact Us For Availability
5
TUBE ASSEMBLY THERMOSTAT (1) WCI 3205671 Contact Us For Availability
6
COVER (1) WCI 3281130 Contact Us For Availability
6
WCI 3281051 WCI 3281051 Contact Us For Availability
6
WCI 08001544 WCI 08001544 Contact Us For Availability
7
WCI 3201221 WCI 3201221 Contact Us For Availability
7
AIR SHUTTER (2) WCI 3281138 Contact Us For Availability
8
WASHER (1) WCI 3281107 Contact Us For Availability
8
WCI 3205840 WCI 3205840 Contact Us For Availability
8
NUT (2) WCI 3281148 Contact Us For Availability
9
SEAL WCI 3281049 Contact Us For Availability
9
EXHAUST DUCT (1) WCI 3201236 Contact Us For Availability
9
VALVE (1) WCI 3281147 Contact Us For Availability
10
COVER PLATE (1) WCI 3281018 Contact Us For Availability
10
WCI 5303281201 WCI 5303281201 Contact Us For Availability
10
BLOWER WHEEL (1) WCI 3281079 Contact Us For Availability
10
HARNESS (1) WCI 3281137 Contact Us For Availability
11
CABINET ASSEMBLY (ALMOND) (1) WCI 3205658 Contact Us For Availability
11
DUCT-AIR WCI 08015173 Contact Us For Availability
11
SCREW (2) WCI 3281096 Contact Us For Availability
11
FAN COVER (1) WCI 3281080 Contact Us For Availability
11
UNION MALE CONNECTION (1) WCI 08015421 Contact Us For Availability
12
WCI 3281089 WCI 3281089 Contact Us For Availability
12
WCI 3281101 WCI 3281101 Contact Us For Availability
12
MOTOR CLAMP (2) WCI 3281084 Contact Us For Availability
12
ANGLE VALVE (1) WCI 3281146 Contact Us For Availability
13
MOTOR & PULLEY ASSEMBLY (1) WCI 3201237 Contact Us For Availability
14
BRACKET (1) WCI 3201353 Contact Us For Availability
15
CLIP-GUIDE (4) WCI 3281074 Contact Us For Availability
15
BRACKET-MOUNTING WCI 3206027 Contact Us For Availability
15
CLIP (1) WCI 3281126 Contact Us For Availability
16
HEATER HAG & SEAL ASSEMBLY (1) WCI 3205699 Contact Us For Availability
16
CLIP (4) WCI 3281039 Contact Us For Availability
16
CLIP (8) WCI 5308014350 Contact Us For Availability
16
SCREW-GROUND (1) WCI 3281120 Contact Us For Availability
17
WCI 3291120 WCI 3291120 Contact Us For Availability
17
WCI 3205842 WCI 3205842 Contact Us For Availability
18
CLIP (2) WCI 3281102 Contact Us For Availability
18
SCREW (2) WCI 3281203 Contact Us For Availability
18
IDLER ASSEMBLY (1) WCI 3201238 Contact Us For Availability
18
PIPE (1) WCI 08015271 Contact Us For Availability
19
SCREW (2) WCI 3010202 Contact Us For Availability
19
WCI 3281060 WCI 3281060 Contact Us For Availability
19
SCREW-STOP (1) WCI 3261230 Contact Us For Availability
20
TRAP-LINT WCI 3281059 Contact Us For Availability
20
GROMMET WCI 3281192 Contact Us For Availability
20
SCREW (1) WCI 3281073 Contact Us For Availability
20
SCREW (1) WCI 3281150 Contact Us For Availability
21
DRUM (1) WCI 3202753 Contact Us For Availability
21
WCI 08015457 WCI 08015457 Contact Us For Availability
21
SPACER (1) WCI 3281076 Contact Us For Availability
22
GASKET-DOOR WCI 3201210 Contact Us For Availability
22
WCI 5379171000 WCI 5379171000 Contact Us For Availability
23
KNOB-TIMER WCI 08015435 Contact Us For Availability
23
BRACKET-IGNITOR (1) WCI 3281149 Contact Us For Availability
24
WCI 5303207393 WCI 5303207393 Contact Us For Availability
24
HINGE-DOOR (2) WCI 3281050 Contact Us For Availability
24
WCI 08015434 WCI 08015434 Contact Us For Availability
24
WCI 3281083 WCI 3281083 Contact Us For Availability
25
SCREW (3) (PART OF REAR BEARING KIT) WCI 3281027 Contact Us For Availability
25
SCREW (1) WCI 3281035 Contact Us For Availability
25
SCREW (8) WCI 3281176 Contact Us For Availability
25
WCI 3206028 WCI 3206028 Contact Us For Availability
25
WCI 3281036 WCI 3281036 Contact Us For Availability
26
HEAT DUCT ASSEMBLY (1) WCI 3281123 Contact Us For Availability
26
WCI 3205962 WCI 3205962 Contact Us For Availability
26
SCREW (2) WCI 3281077 Contact Us For Availability
26
ORFICE (NATURAL GAS)(1) WCI 3201241 Contact Us For Availability
26A
ORFICE (MFD GAS) (1) WCI 3201242 Contact Us For Availability
26B
LP GAS KIT (1) WCI 3201265 Contact Us For Availability
27
RECEPTACLE WCI 08015210 Contact Us For Availability
27
WCI 3281200 WCI 3281200 Contact Us For Availability
27
UNION HEX NUT (1) WCI 08015194 Contact Us For Availability
28
WCI 3201202 WCI 3201202 Contact Us For Availability
28
WCI 08015259 WCI 08015259 Contact Us For Availability
28
PANEL-TOP ALMD WCI 3205825 Contact Us For Availability
29
FOOT BOLT (4) WCI 3201032 Contact Us For Availability
29
WCI 08001860 WCI 08001860 Contact Us For Availability
29
WIRE-GROUND WCI 3201233 Contact Us For Availability
30
LAMP WCI 08027430 Contact Us For Availability
31
DOOR-ACCESS ALMD WCI 3201213 Contact Us For Availability
31
CYCLE SIGNAL WCI 5300152914 Contact Us For Availability
32
WCI 5300633722 WCI 5300633722 Contact Us For Availability
33
WCI 3205959 WCI 3205959 Contact Us For Availability
33
PANEL - FRONT - ALMOND WCI 3205961 Contact Us For Availability
34
WCI 3201264 WCI 3201264 Contact Us For Availability
34
WCI Q000148996 WCI Q000148996 Contact Us For Availability
35
SWITCH-P.B. WCI 3201661 Contact Us For Availability
36
SCREW (2) WCI 3261062 Contact Us For Availability
× ![]()
