Model Maytag DG33CM WASHER – Common Parts & Diagrams

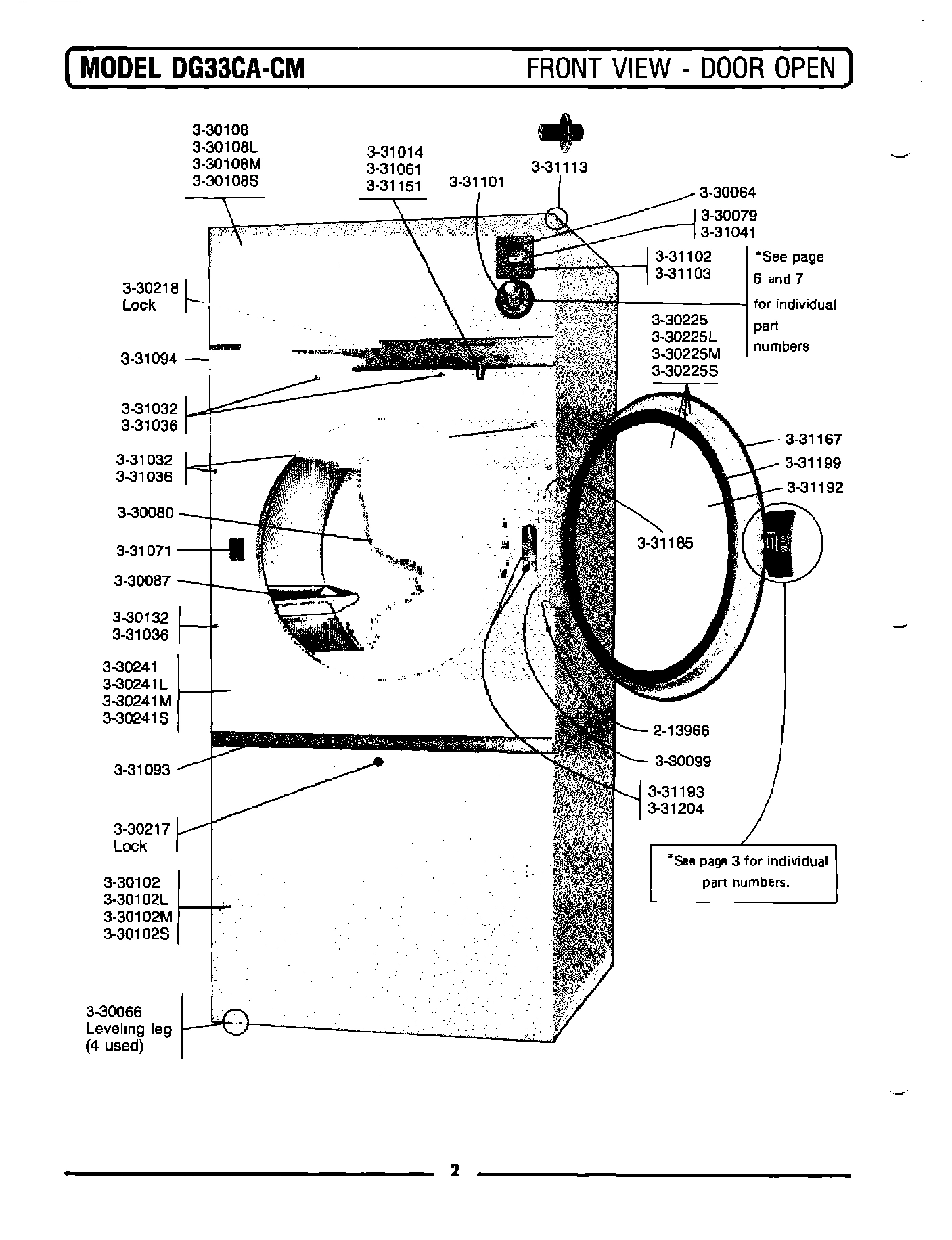

01 - FRONT VIEW-DOOR OPEN

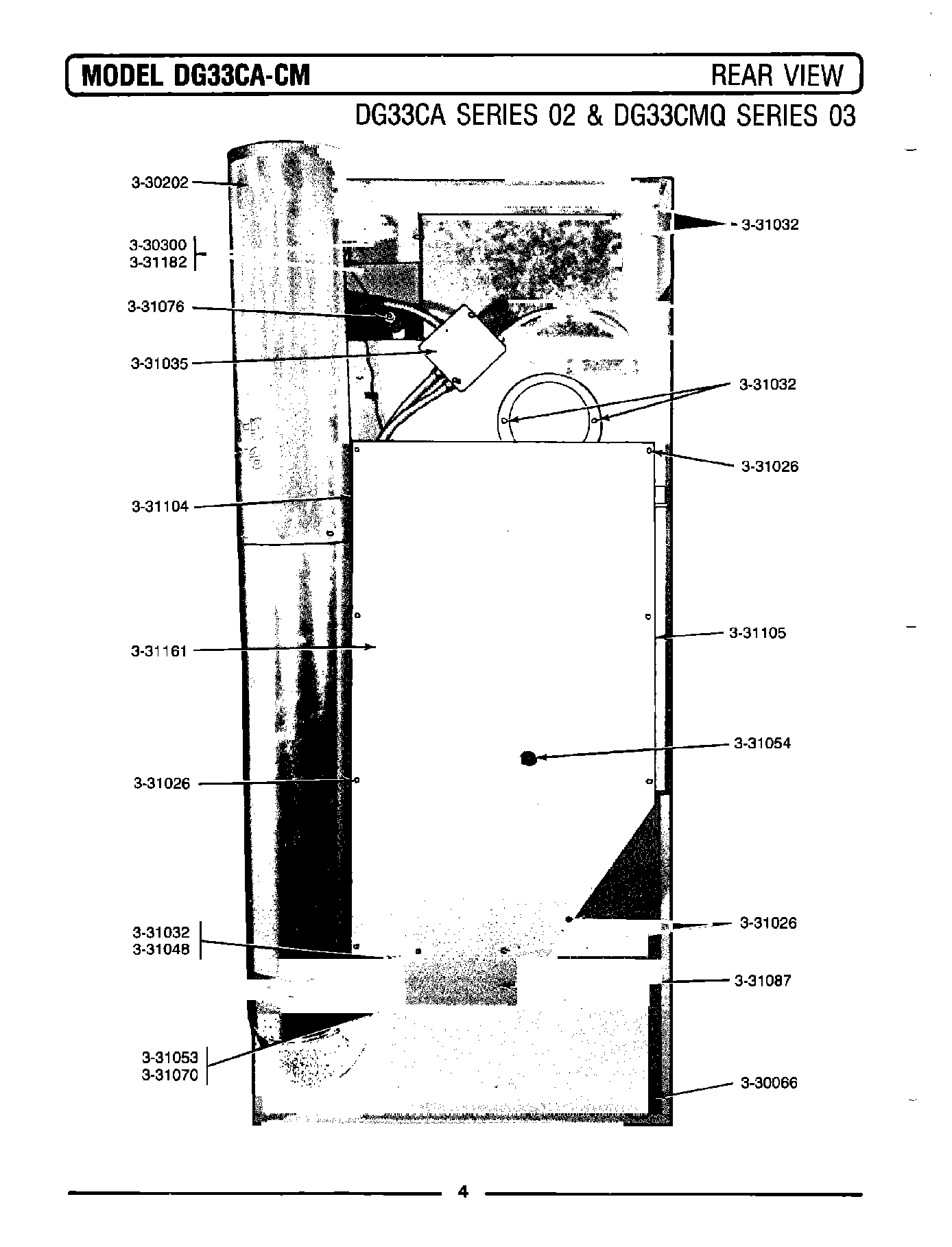

02 - REAR VIEW

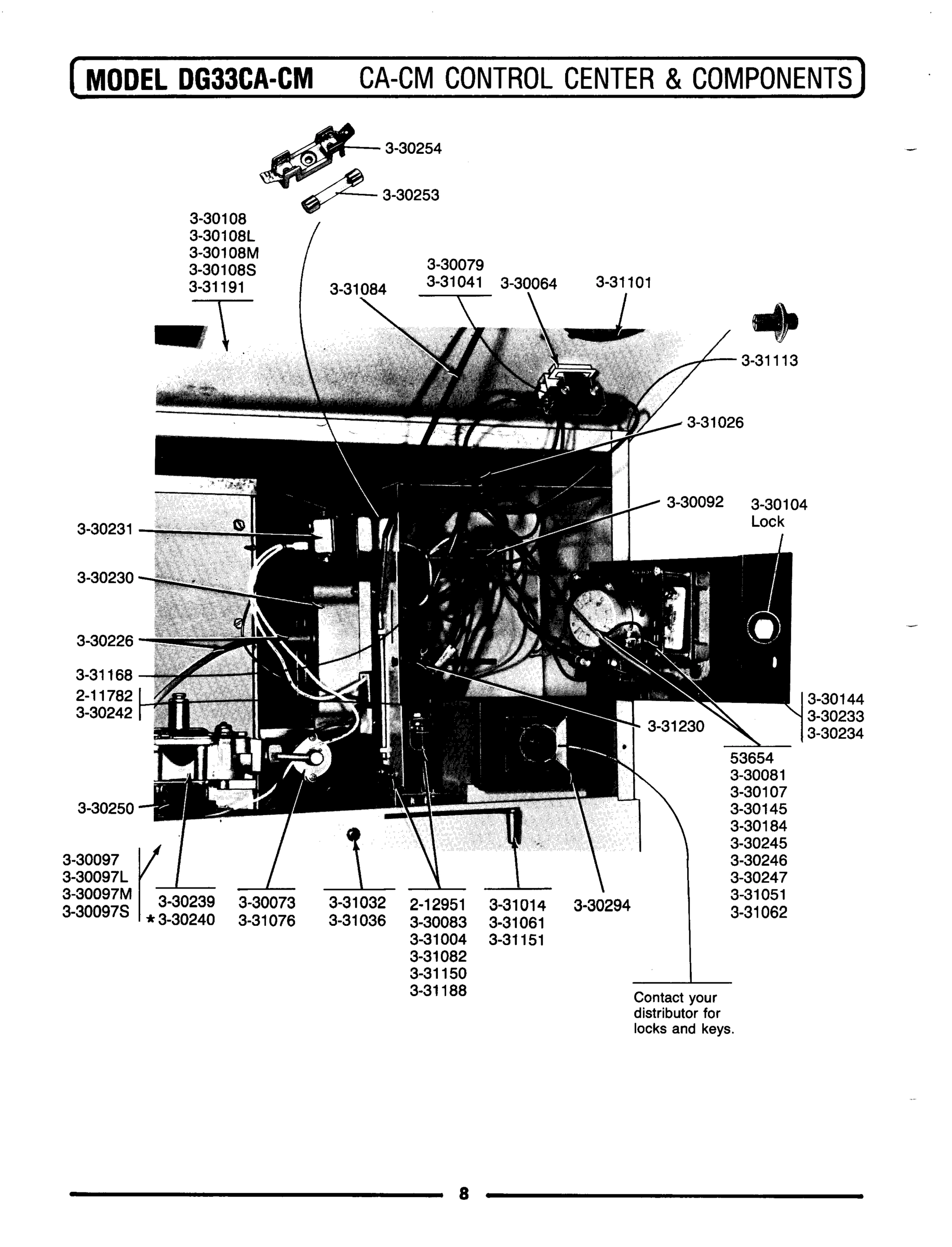

03 - CONTROL CENTER & COMPONENTS

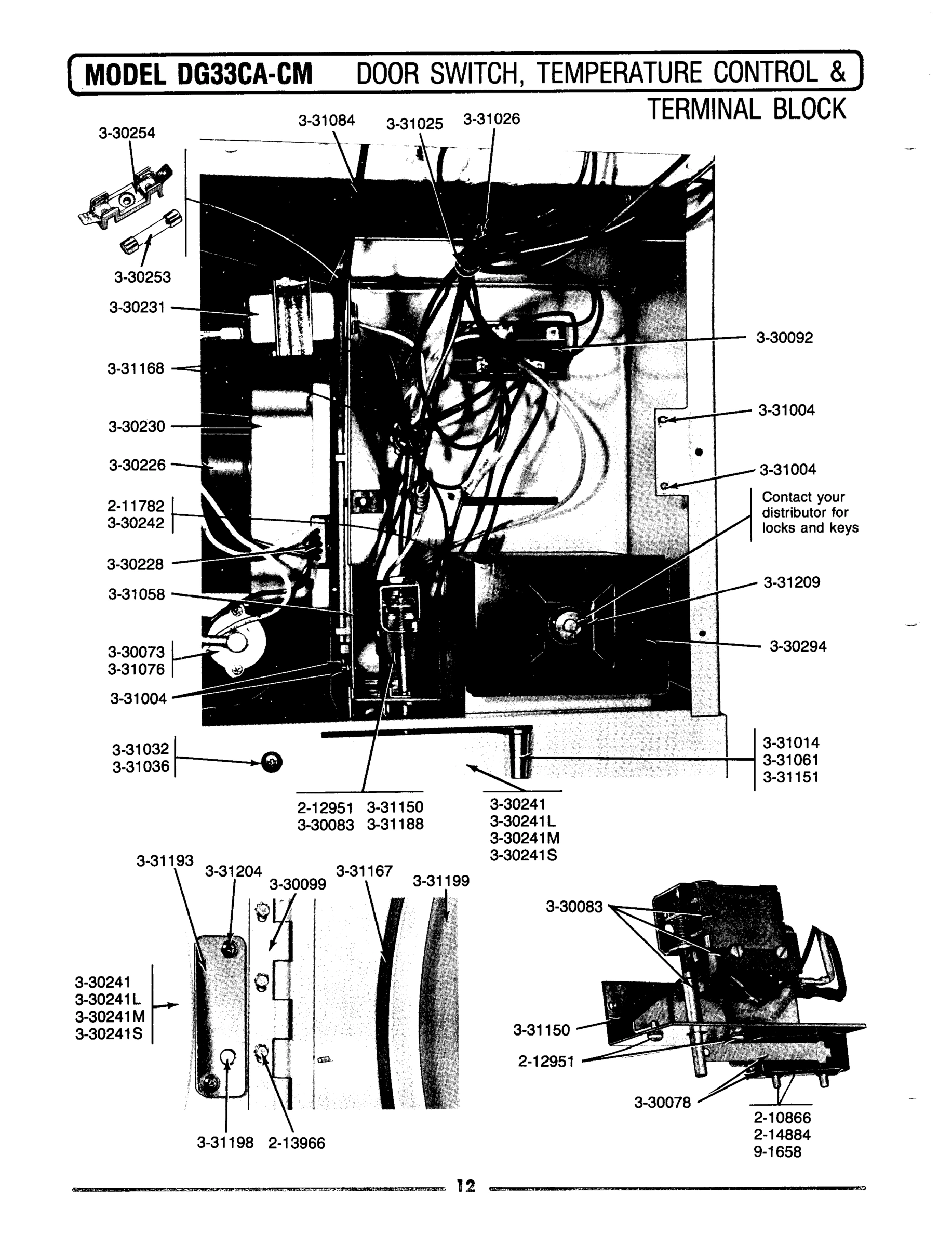

04 - DOOR SWITCH, TEMP CONTROL & TERMINAL BLK

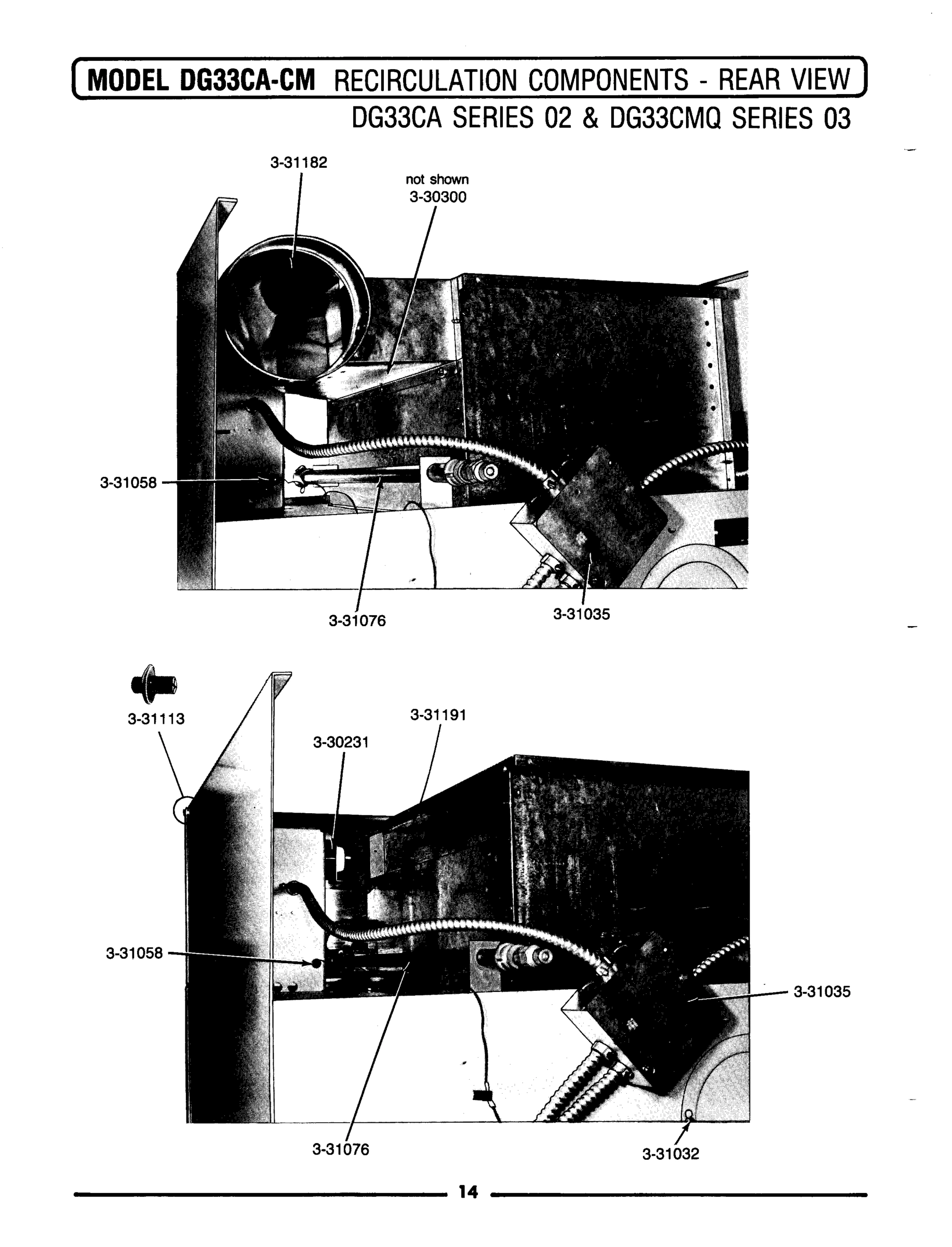

05 - RECIRCULATION COMPONENTS

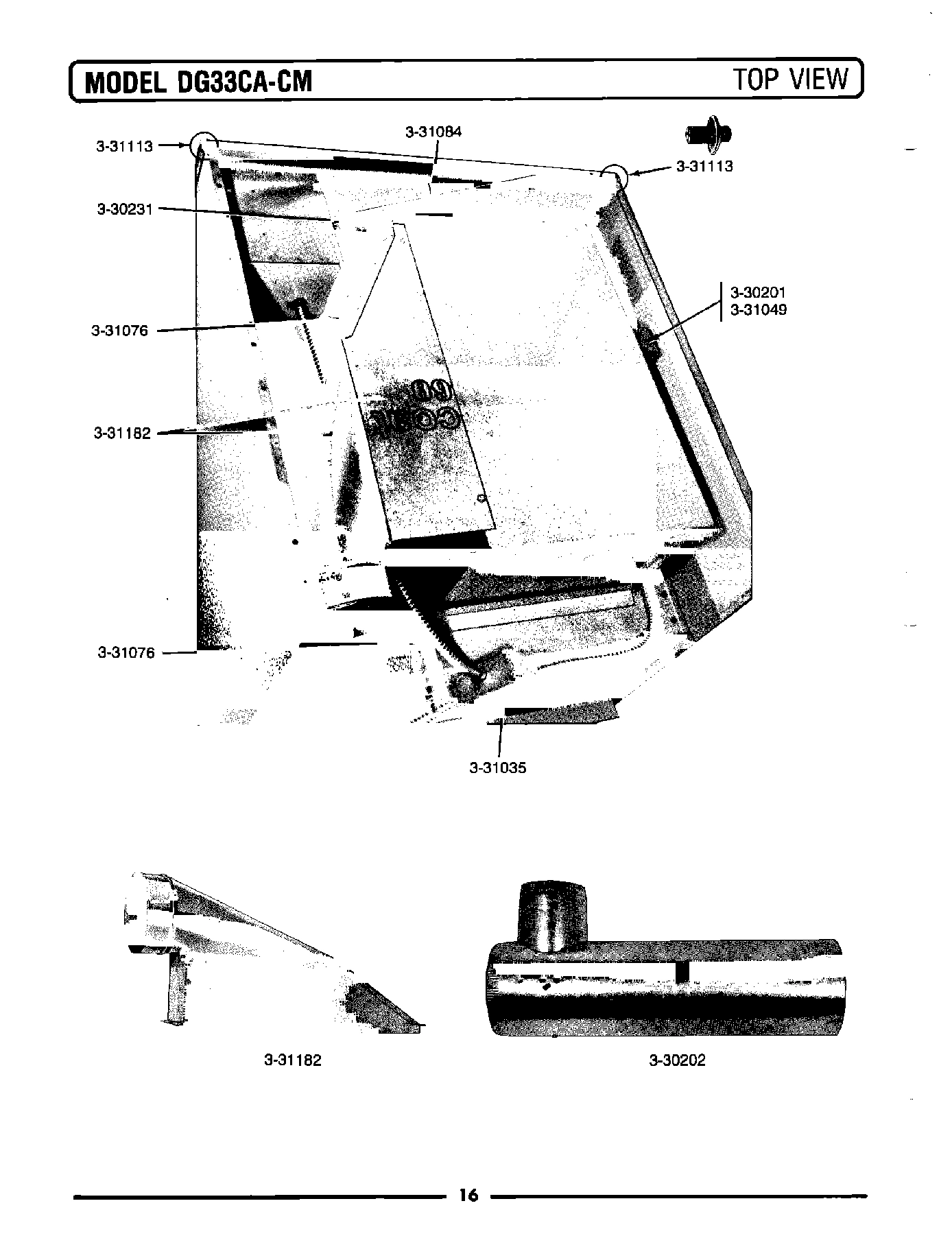

06 - TOP VIEW

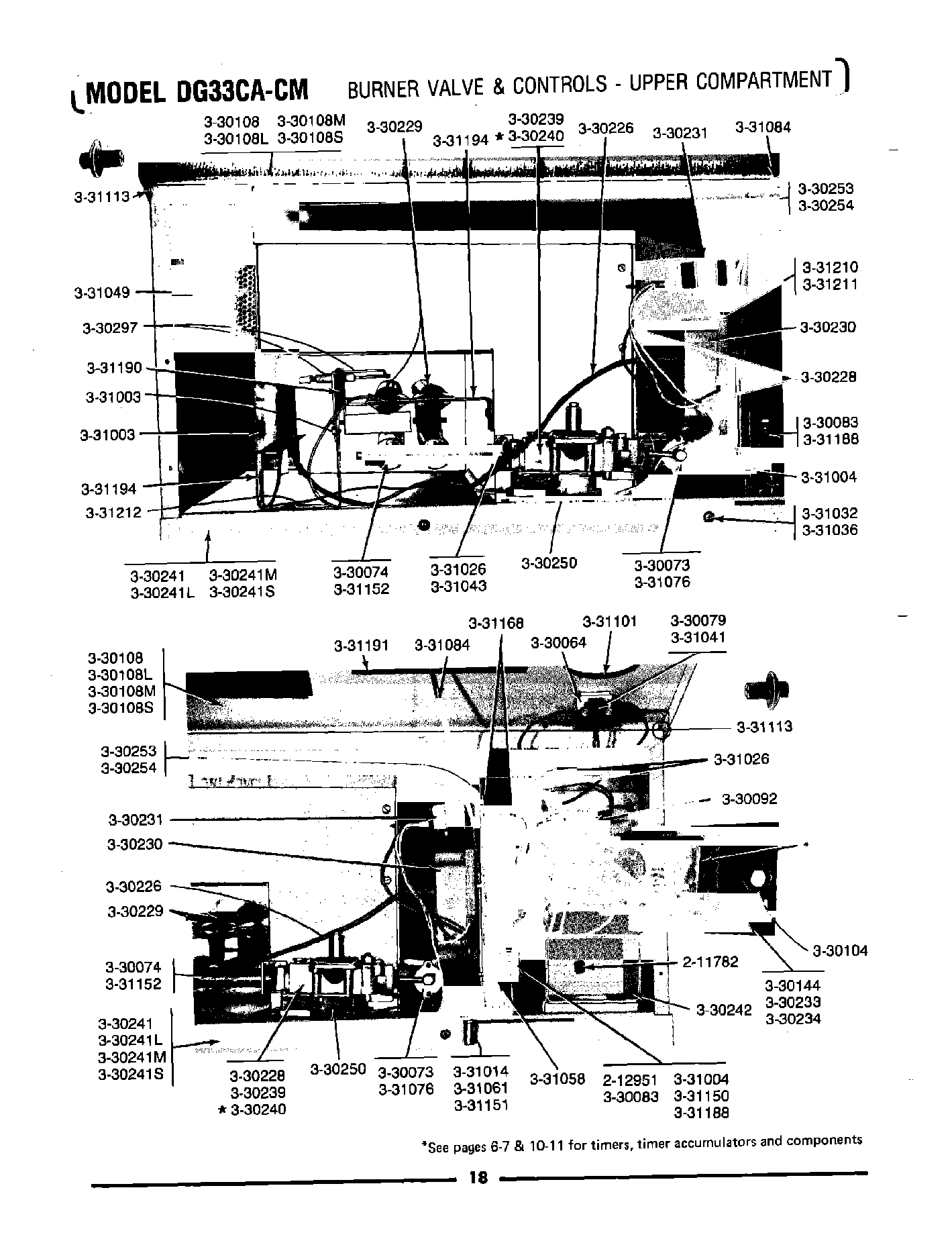

07 - BURNER VALVE & CONTROLS-UPPER COMP.

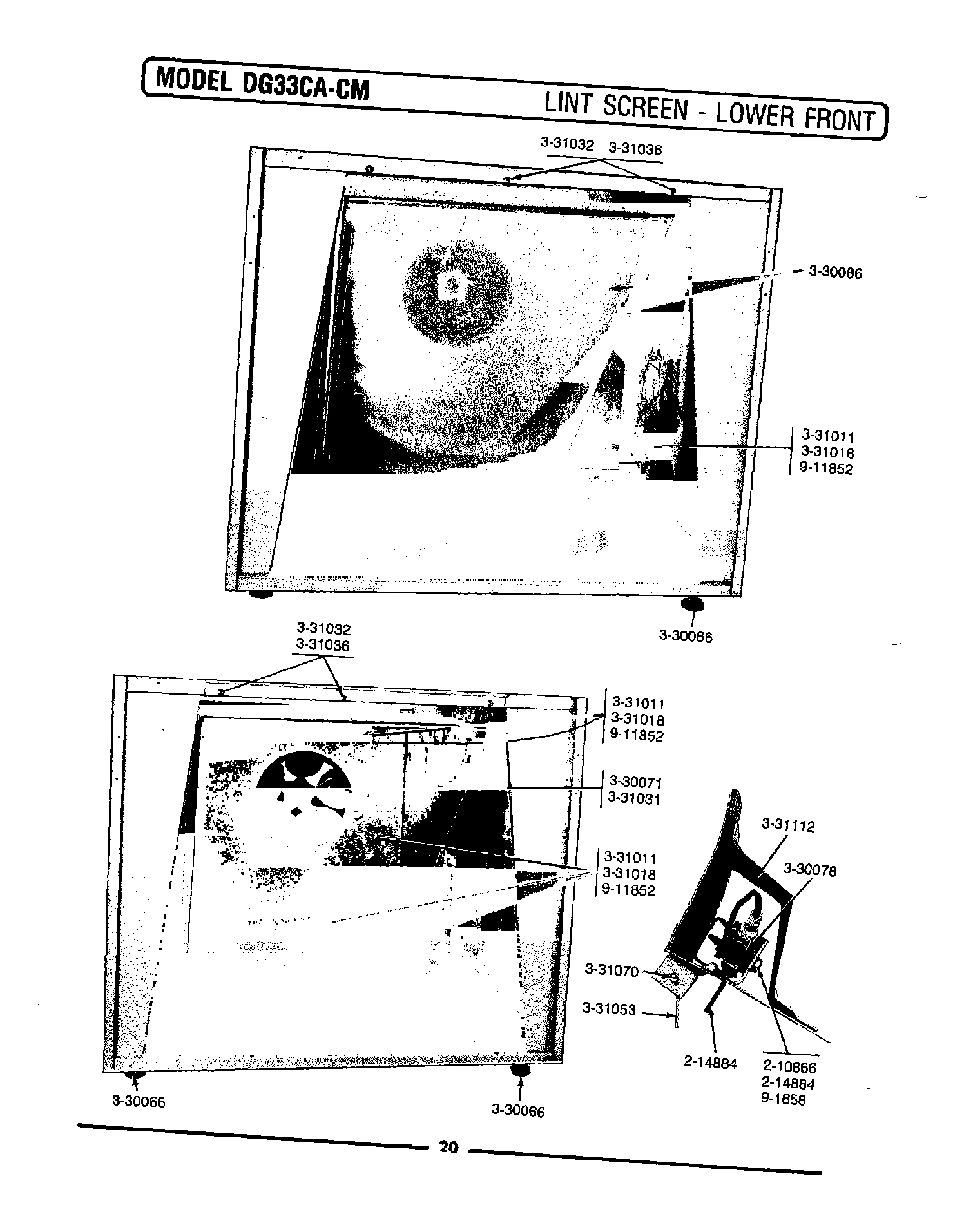

08 - LINT SCREEN-LOWER FRONT

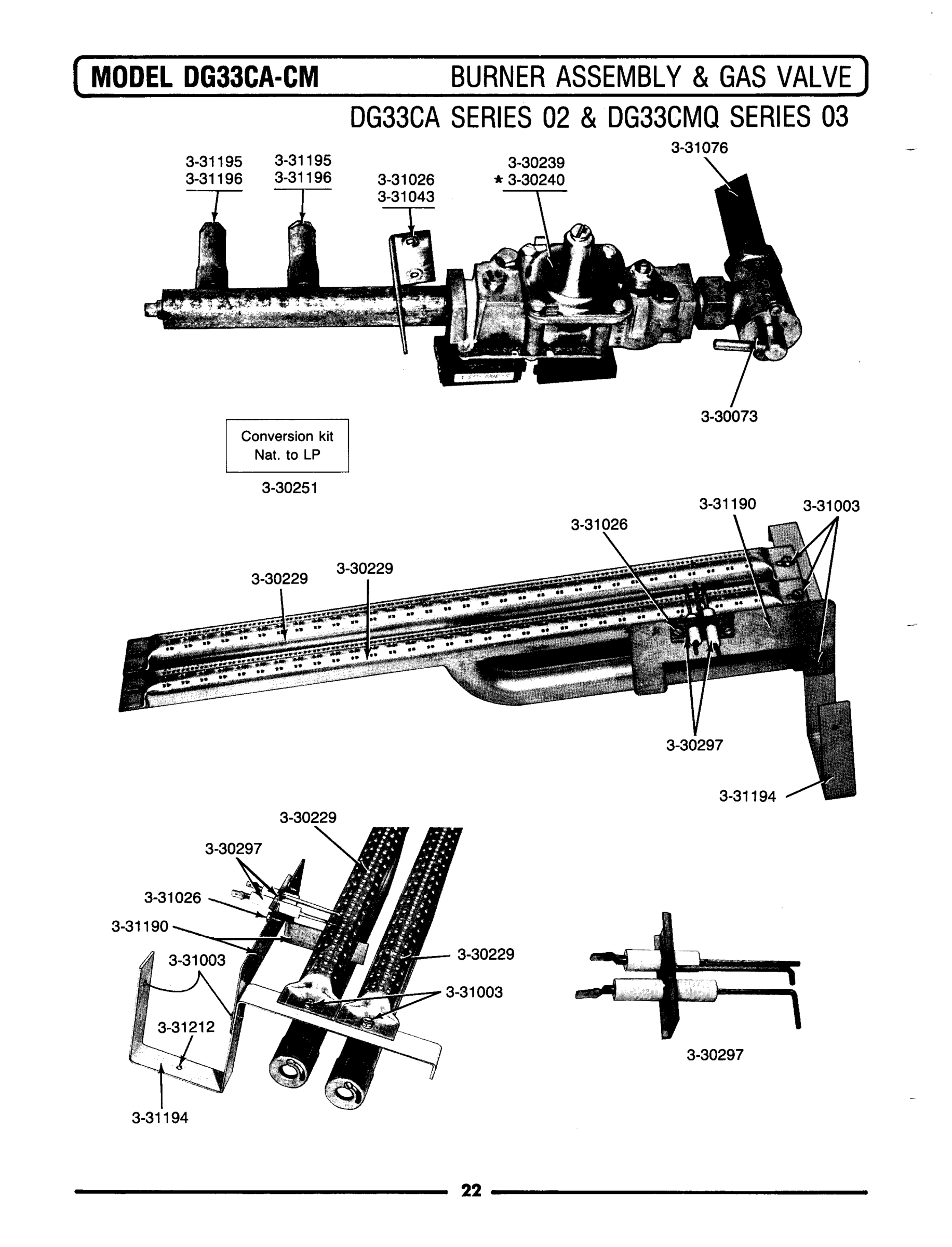

09 - BURNER ASSEMBLY & GAS VALVE

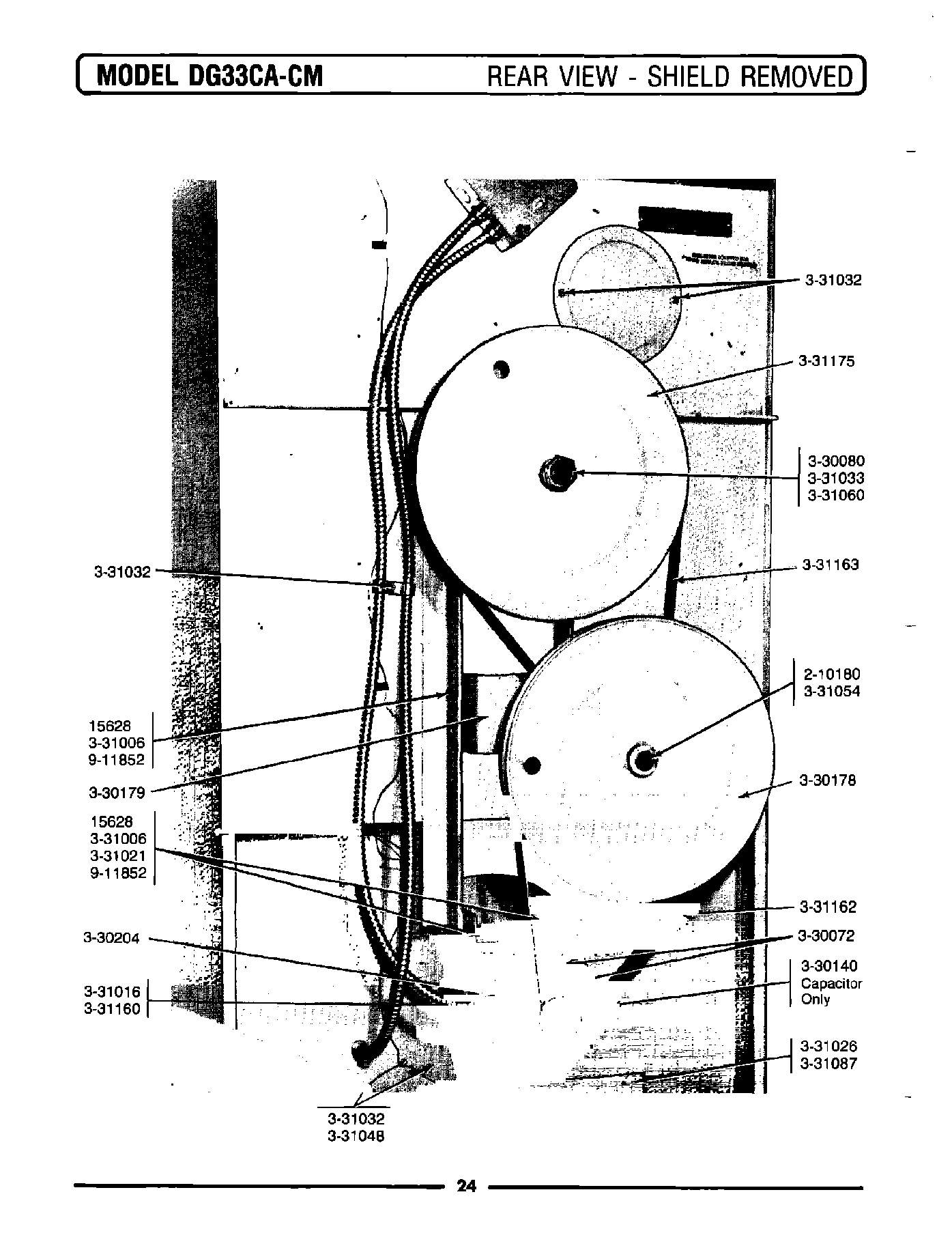

10 - REAR VIEW-SHIELD REMOVED

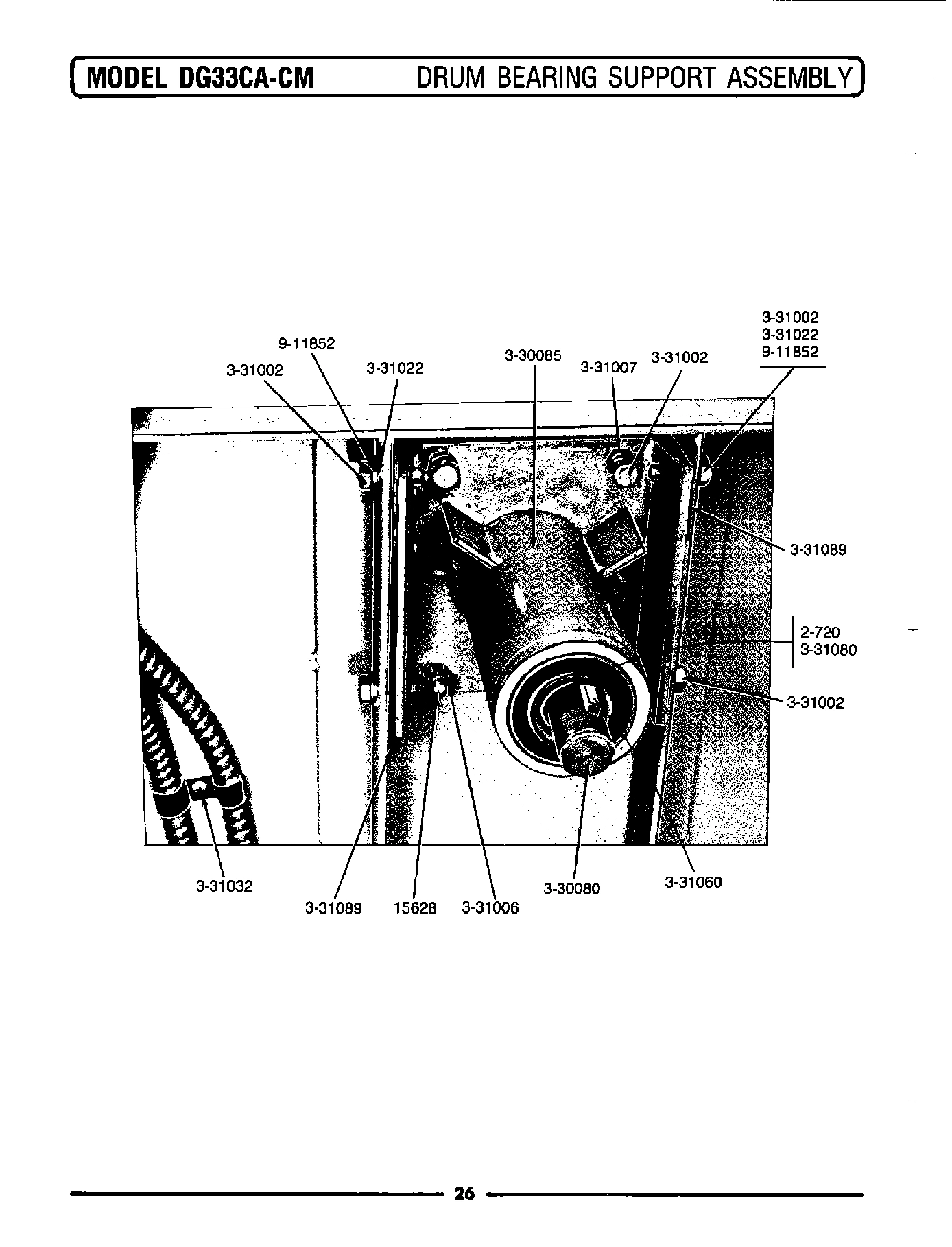

11 - DRUM BEARING SUPPORT ASSEMBLY

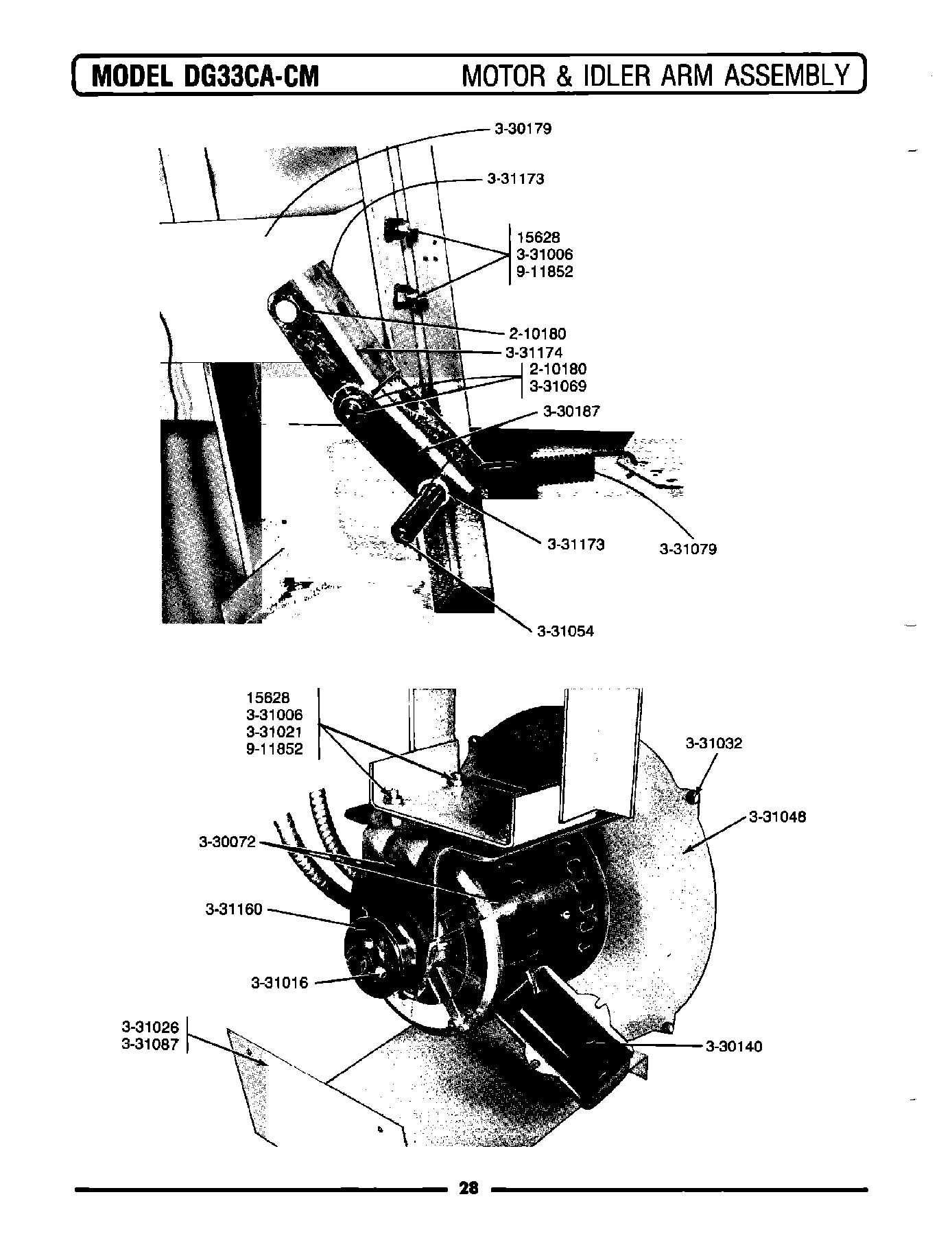

12 - MOTOR & IDLER ARM ASSEMBLY

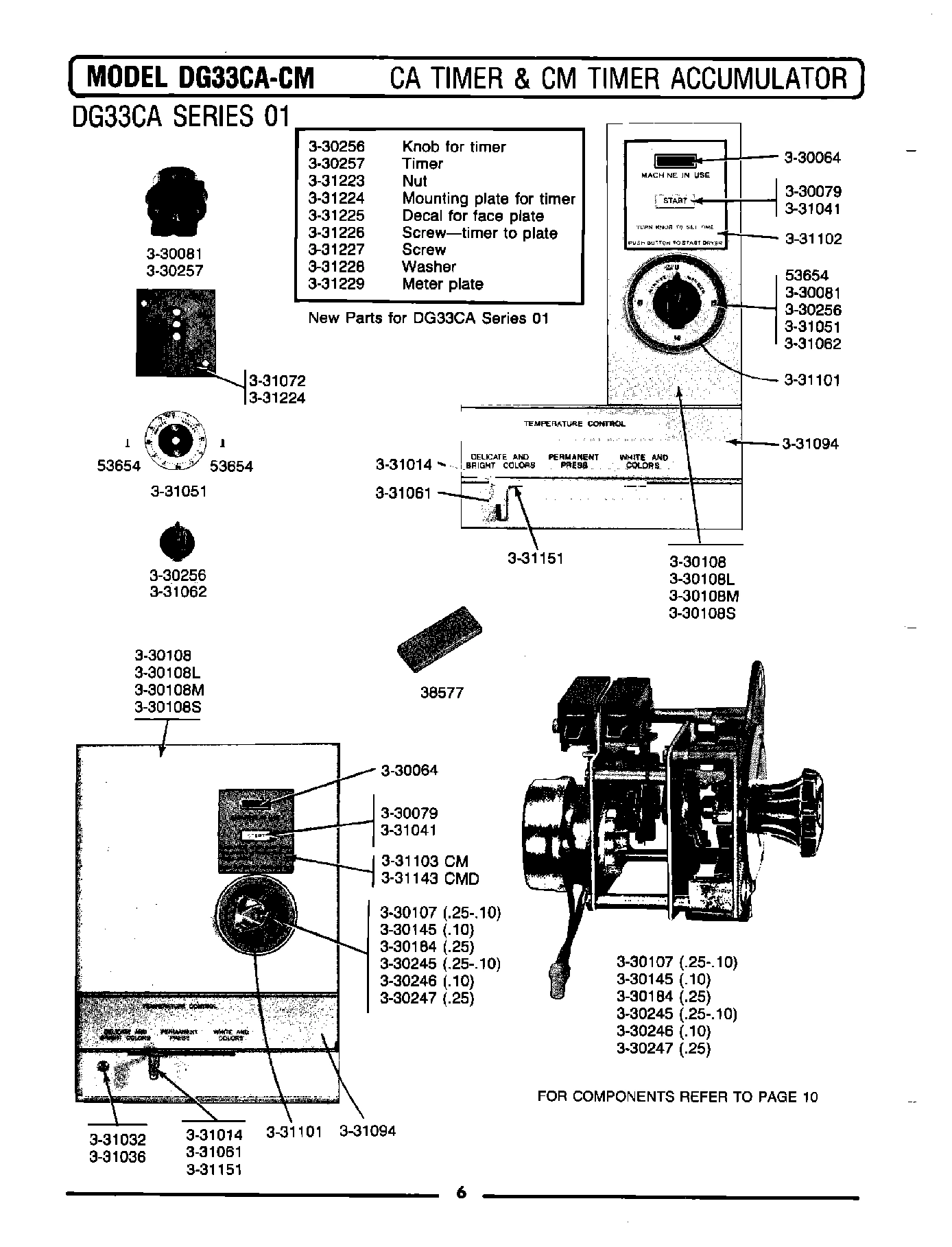

13 - TIMER ACCUMULATOR

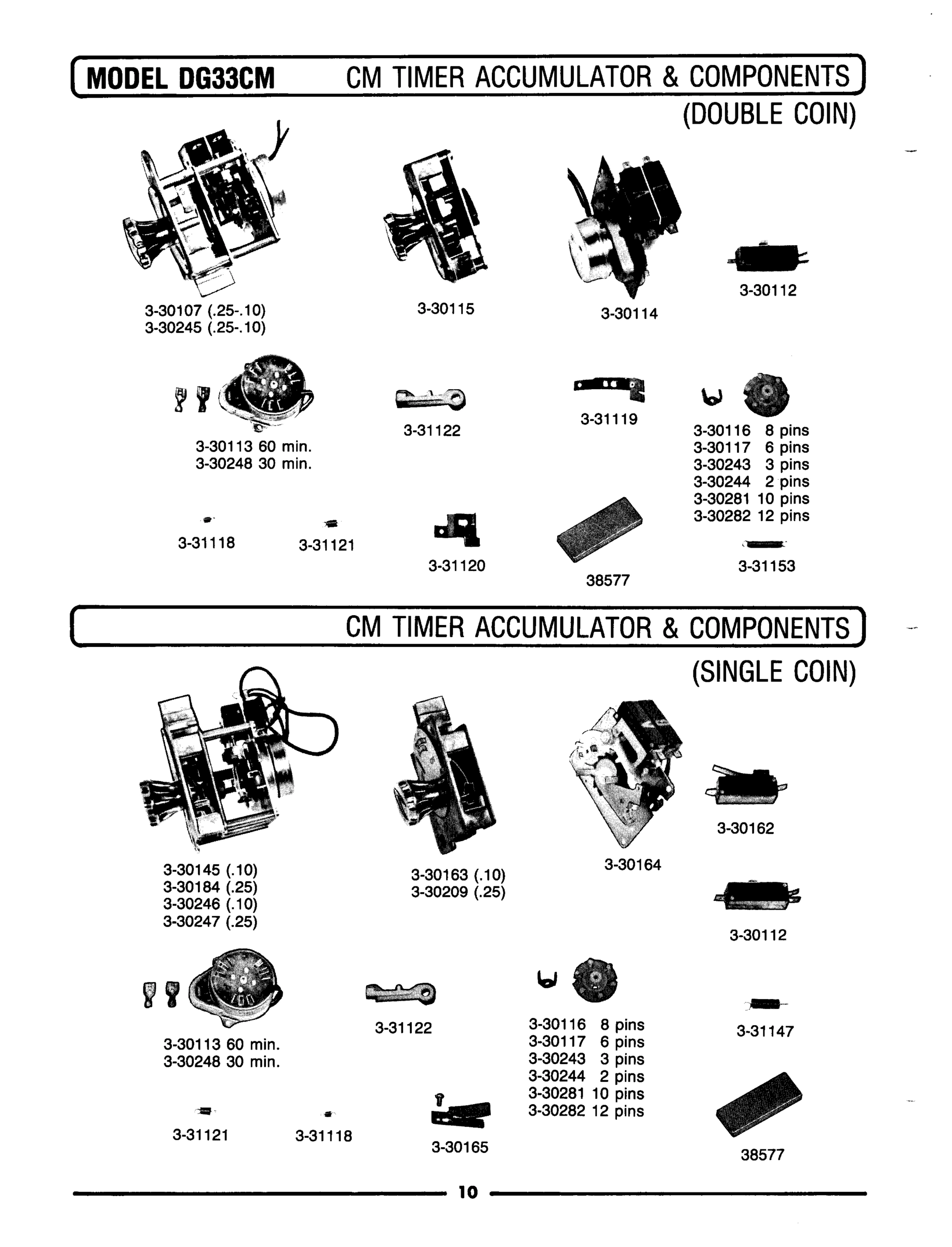

14 - TIMER ACCUMULATOR & COMP. (DOUBLE COIN)
15 - TIMER ACCUMULATOR & COMP. (SINGLE COIN)
Common parts from model Maytag DG33CM WASHER
001
MAY Y052749 MAY Y052749 Contact Us For Availability
001
MAY Y330073 MAY Y330073 Contact Us For Availability
002
MAY Y330202 MAY Y330202 Contact Us For Availability
002
MAY Y330300 MAY Y330300 Contact Us For Availability
002
MAY 212951 MAY 212951 Contact Us For Availability
002
MAY 210866 MAY 210866 Contact Us For Availability
002
MAY Y330229 MAY Y330229 Contact Us For Availability
002
MAY 210180 MAY 210180 Contact Us For Availability
002
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
002
SWITCH, ACTUATOR MAY 330112 Contact Us For Availability
003
MAY Y330064 MAY Y330064 Contact Us For Availability
003
SPIDER & SHAFT ASSEMBLY MAY Y330080 Contact Us For Availability
003
MAY Y330239 MAY Y330239 Contact Us For Availability
003
MAY 214884 MAY 214884 Contact Us For Availability
003
MAY Y330072 MAY Y330072 Contact Us For Availability
003
MAY 330113 MAY 330113 Contact Us For Availability
004
PUSH TO START SWITCH MAY Y330079 Contact Us For Availability
004
MAY Y330087 MAY Y330087 Contact Us For Availability
004
MAY Y330085 MAY Y330085 Contact Us For Availability
004
TIMING CAM - 8 PINS MAY 330116 Contact Us For Availability
005
COIL, GAS VALVE MAY Y330250 Contact Us For Availability
005
IMPELLER, BLOWER MAY Y330071 Contact Us For Availability
005
MAY Y330179 MAY Y330179 Contact Us For Availability
005
TIMING CAM - 6 PINS MAY 330117 Contact Us For Availability
006
MAY Y330145 MAY Y330145 Contact Us For Availability
006
MAY Y330078 MAY Y330078 Contact Us For Availability
006
MAY Y330178 MAY Y330178 Contact Us For Availability
006
IDLER ARM ASSEMBLY W/PIN MAY 330187 Contact Us For Availability
007
(ALM) MAY 330108L Contact Us For Availability
007
PART NOT USED MAY 330081 Contact Us For Availability
007
MAY Y330083 MAY Y330083 Contact Us For Availability
007
LINT SCREEN W/FRAME MAY Y330086 Contact Us For Availability
007
SWITCH, TIME DELAY MAY Y330162 Contact Us For Availability
008
FRONT PANEL (WHT) MAY Y330102 Contact Us For Availability
008
(H. WHEAT) MAY 330108M Contact Us For Availability
008
MAY Y330092 MAY Y330092 Contact Us For Availability
008
SCREW, BURNER (BRACKET) MAY 331003 Contact Us For Availability
010
SET SCREW, IMPELLER MAY 331031 Contact Us For Availability
010
KEY, DRUM MAY 331060 Contact Us For Availability
010
MAY Y330165 MAY Y330165 Contact Us For Availability
011
SCREW, SWITCH PLATE, (VAULT) MAY 331026 Contact Us For Availability
011
MAY 330184 MAY 330184 Contact Us For Availability
011
SPACER, CENTER BEARING MAY 331080 Contact Us For Availability
012
SHIM, DRUM ROD MAY 331089 Contact Us For Availability
013
COVER, BLOWER IMPELLER MAY 331048 Contact Us For Availability
013
MAY 331053 MAY 331053 Contact Us For Availability
013
MAY Y330243 MAY Y330243 Contact Us For Availability
014
MAY Y330217 MAY Y330217 Contact Us For Availability
014
SCREW, TEMP. KNOB (LEVER) MAY 331014 Contact Us For Availability
014
GREASE FITTING - PULLEY PIN MAY 331054 Contact Us For Availability
014
MAY Y330201 MAY Y330201 Contact Us For Availability
014
MAY 331033 MAY 331033 Contact Us For Availability
014
MAY Y330244 MAY Y330244 Contact Us For Availability
015
MAY Y330218 MAY Y330218 Contact Us For Availability
015
MAY 331032 MAY 331032 Contact Us For Availability
015
WIRE, IGNITION CONTROL ASSY. MAY Y330226 Contact Us For Availability
015
MAY Y330232 MAY Y330232 Contact Us For Availability
015
PIVOT PIN, TENSION ARMS MAY 331069 Contact Us For Availability
016
WASHER-FRONT PANEL SCREWS MAY 331036 Contact Us For Availability
016
MAY Y330228 MAY Y330228 Contact Us For Availability
016
MAY 331212 MAY 331212 Contact Us For Availability
016
MAY 331079 MAY 331079 Contact Us For Availability
017
MAY 331041 MAY 331041 Contact Us For Availability
017
TIMER MOTOR MAY 330248 Contact Us For Availability
018
KNOB, TEMPERATURE CONTROL MAY 331061 Contact Us For Availability
018
MAY Y330230 MAY Y330230 Contact Us For Availability
018
MAY Y330281 MAY Y330281 Contact Us For Availability
019
MAY Y330231 MAY Y330231 Contact Us For Availability
020
BEZEL, TIMER (ACCUMULATOR) MAY 331101 Contact Us For Availability
020
MOUNTING PLT, CM TIMER ACCUM. MAY Y330233 Contact Us For Availability
020
MAY 331160 MAY 331160 Contact Us For Availability
020
COIL SPRING, CARRIER RETURN MAY 331153 Contact Us For Availability
021
MAY 331162 MAY 331162 Contact Us For Availability
021
V BELT - REDUCTION MAY 331163 Contact Us For Availability
022
MAY 331151 MAY 331151 Contact Us For Availability
022
MAY Y330294 MAY Y330294 Contact Us For Availability
022
MAY 331175 MAY 331175 Contact Us For Availability
022
WASHER MAY 331173 Contact Us For Availability
023
COIL SPRING, CARRIER RETURN MAY NLA Contact Us For Availability
023
IDLER BRACKET MAY 331174 Contact Us For Availability
024
FRONT PANEL (WHT) MAY Y330241 Contact Us For Availability
024
MAY 911852 MAY 911852 Contact Us For Availability
025
(ALM) MAY 330241L Contact Us For Availability
027
MAGNET, DOOR HANDLE MAY 331064 Contact Us For Availability
027
MAY Y330242 MAY Y330242 Contact Us For Availability
028
STRIKE PLATE, DOOR MAY 331071 Contact Us For Availability
029
MAY Y330253 MAY Y330253 Contact Us For Availability
030
MAY Y330254 MAY Y330254 Contact Us For Availability
034
MAY 331012 MAY 331012 Contact Us For Availability
035
MAY 331167 MAY 331167 Contact Us For Availability
037
HINGE PIN, DOOR MAY 331185 Contact Us For Availability
038
MAY 331192 MAY 331192 Contact Us For Availability
038
MAY 331193 MAY 331193 Contact Us For Availability
039
MAY 331197 MAY 331197 Contact Us For Availability
040
MAY 331198 MAY 331198 Contact Us For Availability
041
MAY 331199 MAY 331199 Contact Us For Availability
041
MAY 331200 MAY 331200 Contact Us For Availability
041
MAY 331049 MAY 331049 Contact Us For Availability
042
MAY 331058 MAY 331058 Contact Us For Availability
042
MAY 331201 MAY 331201 Contact Us For Availability
043
MAY 331204 MAY 331204 Contact Us For Availability
046
SUPPORT ROD, UPPER DOOR MAY 331084 Contact Us For Availability
054
MAY 331230 MAY 331230 Contact Us For Availability
057
MAY 331210 MAY 331210 Contact Us For Availability
058
MAY 331211 MAY 331211 Contact Us For Availability
× ![]()
