Model Electrolux DG250KXW1 DRYER – Common Parts & Diagrams
02 - CABINET AND COMPONENT PARTS
03 - DOOR PARTS

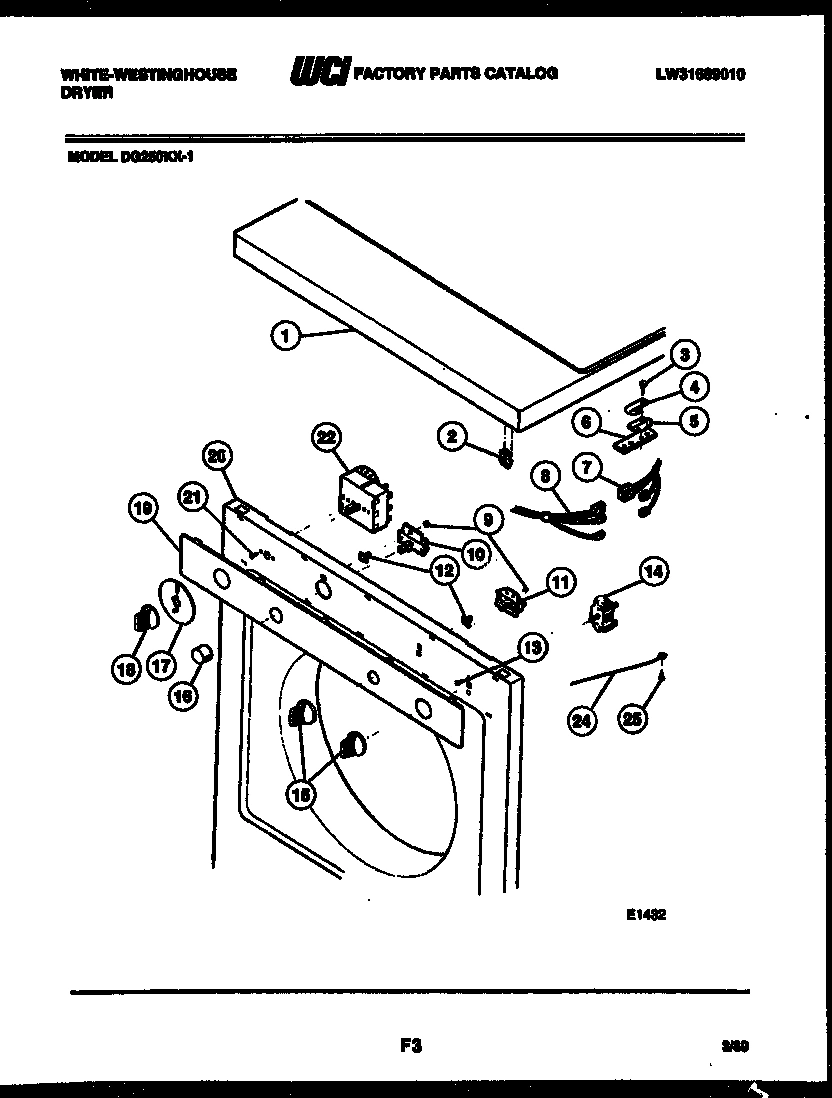

04 - DOOR AND INSTALLATION PARTS

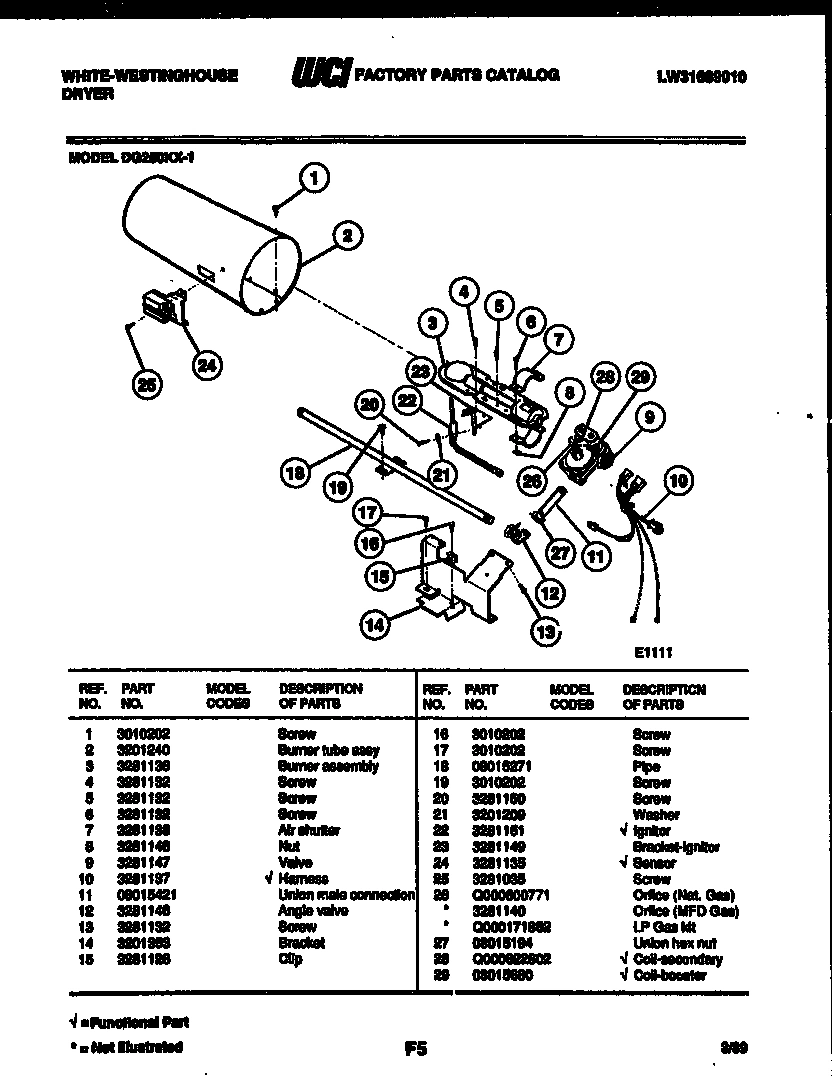

05 - BURNER, IGNITER AND VALVE

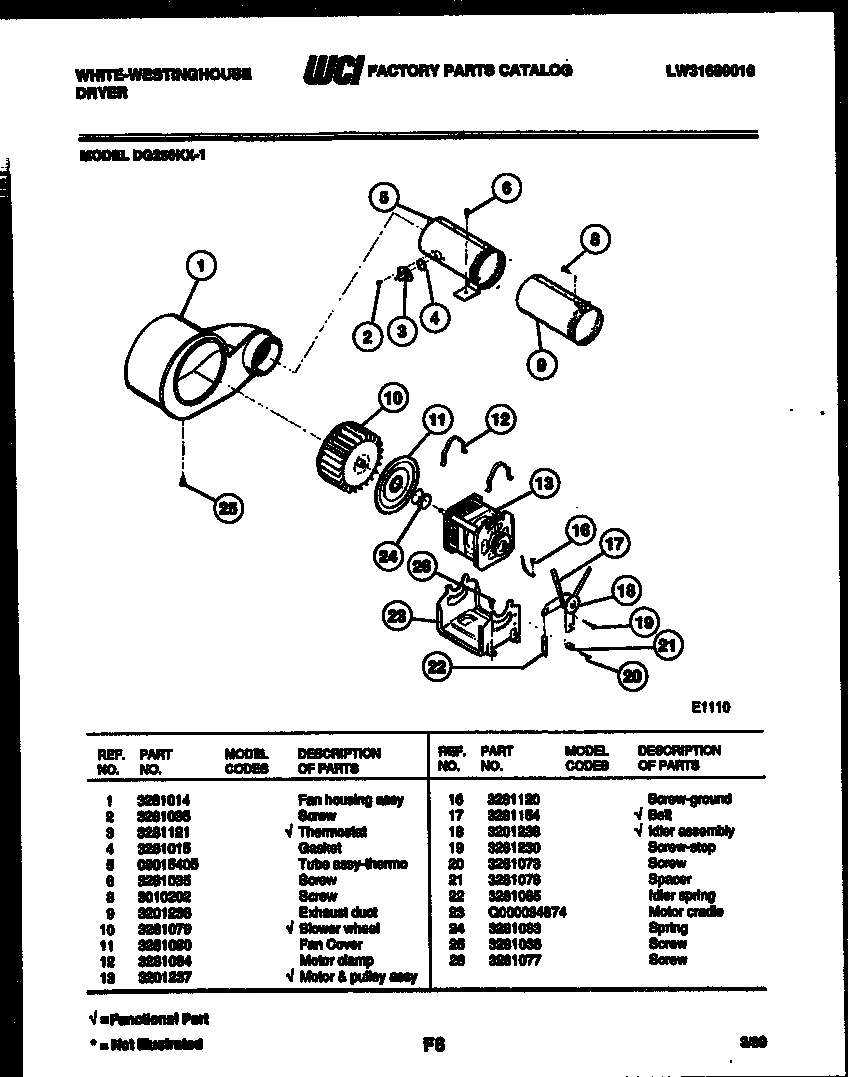

06 - MOTOR AND BLOWER PARTS
Common parts from model Electrolux DG250KXW1 DRYER
*19534
WCI 3203253 WCI 3203253 Contact Us For Availability
*19534
SCREW (2) (STACKING PARTS) WCI 3281171 Contact Us For Availability
*19534
BRACKET (2) (STACKING PARTS) WCI 3281173 Contact Us For Availability
1
WCI 3281053 WCI 3281053 Contact Us For Availability
1
WCI 3203243 WCI 3203243 Contact Us For Availability
1
FAN HOUSING ASSY WCI 3281014 Contact Us For Availability
2
WCI 3201203 WCI 3201203 Contact Us For Availability
2
SPRING CATCH WCI 3281170 Contact Us For Availability
2
BURNER TUBE ASSY WCI 3201240 Contact Us For Availability
3
WCI 3281043 WCI 3281043 Contact Us For Availability
3
HEAT SHIELD WCI 3281067 Contact Us For Availability
3
SCREW WCI 08015345 Contact Us For Availability
3
WCI 3281121 WCI 3281121 Contact Us For Availability
4
WCI 3201205 WCI 3201205 Contact Us For Availability
4
WCI 3281058 WCI 3281058 Contact Us For Availability
4
CLIP WCI 3281163 Contact Us For Availability
4
WCI 3281015 WCI 3281015 Contact Us For Availability
5
SERVICE CORD WCI 3281129 Contact Us For Availability
5
WCI 3201206 WCI 3201206 Contact Us For Availability
5
WCI 3281164 WCI 3281164 Contact Us For Availability
5
TUBE ASSY-THERMO WCI 08015405 Contact Us For Availability
6
WCI 3281130 WCI 3281130 Contact Us For Availability
6
SCREW WCI 3281035 Contact Us For Availability
6
WCI 3281051 WCI 3281051 Contact Us For Availability
6
WCI 3281165 WCI 3281165 Contact Us For Availability
7
WCI 3203245 WCI 3203245 Contact Us For Availability
7
WCI 3281138 WCI 3281138 Contact Us For Availability
8
WASHER WCI 3281107 Contact Us For Availability
8
WCI 3010202 WCI 3010202 Contact Us For Availability
8
WCI 3203246 WCI 3203246 Contact Us For Availability
8
NUT WCI 3281148 Contact Us For Availability
9
SEAL WCI 3281049 Contact Us For Availability
9
NUT WCI 3281089 Contact Us For Availability
9
WCI 3281147 WCI 3281147 Contact Us For Availability
9
WCI 3201236 WCI 3201236 Contact Us For Availability
10
WCI 3281018 WCI 3281018 Contact Us For Availability
10
WCI 3203292 WCI 3203292 Contact Us For Availability
10
HARNESS WCI 3281137 Contact Us For Availability
10
BLOWER WHEEL WCI 3281079 Contact Us For Availability
11
WCI 3201196 WCI 3201196 Contact Us For Availability
11
WCI 08015173 WCI 08015173 Contact Us For Availability
11
WCI Q000632404 WCI Q000632404 Contact Us For Availability
11
WCI 08015421 WCI 08015421 Contact Us For Availability
11
FAN COVER WCI 3281080 Contact Us For Availability
12
QUICKEY BOLT WCI 3281092 Contact Us For Availability
12
ANGLE VALVE WCI 3281146 Contact Us For Availability
12
MOTOR CLAMP WCI 3281084 Contact Us For Availability
13
SCREW WCI 3281101 Contact Us For Availability
13
MOTOR & PULLEY ASSY WCI 3201237 Contact Us For Availability
14
SELECTOR SWITCH WCI 3281100 Contact Us For Availability
14
WCI 3201353 WCI 3201353 Contact Us For Availability
15
CLIP-GUIDE WCI 3281074 Contact Us For Availability
15
WCI Q000633724 WCI Q000633724 Contact Us For Availability
15
CLIP WCI 3281126 Contact Us For Availability
16
HEATER HSG & SEAL ASSY WCI 3281119 Contact Us For Availability
16
WCI 3281120 WCI 3281120 Contact Us For Availability
16
CLIP WCI 3281039 Contact Us For Availability
16
WCI 3201221 WCI 3201221 Contact Us For Availability
17
WCI 08027433 WCI 08027433 Contact Us For Availability
18
CLIP WCI 3281061 Contact Us For Availability
18
WCI 08015435 WCI 08015435 Contact Us For Availability
18
WCI 08015271 WCI 08015271 Contact Us For Availability
18
IDLER ASSEMBLY WCI 3201238 Contact Us For Availability
19
LINT TRAP FRAME WCI 3281060 Contact Us For Availability
19
WCI Q000633781 WCI Q000633781 Contact Us For Availability
19
SCREW-STOP WCI 3261230 Contact Us For Availability
20
WCI 3281059 WCI 3281059 Contact Us For Availability
20
WCI 3203286 WCI 3203286 Contact Us For Availability
20
SCREW WCI 3281150 Contact Us For Availability
20
WCI 3281073 WCI 3281073 Contact Us For Availability
21
WCI 3202753 WCI 3202753 Contact Us For Availability
21
DOOR SWITCH WCI 08015457 Contact Us For Availability
21
SCREW WCI 3281096 Contact Us For Availability
21
SPACER WCI 3281076 Contact Us For Availability
22
WCI 3201210 WCI 3201210 Contact Us For Availability
22
WCI 08027438 WCI 08027438 Contact Us For Availability
22A
SHIELD-TIMER (NON-ILLUSTRATED) WCI 3281021 Contact Us For Availability
22B
RATCHET FASTENER-SHIELD (NON-ILLUSTRATED) WCI 3281022 Contact Us For Availability
23
BRACKET-IGNITOR WCI 3281149 Contact Us For Availability
24
SCREW WCI 3281029 Contact Us For Availability
24
DOOR HINGE WCI 3281050 Contact Us For Availability
24
GROUND WIRE WCI 08015277 Contact Us For Availability
24
WCI 3281083 WCI 3281083 Contact Us For Availability
25
SCREW (PART OF REAR BEARING KIT.) WCI 3281027 Contact Us For Availability
25
SCREW WCI 3281176 Contact Us For Availability
25
SCREW WCI 3281036 Contact Us For Availability
26
HEAT DUCT ASSY WCI 3281123 Contact Us For Availability
26
WCI Q000600771 WCI Q000600771 Contact Us For Availability
26
WCI 3281077 WCI 3281077 Contact Us For Availability
26A
ORFICE (MFD GAS) (NON-ILLUSTRATED) WCI 3281140 Contact Us For Availability
26B
WCI Q000171852 WCI Q000171852 Contact Us For Availability
27
RECEPTACLE WCI 08015210 Contact Us For Availability
27
UNION - HEX NUT WCI 08015194 Contact Us For Availability
28
GROMMET WCI 3201202 Contact Us For Availability
28
LIGHT HOLDER WCI 08015259 Contact Us For Availability
29
FOOT BOLT WCI 3281032 Contact Us For Availability
30
LAMP WCI 08027430 Contact Us For Availability
31
WCI 3201212 WCI 3201212 Contact Us For Availability
34
WCI 3201264 WCI 3201264 Contact Us For Availability
× ![]()
