Model Electrolux DG250KXH3 DRYER – Common Parts & Diagrams

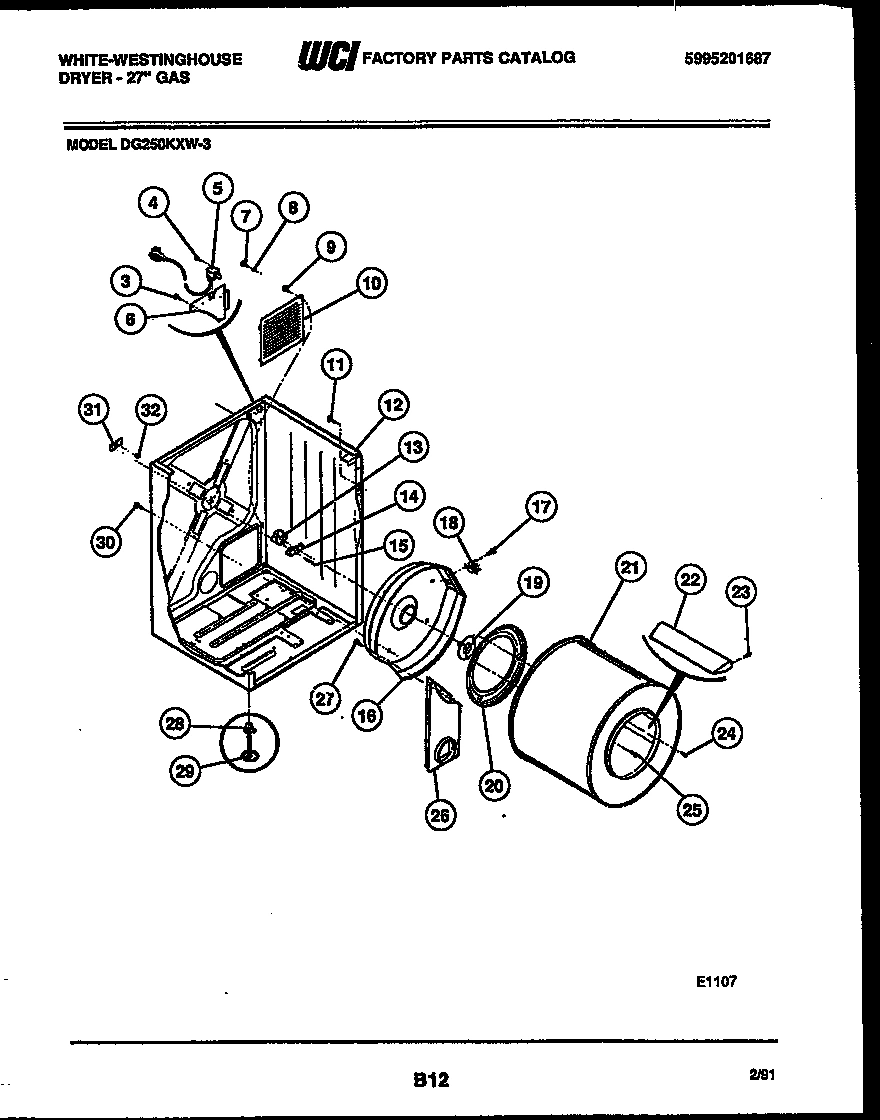

02 - CABINET AND COMPONENT PARTS

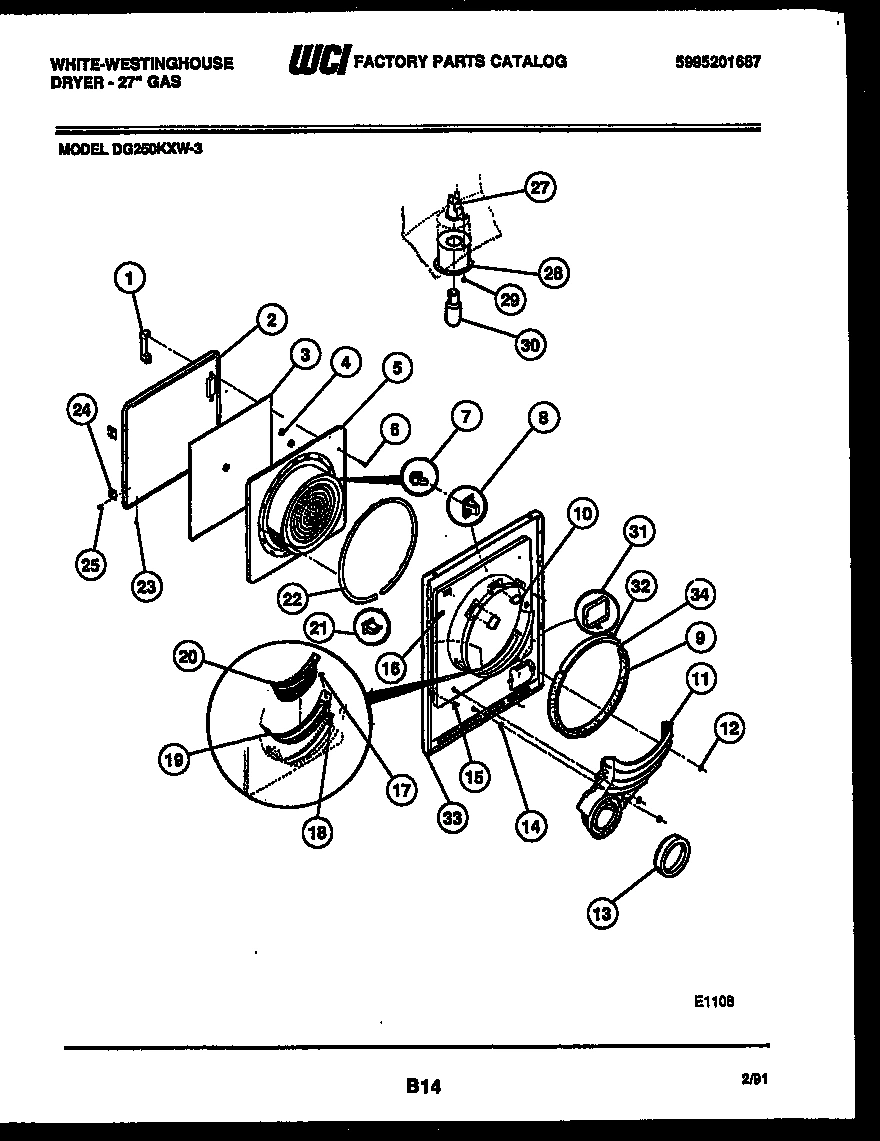

03 - DOOR PARTS
04 - CONSOLE AND CONTROL PARTS
05 - BURNER, IGNITER AND VALVE
06 - BLOWER AND DRIVE PARTS
Common parts from model Electrolux DG250KXH3 DRYER
*41060
WCI 3203253 WCI 3203253 Contact Us For Availability
*41060
SCREW (2) (STACKING PARTS) WCI 3281171 Contact Us For Availability
*41060
BRACKET (2) (STACKING PARTS) WCI 3281173 Contact Us For Availability
1
WCI 3281053 WCI 3281053 Contact Us For Availability
1
WCI 3203290 WCI 3203290 Contact Us For Availability
1
WCI 5303270858 WCI 5303270858 Contact Us For Availability
2
WCI 3201317 WCI 3201317 Contact Us For Availability
2
SPRING CATCH WCI 3281170 Contact Us For Availability
2
BURNER TUBE ASSY WCI 3201240 Contact Us For Availability
2
SCREW WCI 3261048 Contact Us For Availability
3
HEAT SHIELD WCI 3281067 Contact Us For Availability
3
SCREW WCI 08015345 Contact Us For Availability
3
THERMOSTAT WCI 5303269982 Contact Us For Availability
4
WCI 3201205 WCI 3201205 Contact Us For Availability
4
WCI 3281058 WCI 3281058 Contact Us For Availability
4
CLIP WCI 3281163 Contact Us For Availability
4
WCI 5303269972 WCI 5303269972 Contact Us For Availability
5
WCI 3201318 WCI 3201318 Contact Us For Availability
5
WCI 3281164 WCI 3281164 Contact Us For Availability
6
WCI 3281051 WCI 3281051 Contact Us For Availability
6
WCI 3281165 WCI 3281165 Contact Us For Availability
7
WCI 5303269980 WCI 5303269980 Contact Us For Availability
7
WCI 3281138 WCI 3281138 Contact Us For Availability
8
WCI 5303269981 WCI 5303269981 Contact Us For Availability
8
NUT WCI 3281148 Contact Us For Availability
9
SEAL WCI 3281049 Contact Us For Availability
9
NUT WCI 3281089 Contact Us For Availability
9
WCI 3281147 WCI 3281147 Contact Us For Availability
9
WCI 5303269973 WCI 5303269973 Contact Us For Availability
10
WCI 5303281079 WCI 5303281079 Contact Us For Availability
10
WCI 3203292 WCI 3203292 Contact Us For Availability
10
HARNESS WCI 3281137 Contact Us For Availability
11
WCI 08015173 WCI 08015173 Contact Us For Availability
11
WCI 5300632404 WCI 5300632404 Contact Us For Availability
11
WCI 08015421 WCI 08015421 Contact Us For Availability
11
WCI 5303281080 WCI 5303281080 Contact Us For Availability
12
WCI 5303212834 WCI 5303212834 Contact Us For Availability
12
QUICKEY BOLT WCI 3281092 Contact Us For Availability
12
ANGLE VALVE WCI 3281146 Contact Us For Availability
13
WCI 5303201237 WCI 5303201237 Contact Us For Availability
13
SCREW WCI 3281101 Contact Us For Availability
14
SELECTOR SWITCH WCI 3281100 Contact Us For Availability
14
WCI 3201353 WCI 3201353 Contact Us For Availability
15
CLIP-GUIDE WCI 3281074 Contact Us For Availability
15
WCI 5300633724 WCI 5300633724 Contact Us For Availability
15
CLIP WCI 3281126 Contact Us For Availability
16
HEATER HSG & SEAL ASSY WCI 3281119 Contact Us For Availability
16
WCI 3281120 WCI 3281120 Contact Us For Availability
16
CLIP WCI 3281029 Contact Us For Availability
16
WCI 3201221 WCI 3201221 Contact Us For Availability
17
WCI 08027433 WCI 08027433 Contact Us For Availability
18
CLIP WCI 3281061 Contact Us For Availability
18
WCI 08015435 WCI 08015435 Contact Us For Availability
18
WCI 08015271 WCI 08015271 Contact Us For Availability
18
WCI 5300128473 WCI 5300128473 Contact Us For Availability
19
WCI 3010202 WCI 3010202 Contact Us For Availability
19
LINT TRAP FRAME WCI 3281060 Contact Us For Availability
19
WCI 5300633781 WCI 5300633781 Contact Us For Availability
19
SCREW-STOP WCI 3261230 Contact Us For Availability
20
WCI 3281059 WCI 3281059 Contact Us For Availability
20
WCI 5303270871 WCI 5303270871 Contact Us For Availability
20
SCREW WCI 3281150 Contact Us For Availability
20
WCI 3281073 WCI 3281073 Contact Us For Availability
21
WCI 5303281076 WCI 5303281076 Contact Us For Availability
21
WCI 3202753 WCI 3202753 Contact Us For Availability
21
DOOR-SWITCH WCI 08006623 Contact Us For Availability
21
SCREW WCI 3281096 Contact Us For Availability
22
WCI 3201210 WCI 3201210 Contact Us For Availability
22
WCI 08027438 WCI 08027438 Contact Us For Availability
22A
SHIELD-TIMER (NON-ILLUSTRATED) WCI 3281021 Contact Us For Availability
22B
RATCHET FSTNR-SHIELD (NON-ILLUSTRATED) WCI 3281022 Contact Us For Availability
23
BRACKET-IGNITOR WCI 3281149 Contact Us For Availability
24
DOOR HINGE WCI 3281050 Contact Us For Availability
24
GROUND WIRE WCI 08015277 Contact Us For Availability
24
WCI 5303281083 WCI 5303281083 Contact Us For Availability
25
SCREW (PART OF REAR BEARING KIT.) WCI 3281027 Contact Us For Availability
25
SCREW WCI 3281035 Contact Us For Availability
25
SCREW WCI 3281176 Contact Us For Availability
25
WCI 3281036 WCI 3281036 Contact Us For Availability
26
HEAT DUCT ASSY WCI 3281123 Contact Us For Availability
26
WCI 08015677 WCI 08015677 Contact Us For Availability
26
WCI 3281077 WCI 3281077 Contact Us For Availability
26A
ORIFICE-MFD GAS (NON-ILLUSTRATED) WCI 3281140 Contact Us For Availability
26B
L.P. GAS KIT (NON-ILLUSTRATED) WCI 5300171852 Contact Us For Availability
27
RECEPTACLE WCI 08015210 Contact Us For Availability
27
UNION - HEX NUT WCI 08015194 Contact Us For Availability
28
GROMMET WCI 3201202 Contact Us For Availability
28
LIGHT HOLDER WCI 08015259 Contact Us For Availability
29
FOOT BOLT WCI 3281032 Contact Us For Availability
30
LAMP WCI 08027430 Contact Us For Availability
31
WCI 3201319 WCI 3201319 Contact Us For Availability
34
WCI 3201264 WCI 3201264 Contact Us For Availability
× ![]()
