Model Whirlpool DG20F5WG GAS DRYER – Common Parts & Diagrams

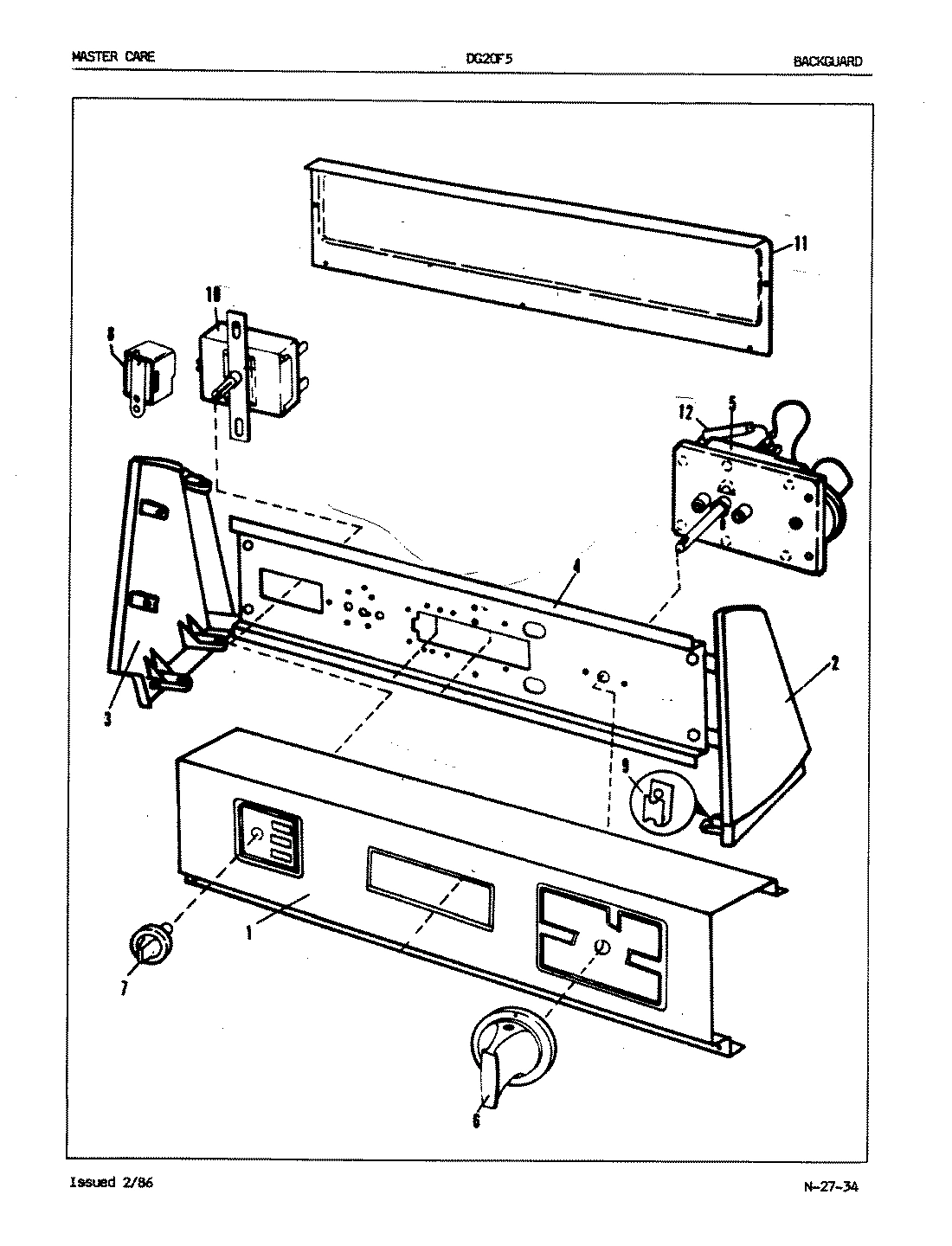

01 - CONTROL PANEL (REV. J)
Common parts from model Whirlpool DG20F5WG GAS DRYER
1
SCREW WPL 257793 Contact Us For Availability
2
LH ENDCAP WPL 530265 Contact Us For Availability
3
SCREW WPL 257760 Contact Us For Availability
3
RH ENDCAP TRIM WPL 530236 Contact Us For Availability
3
LH ENDCAP TRIM WPL 530237 Contact Us For Availability
3
RH ENDCAP WPL 530264 Contact Us For Availability
4
CONTROL SHIELD WPL 530365 Contact Us For Availability
5
SCREW WPL 250088 Contact Us For Availability
5
TIMER WPL 530545 Contact Us For Availability
5
TIMER MOTOR WPL 636752 Contact Us For Availability
6
SET SCREW WPL 256044 Contact Us For Availability
6
TIMER KNOB WPL 530470 Contact Us For Availability
7
SELECTOR KNOB WPL 350168 Contact Us For Availability
7
SELECTOR KNOB WPL 350281 Contact Us For Availability
8
BUZZER WPL 636731 Contact Us For Availability
9
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
10
SELECTOR SWITCH WPL 530394 Contact Us For Availability
11
SCREW WPL 253092 Contact Us For Availability
11
SCREW, SEMS WPL 253457 Contact Us For Availability
11
SCREW WPL 257435 Contact Us For Availability
11
SCREW WPL 257697 Contact Us For Availability
11
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
11
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
11
PLATE, REINFORCEMENT WPL 349487 Contact Us For Availability
11
REAR SHIELD WPL 530268 Contact Us For Availability
× ![]()
