Model GE DFSF9VKBAWW Refrigerator – Common Parts & Diagrams

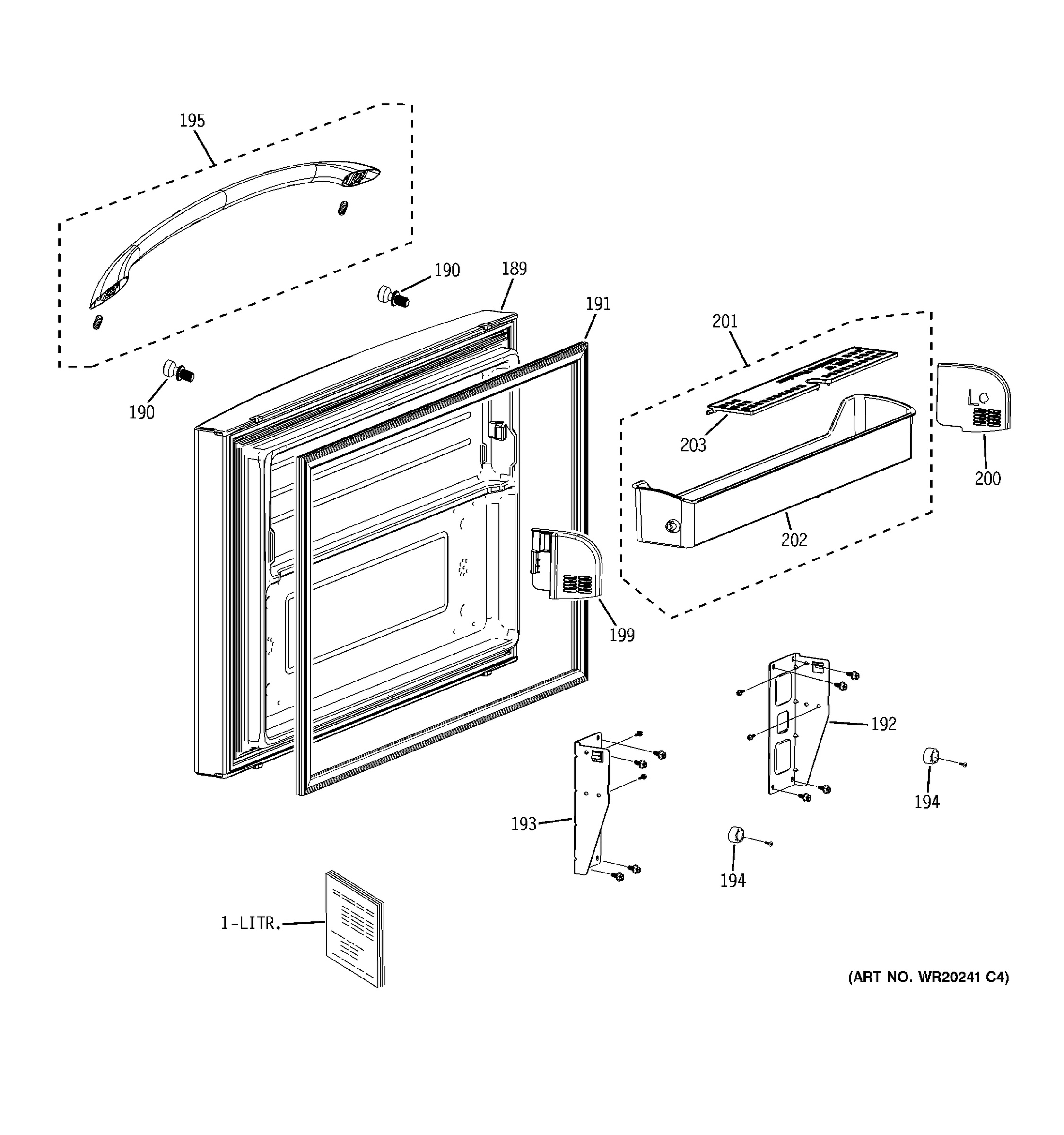

FREEZER DOOR

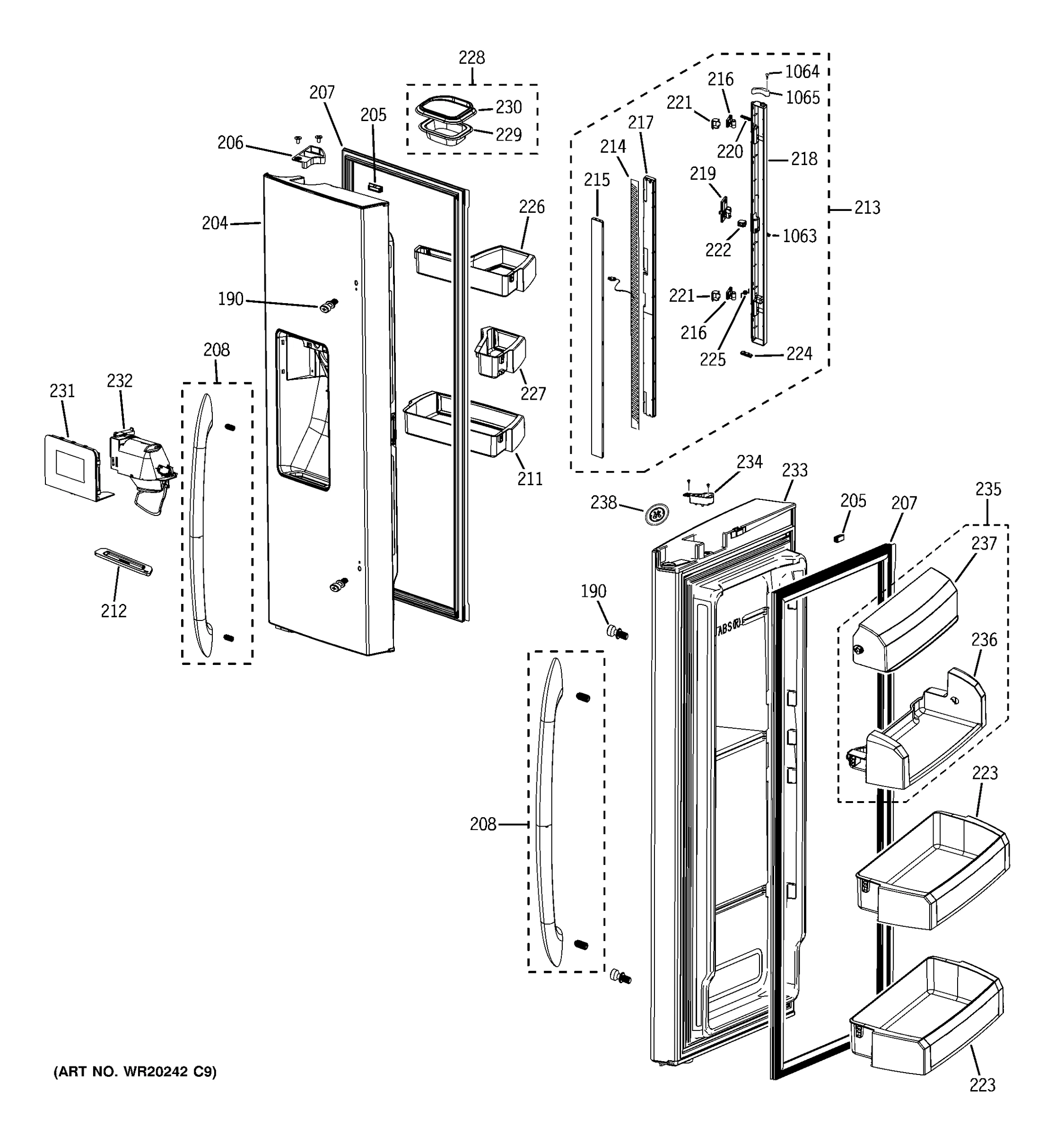

FRESH FOOD DOORS

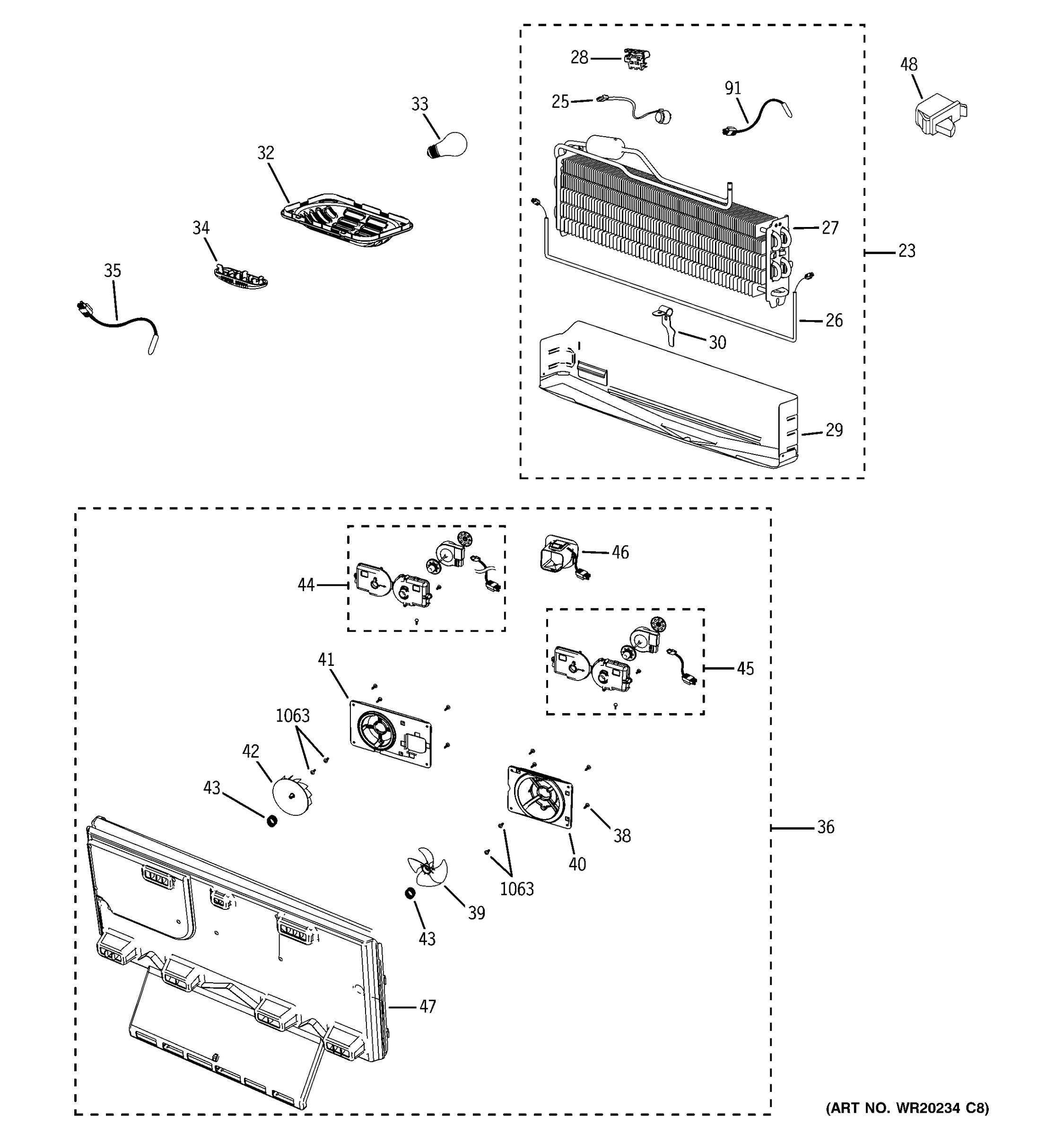

FREEZER SECTION

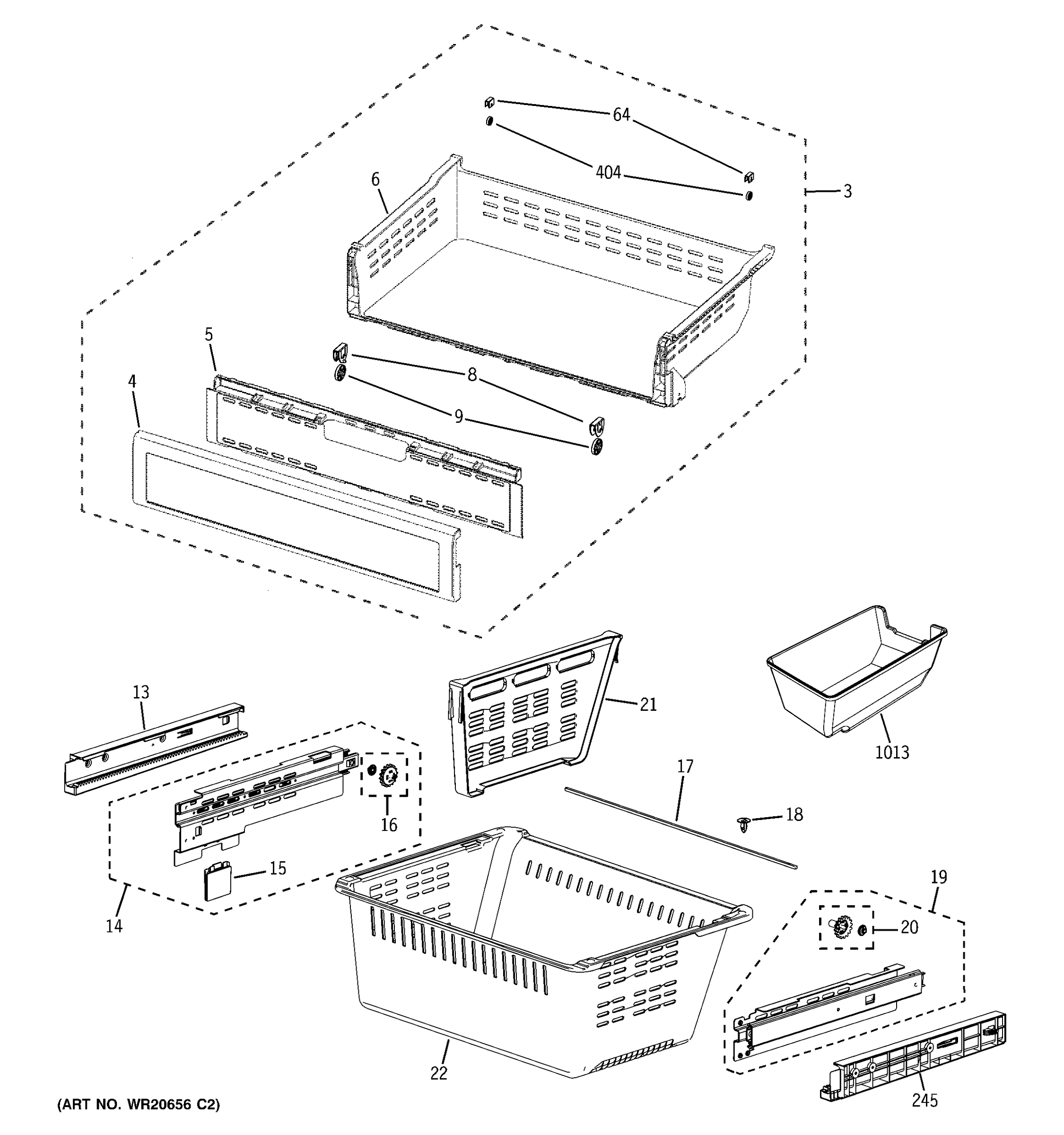

FREEZER SHELVES

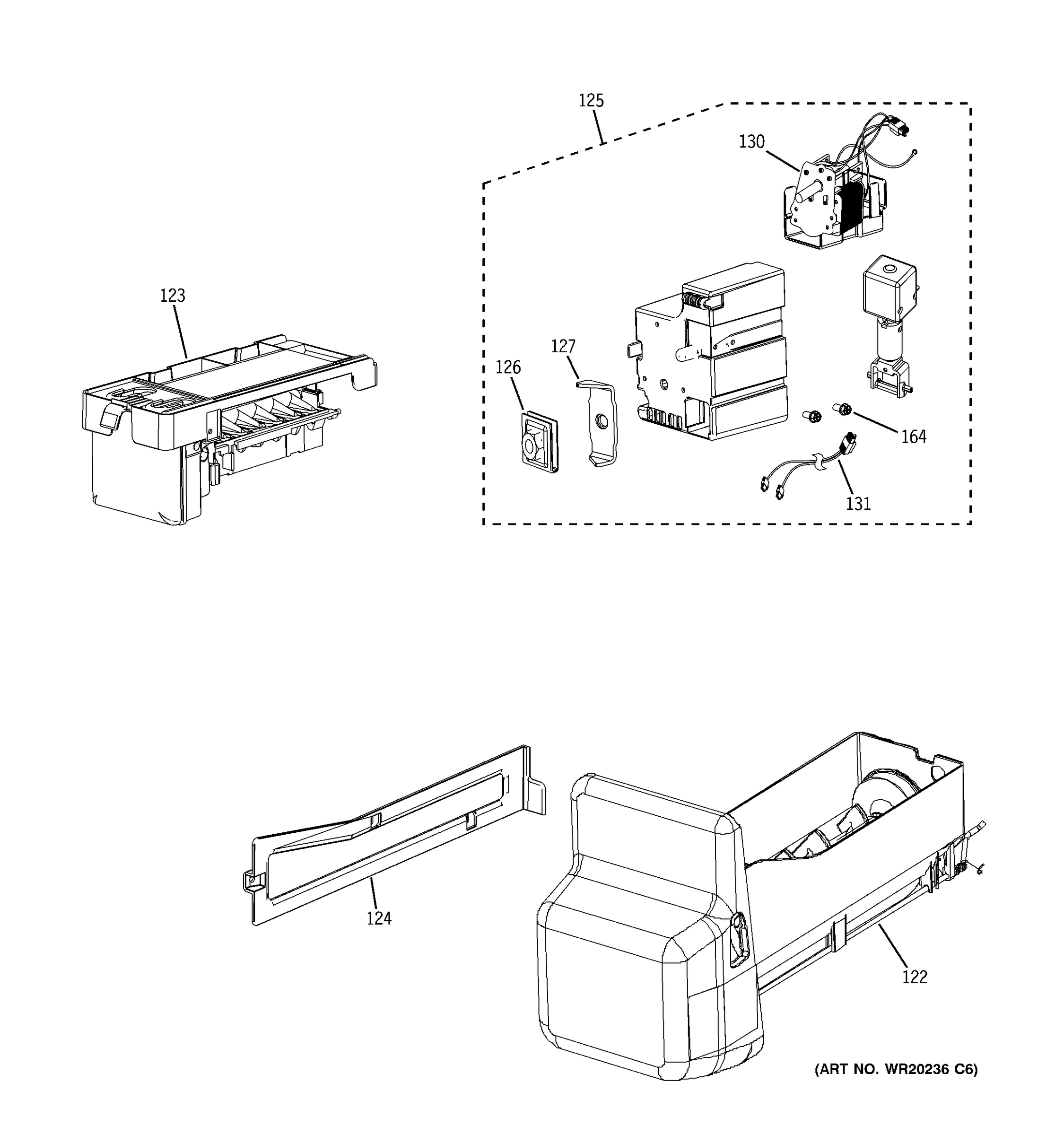

ICE MAKER & DISPENSER

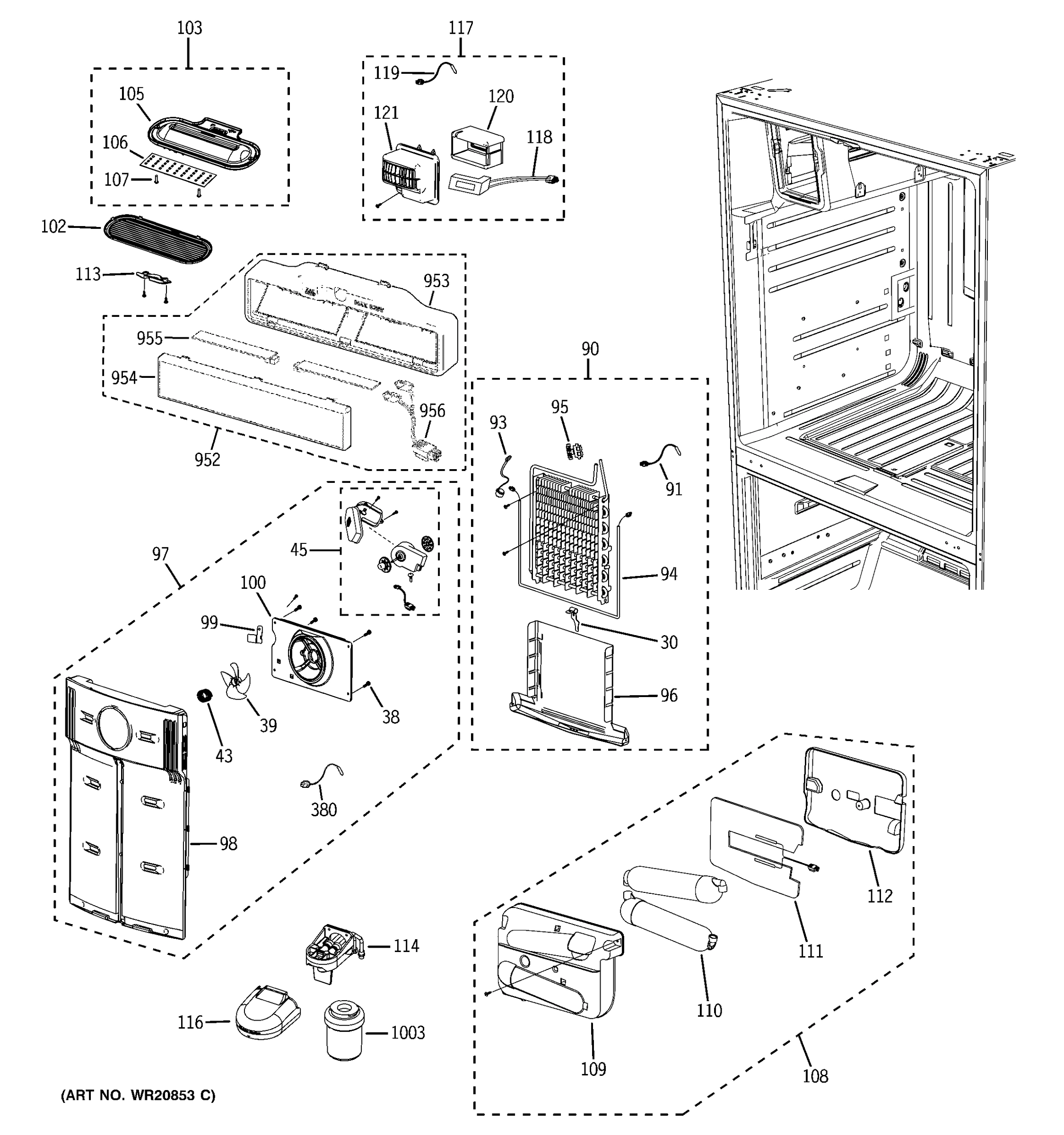

FRESH FOOD SECTION

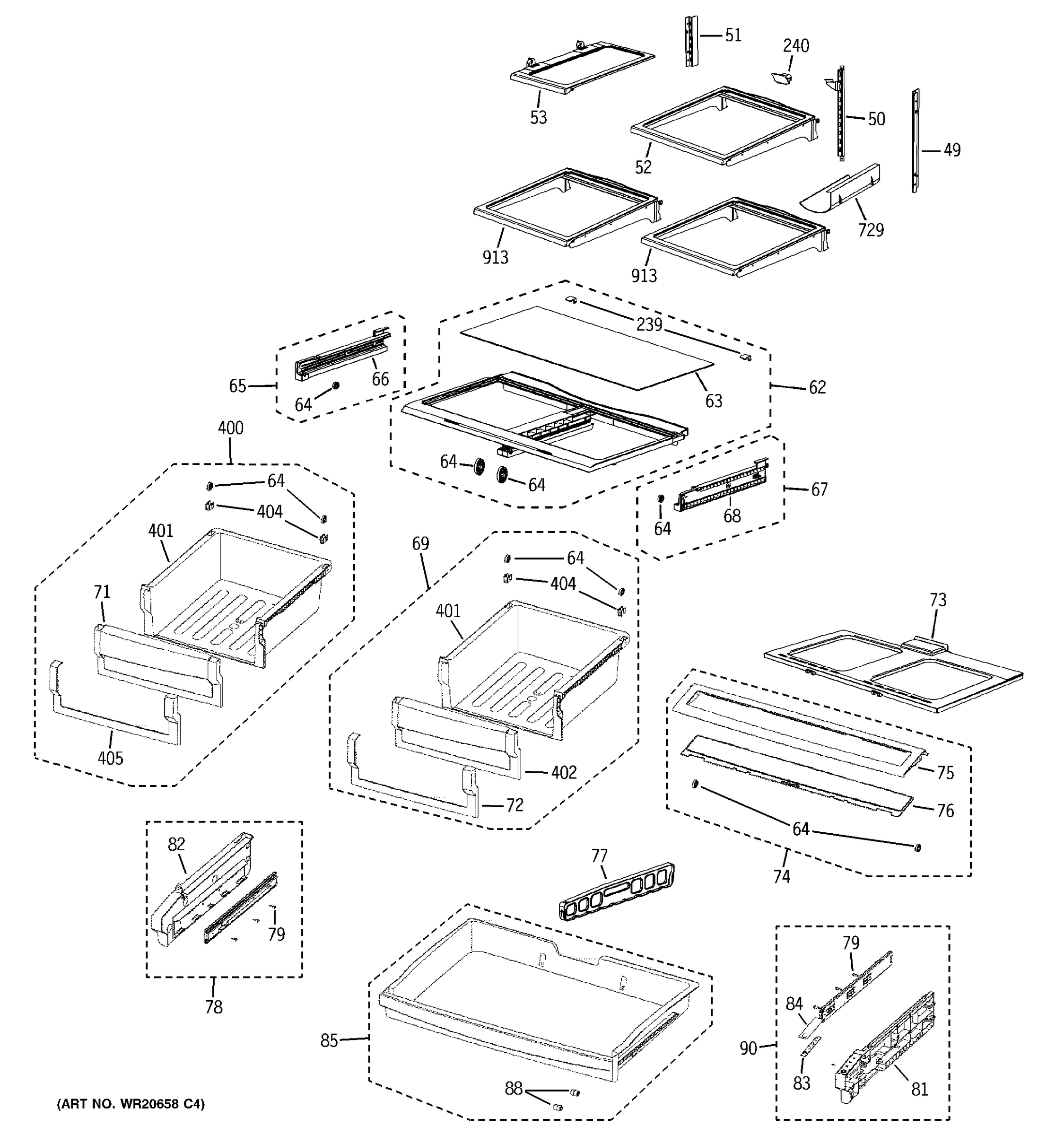

FRESH FOOD SHELVES

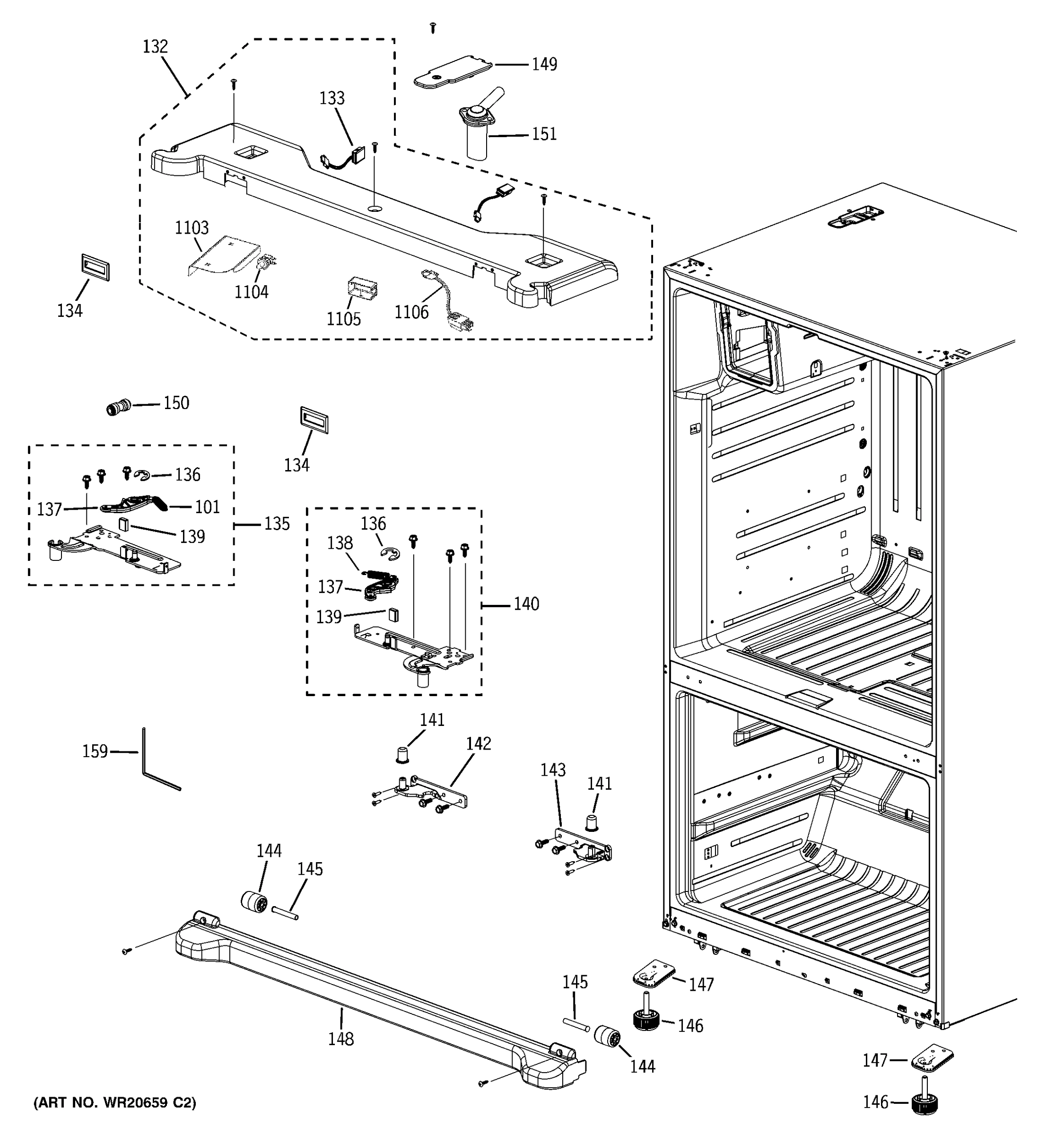

CASE PARTS

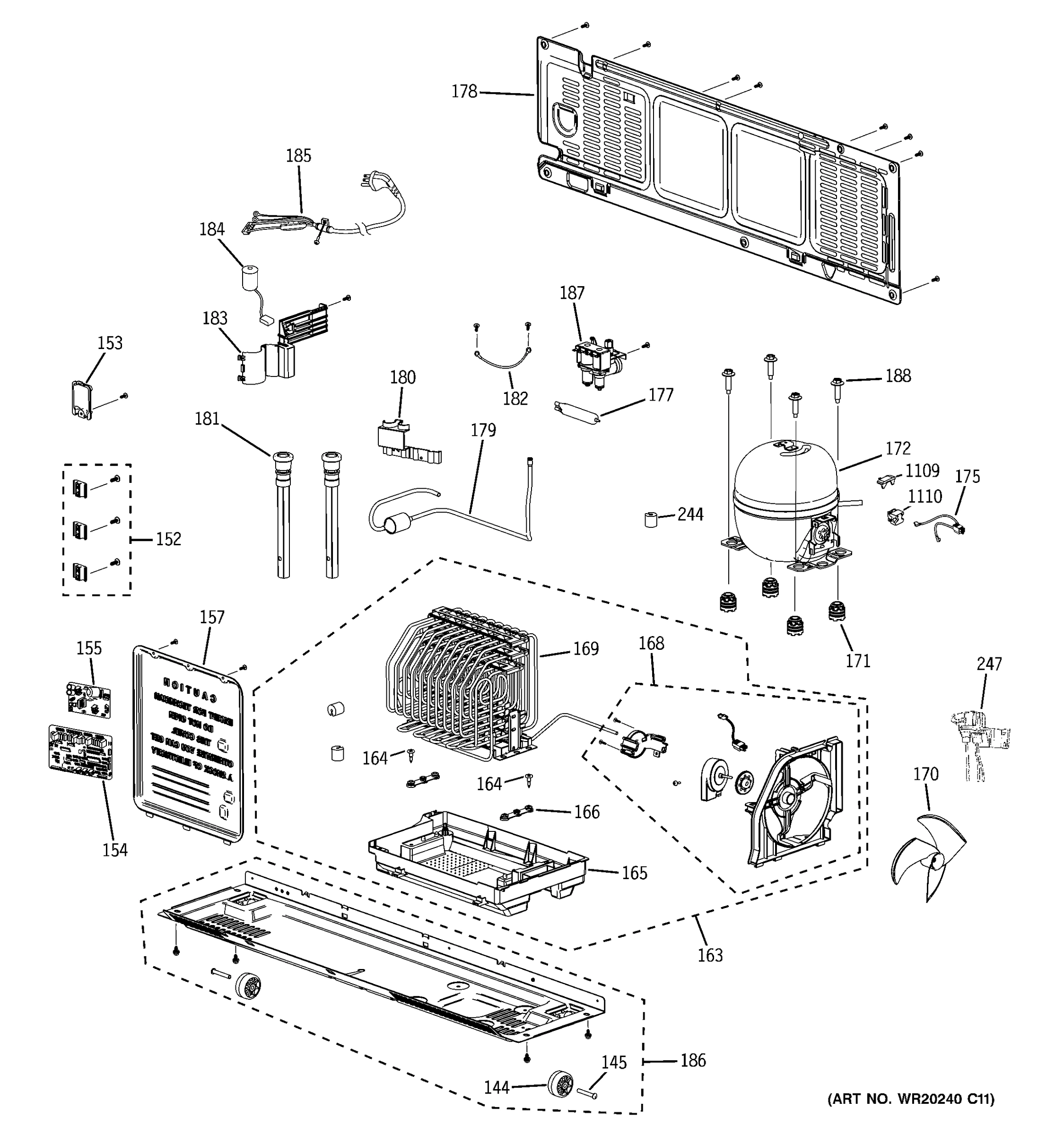

MACHNE COMPARTMENT
Common parts from model GE DFSF9VKBAWW Refrigerator
20
ASM GEAR R GEN WR02X12743 Contact Us For Availability
22
ASM TRAY-DRAWER BOX GEN WR14X10308 Contact Us For Availability
23
ASM EVAP REF GEN WR85X10136 Contact Us For Availability
25
BIMETAL GEN WR02X12591 Contact Us For Availability
26
DEFROST HEATER FZ GEN WR51X10104 Contact Us For Availability
27
EVAP FZ GEN WR85X10096 Contact Us For Availability
30
HEATER METAL SHEATH GEN WR51X10105 Contact Us For Availability
32
COVER-LAMP FZ GEN WR13X10756 Contact Us For Availability
35
SENSOR TEMP GEN WR23X10580 Contact Us For Availability
39
EVAP FAN BLADE GEN WR60X10249 Contact Us For Availability
42
EVAP BLADE BACKWARD GEN WR60X10264 Contact Us For Availability
43
RETAINING SPRING FAN GEN WR01X10436 Contact Us For Availability
44
EVAP MOTOR FZ LEFT GEN WR60X10255 No Longer Available
45
MOTOR BLDC GEN WR60X10333 Contact Us For Availability
46
ASM HEATER DUCT FZ GEN WR51X10106 Contact Us For Availability
48
SWITCH DOOR FZ GEN WR23X10589 Contact Us For Availability
64
VEG PAN ROLLER GEN WR02X12640 Contact Us For Availability
65
ASM RAIL VEG LEFT GEN WR72X10267 Contact Us For Availability
66
RAIL VEG LEFT GEN WR72X10268 Contact Us For Availability
67
ASM RAIL VEG RIGHT GEN WR72X10269 Contact Us For Availability
68
RAIL VEG RIGHT GEN WR72X10270 Contact Us For Availability
73
ASM SHELF-PANTRY GEN WR71X10885 Contact Us For Availability
74
ASM COVER-SLIDE PANTRY GEN WR32X10763 Contact Us For Availability
82
COVER-RAIL PANTRY L GEN WR72X10408 Contact Us For Availability
83
PBA PANEL-PANTRY GEN WR55X10961 Contact Us For Availability
84
INLAY-CONTROL PANEL GEN WR55X11102 Contact Us For Availability
85
ASM CASE-PANTRY GEN WR32X10761 Contact Us For Availability
88
ROLLER-PANTRY GEN WR72X10338 Contact Us For Availability
90
ASM COVER-RAIL PANTRY R GEN WR72X10409 Contact Us For Availability
93
BIMETAL GEN WR02X12592 Contact Us For Availability
94
DEFROST HEATER GEN WR02X12603 Contact Us For Availability
97
ASM COVER-EVAP REF GEN WR13X10943 Contact Us For Availability
101
SPRING ETC-AUTO CLOSE GEN WR02X13188 Contact Us For Availability
108
ASM-COVER WATER TANK GEN WR17X12767 Contact Us For Availability
111
HEATER WATER TANK GEN WR51X10117 Contact Us For Availability
119
SENSOR TEMP PANTRY GEN WR23X10612 Contact Us For Availability
121
DAMPER COVER FF GEN WR13X10611 Contact Us For Availability
124
IM HARNESS COVER GEN WR13X10574 Contact Us For Availability
125
ASM-CASE AUGER MOTOR GEN WR60X10304 Contact Us For Availability
126
J-NUT GEN WR02X11957 Contact Us For Availability
130
MOTOR GEARED-AUGER GEN WR60X10299 Contact Us For Availability
132
ASM-TOP TABLE BLACK GEN WR13X10948 Contact Us For Availability
133
SWITCH REED ASM GEN WR23X10587 Contact Us For Availability
134
CAP-TOP TABLE WW GEN WR13X10946 Contact Us For Availability
135
ASM HINGE UPP WW L GEN WR13X10883 Contact Us For Availability
136
C - CLIP GEN WR02X12604 Contact Us For Availability
137
ASM LEVER AUTO CLOSE GEN WR02X12668 Contact Us For Availability
138
SPRING AUTO CLOASE GEN WR02X12619 Contact Us For Availability
139
GROMMET LEVER GEN WR02X12632 Contact Us For Availability
140
ASM HINGE UPPER RIGHT WW GEN WR13X10556 Contact Us For Availability
141
GROMMET HINGLE MIDDLE GEN WR02X12747 Contact Us For Availability
142
ASM HINGE MID-L GEN WR13X10764 Contact Us For Availability
143
ASM HINGE MID-R GEN WR13X10765 Contact Us For Availability
144
REAR WHEEL GEN WR02X13137 Contact Us For Availability
145
WHEEL AXLE GEN WR02X12608 Contact Us For Availability
146
FOOT-FRONT GEN WR02X13190 Contact Us For Availability
147
SUPPORT-FOOT FRONT GEN WR02X13203 Contact Us For Availability
148
COVER-LEG FRONT WW GEN WR79X10065 Contact Us For Availability
149
ASM-COVER PIPE WATER GEN WR02X13204 Contact Us For Availability
151
ASM PIPE-WATER GEN WR02X13421 Contact Us For Availability
152
FIXER-HOSE GEN WR02X13525 Contact Us For Availability
153
WATER LINE COVER GEN WR13X10520 Contact Us For Availability
154
PBA MAIN GEN WR55X11103 Contact Us For Availability
155
PBA INVERTER GEN WR55X11101 Contact Us For Availability
157
ASM-COVER PCB PANEL GEN WR13X10763 Contact Us For Availability
159
WRENCH-SPANNER GEN WR02X13529 Contact Us For Availability
163
WATER FILTER REF CYST GEN GWF Contact Us For Availability
163
CONDENSER ASSEMBLY COMPL GEN WR87X10220 Contact Us For Availability
164
SCREW SPECIAL GEN WR01X10773 Contact Us For Availability
165
TRAY-DRAIN WATER GEN WR30X10129 Contact Us For Availability
166
GROMMET CONDENSER GEN WR02X12635 Contact Us For Availability
168
ASM SUPPORT-CIRCUIT MOTO GEN WR60X10320 Contact Us For Availability
169
CONDENSER GEN WR84X10099 Contact Us For Availability
170
CONDENSER FAN BLADE GEN WR60X10266 Contact Us For Availability
171
GROMMET-COMP GEN WR02X11915 Contact Us For Availability
172
COMPRESSOR GEN WR87X10208 Contact Us For Availability
175
WIRE HARNESS-COMP GEN WR23X10672 Contact Us For Availability
178
ASM COVER COMP GEN WR17X13012 Contact Us For Availability
179
ASM PIPE CONNECT-SUCTION GEN WR02X13531 Contact Us For Availability
180
FIXER-HOSE(VALVE) GEN WR02X13191 Contact Us For Availability
181
ASM CAP-DRAIN GEN WR02X13198 Contact Us For Availability
182
WIRE HARNESS GROUND GEN WR23X10583 Contact Us For Availability
183
COVER-NOISE FILTER GEN WR13X10754 Contact Us For Availability
184
COIL FILTER-EMI GEN WR62X10088 Contact Us For Availability
185
CBF-POWER CORD GEN WR23X10670 Contact Us For Availability
186
ASM CHASSIS-COMP GEN WR17X12768 Contact Us For Availability
188
BOLT COMPRESSOR GEN WR01X10437 Contact Us For Availability
190
FIXER HANDLE GEN WR02X12621 Contact Us For Availability
191
ASM GASKET DOOR WW FRE GEN WR24X10212 Contact Us For Availability
192
HANGER RAIL FRONT L GEN WR13X10502 Contact Us For Availability
193
HANGER RAIL FRONT R GEN WR13X10503 Contact Us For Availability
211
ASM GUARD REF L GEN WR21X10244 Contact Us For Availability
212
TRAY DISPENSER WW GEN WR13X10554 Contact Us For Availability
216
HINGE FRENCH GEN WR13X10516 Contact Us For Availability
219
COVER HEATER FRENCH GEN WR13X10491 Contact Us For Availability
221
CAP CASE FRENCH GEN WR02X12643 Contact Us For Availability
222
CAP CASE FRENCH MID GEN WR02X12645 Contact Us For Availability
223
ASM GUARD REF R GEN WR21X10243 Contact Us For Availability
228
ASM CAP CHUTE ICE GEN WR02X12661 Contact Us For Availability
229
CAP CHUTE ICE GEN WR02X12646 Contact Us For Availability
231
ASM -COVER DISPENSER WW GEN WR32X10848 Contact Us For Availability
234
CAM AUTO CLOSE WW R GEN WR02X12670 Contact Us For Availability
239
FIXER COVER VEG GEN WR02X12612 Contact Us For Availability
240
ASM CAP-ANGLE GEN WR02X13533 Contact Us For Availability
244
GROMMET-SUCT PIPE B GEN WR02X12676 Contact Us For Availability
247
ASM MOTOR-STEP VALVE GEN WR86X10061 Contact Us For Availability
400
ASM CASE-VEG REF L GEN WR32X10759 Contact Us For Availability
401
CASE-VEG REF GEN WR32X10750 Contact Us For Availability
402
COVER-VEG FRONT R GEN WR32X10754 Contact Us For Availability
404
CASE VEG PAN ROLLER GEN WR02X12648 Contact Us For Availability
405
TRIM-COVER VEG FRONT L GEN WR02X13195 Contact Us For Availability
729
SHELF-WINE GEN WR17X11738 Contact Us For Availability
913
ASM SHELF INSERT REF FIX GEN WR71X11014 Contact Us For Availability
1003
COVER WATER FILTER GEN WR13X10495 Contact Us For Availability
1065
CAP-GUIDE FRENCH UPP GEN WR01X10903 Contact Us For Availability
1103
PLATE-TOP TABLE GEN WR13X10751 Contact Us For Availability
1104
SWITCH DOOR-INTERLOCK WW GEN WR23X10716 Contact Us For Availability
1105
PLATE-DOOR SWITCH GEN WR23X10673 Contact Us For Availability
1106
ASM-WIRE HARNESS SUB GEN WR23X10675 Contact Us For Availability
1109
RELAY PROTECTOR O/L GEN WR07X10088 Contact Us For Availability
1110
COVER RELAY GEN WR02X11949 Contact Us For Availability
× ![]()
