Model LG DFS11G commercial – Common Parts & Diagrams

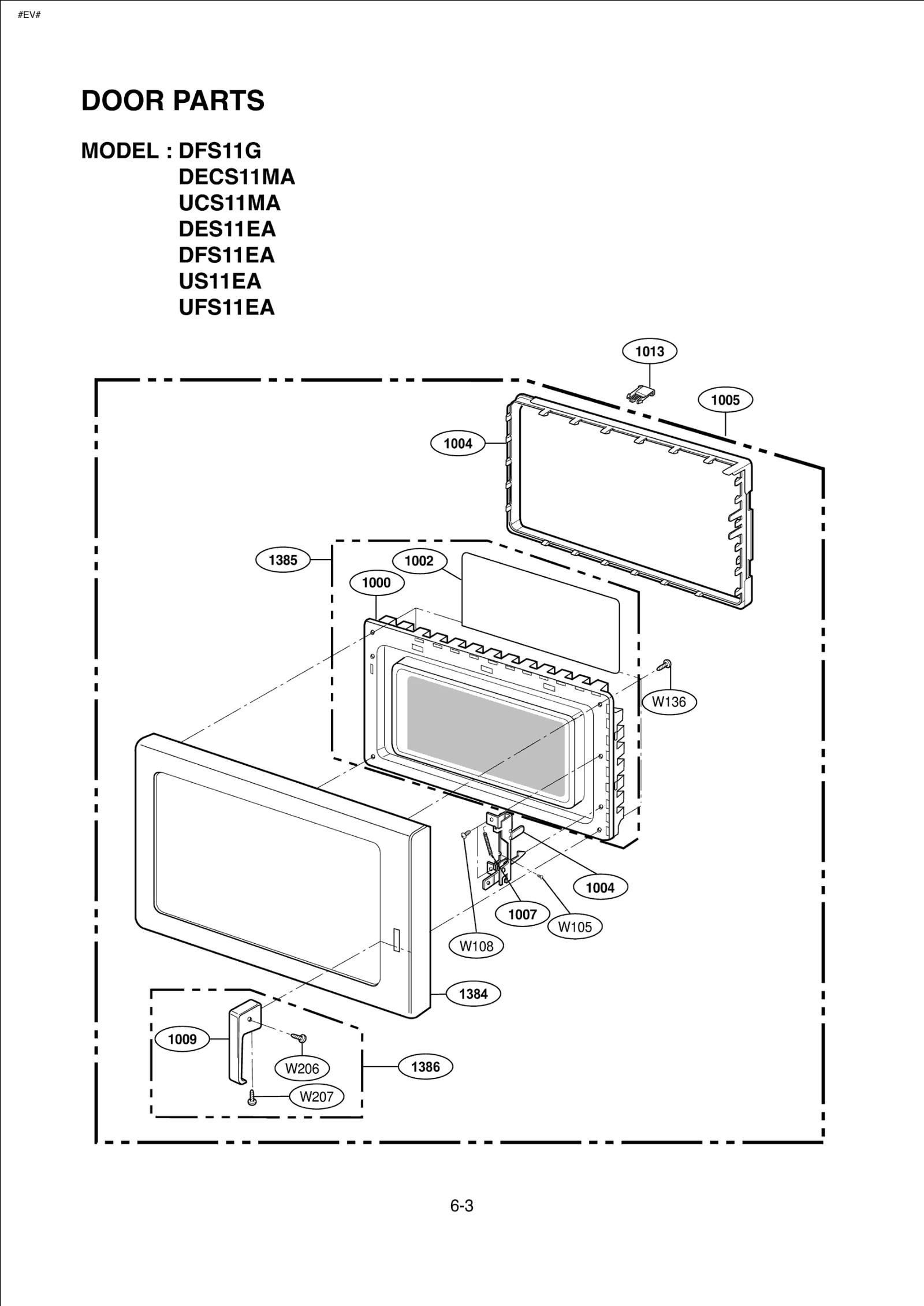

Diagram 0

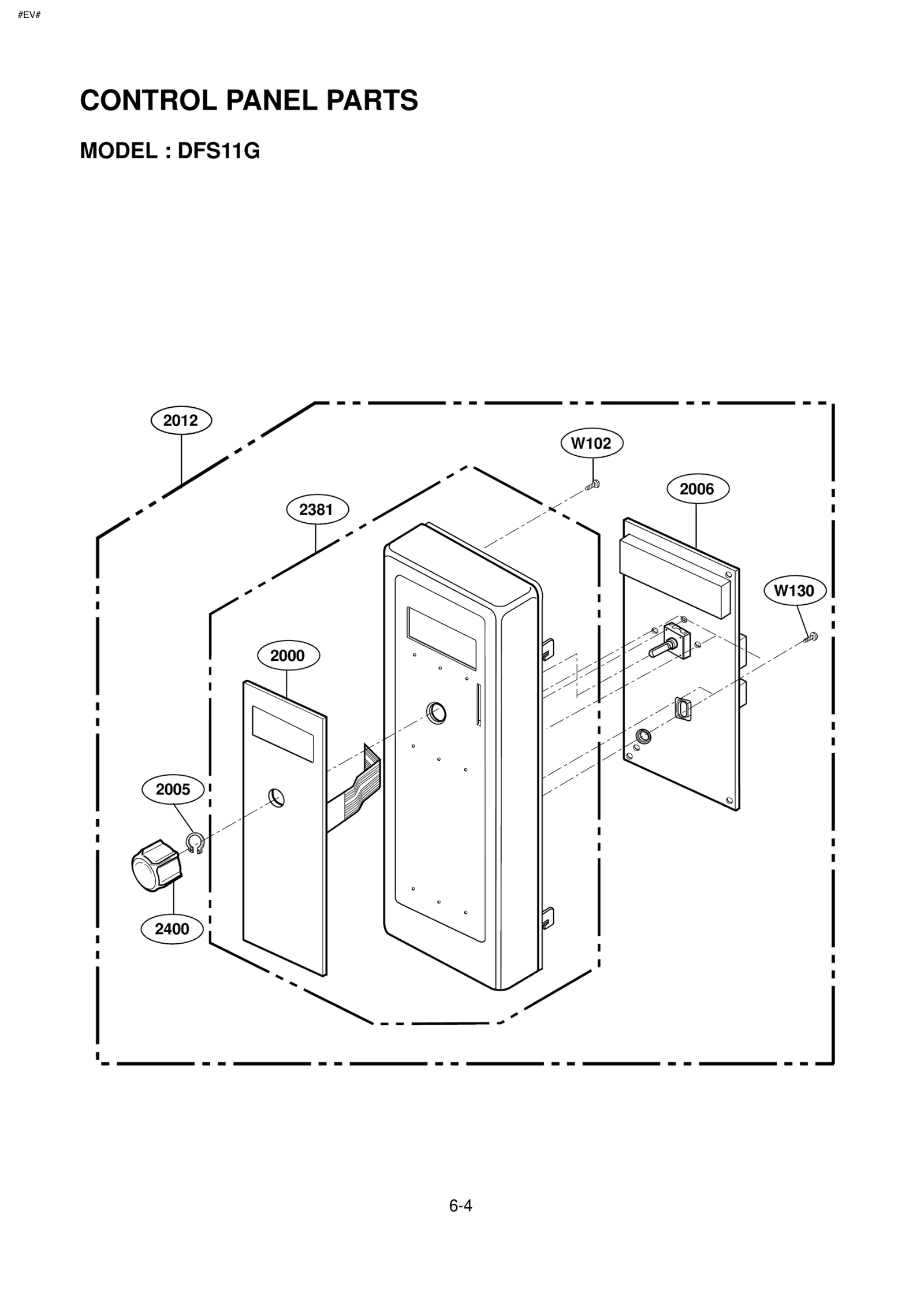

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG DFS11G commercial
*01
Manual,Owners LGE MFL06414102 Contact Us For Availability
*10
Box LGE 3890W3Y002E Contact Us For Availability
1006
LATCH LGE 4026W1A035A Contact Us For Availability
2000
KEY MEMBRANE LGE 3506W1A674A Contact Us For Availability
2005
SPRING LGE 4970W1A013A Contact Us For Availability
2006
LGE 6871W1S219G LGE 6871W1S219G Contact Us For Availability
2012
LGE 4781W1S129J LGE 4781W1S129J Contact Us For Availability
2381
LGE 383EW5A252S LGE 383EW5A252S Contact Us For Availability
2400
KNOB LGE 4940W1A104A Contact Us For Availability
3001
OUT CASE,U-BENDING LGE 3112W0U059A Contact Us For Availability
3004
RIVET ASSEMBLY LGE 4051W1A001A Contact Us For Availability
3007
Insulator LGE MEV31218101 Contact Us For Availability
3009
MOTOR(CIRC),SYNCHRONOUS LGE 2B72754Y Contact Us For Availability
3026
FILTER(MECH),GREASE LGE 5230W1A006B Contact Us For Availability
3028
LAMP[OVEN/BASELESS] LGE 3B71186A Contact Us For Availability
3031
COVER,POWER CORD LGE 3550W1A221A Contact Us For Availability
3381
LAMP BRACKET ASSEMBLY LGE 383EW5A159G Contact Us For Availability
3383
Parts Assembly LGE AGM30999601 Contact Us For Availability
3901
GASKET LGE 4986W1A002A Contact Us For Availability
3902
GASKET LGE 4986W1A002B Contact Us For Availability
4000
BOARD,LATCH LGE 3500W1A026A Contact Us For Availability
4001
BOARD ASSEMBLY,LATCH LGE 3501W1A034F Contact Us For Availability
4002
SWITCH,MICRO LGE 6600W1K001G Contact Us For Availability
4004
LEVER LGE 4510W1A008A Contact Us For Availability
4008
Lever LGE 4510W1A021A Contact Us For Availability
5000
Capacitor,AL,Radial LGE 0CZZW1H009E Contact Us For Availability
5001
FUSE,DRAWING LGE 3B70856T Contact Us For Availability
5008
Transformer,Linear LGE 6170W1D089F Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A024K Contact Us For Availability
5013
LGE 6851W1A001H LGE 6851W1A001H Contact Us For Availability
5014
HARNESS LGE 6877W1A529A Contact Us For Availability
5019
HARNESS LGE 6877W1A499B Contact Us For Availability
5024
FAN ASSEMBLY LGE 5901W1A001C Contact Us For Availability
5041
FILTER ASSEMBLY(CIRC) LGE 6201W1A009D Contact Us For Availability
5045
COVER,LAMP LGE 3550W1A236A Contact Us For Availability
5051
SERVICE PARTS LGE 383EW5A264A Contact Us For Availability
5059
SERVICE PARTS LGE 383EW5A263A Contact Us For Availability
5067
THERMO-BRACKET SECC, T 0.6 LGE 4B74584A Contact Us For Availability
5102
DUCT LGE 5208W1A019A Contact Us For Availability
5103
Duct LGE 5208W0A015A Contact Us For Availability
5104
DUCT LGE 5208W1A020B Contact Us For Availability
5201
BRACKET,MISC LGE 4810W1A208A Contact Us For Availability
5202
BRACKET,MISC LGE 4810W1A206A Contact Us For Availability
5203
Bracket,Capacitor LGE 481081A009A Contact Us For Availability
5302
FAN ASSEMBLY LGE 4681W2A002D Contact Us For Availability
6000
BASE PLATE LGE 3302W0A042A Contact Us For Availability
6001
BASE PLATE ASSEMBLY LGE 3303W0A028B Contact Us For Availability
6013
COVER,BASE LGE 3550W1A220A Contact Us For Availability
7037
TRAY,CERAMIC LGE 3390W1A020B Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
W158
SCREW TAPPING,COUNTER SUNK HEA LGE 1TCL0402622 Contact Us For Availability
W162
SCREW,DRAWING LGE 4000W3A001D Contact Us For Availability
W207
SCREW,DRAWING LGE 4000W4A001D Contact Us For Availability
× ![]()
