Model Electrolux DECSFW0 DRYER – Common Parts & Diagrams
02 - CABINET AND COMPONENT PARTS
03 - DOOR PARTS

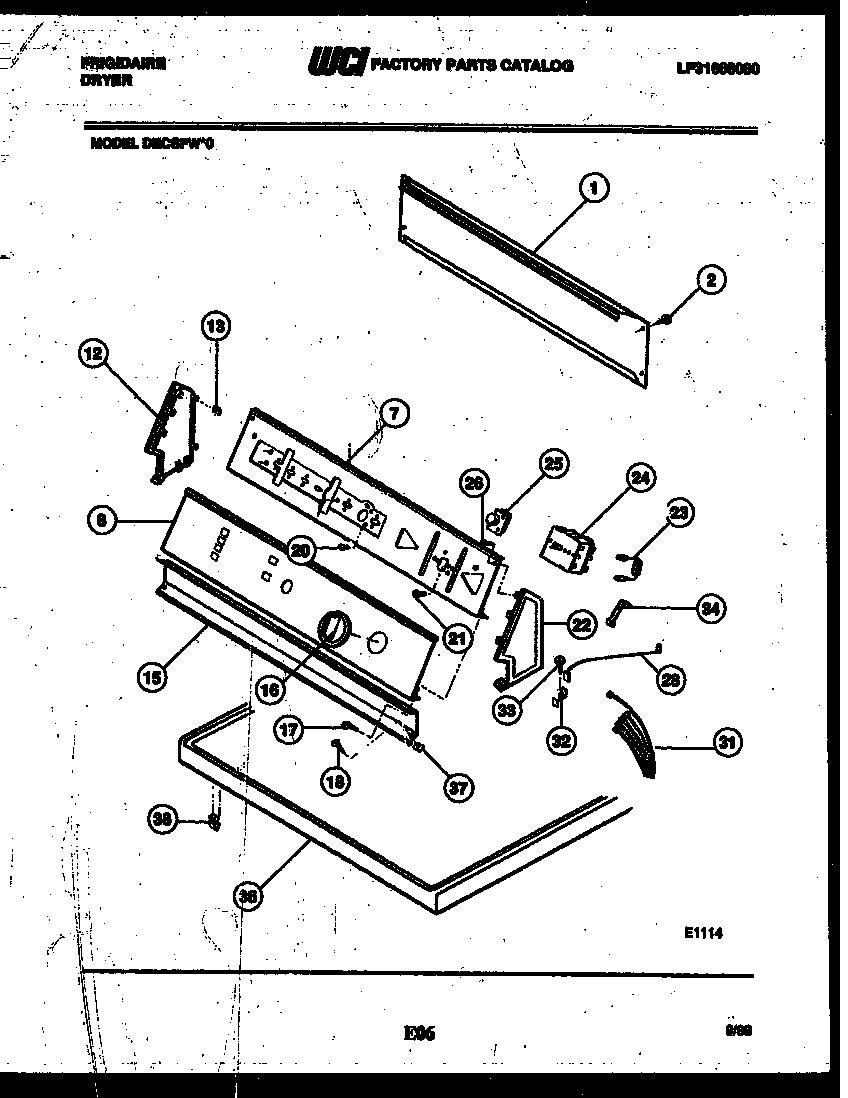

04 - CONSOLE AND CONTROL PARTS

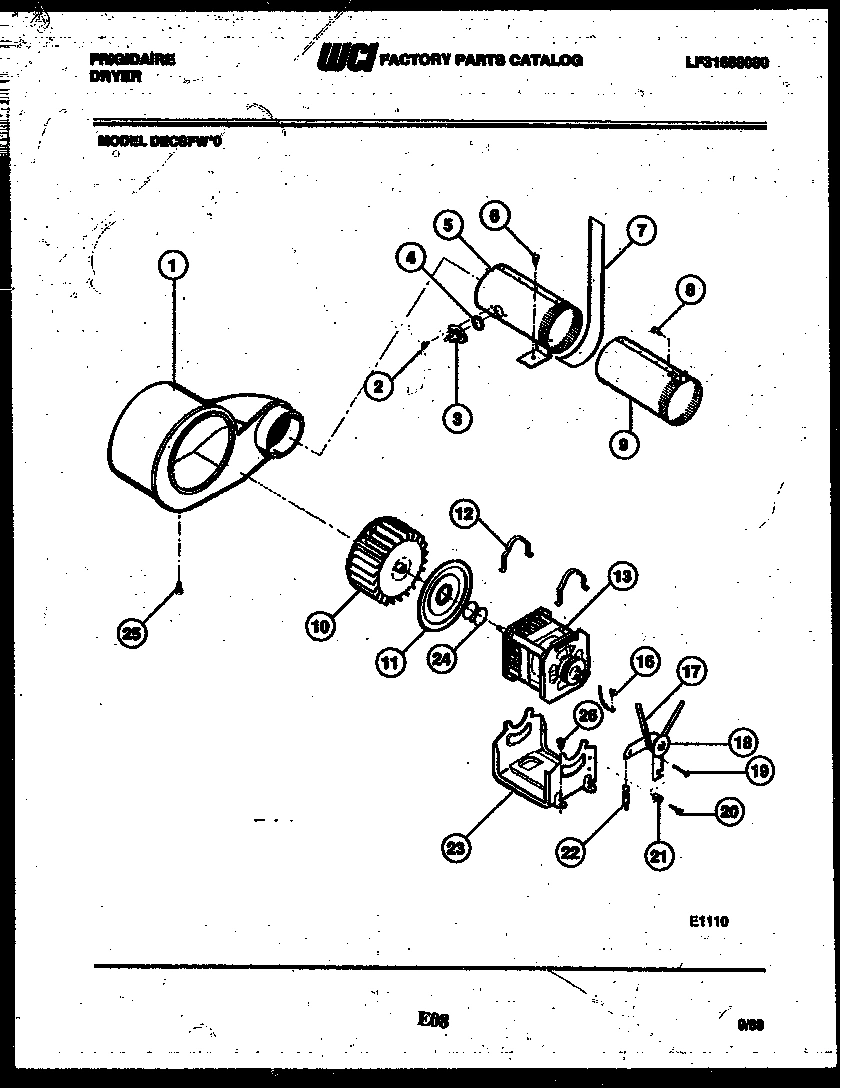

05 - MOTOR AND BLOWER PARTS
Common parts from model Electrolux DECSFW0 DRYER
*25216
SCREW-SWITCH TO MOUNTING BRACKET WCI 3161259 Contact Us For Availability
*25216
SWITCH FABRIC SELECTOR WCI 3201468 Contact Us For Availability
*25216
ROTARY KNOB WCI 8014340 Contact Us For Availability
1
WCI 3281053 WCI 3281053 Contact Us For Availability
1
BACK COVER WCI 3201322 Contact Us For Availability
1
FAN HOUSING ASSY WCI 3281014 Contact Us For Availability
2
WCI 3281175 WCI 3281175 Contact Us For Availability
2
WCI 3201203 WCI 3201203 Contact Us For Availability
3
SCREW (2) WCI 3281041 Contact Us For Availability
3
HEAT SHIELD WCI 3281067 Contact Us For Availability
3
WCI 3281034 WCI 3281034 Contact Us For Availability
4
WCI 3281043 WCI 3281043 Contact Us For Availability
4
SPACER (2) WCI 3281058 Contact Us For Availability
4
WCI 3281015 WCI 3281015 Contact Us For Availability
4A
WCI 3201205 WCI 3201205 Contact Us For Availability
5
COVER-TERMINAL BLOCK WCI 3281042 Contact Us For Availability
5
WCI 3201206 WCI 3201206 Contact Us For Availability
5
WCI 3201234 WCI 3201234 Contact Us For Availability
6
BRACKET WCI 3281040 Contact Us For Availability
6
SCREW (2) WCI 3281035 Contact Us For Availability
6
WCI 3281051 WCI 3281051 Contact Us For Availability
7
WCI 3281024 WCI 3281024 Contact Us For Availability
7
WCI 3201326 WCI 3201326 Contact Us For Availability
7
WCI 3201235 WCI 3201235 Contact Us For Availability
8
WCI 3010202 WCI 3010202 Contact Us For Availability
8
WCI 3201465 WCI 3201465 Contact Us For Availability
9
SEAL WCI 3281049 Contact Us For Availability
9
DUCT-EXHAUST WCI 3201236 Contact Us For Availability
10
WCI 3281018 WCI 3281018 Contact Us For Availability
10
BLOWER WHEEL WCI 3281079 Contact Us For Availability
11
WCI 8015173 WCI 8015173 Contact Us For Availability
11
FAN COVER WCI 3281080 Contact Us For Availability
12
WCI 3201196 WCI 3201196 Contact Us For Availability
12
WCI 3281089 WCI 3281089 Contact Us For Availability
12
WCI 8010783 WCI 8010783 Contact Us For Availability
12
MOTOR CLAMP WCI 3281084 Contact Us For Availability
13
CLIP END CAP (8) WCI 8014350 Contact Us For Availability
13
MOTOR AND PULLEY ASSEMBLY WCI 3201237 Contact Us For Availability
15
CLIP-GUIDE (4) WCI 3281074 Contact Us For Availability
15
WCI 3201333 WCI 3201333 Contact Us For Availability
16
THERMOSTAT WCI 3281113 Contact Us For Availability
16
CLIP (4) WCI 3281039 Contact Us For Availability
16
TIMER KNOB AND INDICATOR ASSEMBLY WCI 8015693 Contact Us For Availability
16
WCI 3281120 WCI 3281120 Contact Us For Availability
17
SCREW (3) WCI 8010782 Contact Us For Availability
18
WCI 3201199 WCI 3201199 Contact Us For Availability
18
CLIP (2) WCI 3281102 Contact Us For Availability
18
SCREW (2) WCI 8011318 Contact Us For Availability
18
IDLER ASSEMBLY WCI 3201238 Contact Us For Availability
19
LINT TRAP FRAME WCI 3281060 Contact Us For Availability
19
SCREW-STOP WCI 3261230 Contact Us For Availability
20
WCI 3281059 WCI 3281059 Contact Us For Availability
20
SCREW (2) WCI 8001544 Contact Us For Availability
20
WCI 3281073 WCI 3281073 Contact Us For Availability
21
SCREW (3) WCI 3281029 Contact Us For Availability
21
WCI 8015457 WCI 8015457 Contact Us For Availability
21
SCREW (2) WCI 8006636 Contact Us For Availability
21
SPACER WCI 3281076 Contact Us For Availability
22
SCREW (3) (PARTS CONTAINED IN REAR BEARING KI WCI 3281027 Contact Us For Availability
22
WCI 3201210 WCI 3201210 Contact Us For Availability
22
WCI 8010787 WCI 8010787 Contact Us For Availability
23
RESISTOR WCI 3281110 Contact Us For Availability
24
DOOR HINGE (2) WCI 3281050 Contact Us For Availability
24
WCI 3201473 WCI 3201473 Contact Us For Availability
24
WCI 3281083 WCI 3281083 Contact Us For Availability
25
SCREW (8) WCI 3281176 Contact Us For Availability
25
PUSH TO START SWITCH WCI 1132293 Contact Us For Availability
25
WCI 3281036 WCI 3281036 Contact Us For Availability
26
WCI 3281032 WCI 3281032 Contact Us For Availability
26
SCREW (2) WCI 8010789 Contact Us For Availability
26
SCREW (2) WCI 3281077 Contact Us For Availability
27
WCI 3201202 WCI 3201202 Contact Us For Availability
28
WCI 3201385 WCI 3201385 Contact Us For Availability
31
WCI 3201307 WCI 3201307 Contact Us For Availability
32
GROUND WASHER WCI 3281107 Contact Us For Availability
32
WCI 8002341 WCI 8002341 Contact Us For Availability
33
WCI 3201295 WCI 3201295 Contact Us For Availability
33
WCI 8001689 WCI 8001689 Contact Us For Availability
34
WCI 3201264 WCI 3201264 Contact Us For Availability
34
WCI 8014349 WCI 8014349 Contact Us For Availability
36
PANEL-TOP-WHITE WCI 3201345 Contact Us For Availability
37
WCI 8001912 WCI 8001912 Contact Us For Availability
38
SPRING-CATCH (2) WCI 3281170 Contact Us For Availability
× ![]()
