Model Electrolux DECSFL3 DRYER – Common Parts & Diagrams
01 - COVER

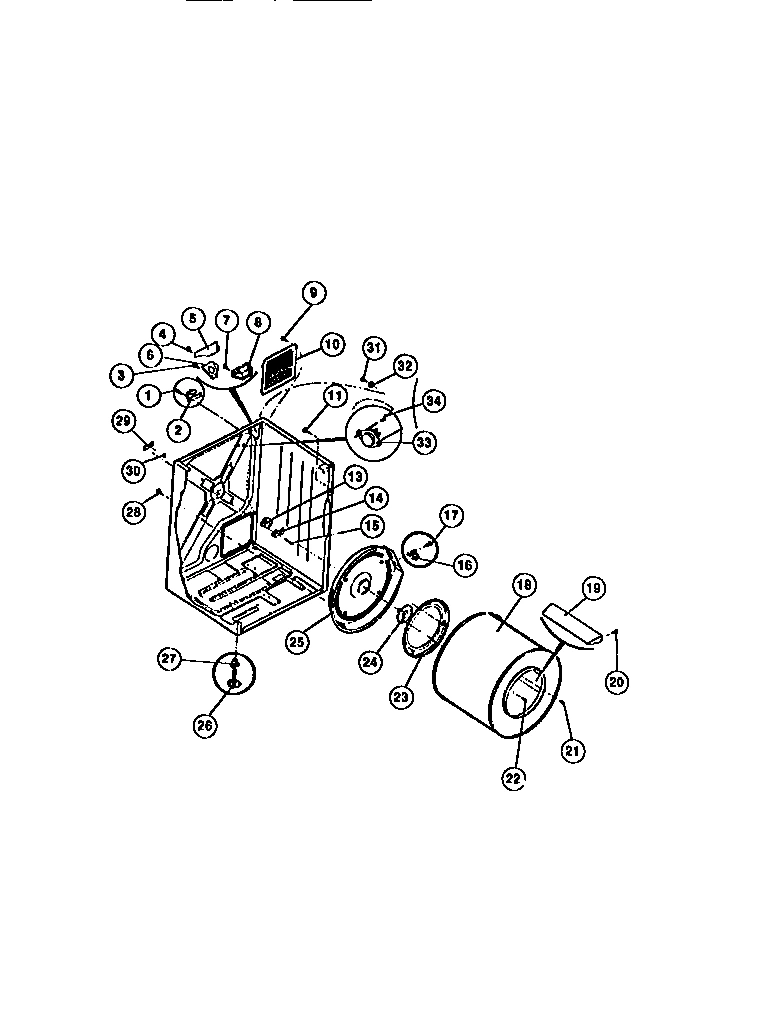

02 - CABINET, DRUM, HEATER ASSEMBLY

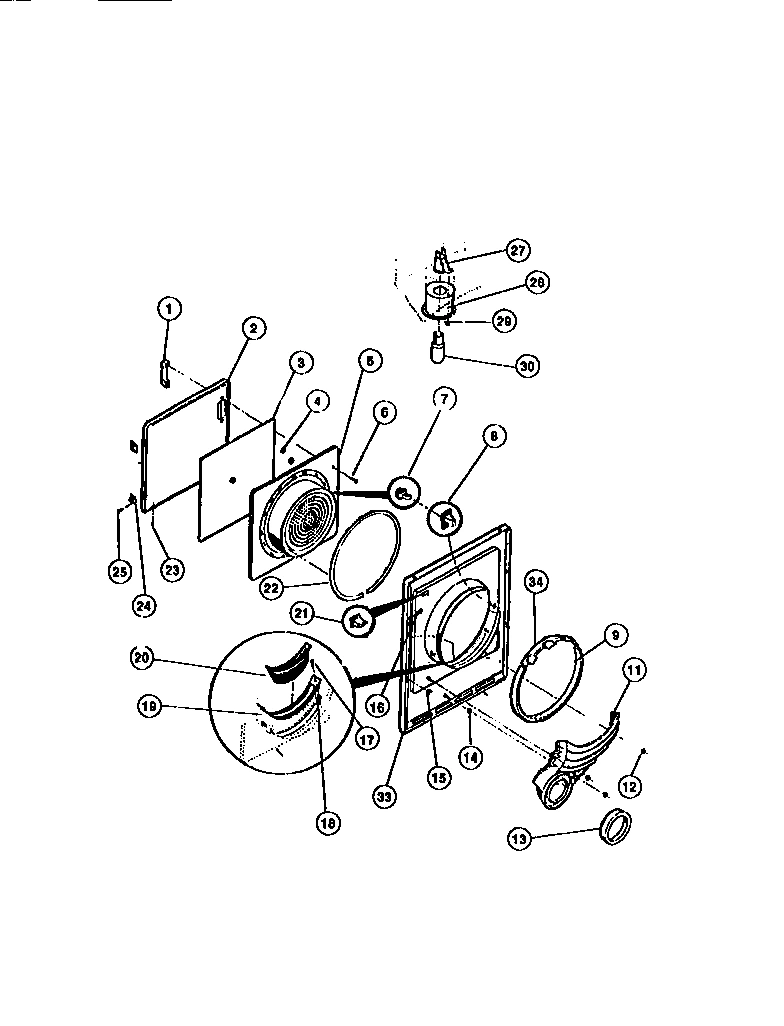

03 - DOOR, FRONT PANEL, LINT FILTER

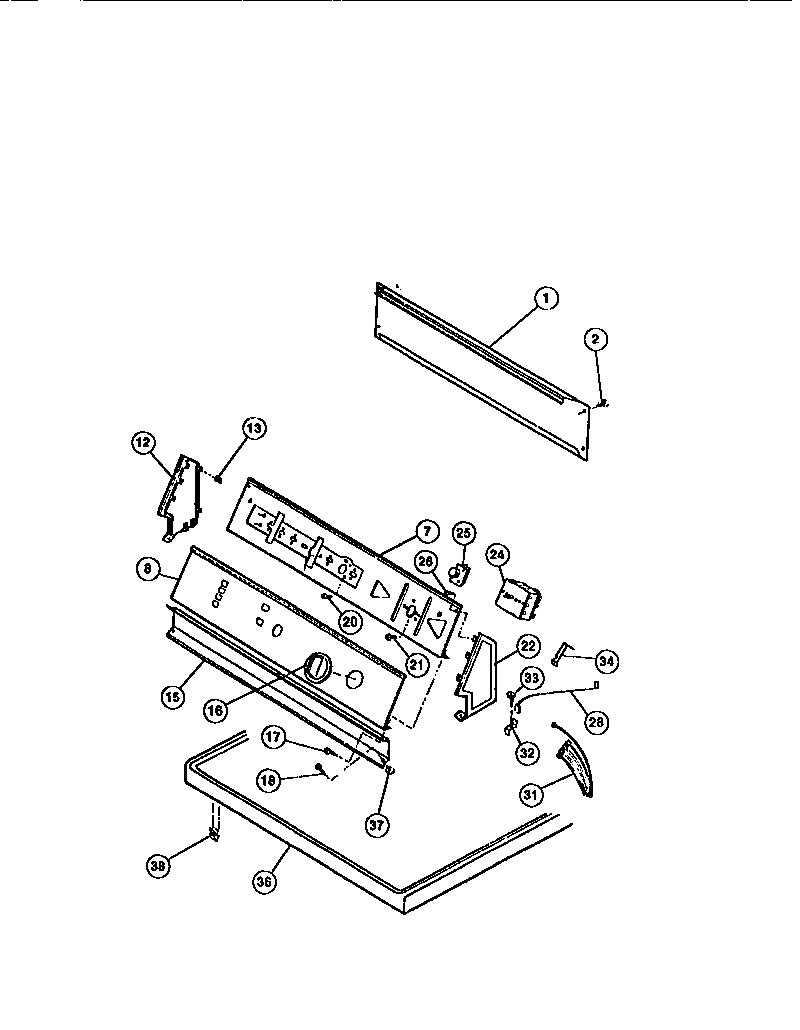

04 - CONSOLE, CONTROLS, TOP PANEL

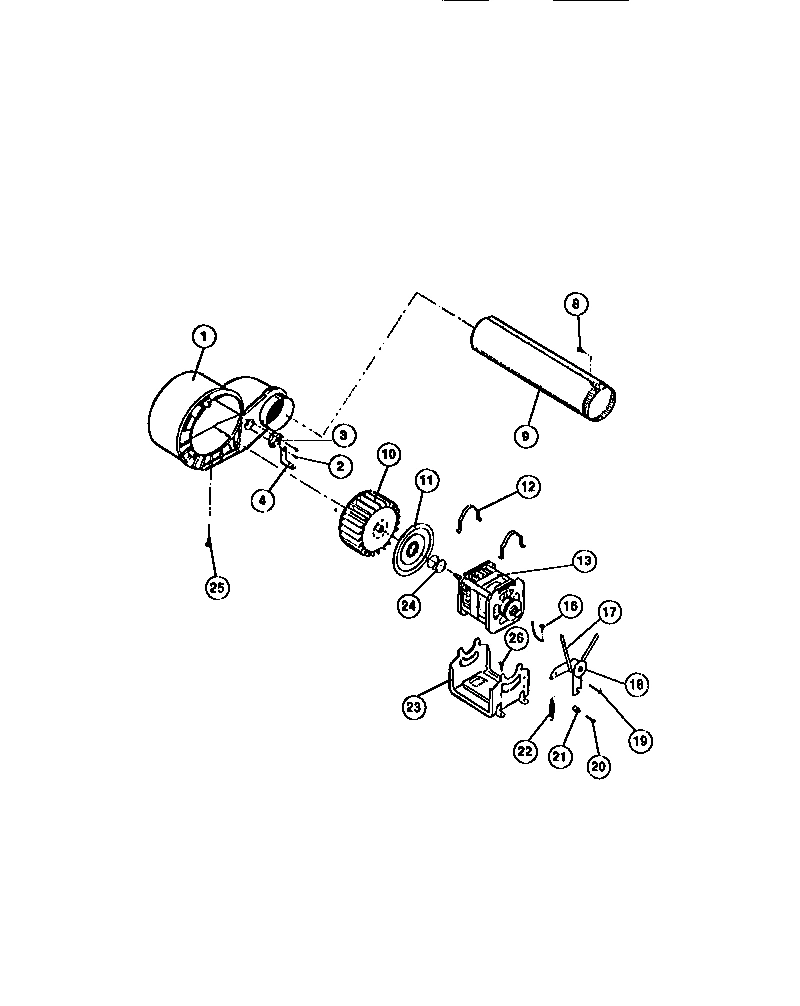

05 - MOTOR, FAN HOUSING, EXHAUST DUCT
Common parts from model Electrolux DECSFL3 DRYER
*81201
SCREW-SWITCH TO MOUNTING BRACKET WCI 3161259 Contact Us For Availability
*81202
WCI 08014340 WCI 08014340 Contact Us For Availability
*81203
WCI 3201468 WCI 3201468 Contact Us For Availability
1
WCI 3281053 WCI 3281053 Contact Us For Availability
1
BACK COVER WCI 3201322 Contact Us For Availability
1
WCI 5303270858 WCI 5303270858 Contact Us For Availability
2
WCI 3201204 WCI 3201204 Contact Us For Availability
2
SCREW WCI 3261048 Contact Us For Availability
3
HEAT SHIELD WCI 3281067 Contact Us For Availability
4
WCI 3201205 WCI 3201205 Contact Us For Availability
4
SPACER (2) WCI 3281058 Contact Us For Availability
4
WCI 5303269972 WCI 5303269972 Contact Us For Availability
5
WCI 3201207 WCI 3201207 Contact Us For Availability
6
WCI 3201051 WCI 3201051 Contact Us For Availability
7
WCI 3201326 WCI 3201326 Contact Us For Availability
8
WCI 3201465 WCI 3201465 Contact Us For Availability
9
SEAL WCI 3281049 Contact Us For Availability
9
WCI 5303269973 WCI 5303269973 Contact Us For Availability
10
WCI 5303281079 WCI 5303281079 Contact Us For Availability
10
WCI 3281018 WCI 3281018 Contact Us For Availability
11
WCI 08015173 WCI 08015173 Contact Us For Availability
11
WCI 5303281080 WCI 5303281080 Contact Us For Availability
12
WCI 5303212834 WCI 5303212834 Contact Us For Availability
12
WCI 3281089 WCI 3281089 Contact Us For Availability
12
END CAP-LEFT HAND WCI 3205874 Contact Us For Availability
13
WCI 5303283470 WCI 5303283470 Contact Us For Availability
13
CLIP, END CAP (8) WCI 08014350 Contact Us For Availability
15
CLIP-GUIDE (4) WCI 3281074 Contact Us For Availability
15
WCI 3205875 WCI 3205875 Contact Us For Availability
16
THERMOSTAT WCI 3281113 Contact Us For Availability
16
CLIP (4) WCI 3281039 Contact Us For Availability
16
TRIM KNOB AND INDICATOR ASSEMBLY WCI 08015693 Contact Us For Availability
16
WCI 3281120 WCI 3281120 Contact Us For Availability
17
SCREW (2) WCI 3281035 Contact Us For Availability
17
WCI 08010782 WCI 08010782 Contact Us For Availability
18
WCI 5303212849 WCI 5303212849 Contact Us For Availability
18
WCI 3201199 WCI 3201199 Contact Us For Availability
18
CLIP (2) WCI 3281102 Contact Us For Availability
18
SCREW (2) WCI 3205820 Contact Us For Availability
19
LINT TRAP FRAME WCI 3281060 Contact Us For Availability
19
SCREW-STOP WCI 3261230 Contact Us For Availability
20
WCI 3281059 WCI 3281059 Contact Us For Availability
20
WCI 08001544 WCI 08001544 Contact Us For Availability
20
WCI 3281073 WCI 3281073 Contact Us For Availability
21
WCI 5303281076 WCI 5303281076 Contact Us For Availability
21
SCREW (3) WCI 3281029 Contact Us For Availability
21
WCI 5308001614 WCI 5308001614 Contact Us For Availability
21
SCREW (2) WCI 3161188 Contact Us For Availability
22
SCREW (3) (SEE NOTE 1) WCI 3281027 Contact Us For Availability
22
WCI 3201210 WCI 3201210 Contact Us For Availability
22
END CAP-RIGHT HAND WCI 3205876 Contact Us For Availability
24
DOOR HINGE (2) WCI 3281050 Contact Us For Availability
24
WCI 3201473 WCI 3201473 Contact Us For Availability
24
WCI 5303281083 WCI 5303281083 Contact Us For Availability
25
SCREW (8) WCI 3281176 Contact Us For Availability
25
WCI 5303212833 WCI 5303212833 Contact Us For Availability
25
WCI 3281036 WCI 3281036 Contact Us For Availability
26
WCI 3281032 WCI 3281032 Contact Us For Availability
26
SCREW (2) WCI 08010789 Contact Us For Availability
26
WCI 3281077 WCI 3281077 Contact Us For Availability
27
WCI 3201202 WCI 3201202 Contact Us For Availability
28
SCREW (4) WCI 3010202 Contact Us For Availability
28
WCI 3201385 WCI 3201385 Contact Us For Availability
31
WCI 5303270867 WCI 5303270867 Contact Us For Availability
32
GROUND WASHER WCI 3281107 Contact Us For Availability
32
WCI 5379171000 WCI 5379171000 Contact Us For Availability
33
WCI 5303937093 WCI 5303937093 Contact Us For Availability
34
SCREW WCI 08010804 Contact Us For Availability
34
WCI 08014349 WCI 08014349 Contact Us For Availability
36
PANEL TOP-ALMOND WCI 5303273262 Contact Us For Availability
37
CLIP (2) WCI 3281192 Contact Us For Availability
× ![]()
